◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11415 - FRR AUSTRALIA EURO4 EXC.SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶
3-22 — AIR CONTROL PARTS (#19093) — 171 parça
çizim 109151
259
BalonParca AdiParca NoAdetTipApplied Date A B
259 REPAIR KIT; VALVE
THROTTLE CONTROL SYSTEM(6XH) 		1-85576-381-0 01 1 0710- ●

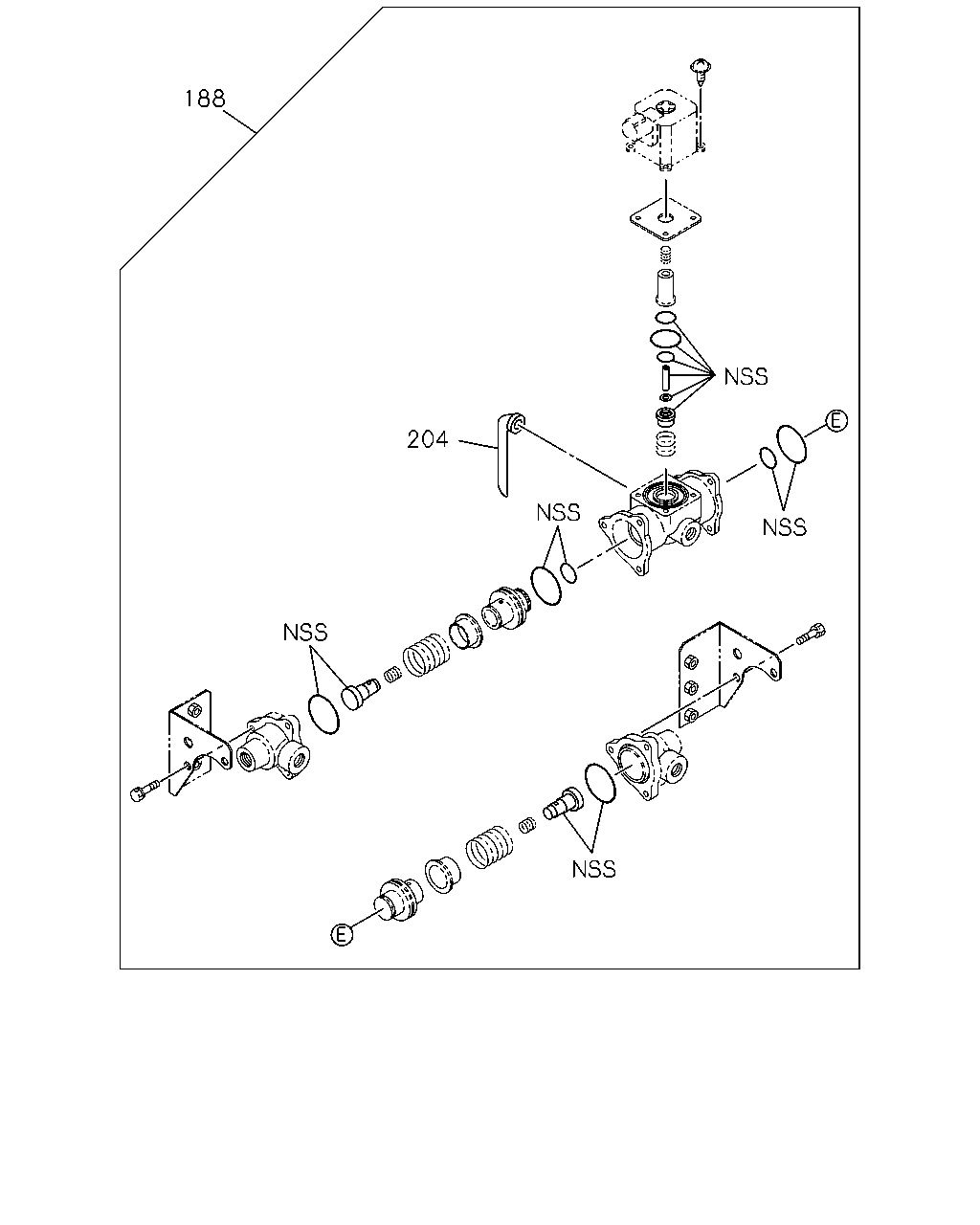

çizim 109152
188 204
BalonParca AdiParca NoAdetTipApplied Date A B
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-469-1 01 1 0710-0711 ●
188 REPAIR KIT; HSA VLV
H.S.A SYSTEM<6EP> 		1-85576-469-1 01 1 0712- ● ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0710-0711 ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0712- ● ●

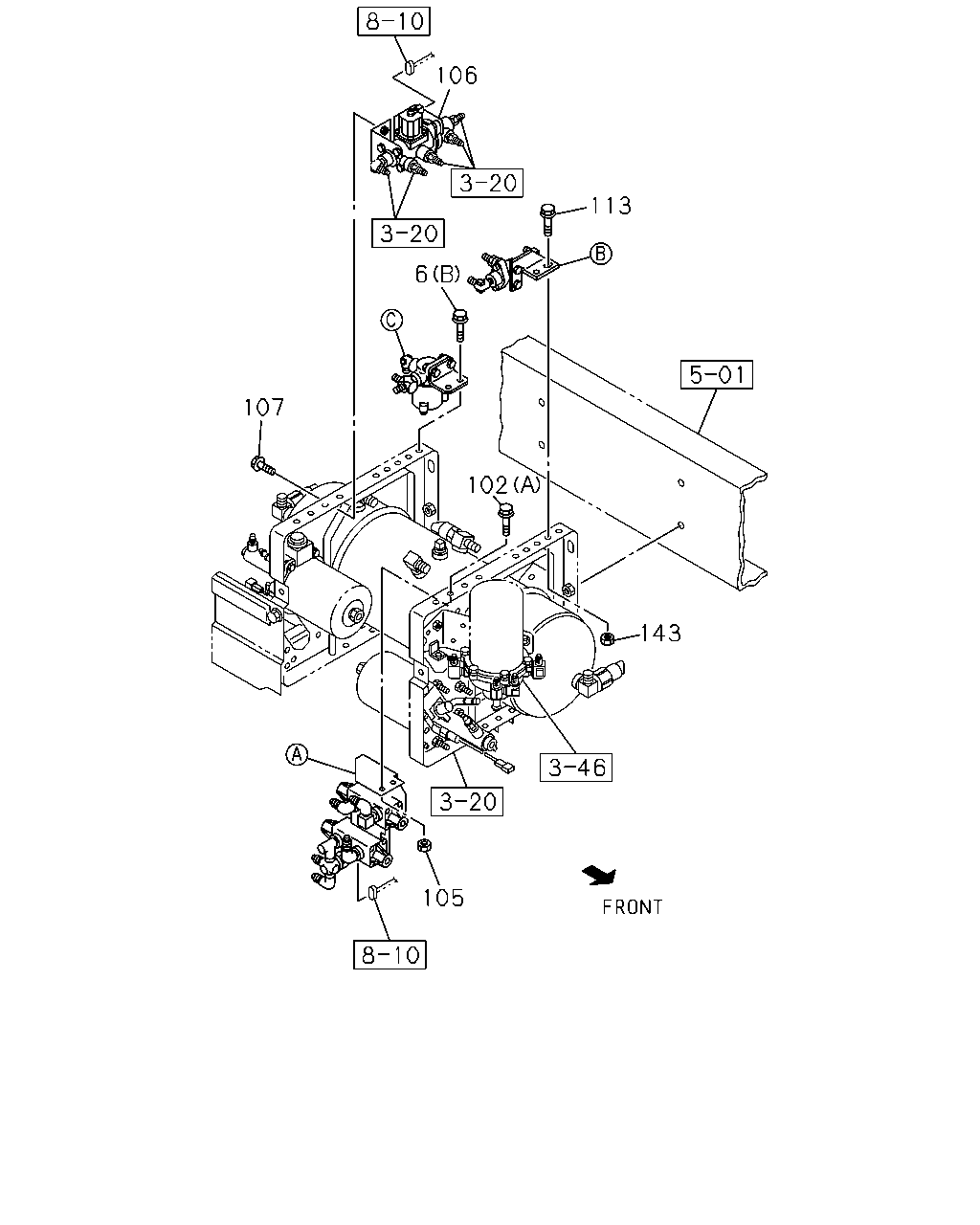

çizim 109153
106 113 6 107 102 143 105
BalonParca AdiParca NoAdetTipApplied Date A B
6 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0710- ●
6 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0710- ●
102 BOLT; PROTECTION VALVE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
102 BOLT; PROTECTION VALVE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0710 ●
102 BOLT; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0710 ●
102 BOLT; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> (B) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ●
102 BOLT; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ●
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ●
105 NUT; BRKT,VALVE
M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-147-1 01 1 0710-0711 ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-147-1 01 1 0712- ● ●
107 BOLT; VLV
H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 03 1 0710-0711 ●
107 BOLT; VLV
H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 03 1 0712- ● ●
113 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) M8X20 FLANGE 		0-28650-820-0 02 1 0710- ●
143 NUT; VLV
THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE 		0-91180-108-0 02 1 0710- ●
çizim 109155
195 201 106 189 192 204 202 190 198 203 205 196 199 200 198 205 197 201 199 201 196 203 197 200
BalonParca AdiParca NoAdetTipApplied Date A B
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-147-1 01 1 0710-0711 ●
106 VALVE; HSA
H.S.A SYSTEM<6EP> 		1-46362-147-1 01 1 0712- ● ●
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-253-0 01 1 0710-0711 ●
189 VALVE ASM; SOLENOID,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-253-0 01 1 0712- ● ●
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-192-0 01 1 0710-0711 ●
190 BODY; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-192-0 01 1 0712- ● ●
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 0710-0711 ●
192 SPRING; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-181-0 01 1 0712- ● ●
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 0710-0711 ●
195 SCREW; SOLENOID VLV,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-191-0 04 1 0712- ● ●
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-251-0 02 1 0710-0711 ●
196 PISTON; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-251-0 02 1 0712- ● ●
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 0710-0711 ●
197 SPRING; INNER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-161-0 02 1 0712- ● ●
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 0710-0711 ●
198 PIN; STRAIGHT,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-122-0 02 1 0712- ● ●
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 0710-0711 ●
199 RETAINER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-121-0 02 1 0712- ● ●
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 0710-0711 ●
200 SPRING; OUTER,HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-120-0 02 1 0712- ● ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 0710-0711 ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-118-1 02 1 0712- ● ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 0710-0711 ●
201 COVER; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-241-0 01 1 0712- ● ●
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 0710-0711 ●
202 FILTER; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-117-1 02 1 0712- ● ●
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 0710-0711 ●
203 SCREW; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-116-1 06 1 0712- ● ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0710-0711 ●
204 PIPE ASM; HSA VLV
H.S.A SYSTEM<6EP> 		1-46366-194-0 01 1 0712- ● ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 0710-0711 ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (A) 		1-46366-149-0 01 1 0712- ● ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 0710-0711 ●
205 BRACKET; HSA VLV
H.S.A SYSTEM<6EP> (B) 		1-46366-150-0 01 1 0712- ● ●

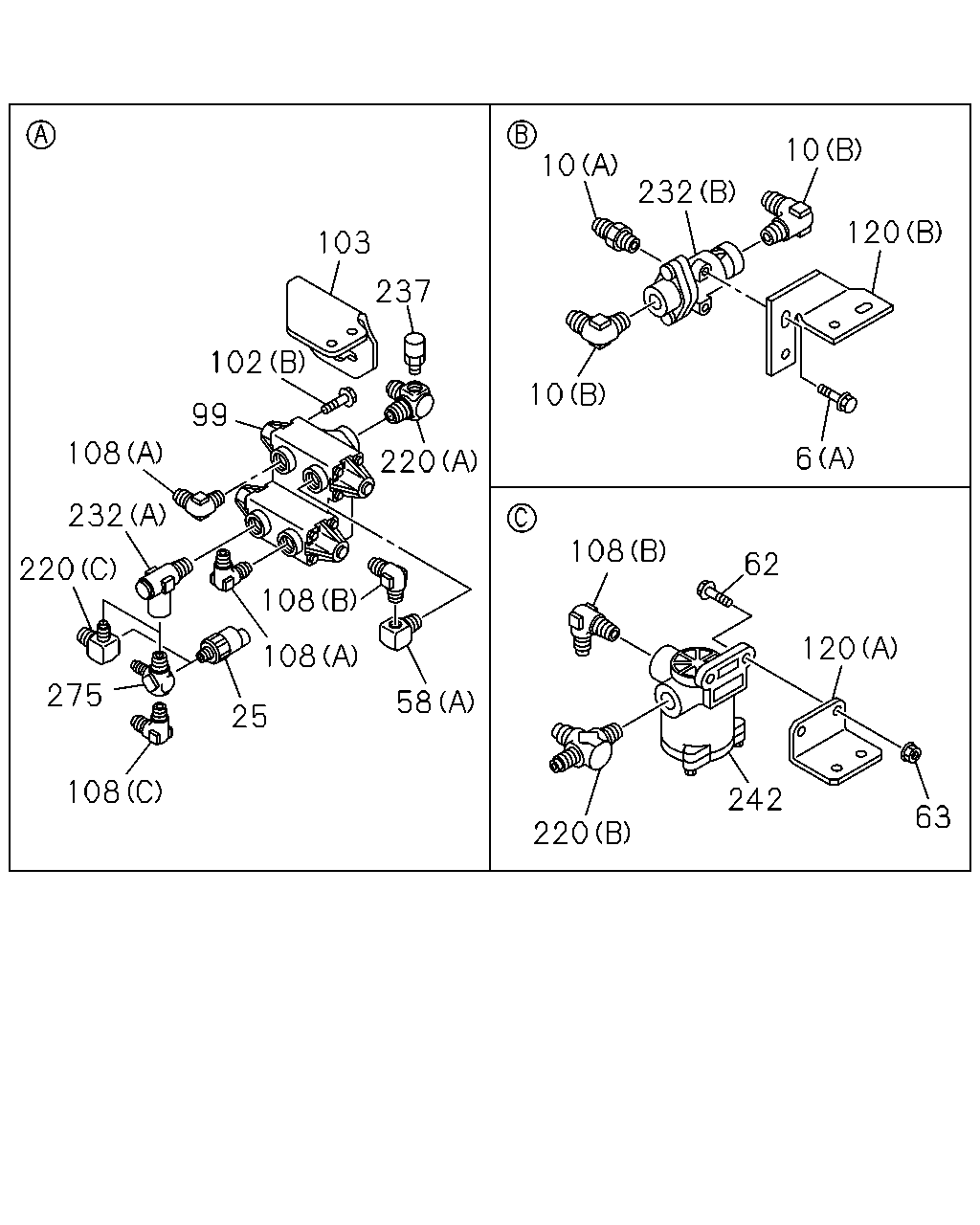

çizim 109158
10 10 232 120 103 237 102 10 99 108 6 220 232 108 62 220 108 120 108 275 58 25 108 242 63 220
BalonParca AdiParca NoAdetTipApplied Date A B
6 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0710- ●
6 BOLT; VLV
THROTTLE CONTROL SYSTEM(6XH) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0710- ●
10 CONNECTOR
THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 0710- ●
10 CONNECTOR
THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0710- ●
25 SWITCH; PRESSURE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5 		8-97609-249-0 01 1 0710-0710 ●
25 SWITCH; PRESSURE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5 		8-97609-249-0 01 1 0710-0710 ●
25 SWITCH; PRESSURE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5 		8-97609-249-0 01 1 0710-0711 ●
25 SWITCH; PRESSURE
H.S.A SYSTEM<6EP> STAMP 5.5 		8-97609-249-0 01 1 0710-0711 ●
25 SWITCH; PRESSURE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) STAMP 5.5 		8-97609-249-0 01 1 0712- ●
25 SWITCH; PRESSURE
H.S.A SYSTEM<6EP> STAMP 5.5 		8-97609-249-0 01 1 0712- ●
25 SWITCH; PRESSURE
STAMP 5.5 		8-97609-249-0 01 1 0712- ●
58 ADAPTER
(B) 		1-09661-815-0 02 1 0710-0711 ●
58 ADAPTER
(B) 		1-09661-815-0 02 1 0712- ● ●
58 ADAPTER
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-0710 ●
58 ADAPTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-0710 ●
58 ADAPTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-0711 ●
58 ADAPTER
H.S.A SYSTEM<6EP> (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-0711 ●
58 ADAPTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712- ●
58 ADAPTER
H.S.A SYSTEM<6EP> (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712- ●
58 ADAPTER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712- ●
62 BOLT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8X30 FLANGE 		0-28650-830-0 02 1 0710- ●
63 NUT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE 		0-91180-108-0 02 1 0710- ●
99 VALVE; PROTECTION
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) 		1-48110-294-0 01 1 0710-0710 ●
99 VALVE; PROTECTION
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		1-48110-294-0 01 1 0710-0710 ●
99 VALVE; PROTECTION
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		1-48110-294-0 01 1 0710-0711 ●
99 VALVE; PROTECTION
H.S.A SYSTEM<6EP> 		1-48110-294-0 01 1 0710-0711 ●
99 VALVE; PROTECTION
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		1-48110-294-2 01 1 0712- ●
99 VALVE; PROTECTION
H.S.A SYSTEM<6EP> 		1-48110-294-2 01 1 0712- ●
99 VALVE; PROTECTION 1-48110-294-2 01 1 0712- ●
102 BOLT; PROTECTION VALVE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
102 BOLT; PROTECTION VALVE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0710 ●
102 BOLT; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0710 ●
102 BOLT; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> (B) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ●
102 BOLT; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ●
102 BOLT; PROTECTION VALVE
H.S.A SYSTEM<6EP> (B) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ●
102 BOLT; PROTECTION VALVE
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ●
103 BRACKET; PROTECTION VALVE
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) 		8-98034-985-1 01 1 0710-0710 ●
103 BRACKET; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		8-98034-985-1 01 1 0710-0710 ●
103 BRACKET; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		8-98034-985-1 01 1 0710-0711 ●
103 BRACKET; PROTECTION VALVE
H.S.A SYSTEM<6EP> 		8-98034-985-1 01 1 0710-0711 ●
103 BRACKET; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		8-98034-985-1 01 1 0712-1311 ●
103 BRACKET; PROTECTION VALVE
H.S.A SYSTEM<6EP> 		8-98034-985-1 01 1 0712-1311 ●
103 BRACKET; PROTECTION VALVE 8-98034-985-1 01 1 0712-1311 ●
103 BRACKET; PROTECTION VALVE
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) 		8-98221-293-0 01 1 1312- ●
103 BRACKET; PROTECTION VALVE
H.S.A SYSTEM<6EP> 		8-98221-293-0 01 1 1312- ●
103 BRACKET; PROTECTION VALVE 8-98221-293-0 01 1 1312- ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0710- ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0710-0710 ●
108 CONNECTOR; ELBOW
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0710-0710 ●
108 CONNECTOR; ELBOW
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0710-0711 ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> (A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0710-0711 ●
108 CONNECTOR; ELBOW
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0712- ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> (A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0712- ●
108 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0712- ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0711 ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712- ●
108 CONNECTOR; ELBOW
H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712- ●
108 CONNECTOR; ELBOW
THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0710-0710 ●
108 CONNECTOR; ELBOW
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0710-0710 ●
108 CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0710-0711 ●
108 CONNECTOR; ELBOW
(B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 0712- ● ●
120 BRACKET; VLV
THROTTLE CONTROL SYSTEM(6XH) (A) 		1-48316-012-0 01 1 0710- ●
120 BRACKET; VLV
THROTTLE CONTROL SYSTEM(6XH) (B) 		8-98050-131-0 01 1 0710- ●
220 CONNECTOR; 3WAY
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98031-239-0 01 1 0710-0710 ●
220 CONNECTOR; 3WAY
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98031-239-0 01 1 0710-0710 ●
220 CONNECTOR; 3WAY
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98031-239-0 01 1 0710-0711 ●
220 CONNECTOR; 3WAY
H.S.A SYSTEM<6EP> (A) 		8-98031-239-0 01 1 0710-0711 ●
220 CONNECTOR; 3WAY
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98031-239-0 01 1 0712- ●
220 CONNECTOR; 3WAY
H.S.A SYSTEM<6EP> (A) 		8-98031-239-0 01 1 0712- ●
220 CONNECTOR; 3WAY
(A) 		8-98031-239-0 01 1 0712- ●
220 CONNECTOR; 3WAY
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (C) 		1-09656-698-0 01 1 0710-0711 ●
220 CONNECTOR; 3WAY
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (C) 		1-09656-698-0 01 1 0712- ●
220 CONNECTOR; 3WAY
EXC. H.S.A SYSTEM<6EP> (C) 		1-09656-698-0 01 1 0712- ●
220 CONNECTOR; 3WAY
THROTTLE CONTROL SYSTEM(6XH) (B) 		1-09656-331-1 01 1 0710- ●
232 VALVE; CHECK
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98032-527-0 01 1 0710-0710 ●
232 VALVE; CHECK
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98032-527-0 01 1 0710-0710 ●
232 VALVE; CHECK
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98032-527-0 01 1 0710-0711 ●
232 VALVE; CHECK
H.S.A SYSTEM<6EP> (A) 		8-98032-527-0 01 1 0710-0711 ●
232 VALVE; CHECK
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) 		8-98032-527-0 01 1 0712- ●
232 VALVE; CHECK
H.S.A SYSTEM<6EP> (A) 		8-98032-527-0 01 1 0712- ●
232 VALVE; CHECK
(A) 		8-98032-527-0 01 1 0712- ●
232 VALVE; CHECK
THROTTLE CONTROL SYSTEM(6XH) (B) 		1-48410-531-1 01 1 0710- ●
237 VALVE; SAFETY 1-48320-012-2 01 1 0710-0711 ●
237 VALVE; SAFETY 1-48320-012-2 01 1 0712- ● ●
242 VALVE; REGULATION
THROTTLE CONTROL SYSTEM(6XH) 		1-48410-723-0 01 1 0710- ●
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) 		8-98035-011-0 01 1 0710-0710 ●
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> 		8-98035-011-0 01 1 0710-0711 ●
275 CONNECTOR; 4WAY
H.S.A SYSTEM<6EP> 		8-98035-011-0 01 1 0712- ● ●

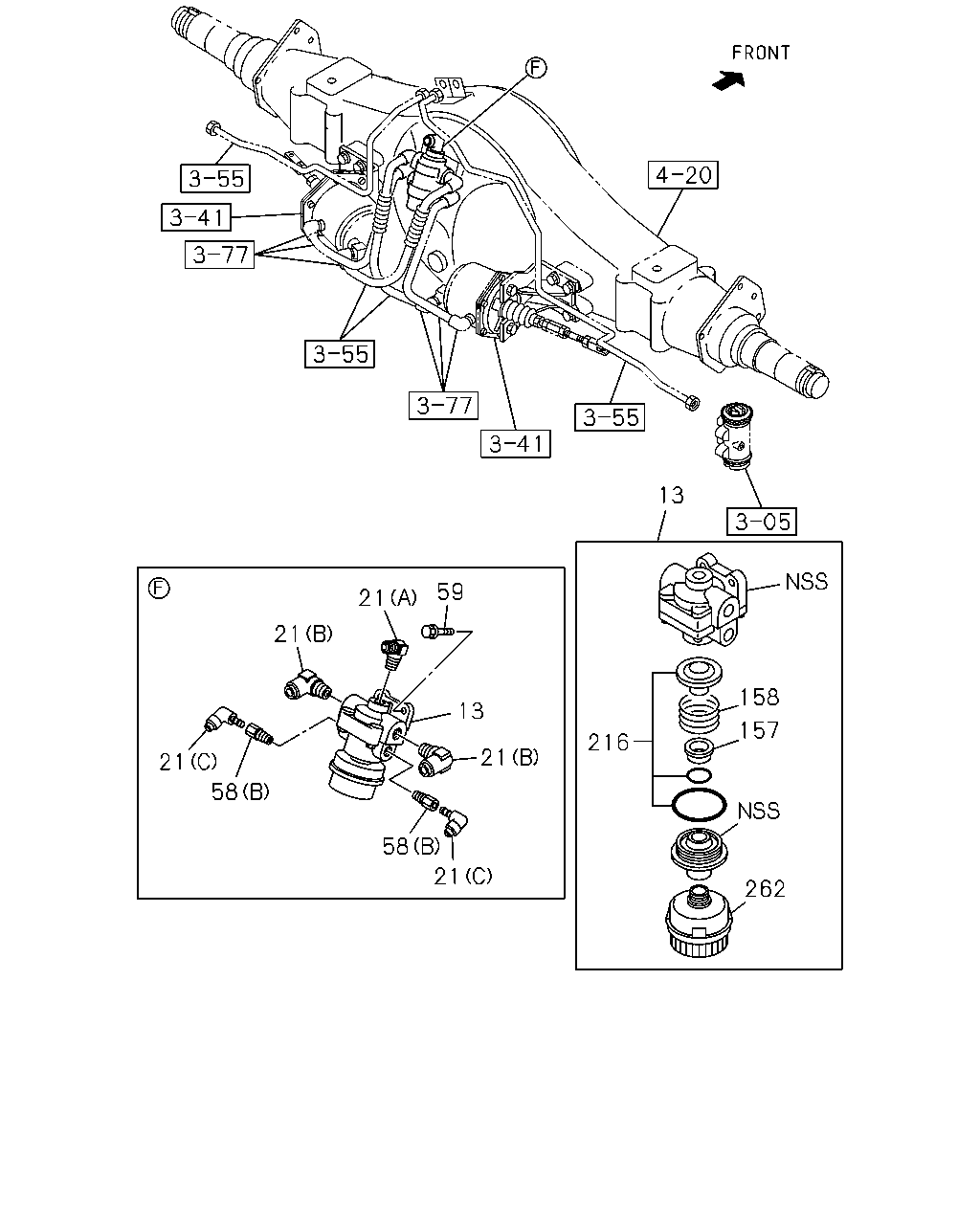

çizim 109167
13 158 157 262 216 21 58 21 13 59 21 21 21 58
BalonParca AdiParca NoAdetTipApplied Date A B
13 VALVE ASM; QUICK RELEASE 1-48410-781-2 01 1 0710-0711 ●
13 VALVE ASM; QUICK RELEASE 1-48410-781-2 01 1 0712- ● ●
21 CONNECTOR; QUICK RELEASE VLV
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0710-0711 ●
21 CONNECTOR; QUICK RELEASE VLV
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0712- ● ●
21 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-0711 ●
21 CONNECTOR; QUICK RELEASE VLV
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0712- ● ●
21 CONNECTOR; QUICK RELEASE VLV
(C) 		1-09661-816-0 02 1 0710-0711 ●
21 CONNECTOR; QUICK RELEASE VLV
(C) 		1-09661-816-0 02 1 0712- ● ●
58 ADAPTER
(B) 		1-09661-815-0 02 1 0710-0711 ●
58 ADAPTER
(B) 		1-09661-815-0 02 1 0712- ● ●
58 ADAPTER
H.S.A SYSTEM<6EP> THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-0710 ●
58 ADAPTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-0710 ●
58 ADAPTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-0711 ●
58 ADAPTER
H.S.A SYSTEM<6EP> (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-0711 ●
58 ADAPTER
EXC. H.S.A SYSTEM<6EP>,THROTTLE CONTROL SYSTEM(6XH) (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712- ●
58 ADAPTER
H.S.A SYSTEM<6EP> (A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712- ●
58 ADAPTER
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712- ●
59 BOLT; RELEASE VALVE FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0710-0711 ●
59 BOLT; RELEASE VALVE FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0906 ● ●
59 BOLT; RELEASE VALVE FIX
M8X20 FLANGE 		0-28050-820-0 02 1 0907- ● ●
157 RETAINER; VALVE 1-48419-036-0 01 1 0810- ● ●
158 SPRING; VALVE 9-48419-003-0 01 1 0810- ● ●
216 REPAIR KIT; QUICK RELEASE VLV 1-85579-062-0 01 1 0810- ● ●
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0810- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
