◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11415 - FRR AUSTRALIA EURO4 EXC.SPACECAB ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#19092) — 266 parça

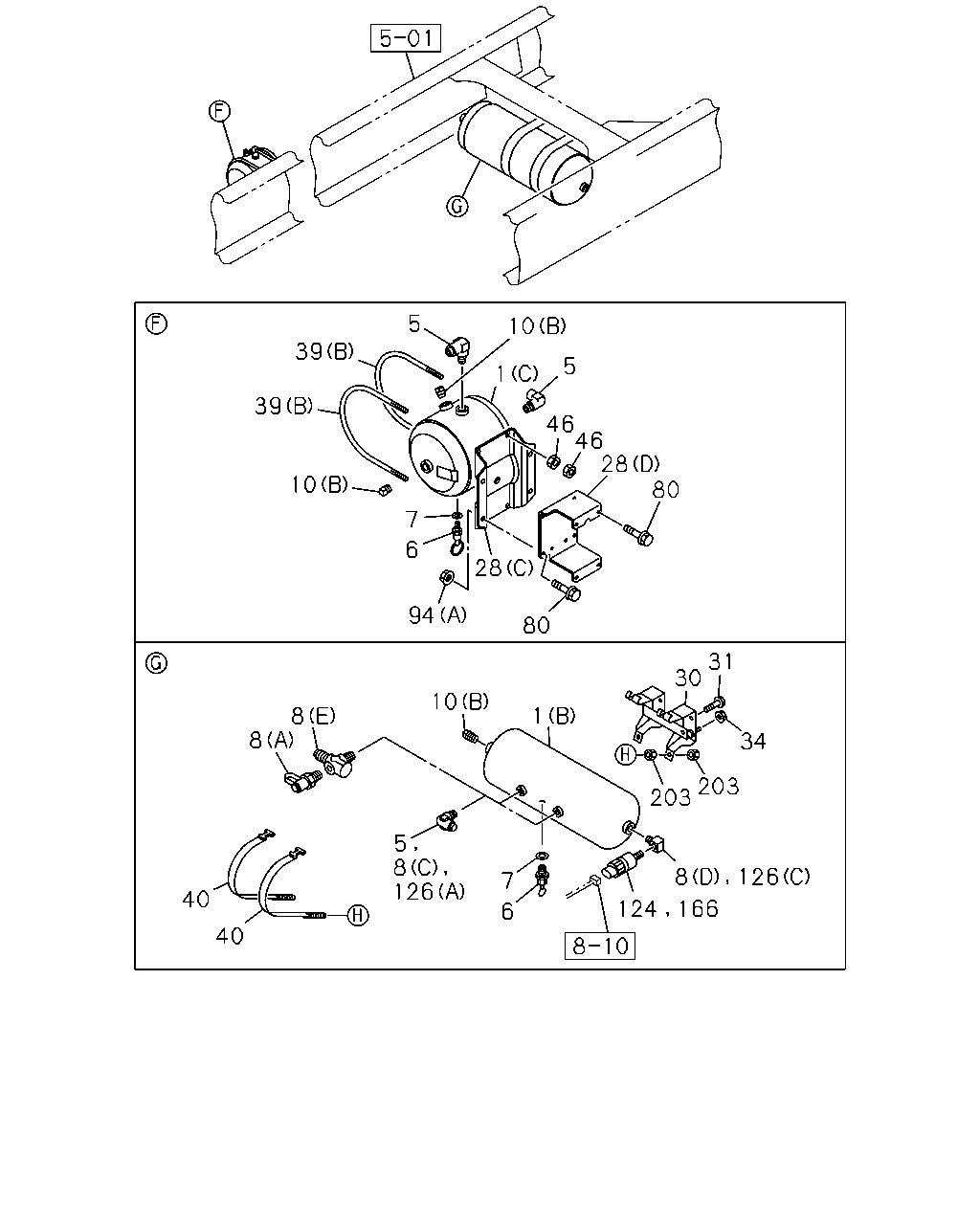

çizim 109145
5 10 39 5 1 39 46 46 28 80 10 7 6 28 94 80 31 30 10 8 1 8 34 203 203 5 8 126 8 126 7 40 124 166 6 40
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(B) 		1-48370-659-0 01 1 0710-0711 ●
1 TANK ASM; AIR
(B) 		1-48370-659-0 01 1 0712-1101 ● ●
1 TANK ASM; AIR
(B) 		8-98166-972-0 01 1 1102- ● ●
1 TANK ASM; AIR
(A) 		8-98018-795-2 01 1 0710-0711 ●
1 TANK ASM; AIR
(A) 		8-98018-795-2 01 1 0712- ● ●
1 TANK ASM; AIR
WHEEL BASE 4300MM(43W) (C) 		8-98090-803-0 01 1 0710-0710 ●
1 TANK ASM; AIR
(C) 		8-98090-803-1 01 1 0710-0711 ●
1 TANK ASM; AIR
(C) 		8-98090-803-1 01 1 0712-0906 ● ●
1 TANK ASM; AIR
(C) 		8-98081-870-1 01 1 0907- ● ●
5 UNION; AIR TANK
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710-0711 ●
5 UNION; AIR TANK
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0712-1101 ● ●
5 UNION; AIR TANK
WHEEL BASE 4300MM(43W) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0710-0710 ●
5 UNION; AIR TANK
DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0710-0711 ●
5 UNION; AIR TANK
DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 0712- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0710-0710 ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 4300MM(43W) 		1-48312-015-0 01 1 0710-0710 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0710-0711 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0710-0711 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0712- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0712- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 0710-0711 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 0712- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710-0710 ●
7 GASKET; DRAIN COCK
WHEEL BASE 4300MM(43W) ID=14 		1-09630-145-0 01 1 0710-0710 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710-0711 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710-0711 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0712- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0712- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 0710-0711 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 0712- ● ●
8 CONNECTOR; AIR TANK
(E) 		1-09656-462-1 01 1 0710-0711 ●
8 CONNECTOR; AIR TANK
(E) 		1-09656-462-1 01 1 0712- ● ●
8 CONNECTOR; AIR TANK
(B) 		1-09656-759-0 01 1 0710- ●
8 CONNECTOR; AIR TANK
(A) 		1-47459-013-0 02 1 0710-0711 ●
8 CONNECTOR; AIR TANK
(A) 		1-47459-013-1 02 1 0712- ● ●
8 CONNECTOR; AIR TANK
(A) 		1-47459-013-1 01 1 0710-0711 ●
8 CONNECTOR; AIR TANK
(A) 		1-47459-013-1 01 1 0712- ● ●
8 CONNECTOR; AIR TANK
(D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1102- ● ●
8 CONNECTOR; AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1102- ● ●
8 CONNECTOR; AIR TANK
(F) M16X2 & PT3/8 3WAY 		8-98098-590-0 01 1 0712- ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0710-0711 ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0712-1101 ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1102- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1102- ● ●
10 PLUG; AIR TANK
(A) PT3/4 		9-09204-526-0 01 1 0710-0711 ●
10 PLUG; AIR TANK
(A) PT3/4 		9-09204-526-0 01 1 0712-1101 ● ●
10 PLUG; AIR TANK
WHEEL BASE 4300MM(43W) (B) PT3/8 		9-09204-517-0 02 1 0710-0710 ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 0710-0711 ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 0712- ● ●
28 BRACKET; AIR TANK
(A) 		8-98021-918-3 01 1 0710-0711 ●
28 BRACKET; AIR TANK
(A) 		8-98021-918-5 01 1 0712- ● ●
28 BRACKET; AIR TANK
(B) 		8-98044-509-3 01 1 0710-0711 ●
28 BRACKET; AIR TANK
(B) 		8-98044-509-5 01 1 0712- ● ●
28 BRACKET; AIR TANK
(C) 		8-98100-165-1 01 1 0710-0711 ●
28 BRACKET; AIR TANK
(C) 		8-98100-165-3 01 1 0712- ● ●
28 BRACKET; AIR TANK
WHEEL BASE 4300MM(43W) (D) 		8-98090-738-0 01 1 0710-0710 ●
30 BRACKET; AIR TANK,SUB 1-48317-894-1 01 1 0710-0711 ●
30 BRACKET; AIR TANK,SUB 1-48317-894-1 01 1 0712- ● ●
31 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 02 1 0710-0711 ●
31 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 02 1 0712- ● ●
34 NUT; BRKT,AIR TANK
M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
34 NUT; BRKT,AIR TANK
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
39 U-BOLT; AIR TANK
(A) 		8-98022-041-0 02 1 0710-0711 ●
39 U-BOLT; AIR TANK
(A) 		8-98022-041-0 02 1 0712- ● ●
39 U-BOLT; AIR TANK
WHEEL BASE 4300MM(43W) (B) L=210 		1-48317-458-1 02 1 0710-0710 ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0710-0711 ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0712- ● ●
40 BAND ASM; AIR TANK 1-48317-893-1 02 1 0710-0711 ●
40 BAND ASM; AIR TANK 1-48317-893-1 02 1 0712- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0710-0710 ●
46 NUT; U-BOLT
WHEEL BASE 4300MM(43W) M8 		0-91110-508-0 08 1 0710-0710 ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0710-0711 ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0710-0711 ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0712- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0712- ● ●
80 BOLT; BRKT
WHEEL BASE 4300MM(43W) M10X30 FLANGE 		0-28651-030-0 04 1 0710-0710 ●
80 BOLT; BRKT
WHEEL BASE 4300MM(43W) M10X30 FLANGE 		0-28651-030-0 04 1 0710-0710 ●
80 BOLT; BRKT
WHEEL BASE 4300MM(43W) M10X30 FLANGE 		0-28651-030-0 03 1 0710-0710 ●
80 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 03 1 0710-0711 ●
80 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 03 1 0712- ● ●
94 NUT; BRKT FIX
(A) M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ●
94 NUT; BRKT FIX
(A) M10 FLANGE 		0-91180-210-0 04 1 0712- ● ●
94 NUT; BRKT FIX
(B) M8 FLANGE 		0-91180-108-0 04 1 0712-0906 ●
94 NUT; BRKT FIX
(B) M8 FLANGE 		0-91180-108-0 04 1 0907- ●
124 SWITCH; AIR PRESSURE 8-97615-622-0 01 1 1102- ● ●
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0710- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-0711 ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712-1101 ● ●
126 CONNECTOR; ELBOW
(B) M16 & RC1/4 STRAIGHT 		1-09660-886-0 02 1 0710-0710 ●
126 CONNECTOR; ELBOW
(D) PT1/4 2WAY 		1-09660-693-0 01 1 0712- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0712- ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK 8-97615-622-0 01 1 0710-0711 ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK 8-97615-622-0 01 1 0712-1101 ● ●
203 NUT
M8 		0-91110-508-0 04 1 0710-0711 ●
203 NUT
M8 		0-91110-508-0 04 1 0712- ● ●

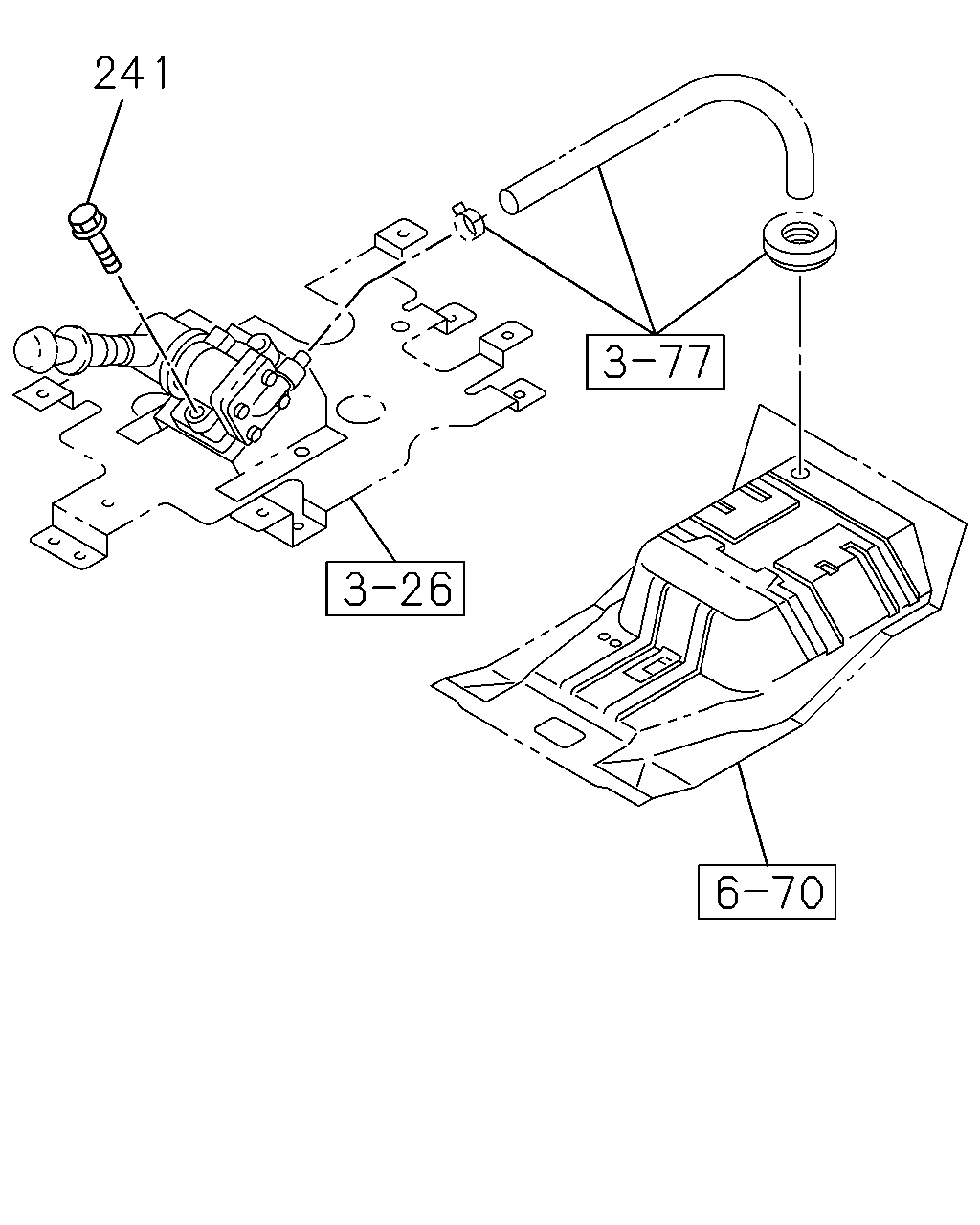

çizim 109150
241
BalonParca AdiParca NoAdetTipApplied Date A B
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 0710-0711 ●
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 0712- ● ●

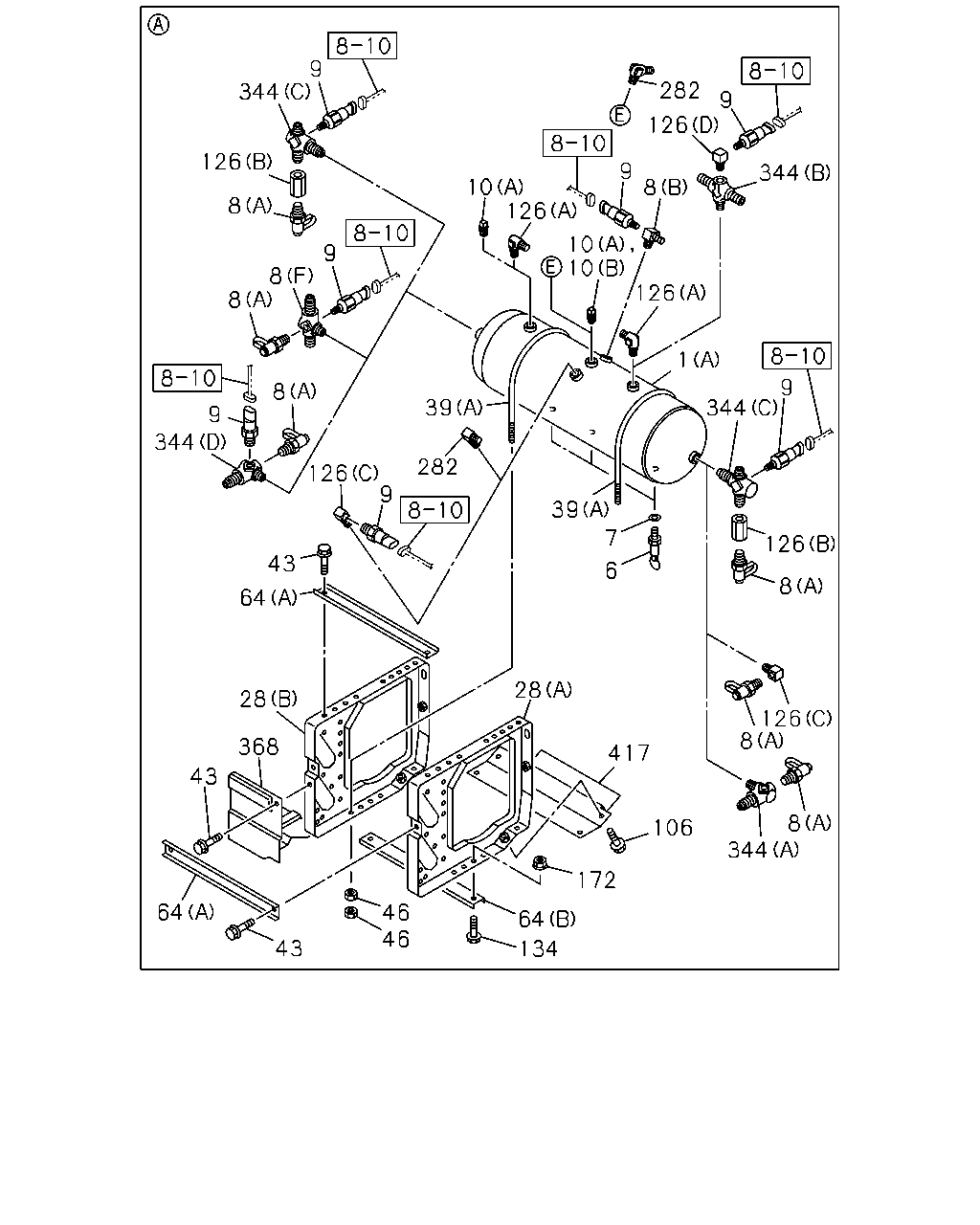

çizim 109159
9 344 282 9 126 126 9 344 10 126 8 8 10 10 9 8 126 8 1 9 344 8 39 9 344 282 126 9 39 7 126 43 6 8 64 28 28 126 8 368 417 43 8 344 106 172 64 46 46 64 43 134
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(B) 		1-48370-659-0 01 1 0710-0711 ●
1 TANK ASM; AIR
(B) 		1-48370-659-0 01 1 0712-1101 ● ●
1 TANK ASM; AIR
(B) 		8-98166-972-0 01 1 1102- ● ●
1 TANK ASM; AIR
(A) 		8-98018-795-2 01 1 0710-0711 ●
1 TANK ASM; AIR
(A) 		8-98018-795-2 01 1 0712- ● ●
1 TANK ASM; AIR
WHEEL BASE 4300MM(43W) (C) 		8-98090-803-0 01 1 0710-0710 ●
1 TANK ASM; AIR
(C) 		8-98090-803-1 01 1 0710-0711 ●
1 TANK ASM; AIR
(C) 		8-98090-803-1 01 1 0712-0906 ● ●
1 TANK ASM; AIR
(C) 		8-98081-870-1 01 1 0907- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0710-0710 ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 4300MM(43W) 		1-48312-015-0 01 1 0710-0710 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0710-0711 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0710-0711 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0712- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 0712- ● ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 0710-0711 ●
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 0712- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710-0710 ●
7 GASKET; DRAIN COCK
WHEEL BASE 4300MM(43W) ID=14 		1-09630-145-0 01 1 0710-0710 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710-0711 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0710-0711 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0712- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 0712- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 0710-0711 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 0712- ● ●
8 CONNECTOR; AIR TANK
(E) 		1-09656-462-1 01 1 0710-0711 ●
8 CONNECTOR; AIR TANK
(E) 		1-09656-462-1 01 1 0712- ● ●
8 CONNECTOR; AIR TANK
(B) 		1-09656-759-0 01 1 0710- ●
8 CONNECTOR; AIR TANK
(A) 		1-47459-013-0 02 1 0710-0711 ●
8 CONNECTOR; AIR TANK
(A) 		1-47459-013-1 02 1 0712- ● ●
8 CONNECTOR; AIR TANK
(A) 		1-47459-013-1 01 1 0710-0711 ●
8 CONNECTOR; AIR TANK
(A) 		1-47459-013-1 01 1 0712- ● ●
8 CONNECTOR; AIR TANK
(D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1102- ● ●
8 CONNECTOR; AIR TANK
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1102- ● ●
8 CONNECTOR; AIR TANK
(F) M16X2 & PT3/8 3WAY 		8-98098-590-0 01 1 0712- ●
9 SWITCH; LOW PRESSURE GAGE,AIR TANK 8-97615-622-0 03 1 0710-0711 ●
9 SWITCH; LOW PRESSURE GAGE,AIR TANK 8-97615-622-0 03 1 0712- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0710-0711 ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 0712-1101 ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1102- ● ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 01 1 1102- ● ●
10 PLUG; AIR TANK
(A) PT3/4 		9-09204-526-0 01 1 0710-0711 ●
10 PLUG; AIR TANK
(A) PT3/4 		9-09204-526-0 01 1 0712-1101 ● ●
10 PLUG; AIR TANK
WHEEL BASE 4300MM(43W) (B) PT3/8 		9-09204-517-0 02 1 0710-0710 ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 0710-0711 ●
10 PLUG; AIR TANK
(B) PT3/8 		9-09204-517-0 02 1 0712- ● ●
28 BRACKET; AIR TANK
(A) 		8-98021-918-3 01 1 0710-0711 ●
28 BRACKET; AIR TANK
(A) 		8-98021-918-5 01 1 0712- ● ●
28 BRACKET; AIR TANK
(B) 		8-98044-509-3 01 1 0710-0711 ●
28 BRACKET; AIR TANK
(B) 		8-98044-509-5 01 1 0712- ● ●
28 BRACKET; AIR TANK
(C) 		8-98100-165-1 01 1 0710-0711 ●
28 BRACKET; AIR TANK
(C) 		8-98100-165-3 01 1 0712- ● ●
28 BRACKET; AIR TANK
WHEEL BASE 4300MM(43W) (D) 		8-98090-738-0 01 1 0710-0710 ●
39 U-BOLT; AIR TANK
(A) 		8-98022-041-0 02 1 0710-0711 ●
39 U-BOLT; AIR TANK
(A) 		8-98022-041-0 02 1 0712- ● ●
39 U-BOLT; AIR TANK
WHEEL BASE 4300MM(43W) (B) L=210 		1-48317-458-1 02 1 0710-0710 ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0710-0711 ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 0712- ● ●
43 BOLT; STAY,AIR TANK,MAIN
M8X16 FLANGE 		0-28050-816-0 06 1 0710-0711 ●
43 BOLT; STAY,AIR TANK,MAIN
M8X16 FLANGE 		0-28050-816-0 06 1 0712- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0710-0710 ●
46 NUT; U-BOLT
WHEEL BASE 4300MM(43W) M8 		0-91110-508-0 08 1 0710-0710 ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0710-0711 ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0710-0711 ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0712- ● ●
46 NUT; U-BOLT
M8 		0-91110-508-0 08 1 0712- ● ●
64 STAY; AIR TANK,MAIN
(A) 		8-98044-510-3 02 1 0710-0711 ●
64 STAY; AIR TANK,MAIN
(A) 		8-98044-510-3 02 1 0712- ● ●
64 STAY; AIR TANK,MAIN
(B) 		8-98044-511-2 01 1 0710-0711 ●
64 STAY; AIR TANK,MAIN
(B) 		8-98044-511-2 01 1 0712- ● ●
106 BOLT; COVER
M8X16 FLANGE 		0-28050-816-0 04 1 0710-0711 ●
106 BOLT; COVER
M8X16 FLANGE 		0-28050-816-0 04 1 0712- ● ●
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0710- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-0711 ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0712-1101 ● ●
126 CONNECTOR; ELBOW
(B) M16 & RC1/4 STRAIGHT 		1-09660-886-0 02 1 0710-0710 ●
126 CONNECTOR; ELBOW
(D) PT1/4 2WAY 		1-09660-693-0 01 1 0712- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0712- ●
134 BOLT; COVER FIX
M8X16 FLANGE 		0-28050-816-0 04 1 0710-0711 ●
134 BOLT; COVER FIX
M8X16 FLANGE 		0-28050-816-0 04 1 0712- ● ●
172 NUT; STAY,AIR TANK,MAIN
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
172 NUT; STAY,AIR TANK,MAIN
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
282 UNION; 2 WAY
M20 & PT3/4 ELBOW 		8-98067-083-1 01 1 0710-0710 ●
282 UNION; 2 WAY
M20 & PT3/8 ELBOW 		0-92134-312-0 01 1 0710- ●
282 UNION; 2 WAY
M20 & PT3/8 ELBOW 		0-92134-312-0 02 1 0712- ●
344 CONNECTOR; 4WAY
(C) M16X2 & PT3/8 3WAY 		1-09656-718-0 02 1 0710-0710 ●
344 CONNECTOR; 4WAY
(A) 		1-09656-726-0 01 1 0710- ●
344 CONNECTOR; 4WAY
(D) 		1-09656-767-0 01 1 0710- ●
344 CONNECTOR; 4WAY
(B) 		8-98061-136-0 01 1 0712- ●
368 COVER; AIR TANK 8-98061-625-3 01 1 0710-0711 ●
368 COVER; AIR TANK 8-98061-625-3 01 1 0712- ● ●
417 COVER; HARNESS 8-98044-519-2 01 1 0710-0711 ●
417 COVER; HARNESS 8-98044-519-2 01 1 0712-0801 ● ●
417 COVER; HARNESS 8-98111-401-0 01 1 0802- ● ●

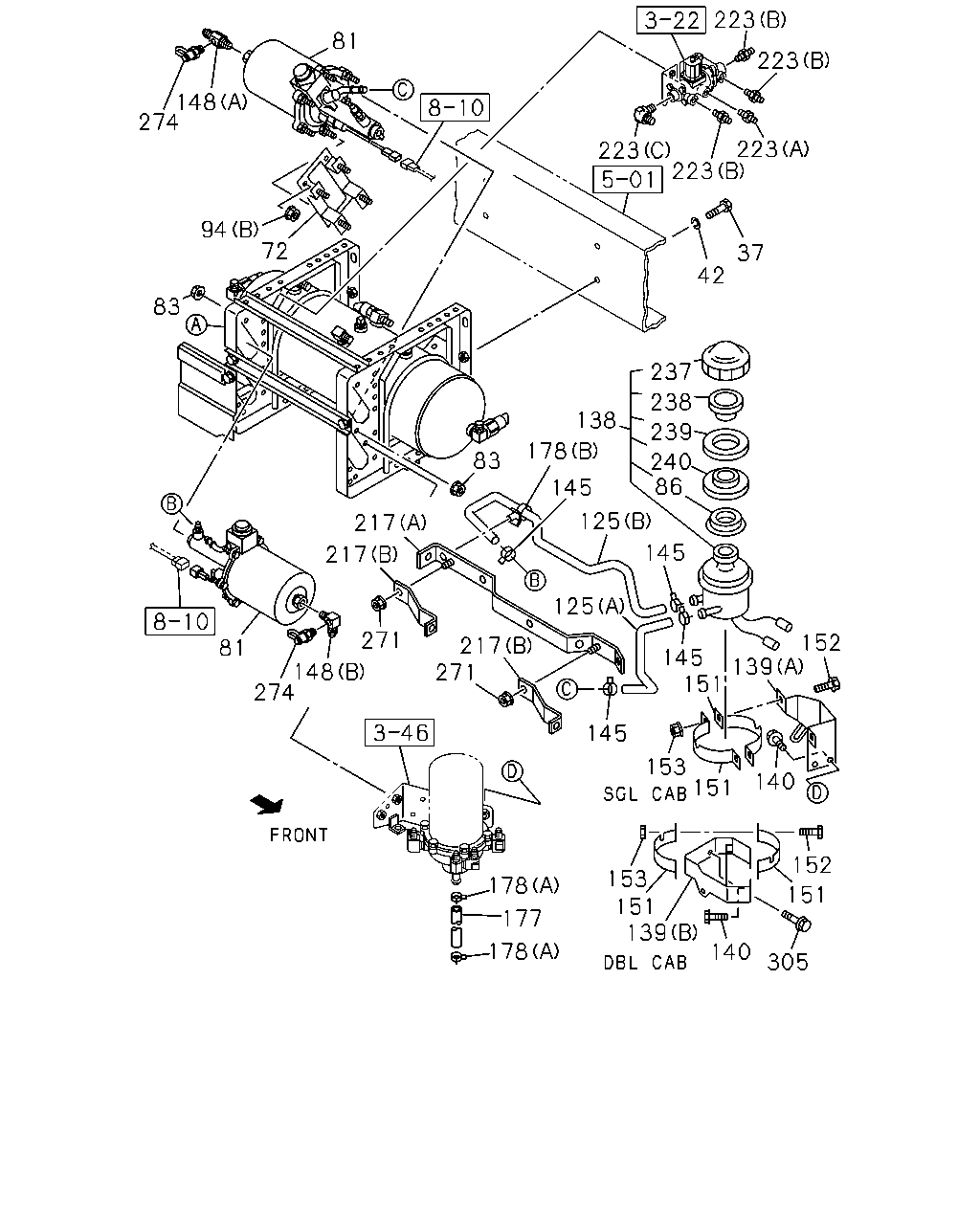

çizim 109166
223 81 223 148 274 223 223 223 94 72 37 42 83 237 238 138 239 178 83 240 86 145 125 217 145 217 125 217 271 271 152 81 145 151 139 148 274 145 153 151 140 152 153 151 139 178 151 177 178 140 305
BalonParca AdiParca NoAdetTipApplied Date A B
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 04 1 0710-0711 ●
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 04 1 0712- ● ●
42 WASHER; PL
ID=12.5 OD=32 		0-91614-712-0 04 1 0710-0711 ●
42 WASHER; PL
ID=12.5 OD=32 		0-91614-712-0 04 1 0712- ● ●
72 BRACKET; AIR MASTER 8-98092-021-0 01 1 0712-0906 ●
72 BRACKET; AIR MASTER 8-98092-021-0 01 1 0907- ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-777-0 02 1 0710-0711 ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-777-0 02 1 0712-0905 ● ●
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-826-0 02 1 0906- ● ●
83 NUT; AIR MASTER
M8 FLANGE 		0-91180-108-0 09 1 0710-0808 ●
83 NUT; AIR MASTER
M8 FLANGE 		0-91180-108-0 09 1 0809- ● ●
86 SEAL; DUST 1-47529-019-0 01 1 0710-0711 ●
86 SEAL; DUST 1-47529-019-0 01 1 0712- ● ●
94 NUT; BRKT FIX
(A) M10 FLANGE 		0-91180-210-0 04 1 0710-0711 ●
94 NUT; BRKT FIX
(A) M10 FLANGE 		0-91180-210-0 04 1 0712- ● ●
94 NUT; BRKT FIX
(B) M8 FLANGE 		0-91180-108-0 04 1 0712-0906 ●
94 NUT; BRKT FIX
(B) M8 FLANGE 		0-91180-108-0 04 1 0907- ●
125 HOSE; OIL TANK TO AIR MASTER
(A) 		8-98051-217-0 01 1 0710- ●
125 HOSE; OIL TANK TO AIR MASTER
(B) 		8-98051-218-0 01 1 0710-0711 ●
125 HOSE; OIL TANK TO AIR MASTER
(B) 		8-98051-218-1 01 1 0712- ● ●
125 HOSE; OIL TANK TO AIR MASTER
(A) 		8-98060-232-0 01 1 0712-0906 ●
125 HOSE; OIL TANK TO AIR MASTER
(A) 		8-98060-232-0 01 1 0907- ●
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 0710-0711 ●
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 0712- ● ●
139 BRACKET; OIL TANK
(A) 		8-98051-105-0 01 1 0710- ●
139 BRACKET; OIL TANK
(B) 		8-98087-847-0 01 1 0712-0906 ●
139 BRACKET; OIL TANK
(B) 		8-98087-847-0 01 1 0907- ●
140 BOLT; OIL TANK TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
140 BOLT; OIL TANK TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0712-0808 ● ●
140 BOLT; OIL TANK TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0809- ●
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 04 1 0710-0711 ●
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 04 1 0712- ● ●
148 CONNECTOR; AIR MASTER
(A) M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 0710-0711 ●
148 CONNECTOR; AIR MASTER
(A) M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 0712- ● ●
148 CONNECTOR; AIR MASTER
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 01 1 0710- ●
148 CONNECTOR; AIR MASTER
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 0712- ●
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 0710- ●
151 BAND; OIL TANK,AIR MASTER 8-97620-570-0 02 1 0712-0906 ●
151 BAND; OIL TANK,AIR MASTER 8-97620-570-0 02 1 0907- ●
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 		0-03566-300-0 01 1 0710-0711 ●
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 		0-03566-300-0 01 1 0712- ● ●
178 CLIP; HOSE
(B) ID=13-18 L=14.5 		1-09709-290-0 08 1 0710-0711 ●
178 CLIP; HOSE
(B) ID=13-18 L=14.5 		1-09709-290-0 08 1 0712- ● ●
178 CLIP; HOSE
(A) ID=21 		8-94242-034-0 02 1 0710-0711 ●
178 CLIP; HOSE
(A) ID=21 		8-94242-034-0 02 1 0712- ● ●
217 BRACKET; RUBBER HOSE
(A) 		8-98082-871-0 01 1 0710-0711 ●
217 BRACKET; RUBBER HOSE
(A) 		8-98082-871-0 01 1 0712- ● ●
217 BRACKET; RUBBER HOSE
(B) 		8-98085-273-1 02 1 0710-0711 ●
217 BRACKET; RUBBER HOSE
(B) 		8-98085-273-1 02 1 0712- ● ●
223 UNION
H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0710-0711 ●
223 UNION
H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0712- ● ●
223 UNION
H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT 		1-09650-179-1 03 1 0710-0711 ●
223 UNION
H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT 		1-09650-179-1 03 1 0712- ● ●
223 UNION
H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0710-0711 ●
223 UNION
H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0712- ● ●
237 CAP; OIL TANK 1-47525-030-0 01 1 0710-0711 ●
237 CAP; OIL TANK 1-47525-030-0 01 1 0712- ● ●
238 PLATE; BAFFLE 1-47529-022-0 01 1 0710-0711 ●
238 PLATE; BAFFLE 1-47529-022-0 01 1 0712- ● ●
239 FILTER; DUST 1-47529-017-0 01 1 0710-0711 ●
239 FILTER; DUST 1-47529-017-0 01 1 0712- ● ●
240 HOLDER; FILTER 1-47529-018-0 01 1 0710-0711 ●
240 HOLDER; FILTER 1-47529-018-0 01 1 0712- ● ●
271 NUT; BRKT,HOSE
M8 FLANGE 		0-91180-108-0 02 1 0710-0906 ●
271 NUT; BRKT,HOSE
M8 FLANGE 		0-91180-108-0 02 1 0907- ●
271 NUT; BRKT,HOSE
M8 FLANGE 		0-91180-108-0 05 1 0712-0906 ●
271 NUT; BRKT,HOSE
M8 FLANGE 		0-91180-108-0 05 1 0907- ●
274 CONNECTOR; VLV 1-47459-013-1 02 1 0710-0711 ●
274 CONNECTOR; VLV 1-47459-013-1 02 1 0712- ● ●
305 BOLT; BRKT,HOSE
M8X16 FLANGE 		0-28050-816-0 01 1 0712-0906 ●
305 BOLT; BRKT,HOSE
M8X16 FLANGE 		0-28050-816-0 01 1 0907- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
