◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10635 - FSS/FTS-LHD ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#1909) — 75 parça

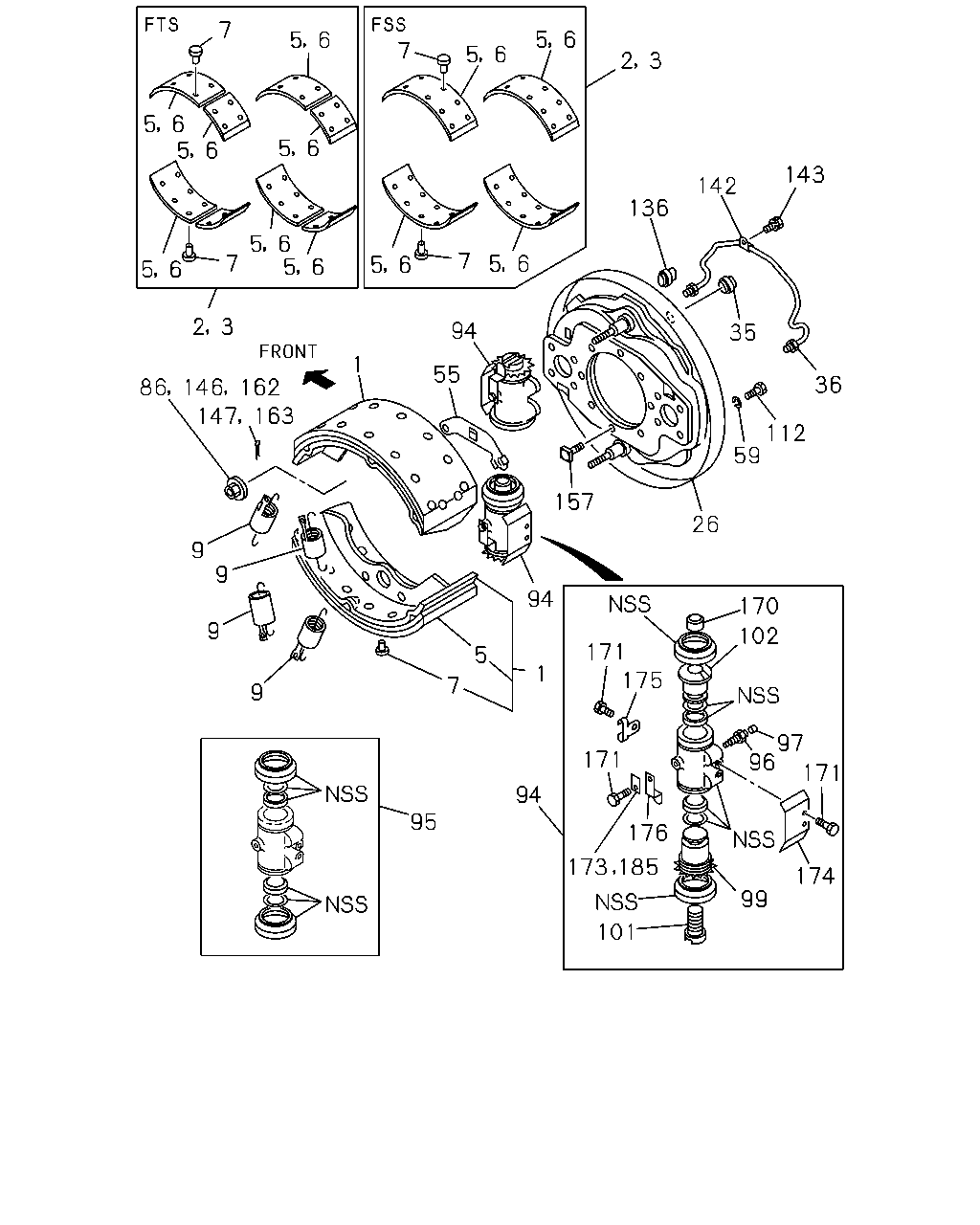

çizim 29227
7 7 5 6 5 6 5 6 2 3 6 5 6 5 5 6 143 142 136 5 6 5 7 7 5 6 5 6 6 5 6 2 3 94 35 1 55 36 86 146 162 147 163 112 59 157 26 9 9 94 170 9 102 171 5 1 175 7 9 97 96 171 171 94 95 176 174 99 101 173 185
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHOE; BRK,RR
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-47120-027-0 04 1 9207- ● ●
1 SHOE; BRK,RR
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-47110-547-0 04 1 9207- ● ●
1 SHOE; BRK,RR
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-47120-028-0 04 1 9207- ● ●
1 SHOE; BRK,RR
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-47110-403-0 04 1 9207- ● ●
2 LINING SET; RR BRK,STANDARD
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-88310-076-0 01 1 9207- ● ●
2 LINING SET; RR BRK,STANDARD
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-87870-242-0 01 1 9207- ● ●
2 LINING SET; RR BRK,STANDARD
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-88310-106-0 02 1 9207- ● ●
2 LINING SET; RR BRK,STANDARD
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-88302-648-0 02 1 9207- ● ●
3 LINING SET; RR BRK,OVER SIZE
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-88310-109-0 01 1 9207- ● ●
3 LINING SET; RR BRK,OVER SIZE
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-87870-243-0 01 1 9207- ● ●
3 LINING SET; RR BRK,OVER SIZE
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-88310-107-0 02 1 9207- ● ●
3 LINING SET; RR BRK,OVER SIZE
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-88302-649-0 02 1 9207- ● ●
5 LINING; RR BRK SHOE,STANDARD
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-47125-136-0 04 1 9207- ● ●
5 LINING; RR BRK SHOE,STANDARD
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-47115-511-0 04 1 9207- ● ●
5 LINING; RR BRK SHOE,STANDARD
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-47125-139-0 08 1 9207- ● ●
5 LINING; RR BRK SHOE,STANDARD
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-47115-394-0 08 1 9207- ● ●
6 LINING; RR BRK SHOE,OVER SIZE
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-47125-137-0 04 1 9207- ● ●
6 LINING; RR BRK SHOE,OVER SIZE
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-47115-512-0 04 1 9207- ● ●
6 LINING; RR BRK SHOE,OVER SIZE
BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-47125-140-0 08 1 9207- ● ●
6 LINING; RR BRK SHOE,OVER SIZE
EXC. BRK LINING MATERIAL L709 NON ASBESTOS<BBY> 		1-47115-395-0 08 1 9207- ● ●
7 RIVET; LINING,RR BRK
D6X11.5 		1-09732-019-0 80 1 9207- ● ●
7 RIVET; LINING,RR BRK
D6X11.5 		1-09732-019-0 96 1 9207- ● ●
9 SPRING; RETURN,BRK SHOE 1-09583-167-0 08 1 9207- ● ● ● ●
26 PLATE; BACK,RR BRK 1-47150-443-0 01 1 9207- ● ●
26 PLATE; BACK,RR BRK 1-47150-442-0 01 1 9207- ● ●
26 PLATE; BACK,RR BRK 1-47150-457-0 01 1 9207- ● ●
26 PLATE; BACK,RR BRK 1-47150-456-0 01 1 9207- ● ●
35 GROMMET; CHECK HOLE 1-09333-066-1 04 1 9207- ● ● ● ●
36 PIPE; OIL,RR BRK 1-47416-356-0 02 1 9207- ● ● ● ●
55 PLATE; LK,RR WHEEL CYL 1-47139-068-0 04 1 9207- ● ● ● ●
59 WASHER; LK,RR WHEEL CYL
ID=14.2 		9-09150-614-0 16 1 9207- ● ● ● ●
86 NUT; FLANGE 1-09440-009-0 02 1 9207- ● ●
94 CYLINDER; WHEEL,RR BRK
BACKWARD 		1-47600-589-1 01 1 9207- ● ●
94 CYLINDER; WHEEL,RR BRK
FORWARD 		1-47600-590-1 01 1 9207- ● ●
94 CYLINDER; WHEEL,RR BRK
BACKWARD 		1-47600-587-1 01 1 9207- ● ●
94 CYLINDER; WHEEL,RR BRK
FORWARD 		1-47600-588-1 01 1 9207- ● ●
94 CYLINDER; WHEEL,RR BRK
BACKWARD 		1-47600-430-2 01 1 9207- ● ●
94 CYLINDER; WHEEL,RR BRK
FORWARD 		1-47600-604-1 01 1 9207- ● ●
94 CYLINDER; WHEEL,RR BRK
BACKWARD 		1-47600-429-2 01 1 9207- ● ●
94 CYLINDER; WHEEL,RR BRK
FORWARD 		1-47600-603-1 01 1 9207- ● ●
95 CUP SET; RR WHEEL CYL 1-87830-581-0 04 1 9207- ● ●
95 CUP SET; RR WHEEL CYL 1-87830-552-0 04 1 9207- ● ●
96 SCREW; BLEEDER,RR BRK
L=44 		1-47615-007-0 02 1 9207- ● ● ● ●
97 CAP; BLEEDER,RR WHEEL CYL
OD=9.5 		9-47619-005-0 02 1 9207- ● ● ● ●
99 PISTON; RR WHEEL CYL 1-47624-223-0 02 1 9207- ● ●
99 PISTON; RR WHEEL CYL 1-47624-222-0 02 1 9207- ● ●
99 PISTON; RR WHEEL CYL 1-47624-157-0 02 1 9207- ● ●
99 PISTON; RR WHEEL CYL 1-47624-156-0 02 1 9207- ● ●
101 SCREW; ADJ,RR WHEEL CYL 1-47622-029-0 02 1 9207- ● ●
101 SCREW; ADJ,RR WHEEL CYL 1-47622-028-0 02 1 9207- ● ●
101 SCREW; ADJ,RR WHEEL CYL 1-47622-023-0 02 1 9207- ● ●
101 SCREW; ADJ,RR WHEEL CYL 1-47622-022-0 02 1 9207- ● ●
102 PISTON; REAR WHEEL CYL 1-47624-224-0 04 1 9207- ● ●
102 PISTON; REAR WHEEL CYL 1-47624-158-0 04 1 9207- ● ●
112 BOLT; WHEEL CYL SETTING 9-92361-435-0 16 1 9207- ● ● ● ●
136 GROMMET 1-09333-065-2 04 1 9207- ● ● ● ●
142 CLAMP; OIL PIPE 1-09700-454-0 02 1 9207- ● ● ● ●
143 BOLT; CLAMP,OIL PIPE
M6X10 		9-01900-610-0 02 1 9207- ● ● ● ●
146 NUT; HOLDER 1-09440-009-0 04 1 9207- ● ●
147 PIN; HOLDER
OD=1.8 L=20 		9-08112-020-0 02 1 9207- ● ●
147 PIN; HOLDER
OD=1.8 L=20 		9-08112-020-0 04 1 9207- ● ●
157 BOLT; RR BRK SET
M14X56 		1-09060-004-0 12 1 9207- ● ● ● ●
162 NUT; SHOE HOLD DOWN 1-09440-009-0 02 1 9207- ● ●
163 PIN; SPLIT,SHOE HOLD
OD=1.8 L=20 		9-08112-020-0 02 1 9207- ● ●
170 PIECE; ANCHOR,RR WHEEL CYL 1-47619-039-0 04 1 9207- ● ●
170 PIECE; ANCHOR,RR WHEEL CYL 1-47619-019-0 04 1 9207- ● ●
171 BOLT; RR WHEEL CYL
M6X10 		9-01900-610-0 12 1 9207- ● ●
171 BOLT; RR WHEEL CYL
M6X8 		0-20800-608-0 04 1 9207- ● ● ● ●
171 BOLT; RR WHEEL CYL
M8X18 W/LK WASHER 		0-50040-818-0 08 1 9207- ● ● ● ●
171 BOLT; RR WHEEL CYL
M6X10 		9-01900-610-0 08 1 9207- ● ●
173 PLATE; LK,RR WHEEL CYL 1-47169-009-0 02 1 9207- ● ● ● ●
174 COVER; CYL,RR WHEEL CYL 1-47619-016-0 04 1 9207- ● ● ● ●
175 HANGER; RR WHEEL BRK 1-47118-084-0 08 1 9207- ● ● ● ●
176 STOPPER; RR WHEEL CYL 1-47169-008-0 04 1 9207- ● ● ● ●
185 PLATE; LK,RR WHEEL CYL 1-47169-009-0 02 1 9207- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
