3-05 — REAR WHEEL BRAKE (#19089) — 160 parça

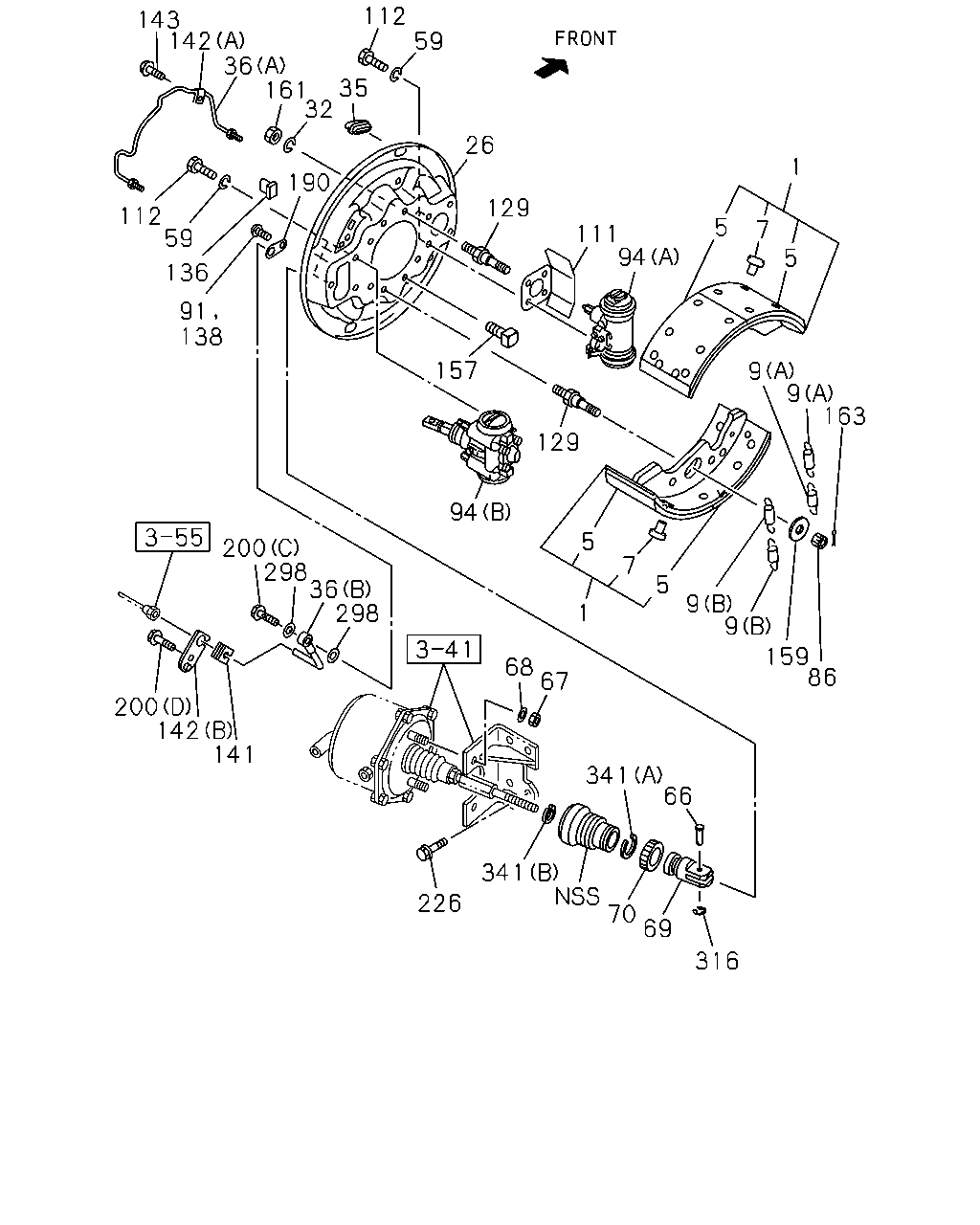

çizim 109148
143 142 36 161 32 35 112 59 26 129 111 94 5 7 1 5 9 9 163 9 9 159 86 5 7 5 1 94 129 157 190 112 59 136 91 138 200 298 36 298 200 142 141 68 67 341 66 341 226 70 69 316
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR 1-47170-485-1 04 1 0710-0711 ●
1 SHOE; BRK,RR 1-47170-485-1 04 1 0712- ● ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-802-0 08 1 0710-0711 ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-802-0 08 1 0712- ● ●
7 RIVET; LINING,RR BRK 1-09732-056-0 96 1 0710-0711 ●
7 RIVET; LINING,RR BRK 1-09732-056-0 96 1 0712-0803 ● ●
7 RIVET; LINING,RR BRK
D6X11.5 		1-09732-019-0 96 1 0804- ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-381-0 04 1 0710-0711 ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-381-1 04 1 0712- ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-382-0 04 1 0710-0711 ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-382-0 04 1 0712- ● ●
26 PLATE; BACK,RR BRK 1-47150-700-0 01 1 0710-0711 ●
26 PLATE; BACK,RR BRK 1-47150-700-0 01 1 0712-0803 ● ●
26 PLATE; BACK,RR BRK 1-47150-712-2 01 1 0804- ● ●
26 PLATE; BACK,RR BRK 1-47150-701-0 01 1 0710-0711 ●
26 PLATE; BACK,RR BRK 1-47150-701-0 01 1 0712-0803 ● ●
26 PLATE; BACK,RR BRK 1-47150-713-2 01 1 0804- ● ●
32 WASHER; LK 1-47159-110-0 04 1 0710-0711 ●
32 WASHER; LK 1-47159-110-0 04 1 0712- ● ●
35 GROMMET; CHECK HOLE 1-09333-139-0 04 1 0710-0711 ●
35 GROMMET; CHECK HOLE 1-09333-139-0 04 1 0712- ● ●
36 PIPE; OIL,RR BRK
(A) 		1-49167-857-0 01 1 0710-0711 ●
36 PIPE; OIL,RR BRK
(A) 		1-49167-857-0 01 1 0712- ● ●
36 PIPE; OIL,RR BRK
(A) 		1-49167-858-0 01 1 0710-0711 ●
36 PIPE; OIL,RR BRK
(A) 		1-49167-858-0 01 1 0712- ● ●
36 PIPE; OIL,RR BRK
(B) 		1-49167-899-0 02 1 0804-0812 ● ●
36 PIPE; OIL,RR BRK
(B) 		1-49167-905-0 02 1 0901- ● ●
59 WASHER; LK,RR WHEEL CYL
ID=12.2 		0-91510-612-0 14 1 0710-0711 ●
59 WASHER; LK,RR WHEEL CYL
ID=12.2 		0-91510-612-0 14 1 0712- ● ●
66 PIN; JAW JOINT 1-09744-129-0 02 1 0710-0711 ●
66 PIN; JAW JOINT 1-09744-129-0 02 1 0712- ● ●
67 NUT; POWER CHAMBER FIX
M16 		0-91110-516-0 04 1 0710-0711 ●
67 NUT; POWER CHAMBER FIX
M16 		0-91110-516-0 04 1 0712- ● ●
68 WASHER; LK,CHAMBER
ID=16.2 		0-91510-816-0 04 1 0710-0711 ●
68 WASHER; LK,CHAMBER
ID=16.2 		0-91510-816-0 04 1 0712- ● ●
69 JOINT; JAW 1-09768-106-0 02 1 0710-0711 ●
69 JOINT; JAW 1-09768-106-1 02 1 0712- ● ●
70 NUT; LK,JAW JOINT
M18 		0-91111-518-0 02 1 0710-0711 ●
70 NUT; LK,JAW JOINT
M18 		0-91111-518-0 02 1 0712- ● ●
86 NUT; FLANGE 1-09440-101-0 04 1 0710-0711 ●
86 NUT; FLANGE 1-09440-101-0 04 1 0712- ● ●
91 BOLT; CHAMBER
M5X10 W/LK WASHER 		0-36220-510-0 02 1 0710-0711 ●
91 BOLT; CHAMBER
M5X10 W/LK WASHER 		0-36220-510-0 02 1 0712- ● ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-166-0 02 1 0710-0711 ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-166-1 02 1 0712- ● ●
94 CYLINDER; WHEEL,RR BRK
(B) 		1-47601-167-0 02 1 0710-0711 ●
94 CYLINDER; WHEEL,RR BRK
(B) 		1-47601-167-0 02 1 0712-0803 ● ●
94 CYLINDER; WHEEL,RR BRK
(B) 		1-47601-218-0 01 1 0804- ● ●
94 CYLINDER; WHEEL,RR BRK
(B) 		1-47601-219-0 01 1 0804- ● ●
111 COVER; WHEEL CYL 1-47159-230-0 02 1 0710-0711 ●
111 COVER; WHEEL CYL 1-47159-230-0 02 1 0712- ● ●
112 BOLT; WHEEL CYL SETTING 1-47159-112-0 14 1 0710-0711 ●
112 BOLT; WHEEL CYL SETTING 1-47159-112-0 14 1 0712- ● ●
129 PIN; SHOE HOLD 1-47162-044-0 04 1 0710-0711 ●
129 PIN; SHOE HOLD 1-47162-044-0 04 1 0712- ● ●
136 GROMMET 1-09333-138-0 04 1 0710-0711 ●
136 GROMMET 1-09333-138-0 04 1 0712- ● ●
138 SCREW; LOCK PLATE
M5X10 W/LK WASHER 		0-36220-510-0 02 1 0710-0711 ●
138 SCREW; LOCK PLATE
M5X10 W/LK WASHER 		0-36220-510-0 02 1 0712- ● ●
141 PROTECTOR; RR BRK PIPE 1-09332-133-0 02 1 0804- ● ●
142 CLAMP; OIL PIPE
(A) 		1-09701-322-0 02 1 0710-0711 ●
142 CLAMP; OIL PIPE
(A) 		1-09701-322-0 02 1 0712- ● ●
142 CLAMP; OIL PIPE
(B) 		1-47619-189-0 02 1 0804- ● ●
143 BOLT; CLAMP,OIL PIPE
M6X10 		9-01900-610-0 02 1 0710-0711 ●
143 BOLT; CLAMP,OIL PIPE
M6X10 		9-01900-610-0 02 1 0712- ● ●
157 BOLT; RR BRK SET
M14X43 		1-09060-003-0 12 1 0710-0711 ●
157 BOLT; RR BRK SET
M14X43 		1-09060-003-0 12 1 0712- ● ●
159 WASHER; SHOE HOLD 1-47169-037-0 04 1 0710-0711 ●
159 WASHER; SHOE HOLD 1-47169-037-0 04 1 0712- ● ●
161 NUT; SHOE HOLD LOCK 1-47159-111-0 04 1 0710-0711 ●
161 NUT; SHOE HOLD LOCK 1-47159-111-0 04 1 0712- ● ●
163 PIN; SPLIT,SHOE HOLD
OD=1.8 L=20 		0-81122-020-0 04 1 0710-0711 ●
163 PIN; SPLIT,SHOE HOLD
OD=1.8 L=20 		0-81122-020-0 04 1 0712- ● ●
190 PLATE; LK,CONNECTOR 1-47619-032-0 04 1 0710-0711 ●
190 PLATE; LK,CONNECTOR 1-47619-032-0 04 1 0712- ● ●
200 BOLT
(A) 		1-47622-071-0 04 1 0710-0711 ●
200 BOLT
(A) 		1-47622-071-0 04 1 0712- ● ●
200 BOLT
(B) 		1-47622-072-0 02 1 0710-0711 ●
200 BOLT
(B) 		1-47622-072-0 02 1 0712- ● ●
200 BOLT
(C) 		1-47159-240-0 02 1 0804- ● ●
200 BOLT
(D) 		1-47159-241-0 02 1 0804- ● ●
226 BOLT; BRKT
M14X35 FLANGE 		0-28651-435-0 08 1 0710-0711 ●
226 BOLT; BRKT
M14X35 FLANGE 		0-28651-435-0 08 1 0712- ● ●
298 GASKET 1-47616-115-0 04 1 0804- ● ●
316 RING; SNAP
ID=9 		0-91805-509-0 02 1 0710-0711 ●
316 RING; SNAP
ID=9 		0-91805-509-0 02 1 0712- ● ●
341 SPRING; ASSIST,BOOT
(A) 		1-47616-110-0 02 1 0710-0711 ●
341 SPRING; ASSIST,BOOT
(A) 		1-47616-110-0 02 1 0712- ● ●
341 SPRING; ASSIST,BOOT
(B) 		1-47619-184-0 02 1 0710-0711 ●
341 SPRING; ASSIST,BOOT
(B) 		1-47619-184-0 02 1 0712- ● ●

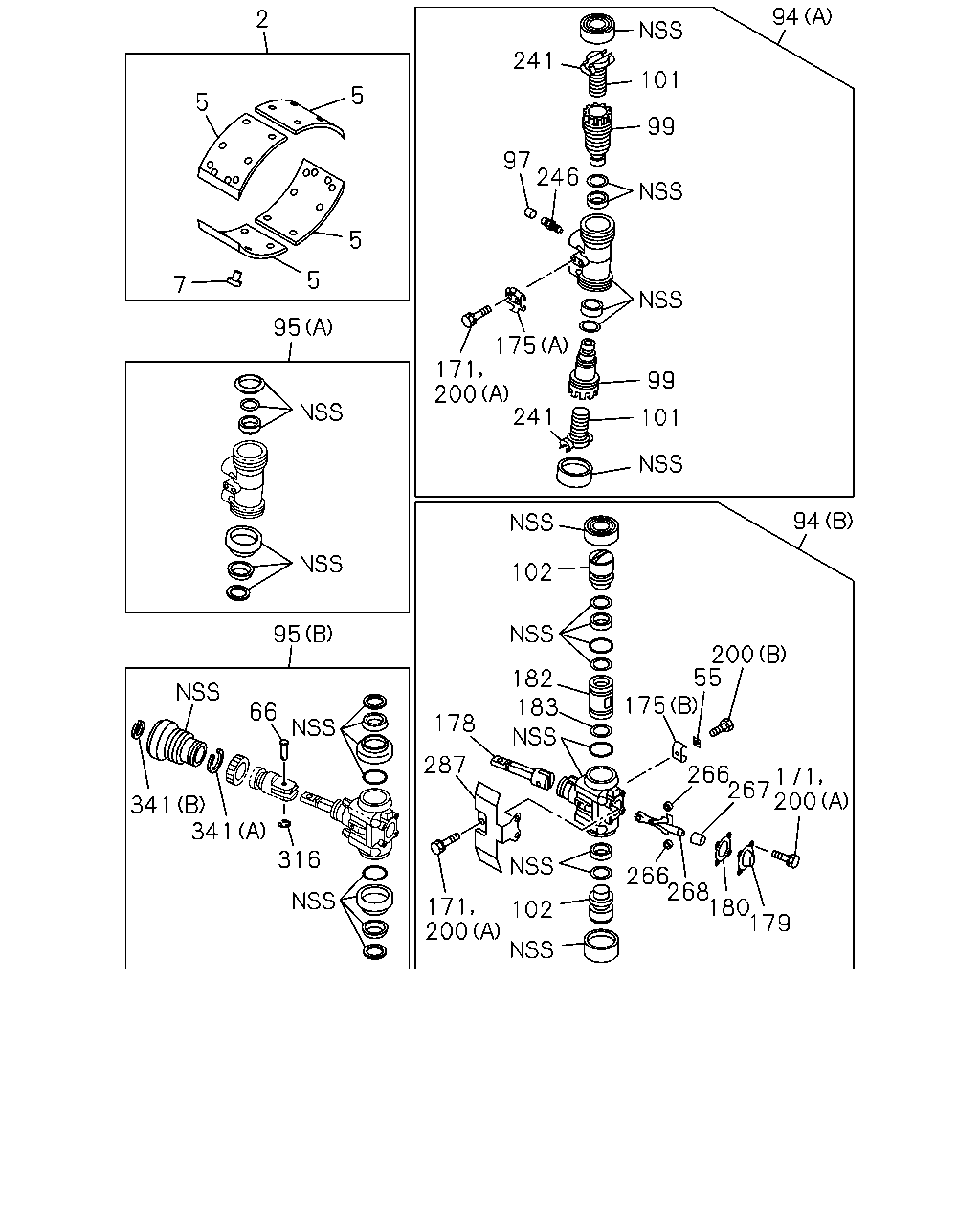

çizim 109156
2 5 5 5 5 7 95 95 66 341 341 316 200 171 102 266 268 180 179 200 267 171 266 287 178 183 182 102 175 55 200 94 101 241 200 171 175 99 246 97 241 101 99 94
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINING SET; RR BRK,STANDARD 1-88311-387-0 02 1 0710-0711 ●
2 LINING SET; RR BRK,STANDARD 1-88311-387-0 02 1 0712- ● ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-802-0 08 1 0710-0711 ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-802-0 08 1 0712- ● ●
7 RIVET; LINING,RR BRK 1-09732-056-0 96 1 0710-0711 ●
7 RIVET; LINING,RR BRK 1-09732-056-0 96 1 0712-0803 ● ●
7 RIVET; LINING,RR BRK
D6X11.5 		1-09732-019-0 96 1 0804- ● ●
55 PLATE; LK,RR WHEEL CYL 1-47622-073-0 02 1 0710-0711 ●
55 PLATE; LK,RR WHEEL CYL 1-47622-073-0 02 1 0712- ● ●
66 PIN; JAW JOINT 1-09744-129-0 02 1 0710-0711 ●
66 PIN; JAW JOINT 1-09744-129-0 02 1 0712- ● ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-166-0 02 1 0710-0711 ●
94 CYLINDER; WHEEL,RR BRK
(A) FORWARD 		1-47601-166-1 02 1 0712- ● ●
94 CYLINDER; WHEEL,RR BRK
(B) 		1-47601-167-0 02 1 0710-0711 ●
94 CYLINDER; WHEEL,RR BRK
(B) 		1-47601-167-0 02 1 0712-0803 ● ●
94 CYLINDER; WHEEL,RR BRK
(B) 		1-47601-218-0 01 1 0804- ● ●
94 CYLINDER; WHEEL,RR BRK
(B) 		1-47601-219-0 01 1 0804- ● ●
95 CUP SET; RR WHEEL CYL
(A) FORWARD 		1-87831-324-0 02 1 0710-0711 ●
95 CUP SET; RR WHEEL CYL
(A) FORWARD 		1-87831-324-0 02 1 0712- ● ●
95 CUP SET; RR WHEEL CYL
(B) BACKWARD 		1-87831-325-0 02 1 0710-0711 ●
95 CUP SET; RR WHEEL CYL
(B) BACKWARD 		1-87831-325-0 02 1 0712- ● ●
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 0710-0711 ●
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 0712- ● ●
99 PISTON; RR WHEEL CYL 1-47620-240-0 04 1 0710-0711 ●
99 PISTON; RR WHEEL CYL 1-47620-240-0 04 1 0712- ● ●
101 SCREW; ADJ,RR WHEEL CYL 1-47622-070-0 04 1 0710-0711 ●
101 SCREW; ADJ,RR WHEEL CYL 1-47622-070-0 04 1 0712- ● ●
102 PISTON; REAR WHEEL CYL 1-47620-241-0 02 1 0710-0711 ●
102 PISTON; REAR WHEEL CYL 1-47620-241-0 02 1 0712- ● ●
171 BOLT; RR WHEEL CYL 1-47622-071-0 10 1 0710-0711 ●
171 BOLT; RR WHEEL CYL 1-47622-071-0 10 1 0712- ● ●
175 HANGER; RR WHEEL BRK
(A) 		1-47619-187-0 02 1 0710-0711 ●
175 HANGER; RR WHEEL BRK
(A) 		1-47619-187-0 02 1 0712- ● ●
175 HANGER; RR WHEEL BRK
(B) 		1-47619-188-0 02 1 0710-0711 ●
175 HANGER; RR WHEEL BRK
(B) 		1-47619-188-0 02 1 0712- ● ●
178 WEDGE; RR WHEEL CYL 1-47640-013-0 02 1 0710-0711 ●
178 WEDGE; RR WHEEL CYL 1-47640-013-0 02 1 0712- ● ●
179 COVER; WEDGE,RR WHEEL CYL 1-47649-045-0 02 1 0710-0711 ●
179 COVER; WEDGE,RR WHEEL CYL 1-47649-045-0 02 1 0712- ● ●
180 GASKET; COVER,RR WHEEL CYL 1-47619-013-0 02 1 0710-0711 ●
180 GASKET; COVER,RR WHEEL CYL 1-47619-013-0 02 1 0712- ● ●
182 TAPPET; RR WHEEL CYL 1-47629-280-0 04 1 0710-0711 ●
182 TAPPET; RR WHEEL CYL 1-47629-280-0 04 1 0712- ● ●
183 GASKET; TAPPET,WHEEL CYL 1-09623-561-0 02 1 0710-0711 ●
183 GASKET; TAPPET,WHEEL CYL 1-09623-561-0 02 1 0712-0803 ● ●
183 GASKET; TAPPET,WHEEL CYL 1-09623-690-0 02 1 0804- ● ●
200 BOLT
(A) 		1-47622-071-0 04 1 0710-0711 ●
200 BOLT
(A) 		1-47622-071-0 04 1 0712- ● ●
200 BOLT
(B) 		1-47622-072-0 02 1 0710-0711 ●
200 BOLT
(B) 		1-47622-072-0 02 1 0712- ● ●
200 BOLT
(C) 		1-47159-240-0 02 1 0804- ● ●
200 BOLT
(D) 		1-47159-241-0 02 1 0804- ● ●
241 HOLDER 1-47619-097-0 04 1 0710-0711 ●
241 HOLDER 1-47619-097-0 04 1 0712- ● ●
246 BLEEDER 1-47615-018-1 02 1 0710-0711 ●
246 BLEEDER 1-47615-018-1 02 1 0712-1406 ● ●
246 BLEEDER 1-47615-009-0 02 1 1407- ● ●
266 ROLLER; WEDGE 1-47643-003-0 04 1 0710-0711 ●
266 ROLLER; WEDGE 1-47643-003-0 04 1 0712- ● ●
267 CAGE; WEDGE 1-47649-004-0 02 1 0710-0711 ●
267 CAGE; WEDGE 1-47649-004-0 02 1 0712- ● ●
268 RETAINER; WEDGE 1-47649-003-0 02 1 0710-0711 ●
268 RETAINER; WEDGE 1-47649-003-0 02 1 0712- ● ●
287 COVER 1-47619-186-0 02 1 0804- ● ●
316 RING; SNAP
ID=9 		0-91805-509-0 02 1 0710-0711 ●
316 RING; SNAP
ID=9 		0-91805-509-0 02 1 0712- ● ●
341 SPRING; ASSIST,BOOT
(A) 		1-47616-110-0 02 1 0710-0711 ●
341 SPRING; ASSIST,BOOT
(A) 		1-47616-110-0 02 1 0712- ● ●
341 SPRING; ASSIST,BOOT
(B) 		1-47619-184-0 02 1 0710-0711 ●
341 SPRING; ASSIST,BOOT
(B) 		1-47619-184-0 02 1 0712- ● ●
