◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11415 - FRR AUSTRALIA EURO4 EXC.SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#19087) — 29 parça
çizim 109135
3 3 15
BalonParca AdiParca NoAdetTipApplied Date A B
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0710-0711 ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0712- ● ●
15 LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 0710-0711 ●
15 LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 0712- ● ●

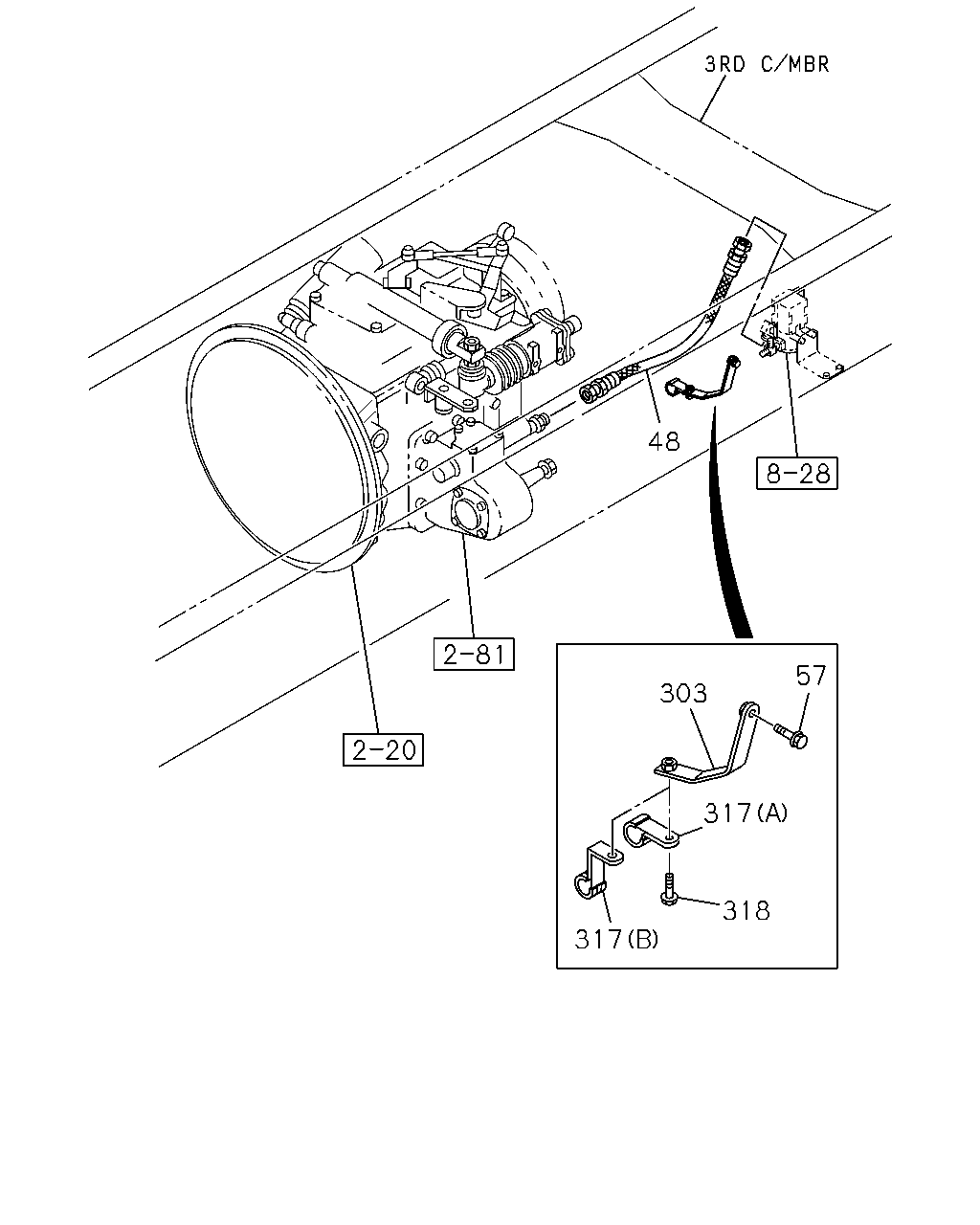

çizim 109146
48 57 303 317 318 317
BalonParca AdiParca NoAdetTipApplied Date A B
48 HOSE; FLEX,PTO
TRANSMISSION CONTROL-SMOOTHER(8GF) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=320 		1-09363-625-0 01 1 0710-0711 ●
48 HOSE; FLEX,PTO
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=320 		1-09363-625-0 01 1 0712-0803 ● ●
48 HOSE; FLEX,PTO
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) L=320 		1-09363-625-0 01 1 0804- ● ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=390 		1-09363-616-0 01 1 0710-0711 ●
48 HOSE; FLEX,PTO
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=390 		1-09363-616-0 01 1 0712-0803 ● ●
48 HOSE; FLEX,PTO
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=390 		1-09363-616-0 01 1 0804- ● ●
48 HOSE; FLEX,PTO
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=410 		1-09363-895-0 01 1 0806-0906 ●
48 HOSE; FLEX,PTO
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=410 		1-09363-895-0 01 1 0806-0906 ●
48 HOSE; FLEX,PTO
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ),MLD6Q M/T(X5J),MLD6W M/T(Y2C) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=410 		1-09363-895-0 01 1 0907- ●
48 HOSE; FLEX,PTO
6HK1-TCN ENG(82L) MZW6P M/T(RSZ),MLD6Q M/T(X5J) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=410 		1-09363-895-0 01 1 0907- ●
48 HOSE; FLEX,PTO
4HK1-TCS ENG(RJS) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) L=340 		1-09363-617-0 01 1 0907- ●
48 HOSE; FLEX,PTO
4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) L=330 		1-09363-636-0 01 1 0712-0803 ●
48 HOSE; FLEX,PTO
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) L=330 		1-09363-636-0 01 1 0804-0906 ●
48 HOSE; FLEX,PTO
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) L=330 		1-09363-636-0 01 1 0907- ●
48 HOSE; FLEX,PTO
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) L=330 		1-09363-636-0 01 1 0907- ●
48 HOSE; FLEX,PTO
6HK1-TCN ENG(82L) MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> TRANSMISSION CONTROL-SMOOTHER(8GF) L=330 		1-09363-636-0 01 1 0907- ●
48 HOSE; FLEX,PTO
4HK1-TCS ENG(RJS) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=430 		1-09363-677-0 01 1 0712-0803 ●
48 HOSE; FLEX,PTO
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=430 		1-09363-677-0 01 1 0804-0906 ●
48 HOSE; FLEX,PTO
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=430 		1-09363-677-0 01 1 0907- ●
57 BOLT; BRKT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) PTO CONTROL<SV6> M10X25 FLANGE 		0-28651-025-0 01 1 0906- ●
303 BRACKET; CLIP
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) PTO CONTROL<SV6> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98136-977-0 01 1 0906- ●
317 CLIP; NYLON TUBE
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) PTO CONTROL<SV6> (A) ID=11 L=16 		0-95235-025-0 01 1 0906-0907 ●
317 CLIP; NYLON TUBE
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) ID=15 L=22 H=30 		1-09701-215-1 01 1 0908- ●
318 BOLT; CLIP
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) PTO CONTROL<SV6> M8X16 FLANGE 		0-28050-816-0 01 1 0906-0909 ●
318 BOLT; CLIP
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 01 1 0910- ●
