◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11415 - FRR AUSTRALIA EURO4 EXC.SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#19082) — 153 parça

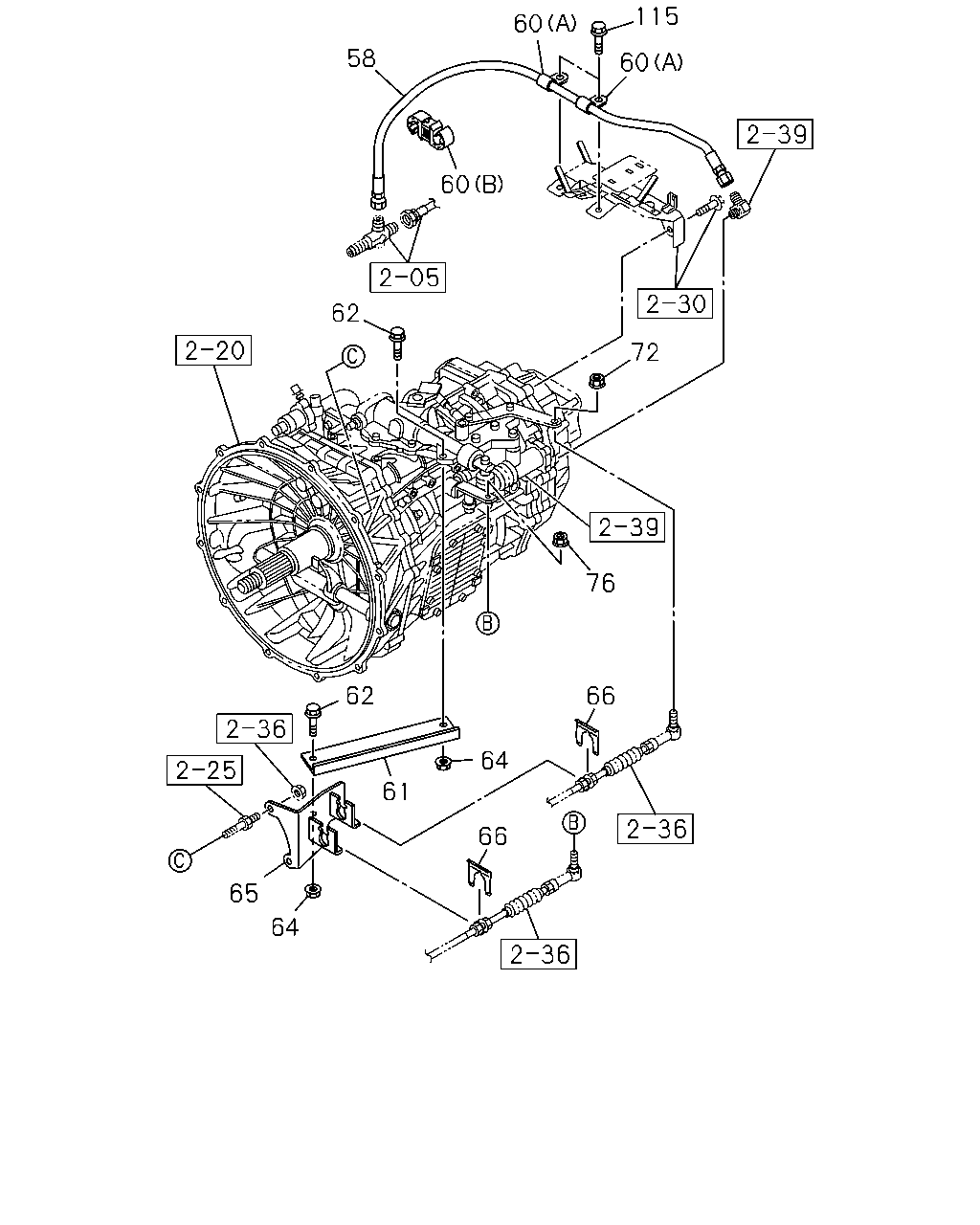

çizim 109133
115 60 58 60 60 62 72 76 62 66 64 61 66 65 64
BalonParca AdiParca NoAdetTipApplied Date A B
58 HOSE; FLEX,POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=640 		1-09363-626-1 01 1 0710-0711 ●
58 HOSE; FLEX,POWER ASSISTOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=640 		1-09363-626-1 01 1 0712-0906 ●
58 HOSE; FLEX,POWER ASSISTOR
6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=640 		1-09363-626-1 01 1 0712-0906 ●
58 HOSE; FLEX,POWER ASSISTOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=640 		1-09363-626-1 01 1 0907-1005 ●
58 HOSE; FLEX,POWER ASSISTOR
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=640 		1-09363-626-1 01 1 0907-1005 ●
58 HOSE; FLEX,POWER ASSISTOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=640 		1-09363-626-1 01 1 1006- ●
58 HOSE; FLEX,POWER ASSISTOR
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=640 		1-09363-626-1 01 1 1006- ●
58 HOSE; FLEX,POWER ASSISTOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=740 		1-09363-675-0 01 1 0806-1005 ●
58 HOSE; FLEX,POWER ASSISTOR
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=740 		1-09363-675-0 01 1 0806-1005 ●
58 HOSE; FLEX,POWER ASSISTOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=740 		1-09363-675-0 01 1 1006- ●
58 HOSE; FLEX,POWER ASSISTOR
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> L=740 		1-09363-675-0 01 1 1006- ●
58 HOSE; FLEX,POWER ASSISTOR
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=310 		1-09363-713-0 01 1 0806-1005 ●
58 HOSE; FLEX,POWER ASSISTOR
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> L=310 		1-09363-713-0 01 1 1006- ●
58 HOSE; FLEX,POWER ASSISTOR
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=290 		1-09363-875-0 01 1 0712-0906 ●
58 HOSE; FLEX,POWER ASSISTOR
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=290 		1-09363-875-0 01 1 0907-1005 ●
58 HOSE; FLEX,POWER ASSISTOR
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=290 		1-09363-875-0 01 1 1006- ●
60 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=20 		0-95235-235-0 02 1 0710-0711 ●
60 CLIP; FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=20 		0-95235-235-0 02 1 0712-0805 ●
60 CLIP; FLEX HOSE
6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=20 		0-95235-235-0 02 1 0712-0805 ●
60 CLIP; FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=20 		0-95235-235-0 02 1 0806-0906 ●
60 CLIP; FLEX HOSE
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=20 		0-95235-235-0 02 1 0806-0906 ●
60 CLIP; FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=20 		0-95235-235-0 02 1 0907-1005 ●
60 CLIP; FLEX HOSE
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=20 		0-95235-235-0 02 1 0907-1005 ●
60 CLIP; FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20 		0-95235-235-0 02 1 1006- ●
60 CLIP; FLEX HOSE
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20 		0-95235-235-0 02 1 1006- ●
60 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10 		1-09709-277-1 01 1 0710-0711 ●
60 CLIP; FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10 		1-09709-277-1 01 1 0712-0805 ●
60 CLIP; FLEX HOSE
6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10 		1-09709-277-1 01 1 0712-0805 ●
60 CLIP; FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10 		1-09709-277-1 01 1 0806-0906 ●
60 CLIP; FLEX HOSE
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10 		1-09709-277-1 01 1 0806-0906 ●
60 CLIP; FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10 		1-09709-277-1 01 1 0907-1005 ●
60 CLIP; FLEX HOSE
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10 		1-09709-277-1 01 1 0907-1005 ●
60 CLIP; FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10 		1-09709-277-1 01 1 1006- ●
60 CLIP; FLEX HOSE
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10 		1-09709-277-1 01 1 1006- ●
60 CLIP; FLEX HOSE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11.8 & 7.5 		1-09709-182-0 01 1 0712-0805 ●
60 CLIP; FLEX HOSE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11.8 & 7.5 		1-09709-182-0 01 1 0806-0906 ●
60 CLIP; FLEX HOSE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11.8 & 7.5 		1-09709-182-0 01 1 0907-1005 ●
60 CLIP; FLEX HOSE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> (C) ID=11.8 & 7.5 		1-09709-182-0 01 1 1006- ●
61 STAY; BRKT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-267-0 01 1 0710-0711 ●
61 STAY; BRKT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-267-0 01 1 0712-0805 ● ●
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-267-0 01 1 0806-0906 ● ●
61 STAY; BRKT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-267-0 01 1 0806-0906 ● ●
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-267-0 01 1 0907- ● ●
61 STAY; BRKT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-267-0 01 1 0907- ● ●
61 STAY; BRKT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 0806- ● ●
61 STAY; BRKT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-349-0 01 1 0806- ●
62 BOLT; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0711 ●
62 BOLT; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 0712-0805 ● ●
62 BOLT; STAY
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 0806-0906 ● ●
62 BOLT; STAY
MLD6Q M/T(X5J),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 02 1 0806-0906 ● ●
62 BOLT; STAY
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 0907- ● ●
62 BOLT; STAY
MLD6Q M/T(X5J),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 02 1 0907- ● ●
62 BOLT; STAY
MLD6Q M/T(X5J),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 01 1 0806- ● ●
64 NUT; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
64 NUT; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98017-428-0 01 1 0710-0711 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98017-428-0 01 1 0712-0906 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98017-428-0 01 1 0907- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		8-98010-159-0 01 1 0710-0711 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		8-98010-159-0 01 1 0712-0906 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		8-98010-159-0 01 1 0907- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-831-0 01 1 0806- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		8-98117-611-0 01 1 0806- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98114-752-1 01 1 0806- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98090-822-0 01 1 0712-0906 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98090-822-0 01 1 0907- ●
66 CLIP; SELECT BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=22.2 		1-09701-209-1 02 1 0710-0711 ●
66 CLIP; SELECT BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=22.2 		1-09701-209-1 02 1 0712- ● ●
72 NUT; TRANS CONT,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0710-0711 ●
72 NUT; TRANS CONT,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0712- ● ●
76 NUT; BALL JOINT,SELECT WIRE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0710-0711 ●
76 NUT; BALL JOINT,SELECT WIRE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0712- ● ●
115 BOLT; CLIP
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ●
115 BOLT; CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE 		0-28050-816-0 02 1 0712-0805 ●
115 BOLT; CLIP
6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE 		0-28050-816-0 02 1 0712-0805 ●
115 BOLT; CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE 		0-28050-816-0 02 1 0806-0906 ●
115 BOLT; CLIP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE 		0-28050-816-0 02 1 0806-0906 ●
115 BOLT; CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE 		0-28050-816-0 02 1 0907-1005 ●
115 BOLT; CLIP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE 		0-28050-816-0 02 1 0907-1005 ●
115 BOLT; CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 02 1 1006- ●
115 BOLT; CLIP
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 02 1 1006- ●

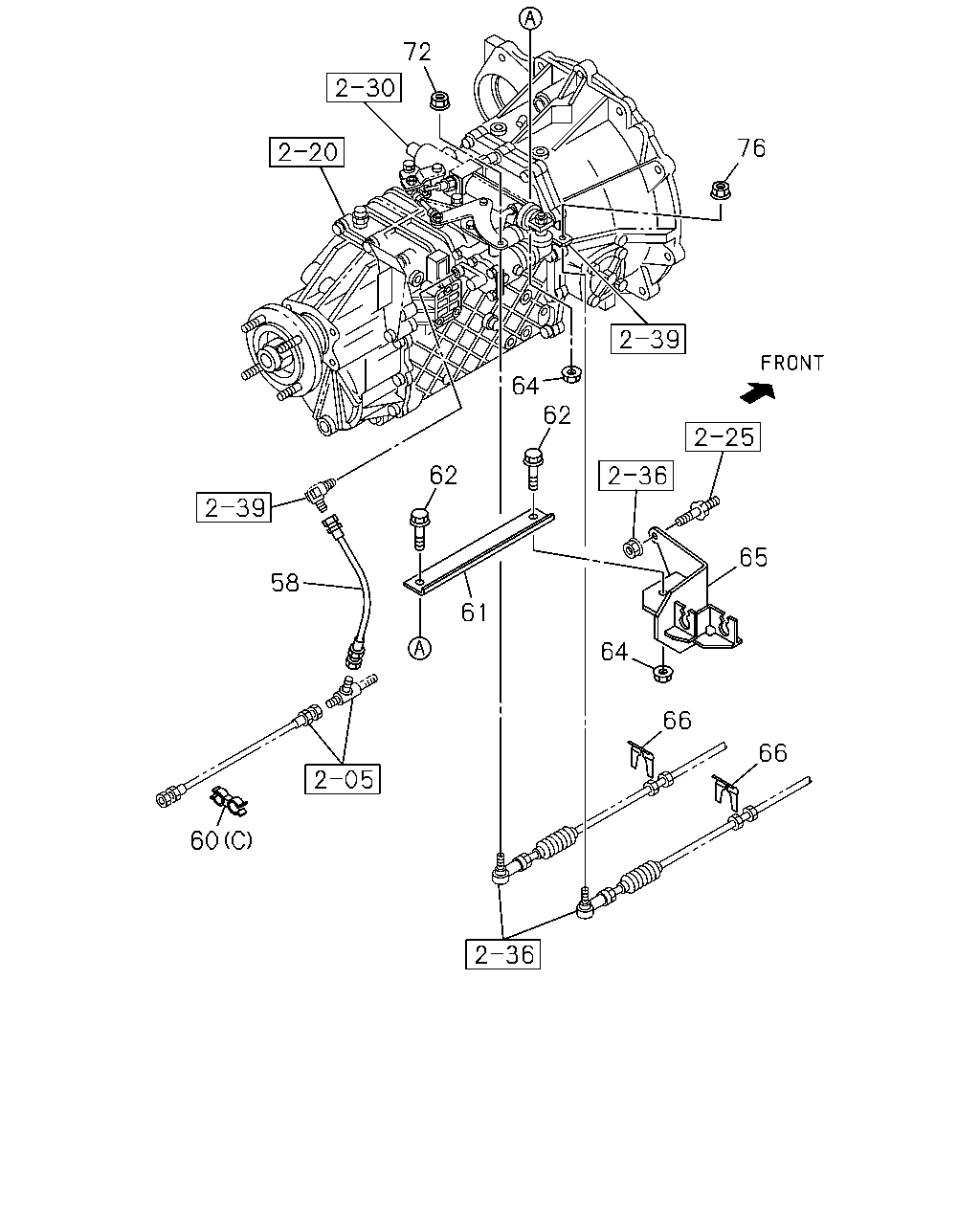

çizim 109141
72 76 64 62 62 65 58 61 64 66 66 60
BalonParca AdiParca NoAdetTipApplied Date A B
58 HOSE; FLEX,POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=640 		1-09363-626-1 01 1 0710-0711 ●
58 HOSE; FLEX,POWER ASSISTOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=640 		1-09363-626-1 01 1 0712-0906 ●
58 HOSE; FLEX,POWER ASSISTOR
6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=640 		1-09363-626-1 01 1 0712-0906 ●
58 HOSE; FLEX,POWER ASSISTOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=640 		1-09363-626-1 01 1 0907-1005 ●
58 HOSE; FLEX,POWER ASSISTOR
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=640 		1-09363-626-1 01 1 0907-1005 ●
58 HOSE; FLEX,POWER ASSISTOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=640 		1-09363-626-1 01 1 1006- ●
58 HOSE; FLEX,POWER ASSISTOR
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=640 		1-09363-626-1 01 1 1006- ●
58 HOSE; FLEX,POWER ASSISTOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=740 		1-09363-675-0 01 1 0806-1005 ●
58 HOSE; FLEX,POWER ASSISTOR
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=740 		1-09363-675-0 01 1 0806-1005 ●
58 HOSE; FLEX,POWER ASSISTOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=740 		1-09363-675-0 01 1 1006- ●
58 HOSE; FLEX,POWER ASSISTOR
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> L=740 		1-09363-675-0 01 1 1006- ●
58 HOSE; FLEX,POWER ASSISTOR
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=310 		1-09363-713-0 01 1 0806-1005 ●
58 HOSE; FLEX,POWER ASSISTOR
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> L=310 		1-09363-713-0 01 1 1006- ●
58 HOSE; FLEX,POWER ASSISTOR
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=290 		1-09363-875-0 01 1 0712-0906 ●
58 HOSE; FLEX,POWER ASSISTOR
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) L=290 		1-09363-875-0 01 1 0907-1005 ●
58 HOSE; FLEX,POWER ASSISTOR
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=290 		1-09363-875-0 01 1 1006- ●
60 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=20 		0-95235-235-0 02 1 0710-0711 ●
60 CLIP; FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=20 		0-95235-235-0 02 1 0712-0805 ●
60 CLIP; FLEX HOSE
6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=20 		0-95235-235-0 02 1 0712-0805 ●
60 CLIP; FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=20 		0-95235-235-0 02 1 0806-0906 ●
60 CLIP; FLEX HOSE
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=20 		0-95235-235-0 02 1 0806-0906 ●
60 CLIP; FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=20 		0-95235-235-0 02 1 0907-1005 ●
60 CLIP; FLEX HOSE
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=13 L=20 		0-95235-235-0 02 1 0907-1005 ●
60 CLIP; FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20 		0-95235-235-0 02 1 1006- ●
60 CLIP; FLEX HOSE
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 L=20 		0-95235-235-0 02 1 1006- ●
60 CLIP; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10 		1-09709-277-1 01 1 0710-0711 ●
60 CLIP; FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10 		1-09709-277-1 01 1 0712-0805 ●
60 CLIP; FLEX HOSE
6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10 		1-09709-277-1 01 1 0712-0805 ●
60 CLIP; FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10 		1-09709-277-1 01 1 0806-0906 ●
60 CLIP; FLEX HOSE
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10 		1-09709-277-1 01 1 0806-0906 ●
60 CLIP; FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10 		1-09709-277-1 01 1 0907-1005 ●
60 CLIP; FLEX HOSE
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=10 & 10 		1-09709-277-1 01 1 0907-1005 ●
60 CLIP; FLEX HOSE
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10 		1-09709-277-1 01 1 1006- ●
60 CLIP; FLEX HOSE
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> (B) ID=10 & 10 		1-09709-277-1 01 1 1006- ●
60 CLIP; FLEX HOSE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11.8 & 7.5 		1-09709-182-0 01 1 0712-0805 ●
60 CLIP; FLEX HOSE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11.8 & 7.5 		1-09709-182-0 01 1 0806-0906 ●
60 CLIP; FLEX HOSE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11.8 & 7.5 		1-09709-182-0 01 1 0907-1005 ●
60 CLIP; FLEX HOSE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> (C) ID=11.8 & 7.5 		1-09709-182-0 01 1 1006- ●
61 STAY; BRKT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-267-0 01 1 0710-0711 ●
61 STAY; BRKT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-267-0 01 1 0712-0805 ● ●
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-267-0 01 1 0806-0906 ● ●
61 STAY; BRKT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-267-0 01 1 0806-0906 ● ●
61 STAY; BRKT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-267-0 01 1 0907- ● ●
61 STAY; BRKT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-267-0 01 1 0907- ● ●
61 STAY; BRKT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-349-0 01 1 0806- ● ●
61 STAY; BRKT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33657-349-0 01 1 0806- ●
62 BOLT; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0711 ●
62 BOLT; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 0712-0805 ● ●
62 BOLT; STAY
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 0806-0906 ● ●
62 BOLT; STAY
MLD6Q M/T(X5J),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 02 1 0806-0906 ● ●
62 BOLT; STAY
MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X30 FLANGE 		0-28651-030-0 02 1 0907- ● ●
62 BOLT; STAY
MLD6Q M/T(X5J),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 02 1 0907- ● ●
62 BOLT; STAY
MLD6Q M/T(X5J),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> M10X30 FLANGE 		0-28651-030-0 01 1 0806- ● ●
64 NUT; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
64 NUT; STAY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98017-428-0 01 1 0710-0711 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98017-428-0 01 1 0712-0906 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98017-428-0 01 1 0907- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		8-98010-159-0 01 1 0710-0711 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		8-98010-159-0 01 1 0712-0906 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		8-98010-159-0 01 1 0907- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33657-831-0 01 1 0806- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ASSISTOR SHIFT CONTROL<WX8> 		8-98117-611-0 01 1 0806- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98114-752-1 01 1 0806- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98090-822-0 01 1 0712-0906 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98090-822-0 01 1 0907- ●
66 CLIP; SELECT BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=22.2 		1-09701-209-1 02 1 0710-0711 ●
66 CLIP; SELECT BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=22.2 		1-09701-209-1 02 1 0712- ● ●
72 NUT; TRANS CONT,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0710-0711 ●
72 NUT; TRANS CONT,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0712- ● ●
76 NUT; BALL JOINT,SELECT WIRE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0710-0711 ●
76 NUT; BALL JOINT,SELECT WIRE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
