◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11415 - FRR AUSTRALIA EURO4 EXC.SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#19081) — 328 parça
çizim 109118
487 474 6 3 221 474 225 199 1 291 293 3 3 43 1 1 293 291 293 297 291 282 291
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3555 		8-98119-253-3 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3555 		8-98119-253-3 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98121-049-5 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98121-049-5 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-0 01 1 0710-0711 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-0 01 1 0710-0711 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=2995 		8-98115-153-3 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3050 		8-98133-219-2 01 1 0902- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3035 		8-98119-254-0 01 1 0806-0901 ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3035 		8-98119-254-3 01 1 0902- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=2950 		8-98010-422-3 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=2950 		8-98010-422-4 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3005 		8-98133-212-2 01 1 0902-0906 ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3005 		8-98133-212-2 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2990 		8-98077-959-0 01 1 0712-0901 ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=2990 		8-98077-959-3 01 1 0902-0906 ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=2990 		8-98077-959-3 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3665 		8-98119-261-2 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3665 		8-98119-261-2 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3690 		8-98121-050-4 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3690 		8-98121-050-4 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-0 01 1 0710-0711 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-0 01 1 0710-0711 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3195 		8-98114-742-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3250 		8-98133-226-2 01 1 0902- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3215 		8-98119-262-0 01 1 0806-0901 ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3215 		8-98119-262-3 01 1 0902- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3085 		8-98010-462-4 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3085 		8-98010-462-5 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3140 		8-98133-220-2 01 1 0902-0906 ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3140 		8-98133-220-2 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3105 		8-98077-961-1 01 1 0712-0901 ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3105 		8-98077-961-4 01 1 0902-0906 ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3105 		8-98077-961-4 01 1 0907- ●
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0710-0711 ●
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0712- ● ●
43 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
43 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
43 NUT; BRKT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8 FLANGE 		0-91180-108-0 02 1 0712-0805 ●
43 NUT; BRKT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8 FLANGE 		0-91180-108-0 02 1 0806-0806 ●
199 WASHER; PL,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16 		0-91614-508-0 01 1 0710-0711 ●
199 WASHER; PL,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16 		0-91614-508-0 01 1 0712- ● ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0710-0711 ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0712-1011 ● ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-062-1 01 1 1012- ● ●
225 PIN; SELECT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7 		8-94111-137-0 01 1 0710-0711 ●
225 PIN; SELECT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7 		8-94111-137-0 01 1 0712- ● ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98010-418-0 01 1 0710-0711 ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98010-418-0 01 1 0712-0805 ●
282 BRACKET; TRANS SIDE
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98010-418-0 01 1 0712-0805 ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98010-418-0 01 1 0806- ●
282 BRACKET; TRANS SIDE
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98010-418-0 01 1 0806- ●
282 BRACKET; TRANS SIDE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98080-966-0 01 1 0712-0805 ●
282 BRACKET; TRANS SIDE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98080-966-0 01 1 0806-0806 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16 		0-95325-026-0 01 1 0710-0711 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16 		0-95325-026-0 01 1 0710-0711 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16 		0-95325-026-0 01 1 0712- ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16 		0-95325-026-0 01 1 0712- ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16 		0-95325-026-0 01 1 0712- ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16 		0-95325-026-0 01 1 0712- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (B) ID=11X2 L=16 		0-95325-026-0 01 1 0712- ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0710-0711 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0712- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 13 L=32 		8-97389-264-0 02 1 0712- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98080-966-0 01 1 0806- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (C) ID=13 & 13 L=32 		8-97389-264-0 01 1 0712- ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0710-0711 ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0712- ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0712- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0712- ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0711 ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 02 1 0712-0801 ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 02 1 0712-0801 ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 0802- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 0802- ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) M8X20 FLANGE 		0-28650-820-0 01 1 0802- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) M8X20 FLANGE 		0-28650-820-0 01 1 0802- ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X25 FLANGE 		0-28650-825-0 03 1 0712- ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (C) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
297 NUT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
297 NUT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
297 NUT; CLIP
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 02 1 0806- ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 01 1 0710-0711 ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 01 1 0712- ● ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 02 1 0710-0711 ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 02 1 0712- ● ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-920-2 01 1 0710-0711 ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-920-2 01 1 0712-1012 ● ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98183-009-0 01 1 1101- ● ●
çizim 109122
474 487 3 474 221 6 225 199 1 293 291 297 293 201 291 291 282 281 293
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3555 		8-98119-253-3 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3555 		8-98119-253-3 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98121-049-5 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98121-049-5 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-0 01 1 0710-0711 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-0 01 1 0710-0711 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=2995 		8-98115-153-3 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3050 		8-98133-219-2 01 1 0902- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3035 		8-98119-254-0 01 1 0806-0901 ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3035 		8-98119-254-3 01 1 0902- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=2950 		8-98010-422-3 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=2950 		8-98010-422-4 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3005 		8-98133-212-2 01 1 0902-0906 ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3005 		8-98133-212-2 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2990 		8-98077-959-0 01 1 0712-0901 ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=2990 		8-98077-959-3 01 1 0902-0906 ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=2990 		8-98077-959-3 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3665 		8-98119-261-2 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3665 		8-98119-261-2 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3690 		8-98121-050-4 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3690 		8-98121-050-4 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-0 01 1 0710-0711 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-0 01 1 0710-0711 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3195 		8-98114-742-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3250 		8-98133-226-2 01 1 0902- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3215 		8-98119-262-0 01 1 0806-0901 ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3215 		8-98119-262-3 01 1 0902- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3085 		8-98010-462-4 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3085 		8-98010-462-5 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3140 		8-98133-220-2 01 1 0902-0906 ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3140 		8-98133-220-2 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3105 		8-98077-961-1 01 1 0712-0901 ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3105 		8-98077-961-4 01 1 0902-0906 ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3105 		8-98077-961-4 01 1 0907- ●
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0710-0711 ●
6 CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0712- ● ●
199 WASHER; PL,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16 		0-91614-508-0 01 1 0710-0711 ●
199 WASHER; PL,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16 		0-91614-508-0 01 1 0712- ● ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 0710-0711 ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 0712-0805 ●
201 BOLT; BRKT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 0712-0805 ●
201 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 0806- ●
201 BOLT; BRKT
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE 		0-28050-816-0 01 1 0806- ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0710-0711 ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-049-0 01 1 0712-1011 ● ●
221 NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		1-09440-062-1 01 1 1012- ● ●
225 PIN; SELECT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7 		8-94111-137-0 01 1 0710-0711 ●
225 PIN; SELECT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7 		8-94111-137-0 01 1 0712- ● ●
281 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 0710-0711 ●
281 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 0712-0805 ●
281 CLIP; BAND
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 0712-0805 ●
281 CLIP; BAND
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 0806- ●
281 CLIP; BAND
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=300 		1-09707-001-1 01 1 0806- ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98010-418-0 01 1 0710-0711 ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98010-418-0 01 1 0712-0805 ●
282 BRACKET; TRANS SIDE
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98010-418-0 01 1 0712-0805 ●
282 BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98010-418-0 01 1 0806- ●
282 BRACKET; TRANS SIDE
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98010-418-0 01 1 0806- ●
282 BRACKET; TRANS SIDE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98080-966-0 01 1 0712-0805 ●
282 BRACKET; TRANS SIDE
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98080-966-0 01 1 0806-0806 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16 		0-95325-026-0 01 1 0710-0711 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16 		0-95325-026-0 01 1 0710-0711 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16 		0-95325-026-0 01 1 0712- ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16 		0-95325-026-0 01 1 0712- ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16 		0-95325-026-0 01 1 0712- ●
291 CLIP; SHIFT TO SELECT,FRAME
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=16 		0-95325-026-0 01 1 0712- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (B) ID=11X2 L=16 		0-95325-026-0 01 1 0712- ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0710-0711 ●
291 CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0712- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 13 L=32 		8-97389-264-0 02 1 0712- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98080-966-0 01 1 0806- ●
291 CLIP; SHIFT TO SELECT,FRAME
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (C) ID=13 & 13 L=32 		8-97389-264-0 01 1 0712- ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0710-0711 ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0712- ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0712- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X16 FLANGE 		0-28050-816-0 01 1 0712- ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0711 ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 02 1 0712-0801 ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 02 1 0712-0801 ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 0802- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M8X20 FLANGE 		0-28050-820-0 01 1 0802- ●
293 BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) M8X20 FLANGE 		0-28650-820-0 01 1 0802- ●
293 BOLT; CLIP,SHIFT TO SELECT
6HK1-TCN ENG(82L) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) M8X20 FLANGE 		0-28650-820-0 01 1 0802- ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) M8X25 FLANGE 		0-28650-825-0 03 1 0712- ●
293 BOLT; CLIP,SHIFT TO SELECT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) (C) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ●
297 NUT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
297 NUT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
297 NUT; CLIP
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE 		0-91180-108-0 02 1 0806- ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 01 1 0710-0711 ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 01 1 0712- ● ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 02 1 0710-0711 ●
474 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER 		0-51640-825-0 02 1 0712- ● ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-920-2 01 1 0710-0711 ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98021-920-2 01 1 0712-1012 ● ●
487 BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98183-009-0 01 1 1101- ● ●

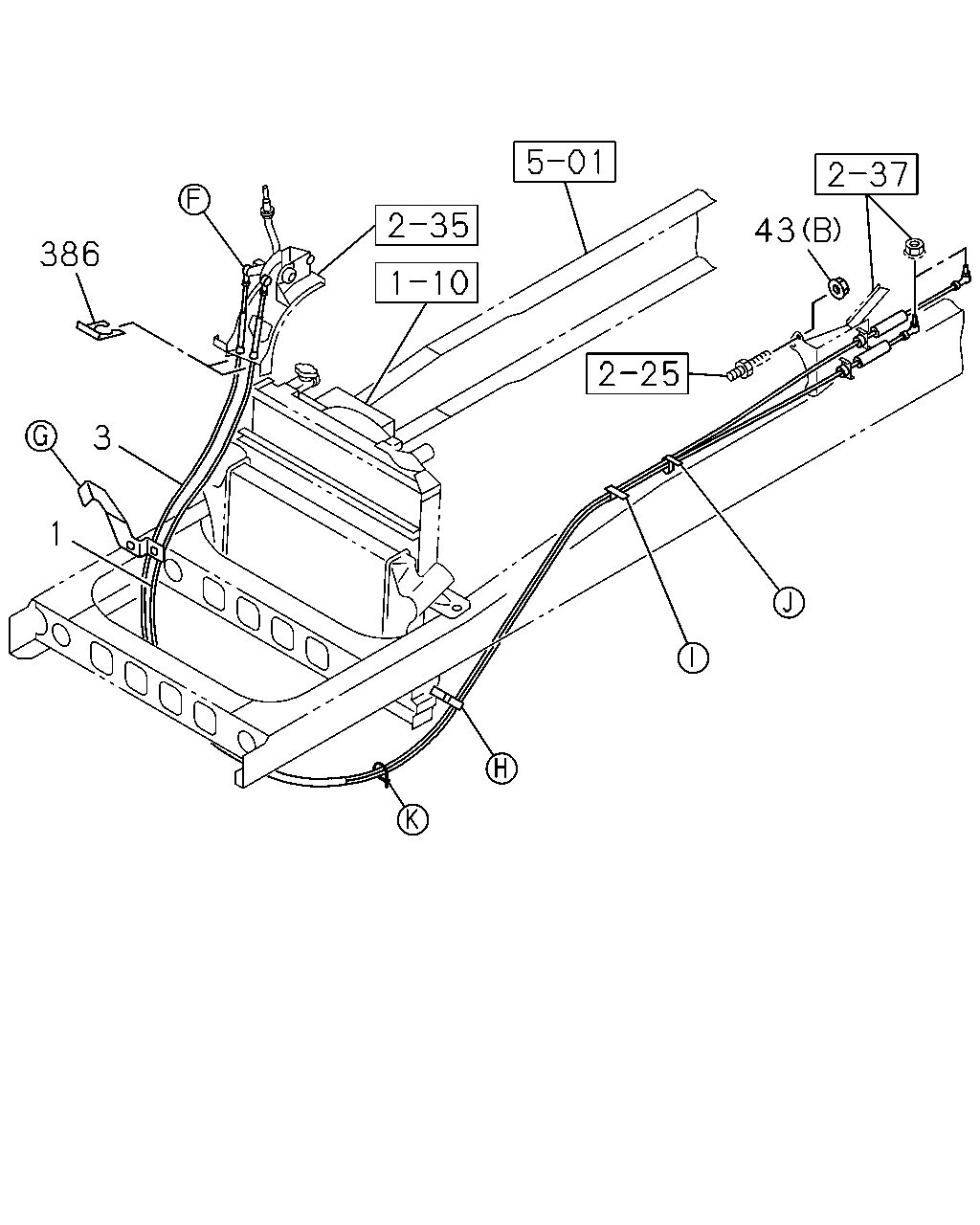

çizim 109124
43 386 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3555 		8-98119-253-3 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3555 		8-98119-253-3 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98121-049-5 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98121-049-5 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-0 01 1 0710-0711 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-0 01 1 0710-0711 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=2995 		8-98115-153-3 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3050 		8-98133-219-2 01 1 0902- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3035 		8-98119-254-0 01 1 0806-0901 ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3035 		8-98119-254-3 01 1 0902- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=2950 		8-98010-422-3 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=2950 		8-98010-422-4 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3005 		8-98133-212-2 01 1 0902-0906 ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3005 		8-98133-212-2 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2990 		8-98077-959-0 01 1 0712-0901 ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=2990 		8-98077-959-3 01 1 0902-0906 ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=2990 		8-98077-959-3 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3665 		8-98119-261-2 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3665 		8-98119-261-2 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3690 		8-98121-050-4 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3690 		8-98121-050-4 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-0 01 1 0710-0711 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-0 01 1 0710-0711 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3195 		8-98114-742-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3250 		8-98133-226-2 01 1 0902- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3215 		8-98119-262-0 01 1 0806-0901 ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3215 		8-98119-262-3 01 1 0902- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3085 		8-98010-462-4 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3085 		8-98010-462-5 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3140 		8-98133-220-2 01 1 0902-0906 ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3140 		8-98133-220-2 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3105 		8-98077-961-1 01 1 0712-0901 ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3105 		8-98077-961-4 01 1 0902-0906 ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3105 		8-98077-961-4 01 1 0907- ●
43 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
43 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
43 NUT; BRKT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8 FLANGE 		0-91180-108-0 02 1 0712-0805 ●
43 NUT; BRKT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8 FLANGE 		0-91180-108-0 02 1 0806-0806 ●
386 CLIP; CONT CABLE & TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09700-966-1 02 1 0710-0711 ●
386 CLIP; CONT CABLE & TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09700-966-1 02 1 0712- ● ●

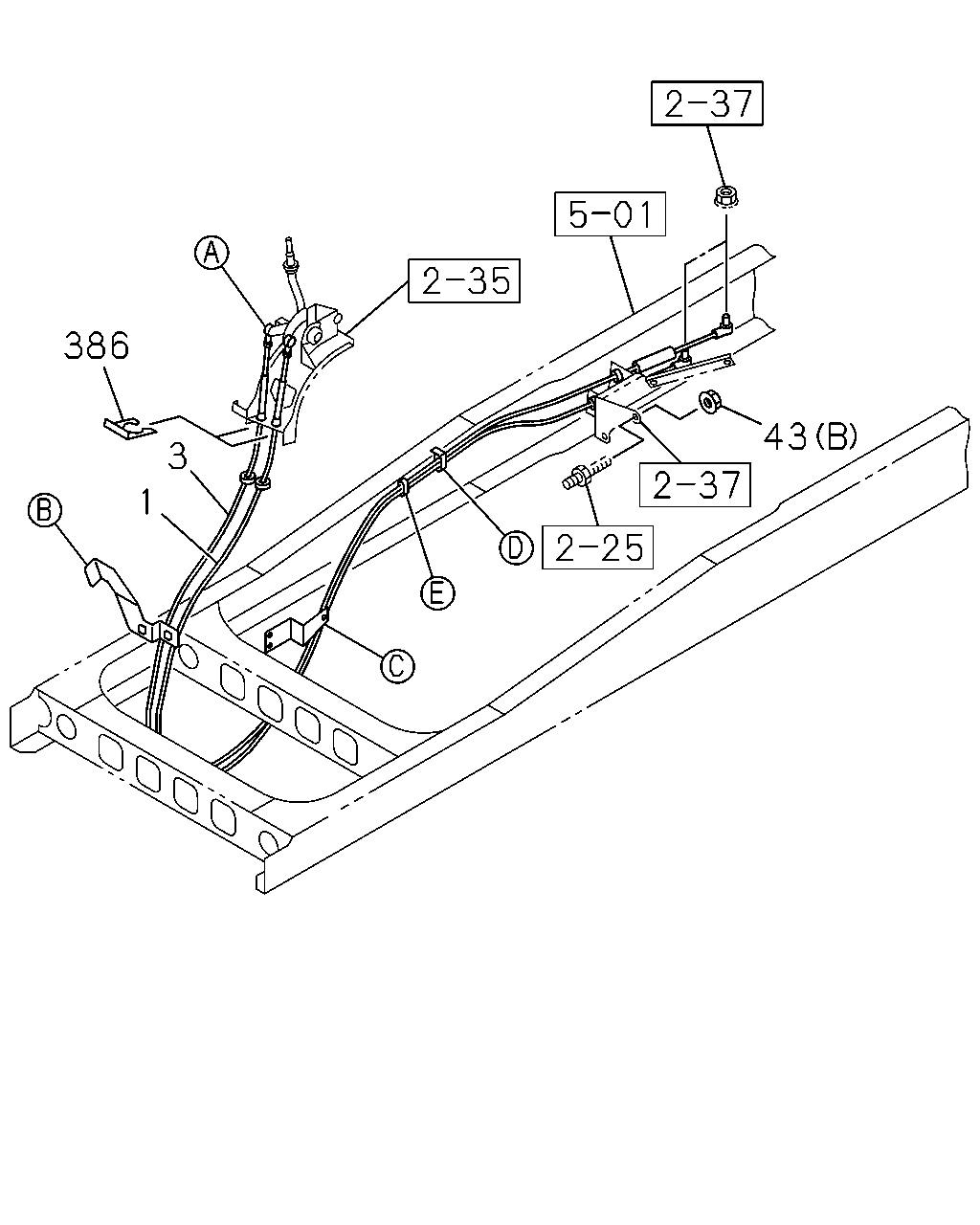

çizim 109131
386 43 3 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3555 		8-98119-253-3 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3555 		8-98119-253-3 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98121-049-5 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3575 		8-98121-049-5 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-0 01 1 0710-0711 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3500 		8-98071-386-3 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-0 01 1 0710-0711 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3530 		8-98017-489-5 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=2995 		8-98115-153-3 01 1 0806- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3050 		8-98133-219-2 01 1 0902- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3035 		8-98119-254-0 01 1 0806-0901 ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3035 		8-98119-254-3 01 1 0902- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=2950 		8-98010-422-3 01 1 0712-0906 ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=2950 		8-98010-422-4 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3005 		8-98133-212-2 01 1 0902-0906 ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3005 		8-98133-212-2 01 1 0907- ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2990 		8-98077-959-0 01 1 0712-0901 ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=2990 		8-98077-959-3 01 1 0902-0906 ●
1 CABLE; SHIFT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=2990 		8-98077-959-3 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3665 		8-98119-261-2 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3665 		8-98119-261-2 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3690 		8-98121-050-4 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3690 		8-98121-050-4 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-0 01 1 0710-0711 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3725 		8-98071-388-2 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-0 01 1 0710-0711 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3725 		8-98017-510-4 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3195 		8-98114-742-3 01 1 0806- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3250 		8-98133-226-2 01 1 0902- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3215 		8-98119-262-0 01 1 0806-0901 ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3215 		8-98119-262-3 01 1 0902- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3085 		8-98010-462-4 01 1 0712-0906 ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. GENERATOR 24V90A(K44) L=3085 		8-98010-462-5 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3140 		8-98133-220-2 01 1 0902-0906 ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) FRONT STABILIZER SHAFT<F59> GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3140 		8-98133-220-2 01 1 0907- ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3105 		8-98077-961-1 01 1 0712-0901 ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3105 		8-98077-961-4 01 1 0902-0906 ●
3 CABLE; SELECT,TRANS CONT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) GENERATOR 24V90A(K44) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRONT STABILIZER SHAFT<F59> L=3105 		8-98077-961-4 01 1 0907- ●
43 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
43 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
43 NUT; BRKT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8 FLANGE 		0-91180-108-0 02 1 0712-0805 ●
43 NUT; BRKT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) GENERATOR 24V90A(K44) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8 FLANGE 		0-91180-108-0 02 1 0806-0806 ●
386 CLIP; CONT CABLE & TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09700-966-1 02 1 0710-0711 ●
386 CLIP; CONT CABLE & TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-09700-966-1 02 1 0712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
