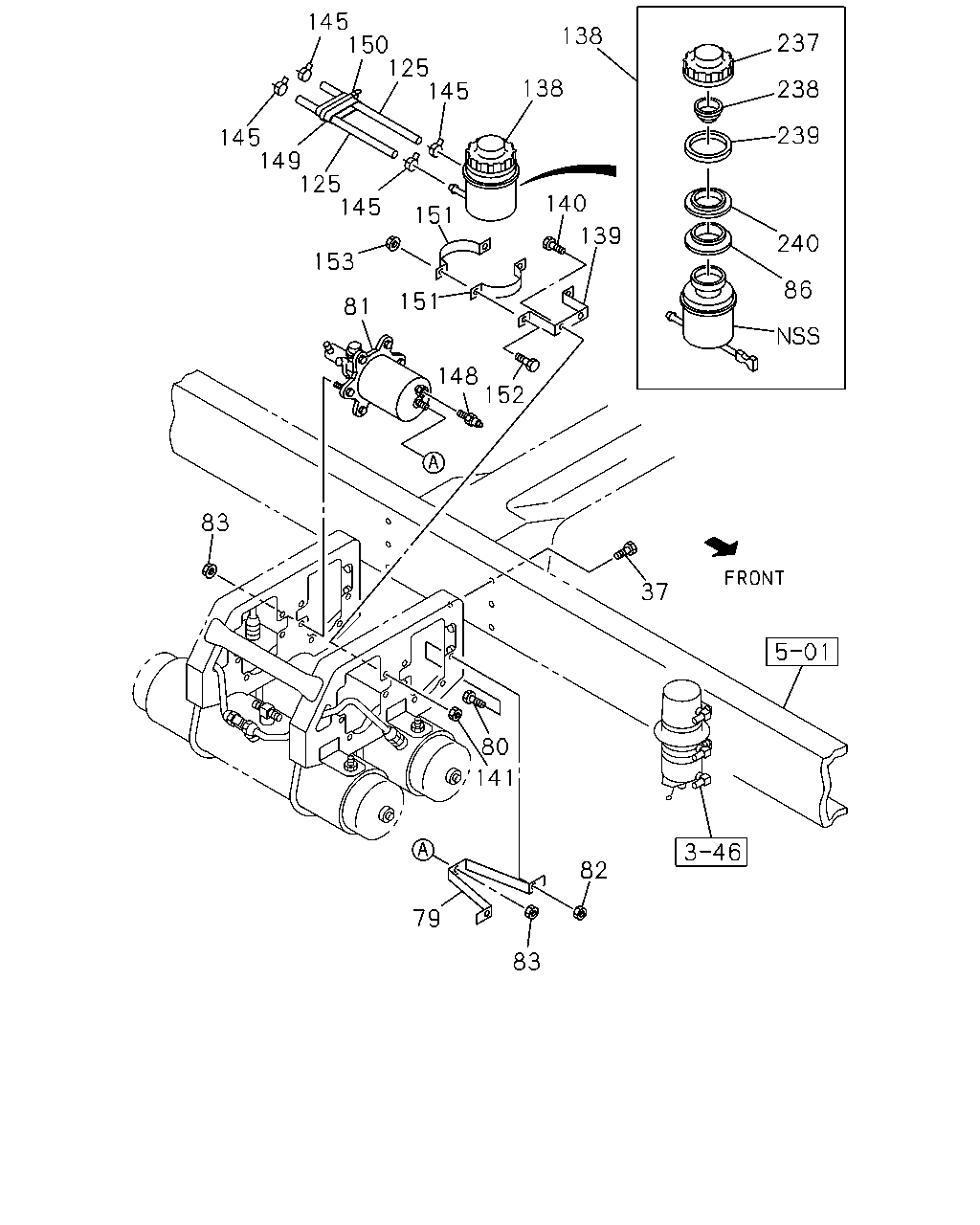

3-20 — AIR TANK (#19066) — 79 parça

145 150 125 145 138 237 138 238 239 145 149 125 145 140 151 139 240 153 86 151 81 148 152 83 37 80 141 82 79 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK M12X40 FLANGE MAL	0-28681-240-0	06	1	0403-0512
37	BOLT; AIR TANK M12X40 FLANGE MAL	0-28651-240-0	06	1	0601-
79	STAY; AIR MASTER TO BRKT	1-53318-347-0	02	1	0403-0805
79	STAY; AIR MASTER TO BRKT	8-98120-254-0	02	1	0806-
80	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	0403-0512
80	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0601-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY	1-47800-663-1	01	1	0403-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY	1-47800-664-2	01	1	0403-
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-210-0	04	1	0403-0602
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE MAL	0-91180-210-0	04	1	0603-
83	NUT; AIR MASTER M10 FLANGE	0-91150-210-0	10	1	0403-0602
83	NUT; AIR MASTER M10 FLANGE MAL	0-91180-210-0	10	1	0603-
86	SEAL; DUST	1-47529-019-0	01	1	0403-
125	HOSE; OIL TANK TO AIR MASTER L=270 SERVICED BY L=1800	1-09360-320-0	02	1	0403-
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0403-
139	BRACKET; OIL TANK	1-47537-081-2	01	1	0403-
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE MAL	0-28681-020-0	02	1	0403-0512
140	BOLT; OIL TANK TO BRKT M10X20 FLANGE MAL	0-28651-020-0	02	1	0601-
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	0403-0602
141	NUT; OIL TANK TO BRKT M10 FLANGE MAL	0-91180-210-0	02	1	0603-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14	1-09704-102-0	04	1	0403-
148	CONNECTOR; AIR MASTER DIN12 & R3/8 STRAIGHT MAL	1-09660-965-0	02	1	0403-
149	SLEEVE; RUBBER,HOSE ID=23 OD=27 L=40	1-09337-015-0	01	1	0403-
150	CLIP; BAND,RUBBER SLEEVE L=140 MAL	5-09707-031-1	01	1	0403-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0403-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE MAL	0-28680-820-0	02	1	0403-0512
152	BOLT; OIL TANK TO BAND M8X20 FLANGE MAL	0-28650-820-0	02	1	0601-
153	NUT; OIL TANK TO BAND M8 FLANGE	0-91150-108-0	02	1	0403-0602
153	NUT; OIL TANK TO BAND M8 FLANGE MAL	0-91180-108-0	02	1	0603-
237	CAP; OIL TANK	1-47525-030-0	01	1	0403-
238	PLATE; BAFFLE	1-47529-022-0	01	1	0403-
239	FILTER; DUST	1-47529-017-0	01	1	0403-
240	HOLDER; FILTER	1-47529-018-0	01	1	0403-

49 43 49 54 172 21 12 36 282 172 11 21 67 282 12 8 36 10 10 43 53 174 10 21 5 282 9 10 176 175 7 6 7 6 58 1 10 58 176 4 58 42 42 58 58 58 42 42 58 58 213 1 10 213 213 213

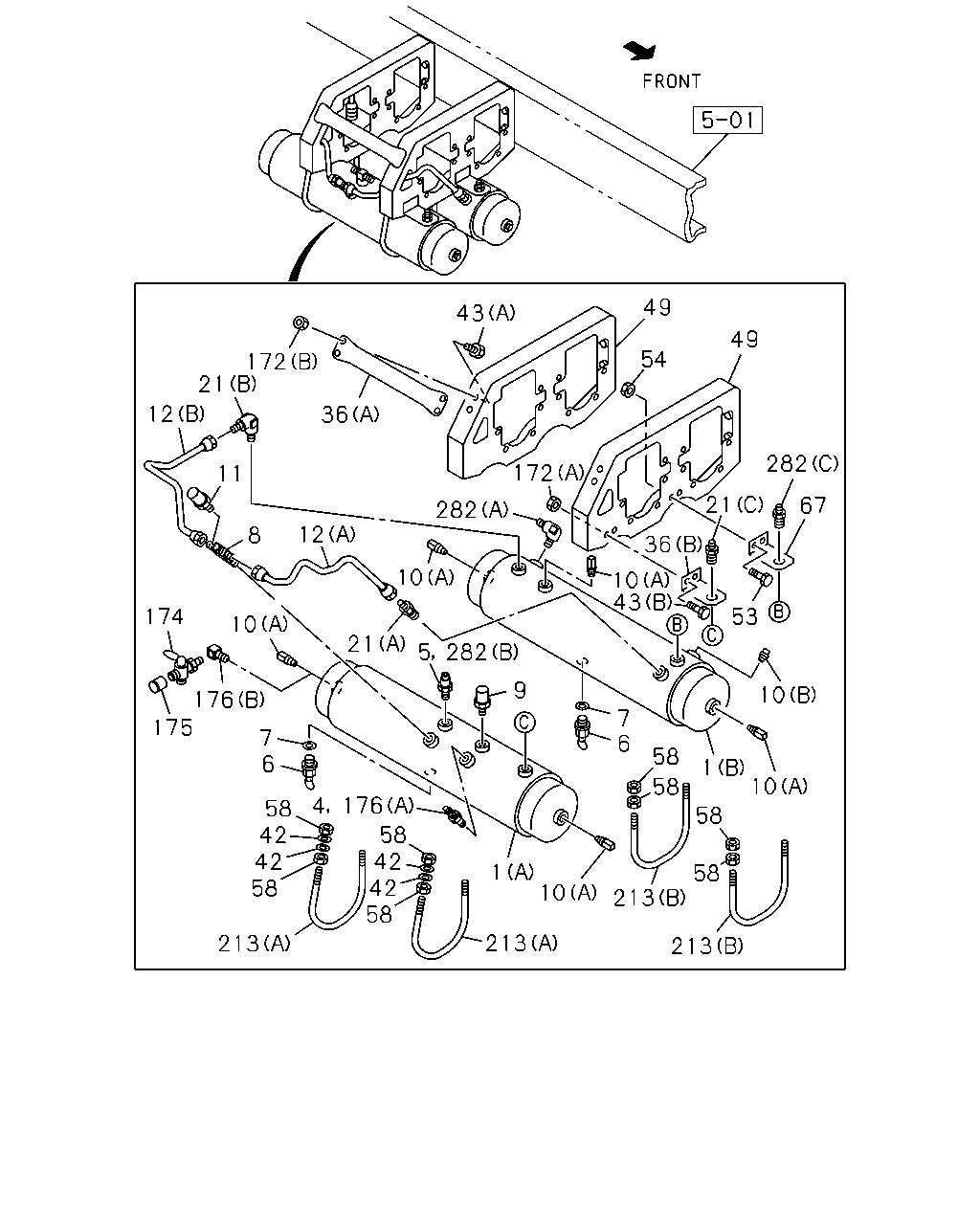

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR (A)	1-48330-598-0	01	1	0403-
1	TANK ASM; AIR (B)	1-48370-512-2	01	1	0403-
4	CONNECTOR; FLARE EXC. TIRE INFLATOR DEVICE<SG4> MAL	1-09650-283-1	01	1	0403-
5	UNION; AIR TANK TIRE INFLATOR DEVICE<SG4> DIN8 R1/4 STRAIGHT MAL	1-09660-963-0	01	1	0403-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0403-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0403-
8	CONNECTOR; AIR TANK MAL	1-09656-699-0	01	1	0403-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 530KPA MAL	1-48340-054-1	01	1	0403-
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	01	1	0403-
10	PLUG; AIR TANK TIRE INFLATOR DEVICE<SG4> (A) PT1/4 MAL	9-99204-513-0	04	1	0403-
10	PLUG; AIR TANK EXC. TIRE INFLATOR DEVICE<SG4> (A) PT1/4 MAL	9-99204-513-0	05	1	0403-
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0403-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47497-011-0	01	1	0403-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47497-012-0	01	1	0403-
21	VALVE; CHECK,AIR TANK (C) M22 & PT3/4 MAL	1-48410-136-3	01	1	0403-
21	VALVE; CHECK,AIR TANK (A)	1-48410-182-3	01	1	0403-
21	VALVE; CHECK,AIR TANK (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0403-
36	STAY; MAIN TANK (A)	1-53318-293-1	01	1	0403-
36	STAY; MAIN TANK (B)	8-94301-490-0	01	1	0403-
42	WASHER; PL ID=8.4 OD=18	9-09160-608-0	04	1	0403-0605
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	0606-
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE MAL	0-28680-820-0	02	1	0403-0512
43	BOLT; STAY,AIR TANK,MAIN (B) M8X20 FLANGE MAL	0-28650-820-0	02	1	0601-
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE MAL	0-28681-025-0	04	1	0403-0512
43	BOLT; STAY,AIR TANK,MAIN (A) M10X25 FLANGE MAL	0-28651-025-0	04	1	0601-
49	BRACKET; AIR TANK	1-53318-338-6	02	1	0403-
53	BOLT; STAY,AIR TANK M8X20 FLANGE MAL	0-28680-820-0	02	1	0403-0512
53	BOLT; STAY,AIR TANK M8X20 FLANGE MAL	0-28650-820-0	02	1	0601-
54	NUT; STAY M8 FLANGE	0-91150-108-0	02	1	0403-0602
54	NUT; STAY M8 FLANGE MAL	0-91180-108-0	02	1	0603-
58	NUT; BAND,AIR TANK M8 MAL	9-09110-408-0	16	1	0403-0512
58	NUT; BAND,AIR TANK M8	0-91110-508-0	16	1	0601-
67	STAY; SUB TANK	1-48317-349-0	01	1	0403-
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	02	1	0403-0602
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE MAL	0-91180-108-0	02	1	0603-
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91150-210-0	04	1	0403-0602
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE MAL	0-91180-210-0	04	1	0603-
174	COCK; AIR,INFLATOR TIRE INFLATOR DEVICE<SG4>	1-09680-099-0	01	1	0403-
175	CAP; AIR COCK TIRE INFLATOR DEVICE<SG4>	9-48319-102-0	01	1	0403-
176	ADAPTER TIRE INFLATOR DEVICE<SG4> (A) MAL	1-09650-283-1	01	1	0403-
176	ADAPTER TIRE INFLATOR DEVICE<SG4> (B) PT1/4 2WAY MAL	1-09660-693-0	01	1	0403-
213	BOLT; U AIR TANK (A) L=97.5	1-48317-323-1	02	1	0403-
213	BOLT; U AIR TANK (B) L=195	1-48317-367-2	02	1	0403-
282	UNION; 2 WAY (A) DIN12 & R3/8 ELBOW MAL	1-09660-959-0	01	1	0403-
282	UNION; 2 WAY (C) DIN12 & R3/8 STRAIGHT MAL	1-09660-965-0	01	1	0403-
282	UNION; 2 WAY EXC. TIRE INFLATOR DEVICE<SG4> (B) DIN8 R1/4 STRAIGHT MAL	1-09660-963-0	01	1	0403-
