Isuzu WW
▶
TRUCKS
▶
FSR
▶
11357 - FSR(MALAYSIA)W/B5500
▶
3 - Brakes, Brake System
▶
3-08 - PARKING BRAKE
▶

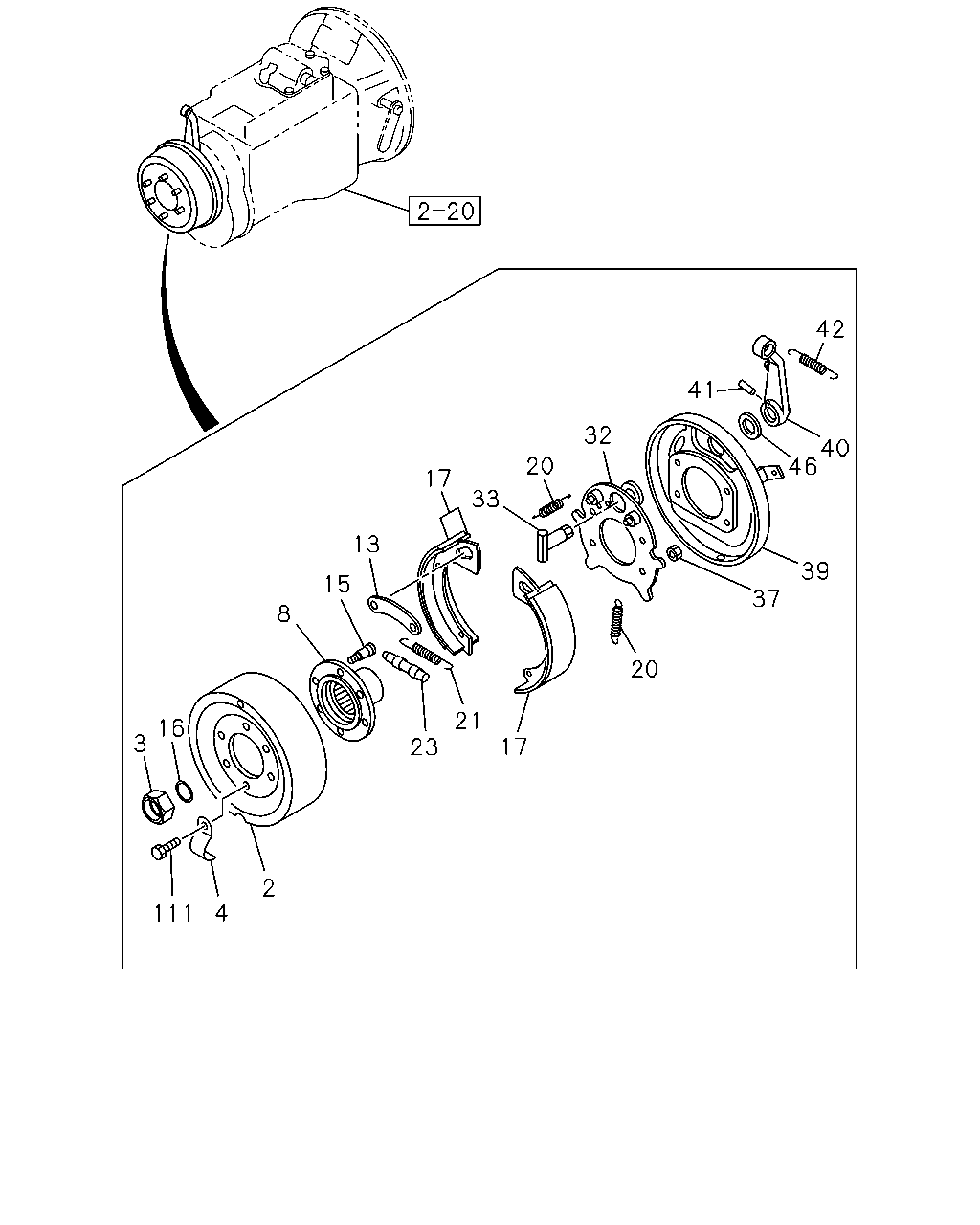

3-08 — PARKING BRAKE
(#19063) — 24 parça
42
41
32
40
46
20
17
33
13
39
15
37
8
20
21
16
3
17
23
2
4
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
DRUM; PARKING BRK
1-46211-020-1
01
1
0403-
3
NUT; LK
M33 FLANGE
1-09449-077-0
01
1
0403-
4
COVER; ADJ HOLE
1-46219-018-0
02
1
0403-
8
FLANGE; PARKING BRK
1-37243-253-0
01
1
0403-
13
BRACE; PARKING BRK
9-46239-003-0
01
1
0403-
15
BOLT; FLANGE
M14X43 KNURL
1-09046-003-0
04
1
0403-0707
15
BOLT; FLANGE
M14X43 KNURL
8-98014-003-0
04
1
0708-
16
GASKET; FLANGE
ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5
1-09623-379-0
01
1
0403-
17
SHOE; PARKING BRK
1-46220-024-0
02
1
0403-0410
17
SHOE; PARKING BRK
1-46220-029-0
02
1
0411-
20
SPRING; RETURN,SECONDARY,PARKING BRK
9-09942-567-1
02
1
0403-
21
SPRING; RETURN,PARKING BRK SHOE
1-09583-268-0
01
1
0403-
23
SCREW; ADJ,PARKING BRK SHOE
9-46240-008-0
01
1
0403-
32
PLATE; SUPPORT,PARKING BRK
1-46213-023-0
01
1
0403-
33
SHAFT; CAM,PARKING BRK
1-46251-002-0
01
1
0403-
37
NUT; SUPPORT PLATE
M14 FLANGE
1-09440-048-0
04
1
0403-0604
37
NUT; SUPPORT PLATE
M14 FLANGE
8-97365-444-0
04
1
0605-
39
COVER; DUST,PARKING BRK
1-46213-067-0
01
1
0403-
40
LEVER; CM/SHF,PARKING BRK
1-46252-003-0
01
1
0403-
41
PIN; KNOCK,LEVER
9-09878-594-0
01
1
0403-
42
SPRING; RETURN,LEVER
9-09942-592-0
01
1
0403-
46
WASHER; LEVER
9-09855-367-0
01
1
0403-
111
BOLT; COVER,CHECK HOLE
M8X18 W/LK WASHER
0-50040-818-0
02
1
0403-0906
111
BOLT; COVER,CHECK HOLE
M8X18 W/LK WASHER MAL
0-50540-818-0
02
1
0907-
