1 |

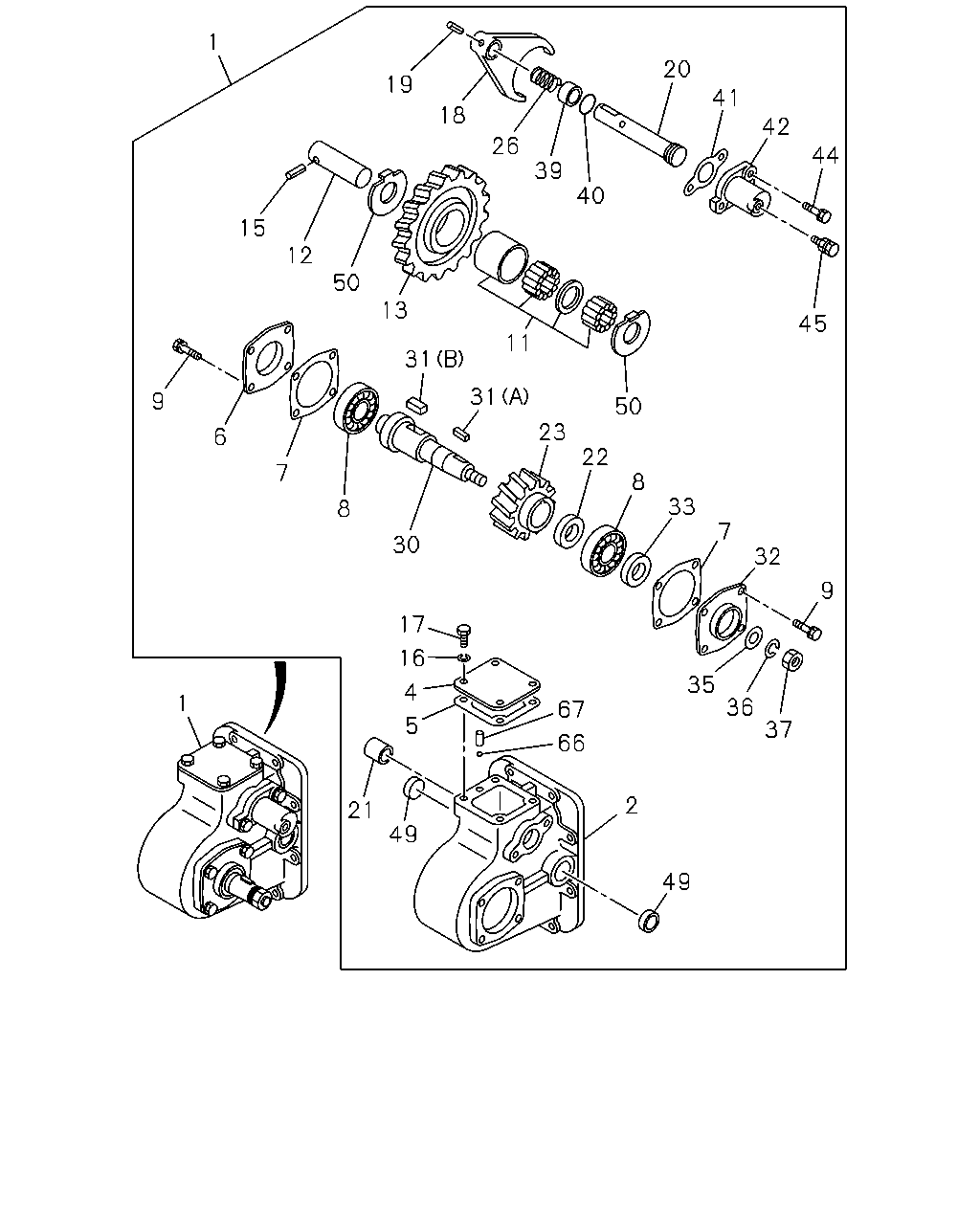

POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
1-38000-194-1 |
01 |
1 |
9207-9511 |
| |
1 |
POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
1-38000-297-0 |
01 |
1 |
9512- |
| |
2 |
CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
1-38111-048-0 |
01 |
1 |
9207-9511 |
| |
2 |
CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
1-38111-088-0 |
01 |
1 |
9512- |
| |
4 |
COVER; UPR,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
9-38121-002-0 |
01 |
1 |
9207- |
| |
5 |
GASKET; UPR COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
1-38132-005-0 |
01 |
1 |
9207-9511 |
| |
6 |
COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
9-38151-024-0 |
01 |
1 |
9207- |
| |
7 |
GASKET; OUTPUT SHAFT COVER,SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
1-38152-005-0 |
02 |
1 |
9207-9511 |
| |
8 |
BEARING; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
1-09800-121-0 |
02 |
1 |
9207- |
| |
9 |
BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
M8X20 W/LK WASHER
|
0-50040-820-0 |
08 |
1 |
9207- |
| |
11 |
BEARING; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
1-09811-144-0 |
01 |
1 |
9207- |
| |
12 |
SHAFT; IDLE GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
1-38221-024-0 |
01 |
1 |
9207- |
| |
13 |
GEAR; IDLE,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
Z=36
|
1-38241-042-0 |
01 |
1 |
9207- |
| |
15 |
PIN; SPR,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
L=16
|
9-09878-613-0 |
01 |
1 |
9207- |
| |
16 |
WASHER; LK,UPR COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
ID=10.2
|
9-09150-510-0 |
04 |
1 |
9207- |
| |
17 |
BOLT; UPR COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
M10X20
|
9-02351-020-0 |
04 |
1 |
9207-9511 |
| |
17 |
BOLT; UPR COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
M10X20
|
0-23801-020-0 |
04 |
1 |
9512- |
| |
18 |
ARM; GEAR SHIFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
1-38361-028-0 |
01 |
1 |
9207- |
| |
19 |
PIN; SPR,SHIFT ARM,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
9-09878-614-0 |
01 |
1 |
9207- |
| |
20 |
ROD; GEAR SHIFTER,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
1-38371-035-0 |
01 |
1 |
9207- |
| |
21 |
COVER; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
9-33545-001-0 |
01 |
1 |
9207- |
| |
22 |
COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
1-38226-046-0 |
01 |
1 |
9207- |
| |
23 |
GEAR; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
Z=19
|
1-38241-041-0 |
01 |
1 |
9207- |
| |
26 |
SPRING; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
1-38121-001-0 |
01 |
1 |
9207- |
| |
30 |
SHAFT; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
1-38221-023-0 |
01 |
1 |
9207- |
| |
31 |
KEY; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
(A)
L=25
|
1-09735-024-0 |
01 |
1 |
9207- |
| |
31 |
KEY; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
(B)
L=30
|
9-08011-030-0 |
01 |
1 |
9207- |
| |
32 |
COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
9-38161-608-0 |
01 |
1 |
9207- |
| |
33 |
SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
9-09924-533-1 |
01 |
1 |
9207- |
| |
35 |
WASHER; PL,FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
ID=15
|
9-09160-514-0 |
01 |
1 |
9207- |
| |
36 |
WASHER; LK,FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
ID=14.2
|
9-09150-514-0 |
01 |
1 |
9207- |
| |
37 |
NUT; FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
M14
|
9-99111-414-0 |
01 |
1 |
9207- |
| |
39 |
STOPPER; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
1-38379-006-0 |
01 |
1 |
9207- |
| |
40 |
GASKET; AIR SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
9-09561-324-0 |
01 |
1 |
9207- |
| |
41 |
GASKET; CYL TO CASE,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
1-38152-009-0 |
01 |
1 |
9207-9511 |
| |
42 |
CYLINDER; AIR,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
1-38377-003-0 |
01 |
1 |
9207- |
| |
44 |
BOLT; COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
M10X25 FLANGE
|
0-28181-025-0 |
02 |
1 |
9207- |
| |
45 |
NIPPLE; AIR CYL,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
M20 & PT1/4
|
9-09902-386-0 |
01 |
1 |
9207- |
| |
49 |
PLUG; IDLE SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
1-09600-036-0 |
02 |
1 |
9207- |
| |
50 |
WASHER; THRUST,IDLE GEAR,TRANS SIDE PT
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
1-38245-003-0 |
02 |
1 |
9207- |
| |
66 |
BALL; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
|
9-00097-009-0 |
01 |
1 |
9207- |
| |
67 |
PIN; STRAIGHT
TRANSMISSION SIDE PTO(SD8),TRANSMISSION SIDE PTO
WO/LEVER(SH5)
OD=8 L=16
|
9-08160-816-0 |
01 |
1 |
9207- |
