◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11357 - FSR(MALAYSIA)W/B5500 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#19055) — 99 parça
çizim 71504
382 383
BalonParca AdiParca NoAdetTipApplied Date
382 BRACKET; PARKING BRK CONT CABLE 1-46147-187-2 01 1 0403-
383 BOLT; BRKT,PARK BRAKE
M10X16 FLANGE 		0-28181-016-0 01 1 0403-0512
383 BOLT; BRKT,PARK BRAKE
M10X16 FLANGE 		0-28151-016-0 01 1 0601-

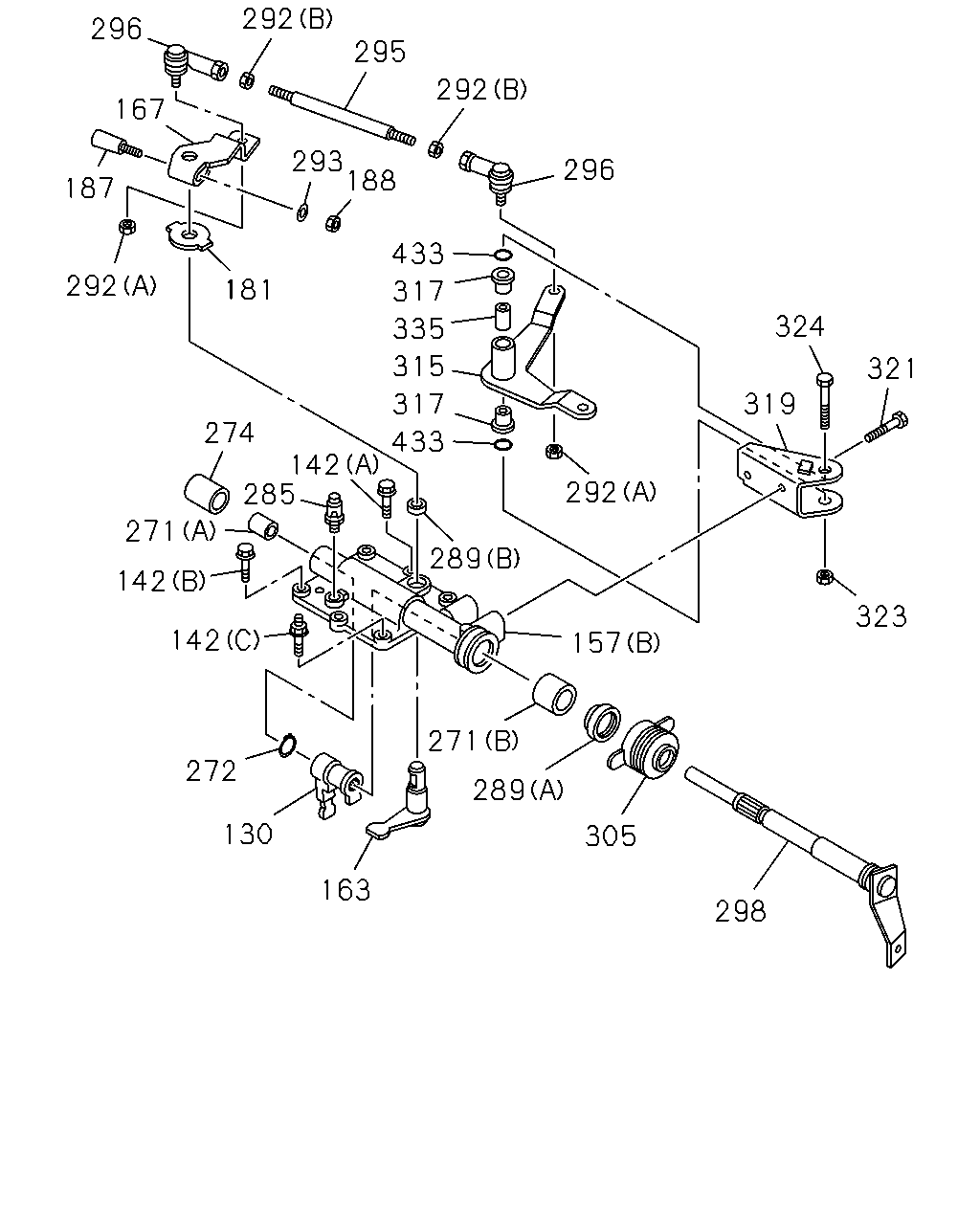

çizim 102597
292 296 295 292 167 293 188 296 187 433 292 181 317 324 335 315 321 319 317 274 433 142 285 292 271 289 142 323 142 157 271 272 289 130 305 163 298
BalonParca AdiParca NoAdetTipApplied Date
130 LEVER; SHIFT,INTERNAL 1-33521-131-1 01 1 0403-
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 15 1 0403-0805
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 15 1 0806-
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0403-0805
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806-
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		1-09049-014-1 01 1 0403-0805
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		8-98010-334-0 01 1 0806-
157 BOX; QUAD,TRANS
(B) 		1-33541-472-0 01 1 0403-
157 BOX; QUAD,TRANS
(A) 		1-33541-512-0 01 1 0403-
163 LEVER; SELECT,INTERNAL 1-33522-130-0 01 1 0403-
167 LEVER; SELECT,EXTERNAL 1-33521-139-0 01 1 0403-
181 WASHER; PL,SELECT LEVER
OD=37 		1-09532-007-0 01 1 0403-
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 0403-
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 0403-
271 BUSHING; QUAD BOX
(B) ID=25 OD=28 		1-33549-107-0 01 1 0403-
271 BUSHING; QUAD BOX
(A) ID=17 OD=19 		1-33549-108-0 01 1 0403-
272 RING; SNAP,QUAD BOX 1-09588-174-0 01 1 0403-
274 COVER; SHAFT,QUAD BOX
OD=24 L=31 		9-33545-011-1 01 1 0403-
285 BREATHER; AIR,QUAD BOX 1-33149-003-0 01 1 0403-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) 		1-09625-269-0 01 1 0403-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) 		1-09625-369-0 01 1 0403-
292 NUT; LINK ROD
(A) M8 FLANGE 		1-09440-062-1 02 1 0403-
292 NUT; LINK ROD
(B) M8 		9-09111-408-0 02 1 0403-0512
292 NUT; LINK ROD
(B) M8 		0-91111-508-0 02 1 0601-
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		9-09160-708-0 01 1 0403-0605
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 0606-
295 ROD; LINK,RELAY LEVER
L=130 		1-09765-262-0 01 1 0403-
296 ROD END
L=45.5 		1-09760-118-1 02 1 0403-
298 SHAFT; SHIFT LEVER 1-33522-167-0 01 1 0403-
305 BOOT; LEVER SHAFT 1-33529-051-0 01 1 0403-
315 LEVER; SELECT 1-33651-703-0 01 1 0403-
317 BUSHING; LEVER 1-09330-119-0 02 1 0403-
319 BRACKET; SELECT LEVER 1-33657-603-0 01 1 0403-
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 0403-
323 NUT; LK,SELECT LEVER
M10 FLANGE MAL 		0-91150-110-0 01 1 0403-
324 BOLT; SHAFT
M10X60 FLANGE 		0-28081-060-0 01 1 0403-
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 0403-
433 GASKET; BUSHING 1-09623-594-0 02 1 0403-

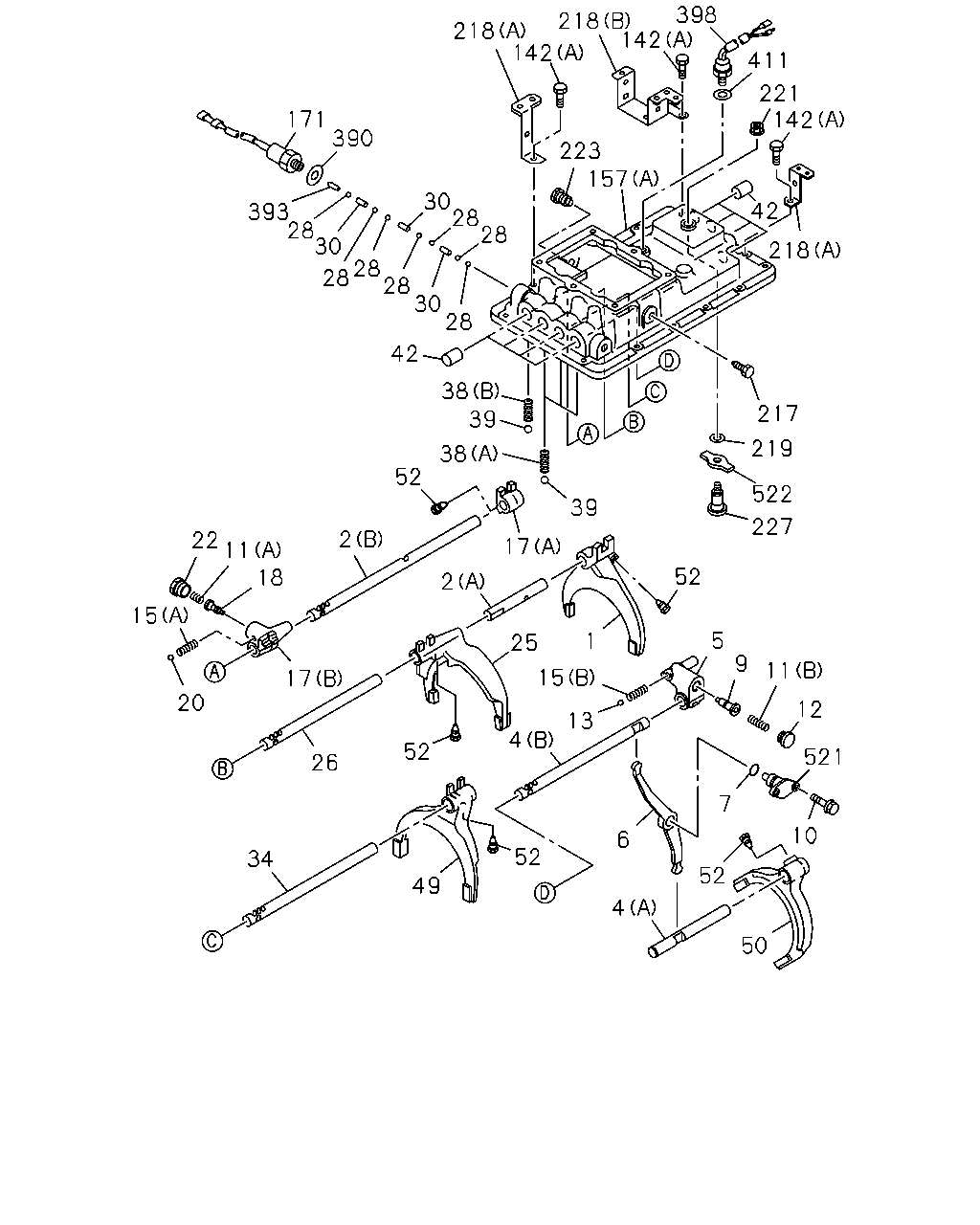

çizim 102598
398 218 142 218 142 411 221 142 171 390 223 157 30 28 28 42 393 28 30 218 28 28 28 30 28 42 38 39 217 219 38 52 522 39 227 2 22 11 18 17 52 2 15 5 1 25 9 11 15 17 20 12 13 4 52 521 26 7 10 6 52 34 52 49 4 50
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 1-33511-502-1 01 1 0403-
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-360-1 01 1 0403-
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-361-1 01 1 0403-
4 ROD; SHIFT,6TH
(A) 		1-33531-341-1 01 1 0403-
4 ROD; SHIFT,6TH
(B) 		1-33531-387-0 01 1 0403-
5 BLOCK; SHIFT,6TH 1-33511-326-1 01 1 0403-
6 LEVER; RELAY 1-33511-574-1 01 1 0403-
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 0403-
9 SLEEVE; 6TH,SHIFT BLOCK 1-33516-029-0 01 1 0403-
10 BOLT; SPINDLE
M14X20 		1-09044-078-0 02 1 0403-
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		1-09580-444-0 01 1 0403-
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		9-09941-160-0 01 1 0403-
12 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0403-
13 BALL; LK,SHIFT SLEEVE 9-00097-009-0 01 1 0403-
15 SPRING; LK,SHIFT SLEEVE
(A) 		1-09580-445-0 01 1 0403-
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-526-0 01 1 0403-
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-387-2 01 1 0403-
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-432-1 01 1 0403-
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-029-0 01 1 0403-
20 BALL; DETENT SLEEVE 9-00097-009-0 01 1 0403-
22 CAP; RETURN SPR,SHIFT BLOCK 9-33516-060-1 01 1 0403-
25 ARM; SHIFT,2ND & 3RD 1-33511-580-1 01 1 0403-
26 ROD; SHIFT,2ND & 3RD 1-33531-384-0 01 1 0403-
28 BALL; INTER LK 9-00097-010-0 07 1 0403-
30 PIN; INTER LK 1-33534-002-0 03 1 0403-
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-385-0 01 1 0403-
38 SPRING; DETENT
(B) 		1-09580-374-0 01 1 0403-
38 SPRING; DETENT
(A) 		1-09580-548-0 03 1 0403-
39 BALL; DETENT 9-00097-013-0 04 1 0403-
42 CAP; QUAD BOX
OD=20 		1-33545-002-1 08 1 0403-
49 ARM; SHIFT,4TH & 5TH 1-33511-581-1 01 1 0403-
50 ARM; SHIFT,6TH 1-33511-477-0 01 1 0403-
52 BOLT; SHIFT ARM 1-09052-034-2 07 1 0403-
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		0-28181-028-0 15 1 0403-0805
142 BOLT; QUAD BOX
(A) M10X28 FLANGE 		8-98044-944-0 15 1 0806-
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0403-0805
142 BOLT; QUAD BOX
(B) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0806-
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		1-09049-014-1 01 1 0403-0805
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		8-98010-334-0 01 1 0806-
157 BOX; QUAD,TRANS
(B) 		1-33541-472-0 01 1 0403-
157 BOX; QUAD,TRANS
(A) 		1-33541-512-0 01 1 0403-
171 SWITCH; NEUTRAL 1-82340-534-0 01 1 0403-
217 SCREW; SET,6TH SHIFT BLOCK
M8X12.5 		9-09814-533-0 01 1 0403-
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-82699-639-1 02 1 0403-
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-792-2 01 1 0403-
219 WASHER; PL,SPINDLE
ID=14 		9-09851-275-0 01 1 0403-
221 NUT; SPINDLE
M10 FLANGE MAL 		0-91150-110-0 01 1 0403-0602
221 NUT; SPINDLE
M10 FLANGE MAL 		0-91180-110-0 01 1 0603-
223 SCREW; SET,QUAD BOX
M8X12.5 		9-09814-533-0 01 1 0403-
227 SPINDLE; 1ST & REV 1-33519-130-0 01 1 0403-
390 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0403-
393 PIN; SW 1-33534-003-0 01 1 0403-
398 SWITCH; REV LAMP 1-82440-083-3 01 1 0403-0602
398 SWITCH; REV LAMP 8-98042-853-0 01 1 0603-1209
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210-
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0403-
521 SPINDLE; 6TH 1-33519-008-1 01 1 0403-
522 LEVER; SHIFT,1-REV 1-33521-135-0 01 1 0403-
