2-26 — MANUAL TRANSMISSION GEAR (#19054) — 89 parça

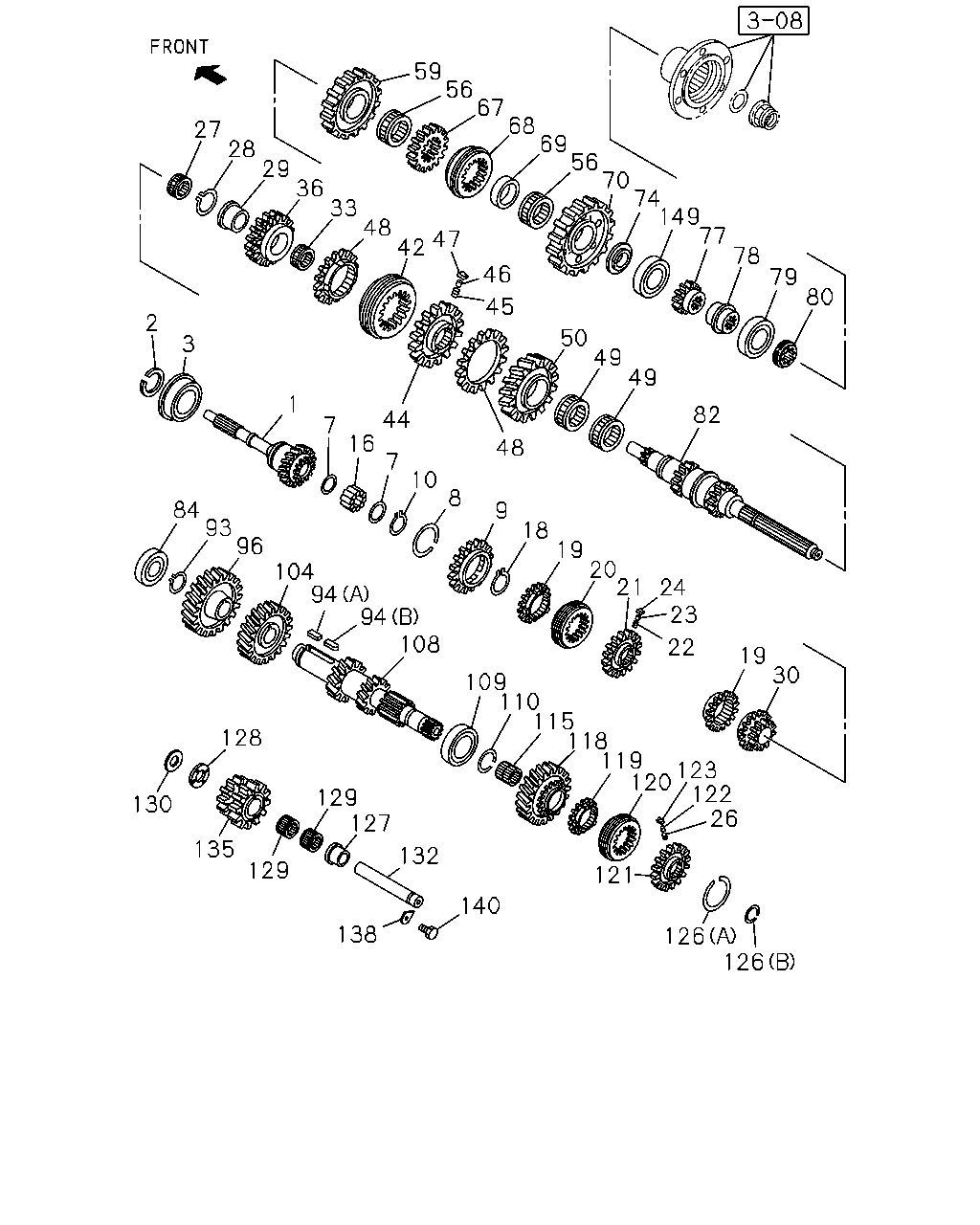

çizim 102599
59 56 67 68 69 56 70 74 149 77 78 79 80 27 28 29 36 33 48 47 42 46 45 2 50 49 49 3 1 82 44 16 7 48 7 10 8 84 93 96 9 18 19 20 21 104 94 24 23 94 108 22 19 30 109 110 115 118 119 123 120 122 26 128 129 127 130 135 132 129 121 140 138 126 126
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS
Z=20 		1-33211-827-0 01 1 0403-
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.53 WHITE 		1-09588-160-1 AR 1 0403-
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.56 YELLOW 		1-09588-161-1 AR 1 0403-
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.60 BLUE 		1-09588-162-1 AR 1 0403-
2 RING; SNAP,TOP GEAR SHAFT
ID=55.8 T=2.64 GREEN 		1-09588-163-1 AR 1 0403-
3 BEARING; TOP GEAR SHAFT
NSK 		1-09810-275-0 01 1 0403-0502
3 BEARING; TOP GEAR SHAFT
NSK 		1-09810-282-0 01 1 0503-
7 WASHER; THRUST,MAINSHAFT 1-33239-059-0 02 1 0403-
8 CLIP; DOG CLU 1-33219-020-0 01 1 0403-
9 CLUTCH; DOG,TOP GEAR
Z=45 		1-33265-413-1 01 1 0403-
10 RING; SNAP,PILOT BRG
OD=50.5 		9-09180-147-0 01 1 0403-
16 BEARING; PILOT,MAINSHAFT
NSK 		1-09844-021-0 14 1 0403-
16 BEARING; PILOT,MAINSHAFT
NTN 		1-09844-022-0 14 1 0403-
16 BEARING; PILOT,MAINSHAFT
JTEKT 		1-09844-023-0 14 1 0403-
18 RING; SNAP,CLU HUB
T=1.75 		1-09588-196-0 01 1 0403-
19 RING; BLOCK,4TH & 5TH
Z=45 		1-33265-414-0 02 1 0403-
20 SLEEVE 1-33262-167-0 01 1 0403-
21 HUB; CLU,4TH & 5TH 1-33261-258-0 01 1 0403-
22 SPRING; BLOCK,INSERT
D=3.8 		1-09580-395-0 03 1 0403-
23 PLUNGER; DETENT,SYN 1-33269-037-1 03 1 0403-
24 BLOCK; INDEX,SYN 1-33269-035-1 03 1 0403-
26 SPRING; BLOCK,INSERT 1-09580-373-0 03 1 0403-
27 BEARING; 4TH GEAR
NSK 		1-09811-372-0 01 1 0403-
27 BEARING; 4TH GEAR
NTN 		1-09811-386-0 01 1 0403-
28 RING; SNAP,3RD GEAR 1-09588-195-0 01 1 0403-
29 COLLAR; 3RD GEAR 1-33234-076-0 01 1 0403-
30 GEAR; 4TH,MAINSHAFT
Z=26 		1-33253-555-0 01 1 0403-
33 BEARING; NEEDLE,3RD GEAR
NSK 		1-09811-370-0 01 1 0403-
33 BEARING; NEEDLE,3RD GEAR
JTEKT 		1-09811-387-1 01 1 0403-
33 BEARING; NEEDLE,3RD GEAR
NTN 		1-09811-414-0 01 1 0403-
36 GEAR; 3RD,MAINSHAFT
Z=34 		1-33252-414-0 01 1 0403-
42 SLEEVE
Z=45 		1-33262-162-0 01 1 0403-
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-193-0 01 1 0403-
45 SPRING; BLOCK INSERT
D=3.8 		1-09580-395-0 03 1 0403-
46 PLUNGER; DETENT,SYN 1-33269-037-1 03 1 0403-
47 BLOCK; INDEX,SYN 1-33269-035-1 03 1 0403-
48 SYNCHRONIZER ASM; 2ND & 3RD 1-33265-409-0 02 1 0403-
49 BEARING; NEEDLE,2ND GEAR
NSK 		1-09811-371-0 02 1 0403-
49 BEARING; NEEDLE,2ND GEAR
JTEKT 		1-09811-373-0 02 1 0403-
50 GEAR; 2ND,MAINSHAFT
Z=42 		1-33251-345-0 01 1 0403-
56 BEARING; NEEDLE,1ST,REV
NSK 		1-09811-370-0 02 1 0403-
56 BEARING; NEEDLE,1ST,REV
JTEKT 		1-09811-387-1 02 1 0403-
56 BEARING; NEEDLE,1ST,REV
NTN 		1-09811-414-0 02 1 0403-
59 GEAR; REV MAINSHAFT
Z=45 		1-33257-072-0 01 1 0403-
67 HUB; CLU,1ST TO REV 1-33261-192-0 01 1 0403-
68 SLEEVE; 1ST TO REV 1-33262-175-1 01 1 0403-
69 COLLAR; 1ST GEAR MAIN 1-33234-073-0 01 1 0403-
70 GEAR; 1ST,MAINSHAFT
Z=47 		1-33255-069-0 01 1 0403-
74 WASHER; THRUST,REV GEAR 1-33239-147-0 01 1 0403-
77 GEAR; 6TH,MAINSHAFT
Z=17 		1-33253-543-0 01 1 0403-
78 COLLAR; DIST,MAINSHAFT BRG 1-33235-099-0 01 1 0403-
79 BEARING; BALL,MAINSHAFT
JTEKT 		1-09800-120-1 01 1 0403-
79 BEARING; BALL,MAINSHAFT
NSK 		1-09800-287-0 01 1 0403-
80 GEAR; SPD DRIVE
Z=6 		1-33371-053-1 01 1 0403-
82 SHAFT; MAIN,TRANS
Z=25-24-24-16 		1-33231-312-0 01 1 0403-
84 BEARING; COUNTER SHAFT,FRT
NSK 		1-09810-209-0 01 1 0403-
84 BEARING; COUNTER SHAFT,FRT
JTEKT 		1-09810-210-0 01 1 0403-
93 RING; SNAP,COUNTER FRT BRG 1-09588-091-0 01 1 0403-
94 KEY; FEATHER,COUNTER SHAFT
(B) L=41 		1-09735-021-0 01 1 0403-
94 KEY; FEATHER,COUNTER SHAFT
(A) L=47 		1-09735-022-1 01 1 0403-
96 GEAR; COUNTER DRIVE
Z=38 		1-33331-222-0 01 1 0403-
104 GEAR; 4TH,COUNTER
Z=34 		1-33332-110-0 01 1 0403-
108 SHAFT; COUNTER
Z=28-22-14 		1-33311-286-0 01 1 0403-1311
108 SHAFT; COUNTER
Z=28-22-14 		8-98246-783-0 01 1 1312-
109 BEARING; COUNTER SHAFT,RR
NSK 		1-09810-211-0 01 1 0403-
109 BEARING; COUNTER SHAFT,RR
JTEKT 		1-09810-212-0 01 1 0403-
110 RING; SNAP,COUNTER BRG
ID=41.9 		1-09588-075-1 01 1 0403-
115 BEARING; NEEDLE,6TH,COUNTER
NSK 		1-09811-267-0 01 1 0403-
115 BEARING; NEEDLE,6TH,COUNTER
NTN 		1-09811-268-0 01 1 0403-
115 BEARING; NEEDLE,6TH,COUNTER
JTEKT 		1-09811-269-0 01 1 0403-
118 GEAR; 6TH,COUNTER
Z=41 		1-33338-273-0 01 1 0403-
119 RING; BLOCK,6TH SYN
Z=39 		1-33265-408-0 01 1 0403-
120 SLEEVE 1-33262-095-0 01 1 0403-
121 HUB; CLU,6TH 1-33261-143-1 01 1 0403-
122 PLUNGER; DETENT,SYN 1-33269-037-1 03 1 0403-
123 BLOCK; INDEX,SYN 1-33269-035-1 03 1 0403-
126 RING; SNAP,CLU HUB
(A) OD=100 T=2 		1-09587-032-0 01 1 0403-
126 RING; SNAP,CLU HUB
(B) ID=46.3 T=1.75 		1-09588-121-1 01 1 0403-
127 COLLAR; THRUST,REV SHAFT 1-33363-029-0 01 1 0403-
128 WASHER; THRUST,REV SHAFT
D=62 T=6.0 		1-33363-028-0 01 1 0403-
129 BEARING; NEEDLE,IDLER
NSK 		1-09811-016-0 02 1 0403-
129 BEARING; NEEDLE,IDLER
JTEKT 		1-09811-017-0 02 1 0403-
130 COLLAR; DIST,NEEDLE BRG 1-33363-031-0 01 1 0403-
132 SHAFT; REV 1-33351-023-1 01 1 0403-
135 GEAR; REV IDLER
Z=27 		1-33361-073-0 01 1 0403-
138 PIECE; LK,REV SHAFT 9-33354-007-0 01 1 0403-
140 BOLT; LK PIECE
M10X15 FLANGE 		1-09049-019-0 01 1 0403-
149 BEARING; NEEDLE,MAINSHAFT,RR
NSK 		1-09810-215-0 01 1 0403-
149 BEARING; NEEDLE,MAINSHAFT,RR
JTEKT 		1-09810-216-0 01 1 0403-
