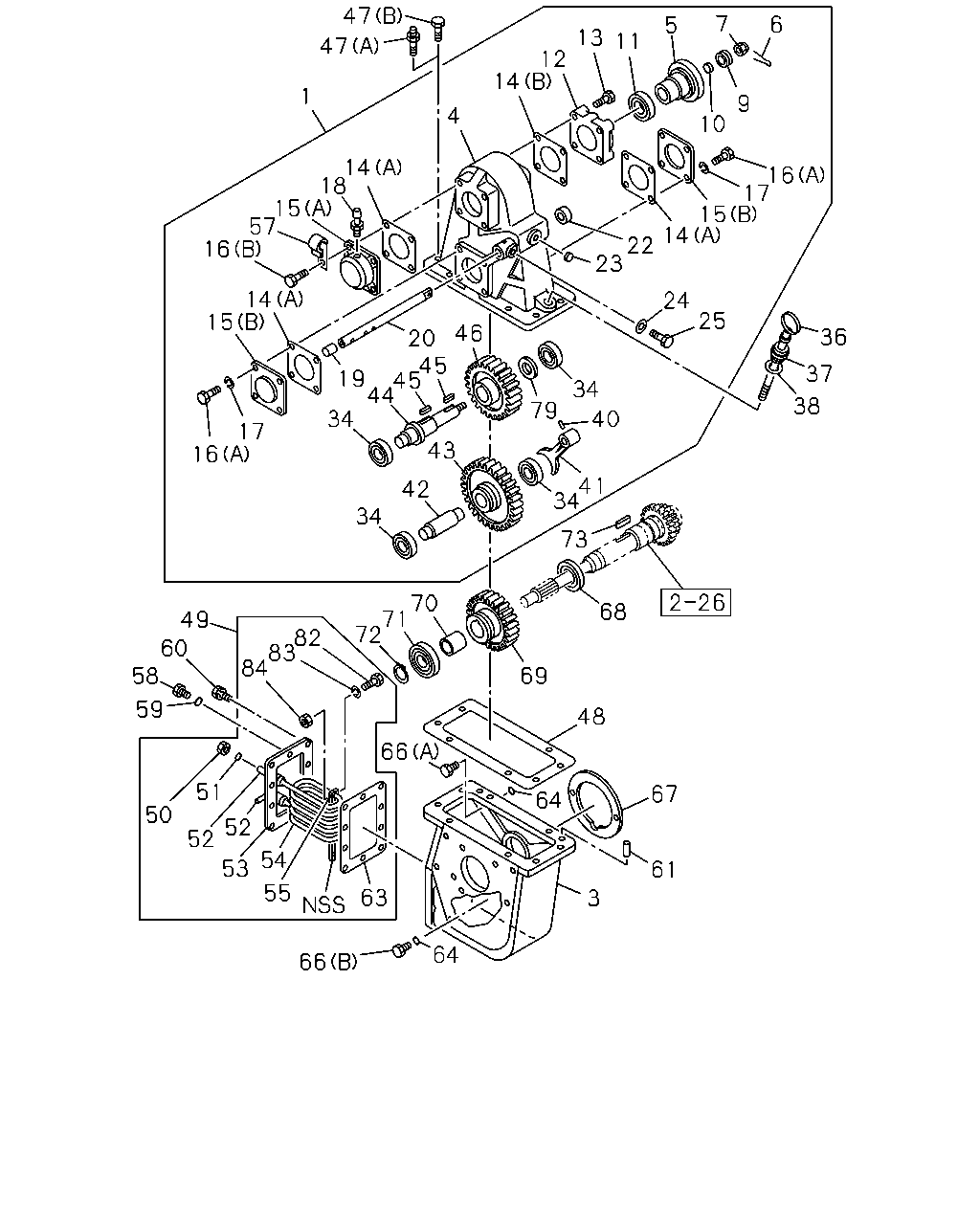

2-80 — POWER TAKE OFF; TRANSMISSION FRONT (#1905) — 69 parça

47 7 6 5 13 11 47 12 14 1 9 4 10 14 18 16 17 15 14 15 57 16 22 23 14 15 24 25 46 36 20 45 19 45 44 37 34 38 79 34 40 17 43 16 41 34 42 34 73 70 71 72 68 49 60 58 82 83 84 69 59 48 66 64 51 67 50 52 52 54 53 61 55 63 3 64 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CASE ASM; GEAR TRANSMISSION FRONT PTO<RC2>	1-38000-198-4	01	1	9207-
3	CASE; GEAR TRANSMISSION FRONT PTO<RC2>	1-38111-024-0	01	1	9207-
4	CASE; GEAR,UPR,FRT PTO TRANSMISSION FRONT PTO<RC2>	1-38111-019-3	01	1	9207-
5	FLANGE; OUTPUT SHAFT,PTO TRANSMISSION FRONT PTO<RC2>	1-38512-014-0	01	1	9207-
6	PIN; SPLIT,OUTPUT SHAFT TRANSMISSION FRONT PTO<RC2> OD=3.7 L=30	9-08114-030-0	01	1	9207-
7	NUT; FLANGE FIX TRANSMISSION FRONT PTO<RC2> M18 SLOTTED	9-99116-418-0	01	1	9207-
9	WASHER; OUTPUT,FLANGE TRANSMISSION FRONT PTO<RC2>	1-38229-005-0	01	1	9207-
10	GASKET; OUTPUT SHAFT,FRT PTO TRANSMISSION FRONT PTO<RC2> ID=17.8	9-09561-318-0	01	1	9207-
11	SEAL; OIL,OUTPUT SHAFT TRANSMISSION FRONT PTO<RC2>	1-09625-159-0	01	1	9207-
12	RETAINER; UPR CASE TRANSMISSION FRONT PTO<RC2>	1-38175-002-0	01	1	9207-
13	BOLT; RET FIX TRANSMISSION FRONT PTO<RC2> M10X40 W/LK WASHER	0-50051-040-0	04	1	9207-
14	GASKET; BRG COVER TRANSMISSION FRONT PTO<RC2> (A)	1-38152-003-0	03	1	9207-
14	GASKET; BRG COVER TRANSMISSION FRONT PTO<RC2> (B)	1-38176-001-0	01	1	9207-
15	COVER; BRG,UPR CASE TRANSMISSION FRONT PTO<RC2> (B)	1-38151-006-0	02	1	9207-
15	COVER; BRG,UPR CASE TRANSMISSION FRONT PTO<RC2> (A)	1-38151-013-0	01	1	9207-
16	BOLT; BRG COVER FIX TRANSMISSION FRONT PTO<RC2> (A) M10X18	0-23801-018-0	08	1	9207-
16	BOLT; BRG COVER FIX TRANSMISSION FRONT PTO<RC2> (B) M10X22 W/LK WASHER	0-50051-022-0	04	1	9207-
17	WASHER; LK TRANSMISSION FRONT PTO<RC2> ID=10.2	9-09150-510-0	08	1	9207-
18	BREATHER TRANSMISSION FRONT PTO<RC2>	1-33547-004-2	01	1	9207-
19	COVER; SHIFT ROD TRANSMISSION FRONT PTO<RC2>	9-33545-001-0	01	1	9207-
20	ROD; GEAR SHIFTER TRANSMISSION FRONT PTO<RC2>	1-38371-042-0	01	1	9207-
22	SEAL; OIL,SHIFT ROD TRANSMISSION FRONT PTO<RC2>	1-09625-158-0	01	1	9207-
23	PLUG; PLATE TRANSMISSION FRONT PTO<RC2>	9-09201-328-0	01	1	9207-
24	WASHER; LK,ROD SHIFTER TRANSMISSION FRONT PTO<RC2>	1-38379-008-0	01	1	9207-
25	SCREW; ROD SHIFTER TRANSMISSION FRONT PTO<RC2>	9-06131-425-0	02	1	9207-
34	BEARING; IDLE GEAR SHAFT,FRT PTO TRANSMISSION FRONT PTO<RC2>	1-09800-062-0	04	1	9207-
36	GAUGE; OIL LEVEL TRANSMISSION FRONT PTO<RC2>	1-38129-005-0	01	1	9207-
37	PLUG; OIL FILLER TRANSMISSION FRONT PTO<RC2>	1-09600-029-0	01	1	9207-
38	GASKET; LEVEL GAUGE TRANSMISSION FRONT PTO<RC2> ID=26.8	1-09623-058-0	01	1	9207-
40	PIN; SPR,SHIFTER ROD TRANSMISSION FRONT PTO<RC2>	9-09878-614-0	01	1	9207-
41	ARM; SHIFT,FRT PTO TRANSMISSION FRONT PTO<RC2>	1-38361-010-0	01	1	9207-
42	SPINDLE; IDLE GEAR TRANSMISSION FRONT PTO<RC2>	1-38211-002-0	01	1	9207-
43	GEAR; IDLE SHAFT,FRT PTO TRANSMISSION FRONT PTO<RC2> Z=57	1-38241-024-0	01	1	9207-
44	SHAFT; OUTPUT,FRT PTO TRANSMISSION FRONT PTO<RC2>	1-38221-018-0	01	1	9207-
45	KEY; FEATHER TRANSMISSION FRONT PTO<RC2>	9-08031-040-0	02	1	9207-
46	GEAR; OUTPUT,FRT PTO TRANSMISSION FRONT PTO<RC2> Z=43	1-38241-025-0	01	1	9207-
47	BOLT; UPR CASE FIX TRANSMISSION FRONT PTO<RC2> (B) M12X40 FLANGE	0-28181-240-0	06	1	9207-
47	BOLT; UPR CASE FIX TRANSMISSION FRONT PTO<RC2> (A)	1-09049-023-0	02	1	9207-
48	GASKET; GEAR CASE,UPR TO LWR TRANSMISSION FRONT PTO<RC2>	1-38113-005-0	01	1	9207-
49	PIPE ASM; WATER TRANSMISSION FRONT PTO<RC2>	1-38128-010-0	01	1	9207-
50	NUT; WATER PIPE CONN,FRT PTO TRANSMISSION FRONT PTO<RC2>	1-09660-067-0	02	1	9207-
51	GASKET; WATER PIPE TRANSMISSION FRONT PTO<RC2>	1-09635-009-0	02	1	9207-
52	CONNECTOR; WATER PIPE TRANSMISSION FRONT PTO<RC2>	1-09660-066-0	02	1	9207-
53	COVER; SIDE,FRT PTO TRANSMISSION FRONT PTO<RC2>	1-38182-003-0	01	1	9207-
54	PIPE; WATER,OIL COOLING TRANSMISSION FRONT PTO<RC2>	1-38128-011-0	01	1	9207-
55	HOLDER; WATER PIPE TRANSMISSION FRONT PTO<RC2>	1-38129-006-0	02	1	9207-
57	CLIP TRANSMISSION FRONT PTO<RC2> ID=11 L=30	1-09701-002-0	01	1	9311-
58	PLUG; DRAIN,FRT PTO TRANSMISSION FRONT PTO<RC2> M24X17 FLANGE	1-09604-023-0	01	1	9207-
59	GASKET; DRAIN PLUG TRANSMISSION FRONT PTO<RC2> ID=26.8	1-09623-058-0	01	1	9207-
60	BOLT; SIDE COVER FIX TRANSMISSION FRONT PTO<RC2> M8X20 FLANGE	0-28080-820-0	10	1	9207-
61	PIN; KNOCK TRANSMISSION FRONT PTO<RC2> OD=10 L=20	9-08161-020-0	02	1	9207-
63	GASKET; SIDE COVER TRANSMISSION FRONT PTO<RC2>	1-38183-003-0	01	1	9207-
64	GASKET; PTO TO TRANS CASE TRANSMISSION FRONT PTO<RC2>	9-09561-116-0	06	1	9207-
66	BOLT; FRT PTO TO TRANS CASE TRANSMISSION FRONT PTO<RC2> (B) M14X40 W/LK&PL WASHER	0-50151-440-0	03	1	9207-
66	BOLT; FRT PTO TO TRANS CASE TRANSMISSION FRONT PTO<RC2> (A) M14X55	1-09033-016-0	02	1	9207-
67	GASKET; PTO CASE TO TRANS TRANSMISSION FRONT PTO<RC2>	1-38113-004-0	01	1	9207-
68	SEAL; OIL TRANSMISSION FRONT PTO<RC2> NOK	1-09625-505-0	01	1	9207-9211
68	SEAL; OIL TRANSMISSION FRONT PTO<RC2> NOK	1-09625-173-0	01	1	9212-
68	SEAL; OIL TRANSMISSION FRONT PTO<RC2> KOYO	1-09625-522-0	01	1	9207-9211
68	SEAL; OIL TRANSMISSION FRONT PTO<RC2> KOYO	9-09924-501-0	01	1	9212-
69	GEAR; DRIVE,TRANS SHAFT,FRT PTO TRANSMISSION FRONT PTO<RC2> Z=45	1-38241-026-0	01	1	9207-
70	COLLAR; TOP GEAR SHAFT,FRT PTO TRANSMISSION FRONT PTO<RC2>	1-38216-001-0	01	1	9207-
71	BEARING; PTO,GEAR CASE,FRT TRANSMISSION FRONT PTO<RC2> NSK	1-09800-063-0	01	1	9207-
72	RETAINER; TRANS SHAFT PTO TRANSMISSION FRONT PTO<RC2> ID=45.8	9-09180-050-0	01	1	9207-
73	KEY; FEATHER TRANSMISSION FRONT PTO<RC2>	9-08031-040-0	01	1	9207-
79	COLLAR; DIST,OUTPUT SHAFT,FRT PTO TRANSMISSION FRONT PTO<RC2>	1-38226-038-0	01	1	9207-
82	BOLT; PIPE HOLDER FIX TRANSMISSION FRONT PTO<RC2>	9-92050-514-0	02	1	9207-
83	WASHER; LK TRANSMISSION FRONT PTO<RC2>	9-09150-005-0	02	1	9207-
84	NUT; PIPE HOLDER TRANSMISSION FRONT PTO<RC2> M5	9-99110-405-0	02	1	9207-
