Isuzu WW
▶
TRUCKS
▶
FSR
▶
11357 - FSR(MALAYSIA)W/B5500
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER
▶
1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER
(#19044) — 45 parça
◀

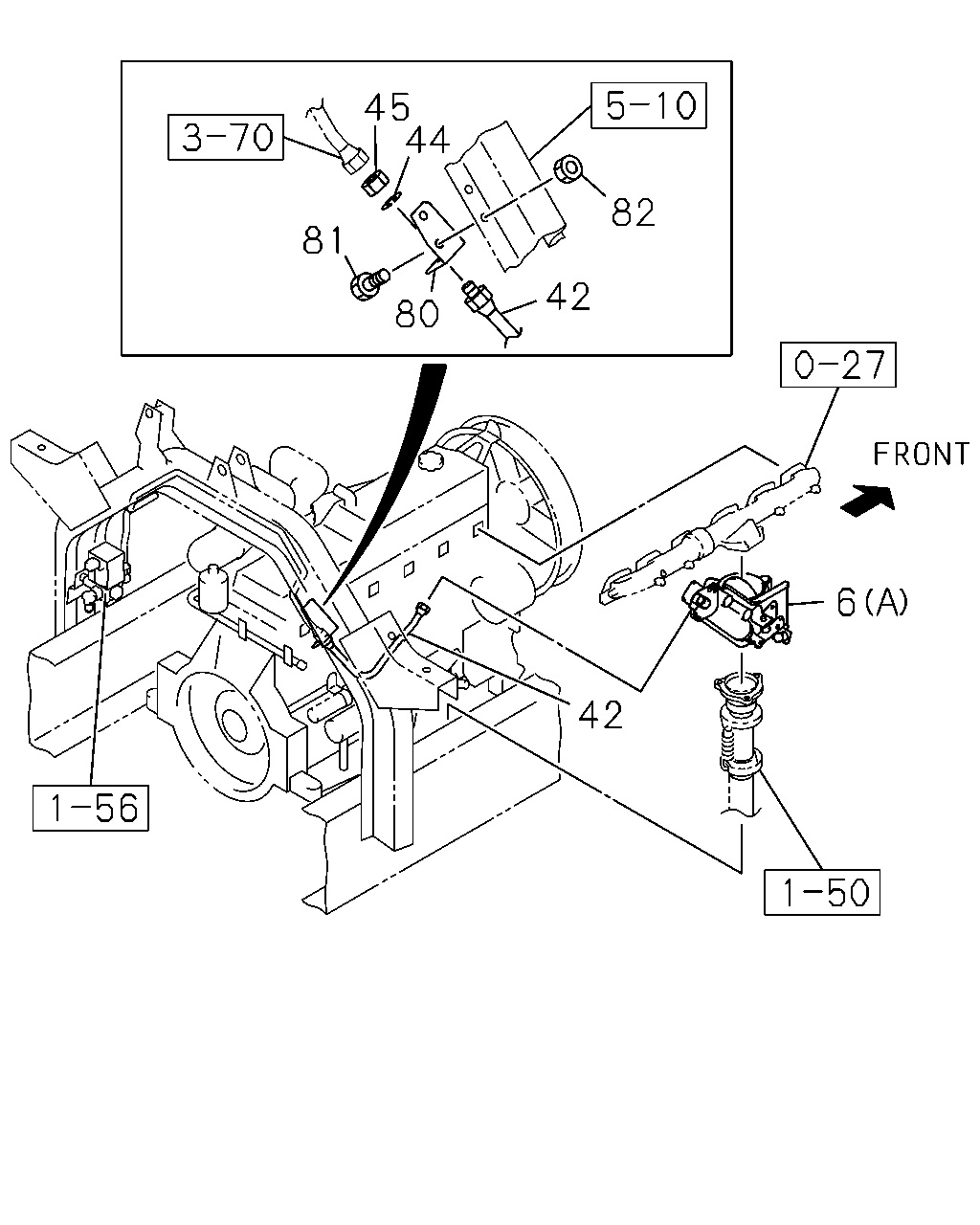

[155A] ASM,HOSE AND TUBE (11 parça)

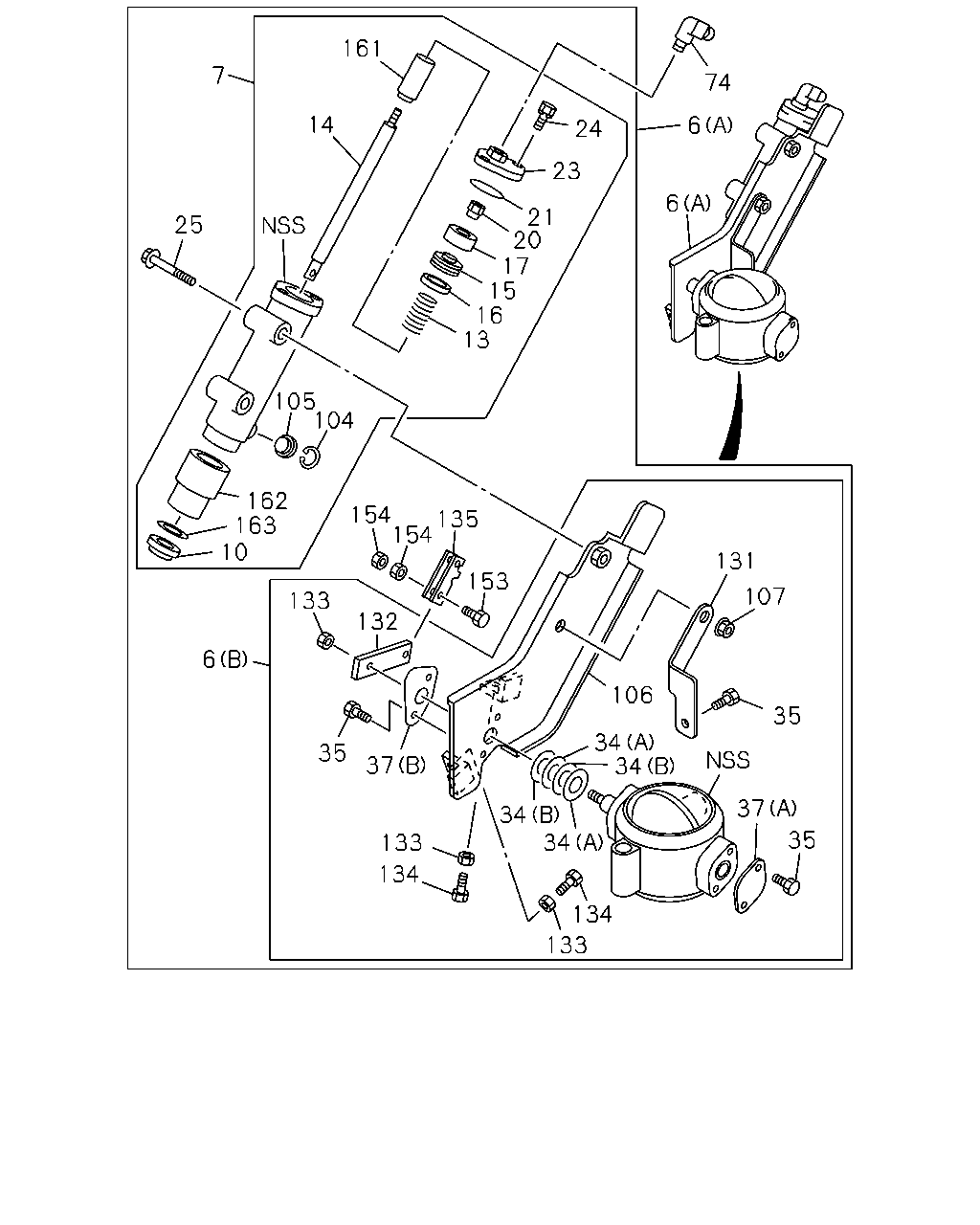

[155A] COMPONENT OF VALVE ASM (34 parça)
▶
45
44
82
80
81
42
6
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
VALVE; EXH BRAKE
(B)
8-97600-870-0
01
1
0403-
6
VALVE; EXH BRAKE
(A)
8-97602-529-0
01
1
0403-
42
HOSE; FLEX,EXH BRK
L=300
1-09363-608-0
01
1
0403-
44
WASHER; LK,FLEX HOSE
ID=12.2
9-09150-512-0
01
1
0403-0603
44
WASHER; LK,FLEX HOSE
ID=12.2 MAL
0-91510-512-0
01
1
0604-
45
NUT; FLEX HOSE
M12
9-09840-280-0
01
1
0403-
80
BRACKET; FLEX HOSE
1-47476-355-0
01
1
0403-
81
BOLT; HOSE BRKT
M8X20 FLANGE MAL
0-28680-820-0
02
1
0403-0512
81
BOLT; HOSE BRKT
M8X20 FLANGE MAL
0-28650-820-0
02
1
0601-
82
NUT; HOSE BRKT
M8 FLANGE
0-91150-108-0
02
1
0403-0602
82
NUT; HOSE BRKT
M8 FLANGE MAL
0-91180-108-0
02
1
0603-
161
7
74
14
6
24
23
6
21
20
17
15
16
13
25
105
104
162
163
10
154
135
154
131
153
107
133
132
6
106
35
34
34
35
37
37
34
34
35
133
134
134
133
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
VALVE; EXH BRAKE
(B)
8-97600-870-0
01
1
0403-
6
VALVE; EXH BRAKE
(A)
8-97602-529-0
01
1
0403-
7
CYLINDER ASM; CONT
1-22190-656-0
01
1
0403-
10
SEAL; DUST,CONT
1-22199-071-0
01
1
0403-
13
SPRING; CONT CYL
1-09580-517-0
01
1
0403-
14
SHAFT; CONT CYL
1-22199-145-0
01
1
0403-
15
PLATE; CONT CYL
8-97600-316-0
01
1
0403-
16
RING; WEAR,CONT CYL
8-97600-317-0
01
1
0403-
17
GASKET; CONT CYL
8-97600-318-0
01
1
0403-
20
NUT; CONT CYL
M8 FLANGE
0-91150-108-0
01
1
0403-
21
GASKET; COVER
1-22199-072-0
01
1
0403-
23
COVER; CONT CYL
8-97600-319-0
01
1
0403-
24
BOLT; COVER
1-22199-174-0
02
1
0403-
25
BOLT; CONT CYL
M10X60 FLANGE
1-22199-160-0
02
1
0403-
34
RING; SEAL
(A) ID=15
8-94397-184-0
02
1
0403-
34
RING; SEAL
(B) ID=13.7
9-22189-124-0
02
1
0403-
35
BOLT; PLATE FIX
1-22199-174-0
05
1
0403-
37
COVER; BODY
(B)
1-22199-130-0
01
1
0403-
37
COVER; BODY
(A)
9-22189-160-0
01
1
0403-
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW MAL
1-09650-430-0
01
1
0403-
104
RING; RET
9-88510-331-0
01
1
0403-
105
FILTER; CONT CYL
9-88510-330-0
01
1
0403-
106
BRACKET; CONT CYL
8-97600-869-0
01
1
0403-
107
NUT; CONT CYL
M10 FLANGE MAL
0-91150-110-0
01
1
0403-
131
PLATE; BODY
8-94391-039-0
01
1
0403-
132
LEVER; BRK VLV
8-94397-185-0
01
1
0403-
133
NUT; LK
M8 FLANGE
0-91150-108-0
03
1
0403-
134
BOLT; STOPPER
M8X30
1-09000-112-1
02
1
0403-
135
CLEVIS; CONT CYL
1-22199-053-0
01
1
0403-
153
BOLT; CLEVIS,CONT CYL
8-97600-320-0
02
1
0403-
154
NUT; CLEVIS,CONT CYL
M6
9-09110-406-0
04
1
0403-
161
PROTECTOR; CONT CYL
1-22199-146-0
01
1
0403-
162
GUIDE; CONT CYL
1-22199-147-0
01
1
0403-
163
WASHER; CONT CYL
1-22199-148-0
01
1
0403-
