1-50 — EXHAUST PIPE AND SILENCER (#19043) — 95 parça

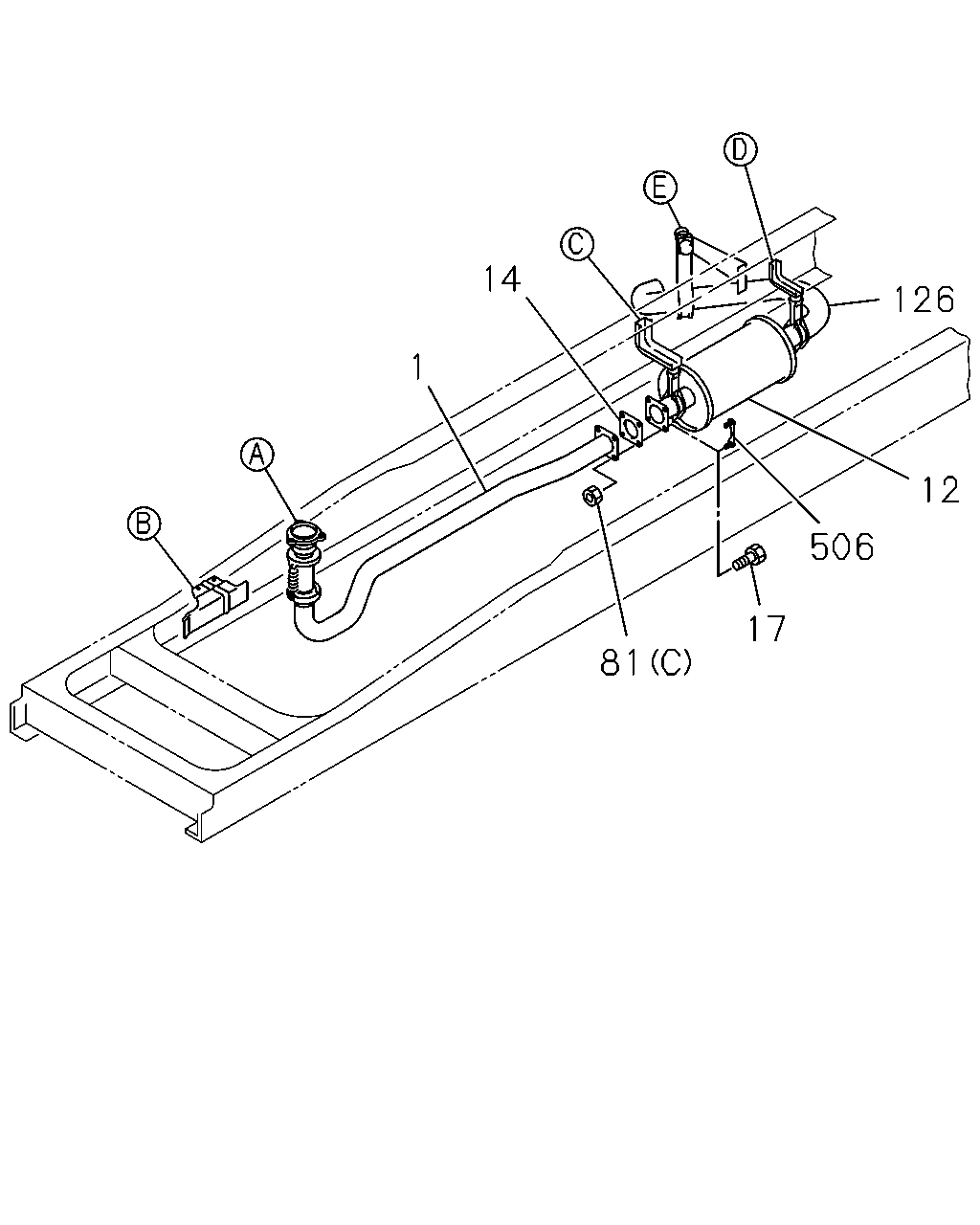

çizim 71501
14 126 1 12 506 17 81
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
MAL 		1-22123-316-0 01 1 0403-
12 SILENCER ASM; EXH
MAL 		1-22140-917-0 01 1 0403-
14 GASKET; SILENCER TO EXH PIPE
ID=87 		8-94394-391-0 01 1 0403-
17 BOLT; EXH PIPE
KD PREPARATORY PACK<6HF> M12X35 FLANGE 		0-28051-235-0 04 1 1204-
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0403-0403
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0404-0404
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0404-0404
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0405-0602
81 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 02 1 0603-
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0403-0602
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0403-0602
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0403-0602
81 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 01 1 0603-
81 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 01 1 0603-
81 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 01 1 0603-
81 NUT; BRKT
(C) M12 FLANGE 		0-91150-212-0 04 1 0403-0602
81 NUT; BRKT
(C) M12 FLANGE MAL 		0-91180-212-0 04 1 0603-
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 0403-0603
81 NUT; BRKT
(A) M10 LOCK NUT MAL 		0-91370-010-0 01 1 0604-
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 0403-0603
81 NUT; BRKT
(A) M10 LOCK NUT MAL 		0-91370-010-0 02 1 0604-
126 PIPE; EXH,RR
MAL 		1-22126-119-1 01 1 0403-
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 0403-1203
506 BRACKET; STUD
EXC. KD PREPARATORY PACK<6HF> M12X35 		1-22131-963-0 02 1 1204-
çizim 102572
1 34 36 476 475 475 36 476 5
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
MAL 		1-22123-316-0 01 1 0403-
5 PROTECTOR; HEAT 1-33659-182-1 01 1 0403-
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 0403-0410
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0411-
36 NUT; EXH PIPE
M12 		1-09400-010-0 06 1 0403-
475 BEARING; SEAL,VIBNON,EXH PIPE
OD=100.4 		1-22119-374-1 02 1 0403-
476 SPRING; VIBNON,EXH PIPE
MAL 		1-09583-298-0 02 1 0403-

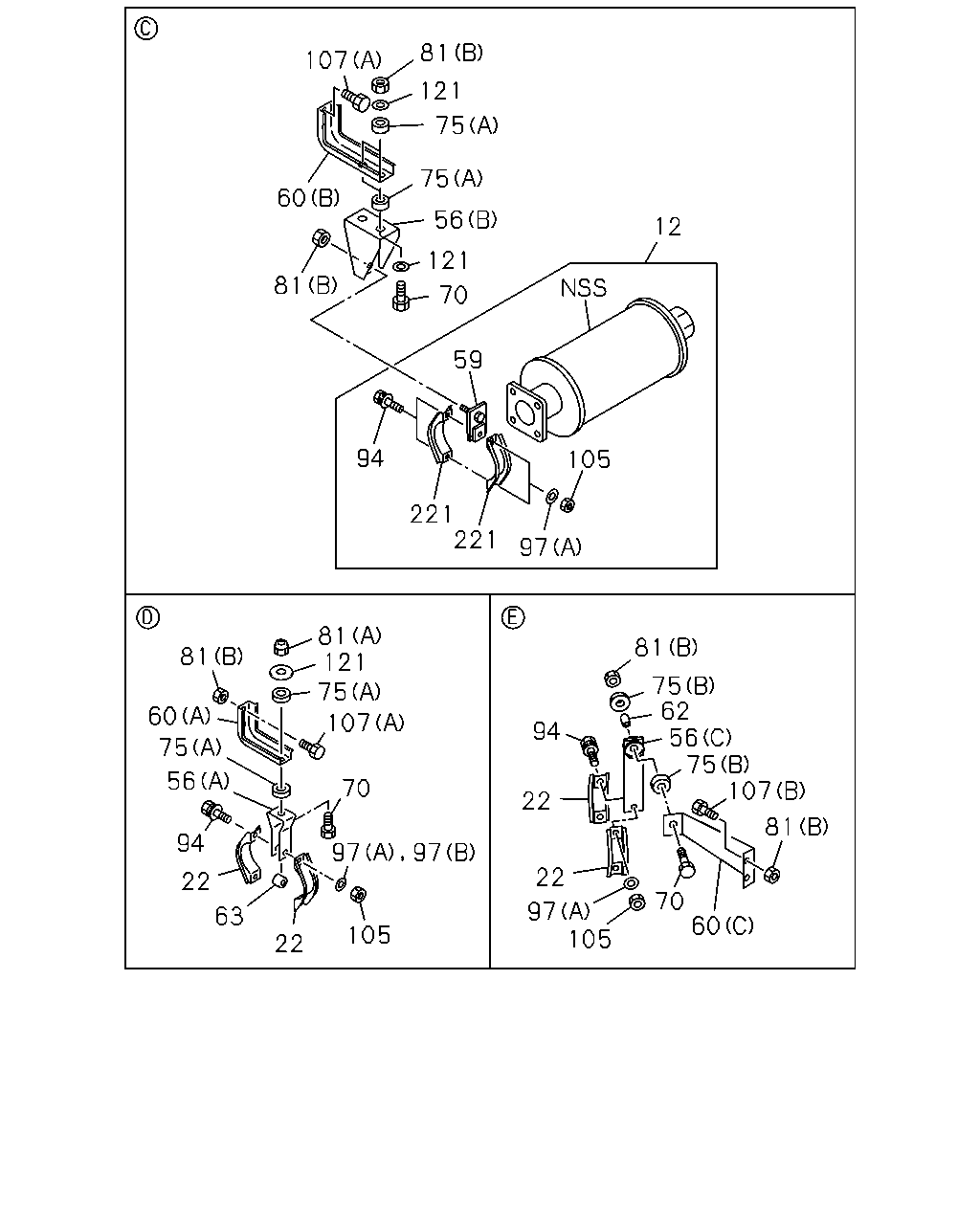

çizim 102573
81 107 121 75 75 60 56 12 121 81 70 59 94 105 221 221 97 81 121 75 81 81 75 62 56 75 107 60 107 94 75 56 70 22 81 94 97 97 22 22 70 60 97 105 63 105 22
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH
MAL 		1-22140-917-0 01 1 0403-
22 CLAMP; EXH PIPE
ID=80-84 MAL 		1-22133-233-0 02 1 0403-
22 CLAMP; EXH PIPE
ID=80-84 MAL 		1-22133-233-0 02 1 0403-
56 BRACKET; CLAMP,EXH PIPE
(C) L=254 		1-22131-527-1 01 1 0403-
56 BRACKET; CLAMP,EXH PIPE
(A) H=119 		1-22139-060-0 01 1 0403-
56 BRACKET; CLAMP,EXH PIPE
(B) 		1-22139-197-0 01 1 0403-
59 BRACKET; EXH SILENCER,FRT
MAL 		1-22139-098-0 01 1 0403-
60 BRACKET; FRAME TO BRKT
(C) 		1-22131-514-0 01 1 0403-
60 BRACKET; FRAME TO BRKT
(A) 		1-22151-679-1 01 1 0403-
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-691-0 01 1 0403-
62 TUBE; DIST,BRKT
L=22 MAL 		9-22159-024-0 01 1 0403-
63 TUBE; DIST,BRKT
L=11 		1-22139-026-0 01 1 0403-
70 BOLT; BRKT
M10X50 		0-10806-050-0 02 1 0403-0512
70 BOLT; BRKT
M10X50 MAL 		0-10856-050-0 02 1 0601-
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0403-0512
70 BOLT; BRKT
M10X50 		0-10806-050-0 01 1 0403-0512
70 BOLT; BRKT
M10X50 MAL 		0-10856-050-0 01 1 0601-
70 BOLT; BRKT
M10X50 MAL 		0-10856-050-0 01 1 0601-
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0403-
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 04 1 0403-
75 RUBBER; SUPPORT,BRKT
(B) OD=40 		1-22159-193-0 02 1 0403-
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0403-0403
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0404-0404
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0404-0404
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 02 1 0405-0602
81 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 02 1 0603-
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0403-0602
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0403-0602
81 NUT; BRKT
(B) M10 FLANGE 		0-91150-210-0 01 1 0403-0602
81 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 01 1 0603-
81 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 01 1 0603-
81 NUT; BRKT
(B) M10 FLANGE MAL 		0-91180-210-0 01 1 0603-
81 NUT; BRKT
(C) M12 FLANGE 		0-91150-212-0 04 1 0403-0602
81 NUT; BRKT
(C) M12 FLANGE MAL 		0-91180-212-0 04 1 0603-
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 01 1 0403-0603
81 NUT; BRKT
(A) M10 LOCK NUT MAL 		0-91370-010-0 01 1 0604-
81 NUT; BRKT
(A) M10 LOCK NUT 		9-09131-510-0 02 1 0403-0603
81 NUT; BRKT
(A) M10 LOCK NUT MAL 		0-91370-010-0 02 1 0604-
94 BOLT; CLAMP
M10X40 FLANGE MAL 		0-28681-040-0 02 1 0403-0512
94 BOLT; CLAMP
M10X40 FLANGE MAL 		0-28651-040-0 02 1 0601-
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0403-0805
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0403-0805
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806-
94 BOLT; CLAMP
M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806-
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 04 1 0403-0812
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 0901-
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 0901-
97 WASHER; PL,CLAMP
(A) ID=10.5 		9-09164-510-0 02 1 0403-0812
97 WASHER; PL,CLAMP
(B) ID=10.5 MAL 		0-91614-510-0 02 1 0901-0907
105 NUT; CLAMP
M10 FLANGE 		0-91150-210-0 02 1 0403-0602
105 NUT; CLAMP
M10 FLANGE MAL 		0-91180-210-0 02 1 0603-
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0403-0512
105 NUT; CLAMP
M10 		9-09110-510-0 02 1 0403-0512
105 NUT; CLAMP
M10 MAL 		0-91110-510-0 02 1 0601-
105 NUT; CLAMP
M10 MAL 		0-91110-510-0 02 1 0601-
107 BOLT; BRKT
(A) M10X30 FLANGE 		0-28681-030-0 04 1 0403-0512
107 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 04 1 0601-
107 BOLT; BRKT
(B) M10X35 FLANGE MAL 		0-28681-035-0 02 1 0403-0512
107 BOLT; BRKT
(B) M10X35 FLANGE MAL 		0-28651-035-0 02 1 0601-
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 01 1 0403-0605
121 WASHER; PL,BRKT
ID=10.5 OD=32 MAL 		0-91614-810-0 01 1 0606-
121 WASHER; PL,BRKT
ID=10.5 OD=32 		9-09164-810-0 02 1 0403-0605
121 WASHER; PL,BRKT
ID=10.5 OD=32 MAL 		0-91614-810-0 02 1 0606-
221 CLAMP; EXH SILENCER
ID=80-84 MAL 		1-22133-233-0 02 1 0403-
