Isuzu WW
▶
TRUCKS
▶
FSR
▶
11357 - FSR(MALAYSIA)W/B5500
▶
0 - Engine, Emission, Engine Electrical
▶
0-87 - COUPLING; INJECTION PUMP
▶
0-87 — COUPLING; INJECTION PUMP
(#19034) — 15 parça
◀

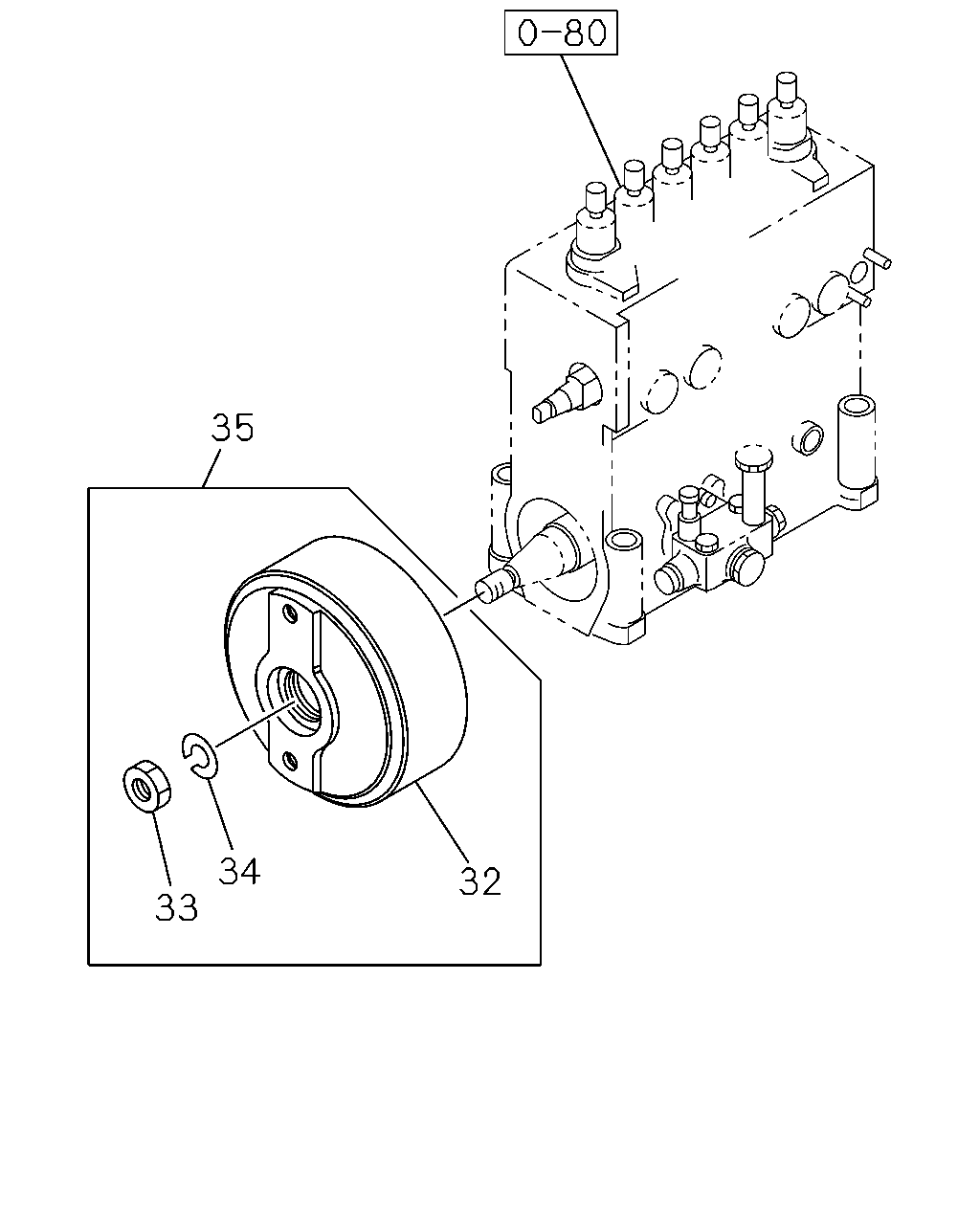

[087A] NO.2 (4 parça)

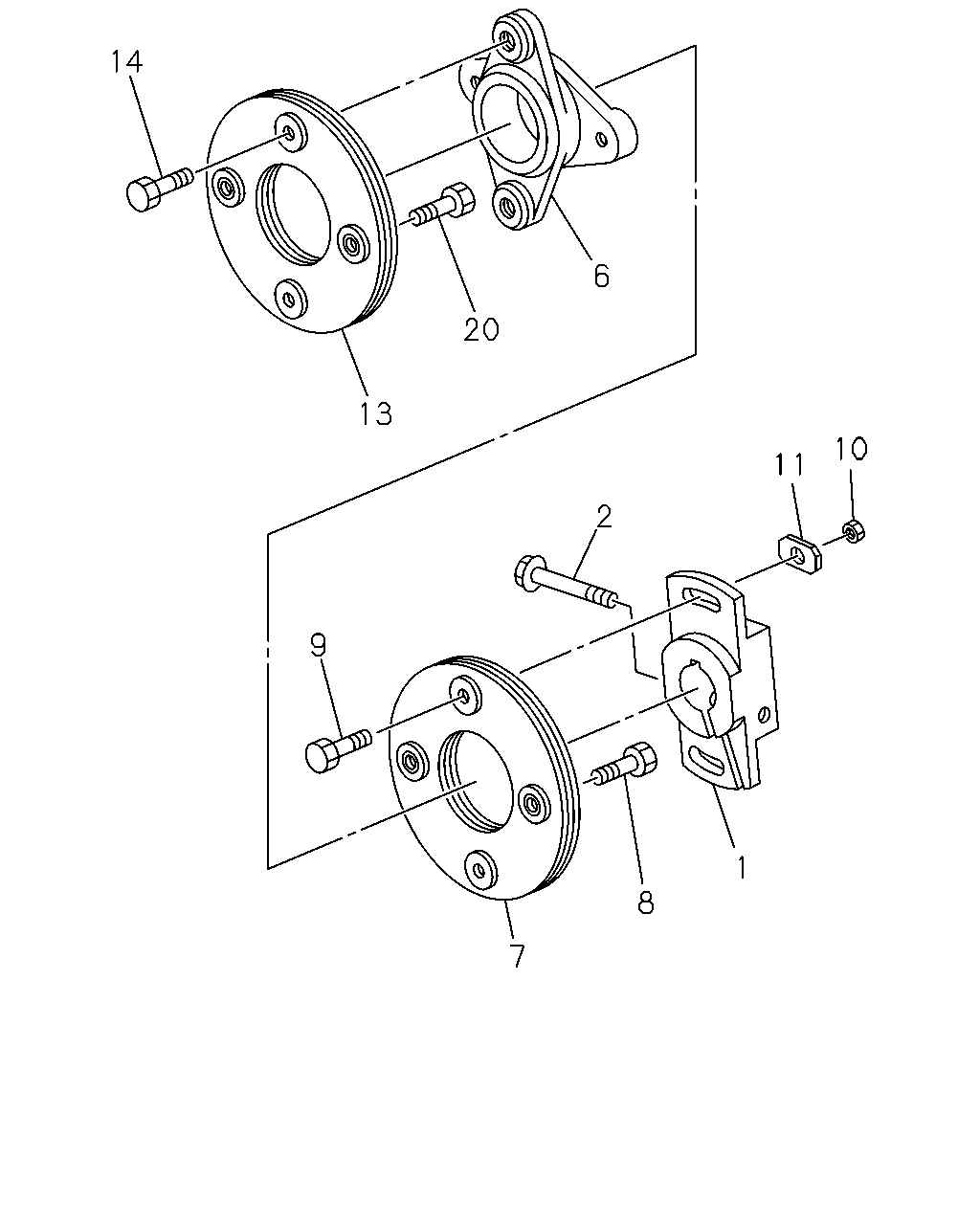

[087A] NO.1 (11 parça)
▶
35
34
32
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
DAMPER; INJ PUMP
8-94390-807-0
01
1
0403-
33
NUT; DAMPER
1-15619-132-0
01
1
0403-
34
WASHER; DAMPER
1-15619-131-0
01
1
0403-
35
DAMPER ASM; INJ PUMP
1-15744-016-0
01
1
0403-
14
6
20
13
10
11
2
9
1
8
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COUPLING; INJ PUMP DRIVE
1-15780-193-0
01
1
0403-
2
BOLT; COUPLING FIX,INJ PUMP
1-15789-079-0
01
1
0403-
6
COUPLING; CROSS,INJ PUMP DRIVE
1-15789-099-0
01
1
0403-
7
PLATE; COUPLING,COUPLING SIDE
1-15789-204-0
01
1
0403-
8
BOLT; PLATE TO CROSS COUPLING
1-15789-098-0
02
1
0403-
9
BOLT; PLATE TO COUPLING,INJ PUMP
1-15789-016-0
02
1
0403-
10
NUT; PLATE TO COUPLING,INJ PUMP
1-15789-073-0
02
1
0403-
11
WASHER; PLATE TO COUPLING,INJ PUMP
1-15789-076-0
02
1
0403-
13
PLATE; COUPLING,TIMER SIDE,INJ PUMP
1-15789-204-0
01
1
0403-
14
BOLT; PLATE TO CROSS COUPLING,TIMER SI
1-15789-098-0
02
1
0403-
20
BOLT; COUPLING TO INJ PUMP
1-15789-205-0
02
1
0403-
