2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#19026) — 101 parça

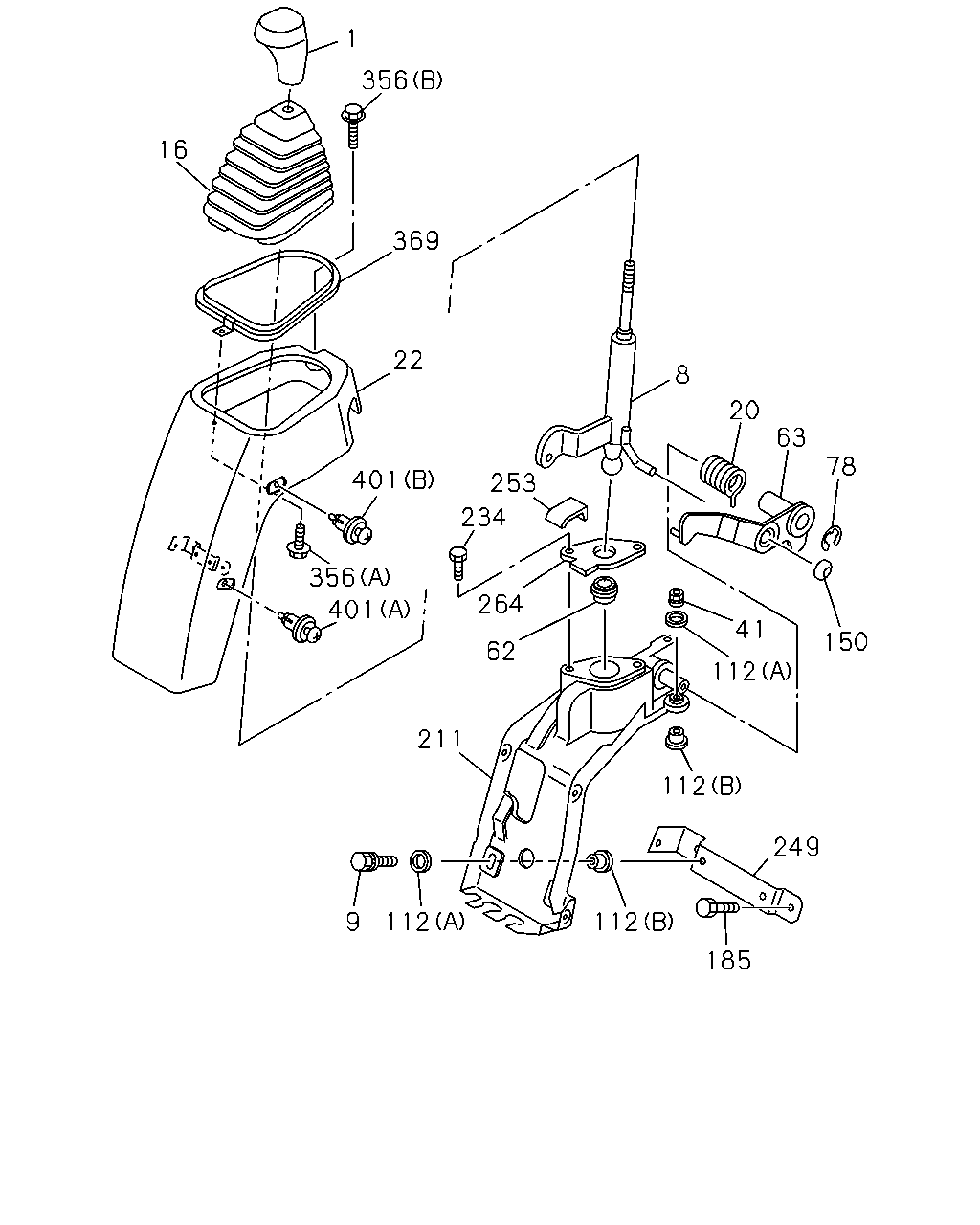

çizim 50018
1 356 16 369 22 8 20 63 253 78 401 234 356 264 401 41 150 62 112 211 112 249 9 112 112 185
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.006 KNOB; CHANGE LEVER
DARK GRAY 		8-97155-986-0 01 1 0102-0112 ●
1 04.006 KNOB; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> DARK GRAY 		8-97155-986-0 01 1 0201-0207 ●
1 04.006 KNOB; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> DARK GRAY 		8-97155-986-0 01 1 0208-0301 ● ●
1 04.006 KNOB; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> BLACK 		8-97196-287-1 01 1 0302- ●
1 04.006 KNOB; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> DARK GRAY 		8-97098-657-0 01 1 0201-0301 ●
1 04.006 KNOB; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> BLACK 		8-97196-286-1 01 1 0302- ●
8 04.006 LEVER; CHANGE 8-97204-508-0 01 1 0102-0112 ●
8 04.006 LEVER; CHANGE
FLOOR REMOTE SHIFT<M11> 		8-97204-508-0 01 1 0201-0212 ●
8 04.006 LEVER; CHANGE
FLOOR REMOTE SHIFT<M11> 		8-97204-506-0 01 1 0201-0207 ●
8 04.006 LEVER; CHANGE
FLOOR REMOTE SHIFT<M11> 		8-97204-506-0 01 1 0208-0301 ● ●
8 04.006 LEVER; CHANGE
FLOOR REMOTE SHIFT<M11> 		8-97204-506-0 01 1 0302- ● ●
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 0102-0112 ●
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 0201-0301 ● ● ●
9 04.012 BOLT; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 0302- ● ●
16 04.015 BOOT; CHANGE LEVER 8-97066-287-1 01 1 0102-0112 ●
16 04.015 BOOT; CHANGE LEVER 8-97066-287-1 01 1 0201-0301 ● ● ●
16 04.015 BOOT; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97066-287-2 01 1 0302- ● ●
20 04.012 SPRING; CHANGE LEVER 8-97204-514-0 01 1 0102-0112 ●
20 04.012 SPRING; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97204-514-0 01 1 0201-0207 ● ●
20 04.012 SPRING; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97204-514-0 01 1 0208-0301 ● ● ●
20 04.012 SPRING; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97204-514-1 01 1 0302- ● ●
22 04.015 COVER; DUST,CHANGE LEVER
DARK GRAY 		8-97098-666-3 01 1 0102-0112 ●
22 04.015 COVER; DUST,CHANGE LEVER
DARK GRAY 		8-97098-666-3 01 1 0201-0301 ● ● ●
22 04.015 COVER; DUST,CHANGE LEVER
FLOOR REMOTE SHIFT<M11> DARK GRAY 		8-97098-666-3 01 1 0302-0501 ● ●
22 04.015 COVER; DUST,CHANGE LEVER
FLOOR REMOTE SHIFT<M11> GRAY 		8-97585-447-3 01 1 0502- ● ●
41 04.012 NUT; CHANGE LEVER
09.011 M8 W/LK WASHER 		8-97065-435-0 02 1 0102-0110 ●
41 04.012 NUT; CHANGE LEVER
04.010 M8 FLANGE 		8-97046-127-0 02 1 0111-0112 ●
41 04.012 NUT; CHANGE LEVER
04.010 M8 FLANGE 		8-97046-127-0 02 1 0201-0301 ● ● ●
41 04.012 NUT; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 04.010 M8 FLANGE 		8-97046-127-0 02 1 0302-0610 ● ●
41 04.012 NUT; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 0611- ● ●
62 04.012 SEAT; BALL,CHANGE LEVER 8-97011-895-1 01 1 0102-0112 ●
62 04.012 SEAT; BALL,CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97011-895-1 01 1 0201-0207 ● ●
62 04.012 SEAT; BALL,CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97011-895-1 01 1 0208-0301 ● ● ●
62 04.012 SEAT; BALL,CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97011-895-1 01 1 0302- ● ●
63 04.006 LEVER; RELAY,SELECT 8-97163-768-0 01 1 0102-0112 ●
63 04.006 LEVER; RELAY,SELECT
FLOOR REMOTE SHIFT<M11> 		8-97163-768-0 01 1 0201-0207 ●
63 04.006 LEVER; RELAY,SELECT
FLOOR REMOTE SHIFT<M11> 		8-97163-768-0 01 1 0208-0301 ● ●
63 04.006 LEVER; RELAY,SELECT
FLOOR REMOTE SHIFT<M11> 		8-97163-768-0 01 1 0302- ●
63 04.006 LEVER; RELAY,SELECT
FLOOR REMOTE SHIFT<M11> 		8-97143-199-0 01 1 0201-0301 ●
63 04.006 LEVER; RELAY,SELECT
FLOOR REMOTE SHIFT<M11> 		8-97143-199-0 01 1 0302- ●
78 04.008 RING; SNAP,CHANGE LEVER
08.934 ID=10 		9-09185-410-0 01 1 0102-0112 ●
78 04.008 RING; SNAP,CHANGE LEVER
08.934 ID=10 		9-09185-410-0 01 1 0201-0207 ● ●
78 04.008 RING; SNAP,CHANGE LEVER
08.934 ID=10 		9-09185-410-0 01 1 0208-0301 ● ● ●
78 04.008 RING; SNAP,CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 08.934 ID=10 		9-09185-410-0 01 1 0302-0604 ● ●
78 04.008 RING; SNAP,CHANGE LEVER
FLOOR REMOTE SHIFT<M11> ID=10 		0-91805-510-0 01 1 0605- ● ●
112 04.012 RUBBER; CUSHION
(A) 		8-97091-426-0 04 1 0102-0112 ●
112 04.012 RUBBER; CUSHION
FLOOR REMOTE SHIFT<M11> (A) 		8-97091-426-0 04 1 0201-0207 ● ●
112 04.012 RUBBER; CUSHION
FLOOR REMOTE SHIFT<M11> (A) 		8-97091-426-0 04 1 0208-0301 ● ● ●
112 04.012 RUBBER; CUSHION
FLOOR REMOTE SHIFT<M11> (A) 		8-97091-426-0 04 1 0302- ● ●
112 04.012 RUBBER; CUSHION
(B) 		8-97091-427-0 04 1 0102-0112 ●
112 04.012 RUBBER; CUSHION
FLOOR REMOTE SHIFT<M11> (B) 		8-97091-427-0 04 1 0201-0207 ● ●
112 04.012 RUBBER; CUSHION
FLOOR REMOTE SHIFT<M11> (B) 		8-97091-427-0 04 1 0208-0301 ● ● ●
112 04.012 RUBBER; CUSHION
FLOOR REMOTE SHIFT<M11> (B) 		8-97091-427-0 04 1 0302- ● ●
150 04.008 BALL; DETENT,CONT LEVER 8-97049-147-0 01 1 0102-0112 ●
150 04.008 BALL; DETENT,CONT LEVER
FLOOR REMOTE SHIFT<M11> 		8-97049-147-0 01 1 0201-0207 ● ●
150 04.008 BALL; DETENT,CONT LEVER
FLOOR REMOTE SHIFT<M11> 		8-97049-147-0 01 1 0208-0301 ● ● ●
150 04.008 BALL; DETENT,CONT LEVER
FLOOR REMOTE SHIFT<M11> 		8-97049-147-0 01 1 0302- ● ●
185 04.012 BOLT; BRKT,COVER
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0102-0112 ●
185 04.012 BOLT; BRKT,COVER
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0201-0301 ● ● ●
185 04.012 BOLT; BRKT,COVER
02.664 M8X20 FLANGE 		0-28680-820-0 02 1 0302-0512 ● ●
185 04.012 BOLT; BRKT,COVER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
211 04.010 BRACKET; CHANGE LEVER 8-97204-505-0 01 1 0102-0112 ●
211 04.010 BRACKET; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97204-505-0 01 1 0201-0207 ● ●
211 04.010 BRACKET; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97204-505-0 01 1 0208-0301 ● ● ●
211 04.010 BRACKET; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97204-505-1 01 1 0302- ● ●
234 04.010 BOLT; BRKT 8-97204-512-0 02 1 0102-0112 ●
234 04.010 BOLT; BRKT
FLOOR REMOTE SHIFT<M11> 		8-97204-512-0 02 1 0201-0207 ● ●
234 04.010 BOLT; BRKT
FLOOR REMOTE SHIFT<M11> 		8-97204-512-0 02 1 0208-0301 ● ● ●
234 04.010 BOLT; BRKT
FLOOR REMOTE SHIFT<M11> 		8-97204-512-0 02 1 0302-0310 ● ●
234 04.010 BOLT; BRKT
FLOOR REMOTE SHIFT<M11> M6X12 FLANGE 		1-33739-842-0 02 1 0311- ● ●
249 04.012 BRACKET; COVER 8-97091-820-3 01 1 0102-0112 ●
249 04.012 BRACKET; COVER 8-97091-820-3 01 1 0201-0301 ● ● ●
249 04.012 BRACKET; COVER 8-97091-820-3 01 1 0302- ● ●
253 04.012 STOPPER; CHANGE LEVER 8-97204-510-0 01 1 0102-0112 ●
253 04.012 STOPPER; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97204-510-0 01 1 0201-0207 ● ●
253 04.012 STOPPER; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97204-510-0 01 1 0208-0301 ● ● ●
253 04.012 STOPPER; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97204-510-0 01 1 0302- ● ●
264 04.015 PLATE; COVER 8-97204-511-0 01 1 0102-0112 ●
264 04.015 PLATE; COVER
FLOOR REMOTE SHIFT<M11> 		8-97204-511-0 01 1 0201-0207 ● ●
264 04.015 PLATE; COVER
FLOOR REMOTE SHIFT<M11> 		8-97204-511-0 01 1 0208-0301 ● ● ●
264 04.015 PLATE; COVER
FLOOR REMOTE SHIFT<M11> 		8-97204-511-0 01 1 0302- ● ●
356 04.012 SCREW; COVER
02.510 (A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 0102-0112 ●
356 04.012 SCREW; COVER
02.510 (A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 0201-0301 ● ● ●
356 04.012 SCREW; COVER
FLOOR REMOTE SHIFT<M11> 02.510 (A) M5X14 TAPPING W/PL WASHER 		0-74100-514-0 01 1 0302-0604 ● ●
356 04.012 SCREW; COVER
FLOOR REMOTE SHIFT<M11> 16.800 (A) M5X14 TAPPING W/PL WASHER 		0-74160-514-0 01 1 0605- ● ●
356 04.012 SCREW; COVER
(B) M6X12 		8-97094-854-0 01 1 0102-0112 ●
356 04.012 SCREW; COVER
(B) M6X12 		8-97094-854-0 01 1 0201-0301 ● ● ●
356 04.012 SCREW; COVER
(B) M6X12 		8-97094-854-0 01 1 0302-0612 ● ●
356 04.012 SCREW; COVER
16.650 (B) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 01 1 0701- ● ●
369 04.012 RETAINER; REINF 8-97066-288-0 01 1 0102-0112 ●
369 04.012 RETAINER; REINF 8-97066-288-0 01 1 0201-0301 ● ● ●
369 04.012 RETAINER; REINF
FLOOR REMOTE SHIFT<M11> 		8-97066-288-1 01 1 0302- ● ●
401 04.012 CLIP; COVER
(A) DARK GRAY 		8-97098-523-0 02 1 0102-0112 ●
401 04.012 CLIP; COVER
(A) DARK GRAY 		8-97098-523-0 02 1 0201-0301 ● ● ●
401 04.012 CLIP; COVER
(A) DARK GRAY 		8-97098-523-0 02 1 0302-0501 ● ●
401 04.012 CLIP; COVER
(A) GRAY 		8-97582-240-0 02 1 0502-0602 ● ●
401 04.012 CLIP; COVER
(A) GRAY 		8-97582-240-0 03 1 0603- ● ●
401 04.012 CLIP; COVER
(B) DARK GRAY 		8-97098-524-0 01 1 0102-0112 ●
401 04.012 CLIP; COVER
(B) DARK GRAY 		8-97098-524-0 01 1 0201-0301 ● ● ●
401 04.012 CLIP; COVER
(B) DARK GRAY 		8-97098-524-0 01 1 0302-0501 ● ●
401 04.012 CLIP; COVER
(B) GRAY 		8-97582-796-0 01 1 0502-0602 ● ●
