Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#19025) — 561 parça

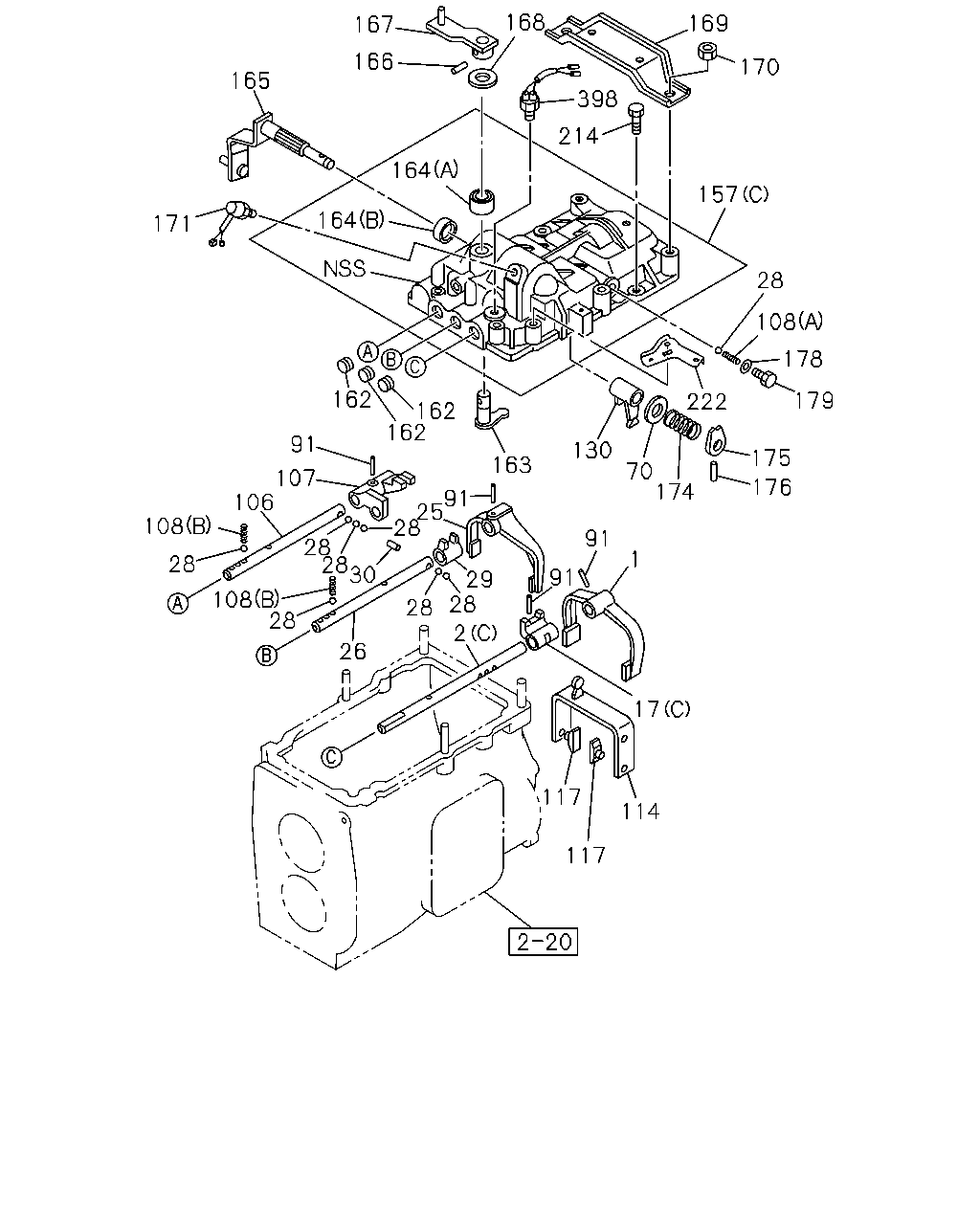

168 169 167 166 170 165 398 214 164 157 164 171 28 108 178 162 179 222 162 162 91 130 175 163 70 174 107 106 176 91 25 28 108 91 28 28 30 1 28 91 29 28 108 28 28 2 26 17 117 114 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.302 ARM; SHIFT,1ST & REV	1-33511-502-1	01	1	0102-0301	●
1	04.302 ARM; SHIFT,1ST & REV	8-97034-825-1	01	1	0201-0301		●
1	04.302 ARM; SHIFT,1ST & REV 4HF1 ENG(RLS)	8-97241-320-2	01	1	0302-			●
1	04.302 ARM; SHIFT,1ST & REV	8-97241-319-2	01	1	0208-0301				●
1	04.302 ARM; SHIFT,1ST & REV 4HE1 ENG(RLY)	8-97241-319-2	01	1	0302-0501				●
1	04.302 ARM; SHIFT,1ST & REV 4HE1-TCS ENG(RDS)	8-97241-319-2	01	1	0502-				●
2	04.309 ROD; SHIFT,1ST & REV (A)	1-33531-360-1	01	1	0102-0301	●
2	04.309 ROD; SHIFT,1ST & REV (B)	1-33531-361-1	01	1	0102-0301	●
2	04.309 ROD; SHIFT,1ST & REV (C)	8-97034-820-0	01	1	0201-0301		●
17	04.303 BLOCK; SHIFT,1ST & REV (B)	1-33511-432-1	01	1	0102-0301	●
17	04.303 BLOCK; SHIFT,1ST & REV (A)	1-33511-578-1	01	1	0102-0301	●
17	04.303 BLOCK; SHIFT,1ST & REV (C)	8-97034-829-1	01	1	0201-0301		●
25	04.302 ARM; SHIFT,2ND & 3RD	1-33511-580-1	01	1	0102-0301	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97034-826-2	01	1	0201-0301		●
25	04.302 ARM; SHIFT,2ND & 3RD 4HF1 ENG(RLS)	8-97355-690-0	01	1	0302-0404			●
25	04.302 ARM; SHIFT,2ND & 3RD 4HF1 ENG(RLS)	8-97362-731-2	01	1	0405-1407			●
25	04.302 ARM; SHIFT,2ND & 3RD 4HF1 ENG(RLS)	8-98255-926-1	01	1	1408-			●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97258-708-1	01	1	0208-0301				●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1 ENG(RLY)	8-97258-708-1	01	1	0302-0501				●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1-TCS ENG(RDS)	8-97258-708-1	01	1	0502-0507				●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1-TCS ENG(RDS)	8-97362-737-1	01	1	0508-				●
26	04.309 ROD; SHIFT,2ND & 3RD	1-33531-384-0	01	1	0102-0301	●
26	04.309 ROD; SHIFT,2ND & 3RD	8-97129-493-0	01	1	0201-0301		●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	0102-0112	●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	0201-0301	●	●
29	04.303 BLOCK; SHIFT,2ND & 3RD	8-97034-830-0	01	1	0201-0301		●
30	04.307 PIN; INTER LK	1-33534-002-0	03	1	0102-0301	●
30	04.307 PIN; INTER LK	8-97035-041-0	01	1	0201-0301		●
70	04.302 WASHER; PL,SHIFT LEVER	8-94461-345-0	01	1	0201-0301		●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	8-94135-771-0	03	1	0201-0301		●
91	04.302 PIN; SPR,SHIFT ARM L=32	8-97011-596-2	02	1	0201-0301		●
106	04.309 ROD; SHIFT,OD TO TOP	8-97166-578-0	01	1	0201-0301		●
107	04.303 BLOCK; SHIFT,OD TO TOP	8-97034-832-0	01	1	0201-0301		●
108	04.311 SPRING; LOCK BALL (A)	8-97035-053-0	01	1	0201-0301		●
108	04.311 SPRING; LOCK BALL (B) OD=6.8 L=31.6	9-09740-114-0	03	1	0201-0301		●
114	04.302 ARM; SHIFT,OD TO TOP	8-97034-827-1	01	1	0201-0301		●
117	04.302 PIECE; SHIFT,OD TO TOP	8-94316-996-0	02	1	0201-0301		●
130	04.302 LEVER; SHIFT,INTERNAL	1-33521-131-1	01	1	0102-0301	●
130	04.302 LEVER; SHIFT,INTERNAL	8-94340-131-2	01	1	0201-0301		●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY)	8-97305-657-0	01	1	0302-0303			●
130	04.302 LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0208-0301				●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY)	8-97306-647-0	01	1	0302-0303				●
130	04.302 LEVER; SHIFT,INTERNAL 4HF1 ENG(RLS)	8-97306-647-0	01	1	0302-0303			●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY)	8-97306-647-0	01	1	0304-0501				●
130	04.302 LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0304-0501			●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97306-647-0	01	1	0502-			●	●
157	04.105 BOX; QUAD,TRANS (A)	1-33541-465-1	01	1	0102-0301	●
157	04.105 BOX; QUAD,TRANS (B)	1-33541-512-0	01	1	0102-0301	●
157	04.105 BOX; QUAD,TRANS (C)	8-97249-547-0	01	1	0201-0301		●
162	04.105 COVER; SHIFT ROD,QUAD BOX	8-94101-319-0	04	1	0201-0301		●
163	04.302 LEVER; SELECT,INTERNAL	1-33522-130-0	01	1	0102-0301	●
163	04.302 LEVER; SELECT,INTERNAL	8-97034-886-0	01	1	0201-0301		●
163	04.302 LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	0208-0301				●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY)	8-97305-663-0	01	1	0302-0501				●
163	04.302 LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	0302-0501			●
163	04.302 LEVER; SELECT,INTERNAL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97305-663-0	01	1	0502-			●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=32	8-97304-066-0	01	1	0201-0301		●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=27	8-97304-068-0	01	1	0201-0301		●
165	04.302 LEVER; SHIFT	8-97034-816-0	01	1	0201-0301		●
166	04.302 PIN; SPR,SELECT LEVER 04.303 L=25 OD=5	8-94135-771-0	01	1	0201-0301		●
167	04.302 LEVER; SELECT,EXTERNAL	1-33521-137-1	01	1	0102-0301	●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-558-1	01	1	0201-0301		●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY)	8-97305-665-0	01	1	0302-0501			●
167	04.302 LEVER; SELECT,EXTERNAL	8-97306-648-0	01	1	0208-0301				●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY)	8-97306-648-0	01	1	0302-0501				●
167	04.302 LEVER; SELECT,EXTERNAL 4HF1 ENG(RLS)	8-97306-648-0	01	1	0302-0501			●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97306-648-0	01	1	0502-0611			●	●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-98039-434-0	01	1	0612-			●	●
168	04.302 WASHER; LK,SELECT LEVER	8-94249-250-1	01	1	0201-0301		●
169	00.029 BRACKET; ENG MTG TO TRANS	8-94112-892-2	04	1	0201-0301		●
170	04.105 NUT; CONT BOX M12 FLANGE	8-94249-242-0	04	1	0201-0301		●
171	04.054 SWITCH; NEUTRAL	1-82340-534-0	01	1	0102-0301	●
171	04.054 SWITCH; NEUTRAL	8-97165-946-1	01	1	0201-0301		●
171	04.054 SWITCH; NEUTRAL	8-97316-688-1	01	1	0208-0301				●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY)	8-97316-688-1	01	1	0302-0501				●
171	04.054 SWITCH; NEUTRAL	8-97316-688-1	01	1	0302-0501			●
171	04.054 SWITCH; NEUTRAL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97316-688-1	01	1	0502-0611			●	●
171	04.054 SWITCH; NEUTRAL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 02.698	8-98023-050-0	01	1	0612-1312			●	●
171	04.054 SWITCH; NEUTRAL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-98242-172-1	01	1	1401-1509			●	●
171	04.054 SWITCH; NEUTRAL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-98324-878-0	01	1	1510-			●	●
174	04.307 SPRING; REV	8-97035-052-0	01	1	0201-0301		●
175	04.302 RING; STOPPER,SHIFT LEVER	8-97034-819-0	01	1	0201-0301		●
176	04.302 PIN; SPR,STOPPER 04.555 L=30 OD=4	9-09678-549-0	02	1	0201-0301		●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 08.929	9-09571-612-0	01	1	0201-0301		●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	0208-0301				●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY).	9-09567-113-0	01	1	0302-0501				●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	0302-0501			●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	9-09567-113-0	01	1	0502-			●	●
179	04.311 PLUG; LOCK BALL	8-97031-668-0	01	1	0201-0301		●
214	04.510 BOLT; CONT BOX,SUB TRANS 04.105 M8X25	8-94128-786-0	04	1	0201-0301		●
214	04.510 BOLT; CONT BOX,SUB TRANS 04.105 M8X45	8-94132-164-0	06	1	0201-0301		●
222	04.057 BRACKET; CLIP	8-97061-051-0	01	1	0201-0301		●
398	02.698 SWITCH; REV LAMP	1-82440-083-3	01	1	0102-0301	●
398	02.698 SWITCH; REV LAMP	8-97165-947-1	01	1	0201-0301		●
398	02.698 SWITCH; REV LAMP 04.054	8-97316-688-1	01	1	0208-0301				●
398	02.698 SWITCH; REV LAMP 4HE1 ENG(RLY) 04.054	8-97316-688-1	01	1	0302-0501				●
398	02.698 SWITCH; REV LAMP 04.054	8-97316-688-1	01	1	0302-0501			●
398	02.698 SWITCH; REV LAMP 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.054	8-97316-688-1	01	1	0502-0604			●	●
398	02.698 SWITCH; REV LAMP 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-98023-050-0	01	1	0605-1312			●	●
398	02.698 SWITCH; REV LAMP 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-98242-173-1	01	1	1401-			●	●

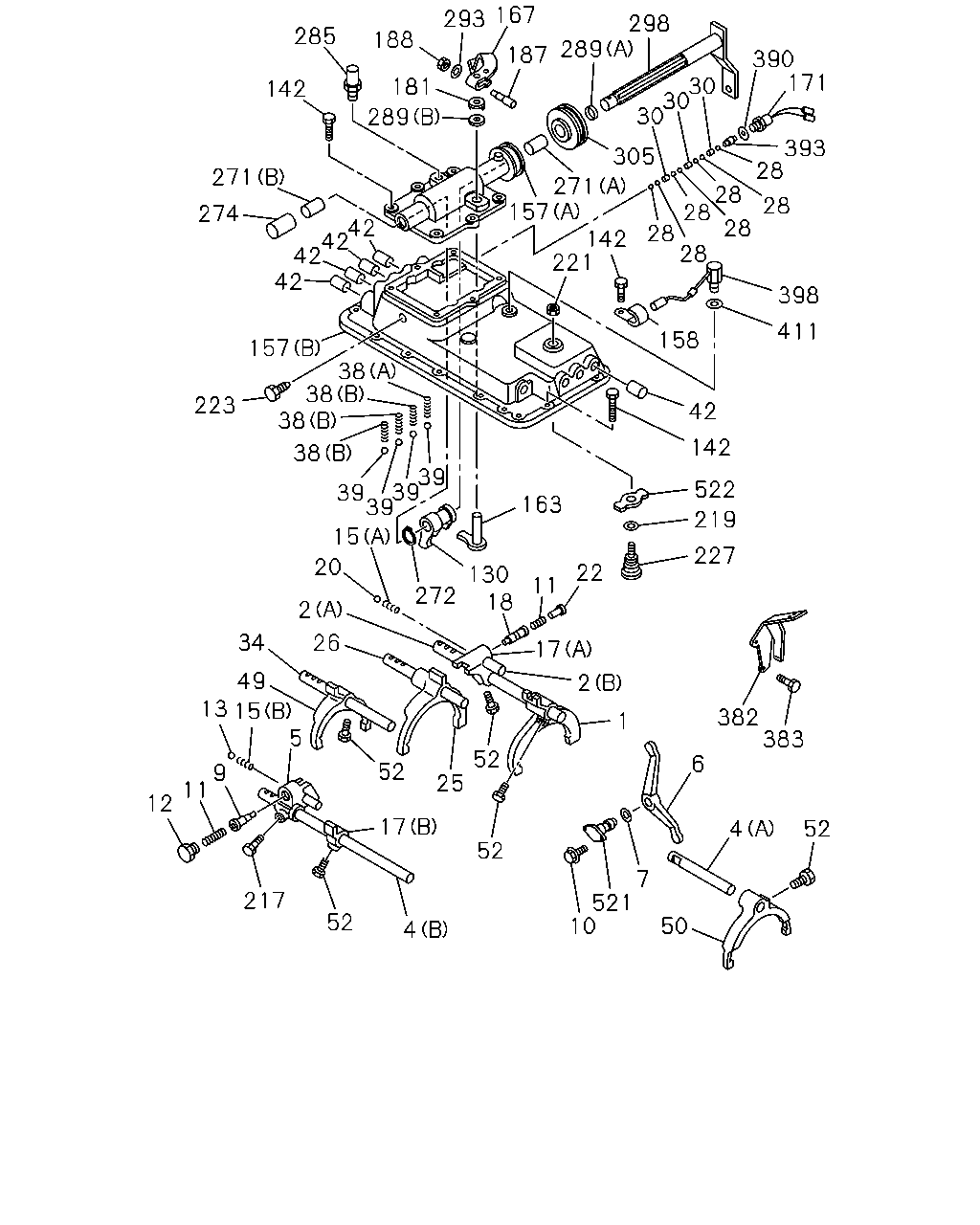

167 293 298 285 188 289 187 390 171 30 30 30 181 142 289 393 28 305 271 271 157 142 221 28 28 28 28 28 274 42 42 42 42 28 398 411 158 157 38 38 38 223 42 142 38 39 39 522 163 219 15 227 20 22 130 18 11 272 2 17 34 26 49 13 15 5 2 382 383 1 52 6 52 9 11 25 12 17 52 4 52 7 521 10 217 52 50 4 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.302 ARM; SHIFT,1ST & REV	1-33511-502-1	01	1	0102-0301	●
1	04.302 ARM; SHIFT,1ST & REV	8-97034-825-1	01	1	0201-0301		●
1	04.302 ARM; SHIFT,1ST & REV 4HF1 ENG(RLS)	8-97241-320-2	01	1	0302-			●
1	04.302 ARM; SHIFT,1ST & REV	8-97241-319-2	01	1	0208-0301				●
1	04.302 ARM; SHIFT,1ST & REV 4HE1 ENG(RLY)	8-97241-319-2	01	1	0302-0501				●
1	04.302 ARM; SHIFT,1ST & REV 4HE1-TCS ENG(RDS)	8-97241-319-2	01	1	0502-				●
2	04.309 ROD; SHIFT,1ST & REV (A)	1-33531-360-1	01	1	0102-0301	●
2	04.309 ROD; SHIFT,1ST & REV (B)	1-33531-361-1	01	1	0102-0301	●
2	04.309 ROD; SHIFT,1ST & REV (C)	8-97034-820-0	01	1	0201-0301		●
4	04.309 ROD; SHIFT,6TH (B)	1-33531-341-1	01	1	0102-0301	●
4	04.309 ROD; SHIFT,6TH (A)	1-33531-387-0	01	1	0102-0301	●
5	04.303 BLOCK; SHIFT,6TH	1-33511-326-1	01	1	0102-0301	●
6	04.302 LEVER; RELAY	1-33511-574-0	01	1	0102-0301	●
6	04.302 LEVER; RELAY 4HF1 ENG(RLS)	8-97241-344-0	01	1	0302-			●
7	04.302 GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). 01.456 ID=24.4	1-09623-057-0	01	1	0102-0301	●
9	04.307 SLEEVE; 6TH,SHIFT BLOCK	1-33516-029-0	01	1	0102-0301	●
10	04.302 BOLT; SPINDLE 09.171 M14X20	1-09044-078-0	02	1	0102-0301	●
11	04.307 SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	02	1	0102-0301	●
12	04.307 CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0102-0301	●
13	04.311 BALL; LK,SHIFT SLEEVE	9-00097-009-0	01	1	0102-0301	●
15	04.307 SPRING; LK,SHIFT SLEEVE (A)	1-09580-445-0	01	1	0102-0301	●
15	04.307 SPRING; LK,SHIFT SLEEVE (B)	1-09580-526-0	01	1	0102-0301	●
17	04.303 BLOCK; SHIFT,1ST & REV (B)	1-33511-432-1	01	1	0102-0301	●
17	04.303 BLOCK; SHIFT,1ST & REV (A)	1-33511-578-1	01	1	0102-0301	●
17	04.303 BLOCK; SHIFT,1ST & REV (C)	8-97034-829-1	01	1	0201-0301		●
18	04.307 SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-029-0	01	1	0102-0301	●
20	04.311 BALL; DETENT SLEEVE	9-00097-009-0	01	1	0102-0301	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0102-0301	●
25	04.302 ARM; SHIFT,2ND & 3RD	1-33511-580-1	01	1	0102-0301	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97034-826-2	01	1	0201-0301		●
25	04.302 ARM; SHIFT,2ND & 3RD 4HF1 ENG(RLS)	8-97355-690-0	01	1	0302-0404			●
25	04.302 ARM; SHIFT,2ND & 3RD 4HF1 ENG(RLS)	8-97362-731-2	01	1	0405-1407			●
25	04.302 ARM; SHIFT,2ND & 3RD 4HF1 ENG(RLS)	8-98255-926-1	01	1	1408-			●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97258-708-1	01	1	0208-0301				●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1 ENG(RLY)	8-97258-708-1	01	1	0302-0501				●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1-TCS ENG(RDS)	8-97258-708-1	01	1	0502-0507				●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1-TCS ENG(RDS)	8-97362-737-1	01	1	0508-				●
26	04.309 ROD; SHIFT,2ND & 3RD	1-33531-384-0	01	1	0102-0301	●
26	04.309 ROD; SHIFT,2ND & 3RD	8-97129-493-0	01	1	0201-0301		●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	0102-0112	●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	0201-0301	●	●
30	04.307 PIN; INTER LK	1-33534-002-0	03	1	0102-0301	●
30	04.307 PIN; INTER LK	8-97035-041-0	01	1	0201-0301		●
34	04.309 ROD; SHIFT,4TH & 5TH ARM	1-33531-385-0	01	1	0102-0301	●
38	04.311 SPRING; DETENT (A)	1-09580-374-0	01	1	0102-0301	●
38	04.311 SPRING; DETENT (B)	1-09580-548-0	03	1	0102-0301	●
39	04.307 BALL; DETENT	9-00097-013-0	04	1	0102-0301	●
42	04.105 CAP; QUAD BOX OD=20	1-33545-002-1	08	1	0102-0301	●
49	04.302 ARM; SHIFT,4TH & 5TH	1-33511-581-1	01	1	0102-0301	●
49	04.302 ARM; SHIFT,4TH & 5TH 4HF1 ENG(RLS)	8-97258-716-0	01	1	0302-			●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97258-709-2	01	1	0208-0301				●
49	04.302 ARM; SHIFT,4TH & 5TH 4HE1 ENG(RLY)	8-97258-709-2	01	1	0302-0501				●
49	04.302 ARM; SHIFT,4TH & 5TH 4HE1-TCS ENG(RDS)	8-97258-709-2	01	1	0502-0507				●
49	04.302 ARM; SHIFT,4TH & 5TH 4HE1-TCS ENG(RDS)	8-97362-738-1	01	1	0508-				●
50	04.302 ARM; SHIFT,6TH	1-33511-477-0	01	1	0102-0301	●
50	04.302 ARM; SHIFT,6TH	8-97241-324-1	01	1	0208-0301				●
50	04.302 ARM; SHIFT,6TH 4HE1 ENG(RLY)	8-97241-324-1	01	1	0302-0501				●
50	04.302 ARM; SHIFT,6TH 4HE1-TCS ENG(RDS)	8-97241-324-1	01	1	0502-				●
52	04.302 BOLT; SHIFT ARM	1-09052-034-2	07	1	0102-0301	●
130	04.302 LEVER; SHIFT,INTERNAL	1-33521-131-1	01	1	0102-0301	●
130	04.302 LEVER; SHIFT,INTERNAL	8-94340-131-2	01	1	0201-0301		●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY)	8-97305-657-0	01	1	0302-0303			●
130	04.302 LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0208-0301				●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY)	8-97306-647-0	01	1	0302-0303				●
130	04.302 LEVER; SHIFT,INTERNAL 4HF1 ENG(RLS)	8-97306-647-0	01	1	0302-0303			●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY)	8-97306-647-0	01	1	0304-0501				●
130	04.302 LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0304-0501			●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97306-647-0	01	1	0502-			●	●
142	04.012 BOLT; QUAD BOX 00.685 M10X28 FLANGE	0-28181-028-0	15	1	0102-0301	●
142	04.012 BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	0102-0301	●
142	04.012 BOLT; QUAD BOX 08.900 M10X20,M10X26 L=56	1-09049-014-1	01	1	0102-0301	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0208-0301				●
142	04.012 BOLT; QUAD BOX 4HE1 ENG(RLY) 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0302-0501				●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0302-0501			●
142	04.012 BOLT; QUAD BOX 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0502-0604			●	●
142	04.012 BOLT; QUAD BOX 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0605-			●	●
157	04.105 BOX; QUAD,TRANS (A)	1-33541-465-1	01	1	0102-0301	●
157	04.105 BOX; QUAD,TRANS (B)	1-33541-512-0	01	1	0102-0301	●
157	04.105 BOX; QUAD,TRANS (C)	8-97249-547-0	01	1	0201-0301		●
158	04.105 CLIP; HARNESS 04.342	9-09716-059-0	02	1	0102-0301	●
163	04.302 LEVER; SELECT,INTERNAL	1-33522-130-0	01	1	0102-0301	●
163	04.302 LEVER; SELECT,INTERNAL	8-97034-886-0	01	1	0201-0301		●
163	04.302 LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	0208-0301				●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY)	8-97305-663-0	01	1	0302-0501				●
163	04.302 LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	0302-0501			●
163	04.302 LEVER; SELECT,INTERNAL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97305-663-0	01	1	0502-			●	●
167	04.302 LEVER; SELECT,EXTERNAL	1-33521-137-1	01	1	0102-0301	●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-558-1	01	1	0201-0301		●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY)	8-97305-665-0	01	1	0302-0501			●
167	04.302 LEVER; SELECT,EXTERNAL	8-97306-648-0	01	1	0208-0301				●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY)	8-97306-648-0	01	1	0302-0501				●
167	04.302 LEVER; SELECT,EXTERNAL 4HF1 ENG(RLS)	8-97306-648-0	01	1	0302-0501			●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97306-648-0	01	1	0502-0611			●	●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-98039-434-0	01	1	0612-			●	●
171	04.054 SWITCH; NEUTRAL	1-82340-534-0	01	1	0102-0301	●
171	04.054 SWITCH; NEUTRAL	8-97165-946-1	01	1	0201-0301		●
171	04.054 SWITCH; NEUTRAL	8-97316-688-1	01	1	0208-0301				●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY)	8-97316-688-1	01	1	0302-0501				●
171	04.054 SWITCH; NEUTRAL	8-97316-688-1	01	1	0302-0501			●
171	04.054 SWITCH; NEUTRAL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97316-688-1	01	1	0502-0611			●	●
171	04.054 SWITCH; NEUTRAL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 02.698	8-98023-050-0	01	1	0612-1312			●	●
171	04.054 SWITCH; NEUTRAL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-98242-172-1	01	1	1401-1509			●	●
171	04.054 SWITCH; NEUTRAL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-98324-878-0	01	1	1510-			●	●
181	04.302 WASHER; PL,SELECT LEVER OD=37	1-09532-007-0	01	1	0102-0301	●
181	04.302 WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	0208-0301				●
181	04.302 WASHER; PL,SELECT LEVER 4HE1 ENG(RLY)	1-09503-280-0	01	1	0302-0303				●
181	04.302 WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	0302-0303			●
181	04.302 WASHER; PL,SELECT LEVER 4HE1 ENG(RLY)	8-97367-327-0	01	1	0304-0501				●
181	04.302 WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	0304-0501			●
181	04.302 WASHER; PL,SELECT LEVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97367-327-0	01	1	0502-			●	●
187	04.302 BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0102-0301	●
188	04.302 NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0102-0301	●
217	04.312 SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	0102-0301	●
219	04.302 WASHER; PL,SPINDLE ID=14	9-09851-275-0	01	1	0102-0301	●
221	04.302 NUT; SPINDLE 04.785 M10 FLANGE	0-91150-110-0	01	1	0102-0301	●
223	04.105 SCREW; SET,QUAD BOX 04.312 M8X12.5	9-09814-533-0	01	1	0102-0301	●
227	04.302 SPINDLE; 1ST & REV	1-33519-130-0	01	1	0102-0301	●
271	04.105 BUSHING; QUAD BOX (A) ID=25 OD=28	1-33549-107-0	01	1	0102-0301	●
271	04.105 BUSHING; QUAD BOX (B) ID=17 OD=19	1-33549-108-0	01	1	0102-0301	●
272	04.027 RING; SNAP,QUAD BOX 04.302	1-09588-174-0	01	1	0102-0301	●
274	04.105 COVER; SHAFT,QUAD BOX OD=24 L=31	9-33545-011-1	01	1	0102-0301	●
285	04.104 BREATHER; AIR,QUAD BOX 05.387	1-33149-003-0	01	1	0102-0301	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-269-0	01	1	0102-0301	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B)	1-09625-369-0	01	1	0102-0301	●
293	04.302 WASHER; PL,TAPER BOLT 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0102-0301	●
298	04.309 SHAFT; SHIFT LEVER	1-33522-115-1	01	1	0102-0301	●
305	04.107 BOOT; LEVER SHAFT	1-33529-051-0	01	1	0102-0301	●
382	04.105 BRACKET; PARKING BRK CONT CABLE	8-97081-310-0	01	1	0102-0301	●
383	04.105 BOLT; BRKT,PARK BRAKE 03.604 M10X16 FLANGE	0-28181-016-0	01	1	0102-0301	●
390	04.075 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	0102-0301	●
393	02.698 PIN; SW 04.307	1-33534-003-0	01	1	0102-0301	●
398	02.698 SWITCH; REV LAMP	1-82440-083-3	01	1	0102-0301	●
398	02.698 SWITCH; REV LAMP	8-97165-947-1	01	1	0201-0301		●
398	02.698 SWITCH; REV LAMP 04.054	8-97316-688-1	01	1	0208-0301				●
398	02.698 SWITCH; REV LAMP 4HE1 ENG(RLY) 04.054	8-97316-688-1	01	1	0302-0501				●
398	02.698 SWITCH; REV LAMP 04.054	8-97316-688-1	01	1	0302-0501			●
398	02.698 SWITCH; REV LAMP 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.054	8-97316-688-1	01	1	0502-0604			●	●
398	02.698 SWITCH; REV LAMP 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-98023-050-0	01	1	0605-1312			●	●
398	02.698 SWITCH; REV LAMP 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-98242-173-1	01	1	1401-			●	●
411	02.698 GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	0102-0301	●
521	04.309 SPINDLE; 6TH	1-33519-008-1	01	1	0102-0301	●
522	16.069 LEVER; SHIFT,1-REV	1-33521-135-0	01	1	0102-0301	●

167 262 294 192 181 128 294 192 640 641 535 130 171 535 559 133 630 645 129 273 163 551 631 142 554 262 624 635 548 630 346 398 630 178 391 381 630

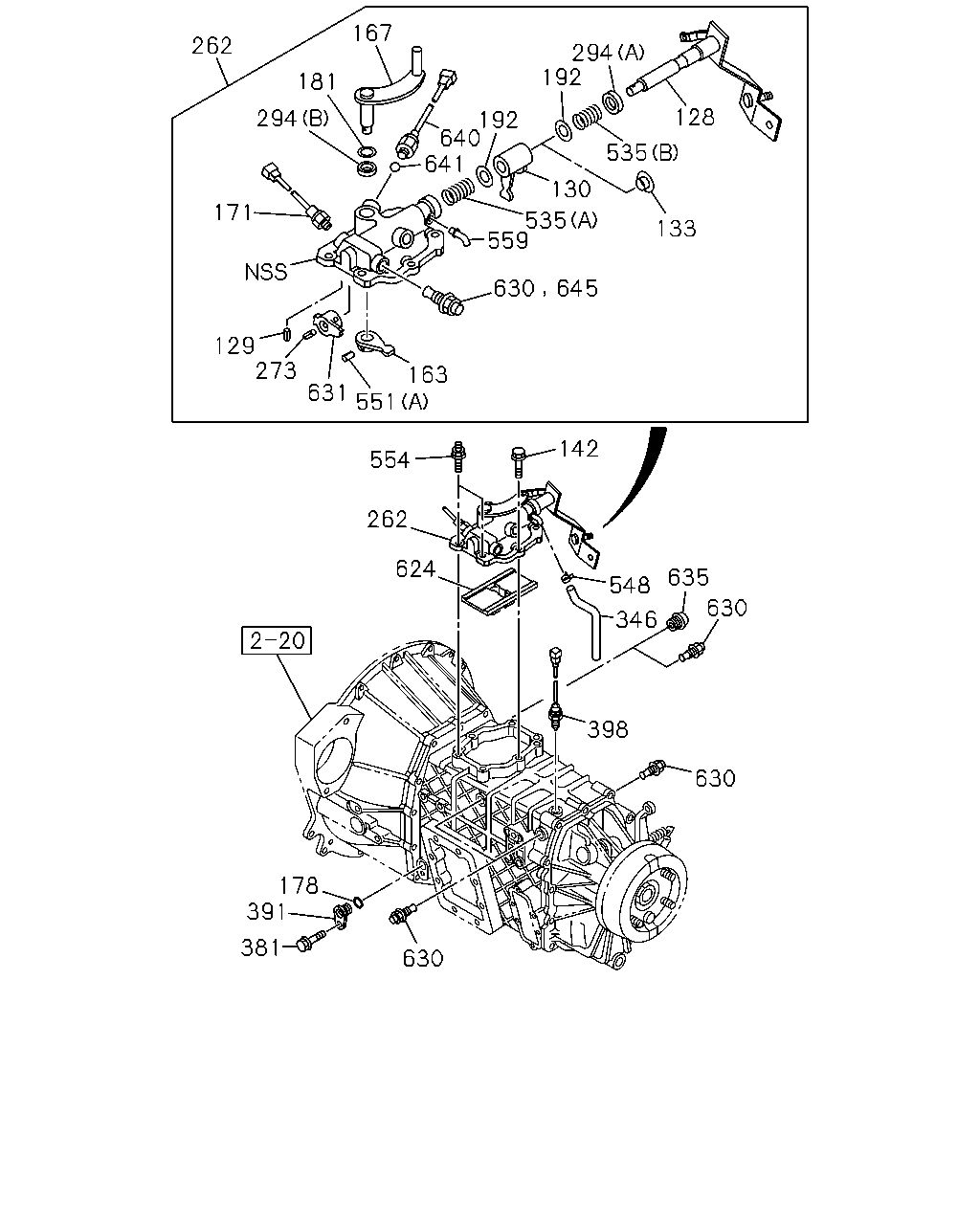

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
128	04.030 LEVER; SHIFT,EXTERNAL	8-97305-725-0	01	1	0208-0301				●
128	04.030 LEVER; SHIFT,EXTERNAL 4HE1 ENG(RLY)	8-97305-725-0	01	1	0302-0303				●
128	04.030 LEVER; SHIFT,EXTERNAL 4HF1 ENG(RLS)	8-97305-725-0	01	1	0302-0303			●
128	04.030 LEVER; SHIFT,EXTERNAL 4HE1 ENG(RLY)	8-97363-226-0	01	1	0304-0501				●
128	04.030 LEVER; SHIFT,EXTERNAL 4HE1-TCS ENG(RDS)	8-97363-226-0	01	1	0502-				●
128	04.030 LEVER; SHIFT,EXTERNAL 4HE1 ENG(RLY)	8-97305-658-0	01	1	0302-0303			●
128	04.030 LEVER; SHIFT,EXTERNAL 4HF1 ENG(RLS)	8-97305-725-0	01	1	0304-			●
129	04.027 PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	0208-0301				●
129	04.027 PIN; SPR,SHIFT 4HE1 ENG(RLY) L=30 OD=4	1-09748-031-0	01	1	0302-0501				●
129	04.027 PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	0302-0501			●
129	04.027 PIN; SPR,SHIFT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) L=30 OD=4	1-09748-031-0	01	1	0502-			●	●
130	04.302 LEVER; SHIFT,INTERNAL	1-33521-131-1	01	1	0102-0301	●
130	04.302 LEVER; SHIFT,INTERNAL	8-94340-131-2	01	1	0201-0301		●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY)	8-97305-657-0	01	1	0302-0303			●
130	04.302 LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0208-0301				●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY)	8-97306-647-0	01	1	0302-0303				●
130	04.302 LEVER; SHIFT,INTERNAL 4HF1 ENG(RLS)	8-97306-647-0	01	1	0302-0303			●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1 ENG(RLY)	8-97306-647-0	01	1	0304-0501				●
130	04.302 LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	0304-0501			●
130	04.302 LEVER; SHIFT,INTERNAL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97306-647-0	01	1	0502-			●	●
133	04.027 SEAT; SPR 4HF1 ENG(RLS)	8-97305-667-0	01	1	0302-			●
142	04.012 BOLT; QUAD BOX 00.685 M10X28 FLANGE	0-28181-028-0	15	1	0102-0301	●
142	04.012 BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	0102-0301	●
142	04.012 BOLT; QUAD BOX 08.900 M10X20,M10X26 L=56	1-09049-014-1	01	1	0102-0301	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0208-0301				●
142	04.012 BOLT; QUAD BOX 4HE1 ENG(RLY) 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0302-0501				●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0302-0501			●
142	04.012 BOLT; QUAD BOX 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0502-0604			●	●
142	04.012 BOLT; QUAD BOX 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0605-			●	●
163	04.302 LEVER; SELECT,INTERNAL	1-33522-130-0	01	1	0102-0301	●
163	04.302 LEVER; SELECT,INTERNAL	8-97034-886-0	01	1	0201-0301		●
163	04.302 LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	0208-0301				●
163	04.302 LEVER; SELECT,INTERNAL 4HE1 ENG(RLY)	8-97305-663-0	01	1	0302-0501				●
163	04.302 LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	0302-0501			●
163	04.302 LEVER; SELECT,INTERNAL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97305-663-0	01	1	0502-			●	●
167	04.302 LEVER; SELECT,EXTERNAL	1-33521-137-1	01	1	0102-0301	●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-558-1	01	1	0201-0301		●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY)	8-97305-665-0	01	1	0302-0501			●
167	04.302 LEVER; SELECT,EXTERNAL	8-97306-648-0	01	1	0208-0301				●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1 ENG(RLY)	8-97306-648-0	01	1	0302-0501				●
167	04.302 LEVER; SELECT,EXTERNAL 4HF1 ENG(RLS)	8-97306-648-0	01	1	0302-0501			●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97306-648-0	01	1	0502-0611			●	●
167	04.302 LEVER; SELECT,EXTERNAL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-98039-434-0	01	1	0612-			●	●
171	04.054 SWITCH; NEUTRAL	1-82340-534-0	01	1	0102-0301	●
171	04.054 SWITCH; NEUTRAL	8-97165-946-1	01	1	0201-0301		●
171	04.054 SWITCH; NEUTRAL	8-97316-688-1	01	1	0208-0301				●
171	04.054 SWITCH; NEUTRAL 4HE1 ENG(RLY)	8-97316-688-1	01	1	0302-0501				●
171	04.054 SWITCH; NEUTRAL	8-97316-688-1	01	1	0302-0501			●
171	04.054 SWITCH; NEUTRAL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97316-688-1	01	1	0502-0611			●	●
171	04.054 SWITCH; NEUTRAL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 02.698	8-98023-050-0	01	1	0612-1312			●	●
171	04.054 SWITCH; NEUTRAL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-98242-172-1	01	1	1401-1509			●	●
171	04.054 SWITCH; NEUTRAL 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-98324-878-0	01	1	1510-			●	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 08.929	9-09571-612-0	01	1	0201-0301		●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	0208-0301				●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY).	9-09567-113-0	01	1	0302-0501				●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	0302-0501			●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	9-09567-113-0	01	1	0502-			●	●
181	04.302 WASHER; PL,SELECT LEVER OD=37	1-09532-007-0	01	1	0102-0301	●
181	04.302 WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	0208-0301				●
181	04.302 WASHER; PL,SELECT LEVER 4HE1 ENG(RLY)	1-09503-280-0	01	1	0302-0303				●
181	04.302 WASHER; PL,SELECT LEVER	1-09503-280-0	01	1	0302-0303			●
181	04.302 WASHER; PL,SELECT LEVER 4HE1 ENG(RLY)	8-97367-327-0	01	1	0304-0501				●
181	04.302 WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	0304-0501			●
181	04.302 WASHER; PL,SELECT LEVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97367-327-0	01	1	0502-			●	●
192	04.309 WASHER; PL	8-97305-661-0	02	1	0208-0301				●
192	04.309 WASHER; PL 4HE1 ENG(RLY)	8-97305-661-0	02	1	0302-0303				●
192	04.309 WASHER; PL	8-97305-661-0	02	1	0302-0303			●
192	04.309 WASHER; PL 4HE1 ENG(RLY)	8-97305-661-0	02	1	0304-0501				●
192	04.309 WASHER; PL 4HE1-TCS ENG(RDS)	8-97305-661-0	02	1	0502-				●
192	04.309 WASHER; PL 4HF1 ENG(RLS)	8-97305-661-0	01	1	0304-			●
262	04.105 BOX ASM; SHIFT CONT	8-97256-823-8	01	1	0208-0301				●
262	04.105 BOX ASM; SHIFT CONT 4HE1 ENG(RLY)	8-97256-823-8	01	1	0302-0501				●
262	04.105 BOX ASM; SHIFT CONT 4HE1-TCS ENG(RDS)	8-97256-823-9	01	1	0502-0611				●
262	04.105 BOX ASM; SHIFT CONT 4HE1-TCS ENG(RDS)	8-98039-441-0	01	1	0612-1312				●
262	04.105 BOX ASM; SHIFT CONT 4HE1-TCS ENG(RDS)	8-98240-996-2	01	1	1401-				●
262	04.105 BOX ASM; SHIFT CONT 4HE1 ENG(RLY)	8-97329-084-1	01	1	0302-0404			●
262	04.105 BOX ASM; SHIFT CONT 4HE1 ENG(RLY)	8-97362-751-0	01	1	0405-0501			●
262	04.105 BOX ASM; SHIFT CONT 4HF1 ENG(RLS)	8-97256-825-7	01	1	0302-0404			●
262	04.105 BOX ASM; SHIFT CONT 4HF1 ENG(RLS)	8-97362-750-0	01	1	0405-0501			●
262	04.105 BOX ASM; SHIFT CONT 4HF1 ENG(RLS)	8-97362-750-2	01	1	0502-1312			●
262	04.105 BOX ASM; SHIFT CONT 4HF1 ENG(RLS)	8-98240-999-2	01	1	1401-			●
273	04.309 PIN; SPR,STOPPER 4HE1 ENG(RLY) 04.307 D=4.2 L=25	8-97103-142-0	01	1	0208-0501				●
273	04.309 PIN; SPR,STOPPER 04.307 D=4.2 L=25	8-97103-142-0	01	1	0208-0501			●
273	04.309 PIN; SPR,STOPPER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.307 D=4.2 L=25	8-97103-142-0	01	1	0502-			●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-599-0	01	1	0208-0301				●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY). (A)	1-09625-599-0	01	1	0302-0303				●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	1-09625-599-0	01	1	0302-0303			●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY). (A)	8-97363-225-0	01	1	0304-0501				●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97363-225-0	01	1	0304-0501			●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (A)	8-97363-225-0	01	1	0502-			●	●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97305-662-0	01	1	0208-0301				●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY). (B)	8-97305-662-0	01	1	0302-0501				●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97305-662-0	01	1	0302-0501			●
294	04.107 SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (B)	8-97305-662-0	01	1	0502-			●	●
346	04.545 HOSE; AIR	8-97309-855-0	01	1	0208-0301				●
346	04.545 HOSE; AIR 4HE1 ENG(RLY)	8-97309-855-0	01	1	0302-0501				●
346	04.545 HOSE; AIR	8-97309-855-0	01	1	0302-0501			●
346	04.545 HOSE; AIR 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97309-855-0	01	1	0502-			●	●
381	04.105 BOLT 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0208-0301				●
381	04.105 BOLT 4HE1 ENG(RLY) 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0302-0501				●
381	04.105 BOLT 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0302-0501			●
381	04.105 BOLT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0502-0512			●	●
381	04.105 BOLT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0601-			●	●
391	04.104 PLUG; SW HOLE	8-97300-273-1	01	1	0208-0301				●
391	04.104 PLUG; SW HOLE 4HE1 ENG(RLY)	8-97300-273-1	01	1	0302-0501				●
391	04.104 PLUG; SW HOLE	8-97300-273-1	01	1	0302-0501			●
391	04.104 PLUG; SW HOLE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97300-273-1	01	1	0502-			●	●
398	02.698 SWITCH; REV LAMP	1-82440-083-3	01	1	0102-0301	●
398	02.698 SWITCH; REV LAMP	8-97165-947-1	01	1	0201-0301		●
398	02.698 SWITCH; REV LAMP 04.054	8-97316-688-1	01	1	0208-0301				●
398	02.698 SWITCH; REV LAMP 4HE1 ENG(RLY) 04.054	8-97316-688-1	01	1	0302-0501				●
398	02.698 SWITCH; REV LAMP 04.054	8-97316-688-1	01	1	0302-0501			●
398	02.698 SWITCH; REV LAMP 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.054	8-97316-688-1	01	1	0502-0604			●	●
398	02.698 SWITCH; REV LAMP 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-98023-050-0	01	1	0605-1312			●	●
398	02.698 SWITCH; REV LAMP 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-98242-173-1	01	1	1401-			●	●
535	04.302 SPRING; LEVER (A)	8-97305-659-0	01	1	0208-0301				●
535	04.302 SPRING; LEVER 4HE1 ENG(RLY) (A)	8-97305-659-0	01	1	0302-0501				●
535	04.302 SPRING; LEVER 4HE1-TCS ENG(RDS) (A)	8-97305-659-0	01	1	0502-				●
535	04.302 SPRING; LEVER (B)	8-97305-660-0	01	1	0208-0301				●
535	04.302 SPRING; LEVER 4HE1 ENG(RLY) (B)	8-97305-660-0	01	1	0302-0501				●
535	04.302 SPRING; LEVER 4HE1-TCS ENG(RDS) (B)	8-97305-660-0	01	1	0502-				●
535	04.302 SPRING; LEVER 4HF1 ENG(RLS) (A)	8-97323-771-0	01	1	0302-			●
535	04.302 SPRING; LEVER 4HF1 ENG(RLS) (B)	8-97323-772-0	01	1	0302-			●
548	04.457 CLIP; HOSE 03.278	8-97031-674-0	01	1	0208-0301				●
548	04.457 CLIP; HOSE 4HE1 ENG(RLY) 03.278	8-97031-674-0	01	1	0302-0501				●
548	04.457 CLIP; HOSE 03.278	8-97031-674-0	01	1	0302-0501			●
548	04.457 CLIP; HOSE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 03.278	8-97031-674-0	01	1	0502-			●	●
551	04.303 PIN; SPRING 4HF1 ENG(RLS) 04.302 (B) L=32	8-97011-596-2	04	1	0508-			●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0208-0301				●
551	04.303 PIN; SPRING 4HE1 ENG(RLY) (A) L=25 OD=5	1-09748-032-0	01	1	0302-0501				●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0302-0501			●
551	04.303 PIN; SPRING 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (A) L=25 OD=5	1-09748-032-0	01	1	0502-			●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	0208-0301				●
551	04.303 PIN; SPRING 4HE1 ENG(RLY) 04.302 (B) L=32	8-97011-596-2	04	1	0302-0501				●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	0302-0501			●
551	04.303 PIN; SPRING 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.302 (B) L=32	8-97011-596-2	04	1	0502-0507			●	●
551	04.303 PIN; SPRING 4HE1-TCS ENG(RDS) 04.302 (B) L=32	8-97011-596-2	05	1	0508-				●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0208-0301				●
551	04.303 PIN; SPRING 4HE1 ENG(RLY) (C) L=20	8-97241-340-0	01	1	0302-0501				●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0302-0501			●
551	04.303 PIN; SPRING 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (C) L=20	8-97241-340-0	01	1	0502-			●	●
554	04.302 STUD; CONT BOX M8X15,M8X25 L=49	8-97352-677-0	02	1	0208-0301				●
554	04.302 STUD; CONT BOX 4HE1 ENG(RLY) M8X15,M8X25 L=49	8-97352-677-0	02	1	0302-0501				●
554	04.302 STUD; CONT BOX M8X15,M8X25 L=49	8-97352-677-0	02	1	0302-0501			●
554	04.302 STUD; CONT BOX 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M8X15,M8X25 L=49	8-97352-677-0	02	1	0502-0604			●	●
554	04.302 STUD; CONT BOX 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M8X15,M8X25 L=49	8-97365-378-0	02	1	0605-			●	●
559	04.302 PIPE; BREATHER 4HE1-TCS ENG(RDS)	8-97305-517-0	03	1	0502-0507				●
559	04.302 PIPE; BREATHER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97305-517-0	01	1	0508-0604			●	●
559	04.302 PIPE; BREATHER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.510	8-97358-318-0	01	1	0605-			●	●
559	04.302 PIPE; BREATHER	8-97305-517-0	01	1	0208-0301				●
559	04.302 PIPE; BREATHER 4HE1 ENG(RLY)	8-97305-517-0	01	1	0302-0501				●
559	04.302 PIPE; BREATHER	8-97305-517-0	01	1	0302-0501			●
559	04.302 PIPE; BREATHER 4HF1 ENG(RLS)	8-97305-517-0	01	1	0502-0507			●
624	04.105 PLATE; INTER LOCK	8-97241-317-2	01	1	0208-0301				●
624	04.105 PLATE; INTER LOCK 4HE1 ENG(RLY)	8-97241-317-2	01	1	0302-0501				●
624	04.105 PLATE; INTER LOCK	8-97241-317-2	01	1	0302-0501			●
624	04.105 PLATE; INTER LOCK 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97241-317-3	01	1	0502-			●	●
630	04.307 DETENT ASM	8-97241-341-0	04	1	0208-0301				●
630	04.307 DETENT ASM 4HE1 ENG(RLY)	8-97241-341-0	04	1	0302-0501				●
630	04.307 DETENT ASM 4HE1-TCS ENG(RDS)	8-97241-341-0	04	1	0502-0604				●
630	04.307 DETENT ASM 4HE1-TCS ENG(RDS)	8-98019-536-0	04	1	0605-				●
630	04.307 DETENT ASM 4HF1 ENG(RLS)	8-97241-341-0	03	1	0302-0604			●
630	04.307 DETENT ASM 4HF1 ENG(RLS)	8-98019-536-0	03	1	0605-			●
631	04.105 STOPPER; SPRING	8-97305-666-0	01	1	0208-0301				●
631	04.105 STOPPER; SPRING 4HE1 ENG(RLY)	8-97305-666-0	01	1	0302-0501				●
631	04.105 STOPPER; SPRING	8-97305-666-0	01	1	0302-0501			●
631	04.105 STOPPER; SPRING 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97305-666-0	01	1	0502-			●	●
635	04.309 PLUG; DETENT 4HF1 ENG(RLS) 00.206	8-97229-313-2	01	1	0302-0611			●
635	04.309 PLUG; DETENT 4HF1 ENG(RLS) 00.206	8-97380-892-0	01	1	0612-			●
640	04.054 SWITCH; SELECT 4HE1 ENG(RLY)	8-97316-687-1	01	1	0302-0501			●
641	04.311 BALL 4HE1 ENG(RLY)	8-97305-668-0	01	1	0302-0501			●
645	04.311 DETENT ASM 4HF1 ENG(RLS) 04.307	8-97241-341-0	01	1	0405-0604			●
645	04.311 DETENT ASM 4HF1 ENG(RLS) 04.307	8-98019-536-0	01	1	0605-			●

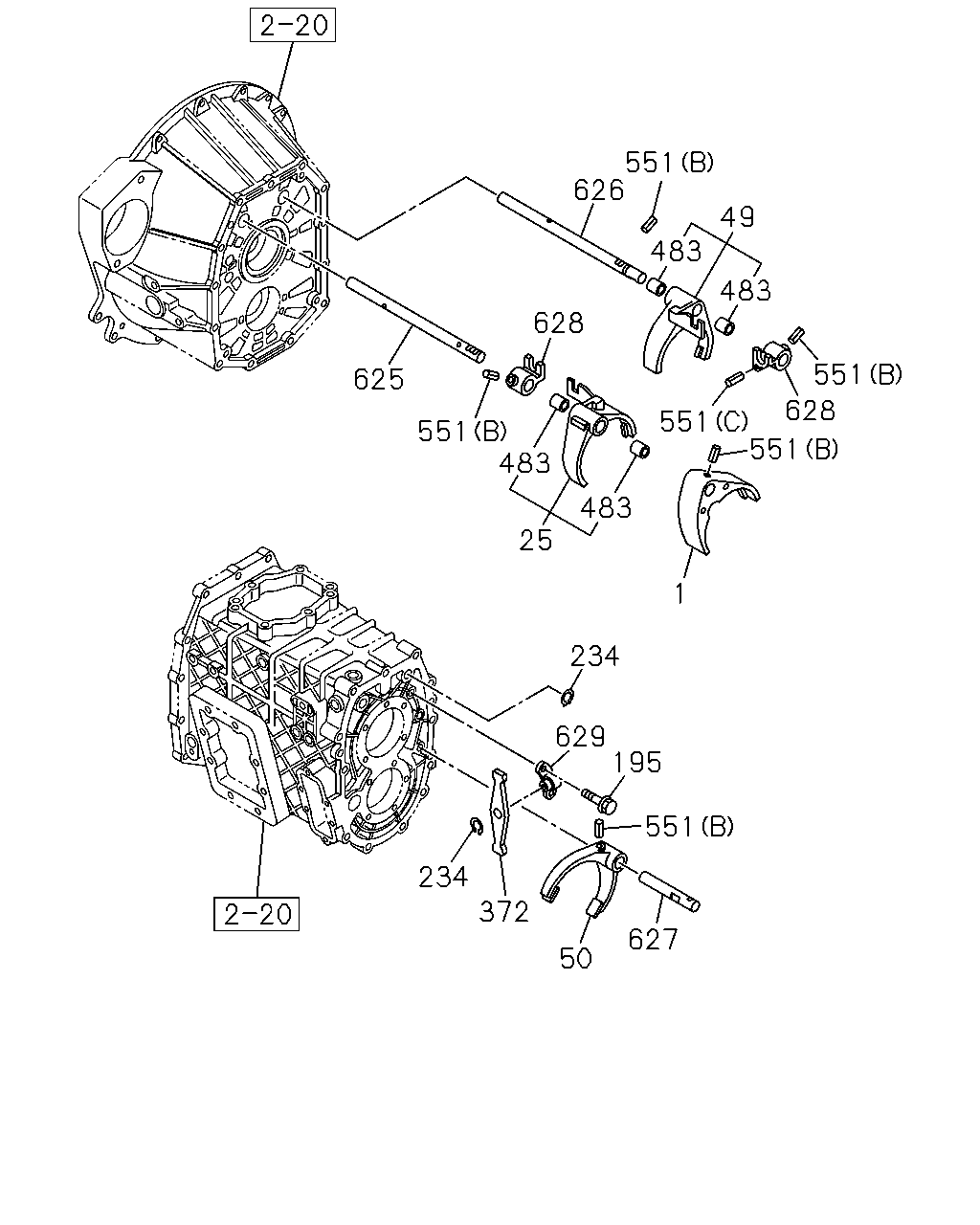

551 626 49 483 483 628 551 625 628 551 551 551 483 483 25 1 234 629 195 551 234 372 627 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.302 ARM; SHIFT,1ST & REV	1-33511-502-1	01	1	0102-0301	●
1	04.302 ARM; SHIFT,1ST & REV	8-97034-825-1	01	1	0201-0301		●
1	04.302 ARM; SHIFT,1ST & REV 4HF1 ENG(RLS)	8-97241-320-2	01	1	0302-			●
1	04.302 ARM; SHIFT,1ST & REV	8-97241-319-2	01	1	0208-0301				●
1	04.302 ARM; SHIFT,1ST & REV 4HE1 ENG(RLY)	8-97241-319-2	01	1	0302-0501				●
1	04.302 ARM; SHIFT,1ST & REV 4HE1-TCS ENG(RDS)	8-97241-319-2	01	1	0502-				●
25	04.302 ARM; SHIFT,2ND & 3RD	1-33511-580-1	01	1	0102-0301	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97034-826-2	01	1	0201-0301		●
25	04.302 ARM; SHIFT,2ND & 3RD 4HF1 ENG(RLS)	8-97355-690-0	01	1	0302-0404			●
25	04.302 ARM; SHIFT,2ND & 3RD 4HF1 ENG(RLS)	8-97362-731-2	01	1	0405-1407			●
25	04.302 ARM; SHIFT,2ND & 3RD 4HF1 ENG(RLS)	8-98255-926-1	01	1	1408-			●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97258-708-1	01	1	0208-0301				●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1 ENG(RLY)	8-97258-708-1	01	1	0302-0501				●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1-TCS ENG(RDS)	8-97258-708-1	01	1	0502-0507				●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1-TCS ENG(RDS)	8-97362-737-1	01	1	0508-				●
49	04.302 ARM; SHIFT,4TH & 5TH	1-33511-581-1	01	1	0102-0301	●
49	04.302 ARM; SHIFT,4TH & 5TH 4HF1 ENG(RLS)	8-97258-716-0	01	1	0302-			●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97258-709-2	01	1	0208-0301				●
49	04.302 ARM; SHIFT,4TH & 5TH 4HE1 ENG(RLY)	8-97258-709-2	01	1	0302-0501				●
49	04.302 ARM; SHIFT,4TH & 5TH 4HE1-TCS ENG(RDS)	8-97258-709-2	01	1	0502-0507				●
49	04.302 ARM; SHIFT,4TH & 5TH 4HE1-TCS ENG(RDS)	8-97362-738-1	01	1	0508-				●
50	04.302 ARM; SHIFT,6TH	1-33511-477-0	01	1	0102-0301	●
50	04.302 ARM; SHIFT,6TH	8-97241-324-1	01	1	0208-0301				●
50	04.302 ARM; SHIFT,6TH 4HE1 ENG(RLY)	8-97241-324-1	01	1	0302-0501				●
50	04.302 ARM; SHIFT,6TH 4HE1-TCS ENG(RDS)	8-97241-324-1	01	1	0502-				●
195	04.105 BOLT 04.012 M10X28 FLANGE REAMER	1-09040-089-1	02	1	0208-0301				●
195	04.105 BOLT 4HE1 ENG(RLY) 04.012 M10X28 FLANGE REAMER	1-09040-089-1	02	1	0302-0501				●
195	04.105 BOLT 04.012 M10X28 FLANGE REAMER	1-09040-089-1	02	1	0302-0501			●
195	04.105 BOLT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.012 M10X28 FLANGE REAMER	1-09040-089-1	02	1	0502-0604			●	●
195	04.105 BOLT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0605-			●	●
234	04.311 RING; SNAP ID=16.5	9-09180-418-0	02	1	0208-0301				●
234	04.311 RING; SNAP 4HE1 ENG(RLY) ID=16.5	9-09180-418-0	02	1	0302-0501				●
234	04.311 RING; SNAP 4HE1-TCS ENG(RDS) ID=16.5	9-09180-418-0	02	1	0502-0507				●
234	04.311 RING; SNAP 4HE1-TCS ENG(RDS) ID=16.5	9-09180-418-0	01	1	0508-0604				●
234	04.311 RING; SNAP 4HE1-TCS ENG(RDS) ID=16.5	0-91800-618-0	01	1	0605-				●
234	04.311 RING; SNAP 4HF1 ENG(RLS) 04.307 ID=12	8-94460-357-0	01	1	0302-			●
372	04.302 LEVER; RELAY,6TH	8-97241-342-0	01	1	0208-0301				●
372	04.302 LEVER; RELAY,6TH 4HE1 ENG(RLY)	8-97241-342-0	01	1	0302-0501				●
372	04.302 LEVER; RELAY,6TH 4HE1-TCS ENG(RDS)	8-97241-342-0	01	1	0502-				●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-1	04	1	0208-0301				●
483	04.419 BUSHING; SHIFT ARM 4HE1 ENG(RLY) 00.683	8-97241-326-2	04	1	0302-0501				●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-2	04	1	0302-0501			●
483	04.419 BUSHING; SHIFT ARM 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 00.683	8-97241-326-2	04	1	0502-			●	●
551	04.303 PIN; SPRING 4HF1 ENG(RLS) 04.302 (B) L=32	8-97011-596-2	04	1	0508-			●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0208-0301				●
551	04.303 PIN; SPRING 4HE1 ENG(RLY) (A) L=25 OD=5	1-09748-032-0	01	1	0302-0501				●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0302-0501			●
551	04.303 PIN; SPRING 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (A) L=25 OD=5	1-09748-032-0	01	1	0502-			●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	0208-0301				●
551	04.303 PIN; SPRING 4HE1 ENG(RLY) 04.302 (B) L=32	8-97011-596-2	04	1	0302-0501				●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	0302-0501			●
551	04.303 PIN; SPRING 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.302 (B) L=32	8-97011-596-2	04	1	0502-0507			●	●
551	04.303 PIN; SPRING 4HE1-TCS ENG(RDS) 04.302 (B) L=32	8-97011-596-2	05	1	0508-				●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0208-0301				●
551	04.303 PIN; SPRING 4HE1 ENG(RLY) (C) L=20	8-97241-340-0	01	1	0302-0501				●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0302-0501			●
551	04.303 PIN; SPRING 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (C) L=20	8-97241-340-0	01	1	0502-			●	●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R	8-97241-332-2	01	1	0208-0301				●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 4HE1 ENG(RLY)	8-97241-332-2	01	1	0302-0501				●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 4HE1-TCS ENG(RDS)	8-97241-332-2	01	1	0502-0507				●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 4HE1-TCS ENG(RDS)	8-97362-735-0	01	1	0508-				●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 4HF1 ENG(RLS)	8-97241-333-3	01	1	0302-0404			●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 4HF1 ENG(RLS)	8-97362-741-0	01	1	0405-			●
626	04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH	8-97241-334-1	01	1	0208-0301				●
626	04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 4HE1 ENG(RLY)	8-97241-334-1	01	1	0302-0501				●
626	04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 4HE1-TCS ENG(RDS)	8-97241-334-1	01	1	0502-0507				●
626	04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 4HE1-TCS ENG(RDS)	8-97383-754-0	01	1	0508-0801				●
626	04.309 ROD; GEAR SHIFT,4TH,5TH & 6TH 4HE1-TCS ENG(RDS)	8-98107-548-0	01	1	0802-				●
627	04.309 ROD; GEAR SHIFT,6TH SUB	8-97241-339-0	01	1	0208-0301				●
627	04.309 ROD; GEAR SHIFT,6TH SUB 4HE1 ENG(RLY)	8-97241-339-0	01	1	0302-0501				●
627	04.309 ROD; GEAR SHIFT,6TH SUB 4HE1-TCS ENG(RDS)	8-97241-339-0	01	1	0502-0805				●
627	04.309 ROD; GEAR SHIFT,6TH SUB 4HE1-TCS ENG(RDS)	8-98119-293-0	01	1	0806-				●
628	04.303 BLOCK; SHIFT,LOW,REV & 6TH	8-97241-327-1	02	1	0208-0301				●
628	04.303 BLOCK; SHIFT,LOW,REV & 6TH 4HE1 ENG(RLY)	8-97241-327-1	02	1	0302-0501				●
628	04.303 BLOCK; SHIFT,LOW,REV & 6TH 4HE1-TCS ENG(RDS)	8-97241-327-1	02	1	0502-				●
629	04.555 BRIDGE; LEVER	8-97241-345-1	01	1	0208-0301				●
629	04.555 BRIDGE; LEVER 4HE1 ENG(RLY)	8-97241-345-1	01	1	0302-0501				●
629	04.555 BRIDGE; LEVER 4HE1-TCS ENG(RDS)	8-97241-345-1	01	1	0502-				●
629	04.555 BRIDGE; LEVER 4HF1 ENG(RLS)	8-97237-107-1	01	1	0302-			●

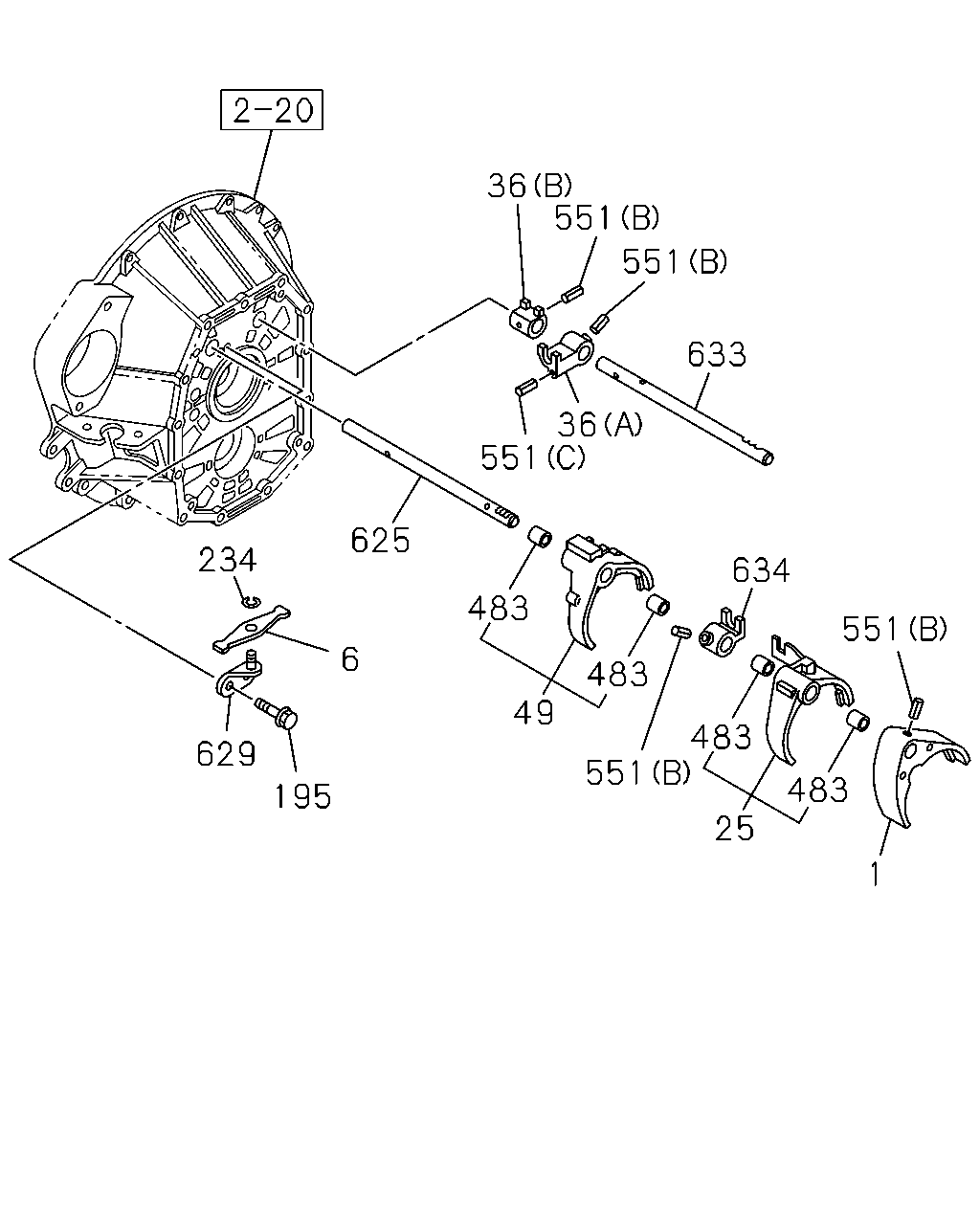

36 551 551 633 36 551 625 234 634 483 551 6 483 49 483 551 629 483 195 25 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.302 ARM; SHIFT,1ST & REV	1-33511-502-1	01	1	0102-0301	●
1	04.302 ARM; SHIFT,1ST & REV	8-97034-825-1	01	1	0201-0301		●
1	04.302 ARM; SHIFT,1ST & REV 4HF1 ENG(RLS)	8-97241-320-2	01	1	0302-			●
1	04.302 ARM; SHIFT,1ST & REV	8-97241-319-2	01	1	0208-0301				●
1	04.302 ARM; SHIFT,1ST & REV 4HE1 ENG(RLY)	8-97241-319-2	01	1	0302-0501				●
1	04.302 ARM; SHIFT,1ST & REV 4HE1-TCS ENG(RDS)	8-97241-319-2	01	1	0502-				●
6	04.302 LEVER; RELAY	1-33511-574-0	01	1	0102-0301	●
6	04.302 LEVER; RELAY 4HF1 ENG(RLS)	8-97241-344-0	01	1	0302-			●
25	04.302 ARM; SHIFT,2ND & 3RD	1-33511-580-1	01	1	0102-0301	●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97034-826-2	01	1	0201-0301		●
25	04.302 ARM; SHIFT,2ND & 3RD 4HF1 ENG(RLS)	8-97355-690-0	01	1	0302-0404			●
25	04.302 ARM; SHIFT,2ND & 3RD 4HF1 ENG(RLS)	8-97362-731-2	01	1	0405-1407			●
25	04.302 ARM; SHIFT,2ND & 3RD 4HF1 ENG(RLS)	8-98255-926-1	01	1	1408-			●
25	04.302 ARM; SHIFT,2ND & 3RD	8-97258-708-1	01	1	0208-0301				●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1 ENG(RLY)	8-97258-708-1	01	1	0302-0501				●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1-TCS ENG(RDS)	8-97258-708-1	01	1	0502-0507				●
25	04.302 ARM; SHIFT,2ND & 3RD 4HE1-TCS ENG(RDS)	8-97362-737-1	01	1	0508-				●
36	04.303 BLOCK; SHIFT,4TH & 5TH 4HF1 ENG(RLS) (A)	8-97241-329-1	01	1	0302-			●
36	04.303 BLOCK; SHIFT,4TH & 5TH 4HF1 ENG(RLS) (B)	8-97241-330-0	01	1	0302-			●
49	04.302 ARM; SHIFT,4TH & 5TH	1-33511-581-1	01	1	0102-0301	●
49	04.302 ARM; SHIFT,4TH & 5TH 4HF1 ENG(RLS)	8-97258-716-0	01	1	0302-			●
49	04.302 ARM; SHIFT,4TH & 5TH	8-97258-709-2	01	1	0208-0301				●
49	04.302 ARM; SHIFT,4TH & 5TH 4HE1 ENG(RLY)	8-97258-709-2	01	1	0302-0501				●
49	04.302 ARM; SHIFT,4TH & 5TH 4HE1-TCS ENG(RDS)	8-97258-709-2	01	1	0502-0507				●
49	04.302 ARM; SHIFT,4TH & 5TH 4HE1-TCS ENG(RDS)	8-97362-738-1	01	1	0508-				●
195	04.105 BOLT 04.012 M10X28 FLANGE REAMER	1-09040-089-1	02	1	0208-0301				●
195	04.105 BOLT 4HE1 ENG(RLY) 04.012 M10X28 FLANGE REAMER	1-09040-089-1	02	1	0302-0501				●
195	04.105 BOLT 04.012 M10X28 FLANGE REAMER	1-09040-089-1	02	1	0302-0501			●
195	04.105 BOLT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.012 M10X28 FLANGE REAMER	1-09040-089-1	02	1	0502-0604			●	●
195	04.105 BOLT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0605-			●	●
234	04.311 RING; SNAP ID=16.5	9-09180-418-0	02	1	0208-0301				●
234	04.311 RING; SNAP 4HE1 ENG(RLY) ID=16.5	9-09180-418-0	02	1	0302-0501				●
234	04.311 RING; SNAP 4HE1-TCS ENG(RDS) ID=16.5	9-09180-418-0	02	1	0502-0507				●
234	04.311 RING; SNAP 4HE1-TCS ENG(RDS) ID=16.5	9-09180-418-0	01	1	0508-0604				●
234	04.311 RING; SNAP 4HE1-TCS ENG(RDS) ID=16.5	0-91800-618-0	01	1	0605-				●
234	04.311 RING; SNAP 4HF1 ENG(RLS) 04.307 ID=12	8-94460-357-0	01	1	0302-			●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-1	04	1	0208-0301				●
483	04.419 BUSHING; SHIFT ARM 4HE1 ENG(RLY) 00.683	8-97241-326-2	04	1	0302-0501				●
483	04.419 BUSHING; SHIFT ARM 00.683	8-97241-326-2	04	1	0302-0501			●
483	04.419 BUSHING; SHIFT ARM 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 00.683	8-97241-326-2	04	1	0502-			●	●
551	04.303 PIN; SPRING 4HF1 ENG(RLS) 04.302 (B) L=32	8-97011-596-2	04	1	0508-			●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0208-0301				●
551	04.303 PIN; SPRING 4HE1 ENG(RLY) (A) L=25 OD=5	1-09748-032-0	01	1	0302-0501				●
551	04.303 PIN; SPRING (A) L=25 OD=5	1-09748-032-0	01	1	0302-0501			●
551	04.303 PIN; SPRING 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (A) L=25 OD=5	1-09748-032-0	01	1	0502-			●	●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	0208-0301				●
551	04.303 PIN; SPRING 4HE1 ENG(RLY) 04.302 (B) L=32	8-97011-596-2	04	1	0302-0501				●
551	04.303 PIN; SPRING 04.302 (B) L=32	8-97011-596-2	04	1	0302-0501			●
551	04.303 PIN; SPRING 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.302 (B) L=32	8-97011-596-2	04	1	0502-0507			●	●
551	04.303 PIN; SPRING 4HE1-TCS ENG(RDS) 04.302 (B) L=32	8-97011-596-2	05	1	0508-				●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0208-0301				●
551	04.303 PIN; SPRING 4HE1 ENG(RLY) (C) L=20	8-97241-340-0	01	1	0302-0501				●
551	04.303 PIN; SPRING (C) L=20	8-97241-340-0	01	1	0302-0501			●
551	04.303 PIN; SPRING 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (C) L=20	8-97241-340-0	01	1	0502-			●	●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R	8-97241-332-2	01	1	0208-0301				●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 4HE1 ENG(RLY)	8-97241-332-2	01	1	0302-0501				●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 4HE1-TCS ENG(RDS)	8-97241-332-2	01	1	0502-0507				●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 4HE1-TCS ENG(RDS)	8-97362-735-0	01	1	0508-				●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 4HF1 ENG(RLS)	8-97241-333-3	01	1	0302-0404			●
625	04.309 ROD; GEAR SHIFT,LOW,REV,2ND & 3R 4HF1 ENG(RLS)	8-97362-741-0	01	1	0405-			●
629	04.555 BRIDGE; LEVER	8-97241-345-1	01	1	0208-0301				●
629	04.555 BRIDGE; LEVER 4HE1 ENG(RLY)	8-97241-345-1	01	1	0302-0501				●
629	04.555 BRIDGE; LEVER 4HE1-TCS ENG(RDS)	8-97241-345-1	01	1	0502-				●
629	04.555 BRIDGE; LEVER 4HF1 ENG(RLS)	8-97237-107-1	01	1	0302-			●
633	04.309 ROD; GEAR SHIFT,4TH,5TH 4HF1 ENG(RLS)	8-97358-832-0	01	1	0302-0404			●
633	04.309 ROD; GEAR SHIFT,4TH,5TH 4HF1 ENG(RLS)	8-97362-743-0	01	1	0405-			●
634	04.303 BLOCK; SHIFT,LOW,REV 4HF1 ENG(RLS)	8-97241-327-1	01	1	0302-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
