2-26 — MANUAL TRANSMISSION GEAR (#19024) — 1011 parça

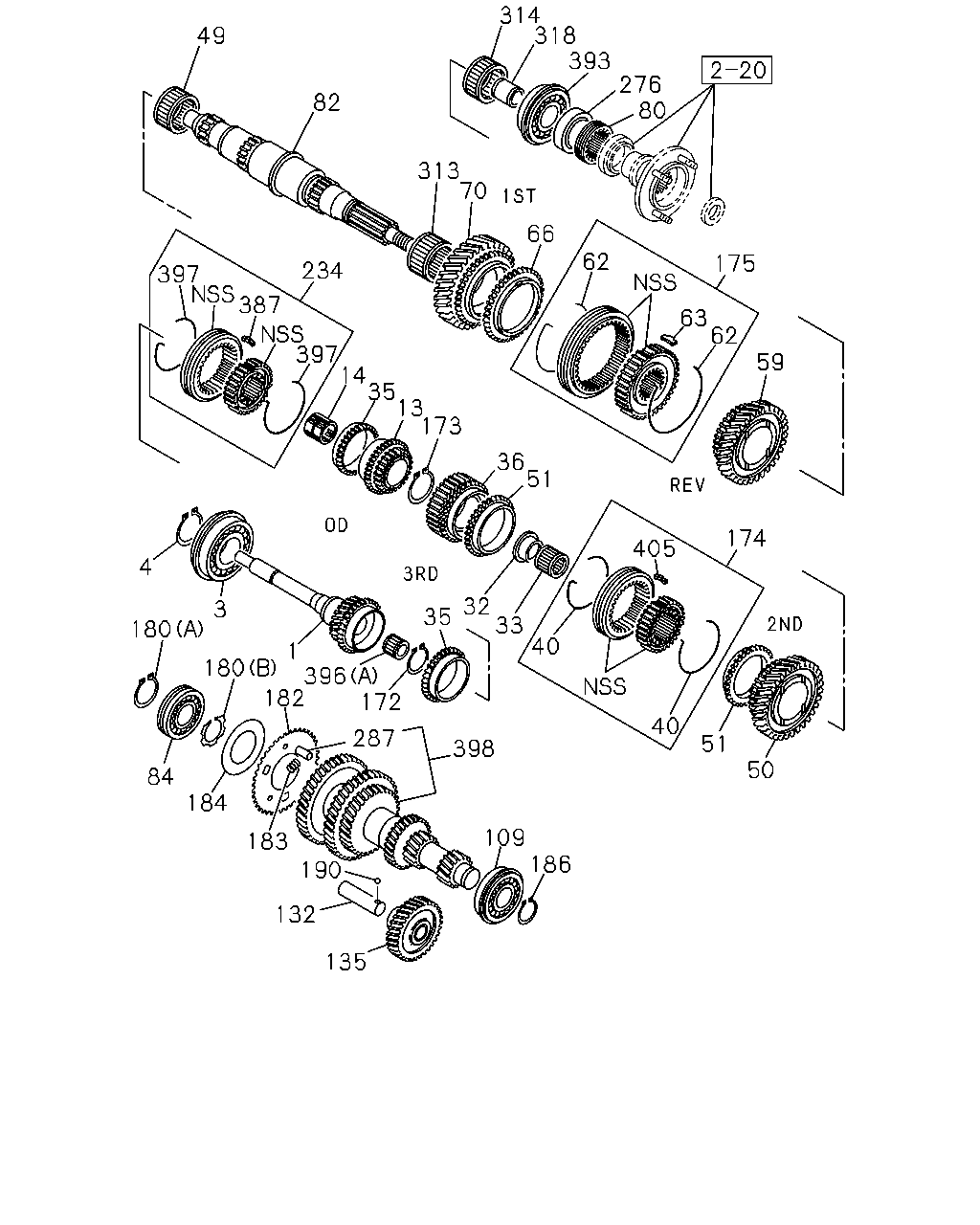

314 318 393 276 80 49 82 313 70 66 62 175 234 397 387 63 62 397 14 35 13 173 59 36 51 174 405 4 30 32 33 40 3 35 180 1 396 182 172 180 40 287 51 398 50 84 184 109 186 183 190 132 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS Z=20	1-33211-916-0	01	1	0102-0301	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=29	8-97168-980-0	01	1	0201-0301		●
1	04.351 SHAFT; TOP GEAR,TRANS 4HF1 ENG(RLS) Z=28	8-97252-924-1	01	1	0302-			●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97252-922-1	01	1	0208-0301				●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) Z=25	8-97252-922-1	01	1	0302-0308				●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) Z=25	8-97372-362-0	01	1	0309-0501				●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1-TCS ENG(RDS) Z=25	8-97372-362-0	01	1	0502-0506				●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1-TCS ENG(RDS) Z=25	8-97371-090-0	01	1	0507-				●
3	04.403 BEARING; TOP GEAR SHAFT	1-09810-275-0	01	1	0102-0109	●
3	04.403 BEARING; TOP GEAR SHAFT	1-09810-280-0	01	1	0110-0301	●
3	04.403 BEARING; TOP GEAR SHAFT	8-97035-047-0	01	1	0201-0301		●
3	04.403 BEARING; TOP GEAR SHAFT 4HF1 ENG(RLS) NSK	8-97253-098-1	01	1	0302-			●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	0208-0301				●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1 ENG(RLY) NSK	8-97253-097-1	01	1	0302-0501				●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1-TCS ENG(RDS) NSK	8-97253-097-1	01	1	0502-				●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT	8-97035-040-0	01	1	0201-0301		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=23	8-97034-856-0	01	1	0201-0301		●
14	04.419 BEARING; NEEDLE,5TH	8-97147-572-0	01	1	0201-0301		●
30	04.415 GEAR; 4TH,MAINSHAFT Z=26	1-33253-555-0	01	1	0102-0301	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=29	8-97241-228-0	01	1	0208-0301				●
30	04.415 GEAR; 4TH,MAINSHAFT 4HE1 ENG(RLY) Z=29	8-97241-228-0	01	1	0302-0501				●
30	04.415 GEAR; 4TH,MAINSHAFT 4HE1-TCS ENG(RDS) Z=29	8-97241-228-0	01	1	0502-				●
32	04.415 COLLAR; 3RD GEAR	8-94178-500-2	01	1	0201-0301		●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-370-0	01	1	0102-0301	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 JTEKT	1-09811-387-1	01	1	0102-0301	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NTN	1-09811-414-0	01	1	0102-0301	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NTN	8-97201-005-0	01	1	0201-0301		●
33	04.352 BEARING; NEEDLE,3RD GEAR NSK	9-00096-638-0	01	1	0201-0301		●
35	04.383 RING; BLOCK,4TH & 3RD Z=36	8-94128-775-2	02	1	0201-0301		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=33	1-33252-415-0	01	1	0102-0301	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=37	8-97091-430-1	01	1	0201-0301		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HF1 ENG(RLS) Z=34	8-97241-234-0	01	1	0302-			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-233-1	01	1	0208-0301				●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1 ENG(RLY) Z=34	8-97241-233-1	01	1	0302-0501				●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1-TCS ENG(RDS) Z=34	8-97241-233-1	01	1	0502-				●
40	04.384 SPRING; INSERT,LOW & 2ND	8-97023-708-0	02	1	0201-0301		●
49	04.352 BEARING; NEEDLE,2ND GEAR NSK	1-09811-371-0	02	1	0102-0301	●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	1-09811-373-0	02	1	0102-0301	●
49	04.352 BEARING; NEEDLE,2ND GEAR 04.419 NTN	8-97201-005-0	01	1	0201-0301		●
49	04.352 BEARING; NEEDLE,2ND GEAR NSK	9-00096-638-0	01	1	0201-0301		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	0102-0301	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=37	8-97315-471-0	01	1	0201-0301		●
50	04.395 GEAR; 2ND,MAINSHAFT 4HF1 ENG(RLS) Z=38	8-97241-237-1	01	1	0302-			●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	0208-0301				●
50	04.395 GEAR; 2ND,MAINSHAFT 4HE1 ENG(RLY) Z=43	8-97241-236-1	01	1	0302-0501				●
50	04.395 GEAR; 2ND,MAINSHAFT 4HE1-TCS ENG(RDS) Z=43	8-97241-236-1	01	1	0502-				●
51	04.383 RING; BLOCK,LOW & 2ND Z=42	8-97074-619-3	02	1	0201-0301		●
59	04.417 GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	0102-0301	●
59	04.417 GEAR; REV MAINSHAFT Z=40	8-94317-146-2	01	1	0201-0301		●
59	04.417 GEAR; REV MAINSHAFT 4HF1 ENG(RLS) Z=41	8-97241-244-0	01	1	0302-			●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	0208-0301				●
59	04.417 GEAR; REV MAINSHAFT 4HE1 ENG(RLY) Z=45	8-97241-243-0	01	1	0302-0501				●
59	04.417 GEAR; REV MAINSHAFT 4HE1-TCS ENG(RDS) Z=45	8-97241-243-0	01	1	0502-				●
62	04.384 SPRING; INSERT,REV & 5TH	8-97023-709-0	02	1	0201-0301		●
63	04.384 INSERT; SYN,REV & 5TH	9-33263-613-0	03	1	0201-0301		●
66	04.383 RING; BLOCK,SYN Z=45	8-97061-752-0	01	1	0201-0301		●
70	04.417 GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	0102-0301	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97084-377-1	01	1	0201-0301		●
70	04.417 GEAR; 1ST,MAINSHAFT 4HF1 ENG(RLS) Z=43	8-97241-242-1	01	1	0302-0404			●
70	04.417 GEAR; 1ST,MAINSHAFT 4HF1 ENG(RLS) Z=43	8-97350-010-0	01	1	0405-			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	0208-0301				●
70	04.417 GEAR; 1ST,MAINSHAFT 4HE1 ENG(RLY) Z=45	8-97241-241-0	01	1	0302-0501				●
70	04.417 GEAR; 1ST,MAINSHAFT 4HE1-TCS ENG(RDS) Z=45	8-97241-241-0	01	1	0502-				●
80	04.343 GEAR; SPD DRIVE Z=6	1-33371-053-1	01	1	0102-0112	●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) Z=6	1-33371-053-1	01	1	0201-0301	●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) FINAL GEAR RATIO 39/7(GV1) Z=4	1-33371-054-1	01	1	0201-0301	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97011-348-0	01	1	0201-0301		●
80	04.343 GEAR; SPD DRIVE 4HF1 ENG(RLS) Z=4	8-97253-556-0	01	1	0302-			●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	0208-0301				●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) Z=4	8-97253-555-0	01	1	0302-0501				●
80	04.343 GEAR; SPD DRIVE 4HE1-TCS ENG(RDS) Z=4	8-97253-555-0	01	1	0502-				●
82	04.403 SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-312-0	01	1	0102-0301	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-40-28	8-97034-847-2	01	1	0201-0301		●
82	04.403 SHAFT; MAIN,TRANS 4HF1 ENG(RLS) Z=28-42-42-21	8-97253-117-3	01	1	0302-			●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	0208-0301				●
82	04.403 SHAFT; MAIN,TRANS 4HE1 ENG(RLY) Z=26-42-23	8-97253-115-3	01	1	0302-0501				●
82	04.403 SHAFT; MAIN,TRANS 4HE1-TCS ENG(RDS) Z=26-42-23	8-97253-115-3	01	1	0502-				●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	0102-0301	●
84	04.422 BEARING; COUNTER SHAFT,FRT JTEKT	1-09810-210-0	01	1	0102-0301	●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	8-97035-048-0	01	1	0201-0301		●
109	04.422 BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	0102-0301	●
109	04.422 BEARING; COUNTER SHAFT,RR JTEKT	1-09810-212-0	01	1	0102-0301	●
109	04.422 BEARING; COUNTER SHAFT,RR	8-97035-049-0	01	1	0201-0301		●
132	04.433 SHAFT; REV	1-33351-023-1	01	1	0102-0301	●
132	04.433 SHAFT; REV	8-94415-162-1	01	1	0201-0301		●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0208-0301				●
132	04.433 SHAFT; REV 4HE1 ENG(RLY)	8-97252-655-0	01	1	0302-0501				●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0302-0501			●
132	04.433 SHAFT; REV 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97252-655-0	01	1	0502-			●	●
135	04.430 GEAR; REV IDLER Z=27	1-33361-073-0	01	1	0102-0301	●
135	04.430 GEAR; REV IDLER Z=27	5-33361-042-2	01	1	0201-0301		●
135	04.430 GEAR; REV IDLER 4HF1 ENG(RLS) Z=25	8-97241-293-0	01	1	0302-0512			●
135	04.430 GEAR; REV IDLER 4HF1 ENG(RLS) Z=25	8-98031-869-1	01	1	0601-			●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-1	01	1	0208-0301				●
135	04.430 GEAR; REV IDLER 4HE1 ENG(RLY) Z=26	8-97241-292-1	01	1	0302-0501				●
135	04.430 GEAR; REV IDLER 4HE1-TCS ENG(RDS) Z=26	8-97241-292-2	01	1	0502-				●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.75	8-94402-405-0	01	1	0201-0301		●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.80	8-94402-406-0	01	1	0201-0301		●
172	04.412 RING; SNAP,CLU HUB 04.384 T=1.85	8-94402-407-0	01	1	0201-0301		●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.85	8-94151-522-0	01	1	0201-0301		●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.90	8-94151-523-0	01	1	0201-0301		●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=1.95	8-94151-524-0	01	1	0201-0301		●
173	04.416 RING; SNAP,OVERDRIVE GEAR T=2.00	8-94157-747-0	01	1	0201-0301		●
174	04.380 SYNCHRONIZER ASM; 2ND-3RD	8-97190-992-0	01	1	0201-0301		●
175	04.380 SYNCHRONIZER; LOW-REV	8-97091-434-0	01	1	0201-0301		●
180	04.422 RING; SNAP,CLUSTER GEAR (B) ID=44.5	5-09589-010-0	01	1	0201-0301		●
180	04.422 RING; SNAP,CLUSTER GEAR 08.934 (A) ID=32.2	9-09180-035-0	01	1	0201-0301		●
182	04.422 PLATE; CLUSTER GEAR	8-94131-924-1	01	1	0201-0301		●
183	04.422 SPRING; PLATE,CLUSTER GEAR	8-94148-196-0	03	1	0201-0301		●
184	04.422 SPRING; CLUSTER GEAR	8-94101-320-0	01	1	0201-0301		●
186	04.422 RING; SNAP,CLUSTER GEAR 08.934 ID=32.2	9-09180-035-0	01	1	0201-0301		●
190	04.435 BALL; LK,REV SHAFT 04.311	9-00097-509-0	01	1	0201-0301		●
234	04.380 SYNCHRONIZER ASM; 4TH TO 5TH	8-97034-841-1	01	1	0201-0301		●
276	04.419 SPACER; BRG TO DRIVE GEAR	8-97034-876-0	01	1	0201-0301		●
287	04.422 PIN; COUNTER GEAR	8-94402-462-0	03	1	0201-0301		●
313	04.419 BEARING; NEEDLE,LOW GEAR NTN	8-97201-005-0	01	1	0201-0301		●
313	04.419 BEARING; NEEDLE,LOW GEAR 04.352 NSK	9-00096-638-0	01	1	0201-0301		●
314	04.419 BEARING; NEEDLE,REV GEAR NTN	8-97201-005-0	01	1	0201-0301		●
314	04.419 BEARING; NEEDLE,REV GEAR 04.352 NSK	9-00096-638-0	01	1	0201-0301		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0208-0301				●
314	04.419 BEARING; NEEDLE,REV GEAR 4HE1 ENG(RLY) NSK	8-97253-114-0	01	1	0302-0501				●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0302-0501			●
314	04.419 BEARING; NEEDLE,REV GEAR 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) NSK	8-97253-114-0	01	1	0502-			●	●
318	04.419 COLLAR; DIST,REV GEAR	8-97076-908-0	01	1	0201-0301		●
387	04.384 INSERT; SYN,4TH & 3RD	5-33263-001-0	03	1	0201-0301		●
393	04.352 BEARING; MAINSHAFT END 04.355	8-94178-731-0	01	1	0201-0301		●
393	04.352 BEARING; MAINSHAFT END 4HF1 ENG(RLS)	8-97253-105-1	01	1	0302-			●
393	04.352 BEARING; MAINSHAFT END	8-97253-104-0	01	1	0208-0301				●
393	04.352 BEARING; MAINSHAFT END 4HE1 ENG(RLY)	8-97253-104-0	01	1	0302-0501				●
393	04.352 BEARING; MAINSHAFT END 4HE1-TCS ENG(RDS)	8-97253-104-0	01	1	0502-				●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97228-274-0	01	1	0201-0301		●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HF1 ENG(RLS) (D)	8-97253-102-1	01	1	0302-			●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-099-1	01	1	0208-0301				●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1 ENG(RLY) (B)	8-97253-099-1	01	1	0302-0501				●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1-TCS ENG(RDS) (B)	8-97253-099-1	01	1	0502-				●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97253-110-0	04	1	0208-0301				●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1 ENG(RLY) (C)	8-97253-110-0	04	1	0302-0501				●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97253-110-0	04	1	0302-0501			●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (C)	8-97253-110-0	04	1	0502-			●	●
397	04.384 SPRING; INSERT,4TH & 3RD	8-97023-710-0	02	1	0201-0301		●
398	04.421 GEAR; COUNTER Z=45-49-36-20-14-13	8-97075-976-0	01	1	0201-0301		●
405	04.384 INSERT; SYN,LOW & 2ND	5-33263-001-0	03	1	0201-0301		●

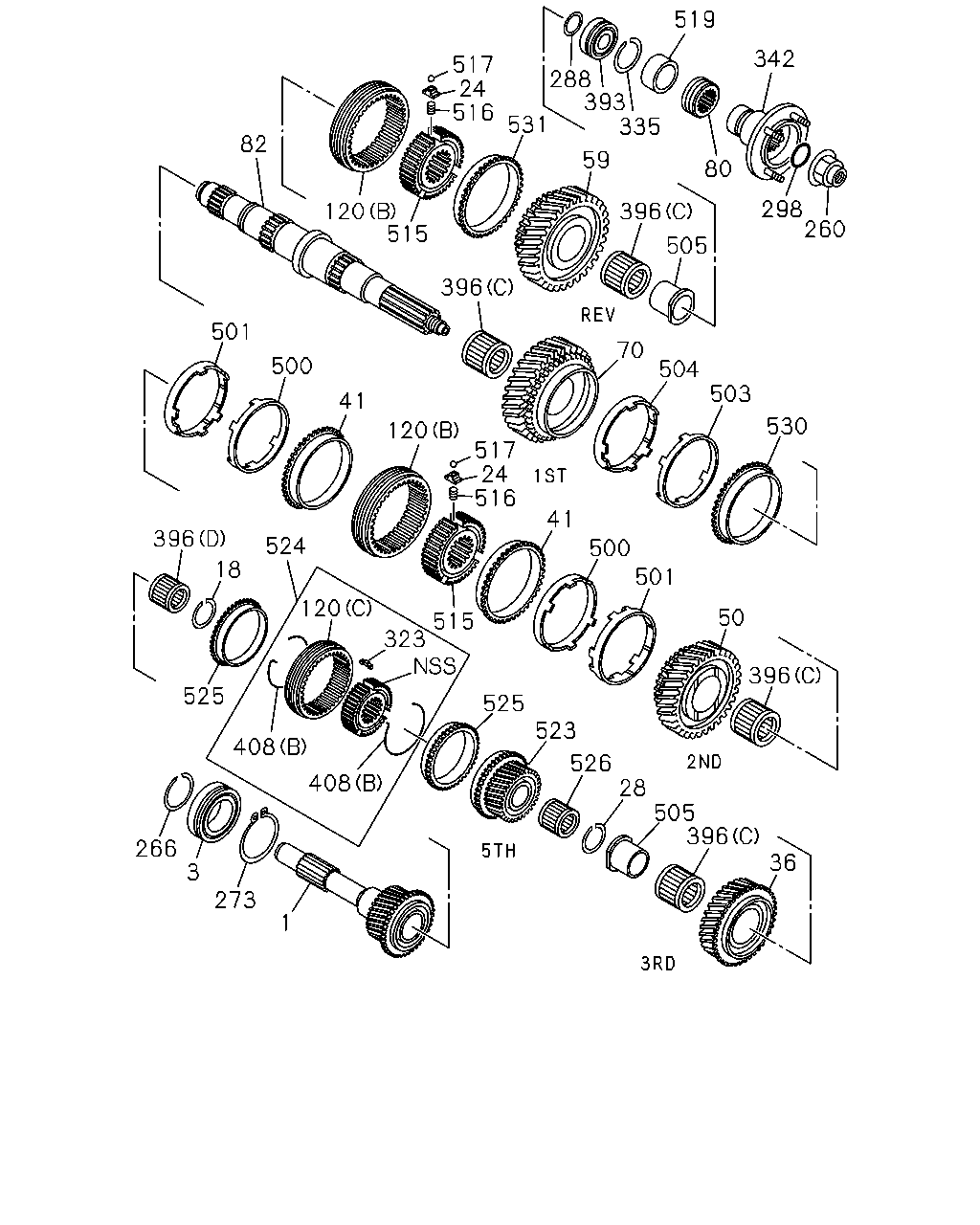

519 342 517 24 516 288 393 335 531 82 59 80 298 260 120 515 396 505 396 501 70 500 504 503 41 530 120 517 24 516 41 396 524 500 18 501 120 50 515 323 396 525 525 523 408 526 28 505 396 36 408 266 3 273 1 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS Z=20	1-33211-916-0	01	1	0102-0301	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=29	8-97168-980-0	01	1	0201-0301		●
1	04.351 SHAFT; TOP GEAR,TRANS 4HF1 ENG(RLS) Z=28	8-97252-924-1	01	1	0302-			●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97252-922-1	01	1	0208-0301				●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) Z=25	8-97252-922-1	01	1	0302-0308				●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) Z=25	8-97372-362-0	01	1	0309-0501				●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1-TCS ENG(RDS) Z=25	8-97372-362-0	01	1	0502-0506				●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1-TCS ENG(RDS) Z=25	8-97371-090-0	01	1	0507-				●
3	04.403 BEARING; TOP GEAR SHAFT	1-09810-275-0	01	1	0102-0109	●
3	04.403 BEARING; TOP GEAR SHAFT	1-09810-280-0	01	1	0110-0301	●
3	04.403 BEARING; TOP GEAR SHAFT	8-97035-047-0	01	1	0201-0301		●
3	04.403 BEARING; TOP GEAR SHAFT 4HF1 ENG(RLS) NSK	8-97253-098-1	01	1	0302-			●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	0208-0301				●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1 ENG(RLY) NSK	8-97253-097-1	01	1	0302-0501				●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1-TCS ENG(RDS) NSK	8-97253-097-1	01	1	0502-				●
18	04.384 RING; SNAP,CLU HUB T=1.75	1-09588-196-0	01	1	0102-0301	●
18	04.384 RING; SNAP,CLU HUB 4HF1 ENG(RLS) ID=30.7 T=1.8	8-97254-728-0	01	1	0302-			●
18	04.384 RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0208-0301				●
18	04.384 RING; SNAP,CLU HUB 4HE1 ENG(RLY) ID=35.7 T=1.8	8-97256-855-0	01	1	0302-0501				●
18	04.384 RING; SNAP,CLU HUB 4HE1-TCS ENG(RDS) ID=35.7 T=1.8	8-97256-855-0	01	1	0502-				●
24	04.383 BLOCK; INDEX,SYN	1-33269-035-1	03	1	0102-0301	●
24	04.383 BLOCK; INDEX,SYN 4HF1 ENG(RLS)	8-97241-313-1	06	1	0302-			●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	12	1	0208-0301				●
24	04.383 BLOCK; INDEX,SYN 4HE1 ENG(RLY)	8-97241-313-1	12	1	0302-0501				●
24	04.383 BLOCK; INDEX,SYN 4HE1-TCS ENG(RDS)	8-97241-313-1	12	1	0502-				●
28	04.416 RING; SNAP,3RD GEAR	1-09588-195-0	01	1	0102-0301	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0208-0301				●
28	04.416 RING; SNAP,3RD GEAR 4HE1 ENG(RLY) ID=46.5 T=1.8	8-97254-743-0	01	1	0302-0501				●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0302-0501			●
28	04.416 RING; SNAP,3RD GEAR 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) ID=46.5 T=1.8	8-97254-743-0	01	1	0502-			●	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=26	1-33253-555-0	01	1	0102-0301	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=29	8-97241-228-0	01	1	0208-0301				●
30	04.415 GEAR; 4TH,MAINSHAFT 4HE1 ENG(RLY) Z=29	8-97241-228-0	01	1	0302-0501				●
30	04.415 GEAR; 4TH,MAINSHAFT 4HE1-TCS ENG(RDS) Z=29	8-97241-228-0	01	1	0502-				●
36	04.415 GEAR; 3RD,MAINSHAFT Z=33	1-33252-415-0	01	1	0102-0301	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=37	8-97091-430-1	01	1	0201-0301		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HF1 ENG(RLS) Z=34	8-97241-234-0	01	1	0302-			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-233-1	01	1	0208-0301				●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1 ENG(RLY) Z=34	8-97241-233-1	01	1	0302-0501				●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1-TCS ENG(RDS) Z=34	8-97241-233-1	01	1	0502-				●
41	04.383 RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	0208-0301				●
41	04.383 RING; BLOCK,2ND & 3RD 4HE1 ENG(RLY) Z=54	8-97241-305-2	02	1	0302-0501				●
41	04.383 RING; BLOCK,2ND & 3RD 4HE1-TCS ENG(RDS) Z=54	8-97241-305-2	02	1	0502-				●
41	04.383 RING; BLOCK,2ND & 3RD 4HF1 ENG(RLS) Z=45	8-97241-306-1	02	1	0302-			●
50	04.395 GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	0102-0301	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=37	8-97315-471-0	01	1	0201-0301		●
50	04.395 GEAR; 2ND,MAINSHAFT 4HF1 ENG(RLS) Z=38	8-97241-237-1	01	1	0302-			●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	0208-0301				●
50	04.395 GEAR; 2ND,MAINSHAFT 4HE1 ENG(RLY) Z=43	8-97241-236-1	01	1	0302-0501				●
50	04.395 GEAR; 2ND,MAINSHAFT 4HE1-TCS ENG(RDS) Z=43	8-97241-236-1	01	1	0502-				●
59	04.417 GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	0102-0301	●
59	04.417 GEAR; REV MAINSHAFT Z=40	8-94317-146-2	01	1	0201-0301		●
59	04.417 GEAR; REV MAINSHAFT 4HF1 ENG(RLS) Z=41	8-97241-244-0	01	1	0302-			●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	0208-0301				●
59	04.417 GEAR; REV MAINSHAFT 4HE1 ENG(RLY) Z=45	8-97241-243-0	01	1	0302-0501				●
59	04.417 GEAR; REV MAINSHAFT 4HE1-TCS ENG(RDS) Z=45	8-97241-243-0	01	1	0502-				●
70	04.417 GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	0102-0301	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97084-377-1	01	1	0201-0301		●
70	04.417 GEAR; 1ST,MAINSHAFT 4HF1 ENG(RLS) Z=43	8-97241-242-1	01	1	0302-0404			●
70	04.417 GEAR; 1ST,MAINSHAFT 4HF1 ENG(RLS) Z=43	8-97350-010-0	01	1	0405-			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	0208-0301				●
70	04.417 GEAR; 1ST,MAINSHAFT 4HE1 ENG(RLY) Z=45	8-97241-241-0	01	1	0302-0501				●
70	04.417 GEAR; 1ST,MAINSHAFT 4HE1-TCS ENG(RDS) Z=45	8-97241-241-0	01	1	0502-				●
80	04.343 GEAR; SPD DRIVE Z=6	1-33371-053-1	01	1	0102-0112	●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) Z=6	1-33371-053-1	01	1	0201-0301	●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) FINAL GEAR RATIO 39/7(GV1) Z=4	1-33371-054-1	01	1	0201-0301	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97011-348-0	01	1	0201-0301		●
80	04.343 GEAR; SPD DRIVE 4HF1 ENG(RLS) Z=4	8-97253-556-0	01	1	0302-			●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	0208-0301				●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) Z=4	8-97253-555-0	01	1	0302-0501				●
80	04.343 GEAR; SPD DRIVE 4HE1-TCS ENG(RDS) Z=4	8-97253-555-0	01	1	0502-				●
82	04.403 SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-312-0	01	1	0102-0301	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-40-28	8-97034-847-2	01	1	0201-0301		●
82	04.403 SHAFT; MAIN,TRANS 4HF1 ENG(RLS) Z=28-42-42-21	8-97253-117-3	01	1	0302-			●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	0208-0301				●
82	04.403 SHAFT; MAIN,TRANS 4HE1 ENG(RLY) Z=26-42-23	8-97253-115-3	01	1	0302-0501				●
82	04.403 SHAFT; MAIN,TRANS 4HE1-TCS ENG(RDS) Z=26-42-23	8-97253-115-3	01	1	0502-				●
120	04.383 SLEEVE 4HF1 ENG(RLS) 04.535 (C) Z=45	8-94421-871-1	01	1	0302-			●
120	04.383 SLEEVE (A)	1-33262-095-0	01	1	0102-0301	●
120	04.383 SLEEVE 4HF1 ENG(RLS) (B) Z=45	8-97241-296-1	02	1	0302-1311			●
120	04.383 SLEEVE 4HF1 ENG(RLS) (B) Z=45	8-98258-279-0	02	1	1312-			●
260	04.412 NUT; MAINSHAFT END M27 H=25	8-97253-126-0	01	1	0208-0301				●
260	04.412 NUT; MAINSHAFT END 4HE1 ENG(RLY) M27 H=25	8-97253-126-0	01	1	0302-0501				●
260	04.412 NUT; MAINSHAFT END M27 H=25	8-97253-126-0	01	1	0302-0501			●
260	04.412 NUT; MAINSHAFT END 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M27 H=25	8-97253-126-0	01	1	0502-0604			●	●
260	04.412 NUT; MAINSHAFT END 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.525 M27 H=25	8-97360-410-0	01	1	0605-			●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-915-0	01	1	0208-0301				●
266	04.525 RING; SNAP,BRG INNER 4HE1 ENG(RLY)	8-97286-915-0	01	1	0302-0501				●
266	04.525 RING; SNAP,BRG INNER 4HE1-TCS ENG(RDS)	8-97286-915-0	01	1	0502-				●
266	04.525 RING; SNAP,BRG INNER 4HF1 ENG(RLS)	8-97286-916-0	01	1	0302-			●
273	04.525 RING; SNAP,BRG OUTER	8-97254-609-0	01	1	0208-0301				●
273	04.525 RING; SNAP,BRG OUTER 4HE1 ENG(RLY)	8-97254-609-0	01	1	0302-0501				●
273	04.525 RING; SNAP,BRG OUTER 4HE1-TCS ENG(RDS)	8-97254-609-0	01	1	0502-				●
273	04.525 RING; SNAP,BRG OUTER 4HF1 ENG(RLS)	8-97254-610-0	01	1	0302-			●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	0208-0301				●
288	04.399 SPACER; BRG,MAINSHAFT 4HE1 ENG(RLY)	8-97252-941-0	01	1	0302-0501				●
288	04.399 SPACER; BRG,MAINSHAFT 4HE1-TCS ENG(RDS)	8-97252-941-0	01	1	0502-				●
288	04.399 SPACER; BRG,MAINSHAFT 4HF1 ENG(RLS)	8-97252-942-0	01	1	0302-			●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0208-0301				●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0302-0501				●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS) 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0502-				●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) 04.164 ID=30.6 T=5.7	8-94481-411-0	01	1	0302-0507			●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) ID=30.6 T=5.7	8-98028-226-0	01	1	0508-			●
323	04.384 INSERT 4HF1 ENG(RLS)	8-94448-202-2	03	1	0302-			●
335	04.383 RING; SNAP,BEARING	8-97254-720-0	01	1	0208-0301				●
335	04.383 RING; SNAP,BEARING 4HE1 ENG(RLY)	8-97254-720-0	01	1	0302-0501				●
335	04.383 RING; SNAP,BEARING 4HE1-TCS ENG(RDS)	8-97254-720-0	01	1	0502-				●
335	04.383 RING; SNAP,BEARING 4HF1 ENG(RLS)	8-97254-722-0	01	1	0302-			●
342	05.545 FLANGE; OUTPUT 4HF1 ENG(RLS)	8-97252-814-1	01	1	0302-0604			●
342	05.545 FLANGE; OUTPUT 4HF1 ENG(RLS)	8-98031-640-0	01	1	0605-			●
393	04.352 BEARING; MAINSHAFT END 04.355	8-94178-731-0	01	1	0201-0301		●
393	04.352 BEARING; MAINSHAFT END 4HF1 ENG(RLS)	8-97253-105-1	01	1	0302-			●
393	04.352 BEARING; MAINSHAFT END	8-97253-104-0	01	1	0208-0301				●
393	04.352 BEARING; MAINSHAFT END 4HE1 ENG(RLY)	8-97253-104-0	01	1	0302-0501				●
393	04.352 BEARING; MAINSHAFT END 4HE1-TCS ENG(RDS)	8-97253-104-0	01	1	0502-				●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97228-274-0	01	1	0201-0301		●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HF1 ENG(RLS) (D)	8-97253-102-1	01	1	0302-			●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-099-1	01	1	0208-0301				●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1 ENG(RLY) (B)	8-97253-099-1	01	1	0302-0501				●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1-TCS ENG(RDS) (B)	8-97253-099-1	01	1	0502-				●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97253-110-0	04	1	0208-0301				●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1 ENG(RLY) (C)	8-97253-110-0	04	1	0302-0501				●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97253-110-0	04	1	0302-0501			●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (C)	8-97253-110-0	04	1	0502-			●	●
408	04.384 SPRING 04.422 (A)	8-94148-196-0	03	1	0208-0301				●
408	04.384 SPRING 4HE1 ENG(RLY) 04.422 (A)	8-94148-196-0	03	1	0302-0404				●
408	04.384 SPRING 04.422 (A)	8-94148-196-0	03	1	0302-0404			●
408	04.384 SPRING 4HF1 ENG(RLS) 04.422 (A)	8-94148-196-0	03	1	0405-			●
408	04.384 SPRING 4HF1 ENG(RLS) (B)	8-94422-075-0	02	1	0302-0404			●
408	04.384 SPRING 4HF1 ENG(RLS) (B)	8-97366-040-1	02	1	0405-			●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	0208-0301				●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HE1 ENG(RLY)	8-97241-307-1	02	1	0302-0501				●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HE1-TCS ENG(RDS)	8-97241-307-1	02	1	0502-				●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HF1 ENG(RLS)	8-97241-309-1	02	1	0302-			●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	0208-0301				●
501	04.383 RING; INSIDE,3RD & 2ND 4HE1 ENG(RLY)	8-97241-311-1	02	1	0302-0501				●
501	04.383 RING; INSIDE,3RD & 2ND 4HE1-TCS ENG(RDS)	8-97241-311-1	02	1	0502-				●
501	04.383 RING; INSIDE,3RD & 2ND 4HF1 ENG(RLS)	8-97241-312-1	02	1	0302-			●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-307-1	02	1	0208-0301				●
503	04.383 RING; OUTSIDE,LOW & REV 4HE1 ENG(RLY)	8-97241-307-1	02	1	0302-0501				●
503	04.383 RING; OUTSIDE,LOW & REV 4HE1-TCS ENG(RDS)	8-97241-307-1	02	1	0502-				●
503	04.383 RING; OUTSIDE,LOW & REV 4HF1 ENG(RLS)	8-97241-309-1	01	1	0302-			●
504	04.383 RING; INSIDE,LOW & REV	8-97241-311-1	02	1	0208-0301				●
504	04.383 RING; INSIDE,LOW & REV 4HE1 ENG(RLY)	8-97241-311-1	02	1	0302-0501				●
504	04.383 RING; INSIDE,LOW & REV 4HE1-TCS ENG(RDS)	8-97241-311-1	02	1	0502-				●
504	04.383 RING; INSIDE,LOW & REV 4HF1 ENG(RLS)	8-97241-312-1	01	1	0302-			●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0208-0301				●
505	04.419 COLLAR; 3RD & REV 4HE1 ENG(RLY)	8-97253-119-2	02	1	0302-0501				●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0302-0501			●
505	04.419 COLLAR; 3RD & REV 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97253-119-2	02	1	0502-			●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	02	1	0208-0301				●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HE1 ENG(RLY)	8-97239-155-2	02	1	0302-0501				●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HE1-TCS ENG(RDS)	8-97239-155-2	02	1	0502-				●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HF1 ENG(RLS)	8-97241-298-3	02	1	0302-			●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	12	1	0208-0301				●
516	04.384 SPRING; SYNCHRO,INDEX 4HE1 ENG(RLY)	8-97305-803-1	12	1	0302-0501				●
516	04.384 SPRING; SYNCHRO,INDEX 4HE1-TCS ENG(RDS)	8-97305-803-1	12	1	0502-				●
516	04.384 SPRING; SYNCHRO,INDEX 4HF1 ENG(RLS)	8-97254-835-0	06	1	0302-			●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	12	1	0208-0301				●
517	04.384 BALL; SYNCHRO,INDEX 4HE1 ENG(RLY)	8-97252-935-0	12	1	0302-0501				●
517	04.384 BALL; SYNCHRO,INDEX 4HE1-TCS ENG(RDS)	8-97252-935-0	12	1	0502-				●
517	04.384 BALL; SYNCHRO,INDEX 4HF1 ENG(RLS)	8-97252-935-0	06	1	0302-			●
519	04.419 COLLAR; MAINSHAFT END,5TH 4HF1 ENG(RLS) 04.415	8-97252-940-0	01	1	0302-			●
523	04.395 GEAR; OD,MAINSHAFT 4HF1 ENG(RLS) Z=22	8-97241-231-0	01	1	0302-			●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD 4HF1 ENG(RLS)	8-97300-195-0	01	1	0302-0404			●
524	04.395 SLEEVE & HUB ASM; TOP-4TH,OD 4HF1 ENG(RLS)	8-97366-526-0	01	1	0405-			●
525	04.395 RING; BLOCK,TOP & 4TH,OD 4HF1 ENG(RLS) Z=45	8-97309-532-0	02	1	0302-			●
526	04.352 BEARING; NEEDLE,4TH & 5TH 4HF1 ENG(RLS)	8-97253-112-0	01	1	0302-			●
530	04.383 RING; BLOCK,LOW 4HE1 ENG(RLY) Z=54	8-97241-305-2	01	1	0403-0501				●
530	04.383 RING; BLOCK,LOW 4HE1-TCS ENG(RDS) Z=54	8-97241-305-2	01	1	0502-				●
530	04.383 RING; BLOCK,LOW 4HF1 ENG(RLS) Z=45	8-97241-306-1	01	1	0302-			●
531	04.383 RING; BLOCK,REV 4HE1 ENG(RLY) Z=54	8-97241-305-2	01	1	0403-0501				●
531	04.383 RING; BLOCK,REV 4HE1-TCS ENG(RDS) Z=54	8-97241-305-2	01	1	0502-				●
531	04.383 RING; BLOCK,REV 4HF1 ENG(RLS) Z=45	8-97328-151-1	01	1	0302-0305			●
531	04.383 RING; BLOCK,REV 4HF1 ENG(RLS) Z=45	8-97368-343-0	01	1	0306-			●

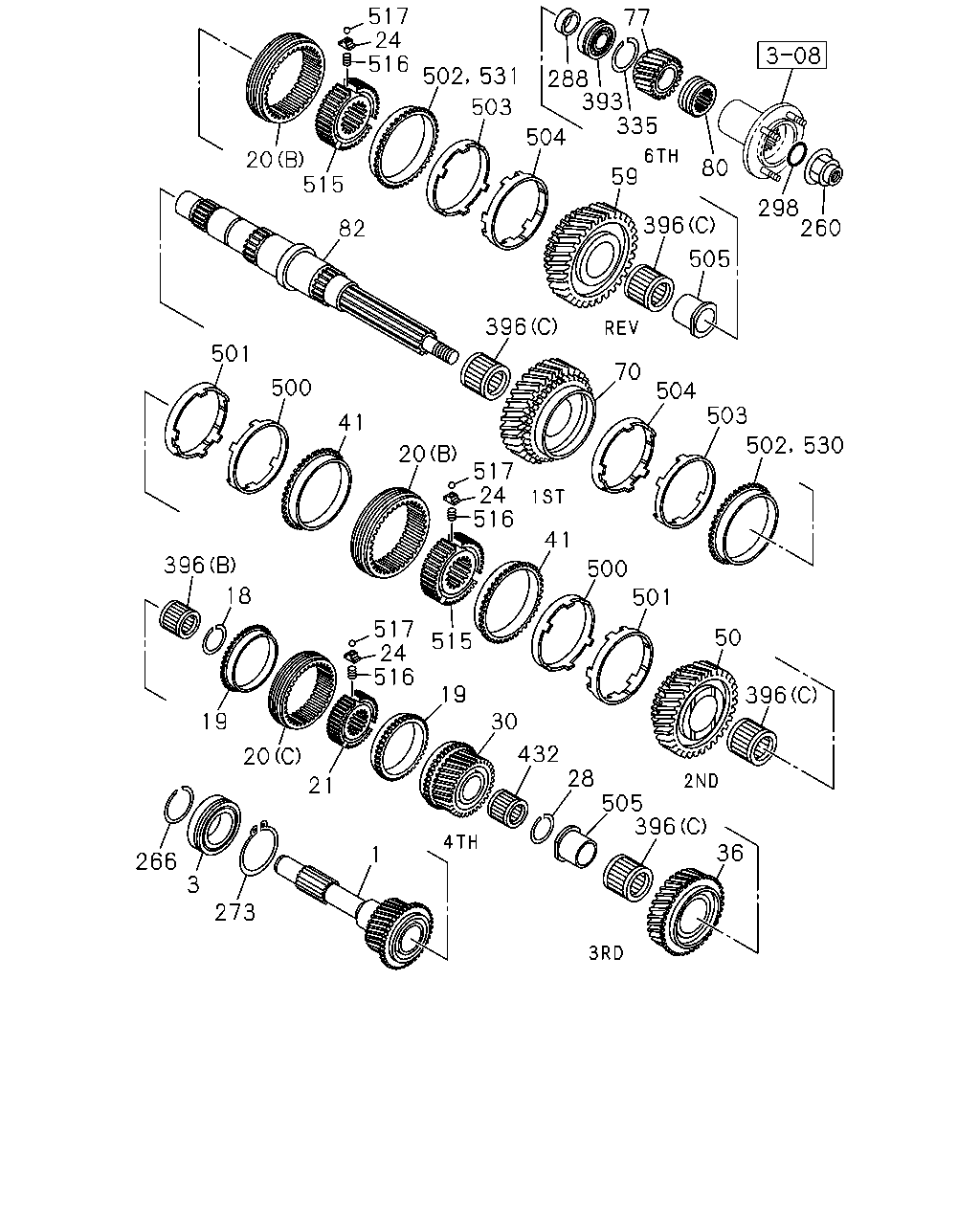

517 24 516 77 502 531 288 393 335 503 504 59 20 515 80 298 260 396 82 505 396 501 70 500 504 503 41 502 530 20 517 24 516 41 396 500 18 501 517 24 516 50 515 396 19 19 30 432 28 505 396 36 20 21 1 266 3 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS Z=20	1-33211-916-0	01	1	0102-0301	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=29	8-97168-980-0	01	1	0201-0301		●
1	04.351 SHAFT; TOP GEAR,TRANS 4HF1 ENG(RLS) Z=28	8-97252-924-1	01	1	0302-			●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97252-922-1	01	1	0208-0301				●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) Z=25	8-97252-922-1	01	1	0302-0308				●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) Z=25	8-97372-362-0	01	1	0309-0501				●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1-TCS ENG(RDS) Z=25	8-97372-362-0	01	1	0502-0506				●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1-TCS ENG(RDS) Z=25	8-97371-090-0	01	1	0507-				●
3	04.403 BEARING; TOP GEAR SHAFT	1-09810-275-0	01	1	0102-0109	●
3	04.403 BEARING; TOP GEAR SHAFT	1-09810-280-0	01	1	0110-0301	●
3	04.403 BEARING; TOP GEAR SHAFT	8-97035-047-0	01	1	0201-0301		●
3	04.403 BEARING; TOP GEAR SHAFT 4HF1 ENG(RLS) NSK	8-97253-098-1	01	1	0302-			●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	0208-0301				●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1 ENG(RLY) NSK	8-97253-097-1	01	1	0302-0501				●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1-TCS ENG(RDS) NSK	8-97253-097-1	01	1	0502-				●
18	04.384 RING; SNAP,CLU HUB T=1.75	1-09588-196-0	01	1	0102-0301	●
18	04.384 RING; SNAP,CLU HUB 4HF1 ENG(RLS) ID=30.7 T=1.8	8-97254-728-0	01	1	0302-			●
18	04.384 RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0208-0301				●
18	04.384 RING; SNAP,CLU HUB 4HE1 ENG(RLY) ID=35.7 T=1.8	8-97256-855-0	01	1	0302-0501				●
18	04.384 RING; SNAP,CLU HUB 4HE1-TCS ENG(RDS) ID=35.7 T=1.8	8-97256-855-0	01	1	0502-				●
19	04.383 RING; BLOCK,4TH & 5TH Z=45	1-33265-414-0	02	1	0102-0301	●
19	04.383 RING; BLOCK,4TH & 5TH Z=45	8-97241-306-1	02	1	0208-0301				●
19	04.383 RING; BLOCK,4TH & 5TH 4HE1 ENG(RLY) Z=45	8-97241-306-1	02	1	0302-0501				●
19	04.383 RING; BLOCK,4TH & 5TH 4HE1-TCS ENG(RDS) Z=45	8-97241-306-1	02	1	0502-				●
20	04.383 SLEEVE (A)	1-33262-167-0	01	1	0102-0301	●
20	04.383 SLEEVE (B) Z=54	8-97241-295-1	02	1	0208-0301				●
20	04.383 SLEEVE 4HE1 ENG(RLY) (B) Z=54	8-97241-295-2	02	1	0302-0501				●
20	04.383 SLEEVE 4HE1-TCS ENG(RDS) (B) Z=54	8-97241-295-2	02	1	0502-				●
20	04.383 SLEEVE (C) Z=45	8-97241-296-0	02	1	0208-0301				●
20	04.383 SLEEVE 4HE1 ENG(RLY) (C) Z=45	8-97241-296-1	02	1	0302-0501				●
20	04.383 SLEEVE 4HE1-TCS ENG(RDS) (C) Z=45	8-97241-296-1	02	1	0502-1311				●
20	04.383 SLEEVE 4HE1-TCS ENG(RDS) (C) Z=45	8-98258-279-0	02	1	1312-				●
21	04.384 HUB; CLU,4TH & 5TH	1-33261-258-0	01	1	0102-0301	●
21	04.384 HUB; CLU,4TH & 5TH	8-97241-299-2	01	1	0208-0301				●
21	04.384 HUB; CLU,4TH & 5TH 4HE1 ENG(RLY)	8-97241-299-2	01	1	0302-0501				●
21	04.384 HUB; CLU,4TH & 5TH 4HE1-TCS ENG(RDS)	8-97241-299-3	01	1	0502-				●
24	04.383 BLOCK; INDEX,SYN	1-33269-035-1	03	1	0102-0301	●
24	04.383 BLOCK; INDEX,SYN 4HF1 ENG(RLS)	8-97241-313-1	06	1	0302-			●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	12	1	0208-0301				●
24	04.383 BLOCK; INDEX,SYN 4HE1 ENG(RLY)	8-97241-313-1	12	1	0302-0501				●
24	04.383 BLOCK; INDEX,SYN 4HE1-TCS ENG(RDS)	8-97241-313-1	12	1	0502-				●
28	04.416 RING; SNAP,3RD GEAR	1-09588-195-0	01	1	0102-0301	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0208-0301				●
28	04.416 RING; SNAP,3RD GEAR 4HE1 ENG(RLY) ID=46.5 T=1.8	8-97254-743-0	01	1	0302-0501				●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0302-0501			●
28	04.416 RING; SNAP,3RD GEAR 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) ID=46.5 T=1.8	8-97254-743-0	01	1	0502-			●	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=26	1-33253-555-0	01	1	0102-0301	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=29	8-97241-228-0	01	1	0208-0301				●
30	04.415 GEAR; 4TH,MAINSHAFT 4HE1 ENG(RLY) Z=29	8-97241-228-0	01	1	0302-0501				●
30	04.415 GEAR; 4TH,MAINSHAFT 4HE1-TCS ENG(RDS) Z=29	8-97241-228-0	01	1	0502-				●
36	04.415 GEAR; 3RD,MAINSHAFT Z=33	1-33252-415-0	01	1	0102-0301	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=37	8-97091-430-1	01	1	0201-0301		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HF1 ENG(RLS) Z=34	8-97241-234-0	01	1	0302-			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-233-1	01	1	0208-0301				●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1 ENG(RLY) Z=34	8-97241-233-1	01	1	0302-0501				●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1-TCS ENG(RDS) Z=34	8-97241-233-1	01	1	0502-				●
41	04.383 RING; BLOCK,2ND & 3RD Z=54	8-97241-305-2	02	1	0208-0301				●
41	04.383 RING; BLOCK,2ND & 3RD 4HE1 ENG(RLY) Z=54	8-97241-305-2	02	1	0302-0501				●
41	04.383 RING; BLOCK,2ND & 3RD 4HE1-TCS ENG(RDS) Z=54	8-97241-305-2	02	1	0502-				●
41	04.383 RING; BLOCK,2ND & 3RD 4HF1 ENG(RLS) Z=45	8-97241-306-1	02	1	0302-			●
50	04.395 GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	0102-0301	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=37	8-97315-471-0	01	1	0201-0301		●
50	04.395 GEAR; 2ND,MAINSHAFT 4HF1 ENG(RLS) Z=38	8-97241-237-1	01	1	0302-			●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	0208-0301				●
50	04.395 GEAR; 2ND,MAINSHAFT 4HE1 ENG(RLY) Z=43	8-97241-236-1	01	1	0302-0501				●
50	04.395 GEAR; 2ND,MAINSHAFT 4HE1-TCS ENG(RDS) Z=43	8-97241-236-1	01	1	0502-				●
59	04.417 GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	0102-0301	●
59	04.417 GEAR; REV MAINSHAFT Z=40	8-94317-146-2	01	1	0201-0301		●
59	04.417 GEAR; REV MAINSHAFT 4HF1 ENG(RLS) Z=41	8-97241-244-0	01	1	0302-			●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	0208-0301				●
59	04.417 GEAR; REV MAINSHAFT 4HE1 ENG(RLY) Z=45	8-97241-243-0	01	1	0302-0501				●
59	04.417 GEAR; REV MAINSHAFT 4HE1-TCS ENG(RDS) Z=45	8-97241-243-0	01	1	0502-				●
70	04.417 GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	0102-0301	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97084-377-1	01	1	0201-0301		●
70	04.417 GEAR; 1ST,MAINSHAFT 4HF1 ENG(RLS) Z=43	8-97241-242-1	01	1	0302-0404			●
70	04.417 GEAR; 1ST,MAINSHAFT 4HF1 ENG(RLS) Z=43	8-97350-010-0	01	1	0405-			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	0208-0301				●
70	04.417 GEAR; 1ST,MAINSHAFT 4HE1 ENG(RLY) Z=45	8-97241-241-0	01	1	0302-0501				●
70	04.417 GEAR; 1ST,MAINSHAFT 4HE1-TCS ENG(RDS) Z=45	8-97241-241-0	01	1	0502-				●
77	04.421 GEAR; 6TH,MAINSHAFT Z=17	1-33253-543-0	01	1	0102-0301	●
77	04.421 GEAR; 6TH,MAINSHAFT Z=20	8-97252-634-0	01	1	0208-0301				●
77	04.421 GEAR; 6TH,MAINSHAFT 4HE1 ENG(RLY) Z=20	8-97252-634-0	01	1	0302-0501				●
77	04.421 GEAR; 6TH,MAINSHAFT 4HE1-TCS ENG(RDS) Z=20	8-97252-634-0	01	1	0502-				●
80	04.343 GEAR; SPD DRIVE Z=6	1-33371-053-1	01	1	0102-0112	●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) Z=6	1-33371-053-1	01	1	0201-0301	●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) FINAL GEAR RATIO 39/7(GV1) Z=4	1-33371-054-1	01	1	0201-0301	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97011-348-0	01	1	0201-0301		●
80	04.343 GEAR; SPD DRIVE 4HF1 ENG(RLS) Z=4	8-97253-556-0	01	1	0302-			●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	0208-0301				●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) Z=4	8-97253-555-0	01	1	0302-0501				●
80	04.343 GEAR; SPD DRIVE 4HE1-TCS ENG(RDS) Z=4	8-97253-555-0	01	1	0502-				●

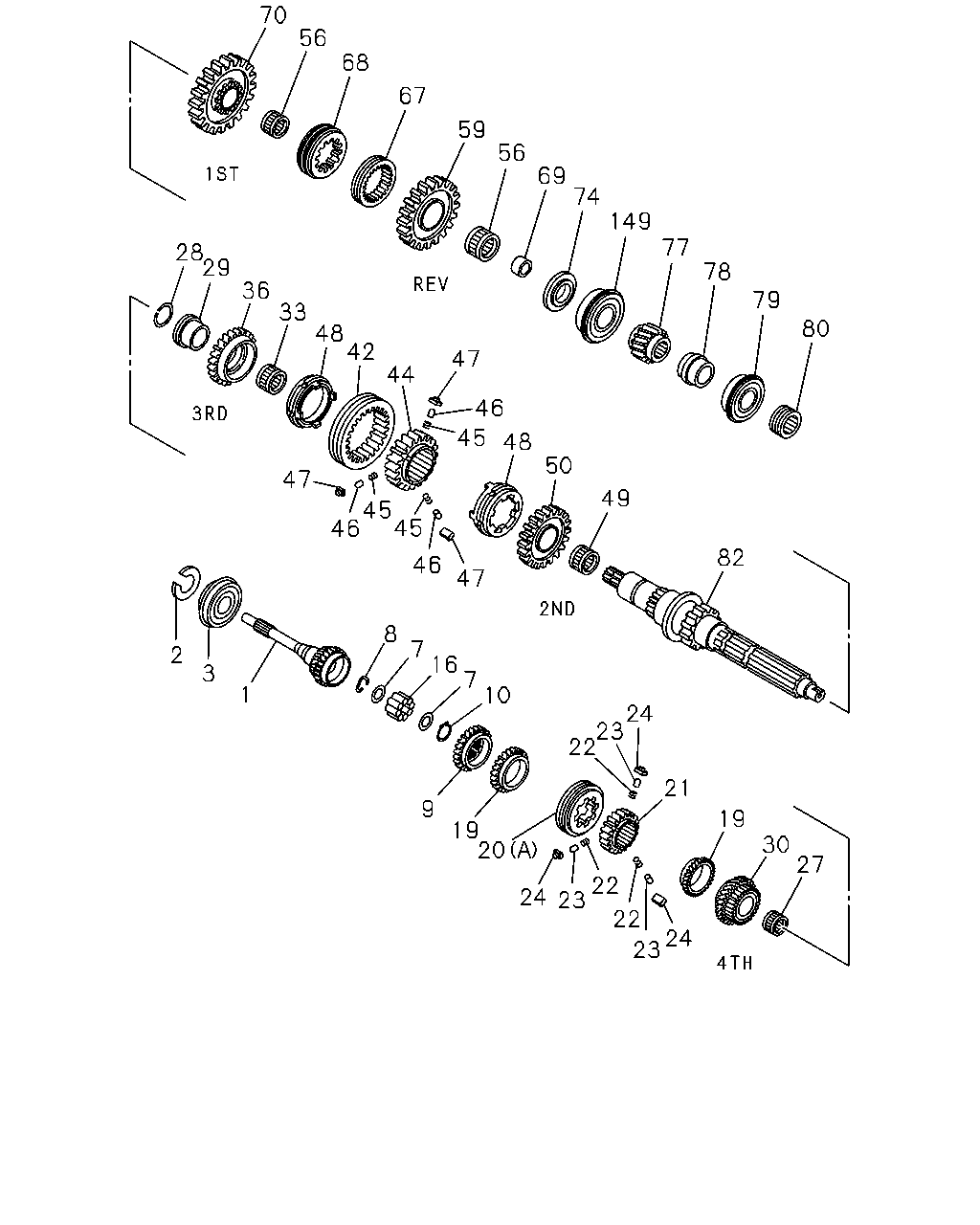

82	04.403 SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-312-0	01	1	0102-0301	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-40-28	8-97034-847-2	01	1	0201-0301		●
82	04.403 SHAFT; MAIN,TRANS 4HF1 ENG(RLS) Z=28-42-42-21	8-97253-117-3	01	1	0302-			●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	0208-0301				●
82	04.403 SHAFT; MAIN,TRANS 4HE1 ENG(RLY) Z=26-42-23	8-97253-115-3	01	1	0302-0501				●
82	04.403 SHAFT; MAIN,TRANS 4HE1-TCS ENG(RDS) Z=26-42-23	8-97253-115-3	01	1	0502-				●
260	04.412 NUT; MAINSHAFT END M27 H=25	8-97253-126-0	01	1	0208-0301				●
260	04.412 NUT; MAINSHAFT END 4HE1 ENG(RLY) M27 H=25	8-97253-126-0	01	1	0302-0501				●
260	04.412 NUT; MAINSHAFT END M27 H=25	8-97253-126-0	01	1	0302-0501			●
260	04.412 NUT; MAINSHAFT END 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M27 H=25	8-97253-126-0	01	1	0502-0604			●	●
260	04.412 NUT; MAINSHAFT END 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.525 M27 H=25	8-97360-410-0	01	1	0605-			●	●
266	04.525 RING; SNAP,BRG INNER	8-97286-915-0	01	1	0208-0301				●
266	04.525 RING; SNAP,BRG INNER 4HE1 ENG(RLY)	8-97286-915-0	01	1	0302-0501				●
266	04.525 RING; SNAP,BRG INNER 4HE1-TCS ENG(RDS)	8-97286-915-0	01	1	0502-				●
266	04.525 RING; SNAP,BRG INNER 4HF1 ENG(RLS)	8-97286-916-0	01	1	0302-			●
273	04.525 RING; SNAP,BRG OUTER	8-97254-609-0	01	1	0208-0301				●
273	04.525 RING; SNAP,BRG OUTER 4HE1 ENG(RLY)	8-97254-609-0	01	1	0302-0501				●
273	04.525 RING; SNAP,BRG OUTER 4HE1-TCS ENG(RDS)	8-97254-609-0	01	1	0502-				●
273	04.525 RING; SNAP,BRG OUTER 4HF1 ENG(RLS)	8-97254-610-0	01	1	0302-			●
288	04.399 SPACER; BRG,MAINSHAFT	8-97252-941-0	01	1	0208-0301				●
288	04.399 SPACER; BRG,MAINSHAFT 4HE1 ENG(RLY)	8-97252-941-0	01	1	0302-0501				●
288	04.399 SPACER; BRG,MAINSHAFT 4HE1-TCS ENG(RDS)	8-97252-941-0	01	1	0502-				●
288	04.399 SPACER; BRG,MAINSHAFT 4HF1 ENG(RLS)	8-97252-942-0	01	1	0302-			●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0208-0301				●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0302-0501				●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS) 05.595 ID=35.7 T=5	1-09623-379-0	01	1	0502-				●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) 04.164 ID=30.6 T=5.7	8-94481-411-0	01	1	0302-0507			●
298	04.412 GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) ID=30.6 T=5.7	8-98028-226-0	01	1	0508-			●
335	04.383 RING; SNAP,BEARING	8-97254-720-0	01	1	0208-0301				●
335	04.383 RING; SNAP,BEARING 4HE1 ENG(RLY)	8-97254-720-0	01	1	0302-0501				●
335	04.383 RING; SNAP,BEARING 4HE1-TCS ENG(RDS)	8-97254-720-0	01	1	0502-				●
335	04.383 RING; SNAP,BEARING 4HF1 ENG(RLS)	8-97254-722-0	01	1	0302-			●
393	04.352 BEARING; MAINSHAFT END 04.355	8-94178-731-0	01	1	0201-0301		●
393	04.352 BEARING; MAINSHAFT END 4HF1 ENG(RLS)	8-97253-105-1	01	1	0302-			●
393	04.352 BEARING; MAINSHAFT END	8-97253-104-0	01	1	0208-0301				●
393	04.352 BEARING; MAINSHAFT END 4HE1 ENG(RLY)	8-97253-104-0	01	1	0302-0501				●
393	04.352 BEARING; MAINSHAFT END 4HE1-TCS ENG(RDS)	8-97253-104-0	01	1	0502-				●
396	04.352 BEARING; NEEDLE,MAINSHAFT (A)	8-97228-274-0	01	1	0201-0301		●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HF1 ENG(RLS) (D)	8-97253-102-1	01	1	0302-			●
396	04.352 BEARING; NEEDLE,MAINSHAFT (B)	8-97253-099-1	01	1	0208-0301				●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1 ENG(RLY) (B)	8-97253-099-1	01	1	0302-0501				●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1-TCS ENG(RDS) (B)	8-97253-099-1	01	1	0502-				●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97253-110-0	04	1	0208-0301				●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1 ENG(RLY) (C)	8-97253-110-0	04	1	0302-0501				●
396	04.352 BEARING; NEEDLE,MAINSHAFT (C)	8-97253-110-0	04	1	0302-0501			●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (C)	8-97253-110-0	04	1	0502-			●	●
432	04.419 BEARING; NEEDLE,4TH NSK	8-97253-111-0	01	1	0208-0301				●
432	04.419 BEARING; NEEDLE,4TH 4HE1 ENG(RLY) NSK	8-97253-111-0	01	1	0302-0501				●
432	04.419 BEARING; NEEDLE,4TH 4HE1-TCS ENG(RDS) NSK	8-97253-111-0	01	1	0502-				●
500	04.383 RING; OUTSIDE,3RD & 2ND	8-97241-307-1	02	1	0208-0301				●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HE1 ENG(RLY)	8-97241-307-1	02	1	0302-0501				●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HE1-TCS ENG(RDS)	8-97241-307-1	02	1	0502-				●
500	04.383 RING; OUTSIDE,3RD & 2ND 4HF1 ENG(RLS)	8-97241-309-1	02	1	0302-			●
501	04.383 RING; INSIDE,3RD & 2ND	8-97241-311-1	02	1	0208-0301				●
501	04.383 RING; INSIDE,3RD & 2ND 4HE1 ENG(RLY)	8-97241-311-1	02	1	0302-0501				●
501	04.383 RING; INSIDE,3RD & 2ND 4HE1-TCS ENG(RDS)	8-97241-311-1	02	1	0502-				●
501	04.383 RING; INSIDE,3RD & 2ND 4HF1 ENG(RLS)	8-97241-312-1	02	1	0302-			●
502	04.383 RING; BLOCK,LOW & REV Z=54	8-97241-305-2	02	1	0208-0301				●
502	04.383 RING; BLOCK,LOW & REV 4HE1 ENG(RLY) Z=54	8-97241-305-2	02	1	0302-0402				●
503	04.383 RING; OUTSIDE,LOW & REV	8-97241-307-1	02	1	0208-0301				●
503	04.383 RING; OUTSIDE,LOW & REV 4HE1 ENG(RLY)	8-97241-307-1	02	1	0302-0501				●
503	04.383 RING; OUTSIDE,LOW & REV 4HE1-TCS ENG(RDS)	8-97241-307-1	02	1	0502-				●
503	04.383 RING; OUTSIDE,LOW & REV 4HF1 ENG(RLS)	8-97241-309-1	01	1	0302-			●
504	04.383 RING; INSIDE,LOW & REV	8-97241-311-1	02	1	0208-0301				●
504	04.383 RING; INSIDE,LOW & REV 4HE1 ENG(RLY)	8-97241-311-1	02	1	0302-0501				●
504	04.383 RING; INSIDE,LOW & REV 4HE1-TCS ENG(RDS)	8-97241-311-1	02	1	0502-				●
504	04.383 RING; INSIDE,LOW & REV 4HF1 ENG(RLS)	8-97241-312-1	01	1	0302-			●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0208-0301				●
505	04.419 COLLAR; 3RD & REV 4HE1 ENG(RLY)	8-97253-119-2	02	1	0302-0501				●
505	04.419 COLLAR; 3RD & REV	8-97253-119-2	02	1	0302-0501			●
505	04.419 COLLAR; 3RD & REV 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97253-119-2	02	1	0502-			●	●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD	8-97239-155-2	02	1	0208-0301				●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HE1 ENG(RLY)	8-97239-155-2	02	1	0302-0501				●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HE1-TCS ENG(RDS)	8-97239-155-2	02	1	0502-				●
515	04.384 HUB; CLU,1ST & REV,2ND & 3RD 4HF1 ENG(RLS)	8-97241-298-3	02	1	0302-			●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	12	1	0208-0301				●
516	04.384 SPRING; SYNCHRO,INDEX 4HE1 ENG(RLY)	8-97305-803-1	12	1	0302-0501				●
516	04.384 SPRING; SYNCHRO,INDEX 4HE1-TCS ENG(RDS)	8-97305-803-1	12	1	0502-				●
516	04.384 SPRING; SYNCHRO,INDEX 4HF1 ENG(RLS)	8-97254-835-0	06	1	0302-			●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	12	1	0208-0301				●

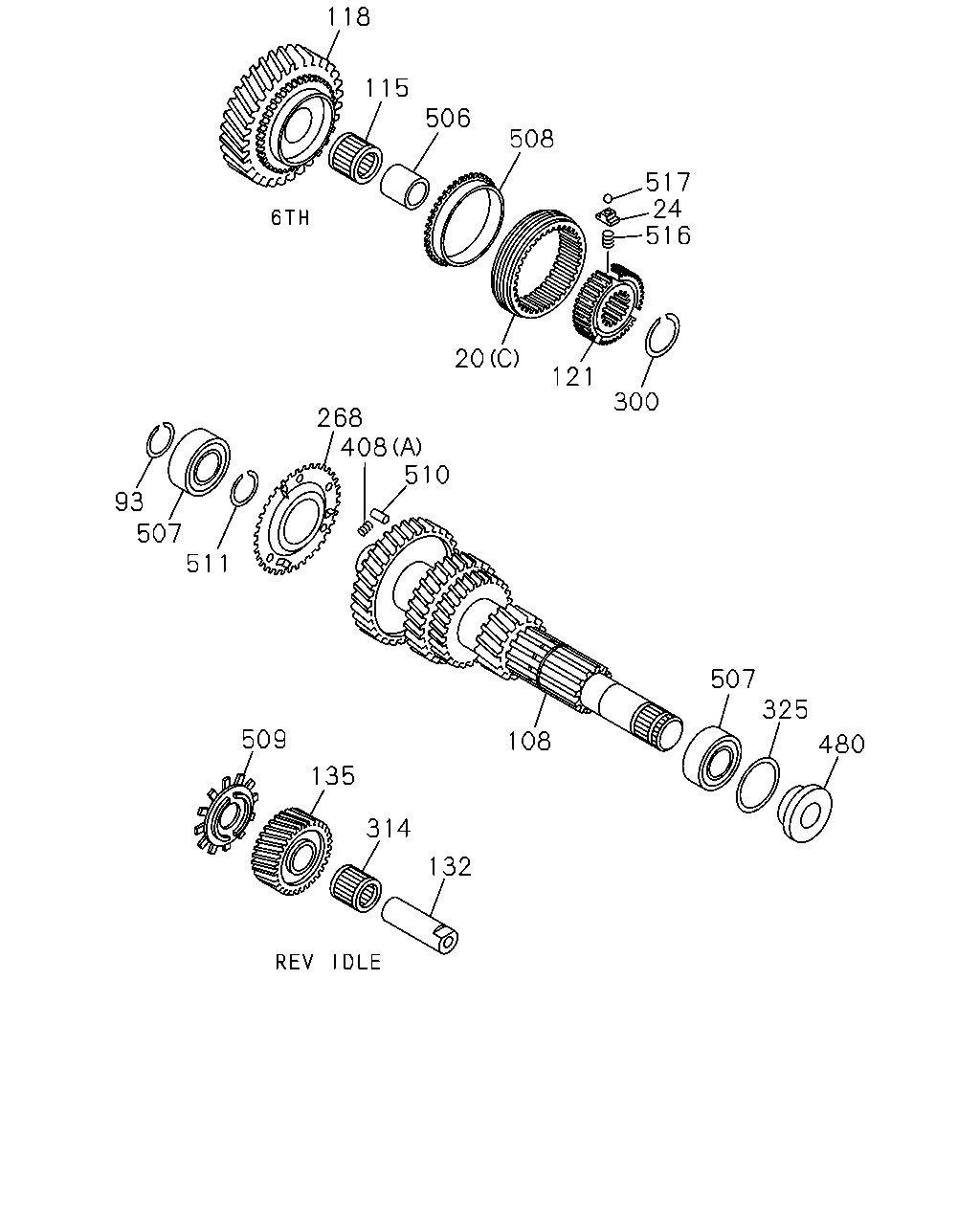

517	04.384 BALL; SYNCHRO,INDEX 4HE1 ENG(RLY)	8-97252-935-0	12	1	0302-0501				●
517	04.384 BALL; SYNCHRO,INDEX 4HE1-TCS ENG(RDS)	8-97252-935-0	12	1	0502-				●
517	04.384 BALL; SYNCHRO,INDEX 4HF1 ENG(RLS)	8-97252-935-0	06	1	0302-			●
530	04.383 RING; BLOCK,LOW 4HE1 ENG(RLY) Z=54	8-97241-305-2	01	1	0403-0501				●
530	04.383 RING; BLOCK,LOW 4HE1-TCS ENG(RDS) Z=54	8-97241-305-2	01	1	0502-				●
530	04.383 RING; BLOCK,LOW 4HF1 ENG(RLS) Z=45	8-97241-306-1	01	1	0302-			●
531	04.383 RING; BLOCK,REV 4HE1 ENG(RLY) Z=54	8-97241-305-2	01	1	0403-0501				●
531	04.383 RING; BLOCK,REV 4HE1-TCS ENG(RDS) Z=54	8-97241-305-2	01	1	0502-				●
531	04.383 RING; BLOCK,REV 4HF1 ENG(RLS) Z=45	8-97328-151-1	01	1	0302-0305			●
531	04.383 RING; BLOCK,REV 4HF1 ENG(RLS) Z=45	8-97368-343-0	01	1	0306-			●

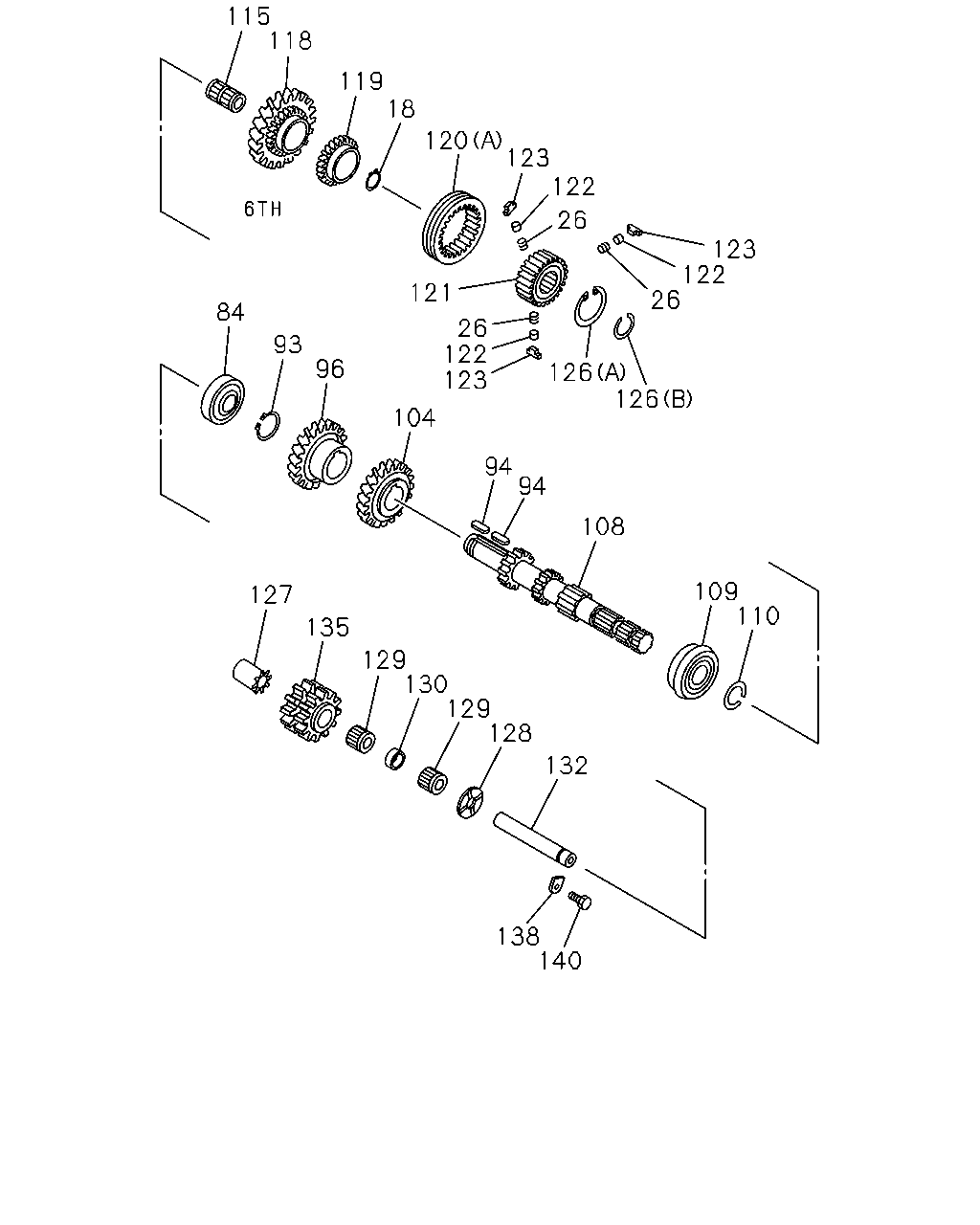

115 118 119 18 120 123 122 26 123 122 26 121 84 26 122 123 93 96 126 126 104 94 94 108 109 110 127 135 129 130 129 128 132 138 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
18	04.384 RING; SNAP,CLU HUB T=1.75	1-09588-196-0	01	1	0102-0301	●
18	04.384 RING; SNAP,CLU HUB 4HF1 ENG(RLS) ID=30.7 T=1.8	8-97254-728-0	01	1	0302-			●
18	04.384 RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	0208-0301				●
18	04.384 RING; SNAP,CLU HUB 4HE1 ENG(RLY) ID=35.7 T=1.8	8-97256-855-0	01	1	0302-0501				●
18	04.384 RING; SNAP,CLU HUB 4HE1-TCS ENG(RDS) ID=35.7 T=1.8	8-97256-855-0	01	1	0502-				●
26	04.384 SPRING; BLOCK,INSERT	1-09580-373-0	03	1	0102-0301	●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	1-09810-209-0	01	1	0102-0301	●
84	04.422 BEARING; COUNTER SHAFT,FRT JTEKT	1-09810-210-0	01	1	0102-0301	●
84	04.422 BEARING; COUNTER SHAFT,FRT NSK	8-97035-048-0	01	1	0201-0301		●
93	04.422 RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	0102-0301	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HF1 ENG(RLS) ID=30.7 T=1.9	8-97254-734-0	01	1	0302-			●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	0208-0301				●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1 ENG(RLY) ID=34.4 T=1.9	8-97254-735-0	01	1	0302-0501				●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS) ID=34.4 T=1.9	8-97254-735-0	01	1	0502-				●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	0208-0301				●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1 ENG(RLY) ID=34.4 T=2.1	8-97254-738-0	01	1	0302-0501				●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS) ID=34.4 T=2.1	8-97254-738-0	01	1	0502-				●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	0208-0301				●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1 ENG(RLY) ID=34.4 T=2.3	8-97254-741-0	01	1	0302-0501				●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS) ID=34.4 T=2.3	8-97254-741-0	01	1	0502-				●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HF1 ENG(RLS) ID=30.7 T=2.1	8-97254-740-0	01	1	0302-			●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HF1 ENG(RLS) ID=30.7 T=2.3	8-97254-742-0	01	1	0302-			●
94	04.422 KEY; FEATHER,COUNTER SHAFT L=41	1-09735-021-0	01	1	0102-0301	●
94	04.422 KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	01	1	0102-0301	●
96	04.421 GEAR; COUNTER DRIVE Z=38	1-33331-222-0	01	1	0102-0301	●
104	04.415 GEAR; 4TH,COUNTER Z=34	1-33332-110-0	01	1	0102-0301	●
108	04.428 SHAFT; COUNTER Z=28-22-14	1-33311-287-0	01	1	0102-0301	●
108	04.428 SHAFT; COUNTER 4HF1 ENG(RLS) Z=45-49-33-20	8-97326-590-0	01	1	0302-0404			●
108	04.428 SHAFT; COUNTER 4HF1 ENG(RLS) Z=45-49-33-20	8-97380-630-1	01	1	0405-			●
108	04.428 SHAFT; COUNTER Z=46-37-28-21	8-97252-636-0	01	1	0208-0301				●
108	04.428 SHAFT; COUNTER 4HE1 ENG(RLY) Z=46-37-28-21	8-97252-636-0	01	1	0302-0501				●
108	04.428 SHAFT; COUNTER 4HE1-TCS ENG(RDS) Z=46-37-28-21	8-97252-636-0	01	1	0502-0910				●
108	04.428 SHAFT; COUNTER 4HE1-TCS ENG(RDS) Z=46-37-28-21	8-98113-220-0	01	1	0911-1308				●
108	04.428 SHAFT; COUNTER 4HE1-TCS ENG(RDS) Z=46-37-28-21	8-98249-484-0	01	1	1309-				●
109	04.422 BEARING; COUNTER SHAFT,RR NSK	1-09810-211-0	01	1	0102-0301	●
109	04.422 BEARING; COUNTER SHAFT,RR JTEKT	1-09810-212-0	01	1	0102-0301	●
109	04.422 BEARING; COUNTER SHAFT,RR	8-97035-049-0	01	1	0201-0301		●
110	04.422 RING; SNAP,COUNTER BRG ID=41.9	1-09588-075-1	01	1	0102-0301	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER 4HE1-TCS ENG(RDS) OD=49.8	8-98286-084-0	01	1	1411-				●
115	04.352 BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-267-0	01	1	0102-0301	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-268-0	01	1	0102-0301	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER JTEKT	1-09811-269-0	01	1	0102-0301	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	0208-0301				●
115	04.352 BEARING; NEEDLE,6TH,COUNTER 4HE1 ENG(RLY) OD=49.75	8-97253-113-0	01	1	0302-0501				●
115	04.352 BEARING; NEEDLE,6TH,COUNTER 4HE1-TCS ENG(RDS) OD=49.75	8-97253-113-0	01	1	0502-				●
118	04.421 GEAR; 6TH,COUNTER Z=41	1-33338-273-0	01	1	0102-0301	●
118	04.421 GEAR; 6TH,COUNTER Z=47	8-97241-246-0	01	1	0208-0301				●
118	04.421 GEAR; 6TH,COUNTER 4HE1 ENG(RLY) Z=47	8-97241-246-0	01	1	0302-0501				●
118	04.421 GEAR; 6TH,COUNTER 4HE1-TCS ENG(RDS) Z=47	8-97241-246-0	01	1	0502-				●
119	04.383 RING; BLOCK,6TH SYN Z=39	1-33265-408-0	01	1	0102-0301	●
120	04.383 SLEEVE 4HF1 ENG(RLS) 04.535 (C) Z=45	8-94421-871-1	01	1	0302-			●
120	04.383 SLEEVE (A)	1-33262-095-0	01	1	0102-0301	●
120	04.383 SLEEVE 4HF1 ENG(RLS) (B) Z=45	8-97241-296-1	02	1	0302-1311			●
120	04.383 SLEEVE 4HF1 ENG(RLS) (B) Z=45	8-98258-279-0	02	1	1312-			●
121	04.384 HUB; CLU,6TH	1-33261-143-1	01	1	0102-0301	●
121	04.384 HUB; CLU,6TH	8-97241-301-2	01	1	0208-0301				●
121	04.384 HUB; CLU,6TH 4HE1 ENG(RLY)	8-97241-301-2	01	1	0302-0501				●
121	04.384 HUB; CLU,6TH 4HE1-TCS ENG(RDS)	8-97241-301-2	01	1	0502-				●
122	04.384 PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0102-0301	●
123	04.383 BLOCK; INDEX,SYN	1-33269-035-1	03	1	0102-0301	●
126	04.422 RING; SNAP,CLU HUB (A) OD=100 T=2	1-09587-032-0	01	1	0102-0301	●
126	04.422 RING; SNAP,CLU HUB 04.384 (B) ID=46.3 T=1.75	1-09588-121-1	01	1	0102-0301	●
127	04.431 COLLAR; THRUST,REV SHAFT	1-33363-029-0	01	1	0102-0301	●
128	04.437 WASHER; THRUST,REV SHAFT D=62 T=6.0	1-33363-028-0	01	1	0102-0301	●
129	04.431 BEARING; NEEDLE,IDLER NSK	1-09811-016-0	02	1	0102-0301	●
129	04.431 BEARING; NEEDLE,IDLER JTEKT	1-09811-017-0	02	1	0102-0301	●
130	04.353 COLLAR; DIST,NEEDLE BRG	1-33363-031-0	01	1	0102-0301	●
132	04.433 SHAFT; REV	1-33351-023-1	01	1	0102-0301	●
132	04.433 SHAFT; REV	8-94415-162-1	01	1	0201-0301		●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0208-0301				●
132	04.433 SHAFT; REV 4HE1 ENG(RLY)	8-97252-655-0	01	1	0302-0501				●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0302-0501			●
132	04.433 SHAFT; REV 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97252-655-0	01	1	0502-			●	●
135	04.430 GEAR; REV IDLER Z=27	1-33361-073-0	01	1	0102-0301	●
135	04.430 GEAR; REV IDLER Z=27	5-33361-042-2	01	1	0201-0301		●
135	04.430 GEAR; REV IDLER 4HF1 ENG(RLS) Z=25	8-97241-293-0	01	1	0302-0512			●
135	04.430 GEAR; REV IDLER 4HF1 ENG(RLS) Z=25	8-98031-869-1	01	1	0601-			●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-1	01	1	0208-0301				●
135	04.430 GEAR; REV IDLER 4HE1 ENG(RLY) Z=26	8-97241-292-1	01	1	0302-0501				●
135	04.430 GEAR; REV IDLER 4HE1-TCS ENG(RDS) Z=26	8-97241-292-2	01	1	0502-				●
138	04.435 PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0102-0301	●
140	04.435 BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	0102-0301	●

70 56 68 67 59 56 69 74 149 77 28 29 78 36 33 48 42 79 80 47 44 46 30 45 48 50 47 49 45 82 46 47 8 7 16 7 10 2 3 1 24 23 22 21 9 19 19 20 30 27 22 23 24 22 24 23 46 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS Z=20	1-33211-916-0	01	1	0102-0301	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=29	8-97168-980-0	01	1	0201-0301		●
1	04.351 SHAFT; TOP GEAR,TRANS 4HF1 ENG(RLS) Z=28	8-97252-924-1	01	1	0302-			●
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97252-922-1	01	1	0208-0301				●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) Z=25	8-97252-922-1	01	1	0302-0308				●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1 ENG(RLY) Z=25	8-97372-362-0	01	1	0309-0501				●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1-TCS ENG(RDS) Z=25	8-97372-362-0	01	1	0502-0506				●
1	04.351 SHAFT; TOP GEAR,TRANS 4HE1-TCS ENG(RDS) Z=25	8-97371-090-0	01	1	0507-				●
2	04.353 RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0102-0301	●
2	04.353 RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0102-0301	●
2	04.353 RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0102-0301	●
2	04.353 RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0102-0301	●
3	04.403 BEARING; TOP GEAR SHAFT	1-09810-275-0	01	1	0102-0109	●
3	04.403 BEARING; TOP GEAR SHAFT	1-09810-280-0	01	1	0110-0301	●
3	04.403 BEARING; TOP GEAR SHAFT	8-97035-047-0	01	1	0201-0301		●
3	04.403 BEARING; TOP GEAR SHAFT 4HF1 ENG(RLS) NSK	8-97253-098-1	01	1	0302-			●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-97253-097-1	01	1	0208-0301				●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1 ENG(RLY) NSK	8-97253-097-1	01	1	0302-0501				●
3	04.403 BEARING; TOP GEAR SHAFT 4HE1-TCS ENG(RDS) NSK	8-97253-097-1	01	1	0502-				●
7	04.384 WASHER; THRUST,MAINSHAFT	1-33239-059-0	02	1	0102-0301	●
8	04.353 CLIP; DOG CLU	1-33219-020-0	01	1	0102-0301	●
9	04.351 CLUTCH; DOG,TOP GEAR Z=45	1-33265-413-1	01	1	0102-0301	●
10	04.412 RING; SNAP,PILOT BRG OD=50.5	9-09180-147-0	01	1	0102-0301	●
16	04.399 BEARING; PILOT,MAINSHAFT NSK	1-09844-021-0	14	1	0102-0301	●
16	04.399 BEARING; PILOT,MAINSHAFT NTN	1-09844-022-0	14	1	0102-0301	●
16	04.399 BEARING; PILOT,MAINSHAFT JTEKT	1-09844-023-0	14	1	0102-0301	●
19	04.383 RING; BLOCK,4TH & 5TH Z=45	1-33265-414-0	02	1	0102-0301	●
19	04.383 RING; BLOCK,4TH & 5TH Z=45	8-97241-306-1	02	1	0208-0301				●
19	04.383 RING; BLOCK,4TH & 5TH 4HE1 ENG(RLY) Z=45	8-97241-306-1	02	1	0302-0501				●
19	04.383 RING; BLOCK,4TH & 5TH 4HE1-TCS ENG(RDS) Z=45	8-97241-306-1	02	1	0502-				●
20	04.383 SLEEVE (A)	1-33262-167-0	01	1	0102-0301	●
20	04.383 SLEEVE (B) Z=54	8-97241-295-1	02	1	0208-0301				●
20	04.383 SLEEVE 4HE1 ENG(RLY) (B) Z=54	8-97241-295-2	02	1	0302-0501				●
20	04.383 SLEEVE 4HE1-TCS ENG(RDS) (B) Z=54	8-97241-295-2	02	1	0502-				●
20	04.383 SLEEVE (C) Z=45	8-97241-296-0	02	1	0208-0301				●
20	04.383 SLEEVE 4HE1 ENG(RLY) (C) Z=45	8-97241-296-1	02	1	0302-0501				●
20	04.383 SLEEVE 4HE1-TCS ENG(RDS) (C) Z=45	8-97241-296-1	02	1	0502-1311				●
20	04.383 SLEEVE 4HE1-TCS ENG(RDS) (C) Z=45	8-98258-279-0	02	1	1312-				●
21	04.384 HUB; CLU,4TH & 5TH	1-33261-258-0	01	1	0102-0301	●
21	04.384 HUB; CLU,4TH & 5TH	8-97241-299-2	01	1	0208-0301				●
21	04.384 HUB; CLU,4TH & 5TH 4HE1 ENG(RLY)	8-97241-299-2	01	1	0302-0501				●
21	04.384 HUB; CLU,4TH & 5TH 4HE1-TCS ENG(RDS)	8-97241-299-3	01	1	0502-				●
22	04.384 SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	0102-0301	●
23	04.384 PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0102-0301	●
24	04.383 BLOCK; INDEX,SYN	1-33269-035-1	03	1	0102-0301	●
24	04.383 BLOCK; INDEX,SYN 4HF1 ENG(RLS)	8-97241-313-1	06	1	0302-			●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	12	1	0208-0301				●
24	04.383 BLOCK; INDEX,SYN 4HE1 ENG(RLY)	8-97241-313-1	12	1	0302-0501				●
24	04.383 BLOCK; INDEX,SYN 4HE1-TCS ENG(RDS)	8-97241-313-1	12	1	0502-				●
27	04.408 BEARING; 4TH GEAR NSK	1-09811-372-0	01	1	0102-0301	●
27	04.408 BEARING; 4TH GEAR NTN	1-09811-386-0	01	1	0102-0301	●
28	04.416 RING; SNAP,3RD GEAR	1-09588-195-0	01	1	0102-0301	●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0208-0301				●
28	04.416 RING; SNAP,3RD GEAR 4HE1 ENG(RLY) ID=46.5 T=1.8	8-97254-743-0	01	1	0302-0501				●
28	04.416 RING; SNAP,3RD GEAR ID=46.5 T=1.8	8-97254-743-0	01	1	0302-0501			●
28	04.416 RING; SNAP,3RD GEAR 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) ID=46.5 T=1.8	8-97254-743-0	01	1	0502-			●	●
29	04.416 COLLAR; 3RD GEAR	1-33234-076-0	01	1	0102-0301	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=26	1-33253-555-0	01	1	0102-0301	●
30	04.415 GEAR; 4TH,MAINSHAFT Z=29	8-97241-228-0	01	1	0208-0301				●
30	04.415 GEAR; 4TH,MAINSHAFT 4HE1 ENG(RLY) Z=29	8-97241-228-0	01	1	0302-0501				●
30	04.415 GEAR; 4TH,MAINSHAFT 4HE1-TCS ENG(RDS) Z=29	8-97241-228-0	01	1	0502-				●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-370-0	01	1	0102-0301	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 JTEKT	1-09811-387-1	01	1	0102-0301	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NTN	1-09811-414-0	01	1	0102-0301	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NTN	8-97201-005-0	01	1	0201-0301		●
33	04.352 BEARING; NEEDLE,3RD GEAR NSK	9-00096-638-0	01	1	0201-0301		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=33	1-33252-415-0	01	1	0102-0301	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=37	8-97091-430-1	01	1	0201-0301		●
36	04.415 GEAR; 3RD,MAINSHAFT 4HF1 ENG(RLS) Z=34	8-97241-234-0	01	1	0302-			●
36	04.415 GEAR; 3RD,MAINSHAFT Z=34	8-97241-233-1	01	1	0208-0301				●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1 ENG(RLY) Z=34	8-97241-233-1	01	1	0302-0501				●
36	04.415 GEAR; 3RD,MAINSHAFT 4HE1-TCS ENG(RDS) Z=34	8-97241-233-1	01	1	0502-				●
42	04.383 SLEEVE Z=45	1-33262-162-0	01	1	0102-0301	●
44	04.384 HUB; CLU,2ND & 3RD,MAIN	1-33261-193-0	01	1	0102-0301	●
45	04.384 SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	0102-0301	●
46	04.384 PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0102-0301	●
47	04.383 BLOCK; INDEX,SYN	1-33269-035-1	03	1	0102-0301	●
48	04.380 SYNCHRONIZER ASM; 2ND & 3RD	1-33265-409-0	02	1	0102-0301	●
49	04.352 BEARING; NEEDLE,2ND GEAR NSK	1-09811-371-0	02	1	0102-0301	●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	1-09811-373-0	02	1	0102-0301	●
49	04.352 BEARING; NEEDLE,2ND GEAR 04.419 NTN	8-97201-005-0	01	1	0201-0301		●
49	04.352 BEARING; NEEDLE,2ND GEAR NSK	9-00096-638-0	01	1	0201-0301		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=42	1-33251-345-0	01	1	0102-0301	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=37	8-97315-471-0	01	1	0201-0301		●
50	04.395 GEAR; 2ND,MAINSHAFT 4HF1 ENG(RLS) Z=38	8-97241-237-1	01	1	0302-			●
50	04.395 GEAR; 2ND,MAINSHAFT Z=43	8-97241-236-1	01	1	0208-0301				●
50	04.395 GEAR; 2ND,MAINSHAFT 4HE1 ENG(RLY) Z=43	8-97241-236-1	01	1	0302-0501				●
50	04.395 GEAR; 2ND,MAINSHAFT 4HE1-TCS ENG(RDS) Z=43	8-97241-236-1	01	1	0502-				●
56	04.419 BEARING; NEEDLE,1ST,REV NSK	1-09811-370-0	02	1	0102-0301	●
56	04.419 BEARING; NEEDLE,1ST,REV JTEKT	1-09811-387-1	02	1	0102-0301	●
56	04.419 BEARING; NEEDLE,1ST,REV NTN	1-09811-414-0	02	1	0102-0301	●
59	04.417 GEAR; REV MAINSHAFT Z=45	1-33257-072-0	01	1	0102-0301	●
59	04.417 GEAR; REV MAINSHAFT Z=40	8-94317-146-2	01	1	0201-0301		●
59	04.417 GEAR; REV MAINSHAFT 4HF1 ENG(RLS) Z=41	8-97241-244-0	01	1	0302-			●
59	04.417 GEAR; REV MAINSHAFT Z=45	8-97241-243-0	01	1	0208-0301				●
59	04.417 GEAR; REV MAINSHAFT 4HE1 ENG(RLY) Z=45	8-97241-243-0	01	1	0302-0501				●
59	04.417 GEAR; REV MAINSHAFT 4HE1-TCS ENG(RDS) Z=45	8-97241-243-0	01	1	0502-				●
67	04.384 HUB; CLU,1ST TO REV	1-33261-192-0	01	1	0102-0301	●
68	04.419 SLEEVE; 1ST TO REV	1-33262-175-1	01	1	0102-0301	●
69	04.417 COLLAR; 1ST GEAR MAIN	1-33234-073-0	01	1	0102-0301	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=47	1-33255-069-0	01	1	0102-0301	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97084-377-1	01	1	0201-0301		●
70	04.417 GEAR; 1ST,MAINSHAFT 4HF1 ENG(RLS) Z=43	8-97241-242-1	01	1	0302-0404			●
70	04.417 GEAR; 1ST,MAINSHAFT 4HF1 ENG(RLS) Z=43	8-97350-010-0	01	1	0405-			●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97241-241-0	01	1	0208-0301				●
70	04.417 GEAR; 1ST,MAINSHAFT 4HE1 ENG(RLY) Z=45	8-97241-241-0	01	1	0302-0501				●
70	04.417 GEAR; 1ST,MAINSHAFT 4HE1-TCS ENG(RDS) Z=45	8-97241-241-0	01	1	0502-				●
74	04.419 WASHER; THRUST,REV GEAR	1-33239-147-0	01	1	0102-0301	●
77	04.421 GEAR; 6TH,MAINSHAFT Z=17	1-33253-543-0	01	1	0102-0301	●
77	04.421 GEAR; 6TH,MAINSHAFT Z=20	8-97252-634-0	01	1	0208-0301				●
77	04.421 GEAR; 6TH,MAINSHAFT 4HE1 ENG(RLY) Z=20	8-97252-634-0	01	1	0302-0501				●
77	04.421 GEAR; 6TH,MAINSHAFT 4HE1-TCS ENG(RDS) Z=20	8-97252-634-0	01	1	0502-				●
78	04.419 COLLAR; DIST,MAINSHAFT BRG	1-33235-099-0	01	1	0102-0301	●
79	04.408 BEARING; BALL,MAINSHAFT JTEKT	1-09800-120-1	01	1	0102-0301	●
79	04.408 BEARING; BALL,MAINSHAFT NSK	1-09800-287-0	01	1	0102-0301	●
80	04.343 GEAR; SPD DRIVE Z=6	1-33371-053-1	01	1	0102-0112	●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) Z=6	1-33371-053-1	01	1	0201-0301	●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) FINAL GEAR RATIO 39/7(GV1) Z=4	1-33371-054-1	01	1	0201-0301	●
80	04.343 GEAR; SPD DRIVE Z=4	8-97011-348-0	01	1	0201-0301		●
80	04.343 GEAR; SPD DRIVE 4HF1 ENG(RLS) Z=4	8-97253-556-0	01	1	0302-			●
80	04.343 GEAR; SPD DRIVE Z=4	8-97253-555-0	01	1	0208-0301				●
80	04.343 GEAR; SPD DRIVE 4HE1 ENG(RLY) Z=4	8-97253-555-0	01	1	0302-0501				●
80	04.343 GEAR; SPD DRIVE 4HE1-TCS ENG(RDS) Z=4	8-97253-555-0	01	1	0502-				●
82	04.403 SHAFT; MAIN,TRANS Z=25-24-24-16	1-33231-312-0	01	1	0102-0301	●
82	04.403 SHAFT; MAIN,TRANS Z=27-40-40-28	8-97034-847-2	01	1	0201-0301		●
82	04.403 SHAFT; MAIN,TRANS 4HF1 ENG(RLS) Z=28-42-42-21	8-97253-117-3	01	1	0302-			●
82	04.403 SHAFT; MAIN,TRANS Z=26-42-23	8-97253-115-3	01	1	0208-0301				●
82	04.403 SHAFT; MAIN,TRANS 4HE1 ENG(RLY) Z=26-42-23	8-97253-115-3	01	1	0302-0501				●
82	04.403 SHAFT; MAIN,TRANS 4HE1-TCS ENG(RDS) Z=26-42-23	8-97253-115-3	01	1	0502-				●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR NSK	1-09810-215-0	01	1	0102-0301	●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR JTEKT	1-09810-216-0	01	1	0102-0301	●

118 115 506 508 517 24 516 20 121 300 268 408 510 93 507 511 507 325 509 108 480 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
20	04.383 SLEEVE (A)	1-33262-167-0	01	1	0102-0301	●
20	04.383 SLEEVE (B) Z=54	8-97241-295-1	02	1	0208-0301				●
20	04.383 SLEEVE 4HE1 ENG(RLY) (B) Z=54	8-97241-295-2	02	1	0302-0501				●
20	04.383 SLEEVE 4HE1-TCS ENG(RDS) (B) Z=54	8-97241-295-2	02	1	0502-				●
20	04.383 SLEEVE (C) Z=45	8-97241-296-0	02	1	0208-0301				●
20	04.383 SLEEVE 4HE1 ENG(RLY) (C) Z=45	8-97241-296-1	02	1	0302-0501				●
20	04.383 SLEEVE 4HE1-TCS ENG(RDS) (C) Z=45	8-97241-296-1	02	1	0502-1311				●
20	04.383 SLEEVE 4HE1-TCS ENG(RDS) (C) Z=45	8-98258-279-0	02	1	1312-				●
24	04.383 BLOCK; INDEX,SYN	1-33269-035-1	03	1	0102-0301	●
24	04.383 BLOCK; INDEX,SYN 4HF1 ENG(RLS)	8-97241-313-1	06	1	0302-			●
24	04.383 BLOCK; INDEX,SYN	8-97241-313-1	12	1	0208-0301				●
24	04.383 BLOCK; INDEX,SYN 4HE1 ENG(RLY)	8-97241-313-1	12	1	0302-0501				●
24	04.383 BLOCK; INDEX,SYN 4HE1-TCS ENG(RDS)	8-97241-313-1	12	1	0502-				●
93	04.422 RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	0102-0301	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HF1 ENG(RLS) ID=30.7 T=1.9	8-97254-734-0	01	1	0302-			●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	0208-0301				●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1 ENG(RLY) ID=34.4 T=1.9	8-97254-735-0	01	1	0302-0501				●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS) ID=34.4 T=1.9	8-97254-735-0	01	1	0502-				●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	0208-0301				●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1 ENG(RLY) ID=34.4 T=2.1	8-97254-738-0	01	1	0302-0501				●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS) ID=34.4 T=2.1	8-97254-738-0	01	1	0502-				●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	0208-0301				●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1 ENG(RLY) ID=34.4 T=2.3	8-97254-741-0	01	1	0302-0501				●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS) ID=34.4 T=2.3	8-97254-741-0	01	1	0502-				●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HF1 ENG(RLS) ID=30.7 T=2.1	8-97254-740-0	01	1	0302-			●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HF1 ENG(RLS) ID=30.7 T=2.3	8-97254-742-0	01	1	0302-			●
108	04.428 SHAFT; COUNTER Z=28-22-14	1-33311-287-0	01	1	0102-0301	●
108	04.428 SHAFT; COUNTER 4HF1 ENG(RLS) Z=45-49-33-20	8-97326-590-0	01	1	0302-0404			●
108	04.428 SHAFT; COUNTER 4HF1 ENG(RLS) Z=45-49-33-20	8-97380-630-1	01	1	0405-			●
108	04.428 SHAFT; COUNTER Z=46-37-28-21	8-97252-636-0	01	1	0208-0301				●
108	04.428 SHAFT; COUNTER 4HE1 ENG(RLY) Z=46-37-28-21	8-97252-636-0	01	1	0302-0501				●
108	04.428 SHAFT; COUNTER 4HE1-TCS ENG(RDS) Z=46-37-28-21	8-97252-636-0	01	1	0502-0910				●
108	04.428 SHAFT; COUNTER 4HE1-TCS ENG(RDS) Z=46-37-28-21	8-98113-220-0	01	1	0911-1308				●
108	04.428 SHAFT; COUNTER 4HE1-TCS ENG(RDS) Z=46-37-28-21	8-98249-484-0	01	1	1309-				●
115	04.352 BEARING; NEEDLE,6TH,COUNTER 4HE1-TCS ENG(RDS) OD=49.8	8-98286-084-0	01	1	1411-				●
115	04.352 BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-267-0	01	1	0102-0301	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-268-0	01	1	0102-0301	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER JTEKT	1-09811-269-0	01	1	0102-0301	●
115	04.352 BEARING; NEEDLE,6TH,COUNTER OD=49.75	8-97253-113-0	01	1	0208-0301				●
115	04.352 BEARING; NEEDLE,6TH,COUNTER 4HE1 ENG(RLY) OD=49.75	8-97253-113-0	01	1	0302-0501				●
115	04.352 BEARING; NEEDLE,6TH,COUNTER 4HE1-TCS ENG(RDS) OD=49.75	8-97253-113-0	01	1	0502-				●
118	04.421 GEAR; 6TH,COUNTER Z=41	1-33338-273-0	01	1	0102-0301	●
118	04.421 GEAR; 6TH,COUNTER Z=47	8-97241-246-0	01	1	0208-0301				●
118	04.421 GEAR; 6TH,COUNTER 4HE1 ENG(RLY) Z=47	8-97241-246-0	01	1	0302-0501				●
118	04.421 GEAR; 6TH,COUNTER 4HE1-TCS ENG(RDS) Z=47	8-97241-246-0	01	1	0502-				●
121	04.384 HUB; CLU,6TH	1-33261-143-1	01	1	0102-0301	●
121	04.384 HUB; CLU,6TH	8-97241-301-2	01	1	0208-0301				●
121	04.384 HUB; CLU,6TH 4HE1 ENG(RLY)	8-97241-301-2	01	1	0302-0501				●
121	04.384 HUB; CLU,6TH 4HE1-TCS ENG(RDS)	8-97241-301-2	01	1	0502-				●
132	04.433 SHAFT; REV	1-33351-023-1	01	1	0102-0301	●
132	04.433 SHAFT; REV	8-94415-162-1	01	1	0201-0301		●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0208-0301				●
132	04.433 SHAFT; REV 4HE1 ENG(RLY)	8-97252-655-0	01	1	0302-0501				●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0302-0501			●
132	04.433 SHAFT; REV 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97252-655-0	01	1	0502-			●	●
135	04.430 GEAR; REV IDLER Z=27	1-33361-073-0	01	1	0102-0301	●
135	04.430 GEAR; REV IDLER Z=27	5-33361-042-2	01	1	0201-0301		●
135	04.430 GEAR; REV IDLER 4HF1 ENG(RLS) Z=25	8-97241-293-0	01	1	0302-0512			●
135	04.430 GEAR; REV IDLER 4HF1 ENG(RLS) Z=25	8-98031-869-1	01	1	0601-			●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-1	01	1	0208-0301				●
135	04.430 GEAR; REV IDLER 4HE1 ENG(RLY) Z=26	8-97241-292-1	01	1	0302-0501				●
135	04.430 GEAR; REV IDLER 4HE1-TCS ENG(RDS) Z=26	8-97241-292-2	01	1	0502-				●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97252-683-1	01	1	0208-0301				●
268	04.537 PLATE; ANTI LASH,COUNTER 4HE1 ENG(RLY)	8-97252-683-1	01	1	0302-0404				●
268	04.537 PLATE; ANTI LASH,COUNTER 4HF1 ENG(RLS)	8-97257-300-1	01	1	0302-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7	8-97288-618-0	01	1	0208-0301				●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1 ENG(RLY) ID=33.2 T=1.7	8-97288-618-0	01	1	0302-0501				●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG(RDS) ID=33.2 T=1.7	8-97288-618-0	01	1	0502-				●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8	8-97288-619-0	01	1	0208-0301				●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1 ENG(RLY) ID=33.2 T=1.8	8-97288-619-0	01	1	0302-0501				●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG(RDS) ID=33.2 T=1.8	8-97288-619-0	01	1	0502-				●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9	8-97288-620-0	01	1	0208-0301				●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1 ENG(RLY) ID=33.2 T=1.9	8-97288-620-0	01	1	0302-0501				●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG(RDS) ID=33.2 T=1.9	8-97288-620-0	01	1	0502-				●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1 ENG(RLY) ID=33.2 T=1.6	8-97365-616-0	01	1	0304-0501				●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END 4HE1-TCS ENG(RDS) ID=33.2 T=1.6	8-97365-616-0	01	1	0502-				●
314	04.419 BEARING; NEEDLE,REV GEAR NTN	8-97201-005-0	01	1	0201-0301		●
314	04.419 BEARING; NEEDLE,REV GEAR 04.352 NSK	9-00096-638-0	01	1	0201-0301		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0208-0301				●
314	04.419 BEARING; NEEDLE,REV GEAR 4HE1 ENG(RLY) NSK	8-97253-114-0	01	1	0302-0501				●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0302-0501			●
314	04.419 BEARING; NEEDLE,REV GEAR 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) NSK	8-97253-114-0	01	1	0502-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.38	8-97252-656-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.38	8-97252-656-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.44	8-97252-657-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.44	8-97252-657-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.50	8-97252-658-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.50	8-97252-658-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.56	8-97252-659-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.56	8-97252-659-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.62	8-97252-660-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.62	8-97252-660-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.68	8-97252-661-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.68	8-97252-661-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.74	8-97252-662-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.74	8-97252-662-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.80	8-97252-663-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.80	8-97252-663-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.86	8-97252-664-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.86	8-97252-664-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.92	8-97252-665-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.92	8-97252-665-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.98	8-97257-621-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.98	8-97257-621-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.20	8-97306-185-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.20	8-97306-185-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.26	8-97306-186-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.26	8-97306-186-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.32	8-97306-187-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.32	8-97306-187-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.41	8-97252-668-0	01	1	0302-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.47	8-97252-669-0	01	1	0302-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.53	8-97252-670-0	01	1	0302-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.59	8-97252-671-0	01	1	0302-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.65	8-97252-672-0	01	1	0302-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.71	8-97252-673-0	01	1	0302-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.77	8-97252-674-0	01	1	0302-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.83	8-97252-675-0	01	1	0302-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.89	8-97257-622-0	01	1	0302-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.95	8-97320-549-0	01	1	0302-0404			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.29	8-97252-666-0	01	1	0405-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=3.01	8-97320-550-0	01	1	0302-0404			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.35	8-97252-667-0	01	1	0405-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=3.07	8-97320-551-0	01	1	0302-0404			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.11	8-97306-188-0	01	1	0405-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=3.13	8-97320-552-0	01	1	0302-0404			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.17	8-97306-189-0	01	1	0405-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=3.19	8-97320-553-0	01	1	0302-0404			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.23	8-97306-190-0	01	1	0405-			●
408	04.384 SPRING 04.422 (A)	8-94148-196-0	03	1	0208-0301				●
408	04.384 SPRING 4HE1 ENG(RLY) 04.422 (A)	8-94148-196-0	03	1	0302-0404				●
408	04.384 SPRING 04.422 (A)	8-94148-196-0	03	1	0302-0404			●
408	04.384 SPRING 4HF1 ENG(RLS) 04.422 (A)	8-94148-196-0	03	1	0405-			●
408	04.384 SPRING 4HF1 ENG(RLS) (B)	8-94422-075-0	02	1	0302-0404			●
408	04.384 SPRING 4HF1 ENG(RLS) (B)	8-97366-040-1	02	1	0405-			●
480	04.419 WASHER; THRUST,6TH	8-97253-122-0	01	1	0208-0301				●
480	04.419 WASHER; THRUST,6TH 4HE1 ENG(RLY)	8-97253-122-0	01	1	0302-0501				●
480	04.419 WASHER; THRUST,6TH 4HE1-TCS ENG(RDS)	8-97253-122-1	01	1	0502-				●
506	04.419 COLLAR; 6TH,COUNTER	8-97253-120-1	01	1	0208-0301				●
506	04.419 COLLAR; 6TH,COUNTER 4HE1 ENG(RLY)	8-97253-120-1	01	1	0302-0501				●
506	04.419 COLLAR; 6TH,COUNTER 4HE1-TCS ENG(RDS)	8-97253-120-1	01	1	0502-				●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	0208-0301				●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HE1 ENG(RLY)	8-97253-106-0	02	1	0302-0501				●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HE1-TCS ENG(RDS)	8-97253-106-0	02	1	0502-				●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HF1 ENG(RLS)	8-97253-107-0	02	1	0302-			●
508	04.383 RING; BLOCK,6TH Z=45	8-97241-306-1	01	1	0208-0301				●
508	04.383 RING; BLOCK,6TH 4HE1 ENG(RLY) Z=45	8-97241-306-1	01	1	0302-0501				●
508	04.383 RING; BLOCK,6TH 4HE1-TCS ENG(RDS) Z=45	8-97241-306-1	01	1	0502-				●
509	04.417 SLINGER; OIL,REV IDLE	8-97252-682-0	01	1	0208-0301				●
509	04.417 SLINGER; OIL,REV IDLE 4HE1 ENG(RLY)	8-97252-682-0	01	1	0302-0302				●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	0208-0301				●
510	04.540 PIN; STRAIGHT,ANTI LASH 4HE1 ENG(RLY) 00.862	9-08160-825-0	03	1	0302-0404				●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	0302-0404			●
510	04.540 PIN; STRAIGHT,ANTI LASH 4HF1 ENG(RLS) 00.862	9-08160-825-0	03	1	0405-			●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	0208-0301				●
511	04.416 RING; SNAP,ANTI LASH PLATE 4HE1 ENG(RLY)	8-97254-767-0	01	1	0302-0404				●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	0302-0404			●
511	04.416 RING; SNAP,ANTI LASH PLATE 4HF1 ENG(RLS)	8-97254-767-0	01	1	0405-			●
516	04.384 SPRING; SYNCHRO,INDEX	8-97305-803-1	12	1	0208-0301				●
516	04.384 SPRING; SYNCHRO,INDEX 4HE1 ENG(RLY)	8-97305-803-1	12	1	0302-0501				●
516	04.384 SPRING; SYNCHRO,INDEX 4HE1-TCS ENG(RDS)	8-97305-803-1	12	1	0502-				●
516	04.384 SPRING; SYNCHRO,INDEX 4HF1 ENG(RLS)	8-97254-835-0	06	1	0302-			●
517	04.384 BALL; SYNCHRO,INDEX	8-97252-935-0	12	1	0208-0301				●
517	04.384 BALL; SYNCHRO,INDEX 4HE1 ENG(RLY)	8-97252-935-0	12	1	0302-0501				●
517	04.384 BALL; SYNCHRO,INDEX 4HE1-TCS ENG(RDS)	8-97252-935-0	12	1	0502-				●
517	04.384 BALL; SYNCHRO,INDEX 4HF1 ENG(RLS)	8-97252-935-0	06	1	0302-			●

68 408 510 93 108 507 511 507 325 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
68	04.419 SLEEVE; 1ST TO REV	1-33262-175-1	01	1	0102-0301	●
93	04.422 RING; SNAP,COUNTER FRT BRG	1-09588-091-0	01	1	0102-0301	●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HF1 ENG(RLS) ID=30.7 T=1.9	8-97254-734-0	01	1	0302-			●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9	8-97254-735-0	01	1	0208-0301				●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1 ENG(RLY) ID=34.4 T=1.9	8-97254-735-0	01	1	0302-0501				●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS) ID=34.4 T=1.9	8-97254-735-0	01	1	0502-				●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1	8-97254-738-0	01	1	0208-0301				●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1 ENG(RLY) ID=34.4 T=2.1	8-97254-738-0	01	1	0302-0501				●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS) ID=34.4 T=2.1	8-97254-738-0	01	1	0502-				●
93	04.422 RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3	8-97254-741-0	01	1	0208-0301				●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1 ENG(RLY) ID=34.4 T=2.3	8-97254-741-0	01	1	0302-0501				●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HE1-TCS ENG(RDS) ID=34.4 T=2.3	8-97254-741-0	01	1	0502-				●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HF1 ENG(RLS) ID=30.7 T=2.1	8-97254-740-0	01	1	0302-			●
93	04.422 RING; SNAP,COUNTER FRT BRG 4HF1 ENG(RLS) ID=30.7 T=2.3	8-97254-742-0	01	1	0302-			●
108	04.428 SHAFT; COUNTER Z=28-22-14	1-33311-287-0	01	1	0102-0301	●
108	04.428 SHAFT; COUNTER 4HF1 ENG(RLS) Z=45-49-33-20	8-97326-590-0	01	1	0302-0404			●
108	04.428 SHAFT; COUNTER 4HF1 ENG(RLS) Z=45-49-33-20	8-97380-630-1	01	1	0405-			●
108	04.428 SHAFT; COUNTER Z=46-37-28-21	8-97252-636-0	01	1	0208-0301				●
108	04.428 SHAFT; COUNTER 4HE1 ENG(RLY) Z=46-37-28-21	8-97252-636-0	01	1	0302-0501				●
108	04.428 SHAFT; COUNTER 4HE1-TCS ENG(RDS) Z=46-37-28-21	8-97252-636-0	01	1	0502-0910				●
108	04.428 SHAFT; COUNTER 4HE1-TCS ENG(RDS) Z=46-37-28-21	8-98113-220-0	01	1	0911-1308				●
108	04.428 SHAFT; COUNTER 4HE1-TCS ENG(RDS) Z=46-37-28-21	8-98249-484-0	01	1	1309-				●
132	04.433 SHAFT; REV	1-33351-023-1	01	1	0102-0301	●
132	04.433 SHAFT; REV	8-94415-162-1	01	1	0201-0301		●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0208-0301				●
132	04.433 SHAFT; REV 4HE1 ENG(RLY)	8-97252-655-0	01	1	0302-0501				●
132	04.433 SHAFT; REV	8-97252-655-0	01	1	0302-0501			●
132	04.433 SHAFT; REV 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97252-655-0	01	1	0502-			●	●
135	04.430 GEAR; REV IDLER Z=27	1-33361-073-0	01	1	0102-0301	●
135	04.430 GEAR; REV IDLER Z=27	5-33361-042-2	01	1	0201-0301		●
135	04.430 GEAR; REV IDLER 4HF1 ENG(RLS) Z=25	8-97241-293-0	01	1	0302-0512			●
135	04.430 GEAR; REV IDLER 4HF1 ENG(RLS) Z=25	8-98031-869-1	01	1	0601-			●
135	04.430 GEAR; REV IDLER Z=26	8-97241-292-1	01	1	0208-0301				●
135	04.430 GEAR; REV IDLER 4HE1 ENG(RLY) Z=26	8-97241-292-1	01	1	0302-0501				●
135	04.430 GEAR; REV IDLER 4HE1-TCS ENG(RDS) Z=26	8-97241-292-2	01	1	0502-				●
314	04.419 BEARING; NEEDLE,REV GEAR NTN	8-97201-005-0	01	1	0201-0301		●
314	04.419 BEARING; NEEDLE,REV GEAR 04.352 NSK	9-00096-638-0	01	1	0201-0301		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0208-0301				●
314	04.419 BEARING; NEEDLE,REV GEAR 4HE1 ENG(RLY) NSK	8-97253-114-0	01	1	0302-0501				●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97253-114-0	01	1	0302-0501			●
314	04.419 BEARING; NEEDLE,REV GEAR 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) NSK	8-97253-114-0	01	1	0502-			●	●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.38	8-97252-656-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.38	8-97252-656-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.38	8-97252-656-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.44	8-97252-657-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.44	8-97252-657-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.44	8-97252-657-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.50	8-97252-658-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.50	8-97252-658-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.50	8-97252-658-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.56	8-97252-659-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.56	8-97252-659-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.56	8-97252-659-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.62	8-97252-660-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.62	8-97252-660-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.62	8-97252-660-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.68	8-97252-661-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.68	8-97252-661-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.68	8-97252-661-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.74	8-97252-662-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.74	8-97252-662-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.74	8-97252-662-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.80	8-97252-663-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.80	8-97252-663-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.80	8-97252-663-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.86	8-97252-664-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.86	8-97252-664-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.86	8-97252-664-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.92	8-97252-665-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.92	8-97252-665-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.92	8-97252-665-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.98	8-97257-621-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.98	8-97257-621-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.98	8-97257-621-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.20	8-97306-185-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.20	8-97306-185-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.20	8-97306-185-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.26	8-97306-186-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.26	8-97306-186-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.26	8-97306-186-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG ID=70 T=1.32	8-97306-187-0	01	1	0208-0301				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1 ENG(RLY) ID=70 T=1.32	8-97306-187-0	01	1	0302-0501				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HE1-TCS ENG(RDS) ID=70 T=1.32	8-97306-187-0	01	1	0502-				●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.41	8-97252-668-0	01	1	0302-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.47	8-97252-669-0	01	1	0302-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.53	8-97252-670-0	01	1	0302-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.59	8-97252-671-0	01	1	0302-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.65	8-97252-672-0	01	1	0302-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.71	8-97252-673-0	01	1	0302-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.77	8-97252-674-0	01	1	0302-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.83	8-97252-675-0	01	1	0302-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.89	8-97257-622-0	01	1	0302-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.95	8-97320-549-0	01	1	0302-0404			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.29	8-97252-666-0	01	1	0405-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=3.01	8-97320-550-0	01	1	0302-0404			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.35	8-97252-667-0	01	1	0405-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=3.07	8-97320-551-0	01	1	0302-0404			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.11	8-97306-188-0	01	1	0405-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=3.13	8-97320-552-0	01	1	0302-0404			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.17	8-97306-189-0	01	1	0405-			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=3.19	8-97320-553-0	01	1	0302-0404			●
325	04.423 SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.23	8-97306-190-0	01	1	0405-			●
408	04.384 SPRING 04.422 (A)	8-94148-196-0	03	1	0208-0301				●
408	04.384 SPRING 4HE1 ENG(RLY) 04.422 (A)	8-94148-196-0	03	1	0302-0404				●
408	04.384 SPRING 04.422 (A)	8-94148-196-0	03	1	0302-0404			●
408	04.384 SPRING 4HF1 ENG(RLS) 04.422 (A)	8-94148-196-0	03	1	0405-			●
408	04.384 SPRING 4HF1 ENG(RLS) (B)	8-94422-075-0	02	1	0302-0404			●
408	04.384 SPRING 4HF1 ENG(RLS) (B)	8-97366-040-1	02	1	0405-			●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR	8-97253-106-0	02	1	0208-0301				●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HE1 ENG(RLY)	8-97253-106-0	02	1	0302-0501				●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HE1-TCS ENG(RDS)	8-97253-106-0	02	1	0502-				●
507	04.422 BEARING; COUNTER SHAFT,FRT & RR 4HF1 ENG(RLS)	8-97253-107-0	02	1	0302-			●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	0208-0301				●
510	04.540 PIN; STRAIGHT,ANTI LASH 4HE1 ENG(RLY) 00.862	9-08160-825-0	03	1	0302-0404				●
510	04.540 PIN; STRAIGHT,ANTI LASH 00.862	9-08160-825-0	03	1	0302-0404			●
510	04.540 PIN; STRAIGHT,ANTI LASH 4HF1 ENG(RLS) 00.862	9-08160-825-0	03	1	0405-			●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	0208-0301				●
511	04.416 RING; SNAP,ANTI LASH PLATE 4HE1 ENG(RLY)	8-97254-767-0	01	1	0302-0404				●
511	04.416 RING; SNAP,ANTI LASH PLATE	8-97254-767-0	01	1	0302-0404			●
511	04.416 RING; SNAP,ANTI LASH PLATE 4HF1 ENG(RLS)	8-97254-767-0	01	1	0405-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
