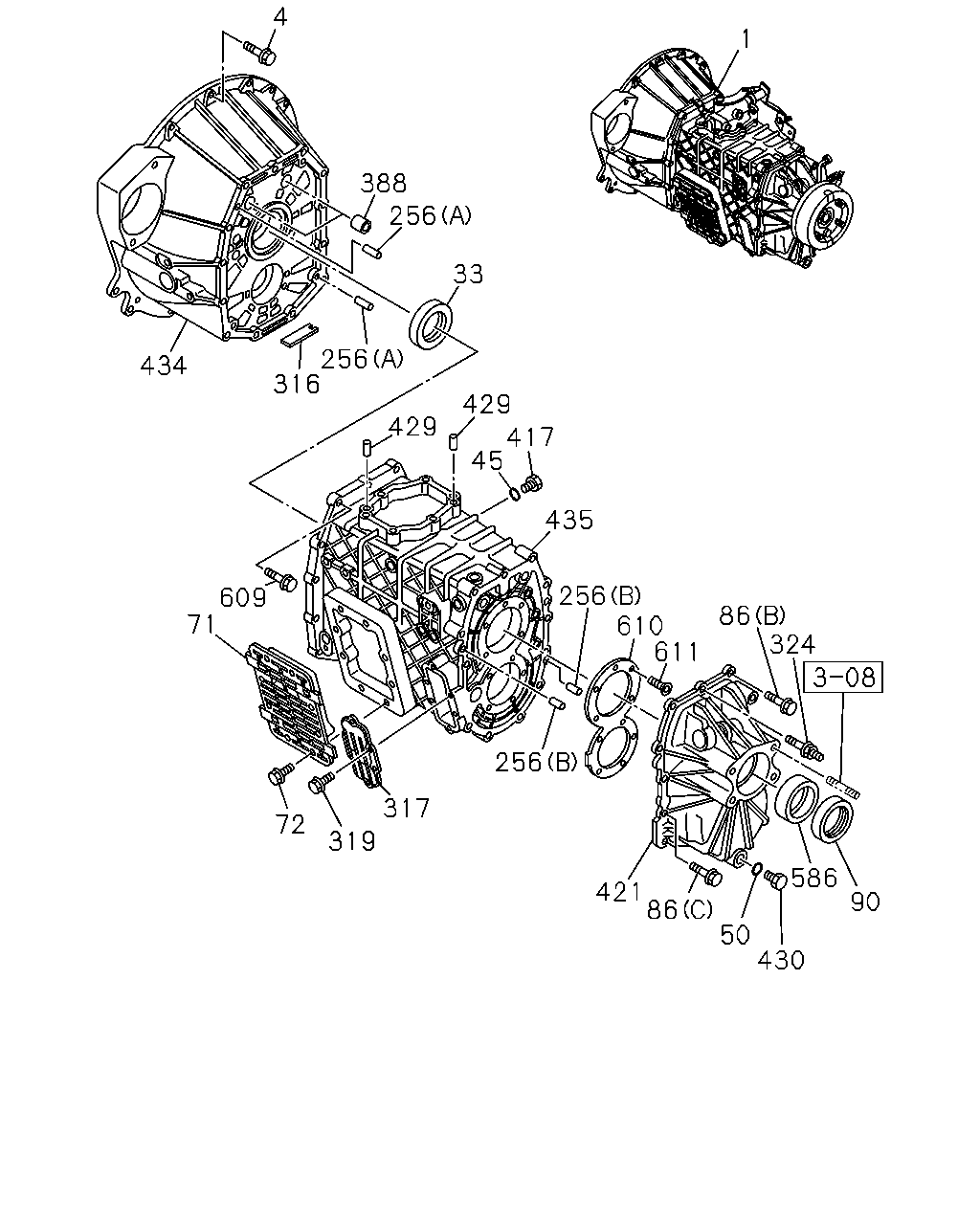

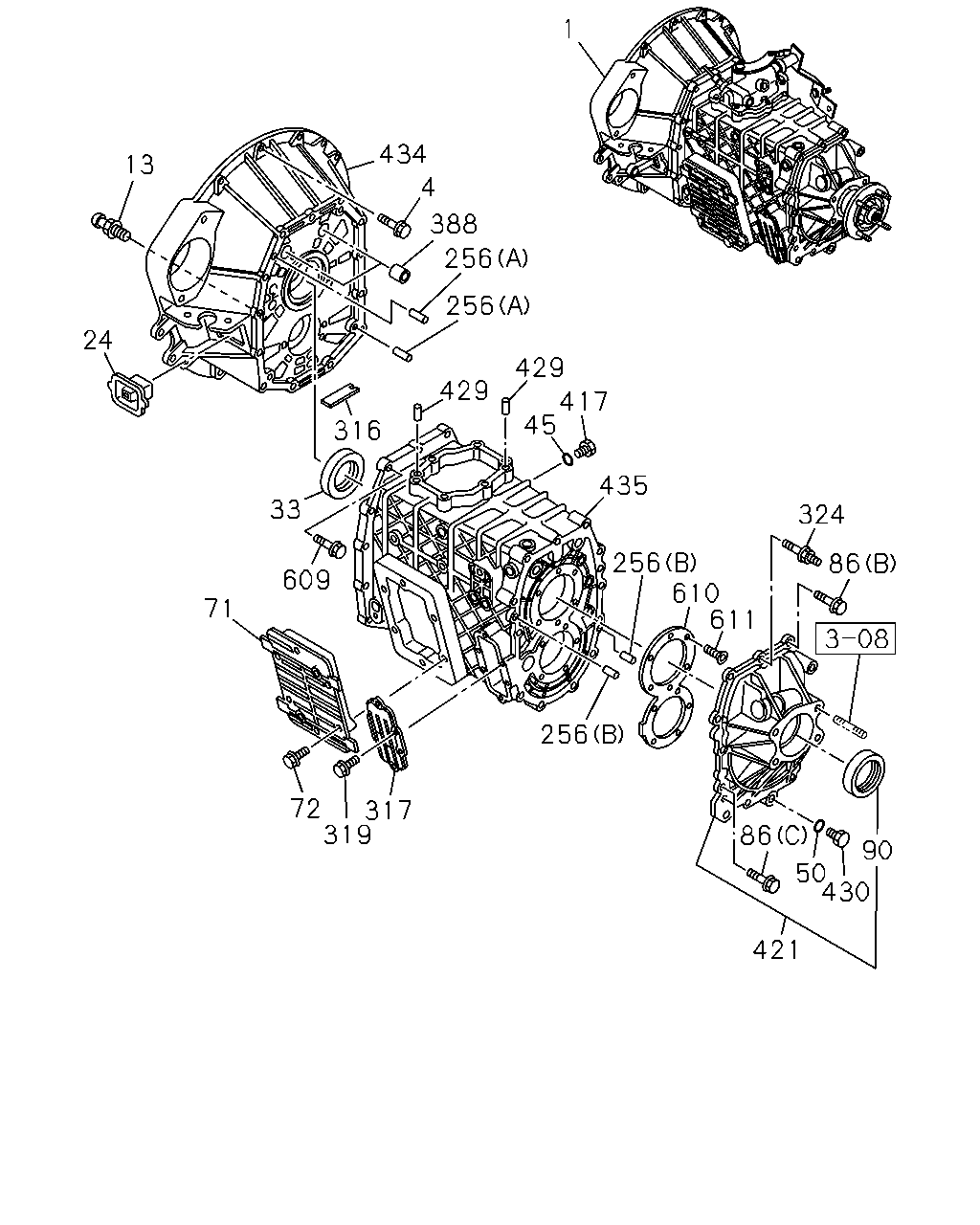

2-20 — MANUAL TRANSMISSION ASM AND CASE (#19022) — 620 parça

1 434 13 4 388 256 256 24 429 429 417 45 316 435 33 324 256 610 611 86 609 71 256 86 319 90 50 430 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) FINAL GEAR RATIO 39/7(GV1)	1-33041-819-0	01	1	0201-0301	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY)	8-97350-619-0	01	1	0302-0404		●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY)	8-97373-917-0	01	1	0405-0501		●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1)	1-33041-818-0	01	1	0102-0301	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C)	1-33041-815-0	01	1	0201-0301	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) FINAL GEAR RATIO 43/9(S2J)	1-33041-817-0	01	1	0102-0301	●
1	04.003 TRANSMISSION ASM; MANUAL	8-97161-342-1	01	1	0201-0301			●
1	04.003 TRANSMISSION ASM; MANUAL 4HF1 ENG(RLS)	8-97350-617-0	01	1	0302-0404		●
1	04.003 TRANSMISSION ASM; MANUAL 4HF1 ENG(RLS)	8-97373-914-0	01	1	0405-0501		●
1	04.003 TRANSMISSION ASM; MANUAL 4HF1 ENG(RLS)	8-97373-914-0	01	1	0502-		●
1	04.003 TRANSMISSION ASM; MANUAL	8-97307-744-0	01	1	0208-0301				●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY)	8-97307-744-0	01	1	0302-0501				●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1-TCS ENG(RDS)	8-97307-744-0	01	1	0502-				●
4	00.683 BOLT; FLYWHEEL HSG 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0102-0112	●
4	00.683 BOLT; FLYWHEEL HSG 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0201-0207	●		●
4	00.683 BOLT; FLYWHEEL HSG 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0208-0301	●		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0302-0501		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0502-0512		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0601-		●		●
4	00.683 BOLT; FLYWHEEL HSG M10X55 FLANGE	8-94399-863-1	02	1	0102-0112	●
4	00.683 BOLT; FLYWHEEL HSG M10X55 FLANGE	8-94399-863-1	02	1	0201-0207	●		●
4	00.683 BOLT; FLYWHEEL HSG M10X55 FLANGE	8-94399-863-1	02	1	0208-0301	●		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) M10X55 FLANGE	8-94399-863-1	02	1	0302-0501		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M10X55 FLANGE	8-94399-863-1	02	1	0502-0611		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M10X55 FLANGE	8-97365-449-0	02	1	0612-		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0102-0112	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0102-0112	●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0201-0207	●		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0201-0207	●		●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0208-0301	●		●	●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0208-0301	●		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0302-0501		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0302-0501		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0512		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0512		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-		●		●
13	04.302 SUPPORT; SHIFT FORK 4HF1 ENG(RLS)	8-97255-384-1	01	1	0302-		●
24	00.797 COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0102-0301	●
24	00.797 COVER; CHECK HOLE,DUST 4HF1 ENG(RLS)	8-97255-201-0	01	1	0302-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-1	01	1	0102-0301	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0208-0301				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY).	8-97253-550-0	01	1	0302-0501				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0302-0501		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97253-550-0	01	1	0502-		●		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.109 ID=26.8	1-09623-058-0	01	1	0102-0301	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	0201-0301			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0208-0301				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY). ID=17	8-97115-712-0	01	1	0302-0501				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0302-0501		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) ID=17	8-97115-712-0	01	1	0502-		●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.109 ID=26.8	1-09623-058-0	01	1	0102-0301	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	0201-0301			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0208-0301				●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY). ID=17	8-97115-712-0	01	1	0302-0501				●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0302-0501		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) ID=17	8-97115-712-0	01	1	0502-		●		●
71	04.439 COVER; SIDE,TRANS CASE	1-33141-028-0	01	1	0102-0301	●
71	04.439 COVER; SIDE,TRANS CASE	9-33141-601-2	01	1	0201-0301			●
71	04.439 COVER; SIDE,TRANS CASE 4HF1 ENG(RLS)	8-97252-625-0	01	1	0302-		●
71	04.439 COVER; SIDE,TRANS CASE	8-97252-624-0	01	1	0208-0301				●
71	04.439 COVER; SIDE,TRANS CASE 4HE1 ENG(RLY)	8-97252-624-0	01	1	0302-0501				●
71	04.439 COVER; SIDE,TRANS CASE 4HE1-TCS ENG(RDS)	8-97252-624-2	01	1	0502-				●
86	04.317 BOLT; RR COVER (A) M10X25	1-09044-080-0	08	1	0102-0301	●
86	04.317 BOLT; RR COVER (A) M10X55	1-09044-083-0	03	1	0102-0301	●
86	04.317 BOLT; RR COVER 04.104 (A) M10X50	8-94318-782-0	01	1	0201-0301			●
86	04.317 BOLT; RR COVER (A) M10X30 FLANGE	8-94482-338-0	06	1	0201-0301			●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	0-28181-040-0	10	1	0208-0301				●
86	04.317 BOLT; RR COVER 4HE1 ENG(RLY) 04.510 (B) M10X40 FLANGE	0-28181-040-0	10	1	0302-0501				●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	0-28181-040-0	10	1	0302-0501		●
86	04.317 BOLT; RR COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.510 (B) M10X40 FLANGE	0-28181-040-0	10	1	0502-0512		●		●
86	04.317 BOLT; RR COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 09.171 (B) M10X40 FLANGE	0-28151-040-0	10	1	0601-		●		●
86	04.317 BOLT; RR COVER (C) M10X40 FLANGE	8-97305-392-0	02	1	0208-0301				●
86	04.317 BOLT; RR COVER 4HE1 ENG(RLY) (C) M10X40 FLANGE	8-97305-392-0	02	1	0302-0501				●
86	04.317 BOLT; RR COVER (C) M10X40 FLANGE	8-97305-392-0	02	1	0302-0501		●
86	04.317 BOLT; RR COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (C) M10X40 FLANGE	8-97305-392-0	02	1	0502-0604		●		●
86	04.317 BOLT; RR COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.510 (C) M10X40 FLANGE	8-97365-377-0	02	1	0605-		●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	0102-0301	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97257-296-0	01	1	0201-0301			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) NOK	8-97253-552-1	01	1	0302-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	0208-0301				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) NOK	8-97253-551-1	01	1	0302-0501				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS) NOK	8-97253-551-1	01	1	0502-				●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0208-0301				●
256	04.317 PIN; KNOCK 4HE1 ENG(RLY) 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0302-0501				●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0302-0501		●
256	04.317 PIN; KNOCK 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0502-		●		●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0208-0301				●
256	04.317 PIN; KNOCK 4HE1 ENG(RLY) 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0302-0501				●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0302-0501		●
256	04.317 PIN; KNOCK 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0502-		●		●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0208-0301				●
316	04.105 MAGNET; TRANS CASE 4HE1 ENG(RLY)	8-94249-524-2	01	1	0302-0501				●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0302-0501		●
316	04.105 MAGNET; TRANS CASE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-94249-524-2	01	1	0502-		●		●
319	04.109 BOLT; COVER 07.010 M8X20 FLANGE	0-28080-820-0	06	1	0208-0301				●
319	04.109 BOLT; COVER 4HE1 ENG(RLY) 07.010 M8X20 FLANGE	0-28080-820-0	06	1	0302-0501				●
319	04.109 BOLT; COVER 07.010 M8X20 FLANGE	0-28080-820-0	06	1	0302-0501		●
319	04.109 BOLT; COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 07.010 M8X20 FLANGE	0-28080-820-0	06	1	0502-0512		●		●
319	04.109 BOLT; COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.338 M8X20 FLANGE	0-28050-820-0	06	1	0601-		●		●
324	04.319 STUD; RR COVER M10X15,M10X40 L=65	8-97309-013-0	01	1	0208-0301				●
324	04.319 STUD; RR COVER 4HE1 ENG(RLY) M10X15,M10X40 L=65	8-97309-013-0	01	1	0302-0501				●
324	04.319 STUD; RR COVER M10X15,M10X40 L=65	8-97309-013-0	01	1	0302-0501		●
324	04.319 STUD; RR COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M10X15,M10X40 L=65	8-97309-013-0	01	1	0502-0604		●		●
324	04.319 STUD; RR COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	0605-		●		●
388	00.683 BUSHING; CLU HSG	8-97241-326-1	02	1	0208-0301				●
388	00.683 BUSHING; CLU HSG 4HE1 ENG(RLY)	8-97241-326-2	02	1	0302-0501				●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	0302-0501		●
388	00.683 BUSHING; CLU HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97241-326-2	02	1	0502-		●		●
417	04.105 PLUG; OIL FILLER,TRANS 01.453 M24X17 FLANGE	1-09604-064-1	01	1	0102-0201	●
417	04.105 PLUG; OIL FILLER,TRANS 05.400 M24X17 FLANGE	1-09604-022-0	01	1	0202-0301	●
417	04.105 PLUG; OIL FILLER,TRANS M18	8-94337-946-1	01	1	0201-0301			●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	0208-0301				●
417	04.105 PLUG; OIL FILLER,TRANS 4HE1 ENG(RLY) 08.971	8-94310-917-0	01	1	0302-0501				●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	0302-0501		●
417	04.105 PLUG; OIL FILLER,TRANS 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 08.971	8-94310-917-0	01	1	0502-0604		●		●
417	04.105 PLUG; OIL FILLER,TRANS 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97365-373-0	01	1	0605-		●		●
421	04.317 COVER; RR,TRANS	1-33131-173-2	01	1	0102-0301	●
421	04.317 COVER; RR,TRANS	8-97249-001-1	01	1	0201-0301			●
421	04.317 COVER; RR,TRANS 4HF1 ENG(RLS)	8-97252-621-0	01	1	0302-0507		●
421	04.317 COVER; RR,TRANS 4HF1 ENG(RLS)	8-98020-029-0	01	1	0508-		●
421	04.317 COVER; RR,TRANS	8-97238-934-2	01	1	0208-0301				●
421	04.317 COVER; RR,TRANS 4HE1 ENG(RLY)	8-97238-934-2	01	1	0302-0501				●
421	04.317 COVER; RR,TRANS 4HE1-TCS ENG(RDS)	8-97238-934-5	01	1	0502-				●
429	04.105 PIN; STRAIGHT 08.939 OD=10 L=18	9-08151-018-0	02	1	0102-0301	●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0208-0301				●
429	04.105 PIN; STRAIGHT 4HE1 ENG(RLY) 04.510 OD=10 L=20	8-97135-423-0	02	1	0302-0501				●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0302-0501		●
429	04.105 PIN; STRAIGHT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.510 OD=10 L=20	8-97135-423-0	02	1	0502-		●		●
430	04.105 PLUG; OIL DRAIN 05.400 M24X17 FLANGE	1-09604-023-0	01	1	0102-0301	●
430	04.105 PLUG; OIL DRAIN	8-94336-512-1	01	1	0201-0301			●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	0208-0301				●
430	04.105 PLUG; OIL DRAIN 4HE1 ENG(RLY)	9-09662-004-0	01	1	0302-0501				●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	0302-0501		●
430	04.105 PLUG; OIL DRAIN 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	9-09662-004-0	01	1	0502-0604		●		●
430	04.105 PLUG; OIL DRAIN 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97365-374-0	01	1	0605-		●		●
434	00.683 HOUSING; CLU	1-31110-152-2	01	1	0102-0301	●
434	00.683 HOUSING; CLU	8-97034-801-2	01	1	0201-0301			●
434	00.683 HOUSING; CLU 4HF1 ENG(RLS)	8-97237-099-5	01	1	0302-		●
434	00.683 HOUSING; CLU	8-97238-930-4	01	1	0208-0301				●
434	00.683 HOUSING; CLU 4HE1 ENG(RLY)	8-97238-930-4	01	1	0302-0501				●
434	00.683 HOUSING; CLU 4HE1-TCS ENG(RDS)	8-97238-930-4	01	1	0502-				●
435	04.103 CASE; TRANS	1-33111-243-1	01	1	0102-0301	●
435	04.103 CASE; TRANS	8-97204-132-1	01	1	0201-0301			●
435	04.103 CASE; TRANS 4HF1 ENG(RLS)	8-97252-623-7	01	1	0302-0403		●
435	04.103 CASE; TRANS 4HF1 ENG(RLS)	8-97379-375-0	01	1	0404-		●
435	04.103 CASE; TRANS	8-97252-622-5	01	1	0208-0301				●
435	04.103 CASE; TRANS 4HE1 ENG(RLY)	8-97252-622-5	01	1	0302-0408				●
435	04.103 CASE; TRANS 4HE1 ENG(RLY)	8-97382-868-0	01	1	0409-0501				●
435	04.103 CASE; TRANS 4HE1-TCS ENG(RDS)	8-97382-868-1	01	1	0502-				●
609	04.104 BOLT; HSG TO CASE 04.510 M10X40 FLANGE	0-28181-040-0	13	1	0208-0301				●
609	04.104 BOLT; HSG TO CASE 4HE1 ENG(RLY) 04.510 M10X40 FLANGE	0-28181-040-0	13	1	0302-0501				●
609	04.104 BOLT; HSG TO CASE 04.510 M10X40 FLANGE	0-28181-040-0	13	1	0302-0501		●
609	04.104 BOLT; HSG TO CASE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.510 M10X40 FLANGE	0-28181-040-0	13	1	0502-0512		●		●
609	04.104 BOLT; HSG TO CASE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 09.171 M10X40 FLANGE	0-28151-040-0	13	1	0601-		●		●
610	04.412 RETAINER; BRG	8-97241-314-2	01	1	0208-0301				●
610	04.412 RETAINER; BRG 4HE1 ENG(RLY)	8-97241-314-2	01	1	0302-0501				●
610	04.412 RETAINER; BRG 4HE1-TCS ENG(RDS)	8-97241-314-2	01	1	0502-				●
610	04.412 RETAINER; BRG 4HF1 ENG(RLS)	8-97241-315-1	01	1	0302-		●
611	04.104 SCREW M10X27	8-97254-834-1	10	1	0208-0301				●
611	04.104 SCREW 4HE1 ENG(RLY) M10X27	8-97254-834-2	10	1	0302-0501				●
611	04.104 SCREW 4HE1-TCS ENG(RDS) M10X27	8-97254-834-2	10	1	0502-0604				●
611	04.104 SCREW 4HE1-TCS ENG(RDS) M10X27 TORQUES	8-97365-354-0	10	1	0605-				●
611	04.104 SCREW 4HF1 ENG(RLS) M10X27	8-97254-834-2	11	1	0302-0604		●
611	04.104 SCREW 4HF1 ENG(RLS) M10X27 TORQUES	8-97365-354-0	11	1	0605-		●

4 24 27 35 1 29 32 28 33 36 37 51 429 434 417 45 345 435 73 430 50 71 102 104 421 97 72 103 90 101 100 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) FINAL GEAR RATIO 39/7(GV1)	1-33041-819-0	01	1	0201-0301	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY)	8-97350-619-0	01	1	0302-0404		●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY)	8-97373-917-0	01	1	0405-0501		●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1)	1-33041-818-0	01	1	0102-0301	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C)	1-33041-815-0	01	1	0201-0301	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) FINAL GEAR RATIO 43/9(S2J)	1-33041-817-0	01	1	0102-0301	●
1	04.003 TRANSMISSION ASM; MANUAL	8-97161-342-1	01	1	0201-0301			●
1	04.003 TRANSMISSION ASM; MANUAL 4HF1 ENG(RLS)	8-97350-617-0	01	1	0302-0404		●
1	04.003 TRANSMISSION ASM; MANUAL 4HF1 ENG(RLS)	8-97373-914-0	01	1	0405-0501		●
1	04.003 TRANSMISSION ASM; MANUAL 4HF1 ENG(RLS)	8-97373-914-0	01	1	0502-		●
1	04.003 TRANSMISSION ASM; MANUAL	8-97307-744-0	01	1	0208-0301				●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY)	8-97307-744-0	01	1	0302-0501				●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1-TCS ENG(RDS)	8-97307-744-0	01	1	0502-				●
4	00.683 BOLT; FLYWHEEL HSG 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0102-0112	●
4	00.683 BOLT; FLYWHEEL HSG 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0201-0207	●		●
4	00.683 BOLT; FLYWHEEL HSG 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0208-0301	●		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0302-0501		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0502-0512		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0601-		●		●
4	00.683 BOLT; FLYWHEEL HSG M10X55 FLANGE	8-94399-863-1	02	1	0102-0112	●
4	00.683 BOLT; FLYWHEEL HSG M10X55 FLANGE	8-94399-863-1	02	1	0201-0207	●		●
4	00.683 BOLT; FLYWHEEL HSG M10X55 FLANGE	8-94399-863-1	02	1	0208-0301	●		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) M10X55 FLANGE	8-94399-863-1	02	1	0302-0501		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M10X55 FLANGE	8-94399-863-1	02	1	0502-0611		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M10X55 FLANGE	8-97365-449-0	02	1	0612-		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0102-0112	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0102-0112	●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0201-0207	●		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0201-0207	●		●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0208-0301	●		●	●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0208-0301	●		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0302-0501		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0302-0501		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0512		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0512		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-		●		●
24	00.797 COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	0102-0301	●
24	00.797 COVER; CHECK HOLE,DUST 4HF1 ENG(RLS)	8-97255-201-0	01	1	0302-		●
27	00.686 BOLT; COVER TO CLU HSG 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0102-0104	●
27	00.686 BOLT; COVER TO CLU HSG 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0105-0301	●
28	04.356 COVER; FRT,TRANS CASE	1-33121-133-1	01	1	0102-0301	●
29	04.356 BOLT; FRT COVER 04.012 M10X28 FLANGE REAMER	1-09040-089-1	04	1	0102-0301	●
32	04.358 GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0102-0301	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-1	01	1	0102-0301	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0208-0301				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY).	8-97253-550-0	01	1	0302-0501				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0302-0501		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97253-550-0	01	1	0502-		●		●
35	00.797 GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	0102-0301	●
36	00.683 BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0102-0301	●
37	04.422 SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T). 00.797	1-09625-002-0	02	1	0102-0301	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.109 ID=26.8	1-09623-058-0	01	1	0102-0301	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	0201-0301			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0208-0301				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY). ID=17	8-97115-712-0	01	1	0302-0501				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0302-0501		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) ID=17	8-97115-712-0	01	1	0502-		●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.109 ID=26.8	1-09623-058-0	01	1	0102-0301	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	0201-0301			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0208-0301				●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY). ID=17	8-97115-712-0	01	1	0302-0501				●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0302-0501		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) ID=17	8-97115-712-0	01	1	0502-		●		●
51	04.422 COVER; SEAL,COUNTER,FRT	1-33319-056-0	01	1	0102-0301	●
71	04.439 COVER; SIDE,TRANS CASE	1-33141-028-0	01	1	0102-0301	●
71	04.439 COVER; SIDE,TRANS CASE	9-33141-601-2	01	1	0201-0301			●
71	04.439 COVER; SIDE,TRANS CASE 4HF1 ENG(RLS)	8-97252-625-0	01	1	0302-		●
71	04.439 COVER; SIDE,TRANS CASE	8-97252-624-0	01	1	0208-0301				●
71	04.439 COVER; SIDE,TRANS CASE 4HE1 ENG(RLY)	8-97252-624-0	01	1	0302-0501				●
71	04.439 COVER; SIDE,TRANS CASE 4HE1-TCS ENG(RDS)	8-97252-624-2	01	1	0502-				●
72	04.439 BOLT; SIDE COVER 03.604 M10X16 FLANGE	0-28181-016-0	08	1	0102-0301	●
72	04.439 BOLT; SIDE COVER 04.105 M10X12 FLANGE	8-94128-791-0	06	1	0201-0301			●
72	04.439 BOLT; SIDE COVER 4HF1 ENG(RLS) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	0302-		●
72	04.439 BOLT; SIDE COVER 00.206 M10X20 FLANGE	8-98014-142-0	08	1	0208-0301				●
72	04.439 BOLT; SIDE COVER 4HE1 ENG(RLY) 00.206 M10X20 FLANGE M10X20 FLANGE	8-98014-142-0	08	1	0302-0501				●
72	04.439 BOLT; SIDE COVER 4HE1-TCS ENG(RDS) 00.206 M10X20 FLANGE	8-98014-142-0	08	1	0502-				●
73	04.109 GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	0102-0301	●
73	04.109 GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	9-33142-601-0	01	1	0201-0301			●
86	04.317 BOLT; RR COVER (A) M10X25	1-09044-080-0	08	1	0102-0301	●
86	04.317 BOLT; RR COVER (A) M10X55	1-09044-083-0	03	1	0102-0301	●
86	04.317 BOLT; RR COVER 04.104 (A) M10X50	8-94318-782-0	01	1	0201-0301			●
86	04.317 BOLT; RR COVER (A) M10X30 FLANGE	8-94482-338-0	06	1	0201-0301			●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	0-28181-040-0	10	1	0208-0301				●
86	04.317 BOLT; RR COVER 4HE1 ENG(RLY) 04.510 (B) M10X40 FLANGE	0-28181-040-0	10	1	0302-0501				●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	0-28181-040-0	10	1	0302-0501		●
86	04.317 BOLT; RR COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.510 (B) M10X40 FLANGE	0-28181-040-0	10	1	0502-0512		●		●
86	04.317 BOLT; RR COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 09.171 (B) M10X40 FLANGE	0-28151-040-0	10	1	0601-		●		●
86	04.317 BOLT; RR COVER (C) M10X40 FLANGE	8-97305-392-0	02	1	0208-0301				●
86	04.317 BOLT; RR COVER 4HE1 ENG(RLY) (C) M10X40 FLANGE	8-97305-392-0	02	1	0302-0501				●
86	04.317 BOLT; RR COVER (C) M10X40 FLANGE	8-97305-392-0	02	1	0302-0501		●
86	04.317 BOLT; RR COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (C) M10X40 FLANGE	8-97305-392-0	02	1	0502-0604		●		●
86	04.317 BOLT; RR COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.510 (C) M10X40 FLANGE	8-97365-377-0	02	1	0605-		●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	0102-0301	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97257-296-0	01	1	0201-0301			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) NOK	8-97253-552-1	01	1	0302-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	0208-0301				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) NOK	8-97253-551-1	01	1	0302-0501				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS) NOK	8-97253-551-1	01	1	0502-				●
97	04.519 STUD; PARKING BRK M14X22.5 L=42.5	1-09302-138-1	03	1	0102-0301	●
97	04.519 STUD; PARKING BRK M14X22.5 L=42.5	1-09302-138-1	01	1	0102-0301	●
100	04.105 PLUG; DRAIN RR COVER 05.400 M24X17 FLANGE	1-09604-023-0	01	1	0102-0301	●
101	04.105 GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). 04.109 ID=26.8	1-09623-058-0	01	1	0102-0301	●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	1-33151-050-0	01	1	0102-0301	●
103	04.412 RETAINER; BRG	1-33151-051-0	01	1	0102-0301	●
104	04.412 BOLT; BRG RET M10X25	1-09049-006-1	08	1	0102-0301	●
345	00.799 CLIP; FLEX TUBE ID=15.5	1-09700-814-1	03	1	0102-0301	●
417	04.105 PLUG; OIL FILLER,TRANS 01.453 M24X17 FLANGE	1-09604-064-1	01	1	0102-0201	●
417	04.105 PLUG; OIL FILLER,TRANS 05.400 M24X17 FLANGE	1-09604-022-0	01	1	0202-0301	●
417	04.105 PLUG; OIL FILLER,TRANS M18	8-94337-946-1	01	1	0201-0301			●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	0208-0301				●
417	04.105 PLUG; OIL FILLER,TRANS 4HE1 ENG(RLY) 08.971	8-94310-917-0	01	1	0302-0501				●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	0302-0501		●
417	04.105 PLUG; OIL FILLER,TRANS 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 08.971	8-94310-917-0	01	1	0502-0604		●		●
417	04.105 PLUG; OIL FILLER,TRANS 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97365-373-0	01	1	0605-		●		●
421	04.317 COVER; RR,TRANS	1-33131-173-2	01	1	0102-0301	●
421	04.317 COVER; RR,TRANS	8-97249-001-1	01	1	0201-0301			●
421	04.317 COVER; RR,TRANS 4HF1 ENG(RLS)	8-97252-621-0	01	1	0302-0507		●
421	04.317 COVER; RR,TRANS 4HF1 ENG(RLS)	8-98020-029-0	01	1	0508-		●
421	04.317 COVER; RR,TRANS	8-97238-934-2	01	1	0208-0301				●
421	04.317 COVER; RR,TRANS 4HE1 ENG(RLY)	8-97238-934-2	01	1	0302-0501				●
421	04.317 COVER; RR,TRANS 4HE1-TCS ENG(RDS)	8-97238-934-5	01	1	0502-				●
429	04.105 PIN; STRAIGHT 08.939 OD=10 L=18	9-08151-018-0	02	1	0102-0301	●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0208-0301				●
429	04.105 PIN; STRAIGHT 4HE1 ENG(RLY) 04.510 OD=10 L=20	8-97135-423-0	02	1	0302-0501				●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0302-0501		●
429	04.105 PIN; STRAIGHT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.510 OD=10 L=20	8-97135-423-0	02	1	0502-		●		●
430	04.105 PLUG; OIL DRAIN 05.400 M24X17 FLANGE	1-09604-023-0	01	1	0102-0301	●
430	04.105 PLUG; OIL DRAIN	8-94336-512-1	01	1	0201-0301			●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	0208-0301				●
430	04.105 PLUG; OIL DRAIN 4HE1 ENG(RLY)	9-09662-004-0	01	1	0302-0501				●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	0302-0501		●
430	04.105 PLUG; OIL DRAIN 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	9-09662-004-0	01	1	0502-0604		●		●
430	04.105 PLUG; OIL DRAIN 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97365-374-0	01	1	0605-		●		●
434	00.683 HOUSING; CLU	1-31110-152-2	01	1	0102-0301	●
434	00.683 HOUSING; CLU	8-97034-801-2	01	1	0201-0301			●
434	00.683 HOUSING; CLU 4HF1 ENG(RLS)	8-97237-099-5	01	1	0302-		●
434	00.683 HOUSING; CLU	8-97238-930-4	01	1	0208-0301				●
434	00.683 HOUSING; CLU 4HE1 ENG(RLY)	8-97238-930-4	01	1	0302-0501				●
434	00.683 HOUSING; CLU 4HE1-TCS ENG(RDS)	8-97238-930-4	01	1	0502-				●
435	04.103 CASE; TRANS	1-33111-243-1	01	1	0102-0301	●
435	04.103 CASE; TRANS	8-97204-132-1	01	1	0201-0301			●
435	04.103 CASE; TRANS 4HF1 ENG(RLS)	8-97252-623-7	01	1	0302-0403		●
435	04.103 CASE; TRANS 4HF1 ENG(RLS)	8-97379-375-0	01	1	0404-		●
435	04.103 CASE; TRANS	8-97252-622-5	01	1	0208-0301				●
435	04.103 CASE; TRANS 4HE1 ENG(RLY)	8-97252-622-5	01	1	0302-0408				●
435	04.103 CASE; TRANS 4HE1 ENG(RLY)	8-97382-868-0	01	1	0409-0501				●
435	04.103 CASE; TRANS 4HE1-TCS ENG(RDS)	8-97382-868-1	01	1	0502-				●

1 4 18 434 55 4 67 417 430 50 420 67 67 88 45 67 85 54 34 421 435 90 93 71 72 55 92 95 86 73 94 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) FINAL GEAR RATIO 39/7(GV1)	1-33041-819-0	01	1	0201-0301	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY)	8-97350-619-0	01	1	0302-0404		●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY)	8-97373-917-0	01	1	0405-0501		●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1)	1-33041-818-0	01	1	0102-0301	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C)	1-33041-815-0	01	1	0201-0301	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) FINAL GEAR RATIO 43/9(S2J)	1-33041-817-0	01	1	0102-0301	●
1	04.003 TRANSMISSION ASM; MANUAL	8-97161-342-1	01	1	0201-0301			●
1	04.003 TRANSMISSION ASM; MANUAL 4HF1 ENG(RLS)	8-97350-617-0	01	1	0302-0404		●
1	04.003 TRANSMISSION ASM; MANUAL 4HF1 ENG(RLS)	8-97373-914-0	01	1	0405-0501		●
1	04.003 TRANSMISSION ASM; MANUAL 4HF1 ENG(RLS)	8-97373-914-0	01	1	0502-		●
1	04.003 TRANSMISSION ASM; MANUAL	8-97307-744-0	01	1	0208-0301				●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY)	8-97307-744-0	01	1	0302-0501				●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1-TCS ENG(RDS)	8-97307-744-0	01	1	0502-				●
4	00.683 BOLT; FLYWHEEL HSG 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0102-0112	●
4	00.683 BOLT; FLYWHEEL HSG 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0201-0207	●		●
4	00.683 BOLT; FLYWHEEL HSG 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0208-0301	●		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0302-0501		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0502-0512		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0601-		●		●
4	00.683 BOLT; FLYWHEEL HSG M10X55 FLANGE	8-94399-863-1	02	1	0102-0112	●
4	00.683 BOLT; FLYWHEEL HSG M10X55 FLANGE	8-94399-863-1	02	1	0201-0207	●		●
4	00.683 BOLT; FLYWHEEL HSG M10X55 FLANGE	8-94399-863-1	02	1	0208-0301	●		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) M10X55 FLANGE	8-94399-863-1	02	1	0302-0501		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M10X55 FLANGE	8-94399-863-1	02	1	0502-0611		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M10X55 FLANGE	8-97365-449-0	02	1	0612-		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0102-0112	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0102-0112	●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0201-0207	●		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0201-0207	●		●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0208-0301	●		●	●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0208-0301	●		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0302-0501		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0302-0501		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0512		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0512		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-		●		●
18	00.683 SUPPORT; DRAW LEVER L=47.5	8-97225-469-1	01	1	0201-0301			●
34	00.686 COVER; DUST,SHIFT FORK	8-97017-333-0	01	1	0201-0301			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.109 ID=26.8	1-09623-058-0	01	1	0102-0301	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	0201-0301			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0208-0301				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY). ID=17	8-97115-712-0	01	1	0302-0501				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0302-0501		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) ID=17	8-97115-712-0	01	1	0502-		●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.109 ID=26.8	1-09623-058-0	01	1	0102-0301	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	0201-0301			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0208-0301				●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY). ID=17	8-97115-712-0	01	1	0302-0501				●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0302-0501		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) ID=17	8-97115-712-0	01	1	0502-		●		●
54	04.105 BOLT; FULCRUM	8-97171-503-0	02	1	0201-0301			●
55	04.105 PIN; KNOCK,CASE,TRANS	9-08161-016-0	02	1	0201-0301			●
67	04.105 STUD; CASE TRANS	5-09302-011-0	04	1	0201-0301			●
71	04.439 COVER; SIDE,TRANS CASE	1-33141-028-0	01	1	0102-0301	●
71	04.439 COVER; SIDE,TRANS CASE	9-33141-601-2	01	1	0201-0301			●
71	04.439 COVER; SIDE,TRANS CASE 4HF1 ENG(RLS)	8-97252-625-0	01	1	0302-		●
71	04.439 COVER; SIDE,TRANS CASE	8-97252-624-0	01	1	0208-0301				●
71	04.439 COVER; SIDE,TRANS CASE 4HE1 ENG(RLY)	8-97252-624-0	01	1	0302-0501				●
71	04.439 COVER; SIDE,TRANS CASE 4HE1-TCS ENG(RDS)	8-97252-624-2	01	1	0502-				●
72	04.439 BOLT; SIDE COVER 03.604 M10X16 FLANGE	0-28181-016-0	08	1	0102-0301	●
72	04.439 BOLT; SIDE COVER 04.105 M10X12 FLANGE	8-94128-791-0	06	1	0201-0301			●
72	04.439 BOLT; SIDE COVER 4HF1 ENG(RLS) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	0302-		●
72	04.439 BOLT; SIDE COVER 00.206 M10X20 FLANGE	8-98014-142-0	08	1	0208-0301				●
72	04.439 BOLT; SIDE COVER 4HE1 ENG(RLY) 00.206 M10X20 FLANGE M10X20 FLANGE	8-98014-142-0	08	1	0302-0501				●
72	04.439 BOLT; SIDE COVER 4HE1-TCS ENG(RDS) 00.206 M10X20 FLANGE	8-98014-142-0	08	1	0502-				●
73	04.109 GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	0102-0301	●
73	04.109 GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	9-33142-601-0	01	1	0201-0301			●
85	04.104 BREATHER; RR COVER	8-97165-939-0	01	1	0201-0301			●
86	04.317 BOLT; RR COVER (A) M10X25	1-09044-080-0	08	1	0102-0301	●
86	04.317 BOLT; RR COVER (A) M10X55	1-09044-083-0	03	1	0102-0301	●
86	04.317 BOLT; RR COVER 04.104 (A) M10X50	8-94318-782-0	01	1	0201-0301			●
86	04.317 BOLT; RR COVER (A) M10X30 FLANGE	8-94482-338-0	06	1	0201-0301			●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	0-28181-040-0	10	1	0208-0301				●
86	04.317 BOLT; RR COVER 4HE1 ENG(RLY) 04.510 (B) M10X40 FLANGE	0-28181-040-0	10	1	0302-0501				●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	0-28181-040-0	10	1	0302-0501		●
86	04.317 BOLT; RR COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.510 (B) M10X40 FLANGE	0-28181-040-0	10	1	0502-0512		●		●
86	04.317 BOLT; RR COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 09.171 (B) M10X40 FLANGE	0-28151-040-0	10	1	0601-		●		●
86	04.317 BOLT; RR COVER (C) M10X40 FLANGE	8-97305-392-0	02	1	0208-0301				●
86	04.317 BOLT; RR COVER 4HE1 ENG(RLY) (C) M10X40 FLANGE	8-97305-392-0	02	1	0302-0501				●
86	04.317 BOLT; RR COVER (C) M10X40 FLANGE	8-97305-392-0	02	1	0302-0501		●
86	04.317 BOLT; RR COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (C) M10X40 FLANGE	8-97305-392-0	02	1	0502-0604		●		●
86	04.317 BOLT; RR COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.510 (C) M10X40 FLANGE	8-97365-377-0	02	1	0605-		●		●
88	04.338 SCREW; SPEEDOMETER BUSHING M8X12	8-94128-785-0	01	1	0201-0301			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	0102-0301	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97257-296-0	01	1	0201-0301			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) NOK	8-97253-552-1	01	1	0302-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	0208-0301				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) NOK	8-97253-551-1	01	1	0302-0501				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS) NOK	8-97253-551-1	01	1	0502-				●
91	05.605 DRIVER; COUPLING	8-97212-108-0	01	1	0201-0301			●
92	05.605 BOLT; COUPLING DRIVER	8-97109-697-1	04	1	0201-0301			●
93	05.595 GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T).	8-94178-725-0	01	1	0201-0301			●
94	05.595 WASHER; COUPLING DRIVER	8-94249-240-0	01	1	0201-0301			●
95	05.595 NUT; MAINSHAFT 04.162 M24 FLANGE	8-97087-750-0	01	1	0201-0301			●
417	04.105 PLUG; OIL FILLER,TRANS 01.453 M24X17 FLANGE	1-09604-064-1	01	1	0102-0201	●
417	04.105 PLUG; OIL FILLER,TRANS 05.400 M24X17 FLANGE	1-09604-022-0	01	1	0202-0301	●
417	04.105 PLUG; OIL FILLER,TRANS M18	8-94337-946-1	01	1	0201-0301			●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	0208-0301				●
417	04.105 PLUG; OIL FILLER,TRANS 4HE1 ENG(RLY) 08.971	8-94310-917-0	01	1	0302-0501				●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	0302-0501		●
417	04.105 PLUG; OIL FILLER,TRANS 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 08.971	8-94310-917-0	01	1	0502-0604		●		●
417	04.105 PLUG; OIL FILLER,TRANS 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97365-373-0	01	1	0605-		●		●
420	04.354 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97017-350-0	01	1	0201-0301			●
421	04.317 COVER; RR,TRANS	1-33131-173-2	01	1	0102-0301	●
421	04.317 COVER; RR,TRANS	8-97249-001-1	01	1	0201-0301			●
421	04.317 COVER; RR,TRANS 4HF1 ENG(RLS)	8-97252-621-0	01	1	0302-0507		●
421	04.317 COVER; RR,TRANS 4HF1 ENG(RLS)	8-98020-029-0	01	1	0508-		●
421	04.317 COVER; RR,TRANS	8-97238-934-2	01	1	0208-0301				●
421	04.317 COVER; RR,TRANS 4HE1 ENG(RLY)	8-97238-934-2	01	1	0302-0501				●
421	04.317 COVER; RR,TRANS 4HE1-TCS ENG(RDS)	8-97238-934-5	01	1	0502-				●
430	04.105 PLUG; OIL DRAIN 05.400 M24X17 FLANGE	1-09604-023-0	01	1	0102-0301	●
430	04.105 PLUG; OIL DRAIN	8-94336-512-1	01	1	0201-0301			●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	0208-0301				●
430	04.105 PLUG; OIL DRAIN 4HE1 ENG(RLY)	9-09662-004-0	01	1	0302-0501				●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	0302-0501		●
430	04.105 PLUG; OIL DRAIN 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	9-09662-004-0	01	1	0502-0604		●		●
430	04.105 PLUG; OIL DRAIN 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97365-374-0	01	1	0605-		●		●
434	00.683 HOUSING; CLU	1-31110-152-2	01	1	0102-0301	●
434	00.683 HOUSING; CLU	8-97034-801-2	01	1	0201-0301			●
434	00.683 HOUSING; CLU 4HF1 ENG(RLS)	8-97237-099-5	01	1	0302-		●
434	00.683 HOUSING; CLU	8-97238-930-4	01	1	0208-0301				●
434	00.683 HOUSING; CLU 4HE1 ENG(RLY)	8-97238-930-4	01	1	0302-0501				●
434	00.683 HOUSING; CLU 4HE1-TCS ENG(RDS)	8-97238-930-4	01	1	0502-				●
435	04.103 CASE; TRANS	1-33111-243-1	01	1	0102-0301	●
435	04.103 CASE; TRANS	8-97204-132-1	01	1	0201-0301			●
435	04.103 CASE; TRANS 4HF1 ENG(RLS)	8-97252-623-7	01	1	0302-0403		●
435	04.103 CASE; TRANS 4HF1 ENG(RLS)	8-97379-375-0	01	1	0404-		●
435	04.103 CASE; TRANS	8-97252-622-5	01	1	0208-0301				●
435	04.103 CASE; TRANS 4HE1 ENG(RLY)	8-97252-622-5	01	1	0302-0408				●
435	04.103 CASE; TRANS 4HE1 ENG(RLY)	8-97382-868-0	01	1	0409-0501				●
435	04.103 CASE; TRANS 4HE1-TCS ENG(RDS)	8-97382-868-1	01	1	0502-				●

4 1 388 256 33 256 316 434 429 429 417 45 435 256 610 611 609 71 86 324 256 317 72 319 586 421 86 50 430 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) FINAL GEAR RATIO 39/7(GV1)	1-33041-819-0	01	1	0201-0301	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY)	8-97350-619-0	01	1	0302-0404		●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY)	8-97373-917-0	01	1	0405-0501		●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) FINAL GEAR RATIO 41/8(RU1)	1-33041-818-0	01	1	0102-0301	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) FINAL GEAR RATIO 43/10(S7C)	1-33041-815-0	01	1	0201-0301	●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY) FINAL GEAR RATIO 43/9(S2J)	1-33041-817-0	01	1	0102-0301	●
1	04.003 TRANSMISSION ASM; MANUAL	8-97161-342-1	01	1	0201-0301			●
1	04.003 TRANSMISSION ASM; MANUAL 4HF1 ENG(RLS)	8-97350-617-0	01	1	0302-0404		●
1	04.003 TRANSMISSION ASM; MANUAL 4HF1 ENG(RLS)	8-97373-914-0	01	1	0405-0501		●
1	04.003 TRANSMISSION ASM; MANUAL 4HF1 ENG(RLS)	8-97373-914-0	01	1	0502-		●
1	04.003 TRANSMISSION ASM; MANUAL	8-97307-744-0	01	1	0208-0301				●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1 ENG(RLY)	8-97307-744-0	01	1	0302-0501				●
1	04.003 TRANSMISSION ASM; MANUAL 4HE1-TCS ENG(RDS)	8-97307-744-0	01	1	0502-				●
4	00.683 BOLT; FLYWHEEL HSG 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0102-0112	●
4	00.683 BOLT; FLYWHEEL HSG 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0201-0207	●		●
4	00.683 BOLT; FLYWHEEL HSG 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0208-0301	●		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0302-0501		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.510 M10X35 FLANGE	0-28181-035-0	03	1	0502-0512		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 03.670 M10X35 FLANGE	0-28151-035-0	03	1	0601-		●		●
4	00.683 BOLT; FLYWHEEL HSG M10X55 FLANGE	8-94399-863-1	02	1	0102-0112	●
4	00.683 BOLT; FLYWHEEL HSG M10X55 FLANGE	8-94399-863-1	02	1	0201-0207	●		●
4	00.683 BOLT; FLYWHEEL HSG M10X55 FLANGE	8-94399-863-1	02	1	0208-0301	●		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) M10X55 FLANGE	8-94399-863-1	02	1	0302-0501		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M10X55 FLANGE	8-94399-863-1	02	1	0502-0611		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M10X55 FLANGE	8-97365-449-0	02	1	0612-		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0102-0112	●
4	00.683 BOLT; FLYWHEEL HSG 4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0102-0112	●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0201-0207	●		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0201-0207	●		●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0208-0301	●		●	●
4	00.683 BOLT; FLYWHEEL HSG 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0208-0301	●		●	●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0302-0501		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HF1 ENG(RLS),4HE1 ENG(RLY) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0302-0501		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0512		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.525 M10X30 FLANGE	0-28181-030-0	02	1	0502-0512		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-		●		●
4	00.683 BOLT; FLYWHEEL HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 09.171 M10X30 FLANGE	0-28151-030-0	02	1	0601-		●		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-565-1	01	1	0102-0301	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0208-0301				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY).	8-97253-550-0	01	1	0302-0501				●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97253-550-0	01	1	0302-0501		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97253-550-0	01	1	0502-		●		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.109 ID=26.8	1-09623-058-0	01	1	0102-0301	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	0201-0301			●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0208-0301				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY). ID=17	8-97115-712-0	01	1	0302-0501				●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0302-0501		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) ID=17	8-97115-712-0	01	1	0502-		●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.109 ID=26.8	1-09623-058-0	01	1	0102-0301	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	0201-0301			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0208-0301				●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY). ID=17	8-97115-712-0	01	1	0302-0501				●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0302-0501		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) ID=17	8-97115-712-0	01	1	0502-		●		●
71	04.439 COVER; SIDE,TRANS CASE	1-33141-028-0	01	1	0102-0301	●
71	04.439 COVER; SIDE,TRANS CASE	9-33141-601-2	01	1	0201-0301			●
71	04.439 COVER; SIDE,TRANS CASE 4HF1 ENG(RLS)	8-97252-625-0	01	1	0302-		●
71	04.439 COVER; SIDE,TRANS CASE	8-97252-624-0	01	1	0208-0301				●
71	04.439 COVER; SIDE,TRANS CASE 4HE1 ENG(RLY)	8-97252-624-0	01	1	0302-0501				●
71	04.439 COVER; SIDE,TRANS CASE 4HE1-TCS ENG(RDS)	8-97252-624-2	01	1	0502-				●
72	04.439 BOLT; SIDE COVER 03.604 M10X16 FLANGE	0-28181-016-0	08	1	0102-0301	●
72	04.439 BOLT; SIDE COVER 04.105 M10X12 FLANGE	8-94128-791-0	06	1	0201-0301			●
72	04.439 BOLT; SIDE COVER 4HF1 ENG(RLS) 00.206 M10X20 FLANGE	8-98014-142-0	06	1	0302-		●
72	04.439 BOLT; SIDE COVER 00.206 M10X20 FLANGE	8-98014-142-0	08	1	0208-0301				●
72	04.439 BOLT; SIDE COVER 4HE1 ENG(RLY) 00.206 M10X20 FLANGE M10X20 FLANGE	8-98014-142-0	08	1	0302-0501				●
72	04.439 BOLT; SIDE COVER 4HE1-TCS ENG(RDS) 00.206 M10X20 FLANGE	8-98014-142-0	08	1	0502-				●
86	04.317 BOLT; RR COVER (A) M10X25	1-09044-080-0	08	1	0102-0301	●
86	04.317 BOLT; RR COVER (A) M10X55	1-09044-083-0	03	1	0102-0301	●
86	04.317 BOLT; RR COVER 04.104 (A) M10X50	8-94318-782-0	01	1	0201-0301			●
86	04.317 BOLT; RR COVER (A) M10X30 FLANGE	8-94482-338-0	06	1	0201-0301			●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	0-28181-040-0	10	1	0208-0301				●
86	04.317 BOLT; RR COVER 4HE1 ENG(RLY) 04.510 (B) M10X40 FLANGE	0-28181-040-0	10	1	0302-0501				●
86	04.317 BOLT; RR COVER 04.510 (B) M10X40 FLANGE	0-28181-040-0	10	1	0302-0501		●
86	04.317 BOLT; RR COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.510 (B) M10X40 FLANGE	0-28181-040-0	10	1	0502-0512		●		●
86	04.317 BOLT; RR COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 09.171 (B) M10X40 FLANGE	0-28151-040-0	10	1	0601-		●		●
86	04.317 BOLT; RR COVER (C) M10X40 FLANGE	8-97305-392-0	02	1	0208-0301				●
86	04.317 BOLT; RR COVER 4HE1 ENG(RLY) (C) M10X40 FLANGE	8-97305-392-0	02	1	0302-0501				●
86	04.317 BOLT; RR COVER (C) M10X40 FLANGE	8-97305-392-0	02	1	0302-0501		●
86	04.317 BOLT; RR COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (C) M10X40 FLANGE	8-97305-392-0	02	1	0502-0604		●		●
86	04.317 BOLT; RR COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.510 (C) M10X40 FLANGE	8-97365-377-0	02	1	0605-		●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-505-0	01	1	0102-0301	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97257-296-0	01	1	0201-0301			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) NOK	8-97253-552-1	01	1	0302-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97253-551-1	01	1	0208-0301				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) NOK	8-97253-551-1	01	1	0302-0501				●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS) NOK	8-97253-551-1	01	1	0502-				●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0208-0301				●
256	04.317 PIN; KNOCK 4HE1 ENG(RLY) 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0302-0501				●
256	04.317 PIN; KNOCK 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0302-0501		●
256	04.317 PIN; KNOCK 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.510 (A) OD=10 L=20	8-97135-423-0	02	1	0502-		●		●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0208-0301				●
256	04.317 PIN; KNOCK 4HE1 ENG(RLY) 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0302-0501				●
256	04.317 PIN; KNOCK 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0302-0501		●
256	04.317 PIN; KNOCK 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 00.862 (B) ID=6 L=12	9-08160-612-0	02	1	0502-		●		●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0208-0301				●
316	04.105 MAGNET; TRANS CASE 4HE1 ENG(RLY)	8-94249-524-2	01	1	0302-0501				●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0302-0501		●
316	04.105 MAGNET; TRANS CASE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-94249-524-2	01	1	0502-		●		●
317	04.109 COVER; CASE	8-97252-626-0	01	1	0208-0301				●
317	04.109 COVER; CASE 4HE1 ENG(RLY)	8-97252-626-0	01	1	0302-0501				●
317	04.109 COVER; CASE	8-97252-626-0	01	1	0302-0501		●
317	04.109 COVER; CASE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97252-626-0	01	1	0502-		●		●
319	04.109 BOLT; COVER 07.010 M8X20 FLANGE	0-28080-820-0	06	1	0208-0301				●
319	04.109 BOLT; COVER 4HE1 ENG(RLY) 07.010 M8X20 FLANGE	0-28080-820-0	06	1	0302-0501				●
319	04.109 BOLT; COVER 07.010 M8X20 FLANGE	0-28080-820-0	06	1	0302-0501		●
319	04.109 BOLT; COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 07.010 M8X20 FLANGE	0-28080-820-0	06	1	0502-0512		●		●
319	04.109 BOLT; COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.338 M8X20 FLANGE	0-28050-820-0	06	1	0601-		●		●
324	04.319 STUD; RR COVER M10X15,M10X40 L=65	8-97309-013-0	01	1	0208-0301				●
324	04.319 STUD; RR COVER 4HE1 ENG(RLY) M10X15,M10X40 L=65	8-97309-013-0	01	1	0302-0501				●
324	04.319 STUD; RR COVER M10X15,M10X40 L=65	8-97309-013-0	01	1	0302-0501		●
324	04.319 STUD; RR COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M10X15,M10X40 L=65	8-97309-013-0	01	1	0502-0604		●		●
324	04.319 STUD; RR COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.510 M10X15,M10X40 L=65	8-97365-379-0	01	1	0605-		●		●
388	00.683 BUSHING; CLU HSG	8-97241-326-1	02	1	0208-0301				●
388	00.683 BUSHING; CLU HSG 4HE1 ENG(RLY)	8-97241-326-2	02	1	0302-0501				●
388	00.683 BUSHING; CLU HSG	8-97241-326-2	02	1	0302-0501		●
388	00.683 BUSHING; CLU HSG 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97241-326-2	02	1	0502-		●		●
417	04.105 PLUG; OIL FILLER,TRANS 01.453 M24X17 FLANGE	1-09604-064-1	01	1	0102-0201	●
417	04.105 PLUG; OIL FILLER,TRANS 05.400 M24X17 FLANGE	1-09604-022-0	01	1	0202-0301	●
417	04.105 PLUG; OIL FILLER,TRANS M18	8-94337-946-1	01	1	0201-0301			●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	0208-0301				●
417	04.105 PLUG; OIL FILLER,TRANS 4HE1 ENG(RLY) 08.971	8-94310-917-0	01	1	0302-0501				●
417	04.105 PLUG; OIL FILLER,TRANS 08.971	8-94310-917-0	01	1	0302-0501		●
417	04.105 PLUG; OIL FILLER,TRANS 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 08.971	8-94310-917-0	01	1	0502-0604		●		●
417	04.105 PLUG; OIL FILLER,TRANS 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97365-373-0	01	1	0605-		●		●
421	04.317 COVER; RR,TRANS	1-33131-173-2	01	1	0102-0301	●
421	04.317 COVER; RR,TRANS	8-97249-001-1	01	1	0201-0301			●
421	04.317 COVER; RR,TRANS 4HF1 ENG(RLS)	8-97252-621-0	01	1	0302-0507		●
421	04.317 COVER; RR,TRANS 4HF1 ENG(RLS)	8-98020-029-0	01	1	0508-		●
421	04.317 COVER; RR,TRANS	8-97238-934-2	01	1	0208-0301				●
421	04.317 COVER; RR,TRANS 4HE1 ENG(RLY)	8-97238-934-2	01	1	0302-0501				●
421	04.317 COVER; RR,TRANS 4HE1-TCS ENG(RDS)	8-97238-934-5	01	1	0502-				●
429	04.105 PIN; STRAIGHT 08.939 OD=10 L=18	9-08151-018-0	02	1	0102-0301	●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0208-0301				●
429	04.105 PIN; STRAIGHT 4HE1 ENG(RLY) 04.510 OD=10 L=20	8-97135-423-0	02	1	0302-0501				●
429	04.105 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	02	1	0302-0501		●
429	04.105 PIN; STRAIGHT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.510 OD=10 L=20	8-97135-423-0	02	1	0502-		●		●
430	04.105 PLUG; OIL DRAIN 05.400 M24X17 FLANGE	1-09604-023-0	01	1	0102-0301	●
430	04.105 PLUG; OIL DRAIN	8-94336-512-1	01	1	0201-0301			●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	0208-0301				●
430	04.105 PLUG; OIL DRAIN 4HE1 ENG(RLY)	9-09662-004-0	01	1	0302-0501				●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	0302-0501		●
430	04.105 PLUG; OIL DRAIN 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	9-09662-004-0	01	1	0502-0604		●		●
430	04.105 PLUG; OIL DRAIN 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97365-374-0	01	1	0605-		●		●
434	00.683 HOUSING; CLU	1-31110-152-2	01	1	0102-0301	●
434	00.683 HOUSING; CLU	8-97034-801-2	01	1	0201-0301			●
434	00.683 HOUSING; CLU 4HF1 ENG(RLS)	8-97237-099-5	01	1	0302-		●
434	00.683 HOUSING; CLU	8-97238-930-4	01	1	0208-0301				●
434	00.683 HOUSING; CLU 4HE1 ENG(RLY)	8-97238-930-4	01	1	0302-0501				●
434	00.683 HOUSING; CLU 4HE1-TCS ENG(RDS)	8-97238-930-4	01	1	0502-				●
435	04.103 CASE; TRANS	1-33111-243-1	01	1	0102-0301	●
435	04.103 CASE; TRANS	8-97204-132-1	01	1	0201-0301			●
435	04.103 CASE; TRANS 4HF1 ENG(RLS)	8-97252-623-7	01	1	0302-0403		●
435	04.103 CASE; TRANS 4HF1 ENG(RLS)	8-97379-375-0	01	1	0404-		●
435	04.103 CASE; TRANS	8-97252-622-5	01	1	0208-0301				●
435	04.103 CASE; TRANS 4HE1 ENG(RLY)	8-97252-622-5	01	1	0302-0408				●
435	04.103 CASE; TRANS 4HE1 ENG(RLY)	8-97382-868-0	01	1	0409-0501				●
435	04.103 CASE; TRANS 4HE1-TCS ENG(RDS)	8-97382-868-1	01	1	0502-				●
586	00.683 BEARING; NEEDLE	8-97253-108-0	01	1	0208-0301				●
586	00.683 BEARING; NEEDLE 4HE1 ENG(RLY)	8-97253-108-0	01	1	0302-0501				●
586	00.683 BEARING; NEEDLE 4HE1-TCS ENG(RDS)	8-97253-108-0	01	1	0502-				●
609	04.104 BOLT; HSG TO CASE 04.510 M10X40 FLANGE	0-28181-040-0	13	1	0208-0301				●
609	04.104 BOLT; HSG TO CASE 4HE1 ENG(RLY) 04.510 M10X40 FLANGE	0-28181-040-0	13	1	0302-0501				●
609	04.104 BOLT; HSG TO CASE 04.510 M10X40 FLANGE	0-28181-040-0	13	1	0302-0501		●
609	04.104 BOLT; HSG TO CASE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.510 M10X40 FLANGE	0-28181-040-0	13	1	0502-0512		●		●
609	04.104 BOLT; HSG TO CASE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 09.171 M10X40 FLANGE	0-28151-040-0	13	1	0601-		●		●
610	04.412 RETAINER; BRG	8-97241-314-2	01	1	0208-0301				●
610	04.412 RETAINER; BRG 4HE1 ENG(RLY)	8-97241-314-2	01	1	0302-0501				●
610	04.412 RETAINER; BRG 4HE1-TCS ENG(RDS)	8-97241-314-2	01	1	0502-				●
610	04.412 RETAINER; BRG 4HF1 ENG(RLS)	8-97241-315-1	01	1	0302-		●
611	04.104 SCREW M10X27	8-97254-834-1	10	1	0208-0301				●
611	04.104 SCREW 4HE1 ENG(RLY) M10X27	8-97254-834-2	10	1	0302-0501				●
611	04.104 SCREW 4HE1-TCS ENG(RDS) M10X27	8-97254-834-2	10	1	0502-0604				●
611	04.104 SCREW 4HE1-TCS ENG(RDS) M10X27 TORQUES	8-97365-354-0	10	1	0605-				●
611	04.104 SCREW 4HF1 ENG(RLS) M10X27	8-97254-834-2	11	1	0302-0604		●
611	04.104 SCREW 4HF1 ENG(RLS) M10X27 TORQUES	8-97365-354-0	11	1	0605-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
