2-08 — CLUTCH MASTER CYLINDER (#19020) — 172 parça

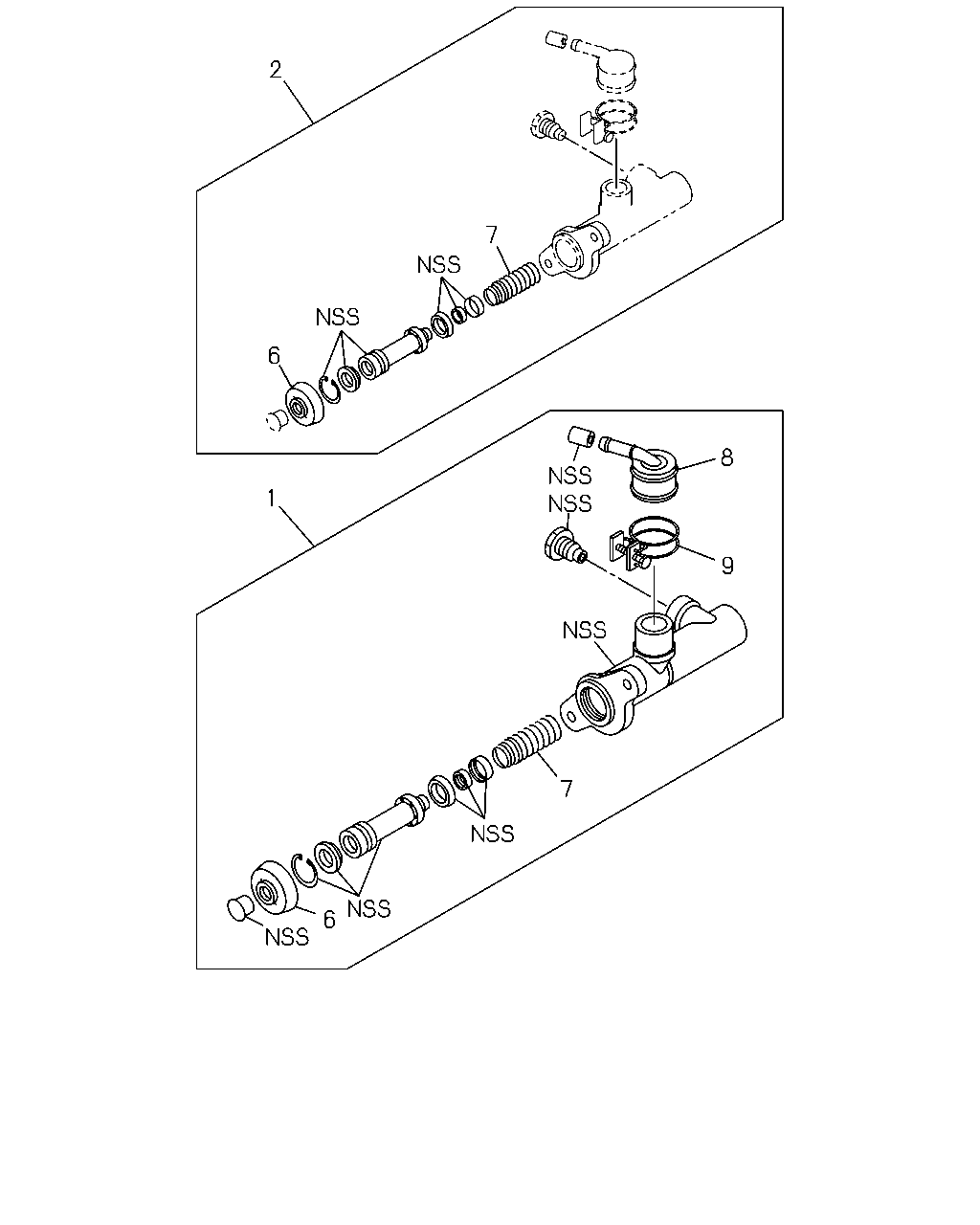

çizim 49802
2 7 6 8 1 9 7 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-748-1 01 1 0102-0112 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-748-1 01 1 0201-0301 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-748-1 01 1 0302-0704 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-98083-061-0 01 1 0705-0709 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-98097-694-0 01 1 0710- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-406-0 01 1 0102-0112 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-406-0 01 1 0201-0301 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-406-0 01 1 0302-0501 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-406-0 01 1 0502-0803 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-98117-644-0 01 1 0804- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 0102-0112 ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 0201-0301 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 0302-0709 ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 0710- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0102-0112 ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0201-0301 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0302-0501 ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0502-0803 ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 0804- ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-153-0 01 1 0102-0112 ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-153-0 01 1 0201-0301 ● ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-153-0 01 1 0302-0709 ● ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0102-0112 ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0201-0301 ● ● ●
6 00.775 BOOT; CLU M/CYL
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0302-0501 ● ●
6 00.775 BOOT; CLU M/CYL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0502- ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 0102-0112 ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 0201-0301 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 0302-0709 ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 0710- ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0102-0112 ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0201-0301 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0302-0501 ● ●
7 00.775 SPRING ASM; CLU M/CYL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0502- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-190-0 01 1 0102-0112 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-190-0 01 1 0201-0301 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-190-0 01 1 0302-0709 ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-789-0 01 1 0802- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-789-0 01 1 0710-0801 ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 0102-0112 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 0201-0301 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 0302-0501 ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 0502- ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 0102-0112 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 0201-0301 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 0302-0704 ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98061-352-0 01 1 0705-0709 ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0102-0112 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0201-0301 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0302-0501 ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0502-0709 ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 0710- ● ●
çizim 50209
8 1 9 64 7 2 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-748-1 01 1 0102-0112 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-748-1 01 1 0201-0301 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-748-1 01 1 0302-0704 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-98083-061-0 01 1 0705-0709 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-98097-694-0 01 1 0710- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-406-0 01 1 0102-0112 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-406-0 01 1 0201-0301 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-406-0 01 1 0302-0501 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-406-0 01 1 0502-0803 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-98117-644-0 01 1 0804- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 0102-0112 ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 0201-0301 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 0302-0709 ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 0710- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0102-0112 ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0201-0301 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0302-0501 ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0502-0803 ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 0804- ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 0102-0112 ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 0201-0301 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 0302-0709 ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 0710- ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0102-0112 ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0201-0301 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0302-0501 ● ●
7 00.775 SPRING ASM; CLU M/CYL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0502- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-190-0 01 1 0102-0112 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-190-0 01 1 0201-0301 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-190-0 01 1 0302-0709 ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-789-0 01 1 0802- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-789-0 01 1 0710-0801 ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 0102-0112 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 0201-0301 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 0302-0501 ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 0502- ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 0102-0112 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 0201-0301 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 0302-0704 ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98061-352-0 01 1 0705-0709 ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0102-0112 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0201-0301 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0302-0501 ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0502-0709 ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 0710- ● ●
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0102-0112 ●
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0201-0301 ● ● ●
64 00.777 GASKET; CONNECTOR
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0302-0501 ● ●
64 00.777 GASKET; CONNECTOR
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0502-0709 ● ●
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 0710- ● ●

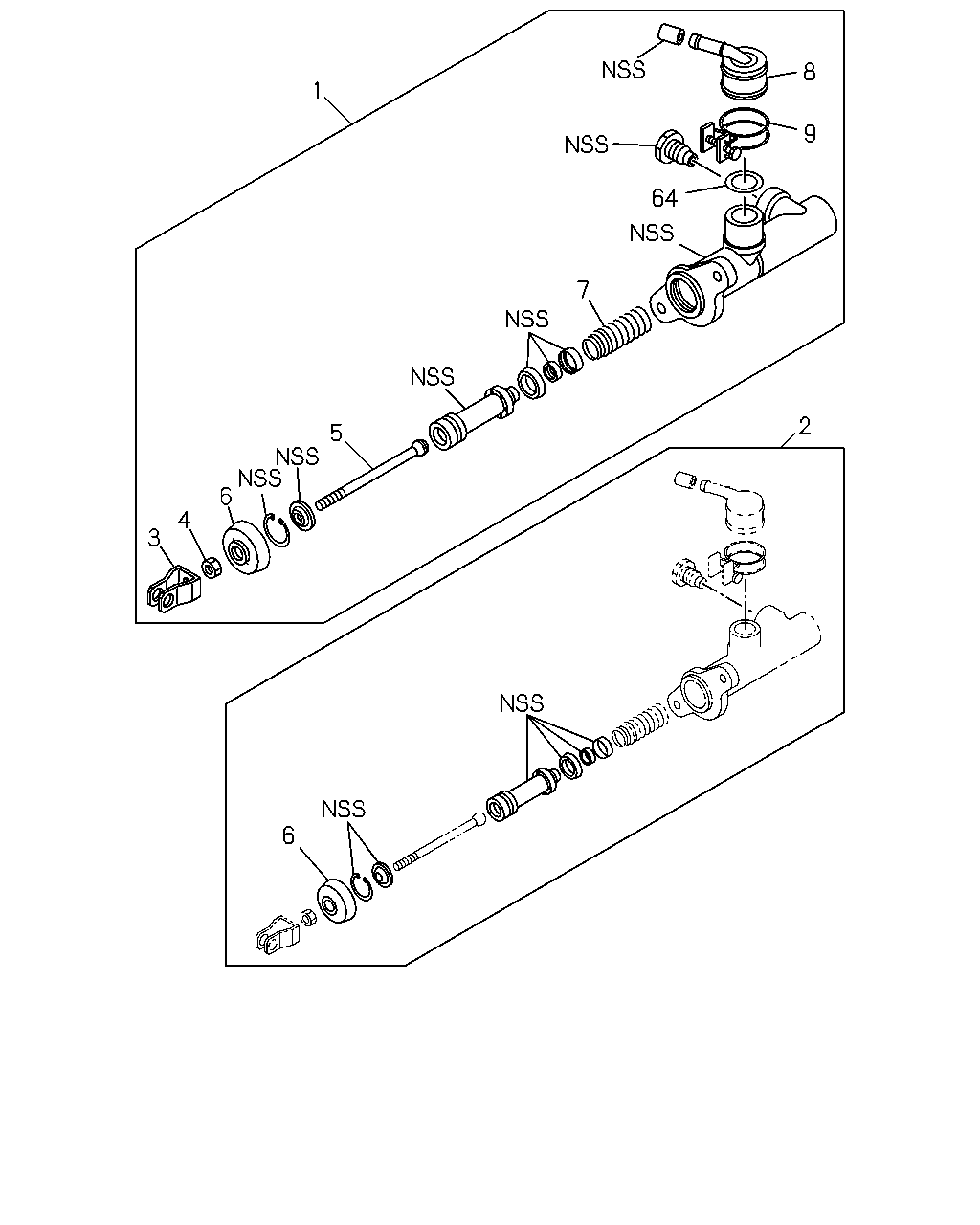

çizim 51315
8 1 9 64 7 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-748-1 01 1 0102-0112 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-748-1 01 1 0201-0301 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-97210-748-1 01 1 0302-0704 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-98083-061-0 01 1 0705-0709 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) 		8-98097-694-0 01 1 0710- ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-406-0 01 1 0102-0112 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-406-0 01 1 0201-0301 ● ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-406-0 01 1 0302-0501 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-406-0 01 1 0502-0803 ● ●
1 00.775 CYLINDER ASM; CLUTCH MASTER
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-98117-644-0 01 1 0804- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 0102-0112 ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 0201-0301 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87831-617-0 01 1 0302-0709 ● ●
2 00.775 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 0710- ● ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0102-0112 ●
2 00.775 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0201-0301 ● ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0302-0501 ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		5-87831-597-0 01 1 0502-0803 ● ●
2 00.775 REPAIR KIT; CLU M/CYL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 0804- ● ●
3 00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 0102-0112 ●
3 00.777 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 0201-0301 ● ● ●
3 00.777 JOINT; JAW,CLU M/CYL
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 0302-0501 ● ●
3 00.777 JOINT; JAW,CLU M/CYL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-770-0 01 1 0502- ● ●
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH(S2T) 00.787 M8 		9-09111-408-0 01 1 0102-0112 ●
4 00.777 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH(S2T) 00.787 M8 		9-09111-408-0 01 1 0201-0301 ● ● ●
4 00.777 NUT; JAW JOINT
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 00.787 M8 		9-09111-408-0 01 1 0302-0501 ● ●
4 00.777 NUT; JAW JOINT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 00.787 M8 		9-09111-408-0 01 1 0502-0511 ● ●
4 00.777 NUT; JAW JOINT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) M8 		0-91111-508-0 01 1 0512- ● ●
5 00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 0102-0112 ●
5 00.775 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 0201-0301 ● ● ●
5 00.775 ROD; PUSH,CLU M/CYL
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 0302-0501 ● ●
5 00.775 ROD; PUSH,CLU M/CYL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-768-0 01 1 0502- ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-153-0 01 1 0102-0112 ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-153-0 01 1 0201-0301 ● ● ●
6 00.775 BOOT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-153-0 01 1 0302-0709 ● ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0102-0112 ●
6 00.775 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0201-0301 ● ● ●
6 00.775 BOOT; CLU M/CYL
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0302-0501 ● ●
6 00.775 BOOT; CLU M/CYL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-94412-200-0 01 1 0502- ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 0102-0112 ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 0201-0301 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-148-0 01 1 0302-0709 ● ●
7 00.775 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 0710- ● ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0102-0112 ●
7 00.775 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0201-0301 ● ● ●
7 00.775 SPRING ASM; CLU M/CYL
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0302-0501 ● ●
7 00.775 SPRING ASM; CLU M/CYL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-780-0 01 1 0502- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-190-0 01 1 0102-0112 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-190-0 01 1 0201-0301 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-190-0 01 1 0302-0709 ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-789-0 01 1 0802- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-789-0 01 1 0710-0801 ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 0102-0112 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 0201-0301 ● ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 0302-0501 ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-766-0 01 1 0502- ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 0102-0112 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 0201-0301 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-97163-143-0 01 1 0302-0704 ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98061-352-0 01 1 0705-0709 ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0102-0112 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0201-0301 ● ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0302-0501 ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-773-0 01 1 0502-0709 ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 0710- ● ●
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0102-0112 ●
64 00.777 GASKET; CONNECTOR
EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0201-0301 ● ● ●
64 00.777 GASKET; CONNECTOR
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0302-0501 ● ●
64 00.777 GASKET; CONNECTOR
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH(S2T) 		8-97167-767-0 01 1 0502-0709 ● ●
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
