◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 50915 - NP/NQ BUS LHDEXC.EU4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶
2-07 — CLUTCH BOOSTER; MINIPACK (#19019) — 13 parça

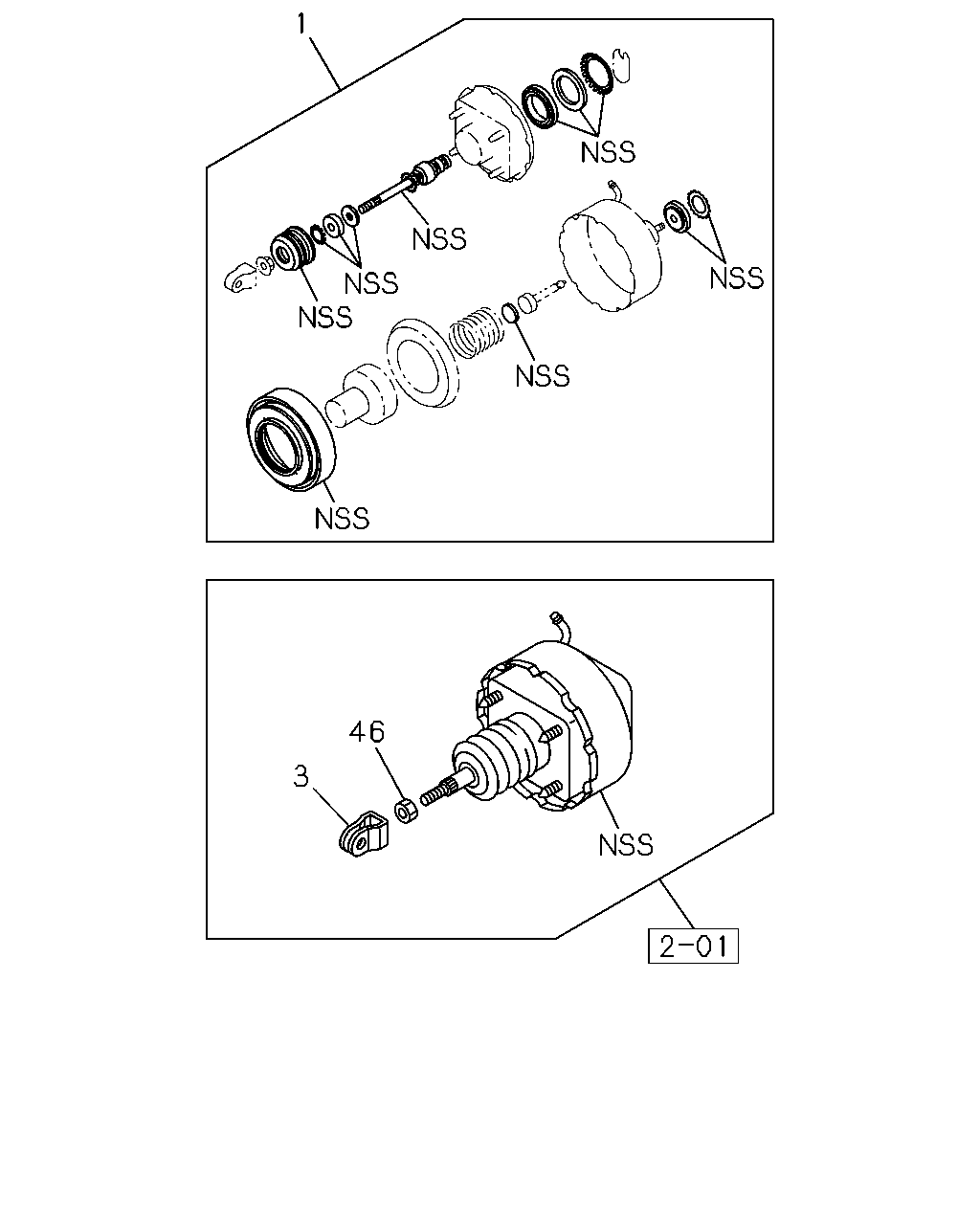

çizim 51037
1 46 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.775 REPAIR KIT; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-151-0 01 1 0102-0112 ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) 		8-97174-151-0 01 1 0201-0501 ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HE1-TCS ENG(RDS) POWER ASSIST CLUTCH(S2T) 		8-97174-151-0 01 1 0502- ●
1 00.775 REPAIR KIT; CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-145-0 01 1 0201-0301 ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) 		8-97174-145-0 01 1 0302- ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-147-0 01 1 0102-0112 ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-147-0 01 1 0201-0301 ● ● ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
4HF1 ENG(RLS),4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) 		8-97174-147-0 01 1 0302-0501 ● ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) 		8-97174-147-0 01 1 0502- ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-148-0 01 1 0102-0112 ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) 		8-97174-148-0 01 1 0201-0301 ● ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
4HF1 ENG(RLS),4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T) 		8-97174-148-0 01 1 0302-0501 ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T) 		8-97174-148-0 01 1 0502- ● ●
