◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 50915 - NP/NQ BUS LHDEXC.EU4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#19017) — 70 parça

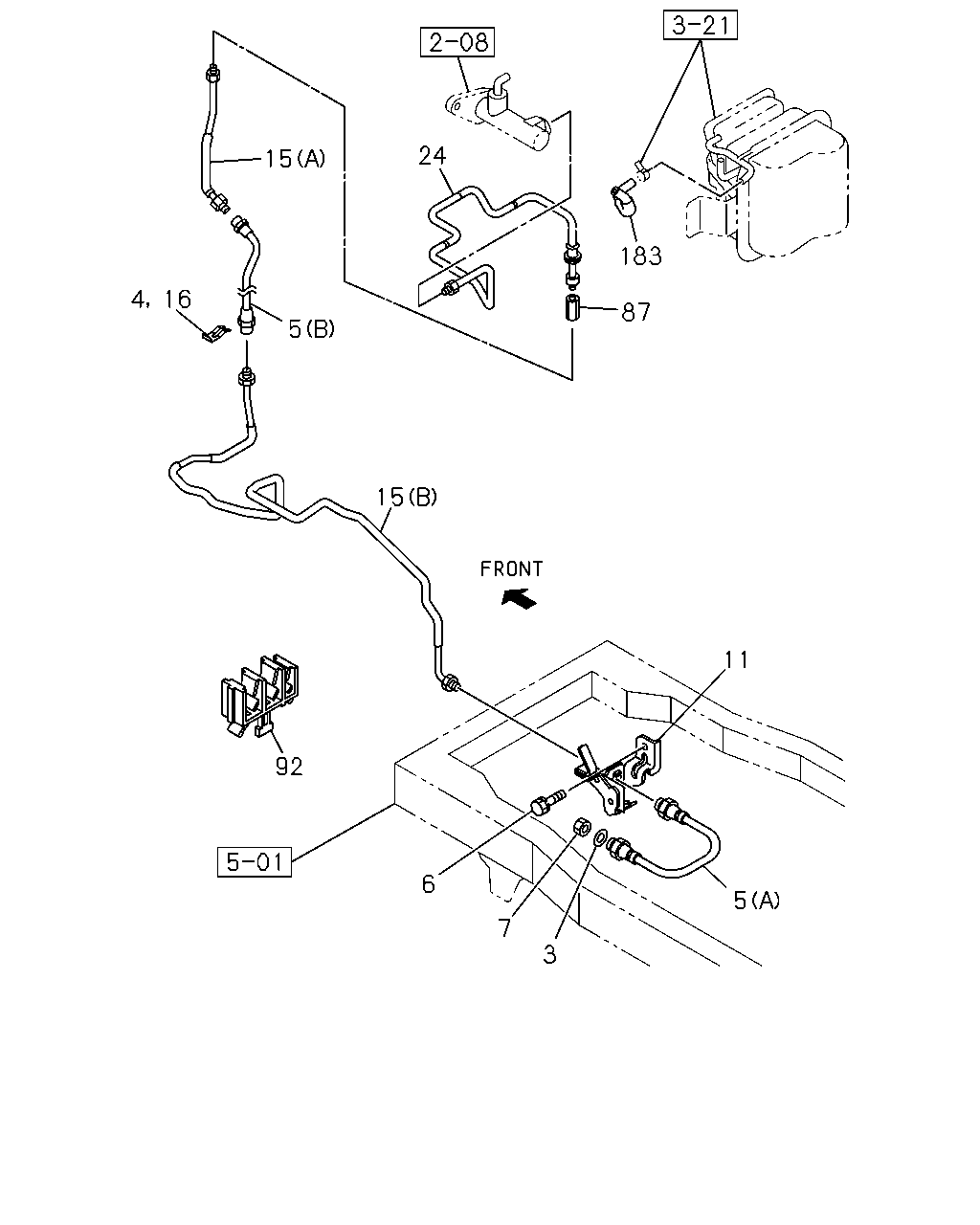

çizim 50711
24 15 183 16 4 87 5 15 11 92 6 5 7 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0102-0112 ●
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0201-0207 ● ●
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0208-0301 ● ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4HF1 ENG(RLS),4HE1 ENG(RLY) 		9-09920-873-1 01 1 0302-0501 ● ●
3 00.785 GASKET; FLEX HOSE,CLU
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		9-09920-873-1 01 1 0502- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0102-0112 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0201-0301 ● ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 		8-94167-006-0 02 1 0302-0610 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT
FLOOR REMOTE SHIFT<M11> 04.681 		8-97365-304-0 02 1 0611- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0102-0112 ●
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0201-0301 ● ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-94248-702-2 01 1 0302-0609 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-98004-775-0 01 1 0610-0706 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
FLOOR REMOTE SHIFT<M11> (B) 		8-98090-655-0 01 1 0707- ● ●
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-94377-793-1 01 1 0102-0207 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-94377-793-1 01 1 0208-0301 ● ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A) 		8-94377-793-1 01 1 0302-0501 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1-TCS ENG(RDS) (A) 		8-94377-793-1 01 1 0502-0506 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1-TCS ENG(RDS) (A) WITH PROTECTOR 		8-98020-158-0 01 1 0507- ●
5 00.785 HOSE; FLEX,CLU PIPE
4HF1 ENG(RLS) (A) 		8-97064-108-1 01 1 0201-0301 ●
5 00.785 HOSE; FLEX,CLU PIPE
4HF1 ENG(RLS) (A) 		8-97064-108-1 01 1 0302- ●
5 00.785 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A) 		8-94108-360-2 01 1 0302-0501 ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0102-0112 ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0201-0207 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0208-0301 ● ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0302-0501 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0502-0512 ● ●
6 00.785 BOLT; BRKT,FLEX HOSE
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0102-0112 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0201-0301 ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HF1 ENG(RLS),4HE1 ENG(RLY) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0501 ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0602 ● ●
7 00.785 NUT; FLEX HOSE,CLU CONT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0102-0112 ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0201-0207 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU 8-97126-875-0 01 1 0208-0301 ● ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97126-875-0 01 1 0302-0305 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-97365-305-0 01 1 0306-0501 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-94366-288-0 01 1 0502-0502 ● ●
11 00.785 BRACKET; FLEX HOSE,CLU
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-97365-305-0 01 1 0502- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97073-074-2 01 1 0102-0111 ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97328-482-0 01 1 0112-0112 ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97328-482-0 01 1 0201-0301 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-97328-482-0 01 1 0302- ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0102-0112 ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0201-0301 ● ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0302-0501 ● ●
15 00.785 PIPE; CLU,FLEX HOSE
FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97187-578-1 01 1 0502- ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 0102-0112 ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 0201-0207 ● ●
16 00.785 CLIP; FLEX HOSE 8-94167-006-0 01 1 0208-0301 ● ● ●
16 00.785 CLIP; FLEX HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) 		8-94167-006-0 01 1 0302-0501 ● ●
16 00.785 CLIP; FLEX HOSE
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-94167-006-0 01 1 0502-0610 ● ●
16 00.785 CLIP; FLEX HOSE
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 04.681 		8-97365-304-0 01 1 0611- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97118-570-0 01 1 0102-0112 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97118-570-0 01 1 0201-0301 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97118-570-0 01 1 0302- ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-97070-293-3 01 1 0102-0112 ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-97070-293-3 01 1 0201-0301 ● ● ●
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-97070-293-3 01 1 0302- ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0102-0112 ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0201-0301 ● ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0302-0607 ● ●
87 00.785 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 0608- ● ●
92 00.785 CLIP; OIL PIPE
FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 02 1 0102-0112 ●
92 00.785 CLIP; OIL PIPE
FRAME STRAIGHT TYPE<7KJ> 04.686 ID=6.5 & 4.8X2 		8-94131-710-2 02 1 0201-0301 ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-97093-993-1 01 1 0102-0112 ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-97093-993-1 01 1 0201-0301 ● ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-97093-993-1 01 1 0302-0501 ● ●
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-98009-419-0 01 1 0502- ● ●
