Sayfa 2-01 - Isuzu EPC

2-01 — CLUTCH (#19015) — 357 parça

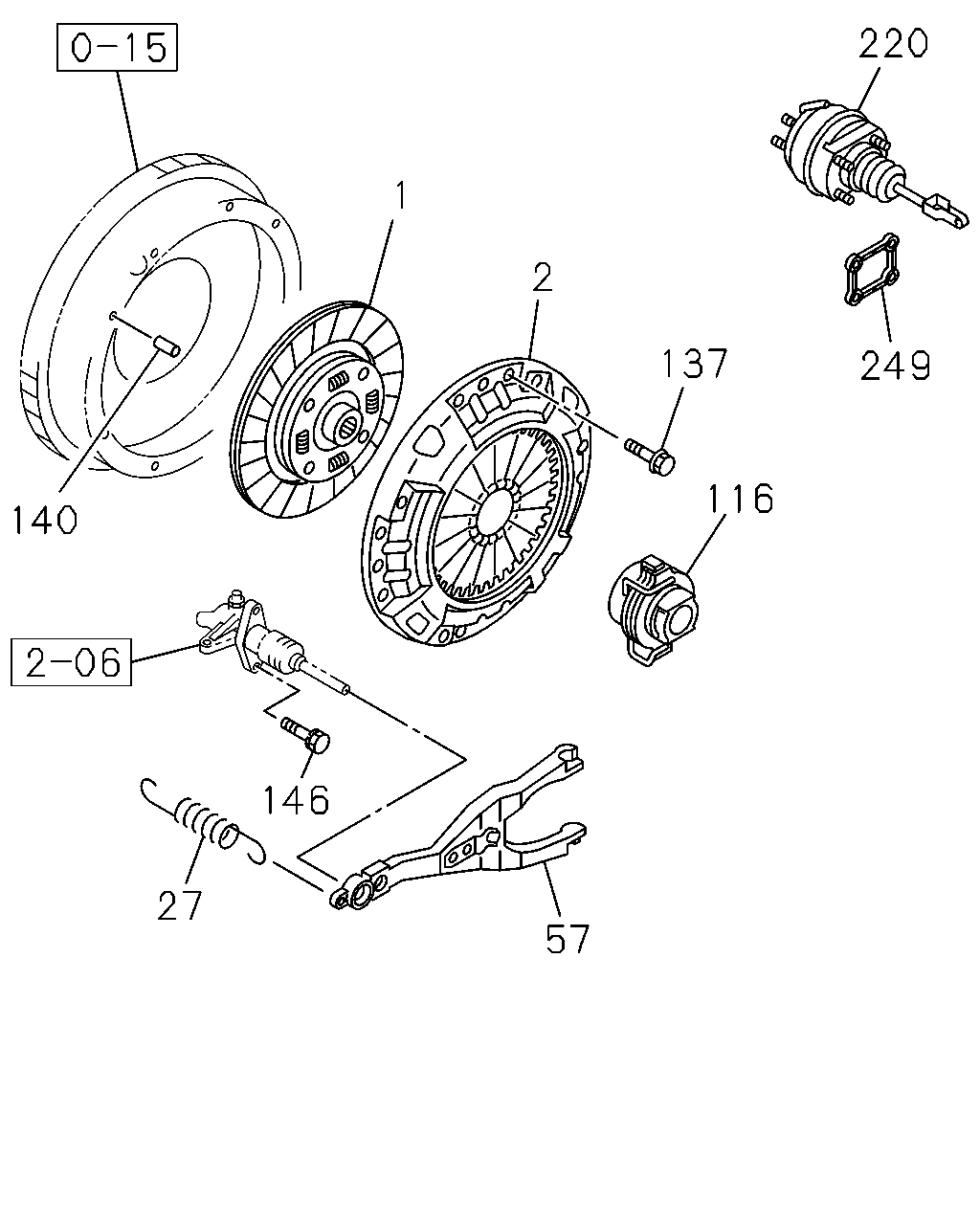

220 249 146 137 140 116 57 27 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.886 DISC; CLUTCH	8-97229-241-0	01	1	0102-0301	●
1	00.886 DISC; CLUTCH	8-97162-966-1	01	1	0201-0301		●
1	00.886 DISC; CLUTCH 4HF1 ENG(RLS)	8-97320-355-0	01	1	0302-0412			●
1	00.886 DISC; CLUTCH 4HF1 ENG(RLS)	8-97377-149-0	01	1	0501-1402			●
1	00.886 DISC; CLUTCH 4HF1 ENG(RLS)	8-98255-959-1	01	1	1403-			●
1	00.886 DISC; CLUTCH	8-97259-940-0	01	1	0208-0301				●
1	00.886 DISC; CLUTCH 4HE1 ENG(RLY)	8-97259-940-0	01	1	0302-0308				●
1	00.886 DISC; CLUTCH 4HE1 ENG(RLY)	8-97367-795-0	01	1	0309-0501				●
1	00.886 DISC; CLUTCH 4HE1-TCS ENG(RDS)	8-97367-795-0	01	1	0502-1007				●
1	00.886 DISC; CLUTCH 4HE1-TCS ENG(RDS)	8-98164-917-1	01	1	1008-				●
1	00.886 DISC; CLUTCH 4HF1 ENG(RLS) BEST VALUE PARTS	5-87610-049-2	01	1	0501-			●
1	00.886 DISC; CLUTCH 4HE1-TCS ENG(RDS) BEST VALUE PARTS	5-87610-092-0	01	1	1008-				●
2	00.859 PLATE ASM; PRESSURE,CLU	8-97038-831-2	01	1	0102-0207	●
2	00.859 PLATE ASM; PRESSURE,CLU	8-97038-831-2	01	1	0208-0301	●			●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1 ENG(RLY)	8-97038-831-2	01	1	0302-0302				●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1 ENG(RLY) 08.859	8-97351-794-0	01	1	0303-0501				●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1-TCS ENG(RDS) 08.859	8-97351-794-0	01	1	0502-1405				●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1-TCS ENG(RDS)	8-97038-831-2	01	1	1406-				●
2	00.859 PLATE ASM; PRESSURE,CLU	8-97310-796-0	01	1	0201-0301		●
2	00.859 PLATE ASM; PRESSURE,CLU 4HF1 ENG(RLS)	8-97310-796-0	01	1	0302-0302			●
2	00.859 PLATE ASM; PRESSURE,CLU 4HF1 ENG(RLS)	8-97351-833-0	01	1	0303-0412			●
2	00.859 PLATE ASM; PRESSURE,CLU 4HF1 ENG(RLS)	8-97310-796-0	01	1	0501-			●
2	00.859 PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	5-87610-104-0	01	1	0102-0207	●
2	00.859 PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	5-87610-104-0	01	1	0208-0301	●			●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1 ENG(RLY) BEST VALUE PARTS	5-87610-104-0	01	1	0302-0302				●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1 ENG(RLY) BEST VALUE PARTS	5-87610-081-0	01	1	0303-0501				●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1-TCS ENG(RDS) BEST VALUE PARTS	5-87610-081-0	01	1	0502-1405				●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1-TCS ENG(RDS) BEST VALUE PARTS	5-87610-104-0	01	1	1406-				●
2	00.859 PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	5-87610-050-1	01	1	0201-0301		●
2	00.859 PLATE ASM; PRESSURE,CLU 4HF1 ENG(RLS) BEST VALUE PARTS	5-87610-050-0	01	1	0302-0412			●
2	00.859 PLATE ASM; PRESSURE,CLU 4HF1 ENG(RLS) BEST VALUE PARTS	5-87610-050-1	01	1	0501-			●
27	00.837 SPRING; RETURN,SHIFT FORK	8-97184-358-0	01	1	0102-0207	●
27	00.837 SPRING; RETURN,SHIFT FORK	8-97184-358-0	01	1	0208-0301	●			●
27	00.837 SPRING; RETURN,SHIFT FORK 4HE1 ENG(RLY)	8-97184-358-0	01	1	0302-0501				●
27	00.837 SPRING; RETURN,SHIFT FORK 4HE1-TCS ENG(RDS)	8-97184-358-0	01	1	0502-0812				●
27	00.837 SPRING; RETURN,SHIFT FORK 4HE1-TCS ENG(RDS)	8-98025-314-0	01	1	0901-				●
27	00.837 SPRING; RETURN,SHIFT FORK	8-97184-359-0	01	1	0201-0301		●
27	00.837 SPRING; RETURN,SHIFT FORK 4HF1 ENG(RLS)	8-97184-359-0	01	1	0302-0812			●
27	00.837 SPRING; RETURN,SHIFT FORK 4HF1 ENG(RLS)	8-98025-313-0	01	1	0901-			●
57	00.795 FORK; SHIFT,CLU	1-31341-028-0	01	1	0102-0301	●
57	00.795 FORK; SHIFT,CLU	8-97187-936-0	01	1	0201-0301		●
57	00.795 FORK; SHIFT,CLU 4HF1 ENG(RLS)	8-97255-303-0	01	1	0302-			●
57	00.795 FORK; SHIFT,CLU	8-97310-456-1	01	1	0208-0301				●
57	00.795 FORK; SHIFT,CLU 4HE1 ENG(RLY)	8-97310-456-1	01	1	0302-0501				●
57	00.795 FORK; SHIFT,CLU 4HE1-TCS ENG(RDS)	8-97310-456-1	01	1	0502-				●
116	00.799 BLOCK; SHIFT,CLU	1-31320-034-0	01	1	0102-0301	●
116	00.799 BLOCK; SHIFT,CLU	8-97089-652-0	01	1	0201-0301		●
116	00.799 BLOCK; SHIFT,CLU 4HF1 ENG(RLS)	8-97255-313-0	01	1	0302-			●
116	00.799 BLOCK; SHIFT,CLU BEST VALUE PARTS	5-87610-145-0	01	1	0201-0301		●
116	00.799 BLOCK; SHIFT,CLU 4HF1 ENG(RLS) BEST VALUE PARTS	5-87610-110-0	01	1	0302-			●
137	00.862 BOLT; CLU COVER 02.559 M10X16 FLANGE	0-28081-016-0	10	1	0102-0112	●
137	00.862 BOLT; CLU COVER 02.559 M10X16 FLANGE	0-28081-016-0	10	1	0201-0207	●	●
137	00.862 BOLT; CLU COVER 02.559 M10X16 FLANGE	0-28081-016-0	10	1	0208-0301	●	●		●
137	00.862 BOLT; CLU COVER 4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 M10X16 FLANGE	0-28081-016-0	10	1	0302-0501			●	●
137	00.862 BOLT; CLU COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 02.559 M10X16 FLANGE	0-28081-016-0	10	1	0502-0512			●	●
137	00.862 BOLT; CLU COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 02.483 M10X16 FLANGE	0-28051-016-0	10	1	0601-			●	●
140	00.862 PIN; STRAIGHT L=25	8-94410-361-0	02	1	0102-0112	●
140	00.862 PIN; STRAIGHT L=25	8-94410-361-0	02	1	0201-0207	●	●
140	00.862 PIN; STRAIGHT L=25	8-94410-361-0	02	1	0208-0301	●	●		●
140	00.862 PIN; STRAIGHT 4HF1 ENG(RLS),4HE1 ENG(RLY) L=25	8-94410-361-0	02	1	0302-0501			●	●
140	00.862 PIN; STRAIGHT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) L=25	8-94410-361-0	02	1	0502-			●	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0102-0112	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0201-0301	●	●		●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE FLOOR REMOTE SHIFT<M11> 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0302-0512			●	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE FLOOR REMOTE SHIFT<M11> 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0601-			●	●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T)	8-97166-854-1	01	1	0102-0112	●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97166-854-1	01	1	0201-0501				●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HE1-TCS ENG(RDS) POWER ASSIST CLUTCH(S2T)	8-97166-854-1	01	1	0502-				●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T)	8-97162-962-1	01	1	0201-0301		●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T)	8-97162-962-1	01	1	0302-			●
249	00.864 SPACER; CLU BOOSTER POWER ASSIST CLUTCH(S2T)	8-97167-489-0	01	1	0102-0112	●
249	00.864 SPACER; CLU BOOSTER POWER ASSIST CLUTCH(S2T)	8-97167-489-0	01	1	0201-0301	●	●		●
249	00.864 SPACER; CLU BOOSTER POWER ASSIST CLUTCH(S2T)	8-97167-489-0	01	1	0302-			●	●

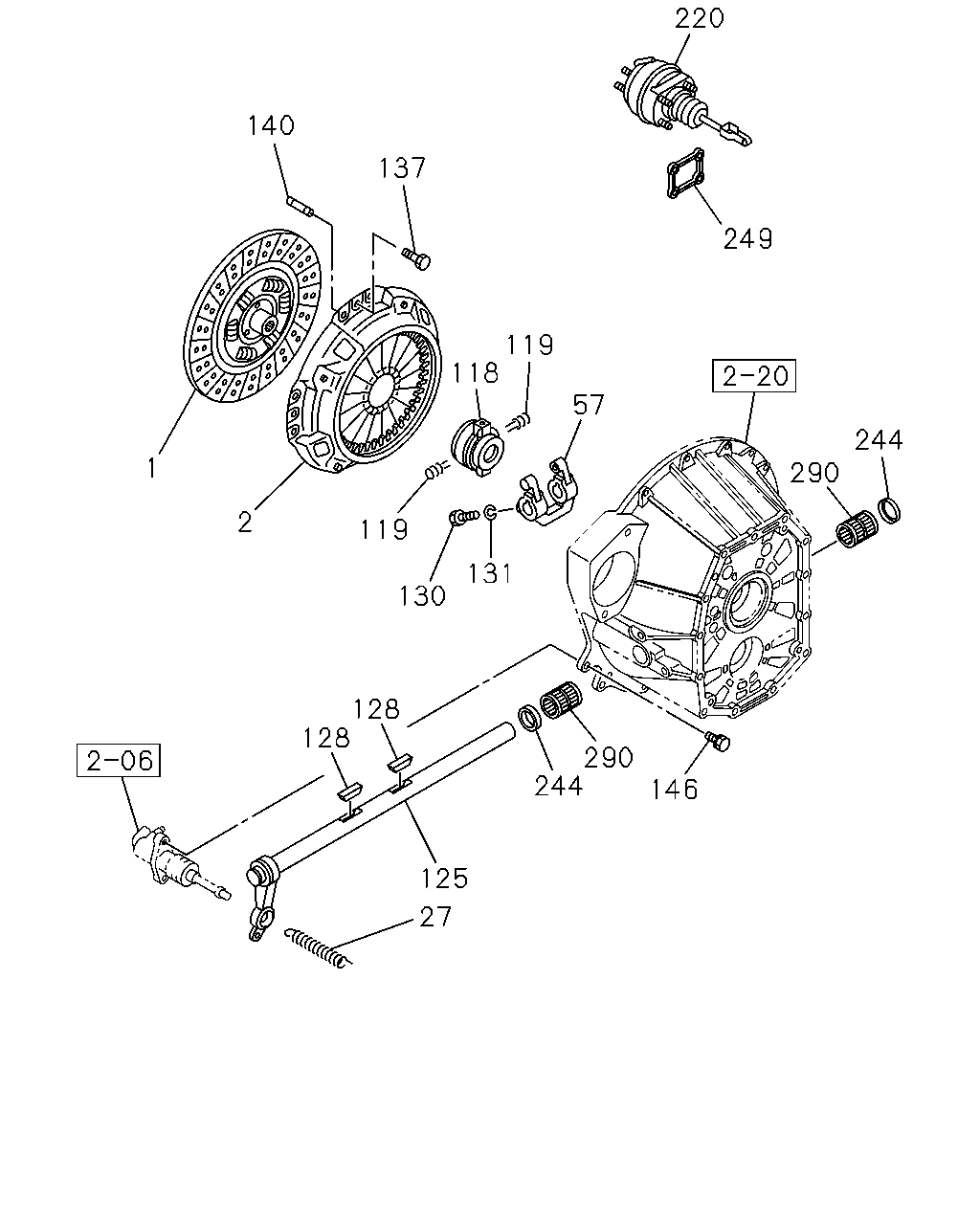

220 249 146 140 137 119 116 118 119 57 1 2 130 131 128 120 122 125 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.886 DISC; CLUTCH	8-97229-241-0	01	1	0102-0301	●
1	00.886 DISC; CLUTCH	8-97162-966-1	01	1	0201-0301		●
1	00.886 DISC; CLUTCH 4HF1 ENG(RLS)	8-97320-355-0	01	1	0302-0412			●
1	00.886 DISC; CLUTCH 4HF1 ENG(RLS)	8-97377-149-0	01	1	0501-1402			●
1	00.886 DISC; CLUTCH 4HF1 ENG(RLS)	8-98255-959-1	01	1	1403-			●
1	00.886 DISC; CLUTCH	8-97259-940-0	01	1	0208-0301				●
1	00.886 DISC; CLUTCH 4HE1 ENG(RLY)	8-97259-940-0	01	1	0302-0308				●
1	00.886 DISC; CLUTCH 4HE1 ENG(RLY)	8-97367-795-0	01	1	0309-0501				●
1	00.886 DISC; CLUTCH 4HE1-TCS ENG(RDS)	8-97367-795-0	01	1	0502-1007				●
1	00.886 DISC; CLUTCH 4HE1-TCS ENG(RDS)	8-98164-917-1	01	1	1008-				●
1	00.886 DISC; CLUTCH 4HF1 ENG(RLS) BEST VALUE PARTS	5-87610-049-2	01	1	0501-			●
1	00.886 DISC; CLUTCH 4HE1-TCS ENG(RDS) BEST VALUE PARTS	5-87610-092-0	01	1	1008-				●
2	00.859 PLATE ASM; PRESSURE,CLU	8-97038-831-2	01	1	0102-0207	●
2	00.859 PLATE ASM; PRESSURE,CLU	8-97038-831-2	01	1	0208-0301	●			●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1 ENG(RLY)	8-97038-831-2	01	1	0302-0302				●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1 ENG(RLY) 08.859	8-97351-794-0	01	1	0303-0501				●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1-TCS ENG(RDS) 08.859	8-97351-794-0	01	1	0502-1405				●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1-TCS ENG(RDS)	8-97038-831-2	01	1	1406-				●
2	00.859 PLATE ASM; PRESSURE,CLU	8-97310-796-0	01	1	0201-0301		●
2	00.859 PLATE ASM; PRESSURE,CLU 4HF1 ENG(RLS)	8-97310-796-0	01	1	0302-0302			●
2	00.859 PLATE ASM; PRESSURE,CLU 4HF1 ENG(RLS)	8-97351-833-0	01	1	0303-0412			●
2	00.859 PLATE ASM; PRESSURE,CLU 4HF1 ENG(RLS)	8-97310-796-0	01	1	0501-			●
2	00.859 PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	5-87610-104-0	01	1	0102-0207	●
2	00.859 PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	5-87610-104-0	01	1	0208-0301	●			●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1 ENG(RLY) BEST VALUE PARTS	5-87610-104-0	01	1	0302-0302				●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1 ENG(RLY) BEST VALUE PARTS	5-87610-081-0	01	1	0303-0501				●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1-TCS ENG(RDS) BEST VALUE PARTS	5-87610-081-0	01	1	0502-1405				●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1-TCS ENG(RDS) BEST VALUE PARTS	5-87610-104-0	01	1	1406-				●
2	00.859 PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	5-87610-050-1	01	1	0201-0301		●
2	00.859 PLATE ASM; PRESSURE,CLU 4HF1 ENG(RLS) BEST VALUE PARTS	5-87610-050-0	01	1	0302-0412			●
2	00.859 PLATE ASM; PRESSURE,CLU 4HF1 ENG(RLS) BEST VALUE PARTS	5-87610-050-1	01	1	0501-			●
27	00.837 SPRING; RETURN,SHIFT FORK	8-97184-358-0	01	1	0102-0207	●
27	00.837 SPRING; RETURN,SHIFT FORK	8-97184-358-0	01	1	0208-0301	●			●
27	00.837 SPRING; RETURN,SHIFT FORK 4HE1 ENG(RLY)	8-97184-358-0	01	1	0302-0501				●
27	00.837 SPRING; RETURN,SHIFT FORK 4HE1-TCS ENG(RDS)	8-97184-358-0	01	1	0502-0812				●
27	00.837 SPRING; RETURN,SHIFT FORK 4HE1-TCS ENG(RDS)	8-98025-314-0	01	1	0901-				●
27	00.837 SPRING; RETURN,SHIFT FORK	8-97184-359-0	01	1	0201-0301		●
27	00.837 SPRING; RETURN,SHIFT FORK 4HF1 ENG(RLS)	8-97184-359-0	01	1	0302-0812			●
27	00.837 SPRING; RETURN,SHIFT FORK 4HF1 ENG(RLS)	8-98025-313-0	01	1	0901-			●
57	00.795 FORK; SHIFT,CLU	1-31341-028-0	01	1	0102-0301	●
57	00.795 FORK; SHIFT,CLU	8-97187-936-0	01	1	0201-0301		●
57	00.795 FORK; SHIFT,CLU 4HF1 ENG(RLS)	8-97255-303-0	01	1	0302-			●
57	00.795 FORK; SHIFT,CLU	8-97310-456-1	01	1	0208-0301				●
57	00.795 FORK; SHIFT,CLU 4HE1 ENG(RLY)	8-97310-456-1	01	1	0302-0501				●
57	00.795 FORK; SHIFT,CLU 4HE1-TCS ENG(RDS)	8-97310-456-1	01	1	0502-				●
116	00.799 BLOCK; SHIFT,CLU	1-31320-034-0	01	1	0102-0301	●
116	00.799 BLOCK; SHIFT,CLU	8-97089-652-0	01	1	0201-0301		●
116	00.799 BLOCK; SHIFT,CLU 4HF1 ENG(RLS)	8-97255-313-0	01	1	0302-			●
116	00.799 BLOCK; SHIFT,CLU BEST VALUE PARTS	5-87610-145-0	01	1	0201-0301		●
116	00.799 BLOCK; SHIFT,CLU 4HF1 ENG(RLS) BEST VALUE PARTS	5-87610-110-0	01	1	0302-			●
118	00.799 BEARING; CLU RELEASE	1-09820-078-0	01	1	0102-0111	●
118	00.799 BEARING; CLU RELEASE	1-09820-115-0	01	1	0112-0301	●
118	00.799 BEARING; CLU RELEASE	1-31310-012-0	01	1	0208-0301				●
118	00.799 BEARING; CLU RELEASE 4HE1 ENG(RLY)	1-31310-012-0	01	1	0302-0501				●
118	00.799 BEARING; CLU RELEASE 4HE1-TCS ENG(RDS)	1-31310-012-0	01	1	0502-				●
118	00.799 BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-110-0	01	1	0208-0301				●
118	00.799 BEARING; CLU RELEASE 4HE1 ENG(RLY) BEST VALUE PARTS	1-87610-110-0	01	1	0302-0501				●
118	00.799 BEARING; CLU RELEASE 4HE1-TCS ENG(RDS) BEST VALUE PARTS	1-87610-110-0	01	1	0502-				●
119	00.797 SPRING; SHIFT FORK 00.844	1-31329-015-0	01	1	0102-0301	●
119	00.797 SPRING; SHIFT FORK 00.844	1-31329-014-0	01	1	0102-0301	●
119	00.797 SPRING; SHIFT FORK	1-31329-024-0	02	1	0208-0301				●
119	00.797 SPRING; SHIFT FORK 4HE1 ENG(RLY)	1-31329-024-0	02	1	0302-0501				●
119	00.797 SPRING; SHIFT FORK 4HE1-TCS ENG(RDS)	1-31329-024-0	02	1	0502-				●
120	00.799 HOSE; FLEX,SHIFT BLOCK,CLU L=705	1-09364-850-0	01	1	0102-0301	●
122	00.799 NIPPLE; GREASE,FLEX HOSE,SHIFT B 08.984 PT1/8 STRAIGHT	9-09031-010-0	01	1	0102-0301	●
125	00.805 SHAFT; CLU	8-97038-833-1	01	1	0102-0301	●
125	00.805 SHAFT; CLU	8-97310-435-0	01	1	0208-0301				●
125	00.805 SHAFT; CLU 4HE1 ENG(RLY)	8-97310-435-0	01	1	0302-0501				●
125	00.805 SHAFT; CLU 4HE1-TCS ENG(RDS)	8-97310-435-0	01	1	0502-				●
128	00.833 KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0102-0207	●
128	00.833 KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0208-0301	●			●
128	00.833 KEY; FEATHER,CLU SHAFT 4HE1 ENG(RLY)	9-09867-008-0	02	1	0302-0501				●
128	00.833 KEY; FEATHER,CLU SHAFT 4HE1-TCS ENG(RDS)	9-09867-008-0	02	1	0502-				●
130	00.833 SCREW; SHIFT FORK 08.977 M8X14	9-06120-814-0	01	1	0102-0207	●
130	00.833 SCREW; SHIFT FORK 08.977 M8X14	9-06120-814-0	01	1	0208-0301	●			●
130	00.833 SCREW; SHIFT FORK 4HE1 ENG(RLY) 08.977 M8X14	9-06120-814-0	01	1	0302-0501				●
130	00.833 SCREW; SHIFT FORK 4HE1-TCS ENG(RDS) 08.977 M8X14	9-06120-814-0	01	1	0502-0512				●
130	00.833 SCREW; SHIFT FORK 4HE1-TCS ENG(RDS) M8X14	0-61200-814-0	01	1	0601-				●
131	00.833 WASHER; LK,SHIFT FORK 00.002 ID=8.2	9-09150-508-0	01	1	0102-0207	●
131	00.833 WASHER; LK,SHIFT FORK 00.002 ID=8.2	9-09150-508-0	01	1	0208-0301	●			●
131	00.833 WASHER; LK,SHIFT FORK 4HE1 ENG(RLY) 00.002 ID=8.2	9-09150-508-0	01	1	0302-0501				●
131	00.833 WASHER; LK,SHIFT FORK 4HE1-TCS ENG(RDS) 00.002 ID=8.2	9-09150-508-0	01	1	0502-0603				●
131	00.833 WASHER; LK,SHIFT FORK 4HE1-TCS ENG(RDS) 04.439 ID=8.2	0-91510-508-0	01	1	0604-				●
137	00.862 BOLT; CLU COVER 02.559 M10X16 FLANGE	0-28081-016-0	10	1	0102-0112	●
137	00.862 BOLT; CLU COVER 02.559 M10X16 FLANGE	0-28081-016-0	10	1	0201-0207	●	●
137	00.862 BOLT; CLU COVER 02.559 M10X16 FLANGE	0-28081-016-0	10	1	0208-0301	●	●		●
137	00.862 BOLT; CLU COVER 4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 M10X16 FLANGE	0-28081-016-0	10	1	0302-0501			●	●
137	00.862 BOLT; CLU COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 02.559 M10X16 FLANGE	0-28081-016-0	10	1	0502-0512			●	●
137	00.862 BOLT; CLU COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 02.483 M10X16 FLANGE	0-28051-016-0	10	1	0601-			●	●
140	00.862 PIN; STRAIGHT L=25	8-94410-361-0	02	1	0102-0112	●
140	00.862 PIN; STRAIGHT L=25	8-94410-361-0	02	1	0201-0207	●	●
140	00.862 PIN; STRAIGHT L=25	8-94410-361-0	02	1	0208-0301	●	●		●
140	00.862 PIN; STRAIGHT 4HF1 ENG(RLS),4HE1 ENG(RLY) L=25	8-94410-361-0	02	1	0302-0501			●	●
140	00.862 PIN; STRAIGHT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) L=25	8-94410-361-0	02	1	0502-			●	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0102-0112	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0201-0301	●	●		●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE FLOOR REMOTE SHIFT<M11> 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0302-0512			●	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE FLOOR REMOTE SHIFT<M11> 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0601-			●	●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T)	8-97166-854-1	01	1	0102-0112	●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97166-854-1	01	1	0201-0501				●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HE1-TCS ENG(RDS) POWER ASSIST CLUTCH(S2T)	8-97166-854-1	01	1	0502-				●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T)	8-97162-962-1	01	1	0201-0301		●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T)	8-97162-962-1	01	1	0302-			●
249	00.864 SPACER; CLU BOOSTER POWER ASSIST CLUTCH(S2T)	8-97167-489-0	01	1	0102-0112	●
249	00.864 SPACER; CLU BOOSTER POWER ASSIST CLUTCH(S2T)	8-97167-489-0	01	1	0201-0301	●	●		●
249	00.864 SPACER; CLU BOOSTER POWER ASSIST CLUTCH(S2T)	8-97167-489-0	01	1	0302-			●	●

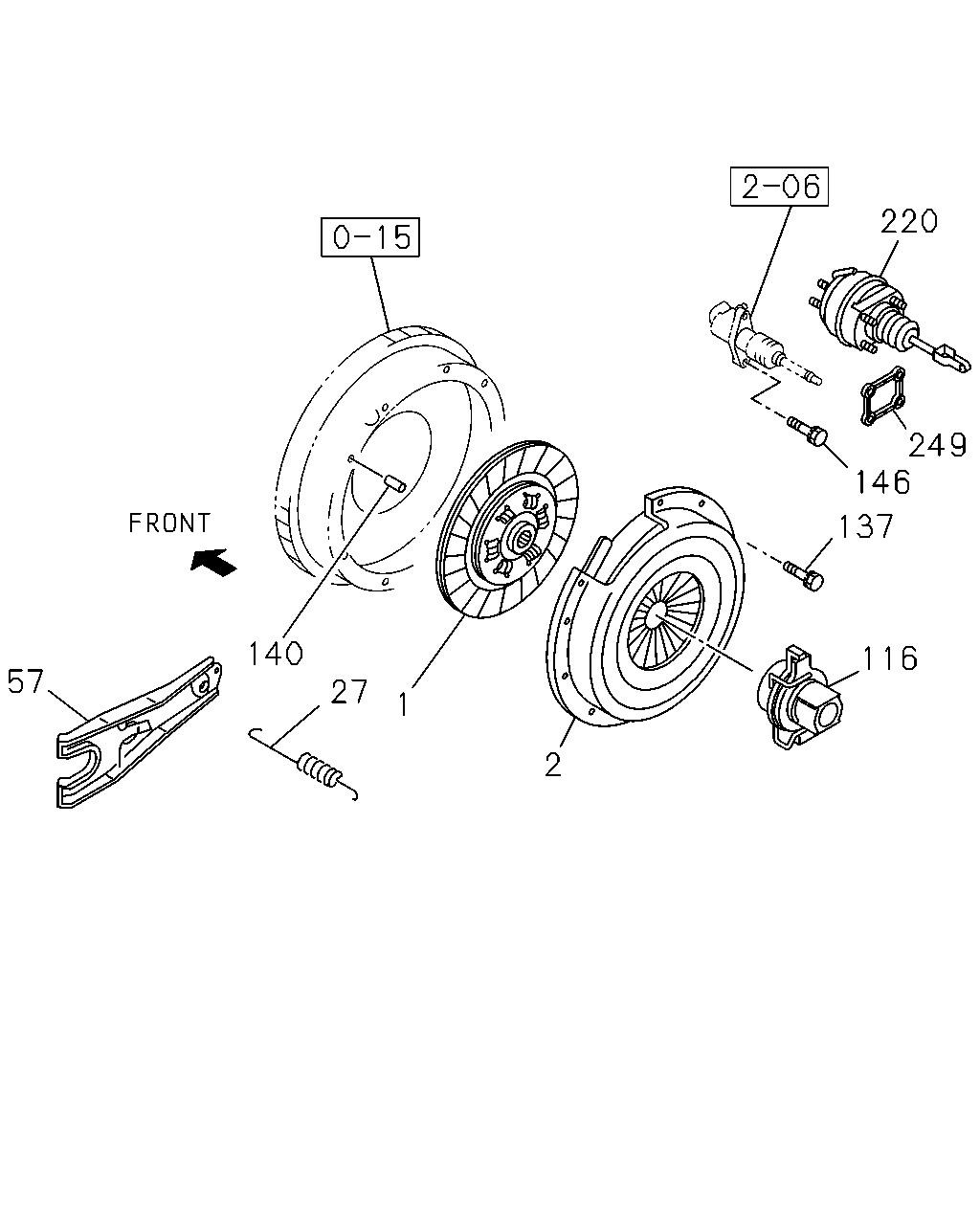

220 1 2 137 249 116 140 146 27 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.886 DISC; CLUTCH	8-97229-241-0	01	1	0102-0301	●
1	00.886 DISC; CLUTCH	8-97162-966-1	01	1	0201-0301		●
1	00.886 DISC; CLUTCH 4HF1 ENG(RLS)	8-97320-355-0	01	1	0302-0412			●
1	00.886 DISC; CLUTCH 4HF1 ENG(RLS)	8-97377-149-0	01	1	0501-1402			●
1	00.886 DISC; CLUTCH 4HF1 ENG(RLS)	8-98255-959-1	01	1	1403-			●
1	00.886 DISC; CLUTCH	8-97259-940-0	01	1	0208-0301				●
1	00.886 DISC; CLUTCH 4HE1 ENG(RLY)	8-97259-940-0	01	1	0302-0308				●
1	00.886 DISC; CLUTCH 4HE1 ENG(RLY)	8-97367-795-0	01	1	0309-0501				●
1	00.886 DISC; CLUTCH 4HE1-TCS ENG(RDS)	8-97367-795-0	01	1	0502-1007				●
1	00.886 DISC; CLUTCH 4HE1-TCS ENG(RDS)	8-98164-917-1	01	1	1008-				●
1	00.886 DISC; CLUTCH 4HF1 ENG(RLS) BEST VALUE PARTS	5-87610-049-2	01	1	0501-			●
1	00.886 DISC; CLUTCH 4HE1-TCS ENG(RDS) BEST VALUE PARTS	5-87610-092-0	01	1	1008-				●
2	00.859 PLATE ASM; PRESSURE,CLU	8-97038-831-2	01	1	0102-0207	●
2	00.859 PLATE ASM; PRESSURE,CLU	8-97038-831-2	01	1	0208-0301	●			●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1 ENG(RLY)	8-97038-831-2	01	1	0302-0302				●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1 ENG(RLY) 08.859	8-97351-794-0	01	1	0303-0501				●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1-TCS ENG(RDS) 08.859	8-97351-794-0	01	1	0502-1405				●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1-TCS ENG(RDS)	8-97038-831-2	01	1	1406-				●
2	00.859 PLATE ASM; PRESSURE,CLU	8-97310-796-0	01	1	0201-0301		●
2	00.859 PLATE ASM; PRESSURE,CLU 4HF1 ENG(RLS)	8-97310-796-0	01	1	0302-0302			●
2	00.859 PLATE ASM; PRESSURE,CLU 4HF1 ENG(RLS)	8-97351-833-0	01	1	0303-0412			●
2	00.859 PLATE ASM; PRESSURE,CLU 4HF1 ENG(RLS)	8-97310-796-0	01	1	0501-			●
2	00.859 PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	5-87610-104-0	01	1	0102-0207	●
2	00.859 PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	5-87610-104-0	01	1	0208-0301	●			●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1 ENG(RLY) BEST VALUE PARTS	5-87610-104-0	01	1	0302-0302				●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1 ENG(RLY) BEST VALUE PARTS	5-87610-081-0	01	1	0303-0501				●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1-TCS ENG(RDS) BEST VALUE PARTS	5-87610-081-0	01	1	0502-1405				●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1-TCS ENG(RDS) BEST VALUE PARTS	5-87610-104-0	01	1	1406-				●
2	00.859 PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	5-87610-050-1	01	1	0201-0301		●
2	00.859 PLATE ASM; PRESSURE,CLU 4HF1 ENG(RLS) BEST VALUE PARTS	5-87610-050-0	01	1	0302-0412			●
2	00.859 PLATE ASM; PRESSURE,CLU 4HF1 ENG(RLS) BEST VALUE PARTS	5-87610-050-1	01	1	0501-			●
27	00.837 SPRING; RETURN,SHIFT FORK	8-97184-358-0	01	1	0102-0207	●
27	00.837 SPRING; RETURN,SHIFT FORK	8-97184-358-0	01	1	0208-0301	●			●
27	00.837 SPRING; RETURN,SHIFT FORK 4HE1 ENG(RLY)	8-97184-358-0	01	1	0302-0501				●
27	00.837 SPRING; RETURN,SHIFT FORK 4HE1-TCS ENG(RDS)	8-97184-358-0	01	1	0502-0812				●
27	00.837 SPRING; RETURN,SHIFT FORK 4HE1-TCS ENG(RDS)	8-98025-314-0	01	1	0901-				●
27	00.837 SPRING; RETURN,SHIFT FORK	8-97184-359-0	01	1	0201-0301		●
27	00.837 SPRING; RETURN,SHIFT FORK 4HF1 ENG(RLS)	8-97184-359-0	01	1	0302-0812			●
27	00.837 SPRING; RETURN,SHIFT FORK 4HF1 ENG(RLS)	8-98025-313-0	01	1	0901-			●
57	00.795 FORK; SHIFT,CLU	1-31341-028-0	01	1	0102-0301	●
57	00.795 FORK; SHIFT,CLU	8-97187-936-0	01	1	0201-0301		●
57	00.795 FORK; SHIFT,CLU 4HF1 ENG(RLS)	8-97255-303-0	01	1	0302-			●
57	00.795 FORK; SHIFT,CLU	8-97310-456-1	01	1	0208-0301				●
57	00.795 FORK; SHIFT,CLU 4HE1 ENG(RLY)	8-97310-456-1	01	1	0302-0501				●
57	00.795 FORK; SHIFT,CLU 4HE1-TCS ENG(RDS)	8-97310-456-1	01	1	0502-				●
116	00.799 BLOCK; SHIFT,CLU	1-31320-034-0	01	1	0102-0301	●
116	00.799 BLOCK; SHIFT,CLU	8-97089-652-0	01	1	0201-0301		●
116	00.799 BLOCK; SHIFT,CLU 4HF1 ENG(RLS)	8-97255-313-0	01	1	0302-			●
116	00.799 BLOCK; SHIFT,CLU BEST VALUE PARTS	5-87610-145-0	01	1	0201-0301		●
116	00.799 BLOCK; SHIFT,CLU 4HF1 ENG(RLS) BEST VALUE PARTS	5-87610-110-0	01	1	0302-			●
137	00.862 BOLT; CLU COVER 02.559 M10X16 FLANGE	0-28081-016-0	10	1	0102-0112	●
137	00.862 BOLT; CLU COVER 02.559 M10X16 FLANGE	0-28081-016-0	10	1	0201-0207	●	●
137	00.862 BOLT; CLU COVER 02.559 M10X16 FLANGE	0-28081-016-0	10	1	0208-0301	●	●		●
137	00.862 BOLT; CLU COVER 4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 M10X16 FLANGE	0-28081-016-0	10	1	0302-0501			●	●
137	00.862 BOLT; CLU COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 02.559 M10X16 FLANGE	0-28081-016-0	10	1	0502-0512			●	●
137	00.862 BOLT; CLU COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 02.483 M10X16 FLANGE	0-28051-016-0	10	1	0601-			●	●
140	00.862 PIN; STRAIGHT L=25	8-94410-361-0	02	1	0102-0112	●
140	00.862 PIN; STRAIGHT L=25	8-94410-361-0	02	1	0201-0207	●	●
140	00.862 PIN; STRAIGHT L=25	8-94410-361-0	02	1	0208-0301	●	●		●
140	00.862 PIN; STRAIGHT 4HF1 ENG(RLS),4HE1 ENG(RLY) L=25	8-94410-361-0	02	1	0302-0501			●	●
140	00.862 PIN; STRAIGHT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) L=25	8-94410-361-0	02	1	0502-			●	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0102-0112	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0201-0301	●	●		●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE FLOOR REMOTE SHIFT<M11> 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0302-0512			●	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE FLOOR REMOTE SHIFT<M11> 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0601-			●	●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T)	8-97166-854-1	01	1	0102-0112	●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97166-854-1	01	1	0201-0501				●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HE1-TCS ENG(RDS) POWER ASSIST CLUTCH(S2T)	8-97166-854-1	01	1	0502-				●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T)	8-97162-962-1	01	1	0201-0301		●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T)	8-97162-962-1	01	1	0302-			●
249	00.864 SPACER; CLU BOOSTER POWER ASSIST CLUTCH(S2T)	8-97167-489-0	01	1	0102-0112	●
249	00.864 SPACER; CLU BOOSTER POWER ASSIST CLUTCH(S2T)	8-97167-489-0	01	1	0201-0301	●	●		●
249	00.864 SPACER; CLU BOOSTER POWER ASSIST CLUTCH(S2T)	8-97167-489-0	01	1	0302-			●	●

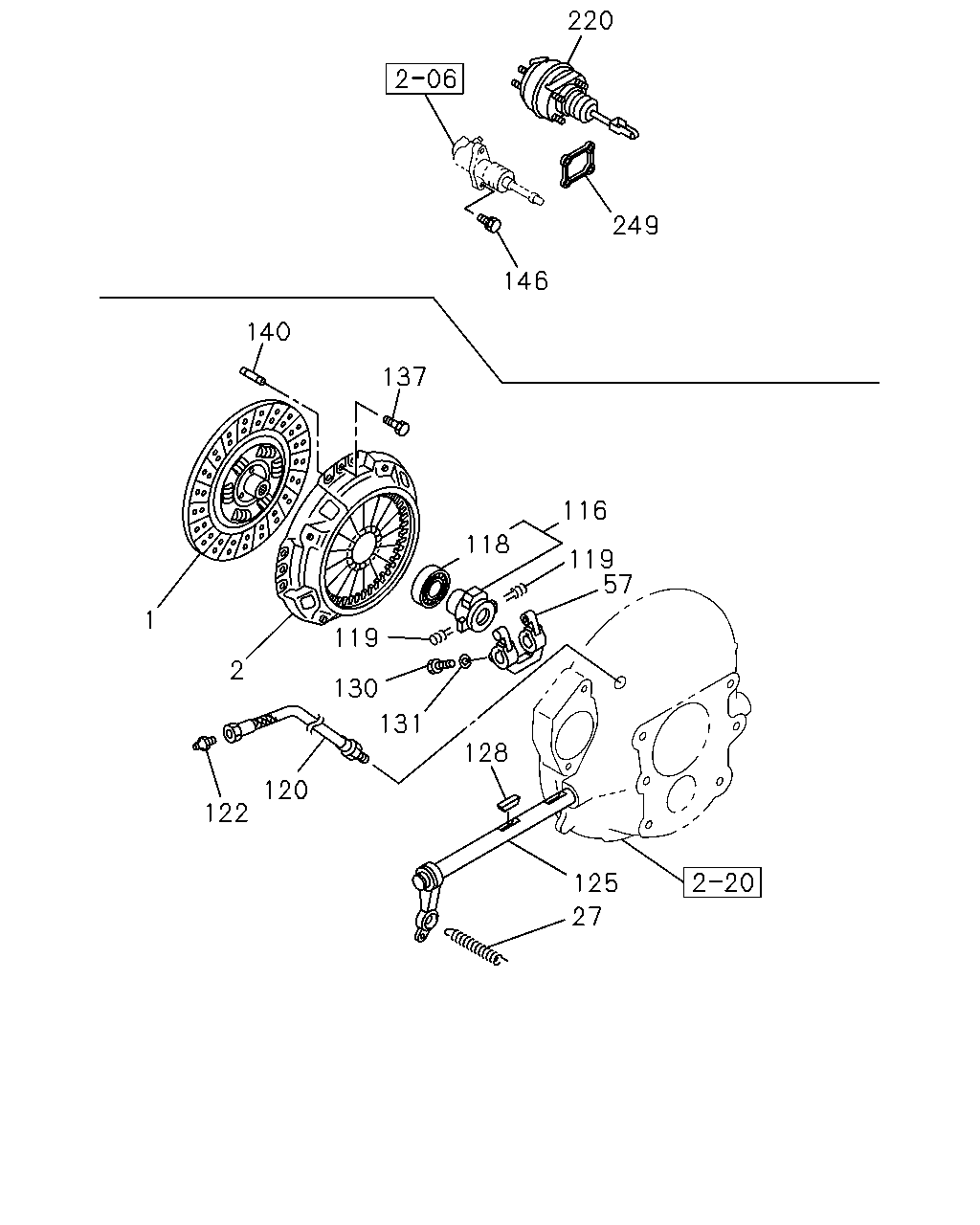

220 140 137 249 119 118 57 244 1 290 2 119 131 130 128 128 290 244 146 125 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.886 DISC; CLUTCH	8-97229-241-0	01	1	0102-0301	●
1	00.886 DISC; CLUTCH	8-97162-966-1	01	1	0201-0301		●
1	00.886 DISC; CLUTCH 4HF1 ENG(RLS)	8-97320-355-0	01	1	0302-0412			●
1	00.886 DISC; CLUTCH 4HF1 ENG(RLS)	8-97377-149-0	01	1	0501-1402			●
1	00.886 DISC; CLUTCH 4HF1 ENG(RLS)	8-98255-959-1	01	1	1403-			●
1	00.886 DISC; CLUTCH	8-97259-940-0	01	1	0208-0301				●
1	00.886 DISC; CLUTCH 4HE1 ENG(RLY)	8-97259-940-0	01	1	0302-0308				●
1	00.886 DISC; CLUTCH 4HE1 ENG(RLY)	8-97367-795-0	01	1	0309-0501				●
1	00.886 DISC; CLUTCH 4HE1-TCS ENG(RDS)	8-97367-795-0	01	1	0502-1007				●
1	00.886 DISC; CLUTCH 4HE1-TCS ENG(RDS)	8-98164-917-1	01	1	1008-				●
1	00.886 DISC; CLUTCH 4HF1 ENG(RLS) BEST VALUE PARTS	5-87610-049-2	01	1	0501-			●
1	00.886 DISC; CLUTCH 4HE1-TCS ENG(RDS) BEST VALUE PARTS	5-87610-092-0	01	1	1008-				●
2	00.859 PLATE ASM; PRESSURE,CLU	8-97038-831-2	01	1	0102-0207	●
2	00.859 PLATE ASM; PRESSURE,CLU	8-97038-831-2	01	1	0208-0301	●			●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1 ENG(RLY)	8-97038-831-2	01	1	0302-0302				●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1 ENG(RLY) 08.859	8-97351-794-0	01	1	0303-0501				●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1-TCS ENG(RDS) 08.859	8-97351-794-0	01	1	0502-1405				●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1-TCS ENG(RDS)	8-97038-831-2	01	1	1406-				●
2	00.859 PLATE ASM; PRESSURE,CLU	8-97310-796-0	01	1	0201-0301		●
2	00.859 PLATE ASM; PRESSURE,CLU 4HF1 ENG(RLS)	8-97310-796-0	01	1	0302-0302			●
2	00.859 PLATE ASM; PRESSURE,CLU 4HF1 ENG(RLS)	8-97351-833-0	01	1	0303-0412			●
2	00.859 PLATE ASM; PRESSURE,CLU 4HF1 ENG(RLS)	8-97310-796-0	01	1	0501-			●
2	00.859 PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	5-87610-104-0	01	1	0102-0207	●
2	00.859 PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	5-87610-104-0	01	1	0208-0301	●			●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1 ENG(RLY) BEST VALUE PARTS	5-87610-104-0	01	1	0302-0302				●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1 ENG(RLY) BEST VALUE PARTS	5-87610-081-0	01	1	0303-0501				●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1-TCS ENG(RDS) BEST VALUE PARTS	5-87610-081-0	01	1	0502-1405				●
2	00.859 PLATE ASM; PRESSURE,CLU 4HE1-TCS ENG(RDS) BEST VALUE PARTS	5-87610-104-0	01	1	1406-				●
2	00.859 PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	5-87610-050-1	01	1	0201-0301		●
2	00.859 PLATE ASM; PRESSURE,CLU 4HF1 ENG(RLS) BEST VALUE PARTS	5-87610-050-0	01	1	0302-0412			●
2	00.859 PLATE ASM; PRESSURE,CLU 4HF1 ENG(RLS) BEST VALUE PARTS	5-87610-050-1	01	1	0501-			●
27	00.837 SPRING; RETURN,SHIFT FORK	8-97184-358-0	01	1	0102-0207	●
27	00.837 SPRING; RETURN,SHIFT FORK	8-97184-358-0	01	1	0208-0301	●			●
27	00.837 SPRING; RETURN,SHIFT FORK 4HE1 ENG(RLY)	8-97184-358-0	01	1	0302-0501				●
27	00.837 SPRING; RETURN,SHIFT FORK 4HE1-TCS ENG(RDS)	8-97184-358-0	01	1	0502-0812				●
27	00.837 SPRING; RETURN,SHIFT FORK 4HE1-TCS ENG(RDS)	8-98025-314-0	01	1	0901-				●
27	00.837 SPRING; RETURN,SHIFT FORK	8-97184-359-0	01	1	0201-0301		●
27	00.837 SPRING; RETURN,SHIFT FORK 4HF1 ENG(RLS)	8-97184-359-0	01	1	0302-0812			●
27	00.837 SPRING; RETURN,SHIFT FORK 4HF1 ENG(RLS)	8-98025-313-0	01	1	0901-			●
57	00.795 FORK; SHIFT,CLU	1-31341-028-0	01	1	0102-0301	●
57	00.795 FORK; SHIFT,CLU	8-97187-936-0	01	1	0201-0301		●
57	00.795 FORK; SHIFT,CLU 4HF1 ENG(RLS)	8-97255-303-0	01	1	0302-			●
57	00.795 FORK; SHIFT,CLU	8-97310-456-1	01	1	0208-0301				●
57	00.795 FORK; SHIFT,CLU 4HE1 ENG(RLY)	8-97310-456-1	01	1	0302-0501				●
57	00.795 FORK; SHIFT,CLU 4HE1-TCS ENG(RDS)	8-97310-456-1	01	1	0502-				●
118	00.799 BEARING; CLU RELEASE	1-09820-078-0	01	1	0102-0111	●
118	00.799 BEARING; CLU RELEASE	1-09820-115-0	01	1	0112-0301	●
118	00.799 BEARING; CLU RELEASE	1-31310-012-0	01	1	0208-0301				●
118	00.799 BEARING; CLU RELEASE 4HE1 ENG(RLY)	1-31310-012-0	01	1	0302-0501				●
118	00.799 BEARING; CLU RELEASE 4HE1-TCS ENG(RDS)	1-31310-012-0	01	1	0502-				●
118	00.799 BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-110-0	01	1	0208-0301				●
118	00.799 BEARING; CLU RELEASE 4HE1 ENG(RLY) BEST VALUE PARTS	1-87610-110-0	01	1	0302-0501				●
118	00.799 BEARING; CLU RELEASE 4HE1-TCS ENG(RDS) BEST VALUE PARTS	1-87610-110-0	01	1	0502-				●
119	00.797 SPRING; SHIFT FORK 00.844	1-31329-015-0	01	1	0102-0301	●
119	00.797 SPRING; SHIFT FORK 00.844	1-31329-014-0	01	1	0102-0301	●
119	00.797 SPRING; SHIFT FORK	1-31329-024-0	02	1	0208-0301				●
119	00.797 SPRING; SHIFT FORK 4HE1 ENG(RLY)	1-31329-024-0	02	1	0302-0501				●
119	00.797 SPRING; SHIFT FORK 4HE1-TCS ENG(RDS)	1-31329-024-0	02	1	0502-				●
125	00.805 SHAFT; CLU	8-97038-833-1	01	1	0102-0301	●
125	00.805 SHAFT; CLU	8-97310-435-0	01	1	0208-0301				●
125	00.805 SHAFT; CLU 4HE1 ENG(RLY)	8-97310-435-0	01	1	0302-0501				●
125	00.805 SHAFT; CLU 4HE1-TCS ENG(RDS)	8-97310-435-0	01	1	0502-				●
128	00.833 KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0102-0207	●
128	00.833 KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0208-0301	●			●
128	00.833 KEY; FEATHER,CLU SHAFT 4HE1 ENG(RLY)	9-09867-008-0	02	1	0302-0501				●
128	00.833 KEY; FEATHER,CLU SHAFT 4HE1-TCS ENG(RDS)	9-09867-008-0	02	1	0502-				●
130	00.833 SCREW; SHIFT FORK 08.977 M8X14	9-06120-814-0	01	1	0102-0207	●
130	00.833 SCREW; SHIFT FORK 08.977 M8X14	9-06120-814-0	01	1	0208-0301	●			●
130	00.833 SCREW; SHIFT FORK 4HE1 ENG(RLY) 08.977 M8X14	9-06120-814-0	01	1	0302-0501				●
130	00.833 SCREW; SHIFT FORK 4HE1-TCS ENG(RDS) 08.977 M8X14	9-06120-814-0	01	1	0502-0512				●
130	00.833 SCREW; SHIFT FORK 4HE1-TCS ENG(RDS) M8X14	0-61200-814-0	01	1	0601-				●
131	00.833 WASHER; LK,SHIFT FORK 00.002 ID=8.2	9-09150-508-0	01	1	0102-0207	●
131	00.833 WASHER; LK,SHIFT FORK 00.002 ID=8.2	9-09150-508-0	01	1	0208-0301	●			●
131	00.833 WASHER; LK,SHIFT FORK 4HE1 ENG(RLY) 00.002 ID=8.2	9-09150-508-0	01	1	0302-0501				●
131	00.833 WASHER; LK,SHIFT FORK 4HE1-TCS ENG(RDS) 00.002 ID=8.2	9-09150-508-0	01	1	0502-0603				●
131	00.833 WASHER; LK,SHIFT FORK 4HE1-TCS ENG(RDS) 04.439 ID=8.2	0-91510-508-0	01	1	0604-				●
137	00.862 BOLT; CLU COVER 02.559 M10X16 FLANGE	0-28081-016-0	10	1	0102-0112	●
137	00.862 BOLT; CLU COVER 02.559 M10X16 FLANGE	0-28081-016-0	10	1	0201-0207	●	●
137	00.862 BOLT; CLU COVER 02.559 M10X16 FLANGE	0-28081-016-0	10	1	0208-0301	●	●		●
137	00.862 BOLT; CLU COVER 4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 M10X16 FLANGE	0-28081-016-0	10	1	0302-0501			●	●
137	00.862 BOLT; CLU COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 02.559 M10X16 FLANGE	0-28081-016-0	10	1	0502-0512			●	●
137	00.862 BOLT; CLU COVER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 02.483 M10X16 FLANGE	0-28051-016-0	10	1	0601-			●	●
140	00.862 PIN; STRAIGHT L=25	8-94410-361-0	02	1	0102-0112	●
140	00.862 PIN; STRAIGHT L=25	8-94410-361-0	02	1	0201-0207	●	●
140	00.862 PIN; STRAIGHT L=25	8-94410-361-0	02	1	0208-0301	●	●		●
140	00.862 PIN; STRAIGHT 4HF1 ENG(RLS),4HE1 ENG(RLY) L=25	8-94410-361-0	02	1	0302-0501			●	●
140	00.862 PIN; STRAIGHT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) L=25	8-94410-361-0	02	1	0502-			●	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0102-0112	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0201-0301	●	●		●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE FLOOR REMOTE SHIFT<M11> 04.686 M8X30 FLANGE	0-28680-830-0	02	1	0302-0512			●	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE FLOOR REMOTE SHIFT<M11> 03.403 M8X30 FLANGE	0-28650-830-0	02	1	0601-			●	●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T)	8-97166-854-1	01	1	0102-0112	●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HE1 ENG(RLY) POWER ASSIST CLUTCH(S2T)	8-97166-854-1	01	1	0201-0501				●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HE1-TCS ENG(RDS) POWER ASSIST CLUTCH(S2T)	8-97166-854-1	01	1	0502-				●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. POWER ASSIST CLUTCH(S2T)	8-97162-962-1	01	1	0201-0301		●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HF1 ENG(RLS) POWER ASSIST CLUTCH(S2T)	8-97162-962-1	01	1	0302-			●
244	00.805 SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T). 00.797	1-09625-002-0	02	1	0208-0301				●
244	00.805 SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) 00.797	1-09625-002-0	02	1	0302-0501				●
244	00.805 SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCS ENG(RDS) 00.797	1-09625-002-0	02	1	0502-				●
249	00.864 SPACER; CLU BOOSTER POWER ASSIST CLUTCH(S2T)	8-97167-489-0	01	1	0102-0112	●
249	00.864 SPACER; CLU BOOSTER POWER ASSIST CLUTCH(S2T)	8-97167-489-0	01	1	0201-0301	●	●		●
249	00.864 SPACER; CLU BOOSTER POWER ASSIST CLUTCH(S2T)	8-97167-489-0	01	1	0302-			●	●
290	00.862 BEARING; NEEDLE 00.683 NTN	1-09811-002-1	02	1	0208-0301				●
290	00.862 BEARING; NEEDLE 4HE1 ENG(RLY) 00.683 NTN	1-09811-002-1	02	1	0302-0501				●
290	00.862 BEARING; NEEDLE 4HE1-TCS ENG(RDS) 00.683 NTN	1-09811-002-1	02	1	0502-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
