Sayfa 1-50 - Isuzu EPC

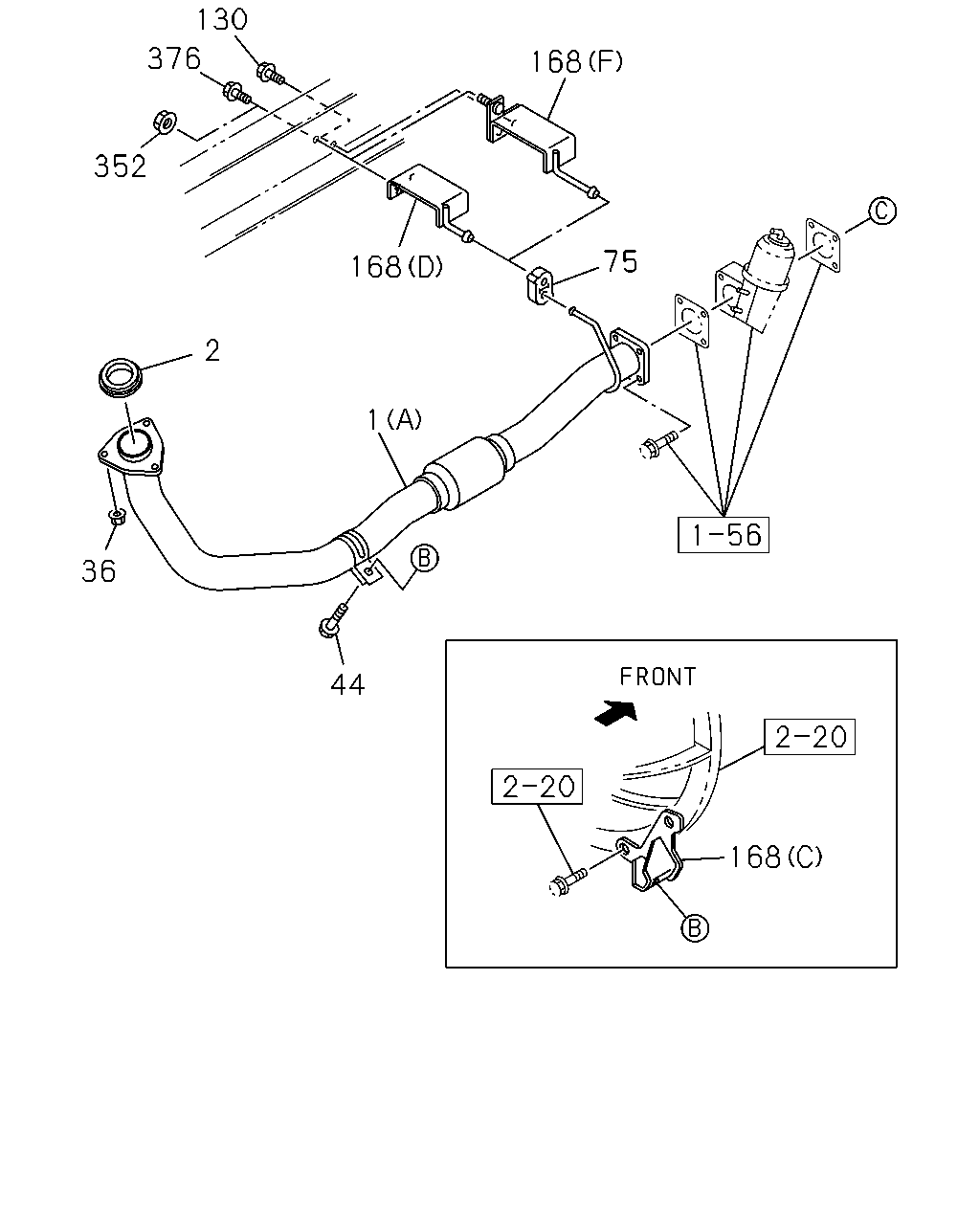

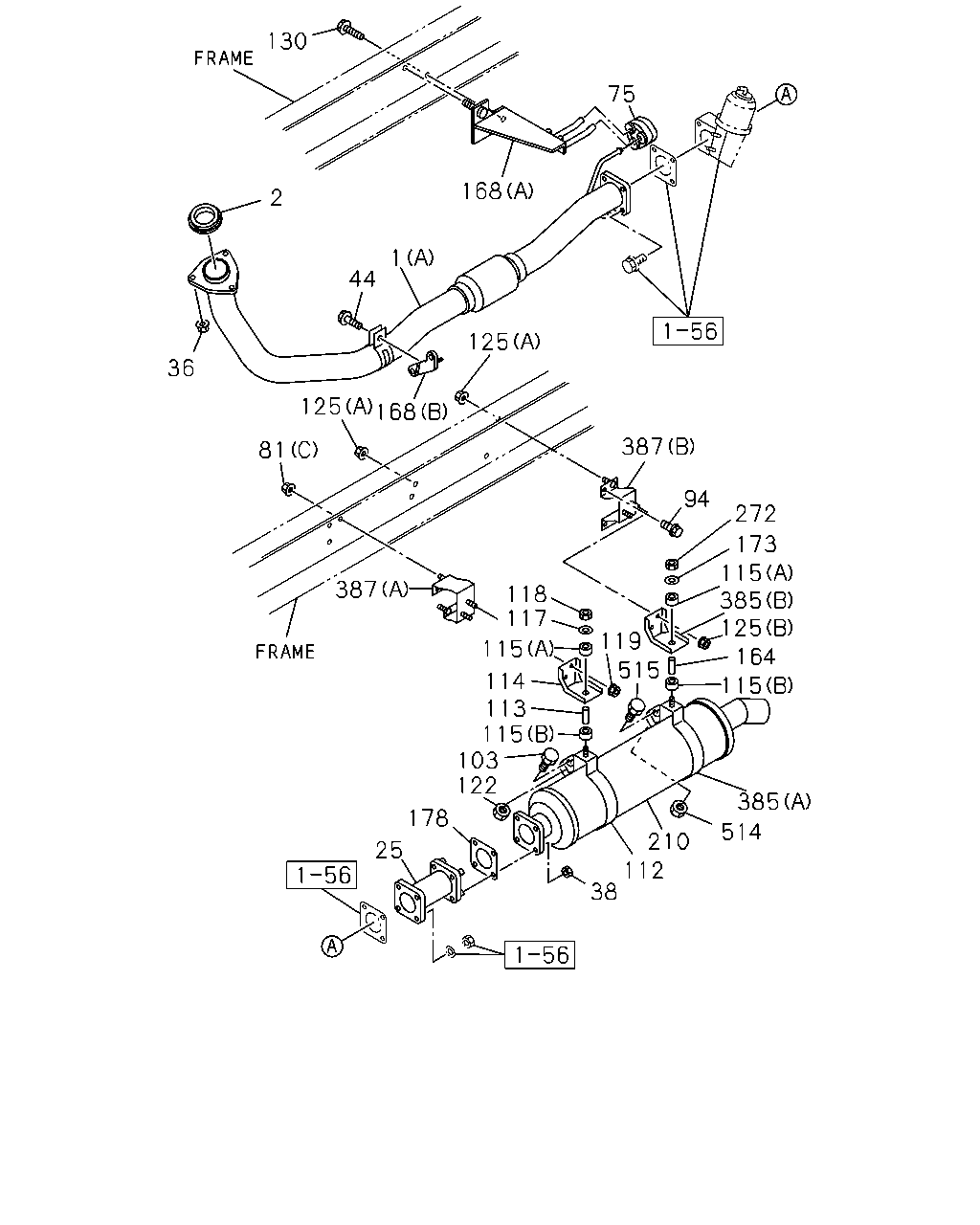

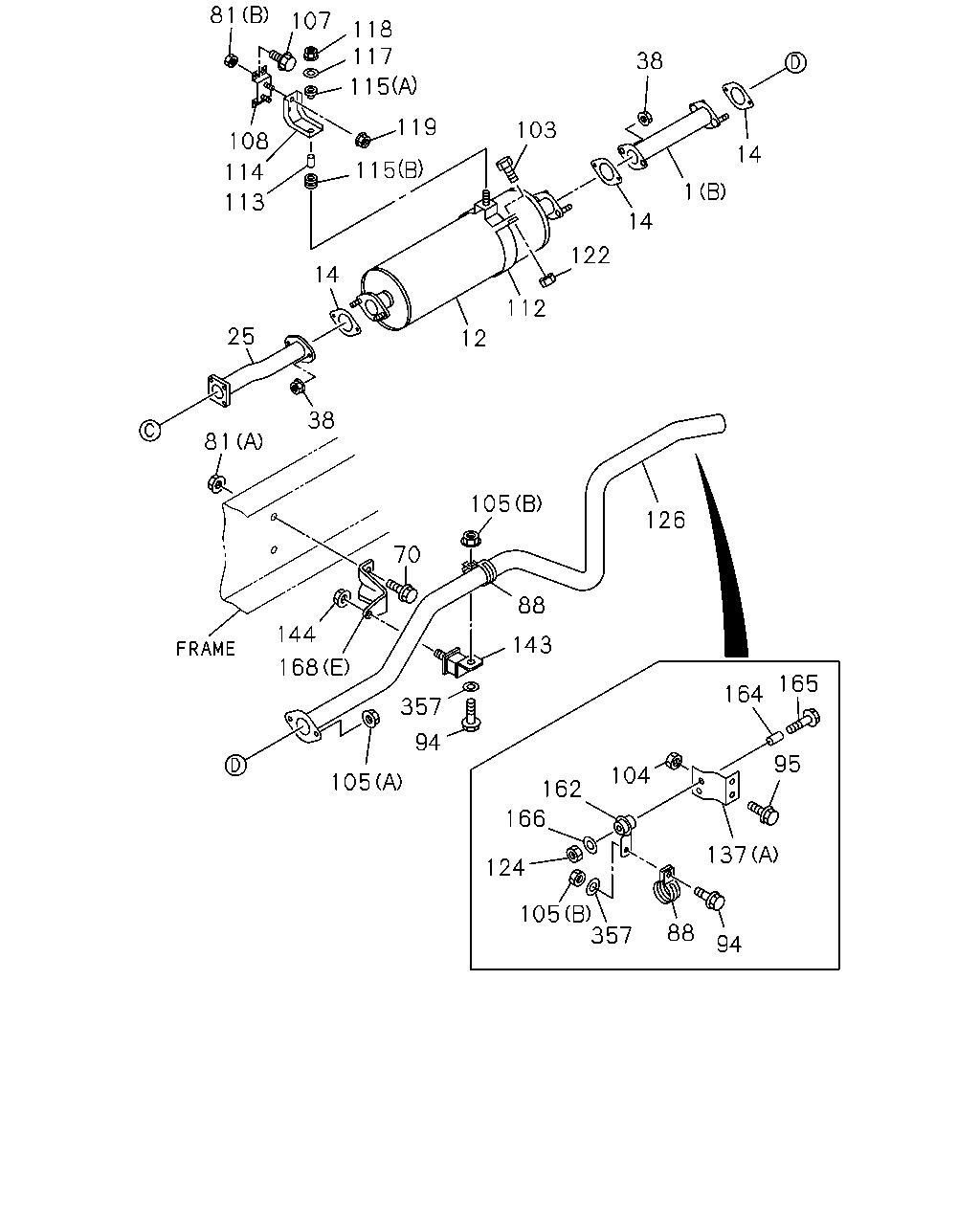

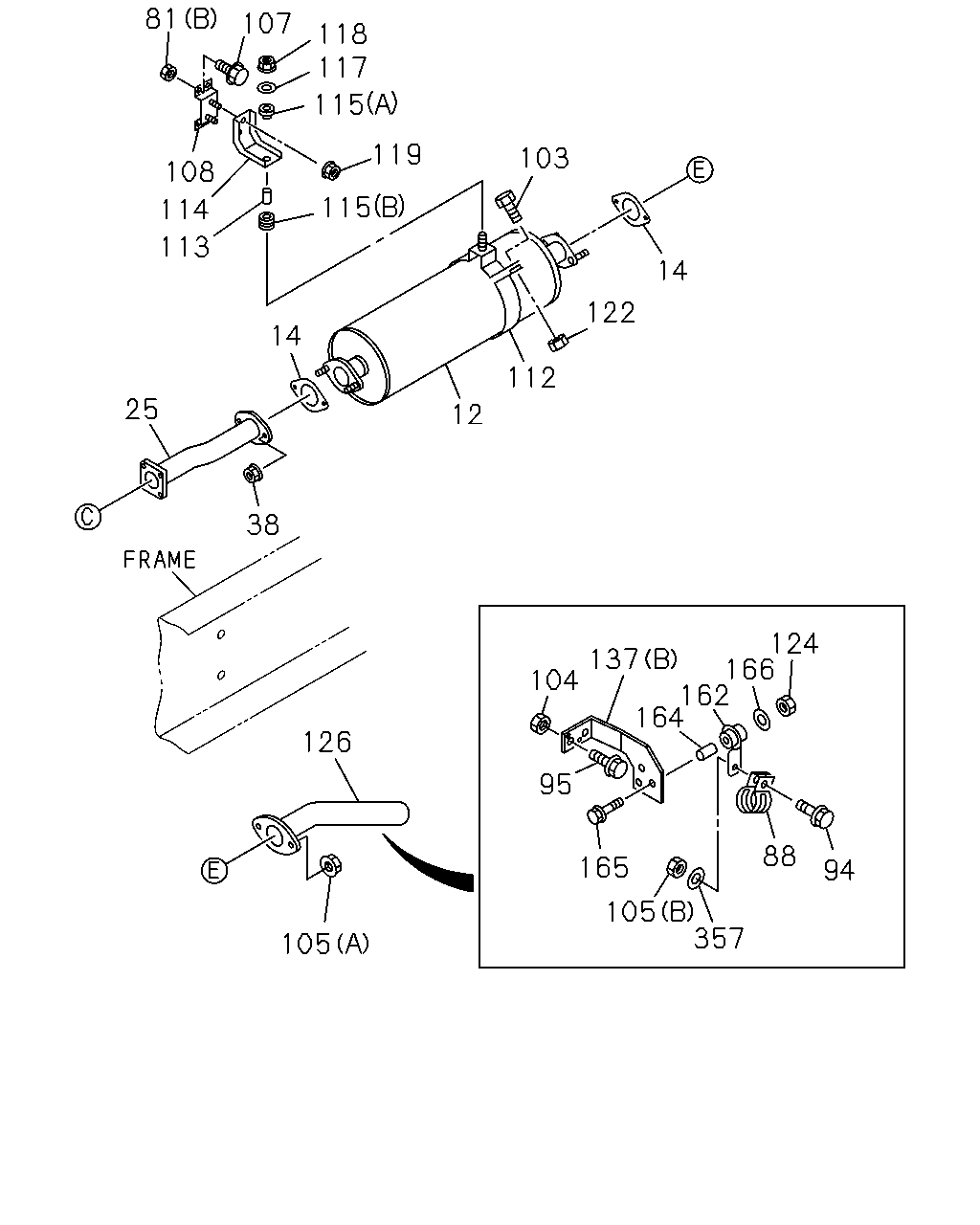

1-50 — EXHAUST PIPE AND SILENCER (#19012) — 581 parça

130 75 168 2 1 44 125 36 125 168 387 81 94 272 173 115 385 125 387 118 117 119 115 164 515 114 113 115 103 122 115 385 178 514 210 112 38 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH EXC. CHARGE AIR COOLER<6PL> (B)	8-97089-322-0	01	1	0201-0301
1	03.609 PIPE; EXH 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> (B)	8-97089-322-0	01	1	0201-0301
1	03.609 PIPE; EXH 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97175-955-4	01	1	0102-0501
1	03.609 PIPE; EXH 4HE1-TCS ENG(RDS) (A)	8-97175-955-4	01	1	0502-
1	03.609 PIPE; EXH 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97358-833-1	01	1	0302-
1	03.609 PIPE; EXH 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51) (A)	8-97256-415-0	01	1	0201-0301
1	03.609 PIPE; EXH 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97256-415-1	01	1	0302-
1	03.609 PIPE; EXH 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),EXHAUST BRAKE<NF8> (A)	8-97307-173-1	01	1	0302-0501
1	03.609 PIPE; EXH 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. EXHAUST BRAKE<NF8> (A)	8-97307-173-1	01	1	0502-
2	03.611 GASKET; PIPE TO MANIF 4HE1 ENG(RLY)	8-97180-749-2	01	1	0102-0112
2	03.611 GASKET; PIPE TO MANIF	8-97180-749-2	01	1	0201-0301
2	03.611 GASKET; PIPE TO MANIF 4HF1 ENG(RLS),4HE1 ENG(RLY)	8-97180-749-2	01	1	0302-0408
2	03.611 GASKET; PIPE TO MANIF 4HF1 ENG(RLS),4HE1 ENG(RLY)	8-97381-455-0	01	1	0409-0501
2	03.611 GASKET; PIPE TO MANIF 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97381-455-0	01	1	0502-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97175-956-3	01	1	0102-0112
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HE1 ENG(RLY) CATALYSIS CONTROL<6MZ> CHARGE AIR COOLER<6PL>	8-97175-956-3	01	1	0201-0501
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HE1-TCS ENG(RDS) CATALYSIS CONTROL<6MZ>	8-97175-956-3	01	1	0502-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51)	8-97100-907-1	01	1	0201-0301
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51)	8-97361-723-0	01	1	0302-0501
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97361-723-0	01	1	0502-
36	03.613 NUT; EXH PIPE 4HE1 ENG(RLY) M10 FLANGE	8-97096-192-1	03	1	0102-0112
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0201-0301
36	03.613 NUT; EXH PIPE 4HF1 ENG(RLS),4HE1 ENG(RLY) M10 FLANGE	8-97096-192-1	03	1	0302-0501
36	03.613 NUT; EXH PIPE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M10 FLANGE	8-97096-192-1	03	1	0502-
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	04	1	0102-0112
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) CATALYSIS CONTROL<6MZ> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	04	1	0201-0501
38	00.002 NUT; SILENCER CATALYSIS CONTROL<6MZ> 07.633 M8 FLANGE	0-91150-108-0	04	1	0502-0602
38	00.002 NUT; SILENCER CATALYSIS CONTROL<6MZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-
38	00.002 NUT; SILENCER 4HF1 ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301
38	00.002 NUT; SILENCER 4HF1 ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301
38	00.002 NUT; SILENCER 4HF1 ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0501
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0501
38	00.002 NUT; SILENCER EXC. CATALYSIS CONTROL<6MZ> 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602
38	00.002 NUT; SILENCER EXC. CATALYSIS CONTROL<6MZ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
44	03.613 BOLT; BRKT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 03.704 M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802
44	03.613 BOLT; BRKT 4HE1 ENG(RLY) 03.415 M8X35 FLANGE	0-28080-835-0	01	1	0102-0112
44	03.613 BOLT; BRKT 03.415 M8X35 FLANGE	0-28080-835-0	01	1	0201-0301
44	03.613 BOLT; BRKT 4HF1 ENG(RLS),4HE1 ENG(RLY) 03.415 M8X35 FLANGE	0-28080-835-0	01	1	0302-0312
44	03.613 BOLT; BRKT 4HF1 ENG(RLS),4HE1 ENG(RLY) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0401-0501
44	03.613 BOLT; BRKT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0502-0707
44	03.613 BOLT; BRKT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0708-0801
44	03.613 BOLT; BRKT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909
44	03.613 BOLT; BRKT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 03.704 M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-
75	03.704 RUBBER; SUPPORT,BRKT 4HE1 ENG(RLY)	8-97080-694-0	01	1	0102-0501
75	03.704 RUBBER; SUPPORT,BRKT 4HE1-TCS ENG(RDS)	8-97080-694-0	01	1	0502-
75	03.704 RUBBER; SUPPORT,BRKT 4HF1 ENG(RLS) 03.613	8-97166-498-0	01	1	0201-0501
75	03.704 RUBBER; SUPPORT,BRKT 4HF1 ENG(RLS) EXC. CATALYSIS CONTROL<6MZ> 03.613	8-97166-498-1	01	1	0502-
81	03.704 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0201-0301
81	03.704 NUT; BRKT 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0302-0501
81	03.704 NUT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0502-0602
81	03.704 NUT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0603-
81	03.704 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 (C) M10 FLANGE	0-91150-110-0	03	1	0102-0501
81	03.704 NUT; BRKT 4HE1-TCS ENG(RDS) 04.785 (C) M10 FLANGE	0-91150-110-0	03	1	0502-0602
81	03.704 NUT; BRKT 4HE1-TCS ENG(RDS) 03.162 (C) M10 FLANGE	0-91180-110-0	03	1	0603-
81	03.704 NUT; BRKT 4HF1 ENG(RLS) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0201-0301
81	03.704 NUT; BRKT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0201-0301
81	03.704 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0201-0301
94	03.704 BOLT; CLAMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0102-0501
94	03.704 BOLT; CLAMP 4HE1-TCS ENG(RDS) 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0502-0512
94	03.704 BOLT; CLAMP 4HE1-TCS ENG(RDS) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0601-
94	03.704 BOLT; CLAMP 4HF1 ENG(RLS) 03.708 M8X45	0-20800-845-0	01	1	0201-0301
94	03.704 BOLT; CLAMP 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.708 M8X45	0-20800-845-0	01	1	0201-0301
94	03.704 BOLT; CLAMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 03.708 M8X45	0-20800-845-0	01	1	0201-0301
94	03.704 BOLT; CLAMP 4HF1 ENG(RLS) 03.708 M8X45	0-20800-845-0	01	1	0201-0301
94	03.704 BOLT; CLAMP 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.708 M8X45	0-20800-845-0	01	1	0201-0301
94	03.704 BOLT; CLAMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 03.708 M8X45	0-20800-845-0	01	1	0201-0301
94	03.704 BOLT; CLAMP EXC. CATALYSIS CONTROL<6MZ> 03.708 M8X45	0-20800-845-0	01	1	0302-
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0102-0707
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0708-0801
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-
112	03.706 BRACKET; HANGER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.704	8-97207-224-0	01	1	0102-0112
112	03.706 BRACKET; HANGER 4HE1 ENG(RLY) CATALYSIS CONTROL<6MZ> CHARGE AIR COOLER<6PL> 03.704	8-97207-224-0	01	1	0201-0501
112	03.706 BRACKET; HANGER 4HE1-TCS ENG(RDS) 03.704	8-97207-224-0	01	1	0502-
112	03.706 BRACKET; HANGER 4HF1 ENG(RLS)	8-97076-020-0	01	1	0201-0301
112	03.706 BRACKET; HANGER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97076-020-0	01	1	0201-0301
112	03.706 BRACKET; HANGER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ>	8-97076-020-0	01	1	0201-0301
112	03.706 BRACKET; HANGER 4HF1 ENG(RLS)	8-97076-020-0	01	1	0302-0501
112	03.706 BRACKET; HANGER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97076-020-0	01	1	0302-0501
112	03.706 BRACKET; HANGER 4HF1 ENG(RLS)	8-97076-020-0	01	1	0502-
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	01	1	0102-
114	03.704 BRACKET; EXH SILENCER FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97041-227-0	01	1	0201-0301
114	03.704 BRACKET; EXH SILENCER 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97041-227-0	01	1	0302-0501
114	03.704 BRACKET; EXH SILENCER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97041-227-0	01	1	0502-
114	03.704 BRACKET; EXH SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-94329-857-0	01	1	0102-0501
114	03.704 BRACKET; EXH SILENCER 4HE1-TCS ENG(RDS)	8-94329-857-0	01	1	0502-
115	03.704 RUBBER; MTG,SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-94457-277-1	01	1	0102-0501
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0102-0501
115	03.704 RUBBER; MTG,SILENCER 4HE1-TCS ENG(RDS) (A)	8-94457-277-1	01	1	0502-0502
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0502-0502
115	03.704 RUBBER; MTG,SILENCER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (A)	8-94457-277-1	01	1	0502-
115	03.704 RUBBER; MTG,SILENCER 4HE1-TCS ENG(RDS) (A)	8-94457-277-1	01	1	0502-
115	03.704 RUBBER; MTG,SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-94457-278-1	01	1	0102-0501
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0102-0501
115	03.704 RUBBER; MTG,SILENCER 4HE1-TCS ENG(RDS) (B)	8-94457-278-1	01	1	0502-0502
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0502-0502
115	03.704 RUBBER; MTG,SILENCER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (B)	8-94457-278-1	01	1	0502-
115	03.704 RUBBER; MTG,SILENCER 4HE1-TCS ENG(RDS) (B)	8-94457-278-1	01	1	0502-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0102-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	0102-
119	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0102-0602
119	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
122	03.275 NUT; HANGER BRKT 02.559 M8	9-09110-408-0	01	1	0102-0512
122	03.275 NUT; HANGER BRKT 02.334 M8	0-91110-508-0	01	1	0601-
125	03.708 NUT; CLAMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0102-0501
125	03.708 NUT; CLAMP 4HE1-TCS ENG(RDS) 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0502-0602
125	03.708 NUT; CLAMP 4HE1-TCS ENG(RDS) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0603-
125	03.708 NUT; CLAMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0102-0501
125	03.708 NUT; CLAMP 4HE1-TCS ENG(RDS) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0502-0602
125	03.708 NUT; CLAMP 4HE1-TCS ENG(RDS) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0603-
130	03.704 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0102-0301
130	03.704 BOLT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0302-0501
130	03.704 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0302-0501
130	03.704 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0502-0512
130	03.704 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0601-
164	03.706 COLLAR; DIST,TAIL PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=37.5	9-22151-217-0	01	1	0102-0112
164	03.706 COLLAR; DIST,TAIL PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=37.5	9-22151-217-0	01	1	0201-0301
164	03.706 COLLAR; DIST,TAIL PIPE 4HF1 ENG(RLS) L=37.5	9-22151-217-0	01	1	0201-0301
164	03.706 COLLAR; DIST,TAIL PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> L=37.5	9-22151-217-0	01	1	0201-0301
164	03.706 COLLAR; DIST,TAIL PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=37.5	9-22151-217-0	01	1	0302-0501
164	03.706 COLLAR; DIST,TAIL PIPE EXC. CATALYSIS CONTROL<6MZ> L=37.5	9-22151-217-0	01	1	0302-0501
164	03.706 COLLAR; DIST,TAIL PIPE 4HE1-TCS ENG(RDS) L=37.5	9-22151-217-0	01	1	0502-
164	03.706 COLLAR; DIST,TAIL PIPE EXC. CATALYSIS CONTROL<6MZ> L=37.5	9-22151-217-0	01	1	0502-
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) (B)	8-94370-046-4	01	1	0102-0112
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (B)	8-94370-046-4	01	1	0201-0501
168	03.613 BRACKET; EXH PIPE,FRT 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> (B)	8-94370-046-4	01	1	0502-
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97214-433-0	01	1	0102-0501
168	03.613 BRACKET; EXH PIPE,FRT 4HE1-TCS ENG(RDS) (A)	8-97214-433-0	01	1	0502-
168	03.613 BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> (C)	8-97238-728-0	01	1	0201-
168	03.613 BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (D)	8-97096-647-1	01	1	0201-0301
168	03.613 BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (F)	8-97350-516-0	01	1	0302-
168	03.613 BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E)	8-97096-651-0	01	1	0201-0301
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (E)	8-97096-651-0	01	1	0201-0301
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> (E)	8-97096-651-0	01	1	0201-0301
173	03.685 WASHER; PL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.704 OD=55	9-09852-169-0	01	1	0102-0501
173	03.685 WASHER; PL CATALYSIS CONTROL<6MZ> 03.704 OD=55	9-09852-169-0	01	1	0502-0506
173	03.685 WASHER; PL 4HE1-TCS ENG(RDS) 03.704 OD=55	9-09852-169-0	01	1	0507-
178	03.611 GASKET; CONV TO MANIF 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.634 ID=64	8-97037-694-0	01	1	0102-0306
178	03.611 GASKET; CONV TO MANIF 4HE1 ENG(RLY) CATALYSIS CONTROL<6MZ> 03.634 ID=64	8-97037-694-0	01	1	0307-0501
178	03.611 GASKET; CONV TO MANIF 4HE1-TCS ENG(RDS) CATALYSIS CONTROL<6MZ> 03.634 ID=64	8-97037-694-0	01	1	0502-
210	03.685 CONVERTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97225-931-2	01	1	0102-0501
210	03.685 CONVERTER 4HE1-TCS ENG(RDS)	8-97225-931-2	01	1	0502-
272	03.685 NUT; FLANGE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.874 M10 FLANGE	5-09440-006-0	01	1	0102-0501
272	03.685 NUT; FLANGE 4HE1-TCS ENG(RDS) 07.874 M10 FLANGE	5-09440-006-0	01	1	0502-
385	03.704 BRACKET; SILENCER MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-94329-857-0	01	1	0102-0501
385	03.704 BRACKET; SILENCER MTG 4HE1-TCS ENG(RDS) (B)	8-94329-857-0	01	1	0502-
385	03.704 BRACKET; SILENCER MTG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97207-224-0	01	1	0102-0112
385	03.704 BRACKET; SILENCER MTG 4HE1 ENG(RLY) CATALYSIS CONTROL<6MZ> CHARGE AIR COOLER<6PL> (A)	8-97207-224-0	01	1	0201-0501
385	03.704 BRACKET; SILENCER MTG 4HE1-TCS ENG(RDS) (A)	8-97207-224-0	01	1	0502-
387	03.704 SPACER; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-97172-493-2	01	1	0102-0501
387	03.704 SPACER; BRKT 4HE1-TCS ENG(RDS) (B)	8-97172-493-2	01	1	0502-
387	03.704 SPACER; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97218-212-0	01	1	0102-0501
387	03.704 SPACER; BRKT 4HE1-TCS ENG(RDS) (A)	8-97218-212-0	01	1	0502-
514	03.704 NUT; BAND 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 02.559 M8	9-09110-408-0	01	1	0102-0501
514	03.704 NUT; BAND 4HE1-TCS ENG(RDS) 02.559 M8	9-09110-408-0	01	1	0502-0512
514	03.704 NUT; BAND 4HE1-TCS ENG(RDS) 02.334 M8	0-91110-508-0	01	1	0601-
515	03.704 BOLT; BAND 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0102-0501
515	03.704 BOLT; BAND 4HE1-TCS ENG(RDS) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0502-0801
515	03.704 BOLT; BAND 4HE1-TCS ENG(RDS) M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802
515	03.704 BOLT; BAND 4HE1-TCS ENG(RDS) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909
515	03.704 BOLT; BAND 4HE1-TCS ENG(RDS) M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-

81 107 118 117 38 115 119 103 108 14 115 114 1 113 14 122 14 112 25 12 38 81 105 126 70 88 144 143 168 165 164 357 94 95 104 105 162 166 137 124 105 357 88 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH EXC. CHARGE AIR COOLER<6PL> (B)	8-97089-322-0	01	1	0201-0301
1	03.609 PIPE; EXH 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> (B)	8-97089-322-0	01	1	0201-0301
1	03.609 PIPE; EXH 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97175-955-4	01	1	0102-0501
1	03.609 PIPE; EXH 4HE1-TCS ENG(RDS) (A)	8-97175-955-4	01	1	0502-
1	03.609 PIPE; EXH 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97358-833-1	01	1	0302-
1	03.609 PIPE; EXH 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51) (A)	8-97256-415-0	01	1	0201-0301
1	03.609 PIPE; EXH 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97256-415-1	01	1	0302-
1	03.609 PIPE; EXH 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),EXHAUST BRAKE<NF8> (A)	8-97307-173-1	01	1	0302-0501
1	03.609 PIPE; EXH 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. EXHAUST BRAKE<NF8> (A)	8-97307-173-1	01	1	0502-
12	03.701 SILENCER ASM; EXH 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51)	8-97206-525-3	01	1	0201-0501
12	03.701 SILENCER ASM; EXH 4HF1 ENG(RLS)	8-97206-525-3	01	1	0502-
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. CHARGE AIR COOLER<6PL> ID=64.7	8-94328-352-0	01	1	0201-0301
14	03.704 GASKET; SILENCER TO EXH PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> ID=64.7	8-94328-352-0	01	1	0201-0301
14	03.704 GASKET; SILENCER TO EXH PIPE 4HF1 ENG(RLS) ID=64.7	8-94328-352-0	01	1	0201-0301
14	03.704 GASKET; SILENCER TO EXH PIPE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> ID=64.7	8-94328-352-0	01	1	0201-0301
14	03.704 GASKET; SILENCER TO EXH PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> ID=64.7	8-94328-352-0	01	1	0201-0301
14	03.704 GASKET; SILENCER TO EXH PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> ID=64.7	8-94328-352-0	01	1	0201-0301
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. CHARGE AIR COOLER<6PL> ID=64.7	8-94328-352-0	01	1	0201-0301
14	03.704 GASKET; SILENCER TO EXH PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> ID=64.7	8-94328-352-0	01	1	0201-0301
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. CATALYSIS CONTROL<6MZ> ID=64.7	8-94328-352-0	01	1	0302-
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. CATALYSIS CONTROL<6MZ> ID=64.7	8-94328-352-0	01	1	0302-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97175-956-3	01	1	0102-0112
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HE1 ENG(RLY) CATALYSIS CONTROL<6MZ> CHARGE AIR COOLER<6PL>	8-97175-956-3	01	1	0201-0501
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HE1-TCS ENG(RDS) CATALYSIS CONTROL<6MZ>	8-97175-956-3	01	1	0502-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51)	8-97100-907-1	01	1	0201-0301
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51)	8-97361-723-0	01	1	0302-0501
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97361-723-0	01	1	0502-
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	04	1	0102-0112
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) CATALYSIS CONTROL<6MZ> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	04	1	0201-0501
38	00.002 NUT; SILENCER CATALYSIS CONTROL<6MZ> 07.633 M8 FLANGE	0-91150-108-0	04	1	0502-0602
38	00.002 NUT; SILENCER CATALYSIS CONTROL<6MZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-
38	00.002 NUT; SILENCER 4HF1 ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301
38	00.002 NUT; SILENCER 4HF1 ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301
38	00.002 NUT; SILENCER 4HF1 ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0501
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0501
38	00.002 NUT; SILENCER EXC. CATALYSIS CONTROL<6MZ> 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602
38	00.002 NUT; SILENCER EXC. CATALYSIS CONTROL<6MZ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
70	03.706 BOLT; BRKT 4HF1 ENG(RLS) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0201-0301
70	03.706 BOLT; BRKT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0201-0301
70	03.706 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0201-0301
81	03.704 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0201-0301
81	03.704 NUT; BRKT 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0302-0501
81	03.704 NUT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0502-0602
81	03.704 NUT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0603-
81	03.704 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 (C) M10 FLANGE	0-91150-110-0	03	1	0102-0501
81	03.704 NUT; BRKT 4HE1-TCS ENG(RDS) 04.785 (C) M10 FLANGE	0-91150-110-0	03	1	0502-0602
81	03.704 NUT; BRKT 4HE1-TCS ENG(RDS) 03.162 (C) M10 FLANGE	0-91180-110-0	03	1	0603-
81	03.704 NUT; BRKT 4HF1 ENG(RLS) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0201-0301
81	03.704 NUT; BRKT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0201-0301
81	03.704 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0201-0301
88	03.708 CLAMP; EXH PIPE 4HF1 ENG(RLS) ID=61.6	8-97010-307-0	01	1	0201-0301
88	03.708 CLAMP; EXH PIPE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> ID=61.6	8-97010-307-0	01	1	0201-0301
88	03.708 CLAMP; EXH PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> ID=61.6	8-97010-307-0	01	1	0201-0301
88	03.708 CLAMP; EXH PIPE 4HF1 ENG(RLS) ID=61.6	8-97010-307-0	01	1	0201-0301
88	03.708 CLAMP; EXH PIPE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> ID=61.6	8-97010-307-0	01	1	0201-0301
88	03.708 CLAMP; EXH PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> ID=61.6	8-97010-307-0	01	1	0201-0301
88	03.708 CLAMP; EXH PIPE EXC. CATALYSIS CONTROL<6MZ> ID=61.6	8-97010-307-0	01	1	0302-
94	03.704 BOLT; CLAMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0102-0501
94	03.704 BOLT; CLAMP 4HE1-TCS ENG(RDS) 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0502-0512
94	03.704 BOLT; CLAMP 4HE1-TCS ENG(RDS) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0601-
94	03.704 BOLT; CLAMP 4HF1 ENG(RLS) 03.708 M8X45	0-20800-845-0	01	1	0201-0301
94	03.704 BOLT; CLAMP 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.708 M8X45	0-20800-845-0	01	1	0201-0301
94	03.704 BOLT; CLAMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 03.708 M8X45	0-20800-845-0	01	1	0201-0301
94	03.704 BOLT; CLAMP 4HF1 ENG(RLS) 03.708 M8X45	0-20800-845-0	01	1	0201-0301
94	03.704 BOLT; CLAMP 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.708 M8X45	0-20800-845-0	01	1	0201-0301
94	03.704 BOLT; CLAMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 03.708 M8X45	0-20800-845-0	01	1	0201-0301
94	03.704 BOLT; CLAMP EXC. CATALYSIS CONTROL<6MZ> 03.708 M8X45	0-20800-845-0	01	1	0302-
95	03.708 BOLT; BRKT 4HF1 ENG(RLS) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0201-0301
95	03.708 BOLT; BRKT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0201-0301
95	03.708 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0201-0301
95	03.708 BOLT; BRKT EXC. CATALYSIS CONTROL<6MZ> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0302-0512
95	03.708 BOLT; BRKT EXC. CATALYSIS CONTROL<6MZ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0102-0707
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0708-0801
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-
104	03.704 NUT; BRKT 4HF1 ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-0301
104	03.704 NUT; BRKT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-0301
104	03.704 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-0301
104	03.704 NUT; BRKT EXC. CATALYSIS CONTROL<6MZ> 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0602
104	03.704 NUT; BRKT EXC. CATALYSIS CONTROL<6MZ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
105	03.704 NUT; CLAMP EXC. CHARGE AIR COOLER<6PL> 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0201-0301
105	03.704 NUT; CLAMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0201-0301
105	03.704 NUT; CLAMP EXC. CATALYSIS CONTROL<6MZ> 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0302-0602
105	03.704 NUT; CLAMP EXC. CATALYSIS CONTROL<6MZ> 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0603-
105	03.704 NUT; CLAMP 4HF1 ENG(RLS) 02.559 (B) M8	9-09110-408-0	01	1	0201-0301
105	03.704 NUT; CLAMP 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 (B) M8	9-09110-408-0	01	1	0201-0301
105	03.704 NUT; CLAMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 02.559 (B) M8	9-09110-408-0	01	1	0201-0301
105	03.704 NUT; CLAMP 4HF1 ENG(RLS) 02.559 (B) M8	9-09110-408-0	01	1	0201-0301
105	03.704 NUT; CLAMP 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 (B) M8	9-09110-408-0	01	1	0201-0301
105	03.704 NUT; CLAMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 02.559 (B) M8	9-09110-408-0	01	1	0201-0301
105	03.704 NUT; CLAMP EXC. CATALYSIS CONTROL<6MZ> 02.559 (B) M8	9-09110-408-0	01	1	0302-0512
105	03.704 NUT; CLAMP EXC. CATALYSIS CONTROL<6MZ> 02.334 (B) M8	0-91110-508-0	01	1	0601-
107	03.704 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0201-0301
107	03.704 BOLT; BRKT 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0302-0501
107	03.704 BOLT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0502-0512
107	03.704 BOLT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-94378-511-1	01	1	0201-0301
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-94378-511-1	01	1	0302-0501
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-94378-511-1	01	1	0502-
112	03.706 BRACKET; HANGER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.704	8-97207-224-0	01	1	0102-0112
112	03.706 BRACKET; HANGER 4HE1 ENG(RLY) CATALYSIS CONTROL<6MZ> CHARGE AIR COOLER<6PL> 03.704	8-97207-224-0	01	1	0201-0501
112	03.706 BRACKET; HANGER 4HE1-TCS ENG(RDS) 03.704	8-97207-224-0	01	1	0502-
112	03.706 BRACKET; HANGER 4HF1 ENG(RLS)	8-97076-020-0	01	1	0201-0301
112	03.706 BRACKET; HANGER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97076-020-0	01	1	0201-0301
112	03.706 BRACKET; HANGER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ>	8-97076-020-0	01	1	0201-0301
112	03.706 BRACKET; HANGER 4HF1 ENG(RLS)	8-97076-020-0	01	1	0302-0501
112	03.706 BRACKET; HANGER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97076-020-0	01	1	0302-0501
112	03.706 BRACKET; HANGER 4HF1 ENG(RLS)	8-97076-020-0	01	1	0502-
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	01	1	0102-
114	03.704 BRACKET; EXH SILENCER FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97041-227-0	01	1	0201-0301
114	03.704 BRACKET; EXH SILENCER 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97041-227-0	01	1	0302-0501
114	03.704 BRACKET; EXH SILENCER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97041-227-0	01	1	0502-
114	03.704 BRACKET; EXH SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-94329-857-0	01	1	0102-0501
114	03.704 BRACKET; EXH SILENCER 4HE1-TCS ENG(RDS)	8-94329-857-0	01	1	0502-
115	03.704 RUBBER; MTG,SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-94457-277-1	01	1	0102-0501
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0102-0501
115	03.704 RUBBER; MTG,SILENCER 4HE1-TCS ENG(RDS) (A)	8-94457-277-1	01	1	0502-0502
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0502-0502
115	03.704 RUBBER; MTG,SILENCER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (A)	8-94457-277-1	01	1	0502-
115	03.704 RUBBER; MTG,SILENCER 4HE1-TCS ENG(RDS) (A)	8-94457-277-1	01	1	0502-
115	03.704 RUBBER; MTG,SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-94457-278-1	01	1	0102-0501
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0102-0501
115	03.704 RUBBER; MTG,SILENCER 4HE1-TCS ENG(RDS) (B)	8-94457-278-1	01	1	0502-0502
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0502-0502
115	03.704 RUBBER; MTG,SILENCER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (B)	8-94457-278-1	01	1	0502-
115	03.704 RUBBER; MTG,SILENCER 4HE1-TCS ENG(RDS) (B)	8-94457-278-1	01	1	0502-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0102-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	0102-
119	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0102-0602
119	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
122	03.275 NUT; HANGER BRKT 02.559 M8	9-09110-408-0	01	1	0102-0512
122	03.275 NUT; HANGER BRKT 02.334 M8	0-91110-508-0	01	1	0601-
124	03.704 NUT; SUPPORT RUBBER 4HF1 ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	01	1	0201-0301
124	03.704 NUT; SUPPORT RUBBER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	01	1	0201-0301
124	03.704 NUT; SUPPORT RUBBER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0201-0301
124	03.704 NUT; SUPPORT RUBBER EXC. CATALYSIS CONTROL<6MZ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0302-0602
124	03.704 NUT; SUPPORT RUBBER EXC. CATALYSIS CONTROL<6MZ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-
126	03.705 PIPE; EXH,RR EXC. CATALYSIS CONTROL<6MZ>	8-97240-342-1	01	1	0302-
126	03.705 PIPE; EXH,RR EXC. CHARGE AIR COOLER<6PL>	8-97034-103-0	01	1	0201-0201
126	03.705 PIPE; EXH,RR EXC. CHARGE AIR COOLER<6PL>	8-97328-181-0	01	1	0202-0301
137	03.706 BRACKET; TAIL PIPE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97116-588-2	01	1	0201-0301
137	03.706 BRACKET; TAIL PIPE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97116-588-2	01	1	0201-0301
137	03.706 BRACKET; TAIL PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> (A)	8-97116-588-2	01	1	0201-0301
137	03.706 BRACKET; TAIL PIPE EXC. CATALYSIS CONTROL<6MZ> (B)	8-97360-459-0	01	1	0302-
143	03.704 RUBBER; SUPPORT 4HF1 ENG(RLS)	8-97229-586-0	01	1	0201-0301
143	03.704 RUBBER; SUPPORT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97229-586-0	01	1	0201-0301
143	03.704 RUBBER; SUPPORT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ>	8-97229-586-0	01	1	0201-0301
144	03.613 NUT; MTG RUBBER 4HF1 ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0301
144	03.613 NUT; MTG RUBBER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0301
144	03.613 NUT; MTG RUBBER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0201-0301
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HF1 ENG(RLS) L=115	8-94156-256-0	01	1	0201-0301
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> L=115	8-94156-256-0	01	1	0201-0301
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> L=115	8-94156-256-0	01	1	0201-0301
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXC. CATALYSIS CONTROL<6MZ> L=115	8-94156-256-0	01	1	0302-
164	03.706 COLLAR; DIST,TAIL PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=37.5	9-22151-217-0	01	1	0102-0112
164	03.706 COLLAR; DIST,TAIL PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=37.5	9-22151-217-0	01	1	0201-0301
164	03.706 COLLAR; DIST,TAIL PIPE 4HF1 ENG(RLS) L=37.5	9-22151-217-0	01	1	0201-0301
164	03.706 COLLAR; DIST,TAIL PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> L=37.5	9-22151-217-0	01	1	0201-0301
164	03.706 COLLAR; DIST,TAIL PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=37.5	9-22151-217-0	01	1	0302-0501
164	03.706 COLLAR; DIST,TAIL PIPE EXC. CATALYSIS CONTROL<6MZ> L=37.5	9-22151-217-0	01	1	0302-0501
164	03.706 COLLAR; DIST,TAIL PIPE 4HE1-TCS ENG(RDS) L=37.5	9-22151-217-0	01	1	0502-
164	03.706 COLLAR; DIST,TAIL PIPE EXC. CATALYSIS CONTROL<6MZ> L=37.5	9-22151-217-0	01	1	0502-
165	03.706 BOLT; SUPPORT RUBBER 4HF1 ENG(RLS) M10X70 FLANGE	0-28081-070-0	01	1	0201-0301
165	03.706 BOLT; SUPPORT RUBBER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> M10X70 FLANGE	0-28081-070-0	01	1	0201-0301
165	03.706 BOLT; SUPPORT RUBBER EXC. CATALYSIS CONTROL<6MZ> M10X70 FLANGE	0-28081-070-0	01	1	0302-0512
165	03.706 BOLT; SUPPORT RUBBER EXC. CATALYSIS CONTROL<6MZ> M10X70 FLANGE	0-28051-070-0	01	1	0601-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HF1 ENG(RLS) ID=10.5 OD=32	9-09164-810-0	01	1	0201-0301
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> ID=10.5 OD=32	9-09164-810-0	01	1	0201-0301
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> ID=10.5 OD=32	9-09164-810-0	01	1	0201-0301
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. CATALYSIS CONTROL<6MZ> ID=10.5 OD=32	9-09164-810-0	01	1	0302-0605
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. CATALYSIS CONTROL<6MZ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0606-
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) (B)	8-94370-046-4	01	1	0102-0112
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (B)	8-94370-046-4	01	1	0201-0501
168	03.613 BRACKET; EXH PIPE,FRT 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> (B)	8-94370-046-4	01	1	0502-
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97214-433-0	01	1	0102-0501
168	03.613 BRACKET; EXH PIPE,FRT 4HE1-TCS ENG(RDS) (A)	8-97214-433-0	01	1	0502-
168	03.613 BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> (C)	8-97238-728-0	01	1	0201-
168	03.613 BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (D)	8-97096-647-1	01	1	0201-0301
168	03.613 BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (F)	8-97350-516-0	01	1	0302-
168	03.613 BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E)	8-97096-651-0	01	1	0201-0301
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (E)	8-97096-651-0	01	1	0201-0301
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> (E)	8-97096-651-0	01	1	0201-0301
357	03.708 WASHER; PL,CLAMP 4HF1 ENG(RLS) 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0201-0301
357	03.708 WASHER; PL,CLAMP 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0201-0301
357	03.708 WASHER; PL,CLAMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0201-0301
357	03.708 WASHER; PL,CLAMP 4HF1 ENG(RLS) 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0201-0301
357	03.708 WASHER; PL,CLAMP 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0201-0301
357	03.708 WASHER; PL,CLAMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0201-0301
357	03.708 WASHER; PL,CLAMP EXC. CATALYSIS CONTROL<6MZ> 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0302-0605
357	03.708 WASHER; PL,CLAMP EXC. CATALYSIS CONTROL<6MZ> 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-

130 376 168 352 75 168 2 1 36 44 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH EXC. CHARGE AIR COOLER<6PL> (B)	8-97089-322-0	01	1	0201-0301
1	03.609 PIPE; EXH 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> (B)	8-97089-322-0	01	1	0201-0301
1	03.609 PIPE; EXH 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97175-955-4	01	1	0102-0501
1	03.609 PIPE; EXH 4HE1-TCS ENG(RDS) (A)	8-97175-955-4	01	1	0502-
1	03.609 PIPE; EXH 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97358-833-1	01	1	0302-
1	03.609 PIPE; EXH 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51) (A)	8-97256-415-0	01	1	0201-0301
1	03.609 PIPE; EXH 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXHAUST BRAKE<NF8> EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97256-415-1	01	1	0302-
1	03.609 PIPE; EXH 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. TURBOCHARGER(K51),EXHAUST BRAKE<NF8> (A)	8-97307-173-1	01	1	0302-0501
1	03.609 PIPE; EXH 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. EXHAUST BRAKE<NF8> (A)	8-97307-173-1	01	1	0502-
2	03.611 GASKET; PIPE TO MANIF 4HE1 ENG(RLY)	8-97180-749-2	01	1	0102-0112
2	03.611 GASKET; PIPE TO MANIF	8-97180-749-2	01	1	0201-0301
2	03.611 GASKET; PIPE TO MANIF 4HF1 ENG(RLS),4HE1 ENG(RLY)	8-97180-749-2	01	1	0302-0408
2	03.611 GASKET; PIPE TO MANIF 4HF1 ENG(RLS),4HE1 ENG(RLY)	8-97381-455-0	01	1	0409-0501
2	03.611 GASKET; PIPE TO MANIF 4HE1-TCS ENG(RDS),4HF1 ENG(RLS)	8-97381-455-0	01	1	0502-
36	03.613 NUT; EXH PIPE 4HE1 ENG(RLY) M10 FLANGE	8-97096-192-1	03	1	0102-0112
36	03.613 NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0201-0301
36	03.613 NUT; EXH PIPE 4HF1 ENG(RLS),4HE1 ENG(RLY) M10 FLANGE	8-97096-192-1	03	1	0302-0501
36	03.613 NUT; EXH PIPE 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) M10 FLANGE	8-97096-192-1	03	1	0502-
44	03.613 BOLT; BRKT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 03.704 M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802
44	03.613 BOLT; BRKT 4HE1 ENG(RLY) 03.415 M8X35 FLANGE	0-28080-835-0	01	1	0102-0112
44	03.613 BOLT; BRKT 03.415 M8X35 FLANGE	0-28080-835-0	01	1	0201-0301
44	03.613 BOLT; BRKT 4HF1 ENG(RLS),4HE1 ENG(RLY) 03.415 M8X35 FLANGE	0-28080-835-0	01	1	0302-0312
44	03.613 BOLT; BRKT 4HF1 ENG(RLS),4HE1 ENG(RLY) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0401-0501
44	03.613 BOLT; BRKT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0502-0707
44	03.613 BOLT; BRKT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0708-0801
44	03.613 BOLT; BRKT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909
44	03.613 BOLT; BRKT 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 03.704 M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-
75	03.704 RUBBER; SUPPORT,BRKT 4HE1 ENG(RLY)	8-97080-694-0	01	1	0102-0501
75	03.704 RUBBER; SUPPORT,BRKT 4HE1-TCS ENG(RDS)	8-97080-694-0	01	1	0502-
75	03.704 RUBBER; SUPPORT,BRKT 4HF1 ENG(RLS) 03.613	8-97166-498-0	01	1	0201-0501
75	03.704 RUBBER; SUPPORT,BRKT 4HF1 ENG(RLS) EXC. CATALYSIS CONTROL<6MZ> 03.613	8-97166-498-1	01	1	0502-
130	03.704 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0102-0301
130	03.704 BOLT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0302-0501
130	03.704 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0302-0501
130	03.704 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0502-0512
130	03.704 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0601-
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) (B)	8-94370-046-4	01	1	0102-0112
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (B)	8-94370-046-4	01	1	0201-0501
168	03.613 BRACKET; EXH PIPE,FRT 4HE1-TCS ENG(RDS) FLOOR REMOTE SHIFT<M11> (B)	8-94370-046-4	01	1	0502-
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97214-433-0	01	1	0102-0501
168	03.613 BRACKET; EXH PIPE,FRT 4HE1-TCS ENG(RDS) (A)	8-97214-433-0	01	1	0502-
168	03.613 BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> (C)	8-97238-728-0	01	1	0201-
168	03.613 BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (D)	8-97096-647-1	01	1	0201-0301
168	03.613 BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (F)	8-97350-516-0	01	1	0302-
168	03.613 BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (E)	8-97096-651-0	01	1	0201-0301
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (E)	8-97096-651-0	01	1	0201-0301
168	03.613 BRACKET; EXH PIPE,FRT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> (E)	8-97096-651-0	01	1	0201-0301
352	03.613 NUT; BRKT MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0706-
376	03.708 BOLT; BRKT EXC. CHARGE AIR COOLER<6PL> 03.162 M10X35 FLANGE	0-28681-035-0	02	1	0201-0301

81 107 118 117 115 119 103 108 115 114 113 14 122 14 112 25 12 38 124 166 162 164 137 104 126 95 88 165 94 105 357 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	03.701 SILENCER ASM; EXH 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51)	8-97206-525-3	01	1	0201-0501
12	03.701 SILENCER ASM; EXH 4HF1 ENG(RLS)	8-97206-525-3	01	1	0502-
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. CHARGE AIR COOLER<6PL> ID=64.7	8-94328-352-0	01	1	0201-0301
14	03.704 GASKET; SILENCER TO EXH PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> ID=64.7	8-94328-352-0	01	1	0201-0301
14	03.704 GASKET; SILENCER TO EXH PIPE 4HF1 ENG(RLS) ID=64.7	8-94328-352-0	01	1	0201-0301
14	03.704 GASKET; SILENCER TO EXH PIPE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> ID=64.7	8-94328-352-0	01	1	0201-0301
14	03.704 GASKET; SILENCER TO EXH PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> ID=64.7	8-94328-352-0	01	1	0201-0301
14	03.704 GASKET; SILENCER TO EXH PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> ID=64.7	8-94328-352-0	01	1	0201-0301
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. CHARGE AIR COOLER<6PL> ID=64.7	8-94328-352-0	01	1	0201-0301
14	03.704 GASKET; SILENCER TO EXH PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> ID=64.7	8-94328-352-0	01	1	0201-0301
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. CATALYSIS CONTROL<6MZ> ID=64.7	8-94328-352-0	01	1	0302-
14	03.704 GASKET; SILENCER TO EXH PIPE EXC. CATALYSIS CONTROL<6MZ> ID=64.7	8-94328-352-0	01	1	0302-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-97175-956-3	01	1	0102-0112
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HE1 ENG(RLY) CATALYSIS CONTROL<6MZ> CHARGE AIR COOLER<6PL>	8-97175-956-3	01	1	0201-0501
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HE1-TCS ENG(RDS) CATALYSIS CONTROL<6MZ>	8-97175-956-3	01	1	0502-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51)	8-97100-907-1	01	1	0201-0301
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> EXC. TURBOCHARGER(K51)	8-97361-723-0	01	1	0302-0501
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97361-723-0	01	1	0502-
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	04	1	0102-0112
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) CATALYSIS CONTROL<6MZ> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	04	1	0201-0501
38	00.002 NUT; SILENCER CATALYSIS CONTROL<6MZ> 07.633 M8 FLANGE	0-91150-108-0	04	1	0502-0602
38	00.002 NUT; SILENCER CATALYSIS CONTROL<6MZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-
38	00.002 NUT; SILENCER 4HF1 ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301
38	00.002 NUT; SILENCER 4HF1 ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301
38	00.002 NUT; SILENCER 4HF1 ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0501
38	00.002 NUT; SILENCER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0501
38	00.002 NUT; SILENCER EXC. CATALYSIS CONTROL<6MZ> 04.785 M10 FLANGE	0-91150-110-0	02	1	0502-0602
38	00.002 NUT; SILENCER EXC. CATALYSIS CONTROL<6MZ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
81	03.704 NUT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0201-0301
81	03.704 NUT; BRKT 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0302-0501
81	03.704 NUT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	0502-0602
81	03.704 NUT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0603-
81	03.704 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 04.785 (C) M10 FLANGE	0-91150-110-0	03	1	0102-0501
81	03.704 NUT; BRKT 4HE1-TCS ENG(RDS) 04.785 (C) M10 FLANGE	0-91150-110-0	03	1	0502-0602
81	03.704 NUT; BRKT 4HE1-TCS ENG(RDS) 03.162 (C) M10 FLANGE	0-91180-110-0	03	1	0603-
81	03.704 NUT; BRKT 4HF1 ENG(RLS) 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0201-0301
81	03.704 NUT; BRKT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0201-0301
81	03.704 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0201-0301
88	03.708 CLAMP; EXH PIPE 4HF1 ENG(RLS) ID=61.6	8-97010-307-0	01	1	0201-0301
88	03.708 CLAMP; EXH PIPE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> ID=61.6	8-97010-307-0	01	1	0201-0301
88	03.708 CLAMP; EXH PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> ID=61.6	8-97010-307-0	01	1	0201-0301
88	03.708 CLAMP; EXH PIPE 4HF1 ENG(RLS) ID=61.6	8-97010-307-0	01	1	0201-0301
88	03.708 CLAMP; EXH PIPE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> ID=61.6	8-97010-307-0	01	1	0201-0301
88	03.708 CLAMP; EXH PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> ID=61.6	8-97010-307-0	01	1	0201-0301
88	03.708 CLAMP; EXH PIPE EXC. CATALYSIS CONTROL<6MZ> ID=61.6	8-97010-307-0	01	1	0302-
94	03.704 BOLT; CLAMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0102-0501
94	03.704 BOLT; CLAMP 4HE1-TCS ENG(RDS) 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0502-0512
94	03.704 BOLT; CLAMP 4HE1-TCS ENG(RDS) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0601-
94	03.704 BOLT; CLAMP 4HF1 ENG(RLS) 03.708 M8X45	0-20800-845-0	01	1	0201-0301
94	03.704 BOLT; CLAMP 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.708 M8X45	0-20800-845-0	01	1	0201-0301
94	03.704 BOLT; CLAMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 03.708 M8X45	0-20800-845-0	01	1	0201-0301
94	03.704 BOLT; CLAMP 4HF1 ENG(RLS) 03.708 M8X45	0-20800-845-0	01	1	0201-0301
94	03.704 BOLT; CLAMP 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 03.708 M8X45	0-20800-845-0	01	1	0201-0301
94	03.704 BOLT; CLAMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 03.708 M8X45	0-20800-845-0	01	1	0201-0301
94	03.704 BOLT; CLAMP EXC. CATALYSIS CONTROL<6MZ> 03.708 M8X45	0-20800-845-0	01	1	0302-
95	03.708 BOLT; BRKT 4HF1 ENG(RLS) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0201-0301
95	03.708 BOLT; BRKT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0201-0301
95	03.708 BOLT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0201-0301
95	03.708 BOLT; BRKT EXC. CATALYSIS CONTROL<6MZ> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0302-0512
95	03.708 BOLT; BRKT EXC. CATALYSIS CONTROL<6MZ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0802-0802
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0102-0707
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0708-0801
103	03.704 BOLT; SILENCER BRKT FIX 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-0909
103	03.704 BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50540-845-0	01	1	0910-
104	03.704 NUT; BRKT 4HF1 ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-0301
104	03.704 NUT; BRKT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-0301
104	03.704 NUT; BRKT 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0201-0301
104	03.704 NUT; BRKT EXC. CATALYSIS CONTROL<6MZ> 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0602
104	03.704 NUT; BRKT EXC. CATALYSIS CONTROL<6MZ> 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-
105	03.704 NUT; CLAMP EXC. CHARGE AIR COOLER<6PL> 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0201-0301
105	03.704 NUT; CLAMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0201-0301
105	03.704 NUT; CLAMP EXC. CATALYSIS CONTROL<6MZ> 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	0302-0602
105	03.704 NUT; CLAMP EXC. CATALYSIS CONTROL<6MZ> 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0603-
105	03.704 NUT; CLAMP 4HF1 ENG(RLS) 02.559 (B) M8	9-09110-408-0	01	1	0201-0301
105	03.704 NUT; CLAMP 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 (B) M8	9-09110-408-0	01	1	0201-0301
105	03.704 NUT; CLAMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 02.559 (B) M8	9-09110-408-0	01	1	0201-0301
105	03.704 NUT; CLAMP 4HF1 ENG(RLS) 02.559 (B) M8	9-09110-408-0	01	1	0201-0301
105	03.704 NUT; CLAMP 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.559 (B) M8	9-09110-408-0	01	1	0201-0301
105	03.704 NUT; CLAMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 02.559 (B) M8	9-09110-408-0	01	1	0201-0301
105	03.704 NUT; CLAMP EXC. CATALYSIS CONTROL<6MZ> 02.559 (B) M8	9-09110-408-0	01	1	0302-0512
105	03.704 NUT; CLAMP EXC. CATALYSIS CONTROL<6MZ> 02.334 (B) M8	0-91110-508-0	01	1	0601-
107	03.704 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0201-0301
107	03.704 BOLT; BRKT 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0302-0501
107	03.704 BOLT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.405 M10X30 FLANGE	0-28681-030-0	02	1	0502-0512
107	03.704 BOLT; BRKT 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0601-
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-94378-511-1	01	1	0201-0301
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-94378-511-1	01	1	0302-0501
108	03.704 BRACKET; BRKT TO FRAME,EXH SILEN 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-94378-511-1	01	1	0502-
112	03.706 BRACKET; HANGER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.704	8-97207-224-0	01	1	0102-0112
112	03.706 BRACKET; HANGER 4HE1 ENG(RLY) CATALYSIS CONTROL<6MZ> CHARGE AIR COOLER<6PL> 03.704	8-97207-224-0	01	1	0201-0501
112	03.706 BRACKET; HANGER 4HE1-TCS ENG(RDS) 03.704	8-97207-224-0	01	1	0502-
112	03.706 BRACKET; HANGER 4HF1 ENG(RLS)	8-97076-020-0	01	1	0201-0301
112	03.706 BRACKET; HANGER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97076-020-0	01	1	0201-0301
112	03.706 BRACKET; HANGER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ>	8-97076-020-0	01	1	0201-0301
112	03.706 BRACKET; HANGER 4HF1 ENG(RLS)	8-97076-020-0	01	1	0302-0501
112	03.706 BRACKET; HANGER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-97076-020-0	01	1	0302-0501
112	03.706 BRACKET; HANGER 4HF1 ENG(RLS)	8-97076-020-0	01	1	0502-
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	01	1	0102-
114	03.704 BRACKET; EXH SILENCER FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97041-227-0	01	1	0201-0301
114	03.704 BRACKET; EXH SILENCER 4HF1 ENG(RLS),4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97041-227-0	01	1	0302-0501
114	03.704 BRACKET; EXH SILENCER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ>	8-97041-227-0	01	1	0502-
114	03.704 BRACKET; EXH SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	8-94329-857-0	01	1	0102-0501
114	03.704 BRACKET; EXH SILENCER 4HE1-TCS ENG(RDS)	8-94329-857-0	01	1	0502-
115	03.704 RUBBER; MTG,SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-94457-277-1	01	1	0102-0501
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0102-0501
115	03.704 RUBBER; MTG,SILENCER 4HE1-TCS ENG(RDS) (A)	8-94457-277-1	01	1	0502-0502
115	03.704 RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0502-0502
115	03.704 RUBBER; MTG,SILENCER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (A)	8-94457-277-1	01	1	0502-
115	03.704 RUBBER; MTG,SILENCER 4HE1-TCS ENG(RDS) (A)	8-94457-277-1	01	1	0502-
115	03.704 RUBBER; MTG,SILENCER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (B)	8-94457-278-1	01	1	0102-0501
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0102-0501
115	03.704 RUBBER; MTG,SILENCER 4HE1-TCS ENG(RDS) (B)	8-94457-278-1	01	1	0502-0502
115	03.704 RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0502-0502
115	03.704 RUBBER; MTG,SILENCER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (B)	8-94457-278-1	01	1	0502-
115	03.704 RUBBER; MTG,SILENCER 4HE1-TCS ENG(RDS) (B)	8-94457-278-1	01	1	0502-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0102-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	01	1	0102-
119	03.704 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0102-0602
119	03.704 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
122	03.275 NUT; HANGER BRKT 02.559 M8	9-09110-408-0	01	1	0102-0512
122	03.275 NUT; HANGER BRKT 02.334 M8	0-91110-508-0	01	1	0601-
124	03.704 NUT; SUPPORT RUBBER 4HF1 ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	01	1	0201-0301
124	03.704 NUT; SUPPORT RUBBER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	01	1	0201-0301
124	03.704 NUT; SUPPORT RUBBER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0201-0301
124	03.704 NUT; SUPPORT RUBBER EXC. CATALYSIS CONTROL<6MZ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0302-0602
124	03.704 NUT; SUPPORT RUBBER EXC. CATALYSIS CONTROL<6MZ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-
126	03.705 PIPE; EXH,RR EXC. CATALYSIS CONTROL<6MZ>	8-97240-342-1	01	1	0302-
126	03.705 PIPE; EXH,RR EXC. CHARGE AIR COOLER<6PL>	8-97034-103-0	01	1	0201-0201
126	03.705 PIPE; EXH,RR EXC. CHARGE AIR COOLER<6PL>	8-97328-181-0	01	1	0202-0301
137	03.706 BRACKET; TAIL PIPE 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (A)	8-97116-588-2	01	1	0201-0301
137	03.706 BRACKET; TAIL PIPE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (A)	8-97116-588-2	01	1	0201-0301
137	03.706 BRACKET; TAIL PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> (A)	8-97116-588-2	01	1	0201-0301
137	03.706 BRACKET; TAIL PIPE EXC. CATALYSIS CONTROL<6MZ> (B)	8-97360-459-0	01	1	0302-
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HF1 ENG(RLS) L=115	8-94156-256-0	01	1	0201-0301
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> L=115	8-94156-256-0	01	1	0201-0301
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> L=115	8-94156-256-0	01	1	0201-0301
162	03.706 RUBBER; SUPPORT,TAIL PIPE EXC. CATALYSIS CONTROL<6MZ> L=115	8-94156-256-0	01	1	0302-
164	03.706 COLLAR; DIST,TAIL PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=37.5	9-22151-217-0	01	1	0102-0112
164	03.706 COLLAR; DIST,TAIL PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=37.5	9-22151-217-0	01	1	0201-0301
164	03.706 COLLAR; DIST,TAIL PIPE 4HF1 ENG(RLS) L=37.5	9-22151-217-0	01	1	0201-0301
164	03.706 COLLAR; DIST,TAIL PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> L=37.5	9-22151-217-0	01	1	0201-0301
164	03.706 COLLAR; DIST,TAIL PIPE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> L=37.5	9-22151-217-0	01	1	0302-0501
164	03.706 COLLAR; DIST,TAIL PIPE EXC. CATALYSIS CONTROL<6MZ> L=37.5	9-22151-217-0	01	1	0302-0501
164	03.706 COLLAR; DIST,TAIL PIPE 4HE1-TCS ENG(RDS) L=37.5	9-22151-217-0	01	1	0502-
164	03.706 COLLAR; DIST,TAIL PIPE EXC. CATALYSIS CONTROL<6MZ> L=37.5	9-22151-217-0	01	1	0502-
165	03.706 BOLT; SUPPORT RUBBER 4HF1 ENG(RLS) M10X70 FLANGE	0-28081-070-0	01	1	0201-0301
165	03.706 BOLT; SUPPORT RUBBER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> M10X70 FLANGE	0-28081-070-0	01	1	0201-0301
165	03.706 BOLT; SUPPORT RUBBER EXC. CATALYSIS CONTROL<6MZ> M10X70 FLANGE	0-28081-070-0	01	1	0302-0512
165	03.706 BOLT; SUPPORT RUBBER EXC. CATALYSIS CONTROL<6MZ> M10X70 FLANGE	0-28051-070-0	01	1	0601-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HF1 ENG(RLS) ID=10.5 OD=32	9-09164-810-0	01	1	0201-0301
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> ID=10.5 OD=32	9-09164-810-0	01	1	0201-0301
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> ID=10.5 OD=32	9-09164-810-0	01	1	0201-0301
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. CATALYSIS CONTROL<6MZ> ID=10.5 OD=32	9-09164-810-0	01	1	0302-0605
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI EXC. CATALYSIS CONTROL<6MZ> 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0606-
357	03.708 WASHER; PL,CLAMP 4HF1 ENG(RLS) 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0201-0301
357	03.708 WASHER; PL,CLAMP 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0201-0301
357	03.708 WASHER; PL,CLAMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0201-0301
357	03.708 WASHER; PL,CLAMP 4HF1 ENG(RLS) 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0201-0301
357	03.708 WASHER; PL,CLAMP 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0201-0301
357	03.708 WASHER; PL,CLAMP 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. CATALYSIS CONTROL<6MZ> 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0201-0301
357	03.708 WASHER; PL,CLAMP EXC. CATALYSIS CONTROL<6MZ> 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0302-0605
357	03.708 WASHER; PL,CLAMP EXC. CATALYSIS CONTROL<6MZ> 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
