Sayfa 1-45 - Isuzu EPC

1-45 — WATER SEDIMENTER; FUEL (#19011) — 172 parça

1 6 8 40 7 9 4 6 8 40 4 29 42 38 5 3 34 36 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97188-042-0	01	1	0102-0501
1	03.890 SEDIMENTER; FUEL 4HE1-TCS ENG(RDS) (A)	8-97188-042-1	01	1	0502-
1	03.890 SEDIMENTER; FUEL 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51) (B)	8-94311-522-2	01	1	0201-0501
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> (B)	8-94311-522-2	01	1	0201-0501
1	03.890 SEDIMENTER; FUEL 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-94311-522-3	01	1	0502-
1	03.890 SEDIMENTER; FUEL 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94144-933-3	01	1	0201-0501
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, CHARGE AIR COOLER<6PL> (C)	8-94144-933-3	01	1	0201-0501
1	03.890 SEDIMENTER; FUEL 4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94144-933-4	01	1	0502-
3	03.890 BODY ASM; SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13211-192-0	01	1	0102-0501
3	03.890 BODY ASM; SEDIMENTER 4HE1-TCS ENG(RDS)	1-13211-192-0	01	1	0502-
4	03.890 COVER; UPR,SEDIMENTER ASM 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13212-146-0	01	1	0102-0501
4	03.890 COVER; UPR,SEDIMENTER ASM 4HE1-TCS ENG(RDS)	1-13212-146-0	01	1	0502-
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-09623-491-0	01	1	0102-0501
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1-TCS ENG(RDS)	1-09623-491-0	01	1	0502-
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51)	5-09623-075-0	01	1	0201-0501
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-09623-075-0	01	1	0201-0501
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HF1 ENG(RLS)	5-09623-075-0	01	1	0502-
6	03.890 CONNECTOR ASM; SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13229-002-0	02	1	0102-0501
6	03.890 CONNECTOR ASM; SEDIMENTER 4HE1-TCS ENG(RDS)	1-13229-002-0	02	1	0502-
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	9-13219-070-0	01	1	0102-0501
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1-TCS ENG(RDS)	9-13219-070-0	01	1	0502-
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51)	8-94132-674-0	01	1	0201-0501
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-94132-674-0	01	1	0201-0501
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1 ENG(RLS)	8-94132-674-0	01	1	0502-
8	03.890 STOPPER; CONN,SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13229-001-0	02	1	0102-0501
8	03.890 STOPPER; CONN,SEDIMENTER 4HE1-TCS ENG(RDS)	1-13229-001-0	02	1	0502-
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	0102-0501
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1-TCS ENG(RDS) 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	0502-
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51)	8-94132-675-0	01	1	0201-0501
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94132-675-0	01	1	0201-0501
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0502-
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU> 03.895	9-09571-406-0	01	1	0201-0501
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, CHARGE AIR COOLER<6PL> 03.895	9-09571-406-0	01	1	0201-0501
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895	9-09571-406-0	01	1	0502-
29	03.890 SCREEN ASM; SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13219-228-0	01	1	0102-0501
29	03.890 SCREEN ASM; SEDIMENTER 4HE1-TCS ENG(RDS)	1-13219-228-0	01	1	0502-
34	03.890 PLUG; DRAIN,FUEL FILTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13219-225-0	01	1	0102-0501
34	03.890 PLUG; DRAIN,FUEL FILTER 4HE1-TCS ENG(RDS)	1-13219-225-0	01	1	0502-
35	03.890 GASKET; DRAIN PLUG 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-09623-490-0	01	1	0102-0501
35	03.890 GASKET; DRAIN PLUG 4HE1-TCS ENG(RDS)	1-09623-490-0	01	1	0502-
36	03.890 RING; BODY TO CASE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13219-226-0	01	1	0102-0501
36	03.890 RING; BODY TO CASE 4HE1-TCS ENG(RDS)	1-13219-226-0	01	1	0502-
36	03.890 RING; BODY TO CASE 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51)	5-13234-001-0	01	1	0201-0501
36	03.890 RING; BODY TO CASE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-13234-001-0	01	1	0201-0501
36	03.890 RING; BODY TO CASE 4HF1 ENG(RLS)	5-13234-001-0	01	1	0502-
38	03.890 FLOAT; SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13219-227-0	01	1	0102-0501
38	03.890 FLOAT; SEDIMENTER 4HE1-TCS ENG(RDS)	1-13219-227-0	01	1	0502-
40	03.890 GASKET; CONNECTOR TO COVER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0102-0501
40	03.890 GASKET; CONNECTOR TO COVER 4HE1-TCS ENG(RDS) 03.163 ID=14.2 OD=19.2	1-09630-085-0	02	1	0502-
42	03.890 PLATE; BAFFLE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13219-229-0	01	1	0102-0501
42	03.890 PLATE; BAFFLE 4HE1-TCS ENG(RDS)	1-13219-229-0	01	1	0502-

20 24 19 1 20 20 24 19 21 20 1 1 1 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97188-042-0	01	1	0102-0501
1	03.890 SEDIMENTER; FUEL 4HE1-TCS ENG(RDS) (A)	8-97188-042-1	01	1	0502-
1	03.890 SEDIMENTER; FUEL 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51) (B)	8-94311-522-2	01	1	0201-0501
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> (B)	8-94311-522-2	01	1	0201-0501
1	03.890 SEDIMENTER; FUEL 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-94311-522-3	01	1	0502-
1	03.890 SEDIMENTER; FUEL 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94144-933-3	01	1	0201-0501
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, CHARGE AIR COOLER<6PL> (C)	8-94144-933-3	01	1	0201-0501
1	03.890 SEDIMENTER; FUEL 4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94144-933-4	01	1	0502-
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL(S6B) (A)	8-97182-048-2	01	1	0102-0309
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL(S6B) (A)	8-97372-020-0	01	1	0310-0310
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> EXC. FUEL FILTER DUAL(S6B) (A)	8-97182-048-2	01	1	0311-0501
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1-TCS ENG(RDS) EXC. FUEL FILTER DUAL(S6B) (A)	8-97182-048-2	01	1	0502-
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) CHARGE AIR COOLER<6PL> (B)	8-97148-721-1	01	1	0102-0212
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) CHARGE AIR COOLER<6PL> (B)	8-97363-088-0	01	1	0301-0501
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1-TCS ENG(RDS) FUEL FILTER DUAL(S6B) (B)	8-97363-088-0	01	1	0502-
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B)	8-97189-165-0	01	1	0201-0212
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B)	8-97189-165-0	01	1	0201-0212
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B)	8-97363-089-0	01	1	0301-0501
19	03.890 BRACKET; FUEL SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> (B)	8-97363-089-0	01	1	0301-0501
19	03.890 BRACKET; FUEL SEDIMENTER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> (B)	8-97363-089-0	01	1	0502-
20	03.890 BOLT; BRKT TO SEDIMENTER FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	04	1	0201-0301
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.405 M10X30 FLANGE	0-28681-030-0	03	1	0102-0501
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1-TCS ENG(RDS) 03.405 M10X30 FLANGE	0-28681-030-0	03	1	0502-0512
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1-TCS ENG(RDS) 00.029 M10X30 FLANGE	0-28651-030-0	03	1	0601-
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0201-0301
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0302-0302
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0302-0302
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0302-0302
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0501
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0303-0501
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1-TCS ENG(RDS) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0502-0512
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0502-0512
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1-TCS ENG(RDS) M10X30 FLANGE	0-28051-030-0	02	1	0601-
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) M10X30 FLANGE	0-28051-030-0	02	1	0601-
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0201-0501
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0201-0501
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0502-0512
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0102-0112
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0102-0112
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0201-0501
20	03.890 BOLT; BRKT TO SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0201-0501
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 00.685 M10X30 FLANGE	0-28081-030-0	03	1	0502-0512
20	03.890 BOLT; BRKT TO SEDIMENTER 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE	0-28051-030-0	03	1	0601-
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS) MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE	0-91180-110-0	04	1	0706-
21	03.890 NUT; BRKT TO FRAME FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	02	1	0201-0301
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS),4HE1 ENG(RLY) FUEL FILTER DUAL(S6B) 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0302
21	03.890 NUT; BRKT TO FRAME 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	03	1	0311-0501
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0201-0302
21	03.890 NUT; BRKT TO FRAME 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	01	1	0201-0302
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	03	1	0303-0310
21	03.890 NUT; BRKT TO FRAME 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE	0-91150-110-0	03	1	0303-0310
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 04.785 M10 FLANGE	0-91150-110-0	01	1	0311-0602
21	03.890 NUT; BRKT TO FRAME 4HF1 ENG(RLS) FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-
24	03.890 NUT; SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 08.917 M10 FLANGE	0-91150-210-0	02	1	0102-0501
24	03.890 NUT; SEDIMENTER 4HE1-TCS ENG(RDS) 08.917 M10 FLANGE	0-91150-210-0	02	1	0502-0602
24	03.890 NUT; SEDIMENTER 4HE1-TCS ENG(RDS) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-

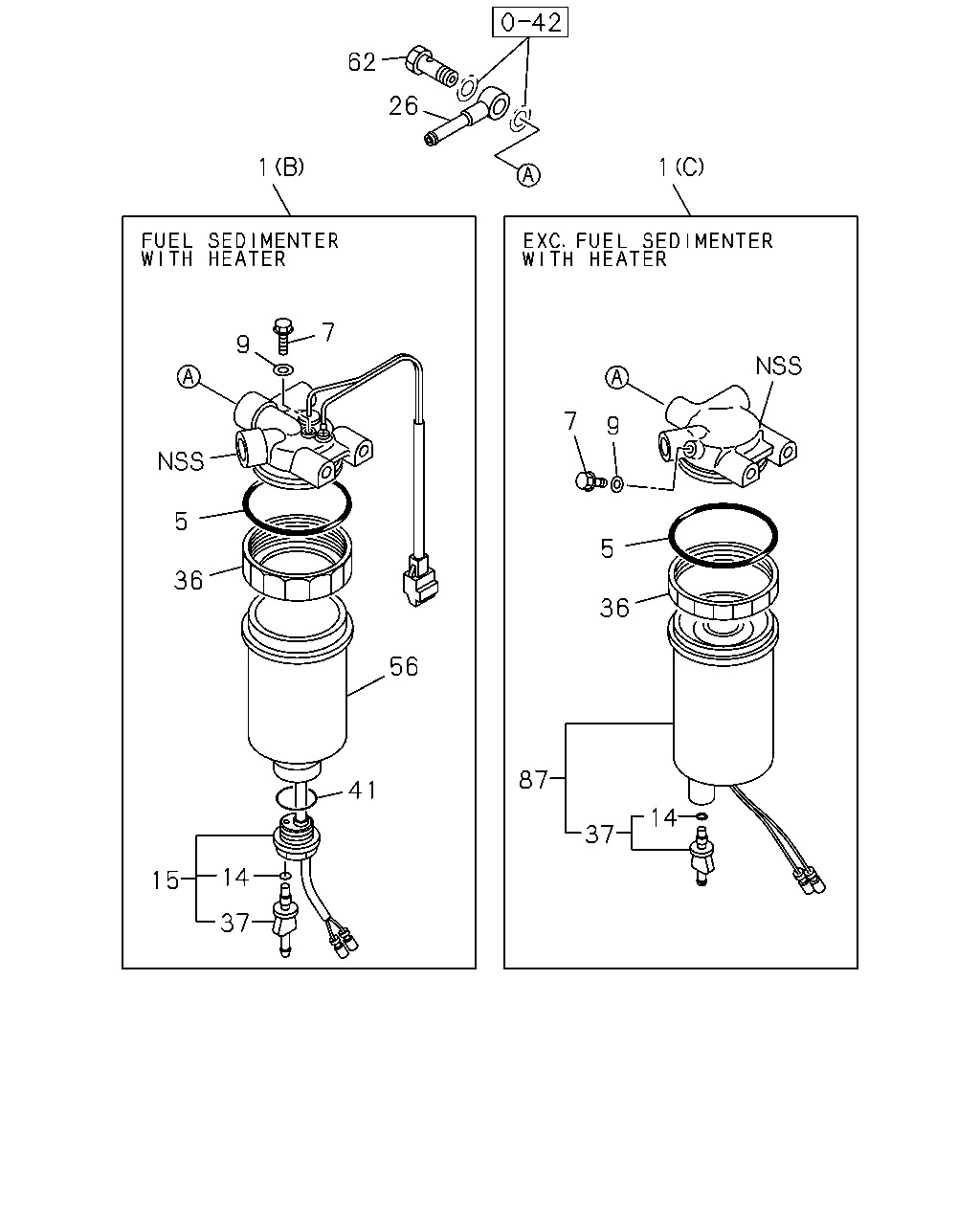

62 26 1 1 7 9 7 9 5 5 36 36 56 87 41 14 37 14 15 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> (A)	8-97188-042-0	01	1	0102-0501
1	03.890 SEDIMENTER; FUEL 4HE1-TCS ENG(RDS) (A)	8-97188-042-1	01	1	0502-
1	03.890 SEDIMENTER; FUEL 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51) (B)	8-94311-522-2	01	1	0201-0501
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> (B)	8-94311-522-2	01	1	0201-0501
1	03.890 SEDIMENTER; FUEL 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> (B)	8-94311-522-3	01	1	0502-
1	03.890 SEDIMENTER; FUEL 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94144-933-3	01	1	0201-0501
1	03.890 SEDIMENTER; FUEL 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, CHARGE AIR COOLER<6PL> (C)	8-94144-933-3	01	1	0201-0501
1	03.890 SEDIMENTER; FUEL 4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (C)	8-94144-933-4	01	1	0502-
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-09623-491-0	01	1	0102-0501
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1-TCS ENG(RDS)	1-09623-491-0	01	1	0502-
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51)	5-09623-075-0	01	1	0201-0501
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-09623-075-0	01	1	0201-0501
5	03.890 GASKET; UPR COVER,SEDIMENTER 4HF1 ENG(RLS)	5-09623-075-0	01	1	0502-
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	9-13219-070-0	01	1	0102-0501
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1-TCS ENG(RDS)	9-13219-070-0	01	1	0502-
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51)	8-94132-674-0	01	1	0201-0501
7	03.890 PLUG; DRAIN,SEDIMENTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	8-94132-674-0	01	1	0201-0501
7	03.890 PLUG; DRAIN,SEDIMENTER 4HF1 ENG(RLS)	8-94132-674-0	01	1	0502-
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	0102-0501
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1-TCS ENG(RDS) 03.162 ID=8.2 OD=13.2	1-09630-082-0	01	1	0502-
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51)	8-94132-675-0	01	1	0201-0501
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94132-675-0	01	1	0201-0501
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94132-675-0	01	1	0502-
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU> 03.895	9-09571-406-0	01	1	0201-0501
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, CHARGE AIR COOLER<6PL> 03.895	9-09571-406-0	01	1	0201-0501
9	03.890 GASKET; DRAIN PLUG & CONNECTOR 4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895	9-09571-406-0	01	1	0502-
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51)	8-94416-377-0	01	1	0201-0501
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94416-377-0	01	1	0201-0501
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94416-377-0	01	1	0502-0712
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0201-0501
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, CHARGE AIR COOLER<6PL>	8-94447-156-0	01	1	0201-0501
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94447-156-0	01	1	0502-0712
14	03.890 GASKET; SENSOR TO CENTER BOLT 4HF1 ENG(RLS)	8-94447-156-0	01	1	0801-
15	03.890 SENSOR ASM; SEDIMENTER 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51)	8-94153-430-0	01	1	0201-0501
15	03.890 SENSOR ASM; SEDIMENTER 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94153-430-0	01	1	0201-0501
15	03.890 SENSOR ASM; SEDIMENTER 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94153-430-0	01	1	0502-0712
26	03.163 PIPE; FUEL,IN & OUT 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51)	5-15411-223-1	02	1	0201-0501
26	03.163 PIPE; FUEL,IN & OUT 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-15411-223-1	02	1	0201-0501
26	03.163 PIPE; FUEL,IN & OUT 4HF1 ENG(RLS)	5-15411-223-1	02	1	0502-
36	03.890 RING; BODY TO CASE 4HE1 ENG(RLY) CHARGE AIR COOLER<6PL>	1-13219-226-0	01	1	0102-0501
36	03.890 RING; BODY TO CASE 4HE1-TCS ENG(RDS)	1-13219-226-0	01	1	0502-
36	03.890 RING; BODY TO CASE 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51)	5-13234-001-0	01	1	0201-0501
36	03.890 RING; BODY TO CASE 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL>	5-13234-001-0	01	1	0201-0501
36	03.890 RING; BODY TO CASE 4HF1 ENG(RLS)	5-13234-001-0	01	1	0502-
37	03.890 PLUG; SENSOR 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51)	8-94416-376-0	01	1	0201-0501
37	03.890 PLUG; SENSOR 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	8-94416-376-0	01	1	0201-0501
37	03.890 PLUG; SENSOR 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	8-94416-376-0	01	1	0502-0712
37	03.890 PLUG; SENSOR 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0201-0501
37	03.890 PLUG; SENSOR 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, CHARGE AIR COOLER<6PL>	8-94453-746-0	01	1	0201-0501
37	03.890 PLUG; SENSOR 4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-94453-746-0	01	1	0502-0712
37	03.890 PLUG; SENSOR 4HF1 ENG(RLS)	8-94453-746-0	01	1	0801-
41	03.890 GASKET; SENSOR TO CASE 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51) 08.927	9-09563-334-0	01	1	0201-0501
41	03.890 GASKET; SENSOR TO CASE 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL> 08.927	9-09563-334-0	01	1	0201-0501
41	03.890 GASKET; SENSOR TO CASE 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> 08.927	9-09563-334-0	01	1	0502-0712
56	03.890 CASE; FUEL SEDIMENTER 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU> EXC. TURBOCHARGER(K51)	5-13211-030-1	01	1	0201-0501
56	03.890 CASE; FUEL SEDIMENTER 4HE1 ENG(RLY) FUEL SEDIMENTER WITH HEATER<6HU> EXC. CHARGE AIR COOLER<6PL>	5-13211-030-1	01	1	0201-0501
56	03.890 CASE; FUEL SEDIMENTER 4HF1 ENG(RLS) FUEL SEDIMENTER WITH HEATER<6HU>	5-13211-030-1	01	1	0502-0712
62	03.162 BOLT; EYE,FUEL FILTER 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51) M14X29 EYE-BOLT	9-09906-325-1	02	1	0201-0501
62	03.162 BOLT; EYE,FUEL FILTER 4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> M14X29 EYE-BOLT	9-09906-325-1	02	1	0201-0501
62	03.162 BOLT; EYE,FUEL FILTER 4HF1 ENG(RLS) M14X29 EYE-BOLT	9-09906-325-1	02	1	0502-
87	03.890 CASE ASM; SEDIMENTER 4HF1 ENG(RLS) EXC. TURBOCHARGER(K51),FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-0	01	1	0201-0501
87	03.890 CASE ASM; SEDIMENTER 4HE1 ENG(RLY) EXC. FUEL SEDIMENTER WITH HEATER<6HU>, CHARGE AIR COOLER<6PL>	8-97219-363-0	01	1	0201-0501
87	03.890 CASE ASM; SEDIMENTER 4HF1 ENG(RLS) EXC. FUEL SEDIMENTER WITH HEATER<6HU>	8-97219-363-0	01	1	0502-0712
87	03.890 CASE ASM; SEDIMENTER 4HF1 ENG(RLS)	8-97219-363-1	01	1	0801-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
