◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NP ▶ 50915 - NP/NQ BUS LHDEXC.EU4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#19009) — 138 parça
çizim 11093
1 6 614 19 3 14 158 159 452 25 8 11
BalonParca AdiParca NoAdetTipApplied Date
1 03.001 TANK; FUEL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> FUEL TANK 100 LITTER<N02> (B) 979X380X375 100L 		8-98280-479-0 01 1 1411-
1 03.001 TANK; FUEL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> (A) 1000X340X327 100L 		8-97350-991-1 01 1 0611-
1 03.001 TANK; FUEL
(A) 1000X340X327 100L 		8-97188-865-0 01 1 0102-0301
1 03.001 TANK; FUEL
(B) 980X380X375 100L 		8-97356-869-0 01 1 0302-0401
1 03.001 TANK; FUEL
(B) 979X380X375 100L 		8-97375-634-1 01 1 0402-0501
1 03.001 TANK; FUEL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (B) 979X380X375 100L 		8-97375-634-5 01 1 0502-0610
1 03.001 TANK; FUEL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FUEL TANK 100 LITTER<N02> (B) 979X380X375 100L 		8-97375-634-5 01 1 0611-1410
1 03.001 TANK; FUEL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FUEL TANK 100 LITTER<N02> EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 979X380X375 100L 		8-97375-634-5 01 1 1411-
3 03.107 UNIT; FUEL TANK,SUB
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> FUEL TANK 100 LITTER<N02> 		8-98278-777-0 01 1 1411-
3 03.107 UNIT; FUEL TANK,SUB
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> 03.001 		8-94316-190-0 01 1 0611-
3 03.107 UNIT; FUEL TANK,SUB
03.001 		8-94316-190-0 01 1 0102-0301
3 03.107 UNIT; FUEL TANK,SUB 8-97363-006-0 01 1 0302-0501
3 03.107 UNIT; FUEL TANK,SUB
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-97363-006-0 01 1 0502-0610
3 03.107 UNIT; FUEL TANK,SUB
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FUEL TANK 100 LITTER<N02> 		8-97363-006-0 01 1 0611-1410
3 03.107 UNIT; FUEL TANK,SUB
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FUEL TANK 100 LITTER<N02> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97363-006-0 01 1 1411-
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 0102-0501
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 0502-0603
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 0604-
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> 03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 0611-
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
01.550 		1-21729-043-0 01 1 0102-0301
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 0302-0501
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 0502-0610
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FUEL TANK 100 LITTER<N02> 08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 0611-
11 03.890 PLUG; DRAIN,FUEL TANK
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> 01.453 M14X14 		9-09862-156-0 01 1 0611-
11 03.890 PLUG; DRAIN,FUEL TANK
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0102-0301
11 03.890 PLUG; DRAIN,FUEL TANK
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0302-0501
11 03.890 PLUG; DRAIN,FUEL TANK
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0502-0512
11 03.890 PLUG; DRAIN,FUEL TANK
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601-0610
11 03.890 PLUG; DRAIN,FUEL TANK
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FUEL TANK 100 LITTER<N02> 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0611-
14 03.163 HOSE; BREATHER,OUTLET
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FUEL TANK 100 LITTER<N02> L=420 		8-98157-809-0 01 1 0502-
14 03.163 HOSE; BREATHER,OUTLET
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> 00.034 L=430 SERVICED BY L=10000 		9-09914-701-0 01 1 0611-
14 03.163 HOSE; BREATHER,OUTLET
00.034 L=430 SERVICED BY L=10000 		9-09914-701-0 01 1 0102-0301
19 03.112 GASKET; FUEL TANK UNIT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> ID=42 OD=71 		5-83148-001-0 01 1 0611-1410
19 03.112 GASKET; FUEL TANK UNIT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> ID=42 OD=71 		5-83148-001-0 01 1 1411-
19 03.112 GASKET; FUEL TANK UNIT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> FUEL TANK 100 LITTER<N02> ID=42 OD=71 		5-83148-001-0 01 1 1411-
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0102-0301
19 03.112 GASKET; FUEL TANK UNIT 8-97363-616-0 01 1 0302-0501
19 03.112 GASKET; FUEL TANK UNIT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-97363-616-0 01 1 0502-0610
19 03.112 GASKET; FUEL TANK UNIT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FUEL TANK 100 LITTER<N02> 		8-97363-616-0 01 1 0611-1410
19 03.112 GASKET; FUEL TANK UNIT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FUEL TANK 100 LITTER<N02> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97363-616-0 01 1 1411-
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-94258-609-1 01 1 0102-
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 0302-0501
158 03.164 VALVE; ROLL OVER & FLOAT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-97179-645-0 01 1 0502-0610
158 03.164 VALVE; ROLL OVER & FLOAT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FUEL TANK 100 LITTER<N02> 		8-97179-645-0 01 1 0611-
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 0302-0501
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-97326-488-0 01 1 0502-0610
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FUEL TANK 100 LITTER<N02> 		8-97326-488-0 01 1 0611-
452 03.028 BREATHER; FUEL TANK
EXC. FUEL TANK 100 LITTER<N02> 		8-97062-954-1 01 1 0611-
452 03.028 BREATHER; FUEL TANK 8-97062-954-1 01 1 0102-0301
452 03.028 BREATHER; FUEL TANK 8-97357-261-0 01 1 0302-0610
452 03.028 BREATHER; FUEL TANK
FUEL TANK 100 LITTER<N02> 		8-97357-261-0 01 1 0611-
614 03.028 HARNESS; FUEL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> FUEL TANK 100 LITTER<N02> 		8-98285-440-0 01 1 1411-
614 03.028 HARNESS; FUEL 8-97363-614-0 01 1 0302-0501
614 03.028 HARNESS; FUEL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-97363-614-0 01 1 0502-0610
614 03.028 HARNESS; FUEL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FUEL TANK 100 LITTER<N02> 		8-97363-614-0 01 1 0611-1410
614 03.028 HARNESS; FUEL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FUEL TANK 100 LITTER<N02> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97363-614-0 01 1 1411-
çizim 49807
40 40 452 51 43 42 42 51 49 49 42 43 653 501
BalonParca AdiParca NoAdetTipApplied Date
40 03.022 BELT; SUPPORT,FUEL TANK
EXC. FUEL TANK 100 LITTER<N02> 		8-94438-385-4 02 1 0611-
40 03.022 BELT; SUPPORT,FUEL TANK 8-94438-385-4 02 1 0102-0301
40 03.022 BELT; SUPPORT,FUEL TANK
L=668 		8-97169-231-1 02 1 0302-0501
42 03.023 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 0102-
43 03.015 BRACKET; FUEL TANK
EXC. FUEL TANK 100 LITTER<N02> 		8-97035-517-0 02 1 0611-
43 03.015 BRACKET; FUEL TANK 8-97035-517-0 02 1 0102-0301
43 03.015 BRACKET; FUEL TANK
FRONT 		8-97035-517-0 01 1 0302-0610
43 03.015 BRACKET; FUEL TANK
FUEL TANK 100 LITTER<N02> FRONT 		8-97035-517-0 01 1 0611-
43 03.015 BRACKET; FUEL TANK
REAR 		8-97181-220-0 01 1 0302-0610
43 03.015 BRACKET; FUEL TANK
FUEL TANK 100 LITTER<N02> REAR 		8-97181-220-0 01 1 0611-
49 03.023 NUT; BRKT
08.917 M10 FLANGE 		0-91150-210-0 08 1 0102-0602
49 03.023 NUT; BRKT
04.085 M10 FLANGE 		0-91180-210-0 08 1 0603-
51 03.023 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) CHARGE AIR COOLER<6PL> M10X30 FLANGE 		0-28691-030-0 07 1 0102-0501
51 03.023 BOLT; BRKT TO FRAME
4HE1-TCS ENG(RDS) M10X30 FLANGE 		0-28691-030-0 07 1 0502-0512
51 03.023 BOLT; BRKT TO FRAME
4HE1-TCS ENG(RDS) 07.068 M10X30 FLANGE 		0-28661-030-0 07 1 0601-
51 03.023 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) M10X30 FLANGE 		0-28691-030-0 08 1 0201-0501
51 03.023 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) EXC. CHARGE AIR COOLER<6PL> M10X30 FLANGE 		0-28691-030-0 08 1 0201-0501
51 03.023 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) M10X30 FLANGE 		0-28691-030-0 08 1 0502-0512
51 03.023 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) 07.068 M10X30 FLANGE 		0-28661-030-0 08 1 0601-
452 03.028 BREATHER; FUEL TANK
EXC. FUEL TANK 100 LITTER<N02> 		8-97062-954-1 01 1 0611-
452 03.028 BREATHER; FUEL TANK 8-97062-954-1 01 1 0102-0301
452 03.028 BREATHER; FUEL TANK 8-97357-261-0 01 1 0302-0610
452 03.028 BREATHER; FUEL TANK
FUEL TANK 100 LITTER<N02> 		8-97357-261-0 01 1 0611-
501 03.028 GROMMET; BRKT
EXC. FUEL TANK 100 LITTER<N02> 		8-97096-990-0 01 1 0611-
501 03.028 GROMMET; BRKT 8-97096-990-0 01 1 0102-0301
653 03.022 BAND KIT; FUEL TANK 5-87411-970-0 02 1 0502-0610
653 03.022 BAND KIT; FUEL TANK
FUEL TANK 100 LITTER<N02> 		5-87411-970-0 02 1 0611-

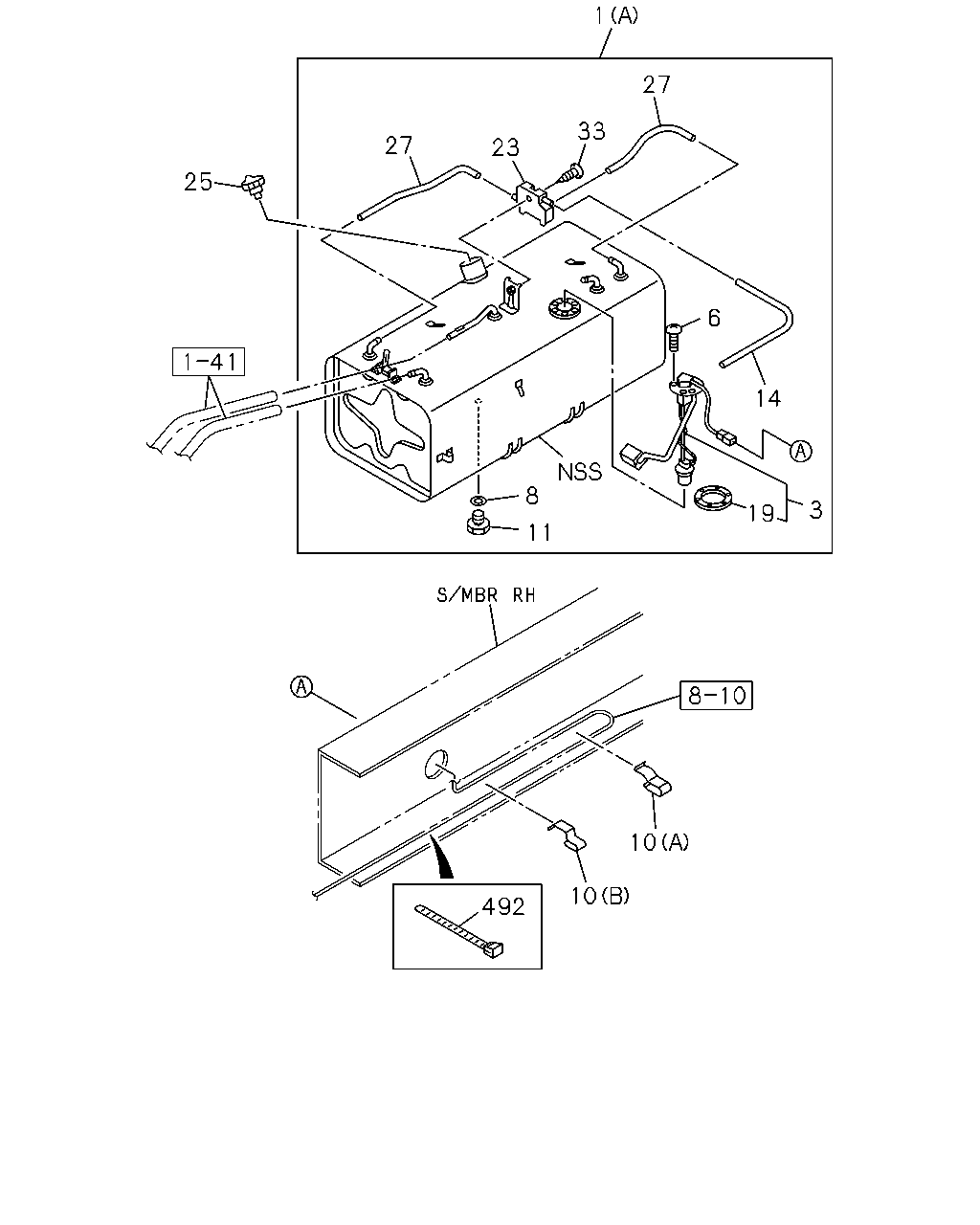

çizim 49933
1 27 33 27 23 25 6 14 8 3 19 11 10 10 492
BalonParca AdiParca NoAdetTipApplied Date
1 03.001 TANK; FUEL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> FUEL TANK 100 LITTER<N02> (B) 979X380X375 100L 		8-98280-479-0 01 1 1411-
1 03.001 TANK; FUEL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> (A) 1000X340X327 100L 		8-97350-991-1 01 1 0611-
1 03.001 TANK; FUEL
(A) 1000X340X327 100L 		8-97188-865-0 01 1 0102-0301
1 03.001 TANK; FUEL
(B) 980X380X375 100L 		8-97356-869-0 01 1 0302-0401
1 03.001 TANK; FUEL
(B) 979X380X375 100L 		8-97375-634-1 01 1 0402-0501
1 03.001 TANK; FUEL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) (B) 979X380X375 100L 		8-97375-634-5 01 1 0502-0610
1 03.001 TANK; FUEL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FUEL TANK 100 LITTER<N02> (B) 979X380X375 100L 		8-97375-634-5 01 1 0611-1410
1 03.001 TANK; FUEL
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FUEL TANK 100 LITTER<N02> EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 979X380X375 100L 		8-97375-634-5 01 1 1411-
3 03.107 UNIT; FUEL TANK,SUB
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> FUEL TANK 100 LITTER<N02> 		8-98278-777-0 01 1 1411-
3 03.107 UNIT; FUEL TANK,SUB
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> 03.001 		8-94316-190-0 01 1 0611-
3 03.107 UNIT; FUEL TANK,SUB
03.001 		8-94316-190-0 01 1 0102-0301
3 03.107 UNIT; FUEL TANK,SUB 8-97363-006-0 01 1 0302-0501
3 03.107 UNIT; FUEL TANK,SUB
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-97363-006-0 01 1 0502-0610
3 03.107 UNIT; FUEL TANK,SUB
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FUEL TANK 100 LITTER<N02> 		8-97363-006-0 01 1 0611-1410
3 03.107 UNIT; FUEL TANK,SUB
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FUEL TANK 100 LITTER<N02> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97363-006-0 01 1 1411-
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 0102-0501
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 03.485 M5X10 W/LK WASHER 		9-03910-510-0 05 1 0502-0603
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 0604-
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> 03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 0611-
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
01.550 		1-21729-043-0 01 1 0102-0301
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 0302-0501
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 0502-0610
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FUEL TANK 100 LITTER<N02> 08.955 ID=8.2 OD=17 		9-09572-008-0 01 1 0611-
10 03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.483 (A) T=10.5 		5-09709-014-0 AR 1 0102-
10 03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.559 (B) T=6.0 		5-09709-024-0 AR 1 0102-
10 03.115 CLIP; SPRING,FUEL TANK UNIT CABL
02.525 (A) T=8.7 		5-09709-048-0 AR 1 0102-0207
10 03.115 CLIP; SPRING,FUEL TANK UNIT CABL
(B) T=9 & 10.5 		8-97041-091-0 AR 1 0102-
11 03.890 PLUG; DRAIN,FUEL TANK
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> 01.453 M14X14 		9-09862-156-0 01 1 0611-
11 03.890 PLUG; DRAIN,FUEL TANK
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0102-0301
11 03.890 PLUG; DRAIN,FUEL TANK
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0302-0501
11 03.890 PLUG; DRAIN,FUEL TANK
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0502-0512
11 03.890 PLUG; DRAIN,FUEL TANK
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0601-0610
11 03.890 PLUG; DRAIN,FUEL TANK
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FUEL TANK 100 LITTER<N02> 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0611-
14 03.163 HOSE; BREATHER,OUTLET
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FUEL TANK 100 LITTER<N02> L=420 		8-98157-809-0 01 1 0502-
14 03.163 HOSE; BREATHER,OUTLET
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> 00.034 L=430 SERVICED BY L=10000 		9-09914-701-0 01 1 0611-
14 03.163 HOSE; BREATHER,OUTLET
00.034 L=430 SERVICED BY L=10000 		9-09914-701-0 01 1 0102-0301
19 03.112 GASKET; FUEL TANK UNIT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> ID=42 OD=71 		5-83148-001-0 01 1 0611-1410
19 03.112 GASKET; FUEL TANK UNIT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> ID=42 OD=71 		5-83148-001-0 01 1 1411-
19 03.112 GASKET; FUEL TANK UNIT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) PROVISIONAL PACKAGE SPEC<BCC> FUEL TANK 100 LITTER<N02> ID=42 OD=71 		5-83148-001-0 01 1 1411-
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 0102-0301
19 03.112 GASKET; FUEL TANK UNIT 8-97363-616-0 01 1 0302-0501
19 03.112 GASKET; FUEL TANK UNIT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) 		8-97363-616-0 01 1 0502-0610
19 03.112 GASKET; FUEL TANK UNIT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FUEL TANK 100 LITTER<N02> 		8-97363-616-0 01 1 0611-1410
19 03.112 GASKET; FUEL TANK UNIT
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) FUEL TANK 100 LITTER<N02> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97363-616-0 01 1 1411-
23 03.162 JOINT; BREATHER HOSE
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> 		8-97077-713-1 01 1 0611-
23 03.162 JOINT; BREATHER HOSE 8-97077-713-1 01 1 0102-0301
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-94258-609-1 01 1 0102-
27 03.163 HOSE; BREATHER
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> L=470 SERVICED BY L=3000 		8-94128-826-0 02 1 0611-
27 03.163 HOSE; BREATHER
L=470 SERVICED BY L=3000 		8-94128-826-0 02 1 0102-0301
33 03.162 SCREW; JOINT TO FUEL TANK
4HE1-TCS ENG(RDS),4HF1 ENG(RLS) EXC. FUEL TANK 100 LITTER<N02> M6X20 W/LK&PL WASHER 		0-36230-620-0 01 1 0611-
33 03.162 SCREW; JOINT TO FUEL TANK
02.334 M6X20 W/LK&PL WASHER 		9-03920-620-0 01 1 0102-0301
492 03.028 CLIP; HARNESS TO VAC HOSE
4HE1 ENG(RLY) 02.559 L=250 		5-09707-030-1 01 1 0102-0112
492 03.028 CLIP; HARNESS TO VAC HOSE
02.559 L=250 		5-09707-030-1 01 1 0201-0301
492 03.028 CLIP; HARNESS TO VAC HOSE
4HF1 ENG(RLS),4HE1 ENG(RLY) 02.559 L=250 		5-09707-030-1 01 1 0302-0501
492 03.028 CLIP; HARNESS TO VAC HOSE
02.559 L=250 		5-09707-030-1 01 1 0502-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
