Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#19007) — 300 parça

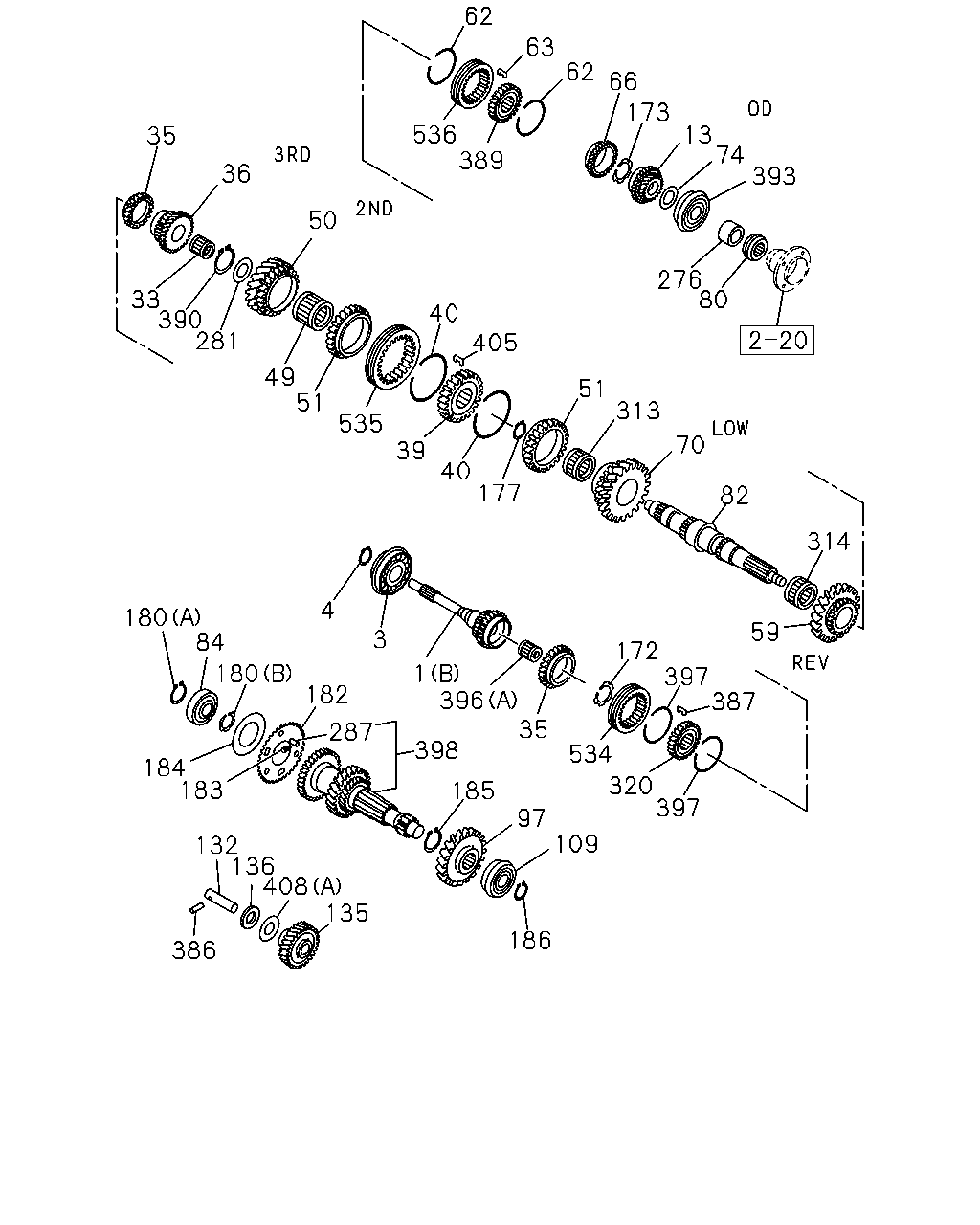

62 63 62 66 173 536 389 13 74 393 35 36 50 276 80 33 390 281 40 405 49 51 51 313 535 70 39 40 177 82 314 4 180 84 59 3 172 397 387 180 1 396 182 35 287 398 534 184 183 320 397 185 97 109 132 136 408 135 186 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> (B) Z=28	8-97177-683-0	01	1	0410-0511	●
1	SHAFT; TOP GEAR,TRANS 4HF1 ENG(RLS) (C) Z=28	8-97252-924-1	01	1	0512-		●
1	SHAFT; TOP GEAR,TRANS 4JB1 ENG(RLF) (A) Z=28	8-97091-558-1	01	1	0303-0409	●
1	SHAFT; TOP GEAR,TRANS 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (A) Z=28	8-97091-558-1	01	1	0410-0511	●
3	BEARING; TOP GEAR SHAFT 4JB1 ENG(RLF) NSK	8-94178-732-1	01	1	0303-0511	●
3	BEARING; TOP GEAR SHAFT 4HF1 ENG(RLS)	8-97253-098-1	01	1	0512-		●
3	BEARING; TOP GEAR SHAFT 4JB1 ENG(RLF) KOYO	8-94462-615-0	01	1	0303-0511	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT 4JB1 ENG(RLF) ID=37.0	9-09180-040-0	01	1	0303-0511	●
13	GEAR; 5TH,MAINSHAFT 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=24	8-97373-008-0	01	1	0410-0511	●
13	GEAR; 5TH,MAINSHAFT 4JB1 ENG(RLF) Z=24	8-97206-007-0	01	1	0303-0409	●
13	GEAR; 5TH,MAINSHAFT 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=24	8-97206-007-0	01	1	0410-0511	●
33	BEARING; NEEDLE,3RD GEAR 4JB1 ENG(RLF)	8-94317-158-0	01	1	0303-0511	●
35	RING; BLOCK,4TH & 3RD 4JB1 ENG(RLF) Z=36	8-94128-775-2	02	1	0303-0511	●
36	GEAR; 3RD,MAINSHAFT 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=31	8-97174-923-0	01	1	0410-0511	●
36	GEAR; 3RD,MAINSHAFT 4HF1 ENG(RLS) Z=34	8-97241-234-0	01	1	0512-		●
36	GEAR; 3RD,MAINSHAFT 4JB1 ENG(RLF) Z=31	8-94316-760-2	01	1	0303-0409	●
36	GEAR; 3RD,MAINSHAFT 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=31	8-94316-760-2	01	1	0410-0511	●
39	HUB; CLU,LOW & 2ND 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=42	8-97177-689-0	01	1	0410-0511	●
40	SPRING; INSERT,LOW & 2ND 4JB1 ENG(RLF)	8-97023-708-0	02	1	0303-0511	●
49	BEARING; NEEDLE,2ND GEAR 4JB1 ENG(RLF) NSK	5-09811-014-0	01	1	0303-0511	●
50	GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=34	8-97174-955-0	01	1	0410-0511	●
50	GEAR; 2ND,MAINSHAFT 4HF1 ENG(RLS) Z=38	8-97241-237-1	01	1	0512-		●
50	GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF) Z=34	8-94316-764-3	01	1	0303-0409	●
50	GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=34	8-94316-764-3	01	1	0410-0511	●
51	RING; BLOCK,LOW & 2ND 4JB1 ENG(RLF) Z=30	8-97074-619-3	02	1	0303-0511	●
59	GEAR; REV MAINSHAFT 4JB1 ENG(RLF) Z=41	8-97206-006-0	01	1	0303-0511	●
59	GEAR; REV MAINSHAFT 4HF1 ENG(RLS) Z=41	8-97241-244-0	01	1	0512-		●
62	SPRING; INSERT,REV & 5TH 4JB1 ENG(RLF)	8-97023-710-0	02	1	0303-0511	●
63	INSERT; SYN,REV & 5TH 4JB1 ENG(RLF)	9-33263-613-0	03	1	0303-0511	●
66	RING; BLOCK,SYN 4JB1 ENG(RLF) Z=36	8-94128-775-2	01	1	0303-0511	●
70	GEAR; 1ST,MAINSHAFT 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97204-109-0	01	1	0410-0511	●
70	GEAR; 1ST,MAINSHAFT 4HF1 ENG(RLS) Z=43	8-97350-010-0	01	1	0512-		●
70	GEAR; 1ST,MAINSHAFT 4JB1 ENG(RLF) Z=43	8-94316-768-4	01	1	0303-0409	●
70	GEAR; 1ST,MAINSHAFT 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-94316-768-4	01	1	0410-0511	●
74	WASHER; THRUST,REV GEAR 4JB1 ENG(RLF)	8-97207-176-0	01	1	0303-0511	●
80	GEAR; SPD DRIVE 4JB1 ENG(RLF) Z=4	8-97207-146-0	01	1	0303-0511	●
80	GEAR; SPD DRIVE 4HF1 ENG(RLS) Z=4	8-97253-556-0	01	1	0512-		●
82	SHAFT; MAIN,TRANS 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=27-40-37-27	8-97368-837-0	01	1	0410-0511	●
82	SHAFT; MAIN,TRANS 4JB1 ENG(RLF) Z=27-40-37-27	8-97207-119-0	01	1	0303-0409	●
82	SHAFT; MAIN,TRANS 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=27-40-37-27	8-97207-119-0	01	1	0410-0511	●
82	SHAFT; MAIN,TRANS 4HF1 ENG(RLS) Z=28-42-42-21	8-97253-117-3	01	1	0512-		●
84	BEARING; COUNTER SHAFT,FRT 4JB1 ENG(RLF) NSK	5-09800-062-1	01	1	0303-0511	●
97	GEAR; 5TH,COUNTER 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=55	8-97372-900-0	01	1	0410-0511	●
97	GEAR; 5TH,COUNTER 4JB1 ENG(RLF) Z=55	8-94316-786-1	01	1	0303-0409	●
97	GEAR; 5TH,COUNTER 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=55	8-94316-786-1	01	1	0410-0511	●
109	BEARING; COUNTER SHAFT,RR 4JB1 ENG(RLF)	8-97095-913-0	01	1	0303-0511	●
132	SHAFT; REV 4JB1 ENG(RLF)	9-33351-604-1	01	1	0303-0511	●
132	SHAFT; REV 4HF1 ENG(RLS)	8-97252-655-0	01	1	0512-		●
135	GEAR; REV IDLER 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=29	8-97169-508-0	01	1	0410-0511	●
135	GEAR; REV IDLER 4JB1 ENG(RLF) Z=29	8-97081-539-3	01	1	0303-0409	●
135	GEAR; REV IDLER 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=29	8-97081-539-3	01	1	0410-0511	●
135	GEAR; REV IDLER 4HF1 ENG(RLS) Z=25	8-97241-293-0	01	1	0512-0512		●
135	GEAR; REV IDLER 4HF1 ENG(RLS) Z=25	8-98031-869-1	01	1	0601-		●
136	WASHER; THRUST,REV IDLE,RR 4JB1 ENG(RLF)	8-97081-579-2	01	1	0303-0511	●
172	RING; SNAP,CLU HUB 4JB1 ENG(RLF) T=1.75	8-94402-405-0	01	1	0303-0511	●
172	RING; SNAP,CLU HUB 4JB1 ENG(RLF) T=1.80	8-94402-406-0	01	1	0303-0511	●
172	RING; SNAP,CLU HUB 4JB1 ENG(RLF) T=1.85	8-94402-407-0	01	1	0303-0511	●
173	RING; SNAP,OVERDRIVE GEAR 4JB1 ENG(RLF) T=1.85	8-94151-522-0	01	1	0303-0511	●
173	RING; SNAP,OVERDRIVE GEAR 4JB1 ENG(RLF) T=1.90	8-94151-523-0	01	1	0303-0511	●
173	RING; SNAP,OVERDRIVE GEAR 4JB1 ENG(RLF) T=1.95	8-94151-524-0	01	1	0303-0511	●
173	RING; SNAP,OVERDRIVE GEAR 4JB1 ENG(RLF) T=2.00	8-94157-747-0	01	1	0303-0511	●
177	RING; SNAP,CLU HUB 4JB1 ENG(RLF) ID=44.5	5-09589-010-0	01	1	0303-0511	●
180	RING; SNAP,CLUSTER GEAR 4JB1 ENG(RLF) (B) ID=38.5	8-94146-483-0	01	1	0303-0511	●
180	RING; SNAP,CLUSTER GEAR 4JB1 ENG(RLF) (A) ID=32.2	9-09180-035-0	01	1	0303-0511	●
182	PLATE; CLUSTER GEAR 4JB1 ENG(RLF)	8-94129-632-1	01	1	0303-0511	●
183	SPRING; PLATE,CLUSTER GEAR 4JB1 ENG(RLF)	8-94132-168-0	03	1	0303-0511	●
184	SPRING; CLUSTER GEAR 4JB1 ENG(RLF)	8-94128-790-1	01	1	0303-0511	●
185	RING; SNAP,CLUSTER GEAR 4JB1 ENG(RLF) ID=41.5	9-09180-045-0	01	1	0303-0511	●
186	RING; SNAP,CLUSTER GEAR 4JB1 ENG(RLF) ID=29.6	9-09180-032-0	01	1	0303-0511	●
276	SPACER; BRG TO DRIVE GEAR 4JB1 ENG(RLF)	8-97207-175-0	01	1	0303-0511	●
281	WASHER; THRUST,MAINSHAFT 4JB1 ENG(RLF)	5-33271-007-0	01	1	0303-0511	●
287	PIN; COUNTER GEAR 4JB1 ENG(RLF)	8-94402-462-0	01	1	0303-0511	●
313	BEARING; NEEDLE,LOW GEAR 4JB1 ENG(RLF) NSK	8-94317-161-0	01	1	0303-0511	●
313	BEARING; NEEDLE,LOW GEAR 4JB1 ENG(RLF) KOYO	8-97010-547-0	01	1	0303-0511	●
314	BEARING; NEEDLE,REV GEAR 4JB1 ENG(RLF) NTN	8-97207-174-0	01	1	0303-0511	●
314	BEARING; NEEDLE,REV GEAR 4HF1 ENG(RLS) NSK	8-97253-114-0	01	1	0512-		●
320	HUB; CLU,4TH & 3RD 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97177-690-0	01	1	0410-0511	●
386	PIN; REV SHAFT 4JB1 ENG(RLF)	8-94128-794-0	01	1	0303-0511	●
387	INSERT; SYN,4TH & 3RD 4JB1 ENG(RLF)	5-33263-001-0	03	1	0303-0511	●
389	HUB; CLU,REV & 5TH 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97373-144-0	01	1	0410-0511	●
390	RING; SNAP,CLU HUB 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> T=1.90	8-94151-523-0	01	1	0410-0511	●
390	RING; SNAP,CLU HUB 4JB1 ENG(RLF) T=1.75	8-94151-520-0	01	1	0303-0511	●
390	RING; SNAP,CLU HUB 4JB1 ENG(RLF) T=1.80	8-94151-521-0	01	1	0303-0511	●
390	RING; SNAP,CLU HUB 4JB1 ENG(RLF) T=1.85	8-94151-522-0	01	1	0303-0511	●
393	BEARING; MAINSHAFT END 4JB1 ENG(RLF)	8-97207-512-0	01	1	0303-0511	●
393	BEARING; MAINSHAFT END 4HF1 ENG(RLS)	8-97253-105-1	01	1	0512-		●
396	BEARING; NEEDLE,MAINSHAFT 4HF1 ENG(RLS) (B)	8-97253-110-0	04	1	0512-		●
396	BEARING; NEEDLE,MAINSHAFT 4JB1 ENG(RLF) (A)	8-97161-658-0	01	1	0303-0511	●
396	BEARING; NEEDLE,MAINSHAFT 4HF1 ENG(RLS) (C)	8-97253-102-1	01	1	0512-		●
397	SPRING; INSERT,4TH & 3RD 4JB1 ENG(RLF)	8-97023-710-0	02	1	0303-0511	●
398	GEAR; COUNTER 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=51-34-22-14	8-97204-104-0	01	1	0410-0511	●
398	GEAR; COUNTER 4JB1 ENG(RLF) Z=51-34-22-14	8-97029-335-0	01	1	0303-0409	●
398	GEAR; COUNTER 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=51-34-22-14	8-97029-335-0	01	1	0410-0511	●
405	INSERT; SYN,LOW & 2ND 4JB1 ENG(RLF)	5-33263-001-0	03	1	0303-0511	●
408	SPRING 4HF1 ENG(RLS) (C)	8-97366-040-1	02	1	0512-		●
408	SPRING 4JB1 ENG(RLF) (A)	8-97081-577-0	01	1	0303-0511	●
408	SPRING 4HF1 ENG(RLS) (B)	8-94148-196-0	03	1	0512-		●
534	SLEEVE; HUB,4TH-3RD 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97177-134-0	01	1	0410-0511	●
535	SLEEVE; HUB,LOW-2ND 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=42	8-97177-133-0	01	1	0410-0511	●
536	SLEEVE; HUB,REV-5TH 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97177-135-0	01	1	0410-0511	●

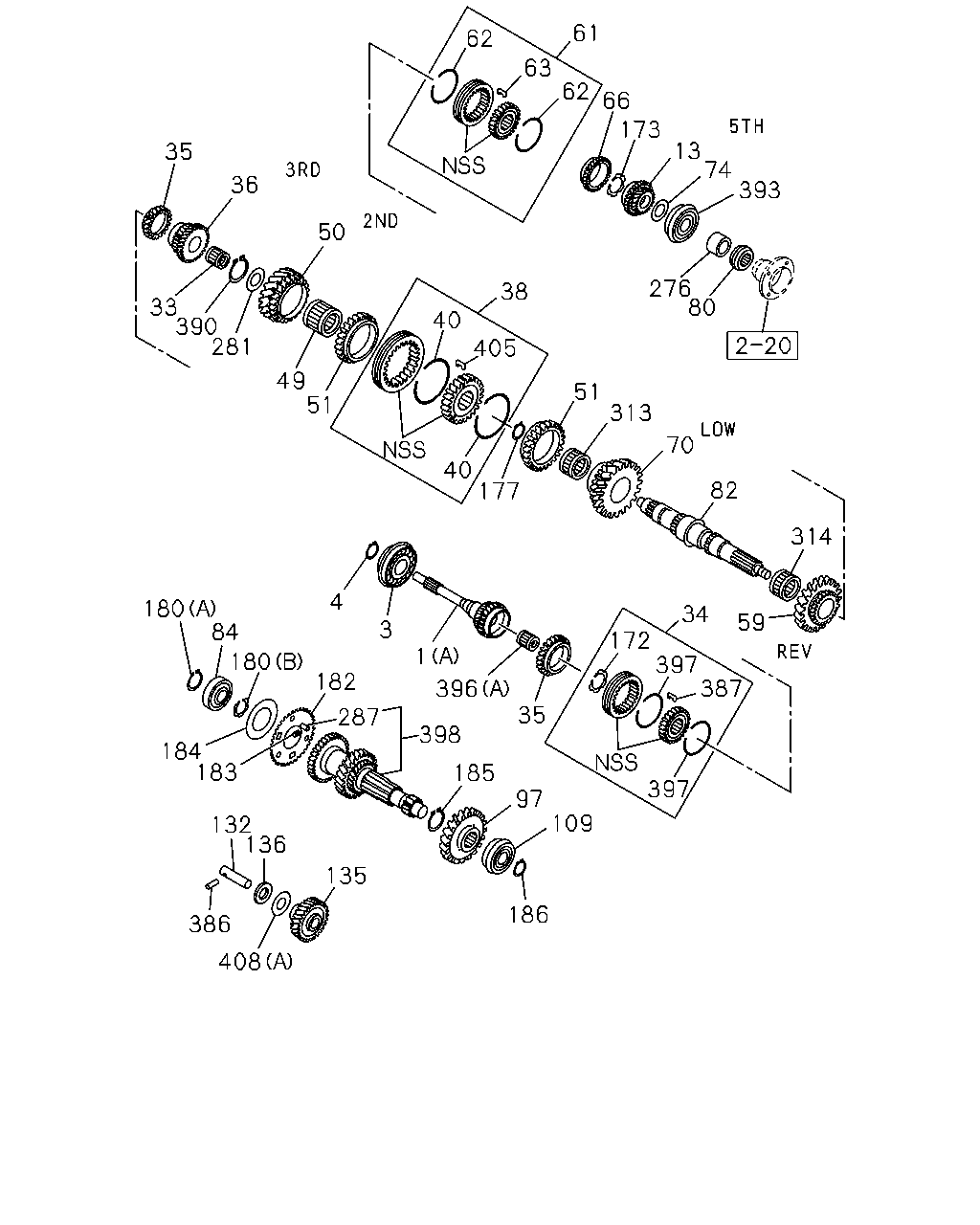

61 62 63 62 66 173 13 74 393 35 36 50 276 80 38 33 390 281 40 405 49 51 51 313 70 40 177 82 314 4 180 84 34 59 3 172 397 387 1 180 182 396 35 287 398 184 183 397 185 97 109 132 136 135 186 386 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> (B) Z=28	8-97177-683-0	01	1	0410-0511	●
1	SHAFT; TOP GEAR,TRANS 4HF1 ENG(RLS) (C) Z=28	8-97252-924-1	01	1	0512-		●
1	SHAFT; TOP GEAR,TRANS 4JB1 ENG(RLF) (A) Z=28	8-97091-558-1	01	1	0303-0409	●
1	SHAFT; TOP GEAR,TRANS 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (A) Z=28	8-97091-558-1	01	1	0410-0511	●
3	BEARING; TOP GEAR SHAFT 4JB1 ENG(RLF) NSK	8-94178-732-1	01	1	0303-0511	●
3	BEARING; TOP GEAR SHAFT 4HF1 ENG(RLS)	8-97253-098-1	01	1	0512-		●
3	BEARING; TOP GEAR SHAFT 4JB1 ENG(RLF) KOYO	8-94462-615-0	01	1	0303-0511	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT 4JB1 ENG(RLF) ID=37.0	9-09180-040-0	01	1	0303-0511	●
13	GEAR; 5TH,MAINSHAFT 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=24	8-97373-008-0	01	1	0410-0511	●
13	GEAR; 5TH,MAINSHAFT 4JB1 ENG(RLF) Z=24	8-97206-007-0	01	1	0303-0409	●
13	GEAR; 5TH,MAINSHAFT 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=24	8-97206-007-0	01	1	0410-0511	●
33	BEARING; NEEDLE,3RD GEAR 4JB1 ENG(RLF)	8-94317-158-0	01	1	0303-0511	●
34	SYNCHRONIZER; 4TH & 3RD 4JB1 ENG(RLF)	8-97048-745-2	01	1	0303-0409	●
34	SYNCHRONIZER; 4TH & 3RD 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97048-745-2	01	1	0410-0511	●
35	RING; BLOCK,4TH & 3RD 4JB1 ENG(RLF) Z=36	8-94128-775-2	02	1	0303-0511	●
36	GEAR; 3RD,MAINSHAFT 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=31	8-97174-923-0	01	1	0410-0511	●
36	GEAR; 3RD,MAINSHAFT 4HF1 ENG(RLS) Z=34	8-97241-234-0	01	1	0512-		●
36	GEAR; 3RD,MAINSHAFT 4JB1 ENG(RLF) Z=31	8-94316-760-2	01	1	0303-0409	●
36	GEAR; 3RD,MAINSHAFT 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=31	8-94316-760-2	01	1	0410-0511	●
38	SYNCHRONIZER; LOW & 2ND 4JB1 ENG(RLF)	8-97048-748-0	01	1	0303-0409	●
38	SYNCHRONIZER; LOW & 2ND 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97048-748-0	01	1	0410-0511	●
40	SPRING; INSERT,LOW & 2ND 4JB1 ENG(RLF)	8-97023-708-0	02	1	0303-0511	●
49	BEARING; NEEDLE,2ND GEAR 4JB1 ENG(RLF) NSK	5-09811-014-0	01	1	0303-0511	●
50	GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=34	8-97174-955-0	01	1	0410-0511	●
50	GEAR; 2ND,MAINSHAFT 4HF1 ENG(RLS) Z=38	8-97241-237-1	01	1	0512-		●
50	GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF) Z=34	8-94316-764-3	01	1	0303-0409	●
50	GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=34	8-94316-764-3	01	1	0410-0511	●
51	RING; BLOCK,LOW & 2ND 4JB1 ENG(RLF) Z=30	8-97074-619-3	02	1	0303-0511	●
59	GEAR; REV MAINSHAFT 4JB1 ENG(RLF) Z=41	8-97206-006-0	01	1	0303-0511	●
59	GEAR; REV MAINSHAFT 4HF1 ENG(RLS) Z=41	8-97241-244-0	01	1	0512-		●
61	SYNCHRONIZER; REV & 5TH 4JB1 ENG(RLF)	8-97206-010-0	01	1	0303-0409	●
61	SYNCHRONIZER; REV & 5TH 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97206-010-0	01	1	0410-0511	●
62	SPRING; INSERT,REV & 5TH 4JB1 ENG(RLF)	8-97023-710-0	02	1	0303-0511	●
63	INSERT; SYN,REV & 5TH 4JB1 ENG(RLF)	9-33263-613-0	03	1	0303-0511	●
66	RING; BLOCK,SYN 4JB1 ENG(RLF) Z=36	8-94128-775-2	01	1	0303-0511	●
70	GEAR; 1ST,MAINSHAFT 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97204-109-0	01	1	0410-0511	●
70	GEAR; 1ST,MAINSHAFT 4HF1 ENG(RLS) Z=43	8-97350-010-0	01	1	0512-		●
70	GEAR; 1ST,MAINSHAFT 4JB1 ENG(RLF) Z=43	8-94316-768-4	01	1	0303-0409	●
70	GEAR; 1ST,MAINSHAFT 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-94316-768-4	01	1	0410-0511	●
74	WASHER; THRUST,REV GEAR 4JB1 ENG(RLF)	8-97207-176-0	01	1	0303-0511	●
80	GEAR; SPD DRIVE 4JB1 ENG(RLF) Z=4	8-97207-146-0	01	1	0303-0511	●
80	GEAR; SPD DRIVE 4HF1 ENG(RLS) Z=4	8-97253-556-0	01	1	0512-		●
82	SHAFT; MAIN,TRANS 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=27-40-37-27	8-97368-837-0	01	1	0410-0511	●
82	SHAFT; MAIN,TRANS 4JB1 ENG(RLF) Z=27-40-37-27	8-97207-119-0	01	1	0303-0409	●
82	SHAFT; MAIN,TRANS 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=27-40-37-27	8-97207-119-0	01	1	0410-0511	●
82	SHAFT; MAIN,TRANS 4HF1 ENG(RLS) Z=28-42-42-21	8-97253-117-3	01	1	0512-		●
84	BEARING; COUNTER SHAFT,FRT 4JB1 ENG(RLF) NSK	5-09800-062-1	01	1	0303-0511	●
97	GEAR; 5TH,COUNTER 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=55	8-97372-900-0	01	1	0410-0511	●
97	GEAR; 5TH,COUNTER 4JB1 ENG(RLF) Z=55	8-94316-786-1	01	1	0303-0409	●
97	GEAR; 5TH,COUNTER 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=55	8-94316-786-1	01	1	0410-0511	●
109	BEARING; COUNTER SHAFT,RR 4JB1 ENG(RLF)	8-97095-913-0	01	1	0303-0511	●
132	SHAFT; REV 4JB1 ENG(RLF)	9-33351-604-1	01	1	0303-0511	●
132	SHAFT; REV 4HF1 ENG(RLS)	8-97252-655-0	01	1	0512-		●
135	GEAR; REV IDLER 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=29	8-97169-508-0	01	1	0410-0511	●
135	GEAR; REV IDLER 4JB1 ENG(RLF) Z=29	8-97081-539-3	01	1	0303-0409	●
135	GEAR; REV IDLER 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=29	8-97081-539-3	01	1	0410-0511	●
135	GEAR; REV IDLER 4HF1 ENG(RLS) Z=25	8-97241-293-0	01	1	0512-0512		●
135	GEAR; REV IDLER 4HF1 ENG(RLS) Z=25	8-98031-869-1	01	1	0601-		●
136	WASHER; THRUST,REV IDLE,RR 4JB1 ENG(RLF)	8-97081-579-2	01	1	0303-0511	●
172	RING; SNAP,CLU HUB 4JB1 ENG(RLF) T=1.75	8-94402-405-0	01	1	0303-0511	●
172	RING; SNAP,CLU HUB 4JB1 ENG(RLF) T=1.80	8-94402-406-0	01	1	0303-0511	●
172	RING; SNAP,CLU HUB 4JB1 ENG(RLF) T=1.85	8-94402-407-0	01	1	0303-0511	●
173	RING; SNAP,OVERDRIVE GEAR 4JB1 ENG(RLF) T=1.85	8-94151-522-0	01	1	0303-0511	●
173	RING; SNAP,OVERDRIVE GEAR 4JB1 ENG(RLF) T=1.90	8-94151-523-0	01	1	0303-0511	●
173	RING; SNAP,OVERDRIVE GEAR 4JB1 ENG(RLF) T=1.95	8-94151-524-0	01	1	0303-0511	●
173	RING; SNAP,OVERDRIVE GEAR 4JB1 ENG(RLF) T=2.00	8-94157-747-0	01	1	0303-0511	●
177	RING; SNAP,CLU HUB 4JB1 ENG(RLF) ID=44.5	5-09589-010-0	01	1	0303-0511	●
180	RING; SNAP,CLUSTER GEAR 4JB1 ENG(RLF) (B) ID=38.5	8-94146-483-0	01	1	0303-0511	●
180	RING; SNAP,CLUSTER GEAR 4JB1 ENG(RLF) (A) ID=32.2	9-09180-035-0	01	1	0303-0511	●
182	PLATE; CLUSTER GEAR 4JB1 ENG(RLF)	8-94129-632-1	01	1	0303-0511	●
183	SPRING; PLATE,CLUSTER GEAR 4JB1 ENG(RLF)	8-94132-168-0	03	1	0303-0511	●
184	SPRING; CLUSTER GEAR 4JB1 ENG(RLF)	8-94128-790-1	01	1	0303-0511	●
185	RING; SNAP,CLUSTER GEAR 4JB1 ENG(RLF) ID=41.5	9-09180-045-0	01	1	0303-0511	●
186	RING; SNAP,CLUSTER GEAR 4JB1 ENG(RLF) ID=29.6	9-09180-032-0	01	1	0303-0511	●
276	SPACER; BRG TO DRIVE GEAR 4JB1 ENG(RLF)	8-97207-175-0	01	1	0303-0511	●
281	WASHER; THRUST,MAINSHAFT 4JB1 ENG(RLF)	5-33271-007-0	01	1	0303-0511	●
287	PIN; COUNTER GEAR 4JB1 ENG(RLF)	8-94402-462-0	01	1	0303-0511	●
313	BEARING; NEEDLE,LOW GEAR 4JB1 ENG(RLF) NSK	8-94317-161-0	01	1	0303-0511	●
313	BEARING; NEEDLE,LOW GEAR 4JB1 ENG(RLF) KOYO	8-97010-547-0	01	1	0303-0511	●
314	BEARING; NEEDLE,REV GEAR 4JB1 ENG(RLF) NTN	8-97207-174-0	01	1	0303-0511	●
314	BEARING; NEEDLE,REV GEAR 4HF1 ENG(RLS) NSK	8-97253-114-0	01	1	0512-		●
386	PIN; REV SHAFT 4JB1 ENG(RLF)	8-94128-794-0	01	1	0303-0511	●
387	INSERT; SYN,4TH & 3RD 4JB1 ENG(RLF)	5-33263-001-0	03	1	0303-0511	●
390	RING; SNAP,CLU HUB 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> T=1.90	8-94151-523-0	01	1	0410-0511	●
390	RING; SNAP,CLU HUB 4JB1 ENG(RLF) T=1.75	8-94151-520-0	01	1	0303-0511	●
390	RING; SNAP,CLU HUB 4JB1 ENG(RLF) T=1.80	8-94151-521-0	01	1	0303-0511	●
390	RING; SNAP,CLU HUB 4JB1 ENG(RLF) T=1.85	8-94151-522-0	01	1	0303-0511	●
393	BEARING; MAINSHAFT END 4JB1 ENG(RLF)	8-97207-512-0	01	1	0303-0511	●
393	BEARING; MAINSHAFT END 4HF1 ENG(RLS)	8-97253-105-1	01	1	0512-		●
396	BEARING; NEEDLE,MAINSHAFT 4HF1 ENG(RLS) (B)	8-97253-110-0	04	1	0512-		●
396	BEARING; NEEDLE,MAINSHAFT 4JB1 ENG(RLF) (A)	8-97161-658-0	01	1	0303-0511	●
396	BEARING; NEEDLE,MAINSHAFT 4HF1 ENG(RLS) (C)	8-97253-102-1	01	1	0512-		●
397	SPRING; INSERT,4TH & 3RD 4JB1 ENG(RLF)	8-97023-710-0	02	1	0303-0511	●
398	GEAR; COUNTER 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=51-34-22-14	8-97204-104-0	01	1	0410-0511	●
398	GEAR; COUNTER 4JB1 ENG(RLF) Z=51-34-22-14	8-97029-335-0	01	1	0303-0409	●
398	GEAR; COUNTER 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=51-34-22-14	8-97029-335-0	01	1	0410-0511	●
405	INSERT; SYN,LOW & 2ND 4JB1 ENG(RLF)	5-33263-001-0	03	1	0303-0511	●
408	SPRING 4HF1 ENG(RLS) (C)	8-97366-040-1	02	1	0512-		●
408	SPRING 4JB1 ENG(RLF) (A)	8-97081-577-0	01	1	0303-0511	●
408	SPRING 4HF1 ENG(RLS) (B)	8-94148-196-0	03	1	0512-		●

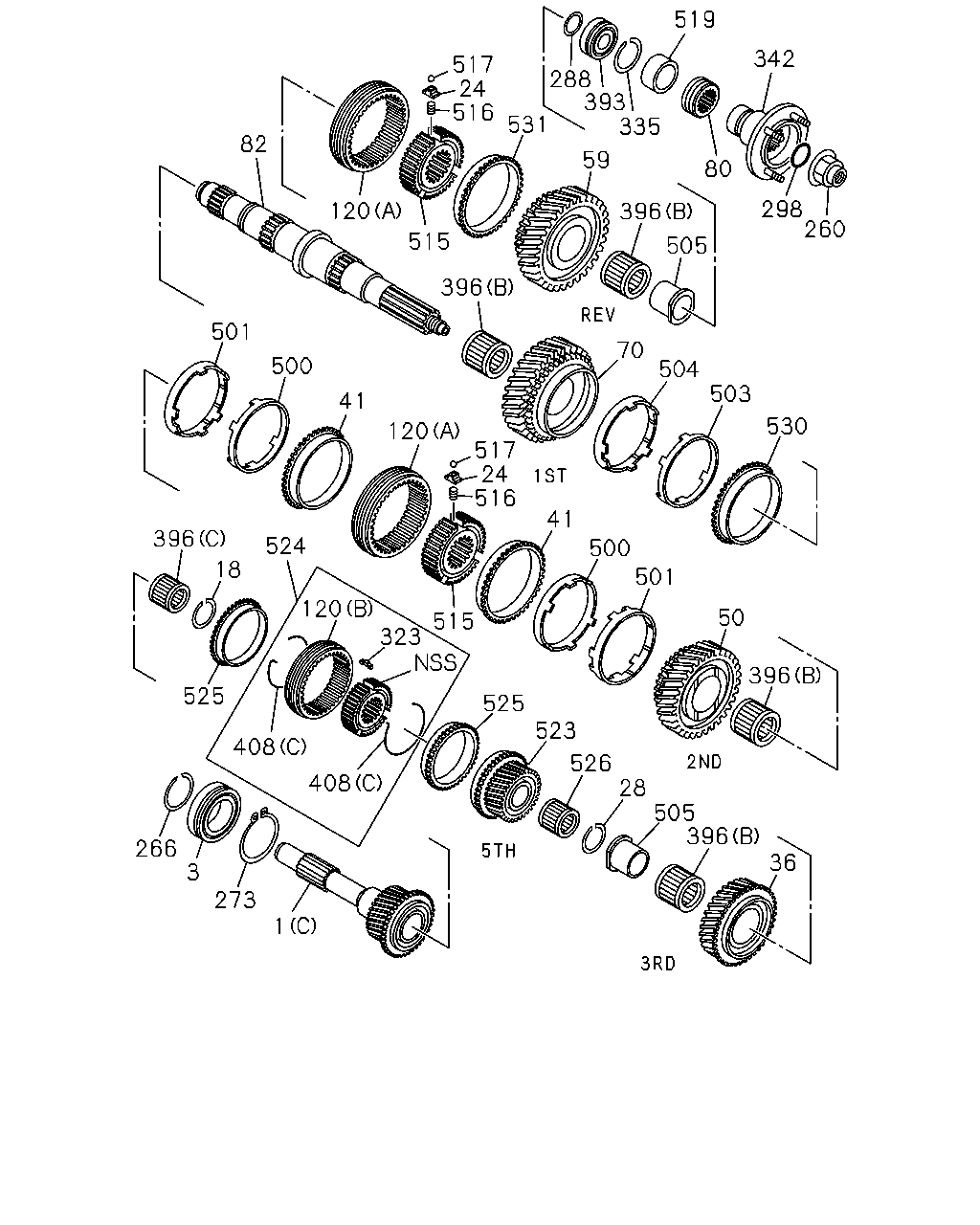

519 342 517 24 516 288 393 335 531 82 59 80 298 260 120 396 515 505 396 501 70 500 504 503 41 530 120 517 24 516 41 396 524 500 18 501 120 323 50 515 396 525 525 523 408 526 28 505 396 36 408 266 3 273 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> (B) Z=28	8-97177-683-0	01	1	0410-0511	●
1	SHAFT; TOP GEAR,TRANS 4HF1 ENG(RLS) (C) Z=28	8-97252-924-1	01	1	0512-		●
1	SHAFT; TOP GEAR,TRANS 4JB1 ENG(RLF) (A) Z=28	8-97091-558-1	01	1	0303-0409	●
1	SHAFT; TOP GEAR,TRANS 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (A) Z=28	8-97091-558-1	01	1	0410-0511	●
3	BEARING; TOP GEAR SHAFT 4JB1 ENG(RLF) NSK	8-94178-732-1	01	1	0303-0511	●
3	BEARING; TOP GEAR SHAFT 4HF1 ENG(RLS)	8-97253-098-1	01	1	0512-		●
3	BEARING; TOP GEAR SHAFT 4JB1 ENG(RLF) KOYO	8-94462-615-0	01	1	0303-0511	●
18	RING; SNAP,CLU HUB 4HF1 ENG(RLS) ID=30.7 T=1.8	8-97254-728-0	01	1	0512-		●
24	BLOCK; INDEX,SYN 4HF1 ENG(RLS)	8-97241-313-1	06	1	0512-		●
28	RING; SNAP,3RD GEAR 4HF1 ENG(RLS) ID=46.5 T=1.8	8-97254-743-0	01	1	0512-		●
36	GEAR; 3RD,MAINSHAFT 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=31	8-97174-923-0	01	1	0410-0511	●
36	GEAR; 3RD,MAINSHAFT 4HF1 ENG(RLS) Z=34	8-97241-234-0	01	1	0512-		●
36	GEAR; 3RD,MAINSHAFT 4JB1 ENG(RLF) Z=31	8-94316-760-2	01	1	0303-0409	●
36	GEAR; 3RD,MAINSHAFT 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=31	8-94316-760-2	01	1	0410-0511	●
41	RING; BLOCK,2ND & 3RD 4HF1 ENG(RLS) Z=45	8-97241-306-1	02	1	0512-		●
50	GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=34	8-97174-955-0	01	1	0410-0511	●
50	GEAR; 2ND,MAINSHAFT 4HF1 ENG(RLS) Z=38	8-97241-237-1	01	1	0512-		●
50	GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF) Z=34	8-94316-764-3	01	1	0303-0409	●
50	GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=34	8-94316-764-3	01	1	0410-0511	●
59	GEAR; REV MAINSHAFT 4JB1 ENG(RLF) Z=41	8-97206-006-0	01	1	0303-0511	●
59	GEAR; REV MAINSHAFT 4HF1 ENG(RLS) Z=41	8-97241-244-0	01	1	0512-		●
70	GEAR; 1ST,MAINSHAFT 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97204-109-0	01	1	0410-0511	●
70	GEAR; 1ST,MAINSHAFT 4HF1 ENG(RLS) Z=43	8-97350-010-0	01	1	0512-		●
70	GEAR; 1ST,MAINSHAFT 4JB1 ENG(RLF) Z=43	8-94316-768-4	01	1	0303-0409	●
70	GEAR; 1ST,MAINSHAFT 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-94316-768-4	01	1	0410-0511	●
80	GEAR; SPD DRIVE 4JB1 ENG(RLF) Z=4	8-97207-146-0	01	1	0303-0511	●
80	GEAR; SPD DRIVE 4HF1 ENG(RLS) Z=4	8-97253-556-0	01	1	0512-		●
82	SHAFT; MAIN,TRANS 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=27-40-37-27	8-97368-837-0	01	1	0410-0511	●
82	SHAFT; MAIN,TRANS 4JB1 ENG(RLF) Z=27-40-37-27	8-97207-119-0	01	1	0303-0409	●
82	SHAFT; MAIN,TRANS 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=27-40-37-27	8-97207-119-0	01	1	0410-0511	●
82	SHAFT; MAIN,TRANS 4HF1 ENG(RLS) Z=28-42-42-21	8-97253-117-3	01	1	0512-		●
120	SLEEVE 4HF1 ENG(RLS) (B)	8-94421-871-1	01	1	0512-		●
120	SLEEVE 4HF1 ENG(RLS) (A)	8-97241-296-1	02	1	0512-		●
260	NUT; MAINSHAFT END 4HF1 ENG(RLS) M27 H=25	8-97253-126-0	01	1	0512-0604		●
260	NUT; MAINSHAFT END 4HF1 ENG(RLS) M27 H=25	8-97360-410-0	01	1	0605-		●
266	RING; SNAP,BRG INNER 4HF1 ENG(RLS)	8-97286-916-0	01	1	0512-		●
273	RING; SNAP,BRG OUTER 4HF1 ENG(RLS)	8-97254-610-0	01	1	0512-		●
288	SPACER; BRG,MAINSHAFT 4HF1 ENG(RLS)	8-97252-942-0	01	1	0512-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) ID=30.6 T=5.7	8-98028-226-0	01	1	0512-		●
323	INSERT 4HF1 ENG(RLS)	8-94448-202-2	03	1	0512-		●
335	RING; SNAP,BEARING 4HF1 ENG(RLS)	8-97254-722-0	01	1	0512-		●
342	FLANGE; OUTPUT 4HF1 ENG(RLS)	8-97252-814-1	01	1	0512-0604		●
342	FLANGE; OUTPUT 4HF1 ENG(RLS)	8-98031-640-0	01	1	0605-		●
393	BEARING; MAINSHAFT END 4JB1 ENG(RLF)	8-97207-512-0	01	1	0303-0511	●
393	BEARING; MAINSHAFT END 4HF1 ENG(RLS)	8-97253-105-1	01	1	0512-		●
396	BEARING; NEEDLE,MAINSHAFT 4HF1 ENG(RLS) (B)	8-97253-110-0	04	1	0512-		●
396	BEARING; NEEDLE,MAINSHAFT 4JB1 ENG(RLF) (A)	8-97161-658-0	01	1	0303-0511	●
396	BEARING; NEEDLE,MAINSHAFT 4HF1 ENG(RLS) (C)	8-97253-102-1	01	1	0512-		●
408	SPRING 4HF1 ENG(RLS) (C)	8-97366-040-1	02	1	0512-		●
408	SPRING 4JB1 ENG(RLF) (A)	8-97081-577-0	01	1	0303-0511	●
408	SPRING 4HF1 ENG(RLS) (B)	8-94148-196-0	03	1	0512-		●
500	RING; OUTSIDE,3RD & 2ND 4HF1 ENG(RLS)	8-97241-309-1	02	1	0512-		●
501	RING; INSIDE,3RD & 2ND 4HF1 ENG(RLS)	8-97241-312-1	02	1	0512-		●
503	RING; OUTSIDE,LOW & REV 4HF1 ENG(RLS)	8-97241-309-1	01	1	0512-		●
504	RING; INSIDE,LOW & REV 4HF1 ENG(RLS)	8-97241-312-1	01	1	0512-		●
505	COLLAR; 3RD & REV 4HF1 ENG(RLS)	8-97253-119-2	02	1	0512-		●
515	HUB; CLU,1ST & REV,2ND & 3RD 4HF1 ENG(RLS)	8-97241-298-2	02	1	0512-		●
516	SPRING; SYNCHRO,INDEX 4HF1 ENG(RLS)	8-97254-835-0	06	1	0512-		●
517	BALL; SYNCHRO,INDEX 4HF1 ENG(RLS)	8-97252-935-0	06	1	0512-		●
519	COLLAR; MAINSHAFT END,5TH 4HF1 ENG(RLS)	8-97252-940-0	01	1	0512-		●
523	GEAR; OD,MAINSHAFT 4HF1 ENG(RLS) Z=22	8-97241-231-0	01	1	0512-		●
524	SLEEVE & HUB ASM; TOP-4TH,OD 4HF1 ENG(RLS)	8-97366-526-0	01	1	0512-		●
525	RING; BLOCK,TOP & 4TH,OD 4HF1 ENG(RLS) Z=45	8-97309-532-0	02	1	0512-		●
526	BEARING; NEEDLE,4TH & 5TH 4HF1 ENG(RLS)	8-97253-112-0	01	1	0512-		●
530	RING; BLOCK,LOW 4HF1 ENG(RLS) Z=45	8-97241-306-1	01	1	0512-		●
531	RING; BLOCK,REV 4HF1 ENG(RLS) Z=45	8-97368-343-0	01	1	0512-		●

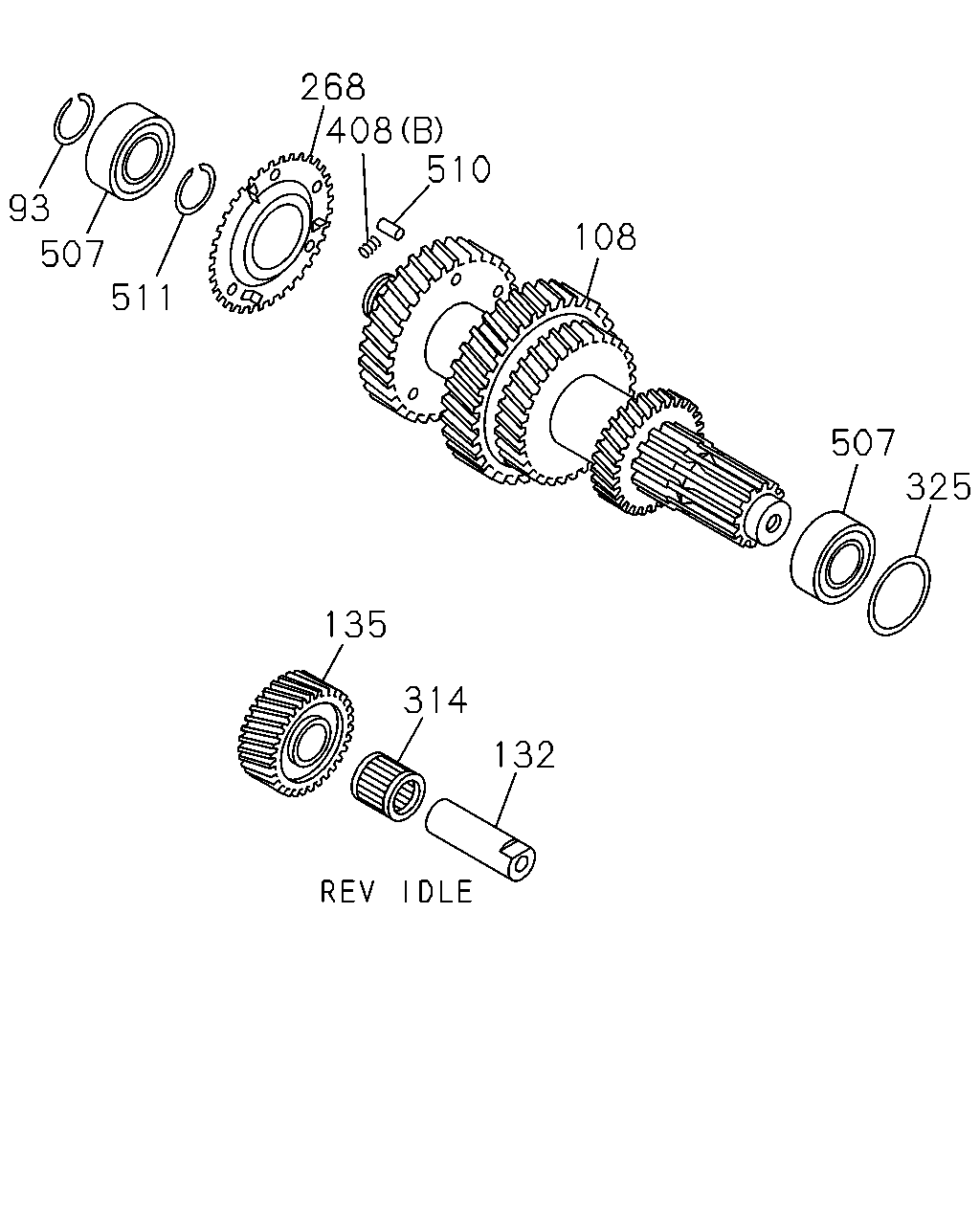

268 408 510 93 108 507 511 507 325 135 314 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	RING; SNAP,COUNTER FRT BRG 4HF1 ENG(RLS) ID=30.7 T=1.9	8-97254-734-0	01	1	0512-		●
93	RING; SNAP,COUNTER FRT BRG 4HF1 ENG(RLS) ID=30.7 T=2.1	8-97254-740-0	01	1	0512-		●
93	RING; SNAP,COUNTER FRT BRG 4HF1 ENG(RLS) ID=30.7 T=2.3	8-97254-742-0	01	1	0512-		●
108	SHAFT; COUNTER 4HF1 ENG(RLS) Z=45-49-33-20	8-97380-630-1	01	1	0512-		●
132	SHAFT; REV 4JB1 ENG(RLF)	9-33351-604-1	01	1	0303-0511	●
132	SHAFT; REV 4HF1 ENG(RLS)	8-97252-655-0	01	1	0512-		●
135	GEAR; REV IDLER 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> Z=29	8-97169-508-0	01	1	0410-0511	●
135	GEAR; REV IDLER 4JB1 ENG(RLF) Z=29	8-97081-539-3	01	1	0303-0409	●
135	GEAR; REV IDLER 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=29	8-97081-539-3	01	1	0410-0511	●
135	GEAR; REV IDLER 4HF1 ENG(RLS) Z=25	8-97241-293-0	01	1	0512-0512		●
135	GEAR; REV IDLER 4HF1 ENG(RLS) Z=25	8-98031-869-1	01	1	0601-		●
268	PLATE; ANTI LASH,COUNTER 4HF1 ENG(RLS)	8-97257-300-1	01	1	0512-		●
314	BEARING; NEEDLE,REV GEAR 4JB1 ENG(RLF) NTN	8-97207-174-0	01	1	0303-0511	●
314	BEARING; NEEDLE,REV GEAR 4HF1 ENG(RLS) NSK	8-97253-114-0	01	1	0512-		●
325	SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.29	8-97252-666-0	01	1	0512-		●
325	SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.35	8-97252-667-0	01	1	0512-		●
325	SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.41	8-97252-668-0	01	1	0512-		●
325	SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.47	8-97252-669-0	01	1	0512-		●
325	SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.53	8-97252-670-0	01	1	0512-		●
325	SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.59	8-97252-671-0	01	1	0512-		●
325	SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.65	8-97252-672-0	01	1	0512-		●
325	SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.71	8-97252-673-0	01	1	0512-		●
325	SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.77	8-97252-674-0	01	1	0512-		●
325	SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.83	8-97252-675-0	01	1	0512-		●
325	SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.89	8-97257-622-0	01	1	0512-		●
325	SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.11	8-97306-188-0	01	1	0512-		●
325	SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.17	8-97306-189-0	01	1	0512-		●
325	SHIM; COUNTER SHAFT BRG 4HF1 ENG(RLS) ID=62.7 T=2.23	8-97306-190-0	01	1	0512-		●
408	SPRING 4HF1 ENG(RLS) (C)	8-97366-040-1	02	1	0512-		●
408	SPRING 4JB1 ENG(RLF) (A)	8-97081-577-0	01	1	0303-0511	●
408	SPRING 4HF1 ENG(RLS) (B)	8-94148-196-0	03	1	0512-		●
507	BEARING; COUNTER SHAFT,FRT & RR 4HF1 ENG(RLS)	8-97253-107-0	02	1	0512-		●
510	PIN; STRAIGHT,ANTI LASH 4HF1 ENG(RLS)	9-08160-825-0	03	1	0512-		●
511	RING; SNAP,ANTI LASH PLATE 4HF1 ENG(RLS)	8-97254-767-0	01	1	0512-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
