Sayfa 2-20 - Isuzu EPC

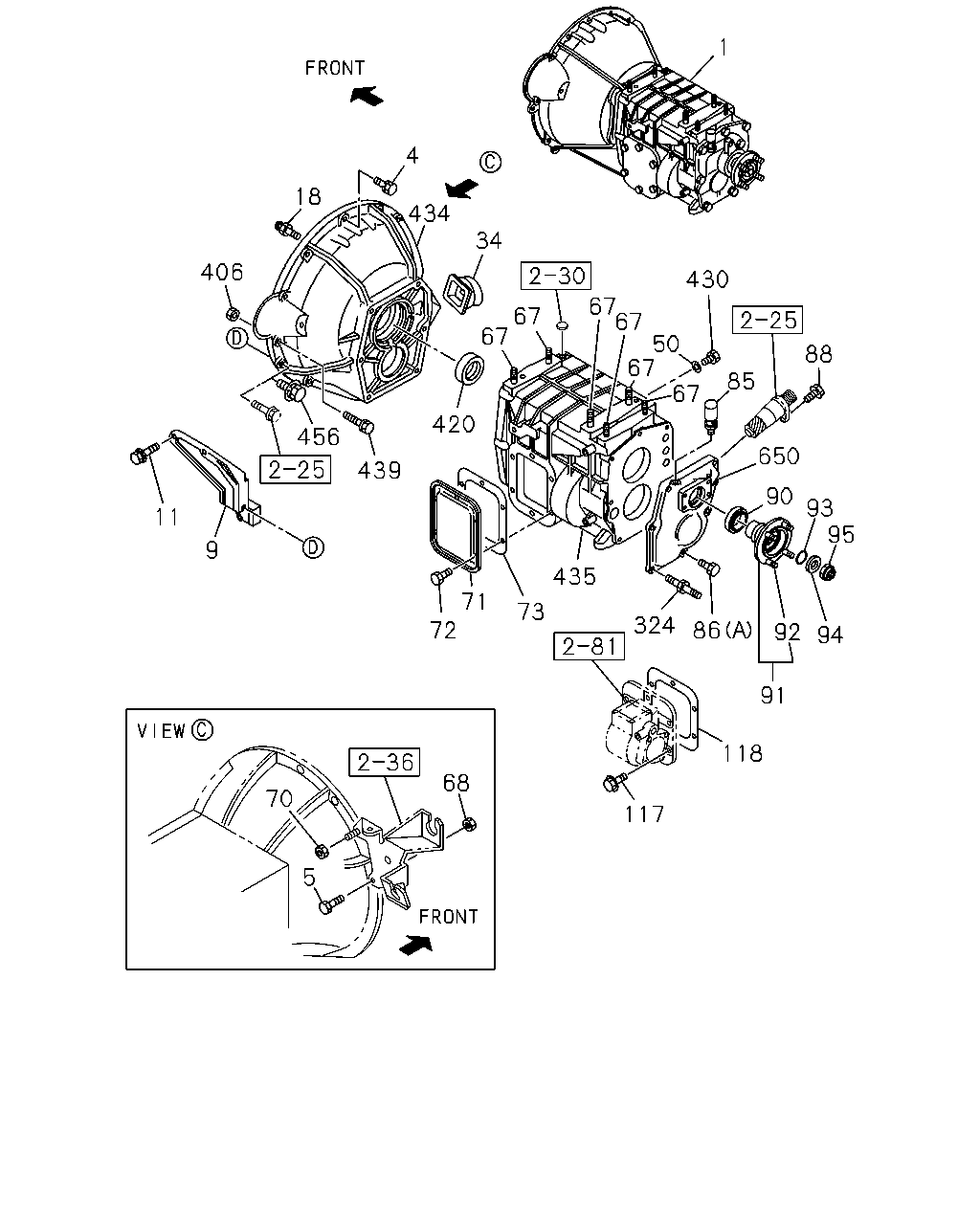

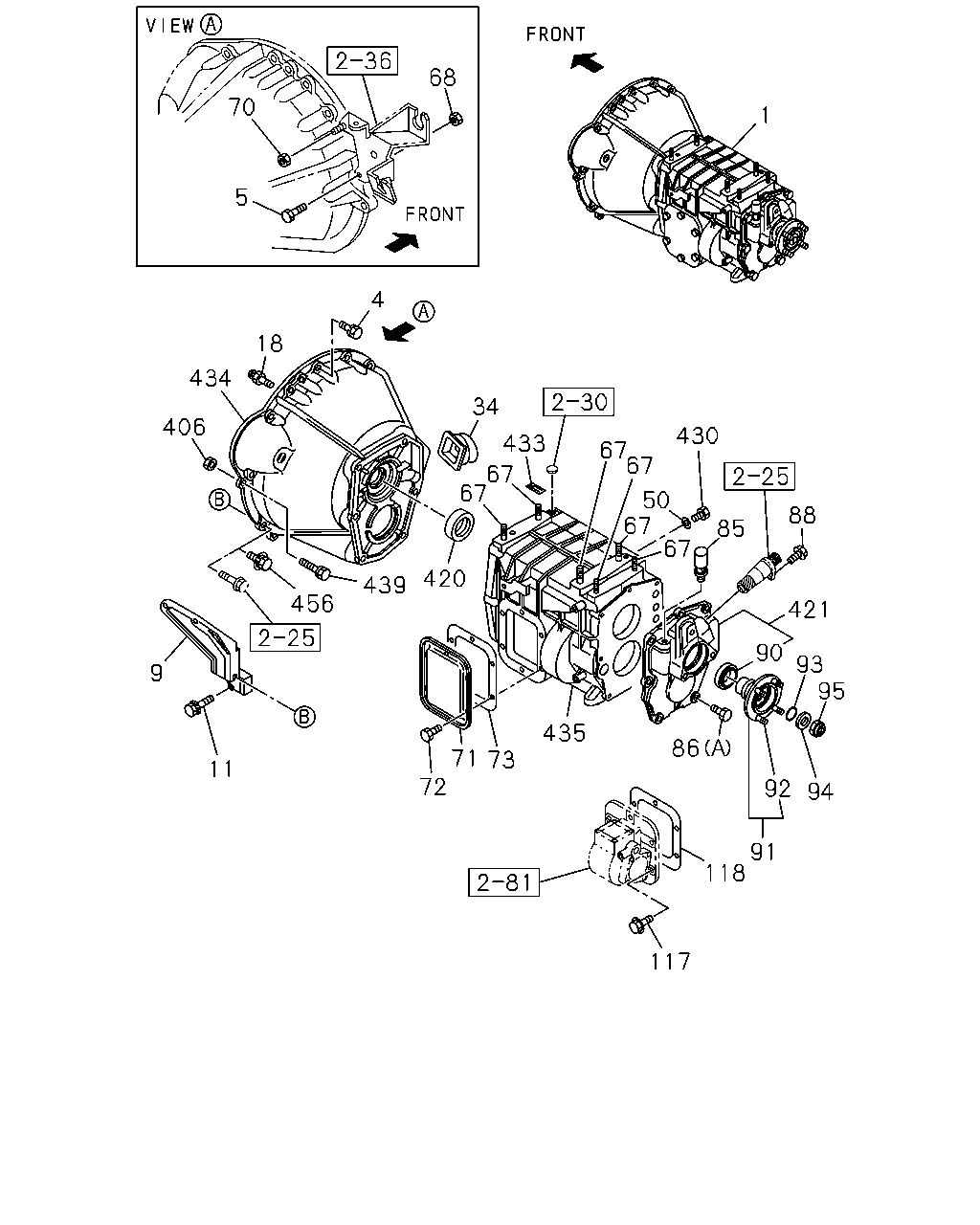

2-20 — MANUAL TRANSMISSION ASM AND CASE (#19005) — 242 parça

68 70 1 5 4 18 434 34 406 430 433 67 67 67 67 50 67 67 88 85 420 439 456 421 90 93 95 9 435 86 71 72 73 11 92 94 91 118 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97373-583-0	01	1	0410-0511	●
1	TRANSMISSION ASM; MANUAL 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97373-914-0	01	1	0512-		●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-97373-584-0	01	1	0410-0511	●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97161-660-1	01	1	0303-0409	●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-660-1	01	1	0410-0511	●
1	TRANSMISSION ASM; MANUAL 4HF1 ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66)	8-97373-914-0	01	1	0512-		●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>	8-97161-672-1	01	1	0303-0409	●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-672-1	01	1	0410-0511	●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28181-030-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X30 FLANGE	0-28181-030-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28151-030-0	02	1	0601-		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X30 FLANGE	0-28151-030-0	02	1	0601-		●
4	BOLT; FLYWHEEL HSG 4JB1 ENG(RLF) M10X35 FLANGE	0-28081-035-0	01	1	0303-0511	●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X35 FLANGE	0-28181-035-0	03	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X35 FLANGE	0-28151-035-0	03	1	0601-		●
4	BOLT; FLYWHEEL HSG 4JB1 ENG(RLF) M10X40 FLANGE	0-28081-040-0	01	1	0303-0511	●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X50 FLANGE	0-28181-050-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X50 FLANGE	0-28151-050-0	02	1	0601-		●
4	BOLT; FLYWHEEL HSG 4JB1 ENG(RLF) M10X45 FLANGE	0-28081-045-0	01	1	0303-0511	●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M10X35 FLANGE	0-28181-035-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M10X35 FLANGE	0-28151-035-0	02	1	0601-		●
5	BOLT; REAR PLATE 4JB1 ENG(RLF) M10X35 FLANGE	0-28081-035-0	01	1	0303-0511	●
9	STIFFENER; C/BL 4JB1 ENG(RLF)	8-97074-108-3	01	1	0303-0511	●
9	STIFFENER; C/BL 4JB1 ENG(RLF)	8-97084-390-2	01	1	0303-0511	●
11	BOLT; BRKT 4JB1 ENG(RLF) M8X12 FLANGE	0-28080-812-0	02	1	0303-0511	●
18	SUPPORT; DRAW LEVER 4JB1 ENG(RLF) L=47.5	8-97225-469-1	01	1	0303-0511	●
34	COVER; DUST,SHIFT FORK 4JB1 ENG(RLF)	8-97034-880-0	01	1	0303-0511	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG(RLF) ID=15.3	8-94336-511-0	01	1	0303-0511	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) ID=17	8-97115-712-0	01	1	0512-		●
67	STUD; CASE TRANS 4JB1 ENG(RLF)	9-09631-004-0	06	1	0303-0511	●
68	NUT; REAR PLATE 4JB1 ENG(RLF) M10 FLANGE SOU	0-91150-110-0	01	1	0303-0511	●
70	NUT; REAMER BOLT 4JB1 ENG(RLF) M10 FLANGE SOU	0-91150-110-0	01	1	0303-0511	●
71	COVER; SIDE,TRANS CASE 4JB1 ENG(RLF)	9-33141-601-2	01	1	0303-0511	●
71	COVER; SIDE,TRANS CASE 4HF1 ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	0512-		●
72	BOLT; SIDE COVER 4JB1 ENG(RLF) M10X12 FLANGE	8-94128-791-0	06	1	0303-0511	●
72	BOLT; SIDE COVER 4HF1 ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) M10X20 FLANGE	8-97254-833-0	06	1	0512-0604		●
72	BOLT; SIDE COVER 4HF1 ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) M10X20 FLANGE	8-98014-142-0	06	1	0605-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG(RLF)	9-33142-601-0	01	1	0303-0511	●
85	BREATHER; RR COVER 4JB1 ENG(RLF)	8-97165-939-0	01	1	0303-0511	●
86	BOLT; RR COVER 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (A) M8X25	8-94128-786-0	07	1	0410-0511	●
86	BOLT; RR COVER 4HF1 ENG(RLS) (B) M10X40 FLANGE	8-97305-392-0	02	1	0512-0604		●
86	BOLT; RR COVER 4HF1 ENG(RLS) (B) M10X40 FLANGE	8-97365-377-0	02	1	0605-		●
86	BOLT; RR COVER 4JB1 ENG(RLF) (A) M8X25	8-94128-786-0	07	1	0303-0409	●
86	BOLT; RR COVER 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> (A) M8X25	8-94128-786-0	04	1	0410-0511	●
86	BOLT; RR COVER 4HF1 ENG(RLS) (C) M10X40 FLANGE	0-28181-040-0	10	1	0512-0512		●
86	BOLT; RR COVER 4HF1 ENG(RLS) (C) M10X40 FLANGE	0-28151-040-0	10	1	0601-		●
88	SCREW; SPEEDOMETER BUSHING 4JB1 ENG(RLF) M8X12	8-94128-785-0	01	1	0303-0511	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG(RLF) NOK	8-97257-296-0	01	1	0303-0511	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS)	8-97253-552-1	01	1	0512-		●
91	DRIVER; COUPLING 4JB1 ENG(RLF)	8-97207-215-0	01	1	0303-0511	●
92	BOLT; COUPLING DRIVER 4JB1 ENG(RLF) M10X33	8-97109-696-1	04	1	0303-0511	●
93	GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG(RLF)	8-94178-725-0	01	1	0303-0511	●
94	WASHER; COUPLING DRIVER 4JB1 ENG(RLF)	8-94249-240-0	01	1	0303-0511	●
95	NUT; MAINSHAFT 4JB1 ENG(RLF) M24 FLANGE	8-97087-750-0	01	1	0303-0511	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X25 W/LK WASHER	0-50041-025-0	04	1	0303-0511	●
117	BOLT; PTO FIX 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28781-030-0	03	1	0512-0512		●
117	BOLT; PTO FIX 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28751-030-0	03	1	0601-		●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X30 W/LK WASHER	0-50041-030-0	02	1	0303-0511	●
118	GASKET; PTO TO TRANS ALSO INCLUDED IN GASKET SET(M/T). PTO TRANSMISSION SIDE(V66)	9-38113-603-0	01	1	0303-0506	●
406	NUT; BRKT 4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) M8 FLANGE SOU	0-91150-108-0	01	1	0303-0511	●
420	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG(RLF) NOK	8-94326-441-0	01	1	0303-0511	●
421	COVER; RR,TRANS 4JB1 ENG(RLF)	8-97112-986-2	01	1	0303-0409	●
421	COVER; RR,TRANS 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97112-986-2	01	1	0410-0511	●
421	COVER; RR,TRANS 4HF1 ENG(RLS)	8-98020-029-0	01	1	0512-		●
430	PLUG; OIL DRAIN 4JB1 ENG(RLF)	8-94336-512-1	01	1	0303-0511	●
430	PLUG; OIL DRAIN 4HF1 ENG(RLS)	9-09662-004-0	01	1	0512-0604		●
430	PLUG; OIL DRAIN 4HF1 ENG(RLS)	8-97365-374-0	01	1	0605-		●
433	LABEL; TRANS 4JB1 ENG(RLF)	8-97084-051-0	01	1	0303-0412	●
433	LABEL; TRANS 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97084-051-0	01	1	0501-0511	●
434	HOUSING; CLU 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW>	8-97204-108-0	01	1	0410-0511	●
434	HOUSING; CLU 4JB1 ENG(RLF)	8-97034-879-2	01	1	0303-0409	●
434	HOUSING; CLU 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97034-879-2	01	1	0410-0511	●
434	HOUSING; CLU 4HF1 ENG(RLS)	8-97237-099-5	01	1	0512-		●
435	CASE; TRANS 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW>	8-97373-564-0	01	1	0410-0511	●
435	CASE; TRANS 4HF1 ENG(RLS)	8-97379-375-0	01	1	0512-		●
435	CASE; TRANS 4JB1 ENG(RLF)	8-97240-847-0	01	1	0303-0409	●
435	CASE; TRANS 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97240-847-0	01	1	0410-0511	●
439	BOLT; BRKT 4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) M8X35 FLANGE	0-28680-835-0	01	1	0303-0511	●
456	BOLT; STIFFENER 4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) M12X35 FLANGE	0-28081-235-0	03	1	0303-0511	●
456	BOLT; STIFFENER 4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) M12X40 FLANGE	0-28081-240-0	01	1	0303-0511	●
456	BOLT; STIFFENER 4JB1 ENG(RLF) EXC. PTO TRANSMISSION SIDE(V66) M12X35 FLANGE	0-28081-235-0	04	1	0303-0511	●

1 4 18 434 34 406 430 67 67 67 67 50 67 88 85 67 420 456 650 439 90 93 95 11 9 435 71 72 73 324 86 92 94 91 118 68 70 117 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97373-583-0	01	1	0410-0511	●
1	TRANSMISSION ASM; MANUAL 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97373-914-0	01	1	0512-		●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-97373-584-0	01	1	0410-0511	●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97161-660-1	01	1	0303-0409	●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-660-1	01	1	0410-0511	●
1	TRANSMISSION ASM; MANUAL 4HF1 ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66)	8-97373-914-0	01	1	0512-		●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>	8-97161-672-1	01	1	0303-0409	●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-672-1	01	1	0410-0511	●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28181-030-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X30 FLANGE	0-28181-030-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28151-030-0	02	1	0601-		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X30 FLANGE	0-28151-030-0	02	1	0601-		●
4	BOLT; FLYWHEEL HSG 4JB1 ENG(RLF) M10X35 FLANGE	0-28081-035-0	01	1	0303-0511	●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X35 FLANGE	0-28181-035-0	03	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X35 FLANGE	0-28151-035-0	03	1	0601-		●
4	BOLT; FLYWHEEL HSG 4JB1 ENG(RLF) M10X40 FLANGE	0-28081-040-0	01	1	0303-0511	●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X50 FLANGE	0-28181-050-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X50 FLANGE	0-28151-050-0	02	1	0601-		●
4	BOLT; FLYWHEEL HSG 4JB1 ENG(RLF) M10X45 FLANGE	0-28081-045-0	01	1	0303-0511	●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M10X35 FLANGE	0-28181-035-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M10X35 FLANGE	0-28151-035-0	02	1	0601-		●
5	BOLT; REAR PLATE 4JB1 ENG(RLF) M10X35 FLANGE	0-28081-035-0	01	1	0303-0511	●
9	STIFFENER; C/BL 4JB1 ENG(RLF)	8-97074-108-3	01	1	0303-0511	●
9	STIFFENER; C/BL 4JB1 ENG(RLF)	8-97084-390-2	01	1	0303-0511	●
11	BOLT; BRKT 4JB1 ENG(RLF) M8X12 FLANGE	0-28080-812-0	02	1	0303-0511	●
18	SUPPORT; DRAW LEVER 4JB1 ENG(RLF) L=47.5	8-97225-469-1	01	1	0303-0511	●
34	COVER; DUST,SHIFT FORK 4JB1 ENG(RLF)	8-97034-880-0	01	1	0303-0511	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG(RLF) ID=15.3	8-94336-511-0	01	1	0303-0511	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) ID=17	8-97115-712-0	01	1	0512-		●
67	STUD; CASE TRANS 4JB1 ENG(RLF)	9-09631-004-0	06	1	0303-0511	●
68	NUT; REAR PLATE 4JB1 ENG(RLF) M10 FLANGE SOU	0-91150-110-0	01	1	0303-0511	●
70	NUT; REAMER BOLT 4JB1 ENG(RLF) M10 FLANGE SOU	0-91150-110-0	01	1	0303-0511	●
71	COVER; SIDE,TRANS CASE 4JB1 ENG(RLF)	9-33141-601-2	01	1	0303-0511	●
71	COVER; SIDE,TRANS CASE 4HF1 ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	0512-		●
72	BOLT; SIDE COVER 4JB1 ENG(RLF) M10X12 FLANGE	8-94128-791-0	06	1	0303-0511	●
72	BOLT; SIDE COVER 4HF1 ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) M10X20 FLANGE	8-97254-833-0	06	1	0512-0604		●
72	BOLT; SIDE COVER 4HF1 ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) M10X20 FLANGE	8-98014-142-0	06	1	0605-		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG(RLF)	9-33142-601-0	01	1	0303-0511	●
85	BREATHER; RR COVER 4JB1 ENG(RLF)	8-97165-939-0	01	1	0303-0511	●
86	BOLT; RR COVER 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (A) M8X25	8-94128-786-0	07	1	0410-0511	●
86	BOLT; RR COVER 4HF1 ENG(RLS) (B) M10X40 FLANGE	8-97305-392-0	02	1	0512-0604		●
86	BOLT; RR COVER 4HF1 ENG(RLS) (B) M10X40 FLANGE	8-97365-377-0	02	1	0605-		●
86	BOLT; RR COVER 4JB1 ENG(RLF) (A) M8X25	8-94128-786-0	07	1	0303-0409	●
86	BOLT; RR COVER 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> (A) M8X25	8-94128-786-0	04	1	0410-0511	●
86	BOLT; RR COVER 4HF1 ENG(RLS) (C) M10X40 FLANGE	0-28181-040-0	10	1	0512-0512		●
86	BOLT; RR COVER 4HF1 ENG(RLS) (C) M10X40 FLANGE	0-28151-040-0	10	1	0601-		●
88	SCREW; SPEEDOMETER BUSHING 4JB1 ENG(RLF) M8X12	8-94128-785-0	01	1	0303-0511	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG(RLF) NOK	8-97257-296-0	01	1	0303-0511	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS)	8-97253-552-1	01	1	0512-		●
91	DRIVER; COUPLING 4JB1 ENG(RLF)	8-97207-215-0	01	1	0303-0511	●
92	BOLT; COUPLING DRIVER 4JB1 ENG(RLF) M10X33	8-97109-696-1	04	1	0303-0511	●
93	GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG(RLF)	8-94178-725-0	01	1	0303-0511	●
94	WASHER; COUPLING DRIVER 4JB1 ENG(RLF)	8-94249-240-0	01	1	0303-0511	●
95	NUT; MAINSHAFT 4JB1 ENG(RLF) M24 FLANGE	8-97087-750-0	01	1	0303-0511	●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X25 W/LK WASHER	0-50041-025-0	04	1	0303-0511	●
117	BOLT; PTO FIX 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28781-030-0	03	1	0512-0512		●
117	BOLT; PTO FIX 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28751-030-0	03	1	0601-		●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X30 W/LK WASHER	0-50041-030-0	02	1	0303-0511	●
118	GASKET; PTO TO TRANS ALSO INCLUDED IN GASKET SET(M/T). PTO TRANSMISSION SIDE(V66)	9-38113-603-0	01	1	0303-0506	●
324	STUD; RR COVER 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW>	8-97320-356-0	03	1	0410-0511	●
324	STUD; RR COVER 4HF1 ENG(RLS) M10X15,M10X40 L=65	8-97309-013-0	01	1	0512-0604		●
324	STUD; RR COVER 4HF1 ENG(RLS) M10X15,M10X40 L=65	8-97365-379-0	01	1	0605-		●
406	NUT; BRKT 4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) M8 FLANGE SOU	0-91150-108-0	01	1	0303-0511	●
420	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG(RLF) NOK	8-94326-441-0	01	1	0303-0511	●
430	PLUG; OIL DRAIN 4JB1 ENG(RLF)	8-94336-512-1	01	1	0303-0511	●
430	PLUG; OIL DRAIN 4HF1 ENG(RLS)	9-09662-004-0	01	1	0512-0604		●
430	PLUG; OIL DRAIN 4HF1 ENG(RLS)	8-97365-374-0	01	1	0605-		●
434	HOUSING; CLU 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW>	8-97204-108-0	01	1	0410-0511	●
434	HOUSING; CLU 4JB1 ENG(RLF)	8-97034-879-2	01	1	0303-0409	●
434	HOUSING; CLU 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97034-879-2	01	1	0410-0511	●
434	HOUSING; CLU 4HF1 ENG(RLS)	8-97237-099-5	01	1	0512-		●
435	CASE; TRANS 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW>	8-97373-564-0	01	1	0410-0511	●
435	CASE; TRANS 4HF1 ENG(RLS)	8-97379-375-0	01	1	0512-		●
435	CASE; TRANS 4JB1 ENG(RLF)	8-97240-847-0	01	1	0303-0409	●
435	CASE; TRANS 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97240-847-0	01	1	0410-0511	●
439	BOLT; BRKT 4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) M8X35 FLANGE	0-28680-835-0	01	1	0303-0511	●
456	BOLT; STIFFENER 4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) M12X35 FLANGE	0-28081-235-0	03	1	0303-0511	●
456	BOLT; STIFFENER 4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) M12X40 FLANGE	0-28081-240-0	01	1	0303-0511	●
456	BOLT; STIFFENER 4JB1 ENG(RLF) EXC. PTO TRANSMISSION SIDE(V66) M12X35 FLANGE	0-28081-235-0	04	1	0303-0511	●
650	COVER; RR 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW>	8-97174-087-0	01	1	0410-0511	●

1 4 434 13 388 256 33 256 316 24 429 429 417 45 435 324 256 609 86 610 611 256 71 119 72 86 319 121 117 90 50 430 317 421

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97373-583-0	01	1	0410-0511	●
1	TRANSMISSION ASM; MANUAL 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66)	8-97373-914-0	01	1	0512-		●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-97373-584-0	01	1	0410-0511	●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97161-660-1	01	1	0303-0409	●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-660-1	01	1	0410-0511	●
1	TRANSMISSION ASM; MANUAL 4HF1 ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66)	8-97373-914-0	01	1	0512-		●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>	8-97161-672-1	01	1	0303-0409	●
1	TRANSMISSION ASM; MANUAL 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-672-1	01	1	0410-0511	●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28181-030-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X30 FLANGE	0-28181-030-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28151-030-0	02	1	0601-		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X30 FLANGE	0-28151-030-0	02	1	0601-		●
4	BOLT; FLYWHEEL HSG 4JB1 ENG(RLF) M10X35 FLANGE	0-28081-035-0	01	1	0303-0511	●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X35 FLANGE	0-28181-035-0	03	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X35 FLANGE	0-28151-035-0	03	1	0601-		●
4	BOLT; FLYWHEEL HSG 4JB1 ENG(RLF) M10X40 FLANGE	0-28081-040-0	01	1	0303-0511	●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X50 FLANGE	0-28181-050-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) M10X50 FLANGE	0-28151-050-0	02	1	0601-		●
4	BOLT; FLYWHEEL HSG 4JB1 ENG(RLF) M10X45 FLANGE	0-28081-045-0	01	1	0303-0511	●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M10X35 FLANGE	0-28181-035-0	02	1	0512-0512		●
4	BOLT; FLYWHEEL HSG 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M10X35 FLANGE	0-28151-035-0	02	1	0601-		●
13	SUPPORT; SHIFT FORK 4HF1 ENG(RLS)	8-97255-384-1	01	1	0512-		●
24	COVER; CHECK HOLE,DUST 4HF1 ENG(RLS)	8-97255-201-0	01	1	0512-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS)	8-97253-550-0	01	1	0512-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) ID=17	8-97115-712-0	01	1	0512-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG(RLF) ID=15.3	8-94336-511-0	01	1	0303-0511	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) ID=17	8-97115-712-0	01	1	0512-		●
71	COVER; SIDE,TRANS CASE 4JB1 ENG(RLF)	9-33141-601-2	01	1	0303-0511	●
71	COVER; SIDE,TRANS CASE 4HF1 ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66)	8-97252-625-0	01	1	0512-		●
72	BOLT; SIDE COVER 4JB1 ENG(RLF) M10X12 FLANGE	8-94128-791-0	06	1	0303-0511	●
72	BOLT; SIDE COVER 4HF1 ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) M10X20 FLANGE	8-97254-833-0	06	1	0512-0604		●
72	BOLT; SIDE COVER 4HF1 ENG(RLS) EXC. PTO TRANSMISSION SIDE(V66) M10X20 FLANGE	8-98014-142-0	06	1	0605-		●
86	BOLT; RR COVER 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (A) M8X25	8-94128-786-0	07	1	0410-0511	●
86	BOLT; RR COVER 4HF1 ENG(RLS) (B) M10X40 FLANGE	8-97305-392-0	02	1	0512-0604		●
86	BOLT; RR COVER 4HF1 ENG(RLS) (B) M10X40 FLANGE	8-97365-377-0	02	1	0605-		●
86	BOLT; RR COVER 4JB1 ENG(RLF) (A) M8X25	8-94128-786-0	07	1	0303-0409	●
86	BOLT; RR COVER 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW> (A) M8X25	8-94128-786-0	04	1	0410-0511	●
86	BOLT; RR COVER 4HF1 ENG(RLS) (C) M10X40 FLANGE	0-28181-040-0	10	1	0512-0512		●
86	BOLT; RR COVER 4HF1 ENG(RLS) (C) M10X40 FLANGE	0-28151-040-0	10	1	0601-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JB1 ENG(RLF) NOK	8-97257-296-0	01	1	0303-0511	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS)	8-97253-552-1	01	1	0512-		●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X25 W/LK WASHER	0-50041-025-0	04	1	0303-0511	●
117	BOLT; PTO FIX 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28781-030-0	03	1	0512-0512		●
117	BOLT; PTO FIX 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M10X30 FLANGE	0-28751-030-0	03	1	0601-		●
117	BOLT; PTO FIX PTO TRANSMISSION SIDE(V66) M10X30 W/LK WASHER	0-50041-030-0	02	1	0303-0511	●
119	STUD; PTO FIX 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M10X25 L=40	9-04411-025-0	03	1	0512-0604		●
119	STUD; PTO FIX 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M10X25 L=40	0-44011-025-0	03	1	0605-		●
121	NUT; PTO FIX 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M10 FLANGE	0-91150-210-0	03	1	0512-0602		●
121	NUT; PTO FIX 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) M10 FLANGE SOU	0-91180-210-0	03	1	0603-		●
256	PIN; KNOCK 4HF1 ENG(RLS) (A) OD=10 L=20	8-97135-423-0	02	1	0512-		●
256	PIN; KNOCK 4HF1 ENG(RLS) (B) ID=6 L=12	9-08160-612-0	02	1	0512-		●
316	MAGNET; TRANS CASE 4HF1 ENG(RLS)	8-94249-524-2	01	1	0512-		●
317	COVER; CASE 4HF1 ENG(RLS)	8-97252-626-0	01	1	0512-		●
319	BOLT; COVER 4HF1 ENG(RLS) M8X20 FLANGE	0-28080-820-0	06	1	0512-0512		●
319	BOLT; COVER 4HF1 ENG(RLS) M8X20 FLANGE	0-28050-820-0	06	1	0601-		●
324	STUD; RR COVER 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW>	8-97320-356-0	03	1	0410-0511	●
324	STUD; RR COVER 4HF1 ENG(RLS) M10X15,M10X40 L=65	8-97309-013-0	01	1	0512-0604		●
324	STUD; RR COVER 4HF1 ENG(RLS) M10X15,M10X40 L=65	8-97365-379-0	01	1	0605-		●
388	BUSHING; CLU HSG 4HF1 ENG(RLS)	8-97241-326-2	02	1	0512-		●
417	PLUG; OIL FILLER,TRANS 4HF1 ENG(RLS)	8-94310-917-0	01	1	0512-0604		●
417	PLUG; OIL FILLER,TRANS 4HF1 ENG(RLS)	8-97365-373-0	01	1	0605-		●
421	COVER; RR,TRANS 4JB1 ENG(RLF)	8-97112-986-2	01	1	0303-0409	●
421	COVER; RR,TRANS 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97112-986-2	01	1	0410-0511	●
421	COVER; RR,TRANS 4HF1 ENG(RLS)	8-98020-029-0	01	1	0512-		●
429	PIN; STRAIGHT 4HF1 ENG(RLS) OD=10 L=20	8-97135-423-0	02	1	0512-		●
430	PLUG; OIL DRAIN 4JB1 ENG(RLF)	8-94336-512-1	01	1	0303-0511	●
430	PLUG; OIL DRAIN 4HF1 ENG(RLS)	9-09662-004-0	01	1	0512-0604		●
430	PLUG; OIL DRAIN 4HF1 ENG(RLS)	8-97365-374-0	01	1	0605-		●
434	HOUSING; CLU 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW>	8-97204-108-0	01	1	0410-0511	●
434	HOUSING; CLU 4JB1 ENG(RLF)	8-97034-879-2	01	1	0303-0409	●
434	HOUSING; CLU 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97034-879-2	01	1	0410-0511	●
434	HOUSING; CLU 4HF1 ENG(RLS)	8-97237-099-5	01	1	0512-		●
435	CASE; TRANS 4JB1 ENG(RLF) IN-HOUSE PRODUCTION VAR.2<TMW>	8-97373-564-0	01	1	0410-0511	●
435	CASE; TRANS 4HF1 ENG(RLS)	8-97379-375-0	01	1	0512-		●
435	CASE; TRANS 4JB1 ENG(RLF)	8-97240-847-0	01	1	0303-0409	●
435	CASE; TRANS 4JB1 ENG(RLF) EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97240-847-0	01	1	0410-0511	●
609	BOLT; HSG TO CASE 4HF1 ENG(RLS) M10X40 FLANGE	0-28181-040-0	13	1	0512-0512		●
609	BOLT; HSG TO CASE 4HF1 ENG(RLS) M10X40 FLANGE	0-28151-040-0	13	1	0601-		●
610	RETAINER; BRG 4HF1 ENG(RLS)	8-97241-315-1	01	1	0512-		●
611	SCREW 4HF1 ENG(RLS) M10X27	8-97254-834-2	11	1	0512-0604		●
611	SCREW 4HF1 ENG(RLS) M10X27 TORQUES	8-97365-354-0	11	1	0605-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
