◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50953 - NKR(SOUTH AFRICA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#19003) — 93 parça

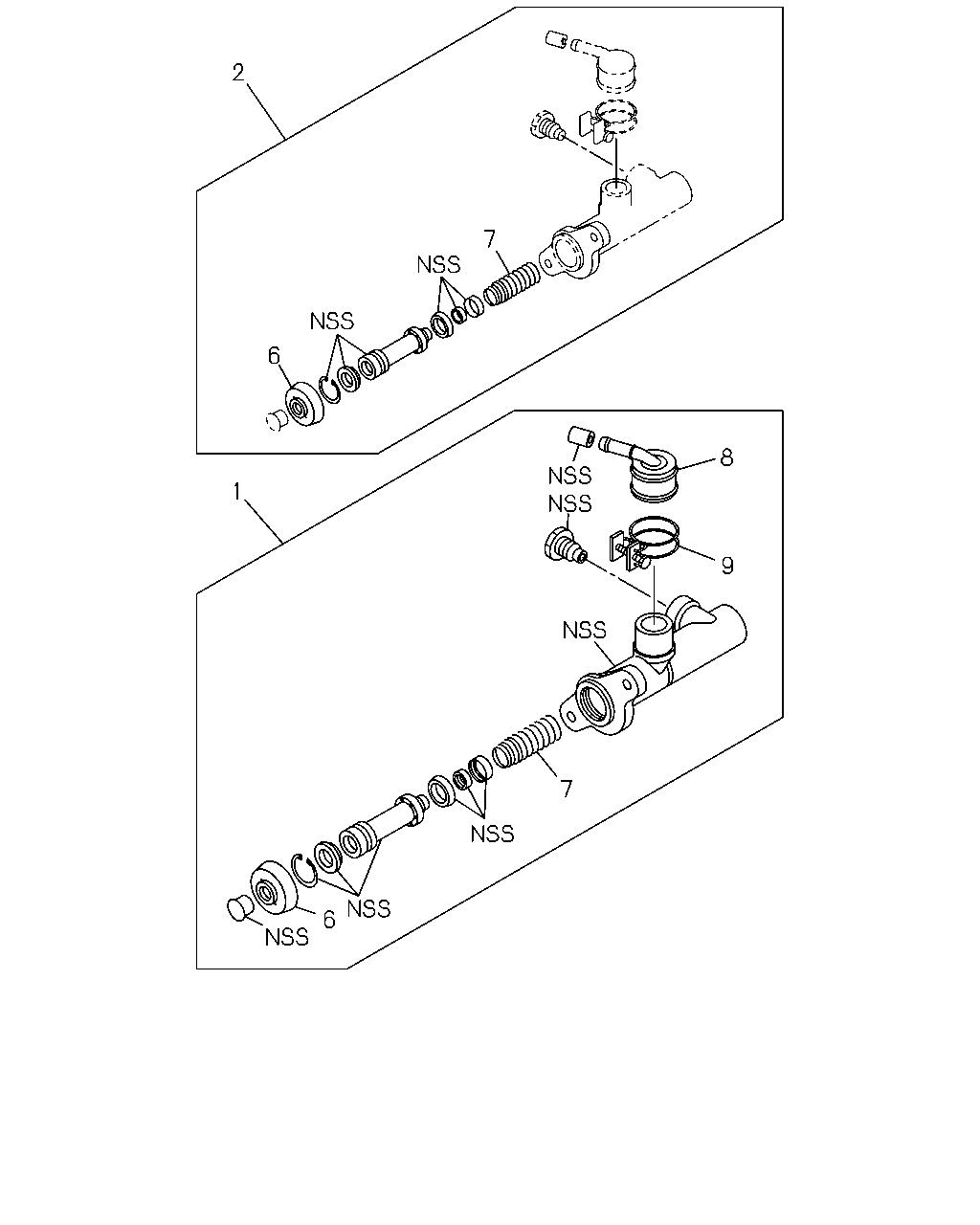

çizim 11562
2 7 6 8 1 9 7 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> KD PREPARATORY PACK VAR.4<7TV> 		8-98098-250-0 01 1 0710- ●
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> SOU 		8-97210-747-1 01 1 0512-0610 ●
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-98004-782-2 01 1 0611-0709 ●
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98062-277-0 01 1 0710- ●
1 CYLINDER ASM; CLUTCH MASTER
4JB1 ENG(RLF) SOU 		8-97162-963-0 01 1 0303-0511 ●
1 CYLINDER ASM; CLUTCH MASTER
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> SOU 		8-97162-963-0 01 1 0512-0803 ●
1 CYLINDER ASM; CLUTCH MASTER
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-98117-639-0 01 1 0804- ●
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> SOU 		5-87831-617-0 01 1 0512-0709 ●
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87832-221-0 01 1 0710- ●
2 REPAIR KIT; CLU M/CYL
4JB1 ENG(RLF) SOU 		5-87831-597-0 01 1 0303-0511 ●
2 REPAIR KIT; CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> SOU 		5-87831-597-0 01 1 0512-0803 ●
2 REPAIR KIT; CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		5-87832-226-0 01 1 0804- ●
6 BOOT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> SOU 		8-97163-153-0 01 1 0512-0709 ●
6 BOOT; CLU M/CYL
4JB1 ENG(RLF) SOU 		8-94412-200-0 01 1 0303-0511 ●
6 BOOT; CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> SOU 		8-94412-200-0 01 1 0512- ●
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> SOU 		8-97163-148-0 01 1 0512-0709 ●
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-98077-784-0 01 1 0710- ●
7 SPRING ASM; CLU M/CYL
4JB1 ENG(RLF) SOU 		8-97167-780-0 01 1 0303-0511 ●
7 SPRING ASM; CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> SOU 		8-97167-780-0 01 1 0512- ●
8 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH<S2T> SOU 		8-97163-154-0 01 1 0512-0709 ●
8 CONNECTOR; PIPE,CLU M/CYL
4JB1 ENG(RLF) SOU 		8-97163-191-0 01 1 0303-0511 ●
8 CONNECTOR; PIPE,CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> SOU 		8-97163-191-0 01 1 0512-0709 ●
8 CONNECTOR; PIPE,CLU M/CYL
SOU 		8-97163-191-0 01 1 0710- ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> SOU 		8-97163-143-0 01 1 0512-0610 ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-98061-352-0 01 1 0611-0709 ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
4JB1 ENG(RLF) SOU 		8-97167-773-0 01 1 0303-0511 ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> SOU 		8-97167-773-0 01 1 0512-0709 ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
SOU 		8-97167-773-0 01 1 0710- ●

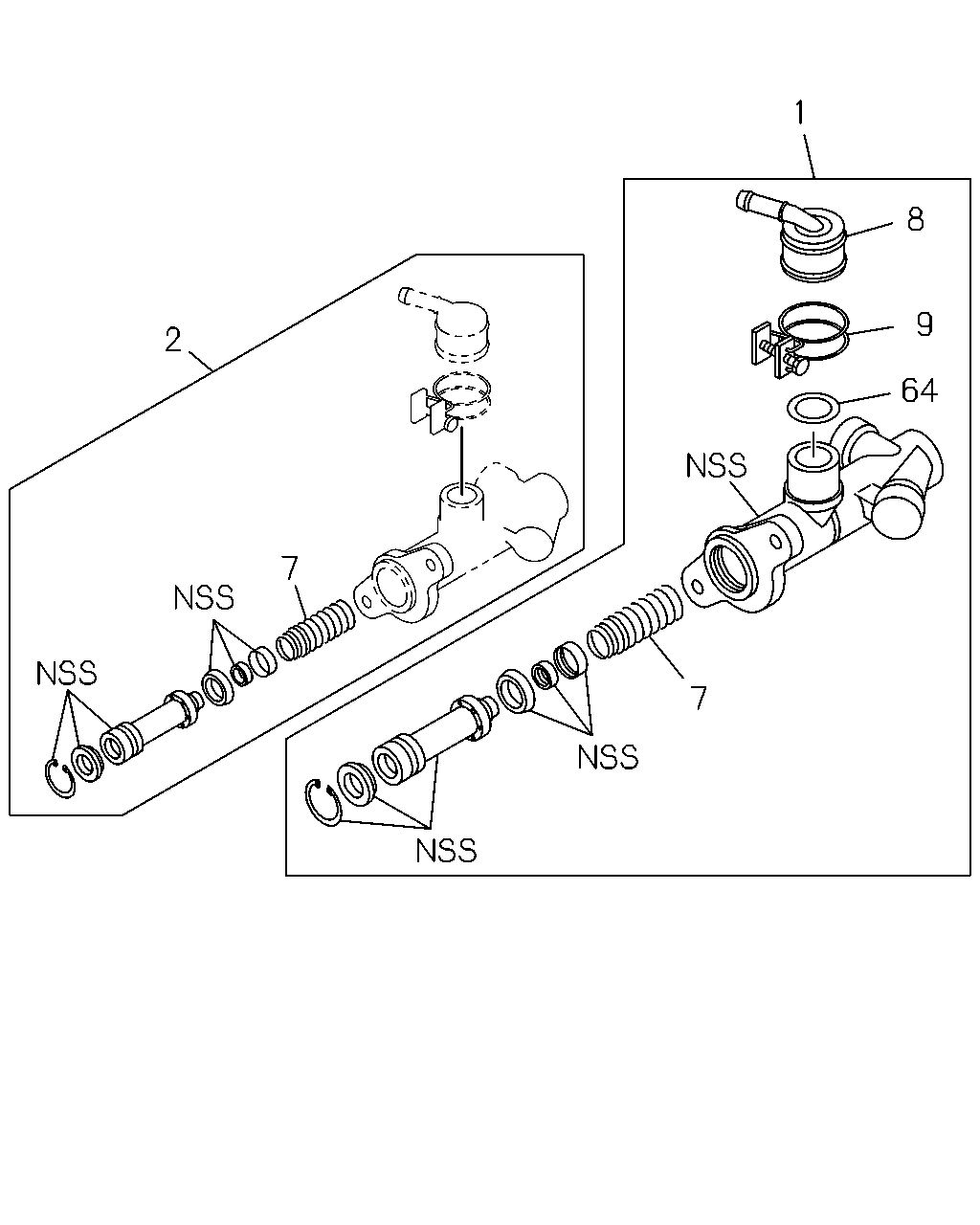

çizim 53979
1 8 9 2 64 7 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> KD PREPARATORY PACK VAR.4<7TV> 		8-98098-250-0 01 1 0710- ●
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> SOU 		8-97210-747-1 01 1 0512-0610 ●
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-98004-782-2 01 1 0611-0709 ●
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98062-277-0 01 1 0710- ●
1 CYLINDER ASM; CLUTCH MASTER
4JB1 ENG(RLF) SOU 		8-97162-963-0 01 1 0303-0511 ●
1 CYLINDER ASM; CLUTCH MASTER
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> SOU 		8-97162-963-0 01 1 0512-0803 ●
1 CYLINDER ASM; CLUTCH MASTER
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-98117-639-0 01 1 0804- ●
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> SOU 		5-87831-617-0 01 1 0512-0709 ●
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87832-221-0 01 1 0710- ●
2 REPAIR KIT; CLU M/CYL
4JB1 ENG(RLF) SOU 		5-87831-597-0 01 1 0303-0511 ●
2 REPAIR KIT; CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> SOU 		5-87831-597-0 01 1 0512-0803 ●
2 REPAIR KIT; CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		5-87832-226-0 01 1 0804- ●
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> SOU 		8-97163-148-0 01 1 0512-0709 ●
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-98077-784-0 01 1 0710- ●
7 SPRING ASM; CLU M/CYL
4JB1 ENG(RLF) SOU 		8-97167-780-0 01 1 0303-0511 ●
7 SPRING ASM; CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> SOU 		8-97167-780-0 01 1 0512- ●
8 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH<S2T> SOU 		8-97163-154-0 01 1 0512-0709 ●
8 CONNECTOR; PIPE,CLU M/CYL
4JB1 ENG(RLF) SOU 		8-97163-191-0 01 1 0303-0511 ●
8 CONNECTOR; PIPE,CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> SOU 		8-97163-191-0 01 1 0512-0709 ●
8 CONNECTOR; PIPE,CLU M/CYL
SOU 		8-97163-191-0 01 1 0710- ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> SOU 		8-97163-143-0 01 1 0512-0610 ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-98061-352-0 01 1 0611-0709 ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
4JB1 ENG(RLF) SOU 		8-97167-773-0 01 1 0303-0511 ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> SOU 		8-97167-773-0 01 1 0512-0709 ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
SOU 		8-97167-773-0 01 1 0710- ●
64 GASKET; CONNECTOR
4JB1 ENG(RLF) SOU 		8-97167-767-0 01 1 0303-0511 ●
64 GASKET; CONNECTOR
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> SOU 		8-97167-767-0 01 1 0512-0709 ●
64 GASKET; CONNECTOR
SOU 		8-97167-767-0 01 1 0710- ●

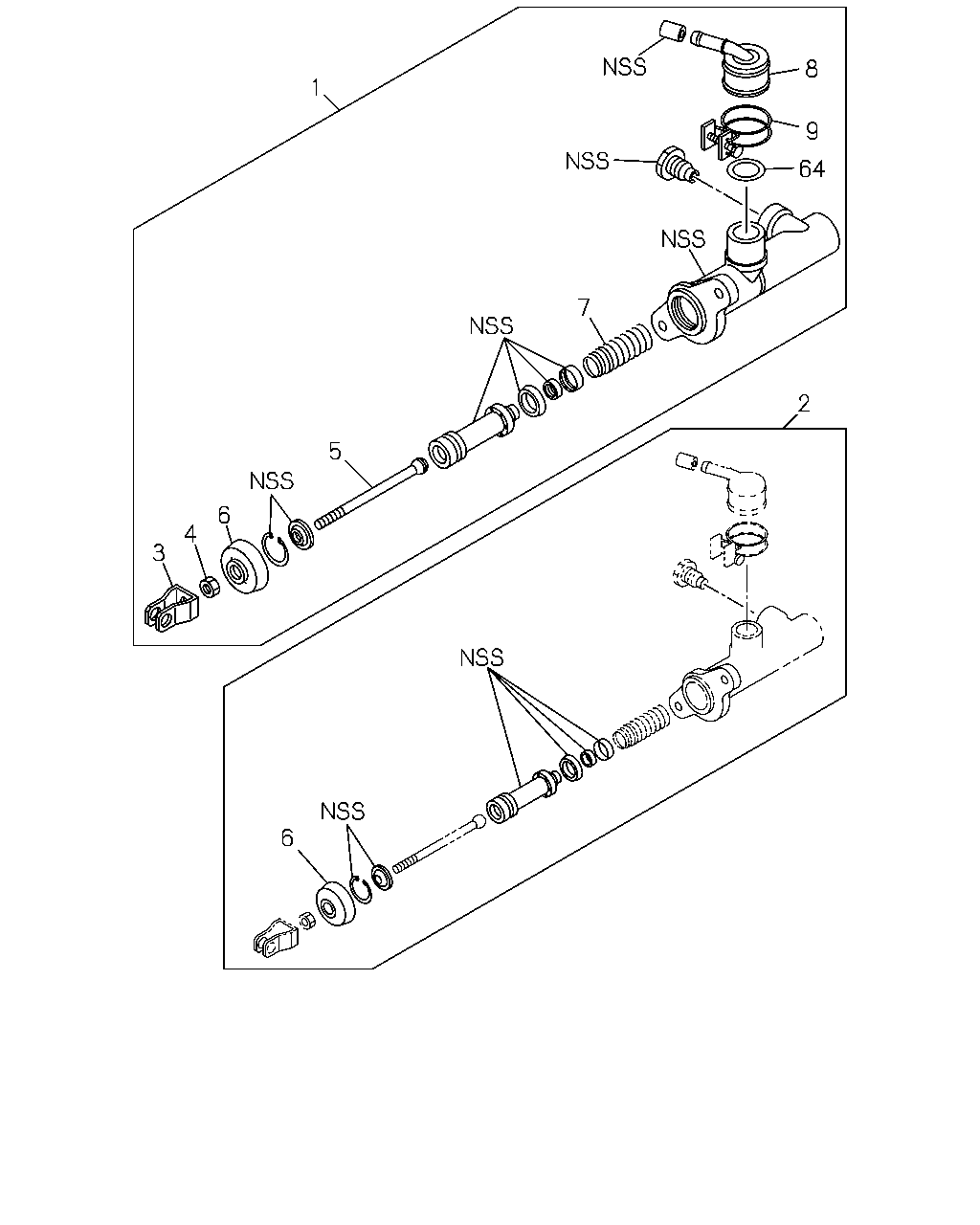

çizim 54421
8 1 9 64 7 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> KD PREPARATORY PACK VAR.4<7TV> 		8-98098-250-0 01 1 0710- ●
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> SOU 		8-97210-747-1 01 1 0512-0610 ●
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> 		8-98004-782-2 01 1 0611-0709 ●
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH<S2T> EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98062-277-0 01 1 0710- ●
1 CYLINDER ASM; CLUTCH MASTER
4JB1 ENG(RLF) SOU 		8-97162-963-0 01 1 0303-0511 ●
1 CYLINDER ASM; CLUTCH MASTER
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> SOU 		8-97162-963-0 01 1 0512-0803 ●
1 CYLINDER ASM; CLUTCH MASTER
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		8-98117-639-0 01 1 0804- ●
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> SOU 		5-87831-617-0 01 1 0512-0709 ●
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		5-87832-221-0 01 1 0710- ●
2 REPAIR KIT; CLU M/CYL
4JB1 ENG(RLF) SOU 		5-87831-597-0 01 1 0303-0511 ●
2 REPAIR KIT; CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> SOU 		5-87831-597-0 01 1 0512-0803 ●
2 REPAIR KIT; CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 		5-87832-226-0 01 1 0804- ●
3 JOINT; JAW,CLU M/CYL
4JB1 ENG(RLF) SOU 		8-97167-770-0 01 1 0303-0511 ●
3 JOINT; JAW,CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> SOU 		8-97167-770-0 01 1 0512- ●
4 NUT; JAW JOINT
4JB1 ENG(RLF) M8 		9-09111-408-0 01 1 0303-0511 ●
4 NUT; JAW JOINT
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> M8 SOU 		0-91111-508-0 01 1 0512- ●
5 ROD; PUSH,CLU M/CYL
4JB1 ENG(RLF) SOU 		8-97167-768-0 01 1 0303-0511 ●
5 ROD; PUSH,CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> SOU 		8-97167-768-0 01 1 0512- ●
6 BOOT; CLU M/CYL
POWER ASSIST CLUTCH<S2T> SOU 		8-97163-153-0 01 1 0512-0709 ●
6 BOOT; CLU M/CYL
4JB1 ENG(RLF) SOU 		8-94412-200-0 01 1 0303-0511 ●
6 BOOT; CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> SOU 		8-94412-200-0 01 1 0512- ●
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> SOU 		8-97163-148-0 01 1 0512-0709 ●
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-98077-784-0 01 1 0710- ●
7 SPRING ASM; CLU M/CYL
4JB1 ENG(RLF) SOU 		8-97167-780-0 01 1 0303-0511 ●
7 SPRING ASM; CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> SOU 		8-97167-780-0 01 1 0512- ●
8 CONNECTOR; PIPE,CLU M/CYL
POWER ASSIST CLUTCH<S2T> SOU 		8-97163-154-0 01 1 0512-0709 ●
8 CONNECTOR; PIPE,CLU M/CYL
4JB1 ENG(RLF) SOU 		8-97163-191-0 01 1 0303-0511 ●
8 CONNECTOR; PIPE,CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> SOU 		8-97163-191-0 01 1 0512-0709 ●
8 CONNECTOR; PIPE,CLU M/CYL
SOU 		8-97163-191-0 01 1 0710- ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> SOU 		8-97163-143-0 01 1 0512-0610 ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
POWER ASSIST CLUTCH<S2T> 		8-98061-352-0 01 1 0611-0709 ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
4JB1 ENG(RLF) SOU 		8-97167-773-0 01 1 0303-0511 ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> SOU 		8-97167-773-0 01 1 0512-0709 ●
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
SOU 		8-97167-773-0 01 1 0710- ●
64 GASKET; CONNECTOR
4JB1 ENG(RLF) SOU 		8-97167-767-0 01 1 0303-0511 ●
64 GASKET; CONNECTOR
4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> SOU 		8-97167-767-0 01 1 0512-0709 ●
64 GASKET; CONNECTOR
SOU 		8-97167-767-0 01 1 0710- ●
