◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50953 - NKR(SOUTH AFRICA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06 - CLUTCH SLAVE CYLINDER ▶
2-06 — CLUTCH SLAVE CYLINDER (#19001) — 30 parça

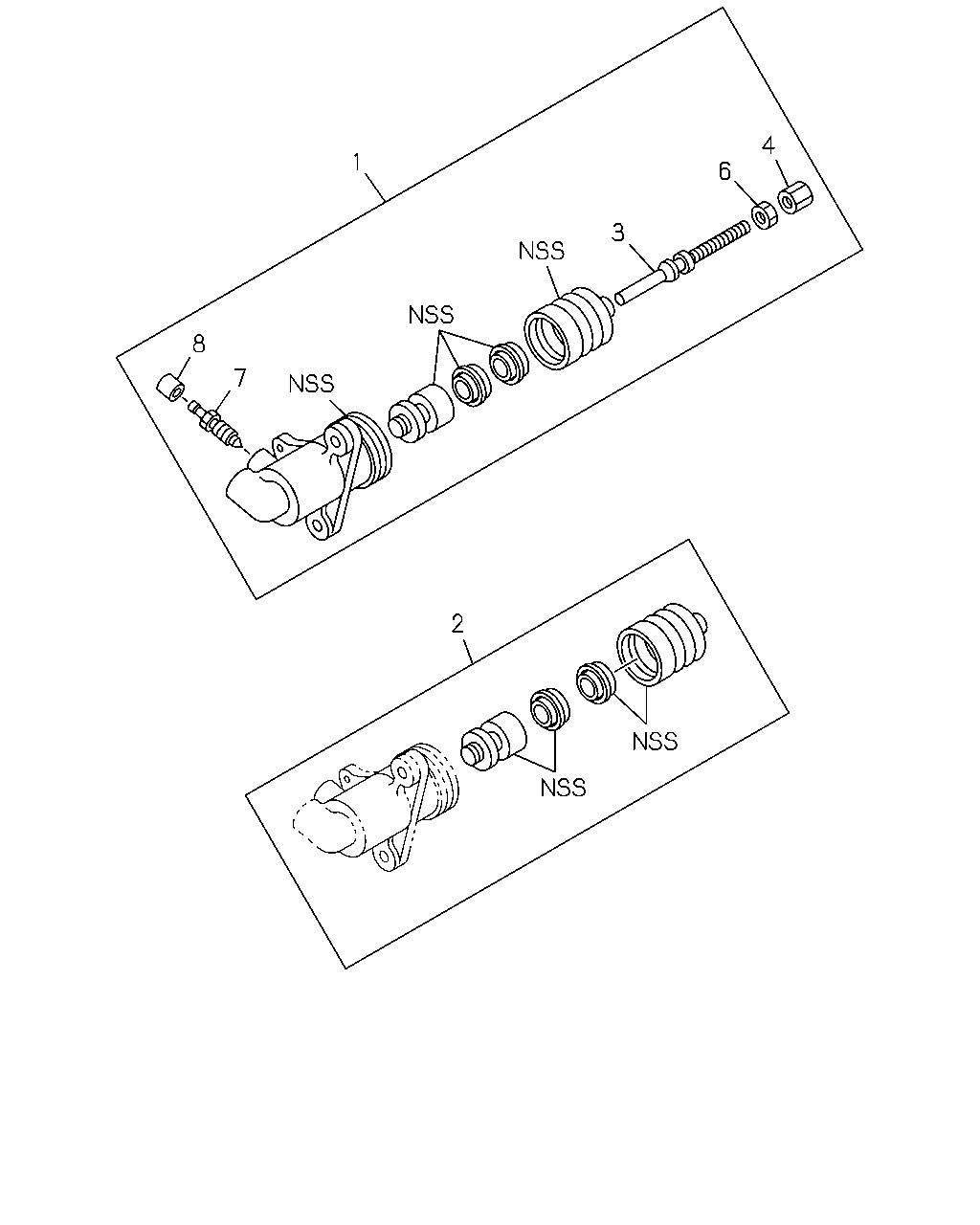

çizim 54022
4 1 6 3 8 7 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER; SLAVE,CLU
4JB1 ENG(RLF) 		8-97212-015-0 01 1 0303-0511 ●
1 CYLINDER; SLAVE,CLU
4HF1 ENG(RLS) 		8-97349-423-0 01 1 0512- ●
2 REPAIR KIT; CLU SLAVE CYL
4JB1 ENG(RLF) 		5-87831-731-0 01 1 0303-0511 ●
2 REPAIR KIT; CLU SLAVE CYL
4HF1 ENG(RLS) 		5-87831-204-0 01 1 0512- ●
3 ROD; PUSH,SLAVE CYL
4JB1 ENG(RLF) 		8-97212-019-0 01 1 0303-0511 ●
3 ROD; PUSH,SLAVE CYL
4HF1 ENG(RLS) 		8-97255-389-0 01 1 0512- ●
4 NUT; ADJ,SLAVE CYL PUSH ROD
4JB1 ENG(RLF) 		8-97212-020-0 01 1 0303-0511 ●
4 NUT; ADJ,SLAVE CYL PUSH ROD
4HF1 ENG(RLS) 		8-97065-441-0 01 1 0512- ●
6 NUT; LK,ROD END
4JB1 ENG(RLF) M8 		9-09111-408-0 01 1 0303-0511 ●
6 NUT; LK,ROD END
4HF1 ENG(RLS) M10 		9-09111-410-0 01 1 0512-0512 ●
6 NUT; LK,ROD END
4HF1 ENG(RLS) M10 		0-91111-510-0 01 1 0601- ●
7 SCREW; BLEEDER,SLAVE CYL
4JB1 ENG(RLF) 		8-97188-329-0 01 1 0303-0511 ●
7 SCREW; BLEEDER,SLAVE CYL
4HF1 ENG(RLS) M8X10 		8-98020-477-0 01 1 0512- ●
8 CAP; BLEEDER,SLAVE CYL
4JB1 ENG(RLF) 		8-97188-330-0 01 1 0303-0511 ●
8 CAP; BLEEDER,SLAVE CYL
4HF1 ENG(RLS) OD=9.5 		9-47619-005-0 01 1 0512- ●
çizim 54413
1 4 8 6 7 3 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER; SLAVE,CLU
4JB1 ENG(RLF) 		8-97212-015-0 01 1 0303-0511 ●
1 CYLINDER; SLAVE,CLU
4HF1 ENG(RLS) 		8-97349-423-0 01 1 0512- ●
2 REPAIR KIT; CLU SLAVE CYL
4JB1 ENG(RLF) 		5-87831-731-0 01 1 0303-0511 ●
2 REPAIR KIT; CLU SLAVE CYL
4HF1 ENG(RLS) 		5-87831-204-0 01 1 0512- ●
3 ROD; PUSH,SLAVE CYL
4JB1 ENG(RLF) 		8-97212-019-0 01 1 0303-0511 ●
3 ROD; PUSH,SLAVE CYL
4HF1 ENG(RLS) 		8-97255-389-0 01 1 0512- ●
4 NUT; ADJ,SLAVE CYL PUSH ROD
4JB1 ENG(RLF) 		8-97212-020-0 01 1 0303-0511 ●
4 NUT; ADJ,SLAVE CYL PUSH ROD
4HF1 ENG(RLS) 		8-97065-441-0 01 1 0512- ●
6 NUT; LK,ROD END
4JB1 ENG(RLF) M8 		9-09111-408-0 01 1 0303-0511 ●
6 NUT; LK,ROD END
4HF1 ENG(RLS) M10 		9-09111-410-0 01 1 0512-0512 ●
6 NUT; LK,ROD END
4HF1 ENG(RLS) M10 		0-91111-510-0 01 1 0601- ●
7 SCREW; BLEEDER,SLAVE CYL
4JB1 ENG(RLF) 		8-97188-329-0 01 1 0303-0511 ●
7 SCREW; BLEEDER,SLAVE CYL
4HF1 ENG(RLS) M8X10 		8-98020-477-0 01 1 0512- ●
8 CAP; BLEEDER,SLAVE CYL
4JB1 ENG(RLF) 		8-97188-330-0 01 1 0303-0511 ●
8 CAP; BLEEDER,SLAVE CYL
4HF1 ENG(RLS) OD=9.5 		9-47619-005-0 01 1 0512- ●
