◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50953 - NKR(SOUTH AFRICA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#19000) — 70 parça

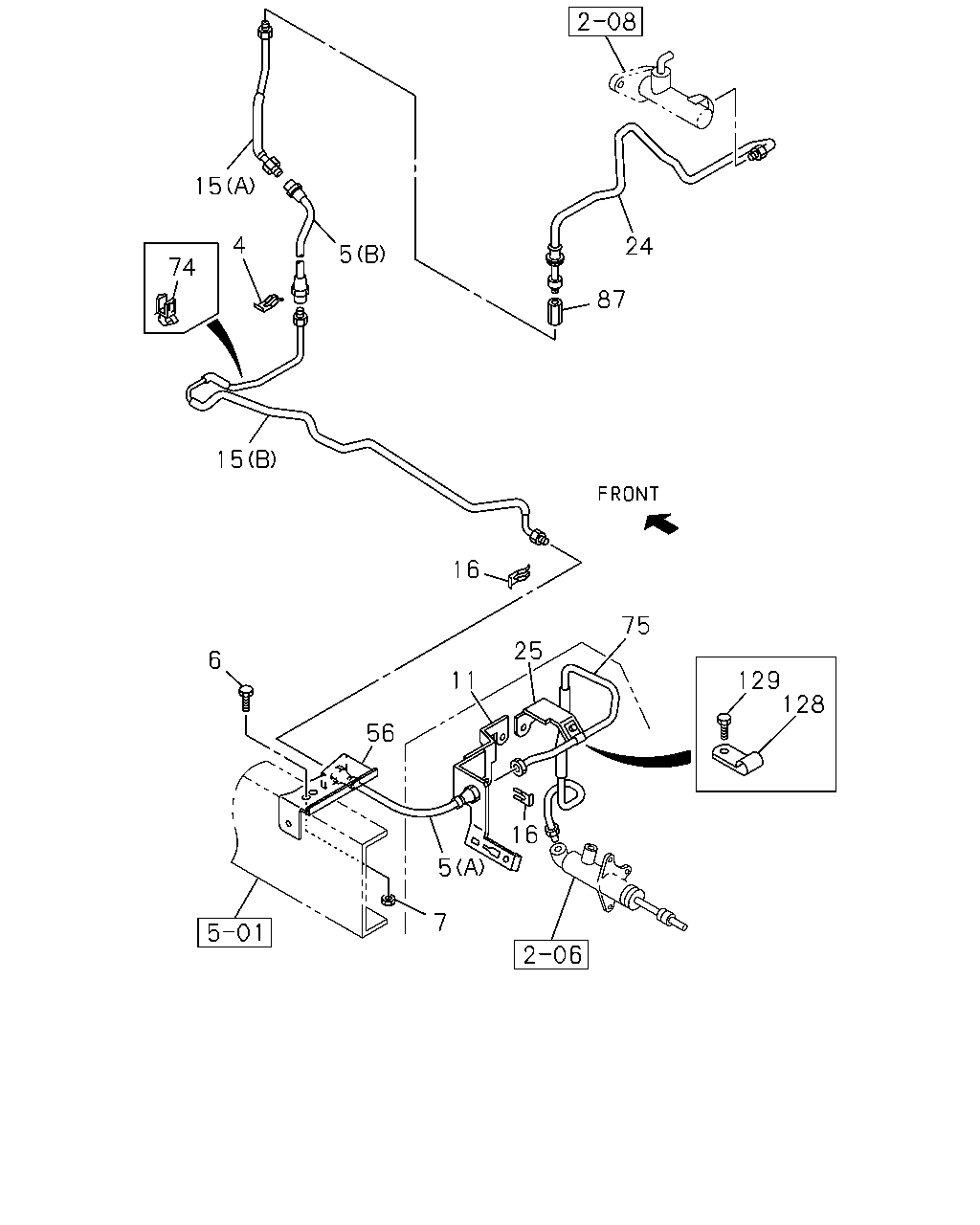

çizim 54062
15 4 24 5 74 87 15 16 75 25 6 129 128 11 56 16 5 7
BalonParca AdiParca NoAdetTipApplied Date A B
4 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0303-0511 ●
4 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0512-0610 ●
4 CLIP; FLEX HOSE,CLU CONT 8-97365-304-0 02 1 0611- ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0303-0511 ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0512-0609 ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-98004-775-0 01 1 0610-0706 ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-98090-655-0 01 1 0707- ●
5 HOSE; FLEX,CLU PIPE
4JB1 ENG(RLF) (A) 		8-94374-552-1 01 1 0303-0511 ●
5 HOSE; FLEX,CLU PIPE
4HF1 ENG(RLS) (C) 		8-94482-265-1 01 1 0512- ●
6 BOLT; BRKT,FLEX HOSE
4JB1 ENG(RLF) M8X20 FLANGE 		0-28680-820-0 01 1 0303-0511 ●
6 BOLT; BRKT,FLEX HOSE
4HF1 ENG(RLS) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ●
6 BOLT; BRKT,FLEX HOSE
4HF1 ENG(RLS) M8X25 FLANGE SOU 		0-28650-825-0 01 1 0601- ●
7 NUT; FLEX HOSE,CLU CONT
4JB1 ENG(RLF) M8 FLANGE SOU 		0-91150-108-0 01 1 0303-0511 ●
7 NUT; FLEX HOSE,CLU CONT
4HF1 ENG(RLS) M8 FLANGE SOU 		0-91150-108-0 01 1 0512-0602 ●
7 NUT; FLEX HOSE,CLU CONT
4HF1 ENG(RLS) M8 FLANGE SOU 		0-91180-108-0 01 1 0603- ●
11 BRACKET; FLEX HOSE,CLU
4JB1 ENG(RLF) 		8-97091-929-0 01 1 0303-0511 ●
11 BRACKET; FLEX HOSE,CLU
4HF1 ENG(RLS) 		8-97063-755-0 01 1 0512- ●
15 PIPE; CLU,FLEX HOSE
(A) 		8-97035-987-0 01 1 0303-0511 ●
15 PIPE; CLU,FLEX HOSE
(A) 		8-97035-987-0 01 1 0512- ●
15 PIPE; CLU,FLEX HOSE
4JB1 ENG(RLF) (B) 		8-97122-637-0 01 1 0303-0511 ●
15 PIPE; CLU,FLEX HOSE
4HF1 ENG(RLS) (C) 		8-97362-192-0 01 1 0512- ●
16 CLIP; FLEX HOSE
4JB1 ENG(RLF) 		8-94167-006-0 01 1 0303-0511 ●
16 CLIP; FLEX HOSE
4JB1 ENG(RLF) 		8-94167-006-0 01 1 0303-0511 ●
16 CLIP; FLEX HOSE
4HF1 ENG(RLS) 		8-94167-006-0 01 1 0512-0610 ●
16 CLIP; FLEX HOSE
4HF1 ENG(RLS) 		8-97365-304-0 01 1 0611- ●
24 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH<S2T> 		8-97035-973-0 01 1 0512- ●
24 PIPE ASM; CLU,M/CYL TO UNION
SOU 		8-97035-986-0 01 1 0303-0511 ●
24 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH<S2T> SOU 		8-97035-986-0 01 1 0512- ●
25 BRACKET; OIL PIPE
4JB1 ENG(RLF) 		8-97013-211-1 01 1 0303-0511 ●
56 BRACKET; FLEX HOSE
4JB1 ENG(RLF) 		8-97090-299-0 01 1 0303-0511 ●
74 CLIP; CLU OIL PIPE
4JB1 ENG(RLF) H=28.5 		8-94486-808-0 02 1 0303-0511 ●
75 PIPE ASM; CLU,HSG
4JB1 ENG(RLF) 		8-97063-756-2 01 1 0303-0511 ●
87 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0303-0511 ●
87 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0512-0607 ●
87 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 0608- ●
128 CLIP; AIR PIPE
4JB1 ENG(RLF) ID=7 L=16 		9-09524-622-0 02 1 0303-0511 ●
129 BOLT; PIPE CLIP
4JB1 ENG(RLF) M6X12 FLANGE 		0-28080-612-0 02 1 0303-0511 ●
çizim 54457
15 24 87 4 5 183 15 11 6 16 7 5 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 GASKET; FLEX HOSE,CLU
4HF1 ENG(RLS) 		9-09920-873-1 01 1 0512- ●
4 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0303-0511 ●
4 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0512-0610 ●
4 CLIP; FLEX HOSE,CLU CONT 8-97365-304-0 02 1 0611- ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0303-0511 ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0512-0609 ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-98004-775-0 01 1 0610-0706 ●
5 HOSE; FLEX,CLU PIPE
(B) 		8-98090-655-0 01 1 0707- ●
5 HOSE; FLEX,CLU PIPE
4JB1 ENG(RLF) (A) 		8-94374-552-1 01 1 0303-0511 ●
5 HOSE; FLEX,CLU PIPE
4HF1 ENG(RLS) (C) 		8-94482-265-1 01 1 0512- ●
6 BOLT; BRKT,FLEX HOSE
4JB1 ENG(RLF) M8X20 FLANGE 		0-28680-820-0 01 1 0303-0511 ●
6 BOLT; BRKT,FLEX HOSE
4HF1 ENG(RLS) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ●
6 BOLT; BRKT,FLEX HOSE
4HF1 ENG(RLS) M8X25 FLANGE SOU 		0-28650-825-0 01 1 0601- ●
7 NUT; FLEX HOSE,CLU CONT
4JB1 ENG(RLF) M8 FLANGE SOU 		0-91150-108-0 01 1 0303-0511 ●
7 NUT; FLEX HOSE,CLU CONT
4HF1 ENG(RLS) M8 FLANGE SOU 		0-91150-108-0 01 1 0512-0602 ●
7 NUT; FLEX HOSE,CLU CONT
4HF1 ENG(RLS) M8 FLANGE SOU 		0-91180-108-0 01 1 0603- ●
11 BRACKET; FLEX HOSE,CLU
4JB1 ENG(RLF) 		8-97091-929-0 01 1 0303-0511 ●
11 BRACKET; FLEX HOSE,CLU
4HF1 ENG(RLS) 		8-97063-755-0 01 1 0512- ●
15 PIPE; CLU,FLEX HOSE
(A) 		8-97035-987-0 01 1 0303-0511 ●
15 PIPE; CLU,FLEX HOSE
(A) 		8-97035-987-0 01 1 0512- ●
15 PIPE; CLU,FLEX HOSE
4JB1 ENG(RLF) (B) 		8-97122-637-0 01 1 0303-0511 ●
15 PIPE; CLU,FLEX HOSE
4HF1 ENG(RLS) (C) 		8-97362-192-0 01 1 0512- ●
16 CLIP; FLEX HOSE
4JB1 ENG(RLF) 		8-94167-006-0 01 1 0303-0511 ●
16 CLIP; FLEX HOSE
4JB1 ENG(RLF) 		8-94167-006-0 01 1 0303-0511 ●
16 CLIP; FLEX HOSE
4HF1 ENG(RLS) 		8-94167-006-0 01 1 0512-0610 ●
16 CLIP; FLEX HOSE
4HF1 ENG(RLS) 		8-97365-304-0 01 1 0611- ●
24 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH<S2T> 		8-97035-973-0 01 1 0512- ●
24 PIPE ASM; CLU,M/CYL TO UNION
SOU 		8-97035-986-0 01 1 0303-0511 ●
24 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH<S2T> SOU 		8-97035-986-0 01 1 0512- ●
87 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0303-0511 ●
87 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0512-0607 ●
87 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 0608- ●
183 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH<S2T> SOU 		8-97129-874-0 01 1 0512- ●
