2-61 — TRANSFER CASE AND GEAR SHIFTER (#1900) — 89 parça

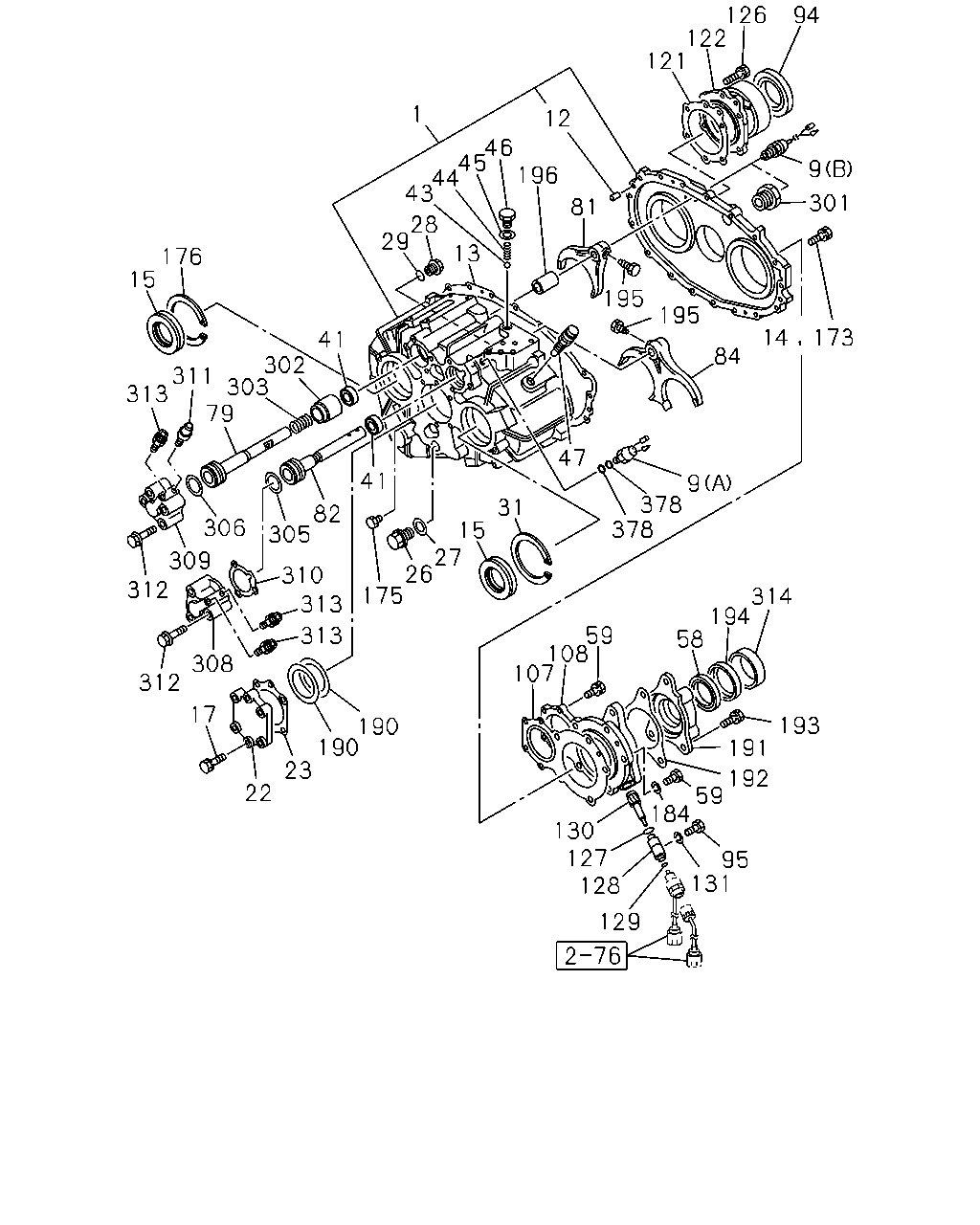

çizim 29228
126 122 121 94 1 12 46 45 44 196 43 9 301 81 28 29 13 176 15 195 195 14 173 41 84 302 303 79 311 313 47 41 9 378 378 31 82 305 306 15 27 26 175 309 310 312 314 194 58 313 59 108 107 313 308 312 17 193 190 190 23 191 192 59 184 22 130 127 128 95 131 129
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CASE; TRANSFER 1-36110-039-0 01 1 9207- ● ● ● ●
9 SWITCH; TRANSFER
(A) 		1-82340-177-0 01 1 9207- ● ● ● ●
9 SWITCH; TRANSFER
(B) 		1-82440-054-0 02 1 9207- ● ● ● ●
12 PIN; STRAIGHT,TRANSFER CASE 9-08161-016-0 02 1 9207- ● ● ● ●
13 GASKET; COVER TO TRANSFER CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36132-003-0 01 1 9207- ● ● ● ●
14 BOLT; COVER TO TRANSFER CASE
M10X30 W/LK WASHER 		0-50051-030-0 11 1 9207- ● ● ● ●
14 BOLT; COVER TO TRANSFER CASE
M10X45 W/LK WASHER 		0-50051-045-0 02 1 9207- ● ● ● ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-202-1 02 1 9207- ● ● ● ●
17 BOLT; BRG COVER
M10X28 		0-50051-028-0 06 1 9207- ● ● ● ●
22 COVER; BRG,IDLE SHAFT 1-36151-006-1 01 1 9207- ● ● ● ●
23 GASKET; BRG COVER
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-36152-003-0 01 1 9207- ● ● ● ●
26 PLUG; FILLER,TRANSFER CASE
M24X17 FLANGE 		1-09604-021-0 01 1 9207-9405 ● ● ● ●
26 PLUG; FILLER,TRANSFER CASE
M24X17 FLANGE 		1-09604-022-0 01 1 9406- ● ● ● ●
27 GASKET; FILLER PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=24.5 OD=32.5 		9-09920-392-0 01 1 9207-9405 ● ● ● ●
27 GASKET; FILLER PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 9406- ● ● ● ●
28 PLUG; DRAIN,TRANSFER CASE
M24X17 FLANGE 		1-09604-023-0 01 1 9207- ● ● ● ●
29 GASKET; DRAIN PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 9207- ● ● ● ●
31 RING; SNAP,INPUT 9-09950-184-0 01 1 9207- ● ● ● ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-377-0 02 1 9207- ● ● ● ●
43 BALL; LK,SHIFT ROD 9-00097-013-0 01 1 9207- ● ● ● ●
44 SPRING; COIL,LK 9-09940-323-0 01 1 9207- ● ● ● ●
45 GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-09571-520-0 01 1 9207- ● ● ● ●
46 SEAT; SPR 9-09862-175-0 01 1 9207- ● ● ● ●
47 BREATHER; TRANSFER CASE 9-36122-015-1 01 1 9207- ● ● ● ●
58 SEAL; OIL,RR UPR
NOK 		1-09625-173-0 01 1 9207- ● ● ● ●
58 SEAL; OIL,RR UPR
KOYO 		9-09924-501-0 01 1 9207-9504 ● ● ● ●
59 BOLT; UPR COVER
M14X65 		0-16806-465-0 01 1 9207- ● ● ● ●
59 BOLT; UPR COVER
M14X40 		0-23801-440-0 04 1 9207- ● ● ● ●
59 BOLT; UPR COVER
M10X30 W/LK WASHER 		0-50051-030-0 04 1 9207- ● ● ● ●
79 ROD; SHIFT,NEUTRAL & FRT DRIVE 1-36564-027-0 01 1 9207- ● ● ● ●
81 FORK; SHIFT,NEUTRAL & FRT DRIVE 1-36561-020-0 01 1 9207- ● ● ● ●
82 ROD; SHIFT,LOW & HIGH 1-36564-026-0 01 1 9207- ● ● ● ●
84 FORK; SHIFT,LOW & HIGH 1-36561-019-1 01 1 9207- ● ● ● ●
94 SEAL; OIL,RR COVER,OUTPUT
NOK 		1-09625-484-0 01 1 9207- ● ● ● ●
95 SCREW; BUSHING,DRIVEN GEAR 1-09122-017-0 01 1 9207-9302 ● ● ● ●
95 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		1-09044-063-0 01 1 9303- ● ● ● ●
107 GASKET; COVER TO CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-36123-009-0 01 1 9207- ● ● ● ●
108 COVER; UPR,TRANSFER 1-36121-006-2 01 1 9207- ● ● ● ●
121 GASKET; RR COVER,LWR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-006-0 01 1 9207- ● ● ● ●
122 COVER; RR,OUTPUT 1-36121-005-0 01 1 9207- ● ● ● ●
126 BOLT; RR COVER
M10X25 W/LK WASHER 		0-50051-025-0 06 1 9207- ● ● ● ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09623-370-0 01 1 9207- ● ● ● ●
128 BUSHING; DRIVEN GEAR 1-33373-039-1 01 1 9207- ● ● ● ●
129 SEAL; OIL,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-510-0 01 1 9207- ● ● ● ●
130 GEAR; DRIVEN,SPD,TRANSFER
TIRE 7.50-20-12 RIB(70S),TIRE 7.50-20-12 LUG(71S),TIRE 7.50-20-12 SNOW(72S),TIRE 7.50-20-12 SPECIAL LUG(74S) Z=12 		1-33372-074-5 01 1 9207- ● ●
130 GEAR; DRIVEN,SPD,TRANSFER
TIRE 8.25-20-14 LUG(01R),TIRE 8.25R-20-14 RIB(05R),TIRE 8.25-20-12 RIB(80S),TIRE 8.25-20-12 LUG(81S),TIRE 8.25-20-12 SNOW(82S),TIRE 8.25-20-12 SNOW&SPIKE(84S),TIRE 8.25-20-14 RIB(90S),TIRE 8.25-20-14 SNOW(92S),TIRE 8.25-20-14 SPECIAL LUG(94S) Z=11 		1-33372-073-5 01 1 9207- ● ●
130 GEAR; DRIVEN,SPD,TRANSFER
FINAL GEAR 39/7 15.5"(W3K) Z=11 		1-33372-073-5 01 1 9207- ● ●
130 GEAR; DRIVEN,SPD,TRANSFER
FINAL GEAR 39/6 15.5"(W1T) Z=13 		1-33372-075-5 01 1 9207- ● ●
131 WASHER; LK,SCREW
ID=6.1 		9-09150-506-0 01 1 9207-9302 ● ● ● ●
173 BOLT; COVER
M10X30 W/LK WASHER 		0-50051-030-0 04 1 9207- ● ● ● ●
175 PLUG; LEVEL,TRANSFER CASE 9-09864-007-0 01 1 9207- ● ● ● ●
176 RING; SNAP,FRT OUTPUT 9-09950-089-0 01 1 9207- ● ● ● ●
184 WASHER; LK,UPR COVER
ID=14.2 		9-09150-514-0 05 1 9207- ● ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.10 		9-36153-020-0 AR 1 9207- ● ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.12 		9-36153-021-0 AR 1 9207- ● ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.14 		9-36153-022-0 AR 1 9207- ● ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.16 		9-36153-023-0 AR 1 9207- ● ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.18 		9-36153-024-0 AR 1 9207- ● ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.20 		9-36153-025-0 AR 1 9207- ● ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.50 		9-36153-026-0 AR 1 9207- ● ● ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=1.00 		9-36153-027-0 AR 1 9207- ● ● ● ●
191 RETAINER; OIL SEAL,RR UPR 1-36155-007-0 01 1 9207- ● ● ● ●
192 GASKET; RET,RR UPR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-005-0 01 1 9207- ● ● ● ●
193 BOLT; RET
M12X28 		0-50051-228-0 04 1 9207- ● ● ● ●
194 COVER; OIL SEAL,RR UPR 1-33139-001-1 01 1 9207- ● ● ● ●
195 BOLT; SHIFT FORK
M12X20 NO-HOLE 		1-09052-032-1 02 1 9207-9512 ● ● ● ●
195 BOLT; SHIFT FORK
M12X20 		1-09052-039-0 02 1 9601- ● ● ● ●
196 COLLAR; DIST,SHIFT ROD 1-36577-004-0 01 1 9207- ● ● ● ●
301 ADAPTER; SWITCH,TRANSFER 1-09669-101-0 01 1 9207- ● ● ● ●
302 SEAT; SPRING 1-36572-002-1 01 1 9207- ● ● ● ●
303 SPRING; NEUTRAL-FRONT 1-09580-489-0 01 1 9207- ● ● ● ●
305 GASKET; PISTON,LOW-HIGH
ALSO INCLUDED IN REPAIR KIT(T/F). ID=43.7 		9-09561-344-0 01 1 9207- ● ● ● ●
306 GASKET; PISTON,NEUTRAL-FRONT
ID=43.7 		9-09561-344-0 01 1 9207- ● ● ● ●
308 CYLINDER; AIR SHIFT,LOW-HIGH 1-36569-010-0 01 1 9207- ● ● ● ●
309 CYLINDER; AIR SHIFT,NEUTRAL-FRONT 1-36569-009-0 01 1 9207- ● ● ● ●
310 GASKET; AIR CYL 1-36579-001-0 01 1 9207- ● ● ● ●
311 BREATHER; AIR CYL 9-36122-013-0 01 1 9207- ● ● ● ●
312 BOLT; AIR CYL
M10X65 FLANGE 		8-94344-540-1 07 1 9207- ● ● ● ●
313 CONNECTOR; AIR CYL
M20 & PT1/4 		9-09902-386-0 03 1 9207- ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.5 		1-36355-022-0 AR 1 9207- ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.7 		1-36355-023-0 AR 1 9207- ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.9 		1-36355-024-0 AR 1 9207- ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.1 		1-36355-025-0 AR 1 9207- ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.3 		1-36355-026-0 AR 1 9207- ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.5 		1-36355-027-0 AR 1 9207- ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.7 		1-36355-028-0 AR 1 9207- ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.9 		1-36355-029-0 AR 1 9207- ● ● ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=21.1 		1-36355-030-0 AR 1 9207- ● ● ● ●
378 BALL; CONT SWITCH 9-00097-013-0 02 1 9207- ● ● ● ●
