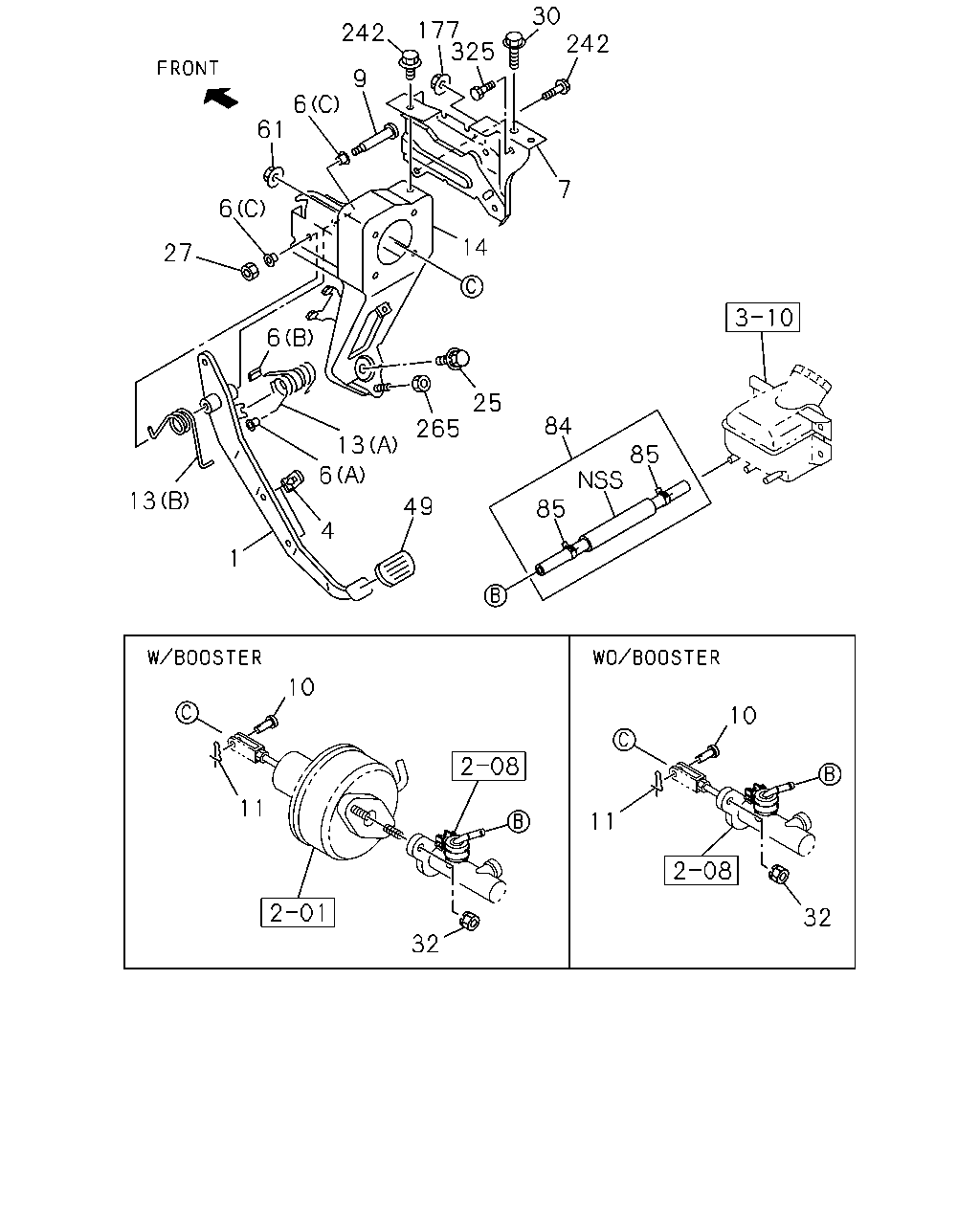

2-03 — CLUTCH PEDAL AND CONTROL (#18999) — 71 parça

30 242 177 325 242 6 61 7 6 14 27 6 25 84 265 13 85 6 13 49 85 4 1 10 10 11 11 32 32 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PEDAL; CLU POWER ASSIST CLUTCH<S2T> SOU	8-97853-220-2	01	1	0512-
1	PEDAL; CLU SOU	8-97853-219-2	01	1	0303-0511
1	PEDAL; CLU 4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> SOU	8-97857-984-2	01	1	0512-
4	STOPPER; CLU PEDAL SOU	8-97853-534-1	02	1	0303-
6	BUSHING; CLU PEDAL (C) SOU	8-94238-596-0	02	1	0303-
6	BUSHING; CLU PEDAL (A) SOU	8-97853-619-0	02	1	0303-0511
6	BUSHING; CLU PEDAL 4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> (A) SOU	8-97853-619-0	02	1	0512-
6	BUSHING; CLU PEDAL (B) SOU	8-97853-620-0	01	1	0303-0511
6	BUSHING; CLU PEDAL 4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> (B) SOU	8-97853-620-0	01	1	0512-
7	BRACKET; CLU PEDAL	8-97853-522-5	01	1	0303-
9	PIN; CLU PEDAL SOU	8-97866-667-0	01	1	0303-
10	PIN; CLU PEDAL SOU	8-94410-276-0	01	1	0303-
11	PIN; SNAP,PUSH ROD TO PEDAL SOU	8-94279-912-0	01	1	0303-
13	SPRING; ASSIST,CLU PEDAL POWER ASSIST CLUTCH<S2T> (B) SOU	8-97853-535-1	01	1	0512-
13	SPRING; ASSIST,CLU PEDAL (A) SOU	8-97853-221-1	01	1	0303-0511
13	SPRING; ASSIST,CLU PEDAL 4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> (A) SOU	8-97853-221-1	01	1	0512-
14	BRACKET ASM; CLU PEDAL MTG POWER ASSIST CLUTCH<S2T>	8-97892-849-3	01	1	0512-
14	BRACKET ASM; CLU PEDAL MTG	8-97892-848-3	01	1	0303-0511
14	BRACKET ASM; CLU PEDAL MTG 4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	8-97892-848-3	01	1	0512-
25	BOLT; PEDAL M10X22 W/PL WASHER SOU	8-97313-188-0	01	1	0303-
27	NUT; FULCRUM PIN M10 FLANGE SOU	1-09440-022-0	01	1	0303-
30	BOLT; CLU MTG BRKT M10X25 FLANGE	0-28691-025-0	01	1	0303-0512
30	BOLT; CLU MTG BRKT M10X25 FLANGE	0-28661-025-0	01	1	0601-
32	NUT; BRKT TO CLU M/CYL M8 W/LK WASHER SOU	8-94279-050-0	02	1	0303-
49	RUBBER; PAD,CLU PEDAL SOU	8-97853-413-2	01	1	0303-
61	NUT; BOOSTER TO BRKT POWER ASSIST CLUTCH<S2T> M8 W/LK WASHER SOU	8-94279-050-0	04	1	0512-
84	HOSE; RUBBER,CLU LINE SOU	8-97135-024-0	01	1	0303-
85	CLIP; HOSE TO M/CYL SOU	8-97130-480-0	02	1	0303-
177	NUT; BRKT M8 W/LK WASHER SOU	8-94279-050-0	02	1	0303-
242	BOLT; BRKT,CLUTCH M8X16 FLANGE	0-28480-816-0	02	1	0303-0512
242	BOLT; BRKT,CLUTCH M8X16 FLANGE	0-28450-816-0	02	1	0601-
265	NUT; BRKT,COLUMN SUPT TO C.PDL M8 FLANGE SOU	8-97046-127-0	01	1	0303-0610
265	NUT; BRKT,COLUMN SUPT TO C.PDL M8 W/DISHED WASHER	8-97329-625-0	01	1	0611-
325	BOLT; BRKT,STRG SUPPORT M8X20 FLANGE	0-28680-820-0	01	1	0303-0512
325	BOLT; BRKT,STRG SUPPORT M8X20 FLANGE	0-28650-820-0	01	1	0601-

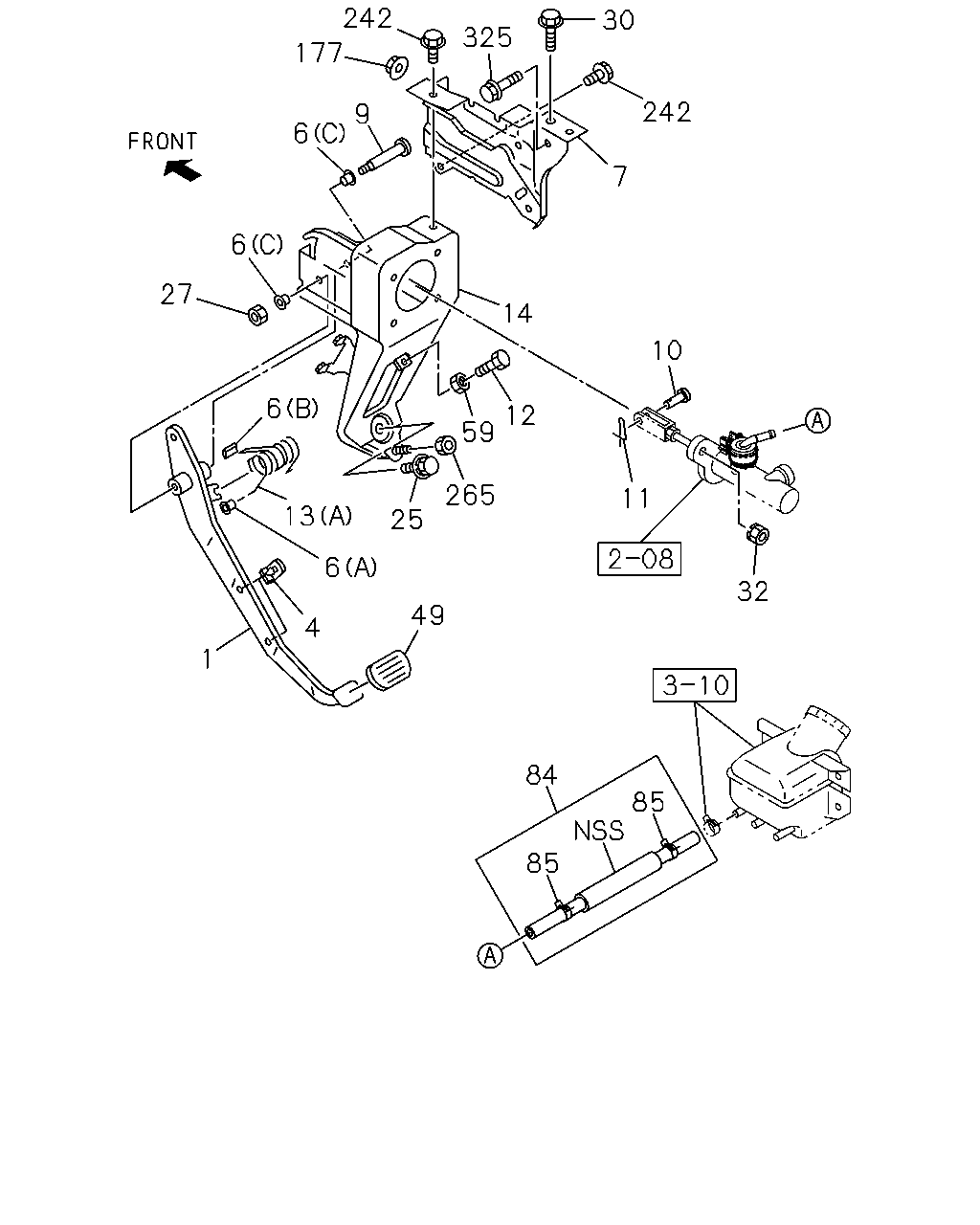

242 30 325 177 242 9 6 7 6 27 14 10 6 12 59 265 11 13 25 6 32 49 4 1 84 85 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PEDAL; CLU POWER ASSIST CLUTCH<S2T> SOU	8-97853-220-2	01	1	0512-
1	PEDAL; CLU SOU	8-97853-219-2	01	1	0303-0511
1	PEDAL; CLU 4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> SOU	8-97857-984-2	01	1	0512-
4	STOPPER; CLU PEDAL SOU	8-97853-534-1	02	1	0303-
6	BUSHING; CLU PEDAL (C) SOU	8-94238-596-0	02	1	0303-
6	BUSHING; CLU PEDAL (A) SOU	8-97853-619-0	02	1	0303-0511
6	BUSHING; CLU PEDAL 4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> (A) SOU	8-97853-619-0	02	1	0512-
6	BUSHING; CLU PEDAL (B) SOU	8-97853-620-0	01	1	0303-0511
6	BUSHING; CLU PEDAL 4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> (B) SOU	8-97853-620-0	01	1	0512-
7	BRACKET; CLU PEDAL	8-97853-522-5	01	1	0303-
9	PIN; CLU PEDAL SOU	8-97866-667-0	01	1	0303-
10	PIN; CLU PEDAL SOU	8-94410-276-0	01	1	0303-
11	PIN; SNAP,PUSH ROD TO PEDAL SOU	8-94279-912-0	01	1	0303-
12	BOLT; CLU PEDAL ADJ EXC. EXHAUST BRAKE<NF8> M10X35	0-20801-035-0	01	1	0303-0511
13	SPRING; ASSIST,CLU PEDAL POWER ASSIST CLUTCH<S2T> (B) SOU	8-97853-535-1	01	1	0512-
13	SPRING; ASSIST,CLU PEDAL (A) SOU	8-97853-221-1	01	1	0303-0511
13	SPRING; ASSIST,CLU PEDAL 4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> (A) SOU	8-97853-221-1	01	1	0512-
14	BRACKET ASM; CLU PEDAL MTG POWER ASSIST CLUTCH<S2T>	8-97892-849-3	01	1	0512-
14	BRACKET ASM; CLU PEDAL MTG	8-97892-848-3	01	1	0303-0511
14	BRACKET ASM; CLU PEDAL MTG 4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	8-97892-848-3	01	1	0512-
25	BOLT; PEDAL M10X22 W/PL WASHER SOU	8-97313-188-0	01	1	0303-
27	NUT; FULCRUM PIN M10 FLANGE SOU	1-09440-022-0	01	1	0303-
30	BOLT; CLU MTG BRKT M10X25 FLANGE	0-28691-025-0	01	1	0303-0512
30	BOLT; CLU MTG BRKT M10X25 FLANGE	0-28661-025-0	01	1	0601-
32	NUT; BRKT TO CLU M/CYL M8 W/LK WASHER SOU	8-94279-050-0	02	1	0303-
49	RUBBER; PAD,CLU PEDAL SOU	8-97853-413-2	01	1	0303-
59	NUT; CLU PEDAL ADJ EXC. EXHAUST BRAKE<NF8> M10	9-09110-410-0	01	1	0303-0511
84	HOSE; RUBBER,CLU LINE SOU	8-97135-024-0	01	1	0303-
85	CLIP; HOSE TO M/CYL SOU	8-97130-480-0	02	1	0303-
177	NUT; BRKT M8 W/LK WASHER SOU	8-94279-050-0	02	1	0303-
242	BOLT; BRKT,CLUTCH M8X16 FLANGE	0-28480-816-0	02	1	0303-0512
242	BOLT; BRKT,CLUTCH M8X16 FLANGE	0-28450-816-0	02	1	0601-
265	NUT; BRKT,COLUMN SUPT TO C.PDL M8 FLANGE SOU	8-97046-127-0	01	1	0303-0610
265	NUT; BRKT,COLUMN SUPT TO C.PDL M8 W/DISHED WASHER	8-97329-625-0	01	1	0611-
325	BOLT; BRKT,STRG SUPPORT M8X20 FLANGE	0-28680-820-0	01	1	0303-0512
325	BOLT; BRKT,STRG SUPPORT M8X20 FLANGE	0-28650-820-0	01	1	0601-
