◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50953 - NKR(SOUTH AFRICA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶

1-50 — EXHAUST PIPE AND SILENCER (#18995) — 180 parça

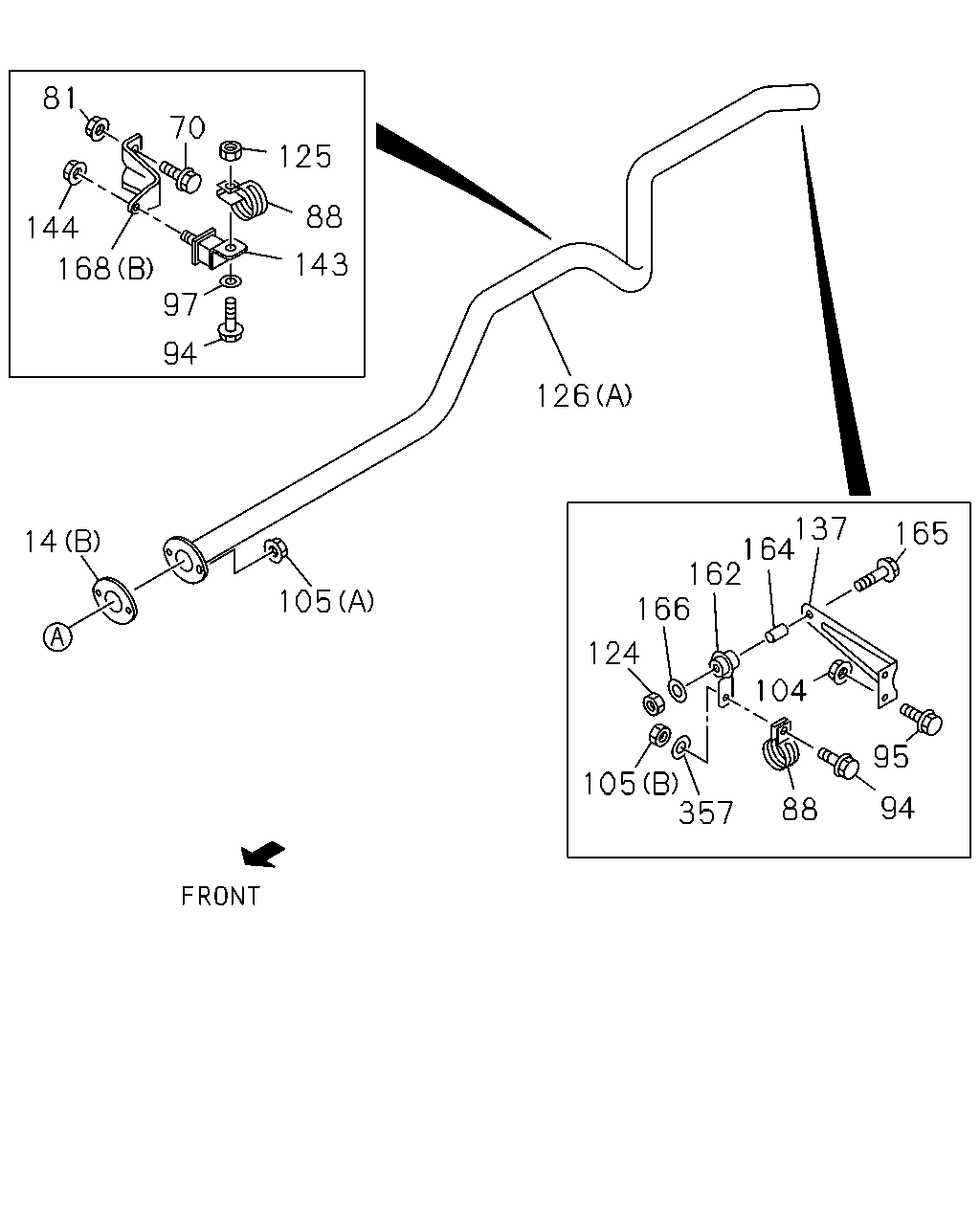

81 70 125 88 144 143 168 97 94 126 137 164 162 166 165 14 105 124 104 95 105 357 94 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	GASKET; SILENCER TO EXH PIPE (B) ID=64.7 SOU	8-94328-352-0	01	1	0303-0511
14	GASKET; SILENCER TO EXH PIPE (B) ID=64.7 SOU	8-94328-352-0	01	1	0512-
14	GASKET; SILENCER TO EXH PIPE 4HF1 ENG(RLS) (B) ID=64.7 SOU	8-94328-352-0	01	1	0512-
14	GASKET; SILENCER TO EXH PIPE 4JB1 ENG(RLF) (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	0303-0511
70	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0303-0512
70	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-
81	NUT; BRKT M8 FLANGE SOU	0-91150-108-0	02	1	0303-0602
81	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	0603-
88	CLAMP; EXH PIPE 4JB1 ENG(RLF) ID=51.5	8-97325-352-0	01	1	0303-0511
88	CLAMP; EXH PIPE 4JB1 ENG(RLF) ID=51.5	8-97325-352-0	01	1	0303-0511
88	CLAMP; EXH PIPE 4HF1 ENG(RLS) ID=61.6 SOU	8-97010-307-0	01	1	0512-
88	CLAMP; EXH PIPE 4HF1 ENG(RLS) ID=61.6 SOU	8-97010-307-0	01	1	0512-
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	0303-
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	0303-
95	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0303-0512
95	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-
97	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0303-0605
97	WASHER; PL,CLAMP ID=8.4 OD=18	0-91614-608-0	01	1	0606-
104	NUT; BRKT M8 FLANGE SOU	0-91150-108-0	02	1	0303-0602
104	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	0603-
105	NUT; CLAMP (A) M10 FLANGE SOU	0-91150-110-0	02	1	0303-0602
105	NUT; CLAMP (A) M10 FLANGE SOU	0-91180-110-0	02	1	0603-
105	NUT; CLAMP (B) M8	9-09110-408-0	01	1	0303-0512
105	NUT; CLAMP (B) M8 SOU	0-91110-508-0	01	1	0601-
124	NUT; SUPPORT RUBBER M10	9-09110-410-0	01	1	0303-0512
124	NUT; SUPPORT RUBBER M10 SOU	0-91110-510-0	01	1	0601-
125	NUT; CLAMP M8	9-09110-408-0	01	1	0303-0512
125	NUT; CLAMP M8 SOU	0-91110-508-0	01	1	0601-
126	PIPE; EXH,RR 4JB1 ENG(RLF) (A)	8-97161-696-0	01	1	0303-0511
126	PIPE; EXH,RR 4HF1 ENG(RLS) (B)	8-97034-100-1	01	1	0512-
137	BRACKET; TAIL PIPE SOU	8-94468-175-0	01	1	0303-
143	RUBBER; SUPPORT	8-97229-586-0	01	1	0303-0308
143	RUBBER; SUPPORT	8-97371-655-1	01	1	0309-
144	NUT; MTG RUBBER M8 FLANGE SOU	0-91150-108-0	01	1	0303-0602
144	NUT; MTG RUBBER M8 FLANGE SOU	0-91180-108-0	01	1	0603-
162	RUBBER; SUPPORT,TAIL PIPE L=115 SOU	8-94156-256-0	01	1	0303-
164	COLLAR; DIST,TAIL PIPE L=37.5 SOU	9-22151-217-0	01	1	0303-
165	BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	0303-0512
165	BOLT; SUPPORT RUBBER M10X70 FLANGE SOU	0-28051-070-0	01	1	0601-
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	9-09164-810-0	01	1	0303-0605
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	0606-
168	BRACKET; EXH PIPE,FRT (B) SOU	8-94468-174-1	01	1	0303-
168	BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) (A)	8-97084-346-2	01	1	0303-0511
168	BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) (C)	8-97075-343-1	01	1	0512-
357	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0303-0605
357	WASHER; PL,CLAMP ID=8.4 OD=18	0-91614-608-0	01	1	0606-

81 125 70 126 88 144 143 95 168 124 166 162 164 165 97 94 105 104 137 105 88 94 357

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
70	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0303-0512
70	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-
81	NUT; BRKT M8 FLANGE SOU	0-91150-108-0	02	1	0303-0602
81	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	0603-
88	CLAMP; EXH PIPE 4JB1 ENG(RLF) ID=51.5	8-97325-352-0	01	1	0303-0511
88	CLAMP; EXH PIPE 4JB1 ENG(RLF) ID=51.5	8-97325-352-0	01	1	0303-0511
88	CLAMP; EXH PIPE 4HF1 ENG(RLS) ID=61.6 SOU	8-97010-307-0	01	1	0512-
88	CLAMP; EXH PIPE 4HF1 ENG(RLS) ID=61.6 SOU	8-97010-307-0	01	1	0512-
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	0303-
94	BOLT; CLAMP M8X45	0-20800-845-0	01	1	0303-
95	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0303-0512
95	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	0601-
97	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0303-0605
97	WASHER; PL,CLAMP ID=8.4 OD=18	0-91614-608-0	01	1	0606-
104	NUT; BRKT M8 FLANGE SOU	0-91150-108-0	02	1	0303-0602
104	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	0603-
105	NUT; CLAMP (A) M10 FLANGE SOU	0-91150-110-0	02	1	0303-0602
105	NUT; CLAMP (A) M10 FLANGE SOU	0-91180-110-0	02	1	0603-
105	NUT; CLAMP (B) M8	9-09110-408-0	01	1	0303-0512
105	NUT; CLAMP (B) M8 SOU	0-91110-508-0	01	1	0601-
124	NUT; SUPPORT RUBBER M10	9-09110-410-0	01	1	0303-0512
124	NUT; SUPPORT RUBBER M10 SOU	0-91110-510-0	01	1	0601-
125	NUT; CLAMP M8	9-09110-408-0	01	1	0303-0512
125	NUT; CLAMP M8 SOU	0-91110-508-0	01	1	0601-
126	PIPE; EXH,RR 4JB1 ENG(RLF) (A)	8-97161-696-0	01	1	0303-0511
126	PIPE; EXH,RR 4HF1 ENG(RLS) (B)	8-97034-100-1	01	1	0512-
137	BRACKET; TAIL PIPE SOU	8-94468-175-0	01	1	0303-
143	RUBBER; SUPPORT	8-97229-586-0	01	1	0303-0308
143	RUBBER; SUPPORT	8-97371-655-1	01	1	0309-
144	NUT; MTG RUBBER M8 FLANGE SOU	0-91150-108-0	01	1	0303-0602
144	NUT; MTG RUBBER M8 FLANGE SOU	0-91180-108-0	01	1	0603-
162	RUBBER; SUPPORT,TAIL PIPE L=115 SOU	8-94156-256-0	01	1	0303-
164	COLLAR; DIST,TAIL PIPE L=37.5 SOU	9-22151-217-0	01	1	0303-
165	BOLT; SUPPORT RUBBER M10X70 FLANGE	0-28081-070-0	01	1	0303-0512
165	BOLT; SUPPORT RUBBER M10X70 FLANGE SOU	0-28051-070-0	01	1	0601-
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	9-09164-810-0	01	1	0303-0605
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32	0-91614-810-0	01	1	0606-
168	BRACKET; EXH PIPE,FRT (B) SOU	8-94468-174-1	01	1	0303-
168	BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) (A)	8-97084-346-2	01	1	0303-0511
168	BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) (C)	8-97075-343-1	01	1	0512-
357	WASHER; PL,CLAMP ID=8.4 OD=18	9-09164-608-0	01	1	0303-0605
357	WASHER; PL,CLAMP ID=8.4 OD=18	0-91614-608-0	01	1	0606-

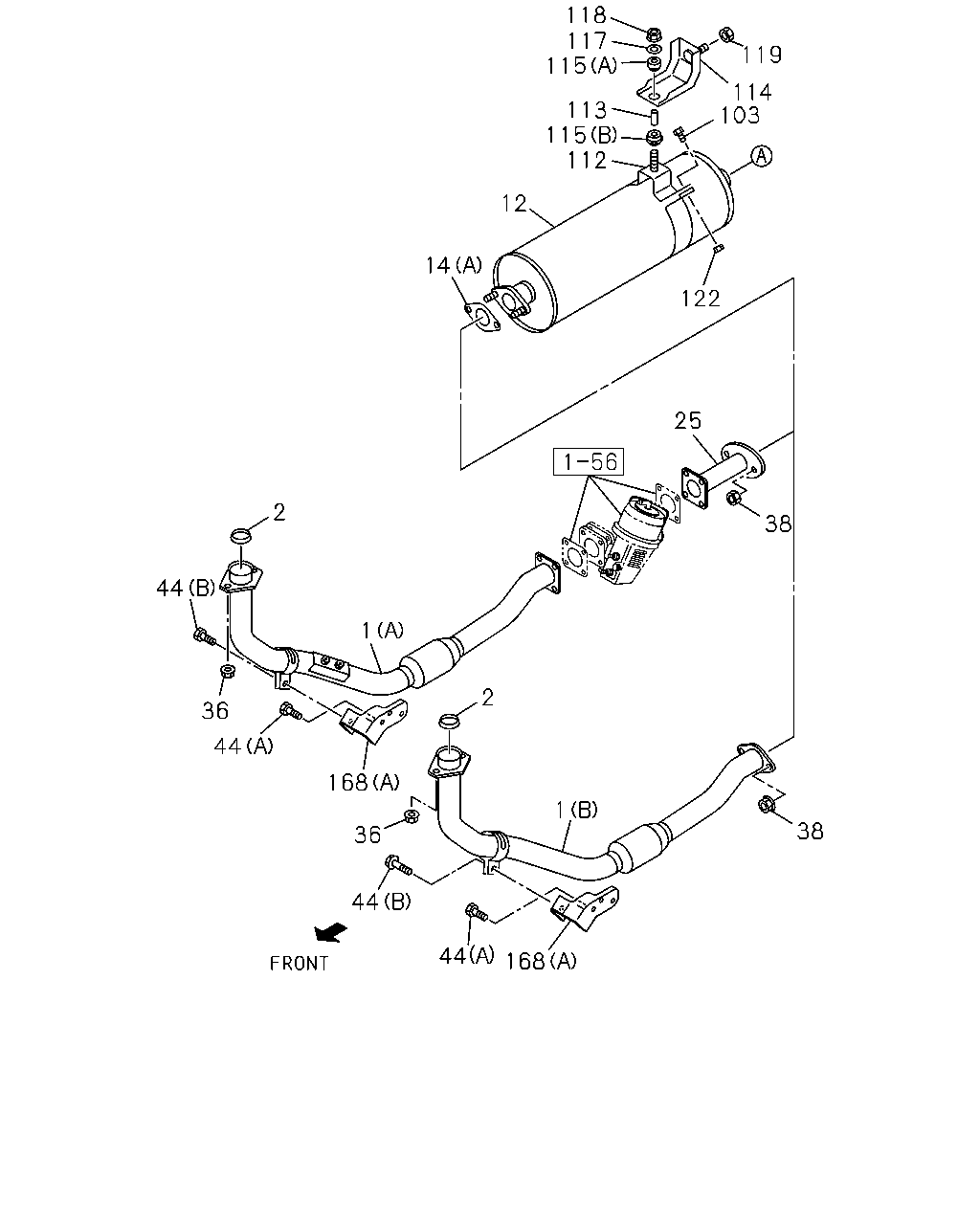

25 2 1 44 38 36 44 168 118 119 117 115 114 113 103 115 14 14 122 112 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (A)	8-97161-694-0	01	1	0303-0511
1	PIPE; EXH 4HF1 ENG(RLS) (C)	8-97139-391-3	01	1	0512-
1	PIPE; EXH 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> (B)	8-97161-782-0	01	1	0303-0511
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF)	8-97180-750-2	01	1	0303-0408
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF)	8-97381-456-0	01	1	0409-0511
2	GASKET; PIPE TO MANIF 4HF1 ENG(RLS)	8-97381-455-0	01	1	0512-
12	SILENCER ASM; EXH 4JB1 ENG(RLF)	8-97065-551-0	01	1	0303-0511
12	SILENCER ASM; EXH 4HF1 ENG(RLS)	8-97206-525-3	01	1	0512-
14	GASKET; SILENCER TO EXH PIPE (B) ID=64.7 SOU	8-94328-352-0	01	1	0303-0511
14	GASKET; SILENCER TO EXH PIPE (B) ID=64.7 SOU	8-94328-352-0	01	1	0512-
14	GASKET; SILENCER TO EXH PIPE 4HF1 ENG(RLS) (B) ID=64.7 SOU	8-94328-352-0	01	1	0512-
14	GASKET; SILENCER TO EXH PIPE 4JB1 ENG(RLF) (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	0303-0511
25	PIPE; EXH,BRK VLV TO SILENCER 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97161-843-0	01	1	0303-0511
25	PIPE; EXH,BRK VLV TO SILENCER 4HF1 ENG(RLS)	8-97362-716-0	01	1	0512-
36	NUT; EXH PIPE 4JB1 ENG(RLF) M10 FLANGE SOU	8-97096-192-1	02	1	0303-0511
36	NUT; EXH PIPE 4HF1 ENG(RLS) M10 FLANGE SOU	8-97096-192-1	03	1	0512-
38	NUT; SILENCER 4JB1 ENG(RLF) M10 FLANGE SOU	0-91150-110-0	02	1	0303-0511
38	NUT; SILENCER M10 FLANGE SOU	0-91150-110-0	02	1	0512-0602
38	NUT; SILENCER M10 FLANGE SOU	0-91180-110-0	02	1	0603-
44	BOLT; BRKT 4JB1 ENG(RLF) (A) M8X16 FLANGE	0-28080-816-0	02	1	0303-0511
44	BOLT; BRKT 4HF1 ENG(RLS) (A) M10X25 W/LK&PL WASHER	0-50151-025-0	02	1	0512-0512
44	BOLT; BRKT 4HF1 ENG(RLS) (A) M10X25 W/LK&PL WASHER	0-50651-025-0	02	1	0601-
44	BOLT; BRKT 4JB1 ENG(RLF) (B) M8X40 W/LK WASHER	0-50040-840-0	01	1	0303-0401
44	BOLT; BRKT 4JB1 ENG(RLF) (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0402-0511
44	BOLT; BRKT (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0512-0801
44	BOLT; BRKT (B) M8X45 W/LK WASHER SOU	0-50540-845-0	01	1	0802-0802
44	BOLT; BRKT (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	0303-0801
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER SOU	0-50540-845-0	01	1	0802-0802
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-
112	BRACKET; HANGER 4JB1 ENG(RLF)	8-97081-457-0	01	1	0303-0511
112	BRACKET; HANGER 4HF1 ENG(RLS)	8-97076-020-0	01	1	0512-
113	COLLAR; DIST,MTG BRKT L=37.5 SOU	9-22151-217-0	01	1	0303-
114	BRACKET; EXH SILENCER 4JB1 ENG(RLF)	8-94329-856-0	01	1	0303-0511
114	BRACKET; EXH SILENCER 4HF1 ENG(RLS)	8-94329-856-0	01	1	0512-
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0303-
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0303-
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0303-
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	01	1	0303-
119	NUT; BRKT M8 FLANGE SOU	0-91150-108-0	02	1	0303-0602
119	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	0603-
122	NUT; HANGER BRKT M8	9-09110-408-0	01	1	0303-0512
122	NUT; HANGER BRKT M8 SOU	0-91110-508-0	01	1	0601-
168	BRACKET; EXH PIPE,FRT (B) SOU	8-94468-174-1	01	1	0303-
168	BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) (A)	8-97084-346-2	01	1	0303-0511
168	BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) (C)	8-97075-343-1	01	1	0512-

118 117 115 119 114 103 113 115 112 12 14 122 25 2 38 44 1 2 36 44 168 1 38 36 44 44 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> (A)	8-97161-694-0	01	1	0303-0511
1	PIPE; EXH 4HF1 ENG(RLS) (C)	8-97139-391-3	01	1	0512-
1	PIPE; EXH 4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> (B)	8-97161-782-0	01	1	0303-0511
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF)	8-97180-750-2	01	1	0303-0408
2	GASKET; PIPE TO MANIF 4JB1 ENG(RLF)	8-97381-456-0	01	1	0409-0511
2	GASKET; PIPE TO MANIF 4HF1 ENG(RLS)	8-97381-455-0	01	1	0512-
12	SILENCER ASM; EXH 4JB1 ENG(RLF)	8-97065-551-0	01	1	0303-0511
12	SILENCER ASM; EXH 4HF1 ENG(RLS)	8-97206-525-3	01	1	0512-
14	GASKET; SILENCER TO EXH PIPE (B) ID=64.7 SOU	8-94328-352-0	01	1	0303-0511
14	GASKET; SILENCER TO EXH PIPE (B) ID=64.7 SOU	8-94328-352-0	01	1	0512-
14	GASKET; SILENCER TO EXH PIPE 4HF1 ENG(RLS) (B) ID=64.7 SOU	8-94328-352-0	01	1	0512-
14	GASKET; SILENCER TO EXH PIPE 4JB1 ENG(RLF) (A) ID=53.0 NON-ASBESTOS	8-94328-353-0	01	1	0303-0511
25	PIPE; EXH,BRK VLV TO SILENCER 4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97161-843-0	01	1	0303-0511
25	PIPE; EXH,BRK VLV TO SILENCER 4HF1 ENG(RLS)	8-97362-716-0	01	1	0512-
36	NUT; EXH PIPE 4JB1 ENG(RLF) M10 FLANGE SOU	8-97096-192-1	02	1	0303-0511
36	NUT; EXH PIPE 4HF1 ENG(RLS) M10 FLANGE SOU	8-97096-192-1	03	1	0512-
38	NUT; SILENCER 4JB1 ENG(RLF) M10 FLANGE SOU	0-91150-110-0	02	1	0303-0511
38	NUT; SILENCER M10 FLANGE SOU	0-91150-110-0	02	1	0512-0602
38	NUT; SILENCER M10 FLANGE SOU	0-91180-110-0	02	1	0603-
44	BOLT; BRKT 4JB1 ENG(RLF) (A) M8X16 FLANGE	0-28080-816-0	02	1	0303-0511
44	BOLT; BRKT 4HF1 ENG(RLS) (A) M10X25 W/LK&PL WASHER	0-50151-025-0	02	1	0512-0512
44	BOLT; BRKT 4HF1 ENG(RLS) (A) M10X25 W/LK&PL WASHER	0-50651-025-0	02	1	0601-
44	BOLT; BRKT 4JB1 ENG(RLF) (B) M8X40 W/LK WASHER	0-50040-840-0	01	1	0303-0401
44	BOLT; BRKT 4JB1 ENG(RLF) (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0402-0511
44	BOLT; BRKT (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0512-0801
44	BOLT; BRKT (B) M8X45 W/LK WASHER SOU	0-50540-845-0	01	1	0802-0802
44	BOLT; BRKT (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	0303-0801
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER SOU	0-50540-845-0	01	1	0802-0802
103	BOLT; SILENCER BRKT FIX M8X45 W/LK WASHER	0-50040-845-0	01	1	0802-
112	BRACKET; HANGER 4JB1 ENG(RLF)	8-97081-457-0	01	1	0303-0511
112	BRACKET; HANGER 4HF1 ENG(RLS)	8-97076-020-0	01	1	0512-
113	COLLAR; DIST,MTG BRKT L=37.5 SOU	9-22151-217-0	01	1	0303-
114	BRACKET; EXH SILENCER 4JB1 ENG(RLF)	8-94329-856-0	01	1	0303-0511
114	BRACKET; EXH SILENCER 4HF1 ENG(RLS)	8-94329-856-0	01	1	0512-
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	01	1	0303-
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	01	1	0303-
117	WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	01	1	0303-
118	NUT; SILENCER MTG BRKT M10 FLANGE	5-09440-006-0	01	1	0303-
119	NUT; BRKT M8 FLANGE SOU	0-91150-108-0	02	1	0303-0602
119	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	0603-
122	NUT; HANGER BRKT M8	9-09110-408-0	01	1	0303-0512
122	NUT; HANGER BRKT M8 SOU	0-91110-508-0	01	1	0601-
168	BRACKET; EXH PIPE,FRT (B) SOU	8-94468-174-1	01	1	0303-
168	BRACKET; EXH PIPE,FRT 4JB1 ENG(RLF) (A)	8-97084-346-2	01	1	0303-0511
168	BRACKET; EXH PIPE,FRT 4HF1 ENG(RLS) (C)	8-97075-343-1	01	1	0512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
