Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#18993) — 189 parça

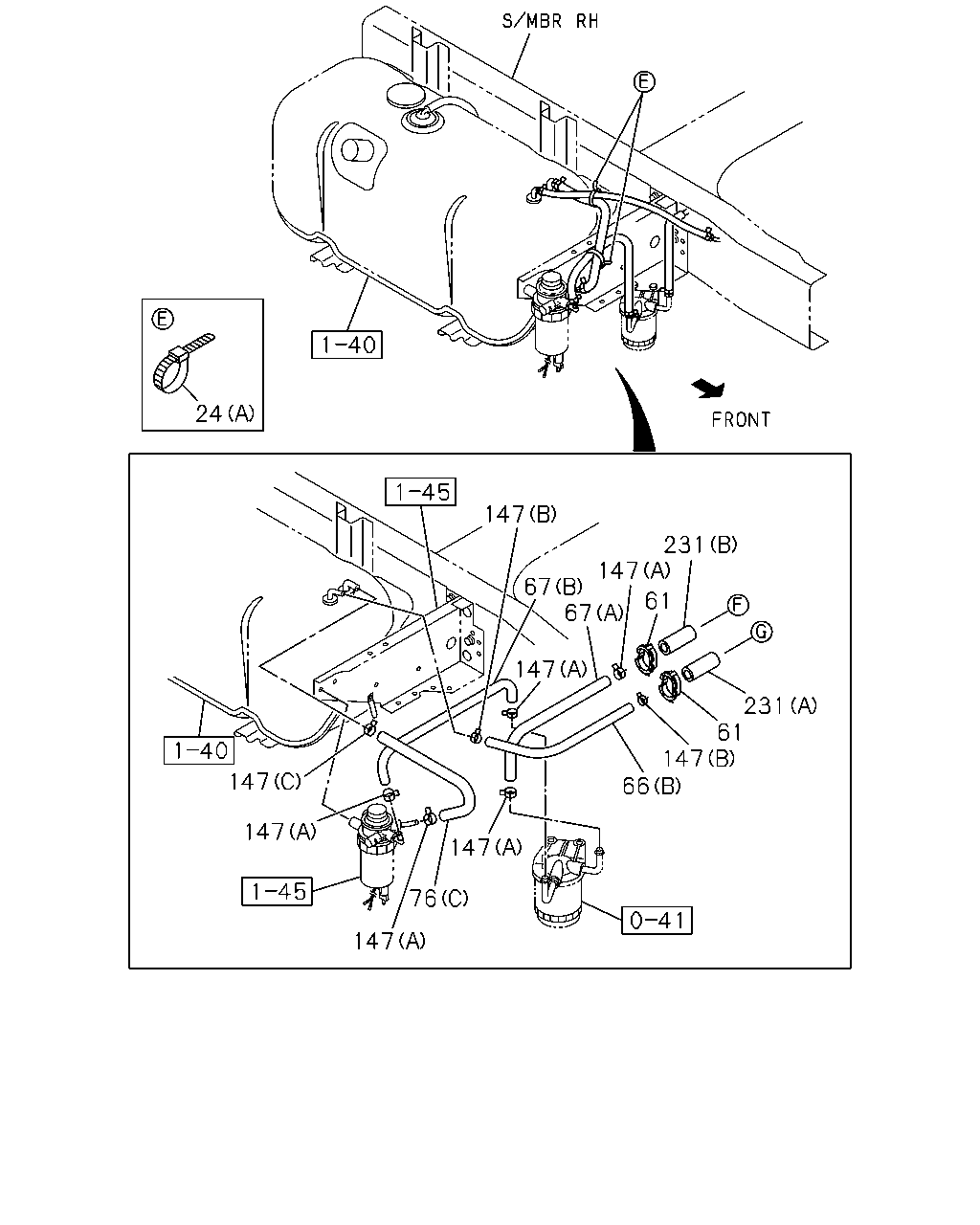

24 147 231 147 67 67 61 147 231 61 147 66 147 147 147 76 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (C) L=250 SOU	5-09707-030-1	01	1	0512-
24	CLIP; FUEL HOSE 4JB1 ENG(RLF) FUEL FILTER DUAL(S6B) (A) L=140 SOU	5-09707-031-1	01	1	0303-0511
24	CLIP; FUEL HOSE 4HF1 ENG(RLS) (B)	9-09916-239-1	01	1	0512-
24	CLIP; FUEL HOSE 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140 SOU	5-09707-031-1	02	1	0303-0511
24	CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140 SOU	5-09707-031-1	02	1	0303-0511
24	CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140 SOU	5-09707-031-1	02	1	0512-
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0303-
66	HOSE; FUEL,RETURN PIPE 4JB1 ENG(RLF) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0512-
66	HOSE; FUEL,RETURN PIPE 4JB1 ENG(RLF) (B) L=400 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0512-
67	HOSE; FUEL,DELIVERY 4JB1 ENG(RLF) FUEL FILTER DUAL(S6B) (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511
67	HOSE; FUEL,DELIVERY 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0512-
67	HOSE; FUEL,DELIVERY 4JB1 ENG(RLF) FUEL FILTER DUAL(S6B) (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511
67	HOSE; FUEL,DELIVERY 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0512-
76	HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=380	8-97353-524-0	01	1	0512-
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) (A) L=380	8-97353-524-0	01	1	0303-0511
76	HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C) L=350	8-97353-528-0	01	1	0512-
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (F) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (A) ID=16 SOU	8-94238-568-0	02	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) (D) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (E) ID=12 & 6.35	8-97215-437-0	03	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) (A) ID=16 SOU	8-94238-568-0	09	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	07	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) (C) ID=19 SOU	8-94238-569-0	01	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (C) ID=19 SOU	8-94238-569-0	01	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) (B) ID=13	8-94238-571-0	06	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	06	1	0512-
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50 SOU	8-94157-054-1	01	1	0303-
231	RUBBER; SUPPORT,FUEL PIPE 4JB1 ENG(RLF) (B) OD=15 L=50	8-97077-629-0	01	1	0303-0511
231	RUBBER; SUPPORT,FUEL PIPE 4HF1 ENG(RLS) (B) OD=15 L=50	8-97077-629-0	01	1	0512-

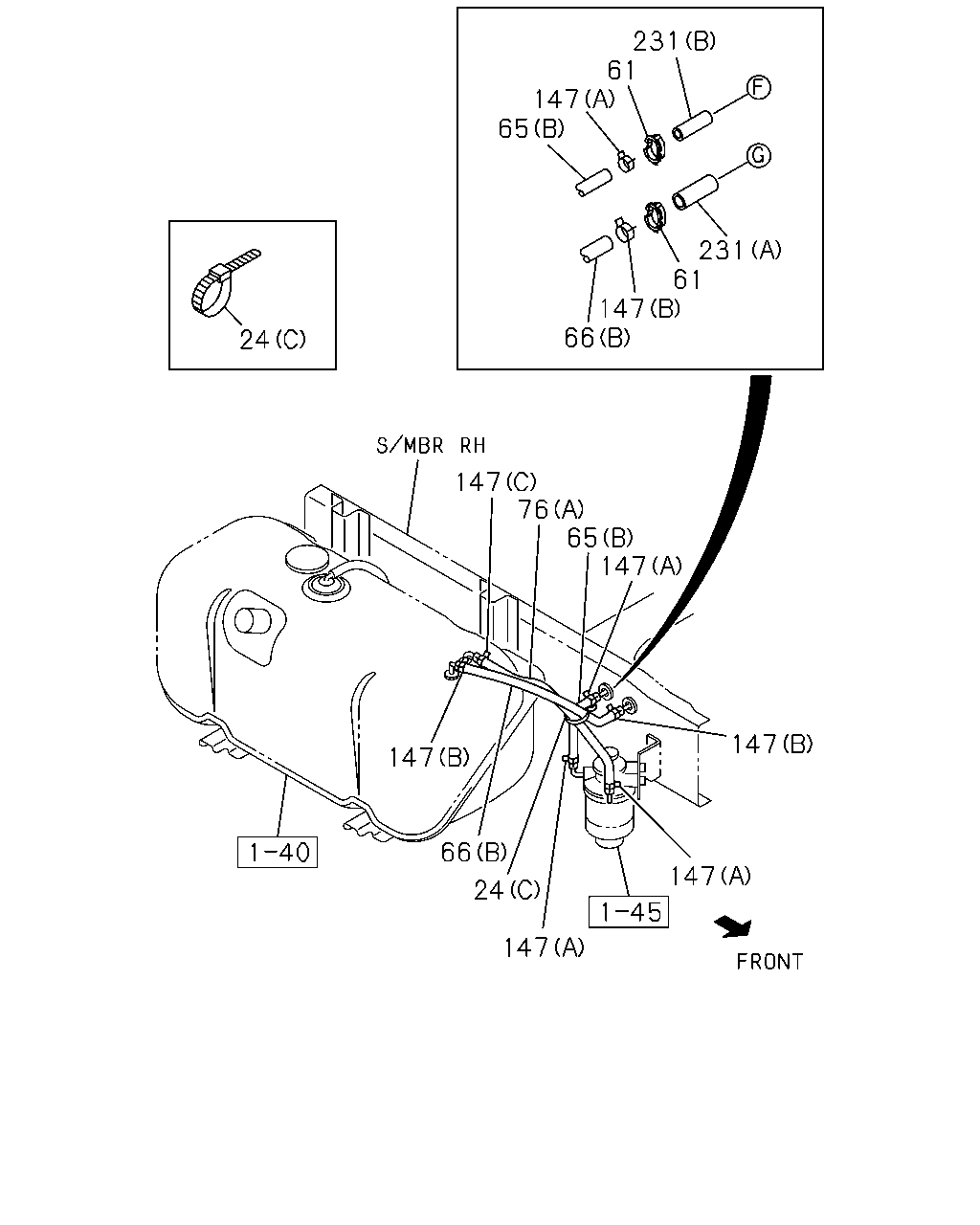

231 61 147 65 231 61 147 66 24 147 76 65 147 147 147 66 147 24 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (C) L=250 SOU	5-09707-030-1	01	1	0512-
24	CLIP; FUEL HOSE 4JB1 ENG(RLF) FUEL FILTER DUAL(S6B) (A) L=140 SOU	5-09707-031-1	01	1	0303-0511
24	CLIP; FUEL HOSE 4HF1 ENG(RLS) (B)	9-09916-239-1	01	1	0512-
24	CLIP; FUEL HOSE 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140 SOU	5-09707-031-1	02	1	0303-0511
24	CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140 SOU	5-09707-031-1	02	1	0303-0511
24	CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140 SOU	5-09707-031-1	02	1	0512-
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0303-
65	HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0512-
65	HOSE; FUEL,DELIVERY PIPE 4JB1 ENG(RLF) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511
65	HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0512-
66	HOSE; FUEL,RETURN PIPE 4JB1 ENG(RLF) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0512-
66	HOSE; FUEL,RETURN PIPE 4JB1 ENG(RLF) (B) L=400 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0512-
76	HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=380	8-97353-524-0	01	1	0512-
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) (A) L=380	8-97353-524-0	01	1	0303-0511
76	HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C) L=350	8-97353-528-0	01	1	0512-
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (F) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (A) ID=16 SOU	8-94238-568-0	02	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) (D) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (E) ID=12 & 6.35	8-97215-437-0	03	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) (A) ID=16 SOU	8-94238-568-0	09	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	07	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) (C) ID=19 SOU	8-94238-569-0	01	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (C) ID=19 SOU	8-94238-569-0	01	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) (B) ID=13	8-94238-571-0	06	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	06	1	0512-
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50 SOU	8-94157-054-1	01	1	0303-
231	RUBBER; SUPPORT,FUEL PIPE 4JB1 ENG(RLF) (B) OD=15 L=50	8-97077-629-0	01	1	0303-0511
231	RUBBER; SUPPORT,FUEL PIPE 4HF1 ENG(RLS) (B) OD=15 L=50	8-97077-629-0	01	1	0512-

147 147 39 46 147 147 65 147 66 147 147 147 29 45 47 147 147 147 24 156 304 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (C) L=250 SOU	5-09707-030-1	01	1	0512-
24	CLIP; FUEL HOSE 4JB1 ENG(RLF) FUEL FILTER DUAL(S6B) (A) L=140 SOU	5-09707-031-1	01	1	0303-0511
24	CLIP; FUEL HOSE 4HF1 ENG(RLS) (B)	9-09916-239-1	01	1	0512-
24	CLIP; FUEL HOSE 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140 SOU	5-09707-031-1	02	1	0303-0511
24	CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140 SOU	5-09707-031-1	02	1	0303-0511
24	CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140 SOU	5-09707-031-1	02	1	0512-
29	HOSE; FUEL 4HF1 ENG(RLS)	8-97087-833-2	01	1	0512-
39	PIPE; FUEL 4JB1 ENG(RLF) SOU	8-97088-710-2	01	1	0303-0511
39	PIPE; FUEL 4HF1 ENG(RLS)	8-97363-971-1	01	1	0512-
45	PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) SOU	8-97091-493-1	01	1	0303-0511
45	PIPE; FUEL,DELIVERY 4HF1 ENG(RLS)	8-97326-017-0	01	1	0512-
46	PIPE; FUEL,TANK SIDE 4JB1 ENG(RLF) SOU	8-97070-373-2	01	1	0303-0511
46	PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS)	8-97363-968-0	01	1	0512-
47	PIPE; FUEL,RETURN 4JB1 ENG(RLF)	8-97354-091-0	01	1	0303-0511
47	PIPE; FUEL,RETURN 4HF1 ENG(RLS)	8-97326-023-0	01	1	0512-
65	HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0512-
65	HOSE; FUEL,DELIVERY PIPE 4JB1 ENG(RLF) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511
65	HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0512-
66	HOSE; FUEL,RETURN PIPE 4JB1 ENG(RLF) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0512-
66	HOSE; FUEL,RETURN PIPE 4JB1 ENG(RLF) (B) L=400 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (F) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (A) ID=16 SOU	8-94238-568-0	02	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) (D) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (E) ID=12 & 6.35	8-97215-437-0	03	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) (A) ID=16 SOU	8-94238-568-0	09	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	07	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) (C) ID=19 SOU	8-94238-569-0	01	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (C) ID=19 SOU	8-94238-569-0	01	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) (B) ID=13	8-94238-571-0	06	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	06	1	0512-
156	BRACKET; FUEL HOSE 4HF1 ENG(RLS)	8-97087-834-3	01	1	0512-
304	NUT; BRKT 4HF1 ENG(RLS) (A) M6 FLANGE	0-91150-106-0	01	1	0512-0602
304	NUT; BRKT 4HF1 ENG(RLS) (A) M6 FLANGE SOU	0-91180-106-0	01	1	0603-
304	NUT; BRKT 4HF1 ENG(RLS) (B) M10 FLANGE	0-91150-210-0	01	1	0512-0602
304	NUT; BRKT 4HF1 ENG(RLS) (B) M10 FLANGE SOU	0-91180-210-0	01	1	0603-

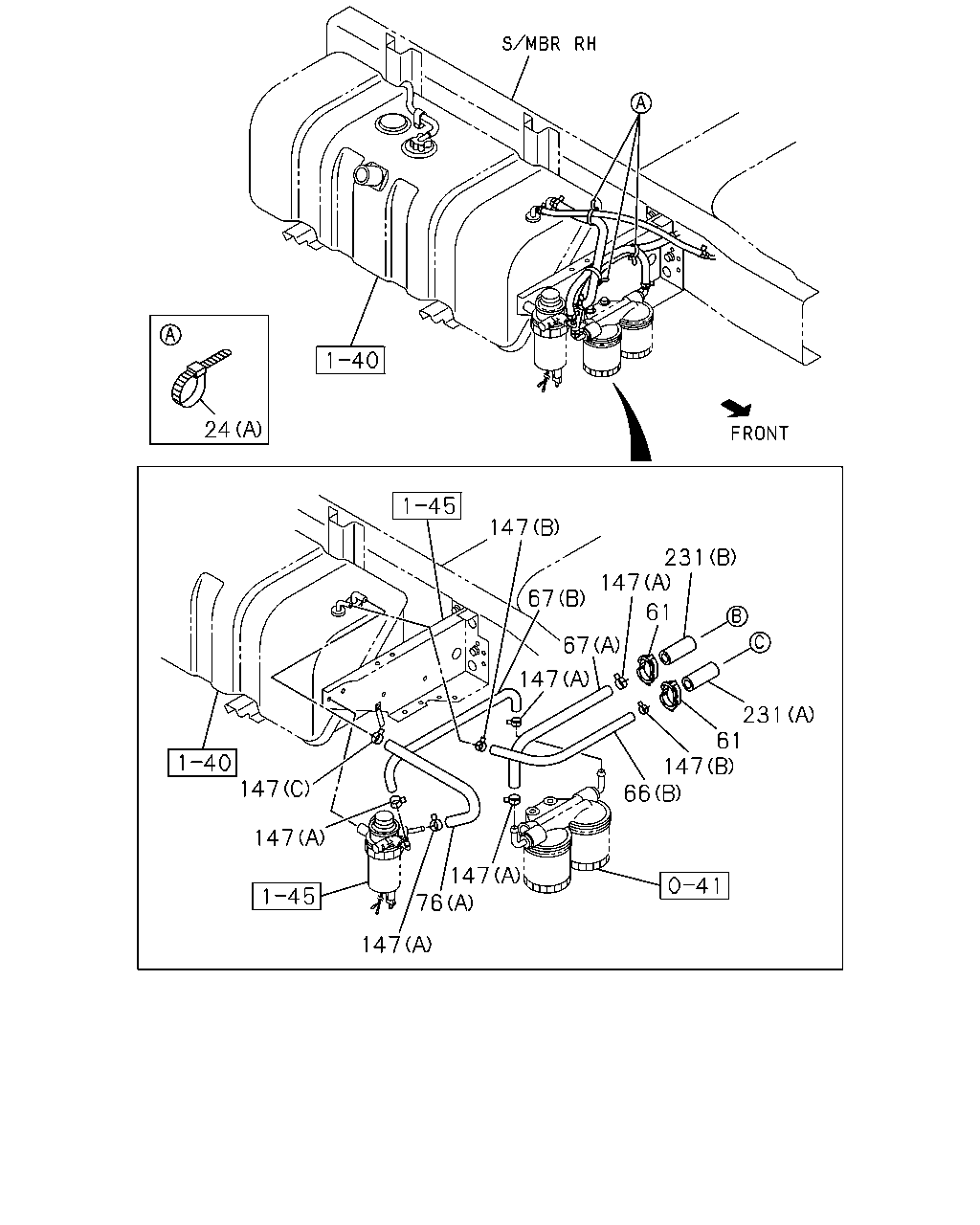

24 147 231 147 76 61 68 147 231 61 147 66 147 147 147 76 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (C) L=250 SOU	5-09707-030-1	01	1	0512-
24	CLIP; FUEL HOSE 4JB1 ENG(RLF) FUEL FILTER DUAL(S6B) (A) L=140 SOU	5-09707-031-1	01	1	0303-0511
24	CLIP; FUEL HOSE 4HF1 ENG(RLS) (B)	9-09916-239-1	01	1	0512-
24	CLIP; FUEL HOSE 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140 SOU	5-09707-031-1	02	1	0303-0511
24	CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140 SOU	5-09707-031-1	02	1	0303-0511
24	CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140 SOU	5-09707-031-1	02	1	0512-
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0303-
66	HOSE; FUEL,RETURN PIPE 4JB1 ENG(RLF) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0512-
66	HOSE; FUEL,RETURN PIPE 4JB1 ENG(RLF) (B) L=400 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0512-
68	HOSE; FUEL,FILTER TO PIPE 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511
76	HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=380	8-97353-524-0	01	1	0512-
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) (A) L=380	8-97353-524-0	01	1	0303-0511
76	HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C) L=350	8-97353-528-0	01	1	0512-
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (F) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (A) ID=16 SOU	8-94238-568-0	02	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) (D) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (E) ID=12 & 6.35	8-97215-437-0	03	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) (A) ID=16 SOU	8-94238-568-0	09	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	07	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) (C) ID=19 SOU	8-94238-569-0	01	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (C) ID=19 SOU	8-94238-569-0	01	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) (B) ID=13	8-94238-571-0	06	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	06	1	0512-
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50 SOU	8-94157-054-1	01	1	0303-
231	RUBBER; SUPPORT,FUEL PIPE 4JB1 ENG(RLF) (B) OD=15 L=50	8-97077-629-0	01	1	0303-0511
231	RUBBER; SUPPORT,FUEL PIPE 4HF1 ENG(RLS) (B) OD=15 L=50	8-97077-629-0	01	1	0512-

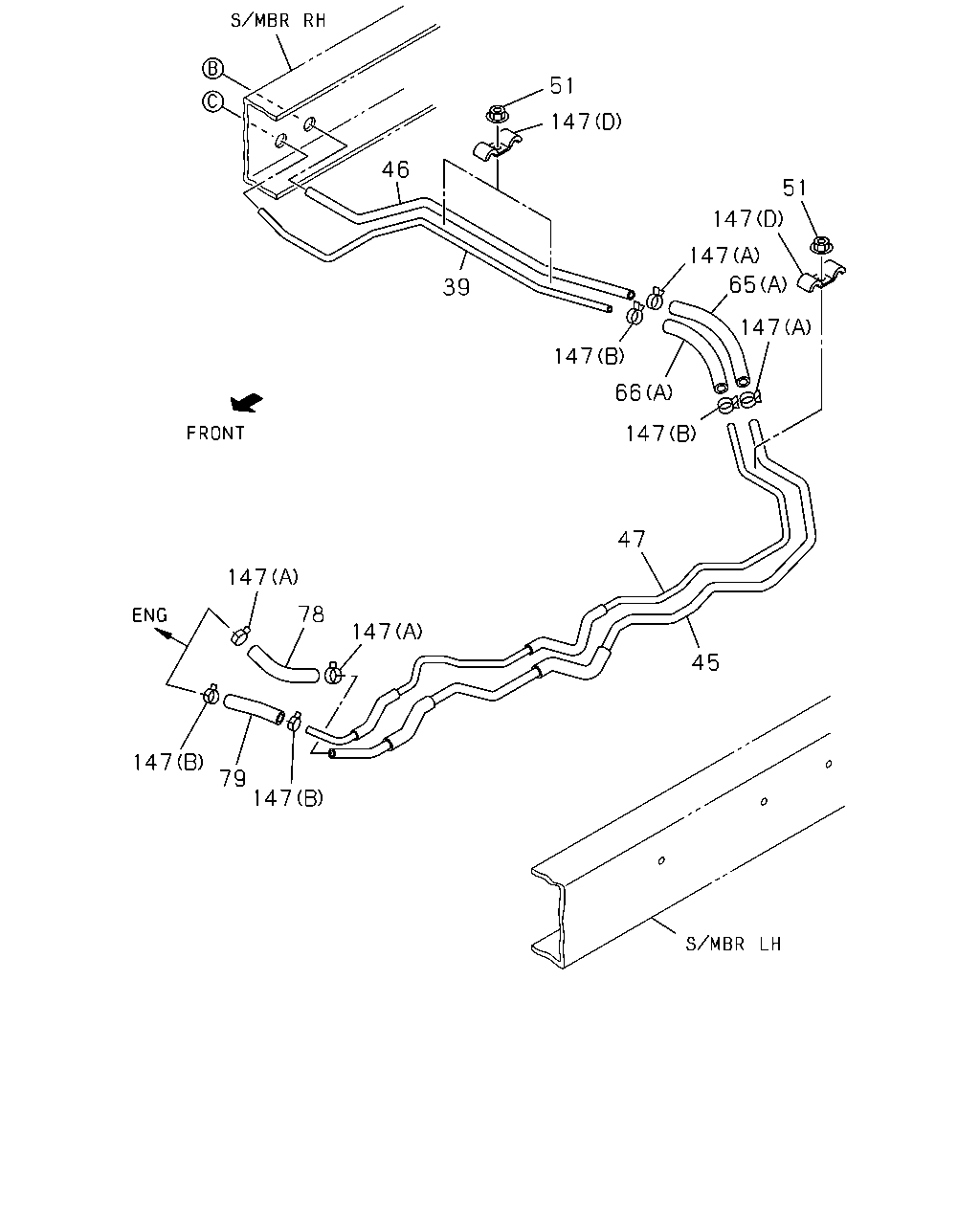

51 147 46 51 147 147 65 39 147 147 66 147 47 147 78 147 45 147 79 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL 4JB1 ENG(RLF) SOU	8-97088-710-2	01	1	0303-0511
39	PIPE; FUEL 4HF1 ENG(RLS)	8-97363-971-1	01	1	0512-
45	PIPE; FUEL,DELIVERY 4JB1 ENG(RLF) SOU	8-97091-493-1	01	1	0303-0511
45	PIPE; FUEL,DELIVERY 4HF1 ENG(RLS)	8-97326-017-0	01	1	0512-
46	PIPE; FUEL,TANK SIDE 4JB1 ENG(RLF) SOU	8-97070-373-2	01	1	0303-0511
46	PIPE; FUEL,TANK SIDE 4HF1 ENG(RLS)	8-97363-968-0	01	1	0512-
47	PIPE; FUEL,RETURN 4JB1 ENG(RLF)	8-97354-091-0	01	1	0303-0511
47	PIPE; FUEL,RETURN 4HF1 ENG(RLS)	8-97326-023-0	01	1	0512-
51	NUT; CLIP,PIPE 4JB1 ENG(RLF) M6 FLANGE	0-91150-106-0	03	1	0303-0511
65	HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0512-
65	HOSE; FUEL,DELIVERY PIPE 4JB1 ENG(RLF) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511
65	HOSE; FUEL,DELIVERY PIPE 4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0512-
66	HOSE; FUEL,RETURN PIPE 4JB1 ENG(RLF) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0512-
66	HOSE; FUEL,RETURN PIPE 4JB1 ENG(RLF) (B) L=400 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0512-
78	HOSE; FUEL,PUMP TO PIPE 4JB1 ENG(RLF) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511
79	HOSE; FUEL,PUMP TO PIPE,RETURN 4JB1 ENG(RLF) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (F) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (A) ID=16 SOU	8-94238-568-0	02	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) (D) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (E) ID=12 & 6.35	8-97215-437-0	03	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) (A) ID=16 SOU	8-94238-568-0	09	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	07	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) (C) ID=19 SOU	8-94238-569-0	01	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (C) ID=19 SOU	8-94238-569-0	01	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) (B) ID=13	8-94238-571-0	06	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	06	1	0512-

24 147 231 147 67 61 67 147 231 61 147 66 147 147 147 76 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (C) L=250 SOU	5-09707-030-1	01	1	0512-
24	CLIP; FUEL HOSE 4JB1 ENG(RLF) FUEL FILTER DUAL(S6B) (A) L=140 SOU	5-09707-031-1	01	1	0303-0511
24	CLIP; FUEL HOSE 4HF1 ENG(RLS) (B)	9-09916-239-1	01	1	0512-
24	CLIP; FUEL HOSE 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (A) L=140 SOU	5-09707-031-1	02	1	0303-0511
24	CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140 SOU	5-09707-031-1	02	1	0303-0511
24	CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) (A) L=140 SOU	5-09707-031-1	02	1	0512-
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0303-
66	HOSE; FUEL,RETURN PIPE 4JB1 ENG(RLF) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0512-
66	HOSE; FUEL,RETURN PIPE 4JB1 ENG(RLF) (B) L=400 SERVICED BY L=3000	0-01256-300-0	01	1	0303-0511
66	HOSE; FUEL,RETURN PIPE 4HF1 ENG(RLS) (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	0512-
67	HOSE; FUEL,DELIVERY 4JB1 ENG(RLF) FUEL FILTER DUAL(S6B) (A) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511
67	HOSE; FUEL,DELIVERY 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (B) L=420 SERVICED BY L=3000	0-01259-300-0	01	1	0512-
67	HOSE; FUEL,DELIVERY 4JB1 ENG(RLF) FUEL FILTER DUAL(S6B) (B) L=470 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511
67	HOSE; FUEL,DELIVERY 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (A) L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0512-
76	HOSE; FUEL,TANK 4HF1 ENG(RLS) EXC. FUEL FILTER DUAL(S6B) (A) L=380	8-97353-524-0	01	1	0512-
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) (A) L=380	8-97353-524-0	01	1	0303-0511
76	HOSE; FUEL,TANK 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (C) L=350	8-97353-528-0	01	1	0512-
76	HOSE; FUEL,TANK 4JB1 ENG(RLF) EXC. FUEL FILTER DUAL(S6B) (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (F) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) FUEL FILTER DUAL(S6B) (A) ID=16 SOU	8-94238-568-0	02	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) (D) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (E) ID=12 & 6.35	8-97215-437-0	03	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) (A) ID=16 SOU	8-94238-568-0	09	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (A) ID=16 SOU	8-94238-568-0	07	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) (C) ID=19 SOU	8-94238-569-0	01	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (C) ID=19 SOU	8-94238-569-0	01	1	0512-
147	CLIP; FUEL PIPE TO HOSE 4JB1 ENG(RLF) (B) ID=13	8-94238-571-0	06	1	0303-0511
147	CLIP; FUEL PIPE TO HOSE 4HF1 ENG(RLS) (B) ID=13	8-94238-571-0	06	1	0512-
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50 SOU	8-94157-054-1	01	1	0303-
231	RUBBER; SUPPORT,FUEL PIPE 4JB1 ENG(RLF) (B) OD=15 L=50	8-97077-629-0	01	1	0303-0511
231	RUBBER; SUPPORT,FUEL PIPE 4HF1 ENG(RLS) (B) OD=15 L=50	8-97077-629-0	01	1	0512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
