1-31 — AIR DUCT (#18991) — 122 parça

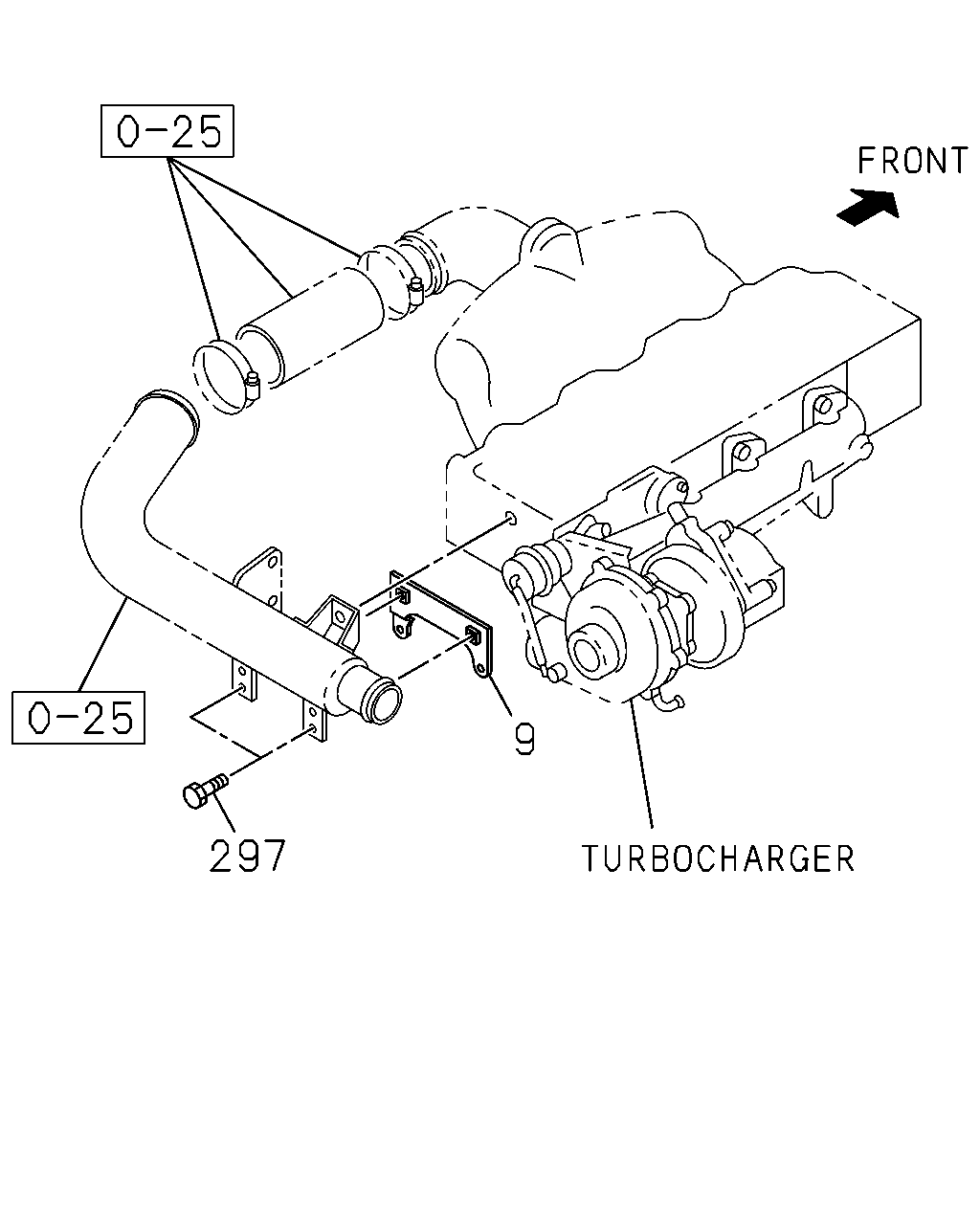

9 297

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	9	BRACKET; INT PIPE 4JB1 ENG(RLF)	8-94155-425-1	01	1	0303-0511
	297	BOLT; DUCT 4JB1 ENG(RLF) M10X16 FLANGE	0-28081-016-0	02	1	0303-0511

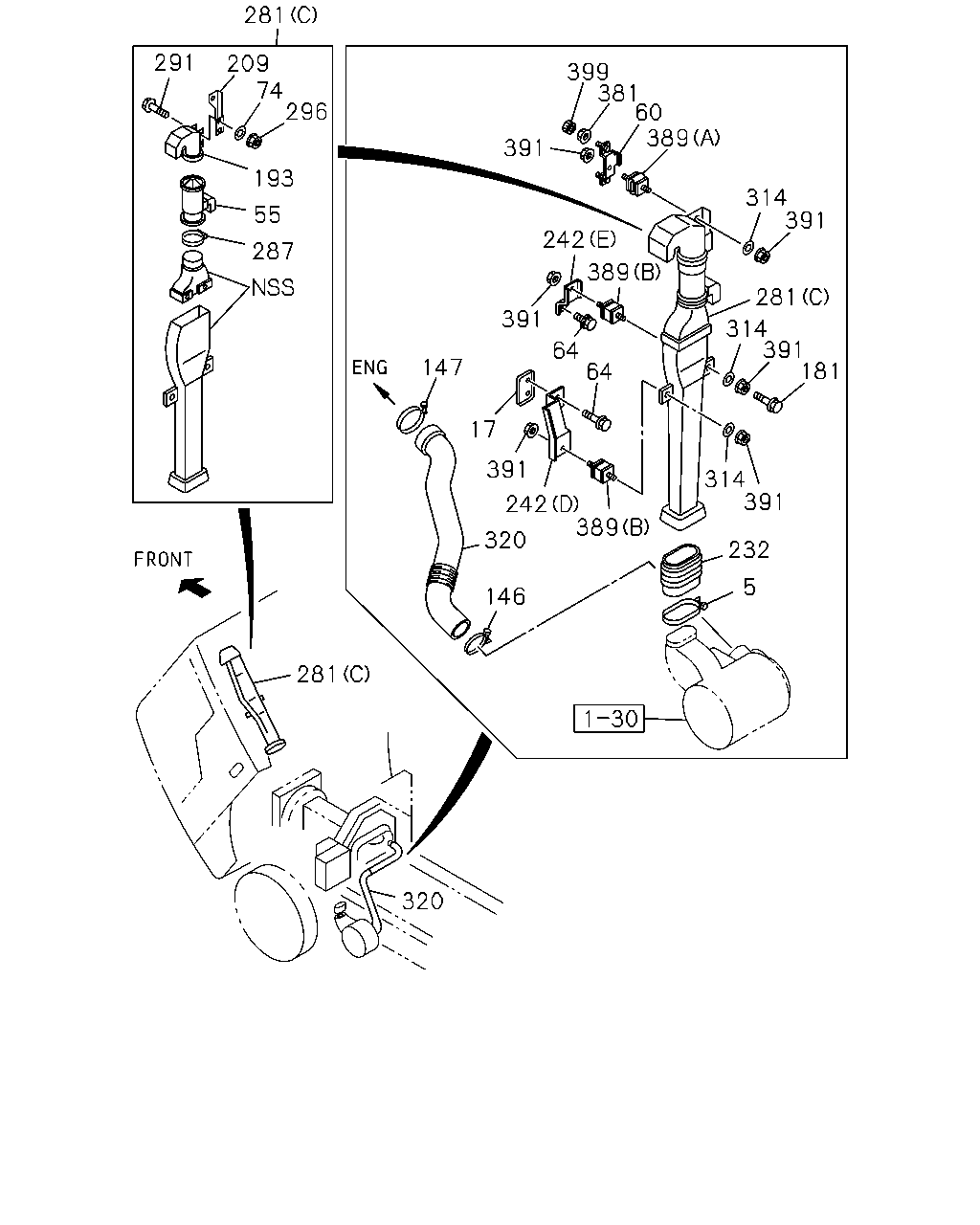

281 291 209 74 296 399 381 60 389 391 193 314 391 55 242 287 389 281 391 314 391 181 64 64 147 17 391 314 391 242 389 320 232 5 146 281 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	CLIP; AIR DUCT 4JB1 ENG(RLF) ID=87 SOU	8-97087-432-0	01	1	0303-0511
5	CLIP; AIR DUCT 4HF1 ENG(RLS) D=101.6 SOU	9-09915-502-1	01	1	0512-
17	GASKET; AIR DUCT 4JB1 ENG(RLF) SOU	8-97853-699-2	01	1	0303-0511
17	GASKET; AIR DUCT SOU	8-97853-699-2	01	1	0512-
55	CLEANER ASM; AIR,PRE 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> SOU	8-97126-267-0	01	1	0512-
60	BRACKET; AIR DUCT,UPR 4JB1 ENG(RLF) SOU	8-97856-956-0	01	1	0303-0511
60	BRACKET; AIR DUCT,UPR 4HF1 ENG(RLS)	8-97856-957-1	01	1	0512-
64	BOLT; BRKT,AIR DUCT 4JB1 ENG(RLF) M8X20.5 W/LK&PL WASHER SOU	8-94279-207-0	03	1	0303-0511
64	BOLT; BRKT,AIR DUCT M8X20.5 W/LK&PL WASHER SOU	8-94279-207-0	03	1	0512-
74	WASHER; PL,ACL 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> ID=8.4 OD=22	9-09160-708-0	02	1	0512-0605
74	WASHER; PL,ACL 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> ID=8.4 OD=22 SOU	0-91610-708-0	02	1	0606-
146	CLIP; HOSE,ACL 4HF1 ENG(RLS) ID=95 SOU	9-09915-733-1	01	1	0512-
147	CLIP; HOSE TO ENG 4HF1 ENG(RLS) ID=95 SOU	9-09915-733-1	01	1	0512-
181	BOLT; AIR DUCT TO RAD 4HF1 ENG(RLS) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512
181	BOLT; AIR DUCT TO RAD 4HF1 ENG(RLS) M8X25 FLANGE SOU	0-28650-825-0	01	1	0601-
193	COVER; DUCT,AIR INT 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46>	8-97120-078-2	01	1	0512-
193	COVER; DUCT,AIR INT 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>	8-97138-604-1	01	1	0512-
209	BRACKET; ACL 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> SOU	8-97120-080-1	01	1	0512-
232	HOSE; CONN 4JB1 ENG(RLF) SOU	5-14231-115-1	01	1	0303-0511
232	HOSE; CONN 4HF1 ENG(RLS) SOU	8-97109-423-0	01	1	0512-0802
232	HOSE; CONN 4HF1 ENG(RLS)	8-98115-594-0	01	1	0803-
242	BRACKET; AIR DUCT 4JB1 ENG(RLF) (A) SOU	8-97856-935-0	01	1	0303-0511
242	BRACKET; AIR DUCT 4HF1 ENG(RLS) (E)	8-97853-633-2	01	1	0512-
242	BRACKET; AIR DUCT 4JB1 ENG(RLF) (B) SOU	8-97856-958-0	01	1	0303-0511
242	BRACKET; AIR DUCT 4HF1 ENG(RLS) (D)	8-97857-844-1	01	1	0512-
242	BRACKET; AIR DUCT 4JB1 ENG(RLF) (C) SOU	8-97856-967-1	01	1	0303-0511
281	DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-97161-847-2	01	1	0512-
281	DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) (A) SOU	8-97076-959-2	01	1	0303-0511
281	DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> (C)	8-97120-084-2	01	1	0512-
287	CLIP; AIR DUCT 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> ID=87 SOU	9-09915-071-1	01	1	0512-
291	BOLT; ACL 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> M8X30 FLANGE	0-28680-830-0	02	1	0512-0512
291	BOLT; ACL 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> M8X30 FLANGE	0-28650-830-0	02	1	0601-
296	NUT; ACL 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602
296	NUT; ACL 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> M8 FLANGE SOU	0-91180-108-0	02	1	0603-
314	WASHER; PL,AIR INT DUCT 4HF1 ENG(RLS) ID=10.2 T=3.2 SOU	8-94279-642-0	03	1	0512-
320	HOSE; CONN,ACL 4JB1 ENG(RLF)	8-97168-373-0	01	1	0303-0511
320	HOSE; CONN,ACL 4HF1 ENG(RLS)	8-97069-875-2	01	1	0512-
381	NUT; BRKT,AIR DUCT 4JB1 ENG(RLF) M6 FLANGE SOU	1-09984-018-0	02	1	0303-0511
381	NUT; BRKT,AIR DUCT M6 FLANGE SOU	1-09984-018-0	02	1	0512-
389	RUBBER; SUPPORT,AIR INT UPR 4JB1 ENG(RLF) (A) SOU	8-97080-149-0	01	1	0303-0511
389	RUBBER; SUPPORT,AIR INT UPR 4HF1 ENG(RLS) (A) SOU	8-97080-149-0	01	1	0512-
389	RUBBER; SUPPORT,AIR INT UPR 4JB1 ENG(RLF) (B) SOU	8-97081-886-0	02	1	0303-0511
389	RUBBER; SUPPORT,AIR INT UPR 4HF1 ENG(RLS) (B) SOU	8-97081-886-0	02	1	0512-
391	NUT; SUPPORT RUBBER,UPR 4JB1 ENG(RLF) M8 FLANGE SOU	8-94279-517-0	07	1	0303-0511
391	NUT; SUPPORT RUBBER,UPR 4HF1 ENG(RLS) M8 FLANGE SOU	8-94279-517-0	06	1	0512-
399	CAP; BRKT,AIR DUCT 4JB1 ENG(RLF) SOU	8-94273-605-0	02	1	0303-0511
399	CAP; BRKT,AIR DUCT SOU	8-94273-605-0	02	1	0512-

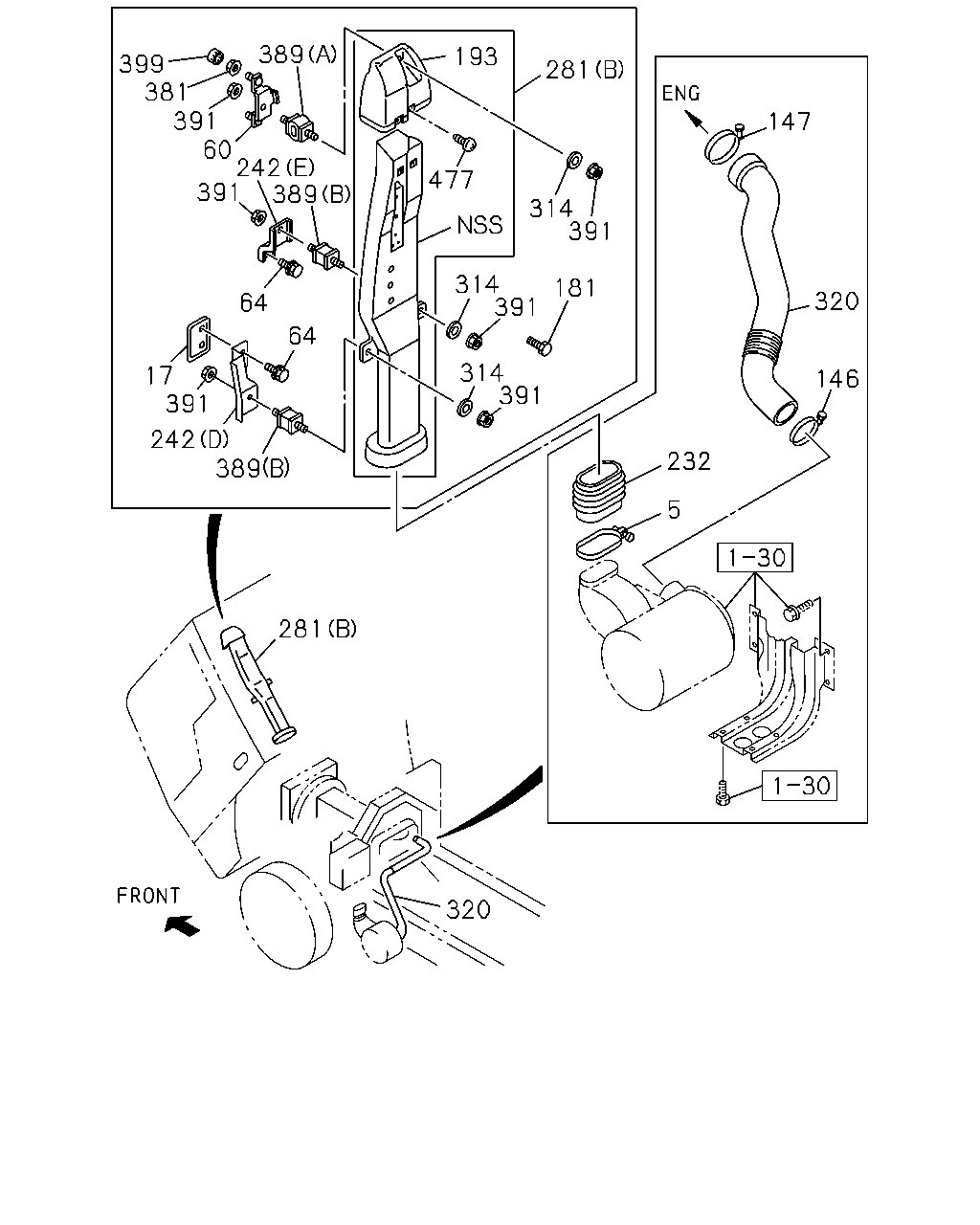

389 193 399 381 391 60 242 391 389 281 147 477 314 391 314 391 181 320 64 64 314 391 17 391 146 242 389 232 5 281 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	CLIP; AIR DUCT 4JB1 ENG(RLF) ID=87 SOU	8-97087-432-0	01	1	0303-0511
5	CLIP; AIR DUCT 4HF1 ENG(RLS) D=101.6 SOU	9-09915-502-1	01	1	0512-
17	GASKET; AIR DUCT 4JB1 ENG(RLF) SOU	8-97853-699-2	01	1	0303-0511
17	GASKET; AIR DUCT SOU	8-97853-699-2	01	1	0512-
60	BRACKET; AIR DUCT,UPR 4JB1 ENG(RLF) SOU	8-97856-956-0	01	1	0303-0511
60	BRACKET; AIR DUCT,UPR 4HF1 ENG(RLS)	8-97856-957-1	01	1	0512-
64	BOLT; BRKT,AIR DUCT 4JB1 ENG(RLF) M8X20.5 W/LK&PL WASHER SOU	8-94279-207-0	03	1	0303-0511
64	BOLT; BRKT,AIR DUCT M8X20.5 W/LK&PL WASHER SOU	8-94279-207-0	03	1	0512-
146	CLIP; HOSE,ACL 4HF1 ENG(RLS) ID=95 SOU	9-09915-733-1	01	1	0512-
147	CLIP; HOSE TO ENG 4HF1 ENG(RLS) ID=95 SOU	9-09915-733-1	01	1	0512-
181	BOLT; AIR DUCT TO RAD 4HF1 ENG(RLS) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512
181	BOLT; AIR DUCT TO RAD 4HF1 ENG(RLS) M8X25 FLANGE SOU	0-28650-825-0	01	1	0601-
193	COVER; DUCT,AIR INT 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46>	8-97120-078-2	01	1	0512-
193	COVER; DUCT,AIR INT 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46>	8-97138-604-1	01	1	0512-
232	HOSE; CONN 4JB1 ENG(RLF) SOU	5-14231-115-1	01	1	0303-0511
232	HOSE; CONN 4HF1 ENG(RLS) SOU	8-97109-423-0	01	1	0512-0802
232	HOSE; CONN 4HF1 ENG(RLS)	8-98115-594-0	01	1	0803-
242	BRACKET; AIR DUCT 4JB1 ENG(RLF) (A) SOU	8-97856-935-0	01	1	0303-0511
242	BRACKET; AIR DUCT 4HF1 ENG(RLS) (E)	8-97853-633-2	01	1	0512-
242	BRACKET; AIR DUCT 4JB1 ENG(RLF) (B) SOU	8-97856-958-0	01	1	0303-0511
242	BRACKET; AIR DUCT 4HF1 ENG(RLS) (D)	8-97857-844-1	01	1	0512-
242	BRACKET; AIR DUCT 4JB1 ENG(RLF) (C) SOU	8-97856-967-1	01	1	0303-0511
281	DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-97161-847-2	01	1	0512-
281	DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) (A) SOU	8-97076-959-2	01	1	0303-0511
281	DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> (C)	8-97120-084-2	01	1	0512-
314	WASHER; PL,AIR INT DUCT 4HF1 ENG(RLS) ID=10.2 T=3.2 SOU	8-94279-642-0	03	1	0512-
320	HOSE; CONN,ACL 4JB1 ENG(RLF)	8-97168-373-0	01	1	0303-0511
320	HOSE; CONN,ACL 4HF1 ENG(RLS)	8-97069-875-2	01	1	0512-
381	NUT; BRKT,AIR DUCT 4JB1 ENG(RLF) M6 FLANGE SOU	1-09984-018-0	02	1	0303-0511
381	NUT; BRKT,AIR DUCT M6 FLANGE SOU	1-09984-018-0	02	1	0512-
389	RUBBER; SUPPORT,AIR INT UPR 4JB1 ENG(RLF) (A) SOU	8-97080-149-0	01	1	0303-0511
389	RUBBER; SUPPORT,AIR INT UPR 4HF1 ENG(RLS) (A) SOU	8-97080-149-0	01	1	0512-
389	RUBBER; SUPPORT,AIR INT UPR 4JB1 ENG(RLF) (B) SOU	8-97081-886-0	02	1	0303-0511
389	RUBBER; SUPPORT,AIR INT UPR 4HF1 ENG(RLS) (B) SOU	8-97081-886-0	02	1	0512-
391	NUT; SUPPORT RUBBER,UPR 4JB1 ENG(RLF) M8 FLANGE SOU	8-94279-517-0	07	1	0303-0511
391	NUT; SUPPORT RUBBER,UPR 4HF1 ENG(RLS) M8 FLANGE SOU	8-94279-517-0	06	1	0512-
399	CAP; BRKT,AIR DUCT 4JB1 ENG(RLF) SOU	8-94273-605-0	02	1	0303-0511
399	CAP; BRKT,AIR DUCT SOU	8-94273-605-0	02	1	0512-
477	SCREW; COVER 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> M5X16 TAPPING W/PL WASHER	0-74110-516-0	04	1	0512-0604
477	SCREW; COVER 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> M5X16 TAPPING W/PL WASHER	0-74160-516-0	04	1	0605-

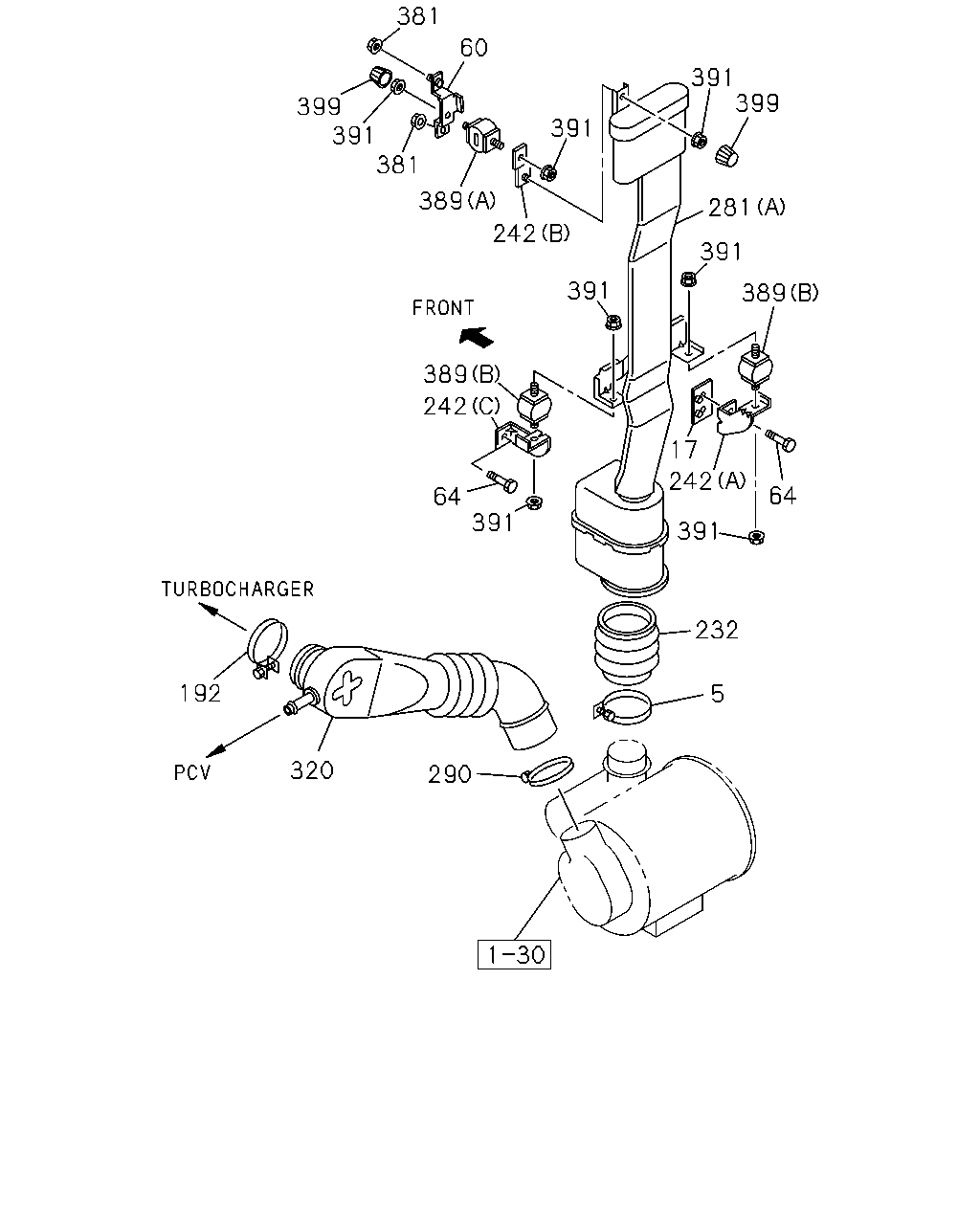

381 60 391 399 399 391 381 391 389 281 242 391 391 389 389 242 17 242 64 64 391 391 232 192 5 320 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	CLIP; AIR DUCT 4JB1 ENG(RLF) ID=87 SOU	8-97087-432-0	01	1	0303-0511
5	CLIP; AIR DUCT 4HF1 ENG(RLS) D=101.6 SOU	9-09915-502-1	01	1	0512-
17	GASKET; AIR DUCT 4JB1 ENG(RLF) SOU	8-97853-699-2	01	1	0303-0511
17	GASKET; AIR DUCT SOU	8-97853-699-2	01	1	0512-
60	BRACKET; AIR DUCT,UPR 4JB1 ENG(RLF) SOU	8-97856-956-0	01	1	0303-0511
60	BRACKET; AIR DUCT,UPR 4HF1 ENG(RLS)	8-97856-957-1	01	1	0512-
64	BOLT; BRKT,AIR DUCT 4JB1 ENG(RLF) M8X20.5 W/LK&PL WASHER SOU	8-94279-207-0	03	1	0303-0511
64	BOLT; BRKT,AIR DUCT M8X20.5 W/LK&PL WASHER SOU	8-94279-207-0	03	1	0512-
192	CLIP; HOSE 4JB1 ENG(RLF) ID=44-60	8-94175-940-0	01	1	0303-0511
232	HOSE; CONN 4JB1 ENG(RLF) SOU	5-14231-115-1	01	1	0303-0511
232	HOSE; CONN 4HF1 ENG(RLS) SOU	8-97109-423-0	01	1	0512-0802
232	HOSE; CONN 4HF1 ENG(RLS)	8-98115-594-0	01	1	0803-
242	BRACKET; AIR DUCT 4JB1 ENG(RLF) (A) SOU	8-97856-935-0	01	1	0303-0511
242	BRACKET; AIR DUCT 4HF1 ENG(RLS) (E)	8-97853-633-2	01	1	0512-
242	BRACKET; AIR DUCT 4JB1 ENG(RLF) (B) SOU	8-97856-958-0	01	1	0303-0511
242	BRACKET; AIR DUCT 4HF1 ENG(RLS) (D)	8-97857-844-1	01	1	0512-
242	BRACKET; AIR DUCT 4JB1 ENG(RLF) (C) SOU	8-97856-967-1	01	1	0303-0511
281	DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) EXC. HEAVY DUTY AIR CLEANER<K46> (B)	8-97161-847-2	01	1	0512-
281	DUCT; AIR,VERTICAL INT 4JB1 ENG(RLF) (A) SOU	8-97076-959-2	01	1	0303-0511
281	DUCT; AIR,VERTICAL INT 4HF1 ENG(RLS) HEAVY DUTY AIR CLEANER<K46> (C)	8-97120-084-2	01	1	0512-
290	CLIP; ACL TO AIR DUCT 4JB1 ENG(RLF) ID=87 SOU	8-97087-432-0	01	1	0303-0511
320	HOSE; CONN,ACL 4JB1 ENG(RLF)	8-97168-373-0	01	1	0303-0511
320	HOSE; CONN,ACL 4HF1 ENG(RLS)	8-97069-875-2	01	1	0512-
381	NUT; BRKT,AIR DUCT 4JB1 ENG(RLF) M6 FLANGE SOU	1-09984-018-0	02	1	0303-0511
381	NUT; BRKT,AIR DUCT M6 FLANGE SOU	1-09984-018-0	02	1	0512-
389	RUBBER; SUPPORT,AIR INT UPR 4JB1 ENG(RLF) (A) SOU	8-97080-149-0	01	1	0303-0511
389	RUBBER; SUPPORT,AIR INT UPR 4HF1 ENG(RLS) (A) SOU	8-97080-149-0	01	1	0512-
389	RUBBER; SUPPORT,AIR INT UPR 4JB1 ENG(RLF) (B) SOU	8-97081-886-0	02	1	0303-0511
389	RUBBER; SUPPORT,AIR INT UPR 4HF1 ENG(RLS) (B) SOU	8-97081-886-0	02	1	0512-
391	NUT; SUPPORT RUBBER,UPR 4JB1 ENG(RLF) M8 FLANGE SOU	8-94279-517-0	07	1	0303-0511
391	NUT; SUPPORT RUBBER,UPR 4HF1 ENG(RLS) M8 FLANGE SOU	8-94279-517-0	06	1	0512-
399	CAP; BRKT,AIR DUCT 4JB1 ENG(RLF) SOU	8-94273-605-0	02	1	0303-0511
399	CAP; BRKT,AIR DUCT SOU	8-94273-605-0	02	1	0512-
