2-60 — TRANSFER (#1899) — 25 parça

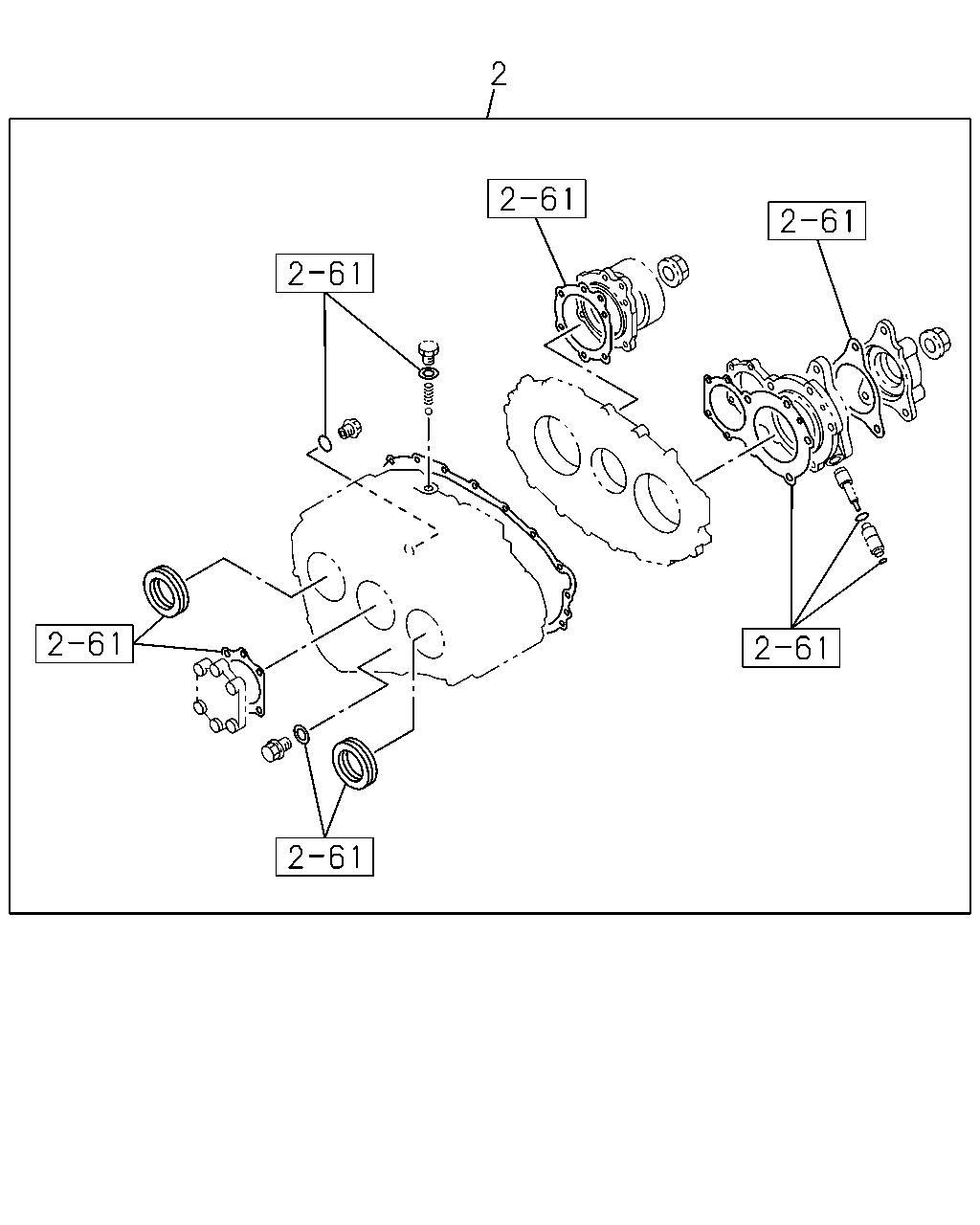

çizim 94084
2
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; TRANSFER OVERHAUL 1-87830-218-5 01 1 9207-

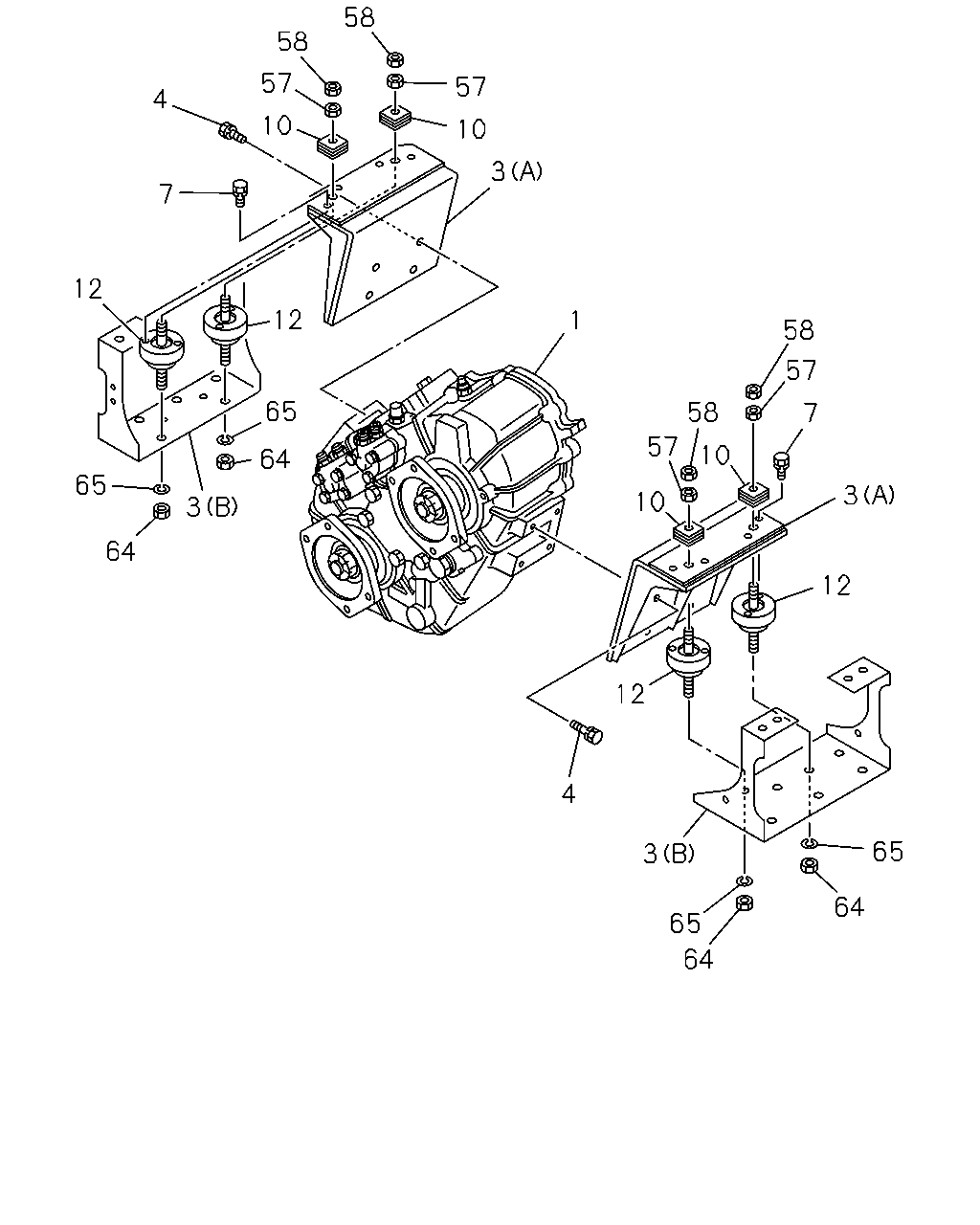

çizim 95299
58 58 57 57 4 10 10 3 7 12 12 1 58 57 65 58 7 57 10 64 65 3 10 3 64 12 12 4 65 3 64 65 64
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSFER ASM
FINAL GEAR 39/6 15.5"(W1T) TACHOGRAPH 140KM/H<WC7> 		1-36000-516-0 01 1 9207-
1 TRANSFER ASM
FINAL GEAR 39/6 15.5"(W1T) EXC. TACHOGRAPH 140KM/H<WC7> 		1-36000-566-0 01 1 9207-
1 TRANSFER ASM
FINAL GEAR 39/7 14.5"(W1H) TIRE 7.50-20-12 RIB(70S),TIRE 7.50-20-12 LUG(71S), TIRE 7.50-20-12 SNOW(72S),TIRE 7.50-20-12 SPECIAL LUG(74S) EXC. TACHOGRAPH 140KM/H<WC7> 		1-36000-393-0 01 1 9207-
1 TRANSFER ASM
FINAL GEAR 39/7 14.5"(W1H) TIRE 7.50-20-12 RIB(70S),TIRE 7.50-20-12 LUG(71S), TIRE 7.50-20-12 SNOW(72S),TIRE 7.50-20-12 SPECIAL LUG(74S) TACHOGRAPH 140KM/H<WC7> 		1-36000-477-0 01 1 9207-
1 TRANSFER ASM
FINAL GEAR 39/7 14.5"(W1H) TIRE 8.25-20-14 LUG(01R),TIRE 8.25R-20-14 RIB(05R), TIRE 8.25-20-12 RIB(80S),TIRE 8.25-20-12 LUG(81S), TIRE 8.25-20-12 SNOW(82S),TIRE 8.25-20-12 SNOW&SPIKE(84S),TIRE 8.25-20-14 RIB(90S),TIRE 8.25-20-14 SNOW(92S),TIRE 8.25-20-14 SPECIAL LUG(94S) EXC. TACHOGRAPH 140KM/H<WC7> 		1-36000-392-0 01 1 9207-
1 TRANSFER ASM
FINAL GEAR 39/7 14.5"(W1H) TIRE 8.25-20-14 LUG(01R),TIRE 8.25R-20-14 RIB(05R), TIRE 8.25-20-12 RIB(80S),TIRE 8.25-20-12 LUG(81S), TIRE 8.25-20-12 SNOW(82S),TIRE 8.25-20-12 SNOW&SPIKE(84S),TIRE 8.25-20-14 RIB(90S),TIRE 8.25-20-14 SNOW(92S),TIRE 8.25-20-14 SPECIAL LUG(94S) TACHOGRAPH 140KM/H<WC7> 		1-36000-476-0 01 1 9207-
1 TRANSFER ASM
FINAL GEAR 39/7 15.5"(W3K) TACHOGRAPH 140KM/H<WC7> 		1-36000-514-0 01 1 9207-
1 TRANSFER ASM
FINAL GEAR 39/7 15.5"(W3K) EXC. TACHOGRAPH 140KM/H<WC7> 		1-36000-564-0 01 1 9207-
3 BRACKET; TRANSFER
FSS ALL(FSS***) (A) 		1-36183-157-1 01 1 9207-
3 BRACKET; TRANSFER
FSS ALL(FSS***) (A) 		1-36183-116-0 01 1 9207-
3 BRACKET; TRANSFER
FTS ALL(FTS***) (A) 		1-36183-114-6 01 1 9207-
3 BRACKET; TRANSFER
FTS ALL(FTS***) (A) 		1-36183-113-3 01 1 9207-
3 BRACKET; TRANSFER
FSS ALL(FSS***) (B) 		1-53291-064-5 01 1 9207-
3 BRACKET; TRANSFER
FSS ALL(FSS***) (B) 		1-53291-065-4 01 1 9207-
3 BRACKET; TRANSFER
FTS ALL(FTS***) (B) 		1-53291-060-3 01 1 9207-
3 BRACKET; TRANSFER
FTS ALL(FTS***) (B) 		1-53291-061-4 01 1 9207-
4 BOLT; BRKT TO TRANSFER
M12X30 W/LK WASHER 		0-50051-230-0 08 1 9207-
7 BOLT; CUSHION RUBBER
M10X25 W/LK WASHER 		0-50041-025-0 08 1 9207-
10 RUBBER; CUSHION,UPR,TRANSFER 1-36189-027-0 04 1 9207-
12 RUBBER; CUSHION,LWR,TRANSFER 1-36189-026-2 04 1 9207-
57 NUT; CUSHION RUBBER,UPR
M12 		9-99110-512-0 04 1 9207-
58 NUT; CUSHION RUBBER,LK UPR
M12 		9-99111-412-0 04 1 9207-
64 NUT; CUSHION RUBBER,LWR
M14 		9-99110-414-0 04 1 9207-
65 WASHER; LK,CUSHION RUBBER,LWR
ID=14.2 		9-09150-514-0 04 1 9207-
