1-01 — ACCELERATOR PEDAL AND CONTROL (#18987) — 89 parça

61 60 316 395 54 318

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CABLE; ENG CONT 4HF1 ENG(RLS) (B) L=293	8-97115-730-0	01	1	0512-
54	CABLE; ENG CONT 4JB1 ENG(RLF) (C) L=2300	8-97046-362-4	01	1	0303-0407
54	CABLE; ENG CONT 4JB1 ENG(RLF) (C) L=2300	8-97386-872-0	01	1	0408-0511
54	CABLE; ENG CONT 4HF1 ENG(RLS) (A) L=2703	8-97071-711-5	01	1	0512-
60	BOLT; CABLE 4JB1 ENG(RLF) M8X20 FLANGE	0-28680-820-0	02	1	0303-0511
60	BOLT; CABLE 4HF1 ENG(RLS) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
60	BOLT; CABLE 4HF1 ENG(RLS) M8X20 FLANGE	0-28650-820-0	02	1	0601-
61	BOLT; BRKT TO FRAME ENG CONT CABLE 4JB1 ENG(RLF) M6X12 FLANGE	0-28080-612-0	01	1	0303-0511
316	CLIP; LAMP BRKT 4JB1 ENG(RLF) ID=9	5-09707-027-0	01	1	0303-0511
316	CLIP; LAMP BRKT 4HF1 ENG(RLS) ID=9	5-09707-027-0	01	1	0512-
318	NUT; LAMP BRKT 4JB1 ENG(RLF) M8 W/LK WASHER	8-94327-073-0	02	1	0303-0511
318	NUT; LAMP BRKT 4HF1 ENG(RLS) M8 W/LK WASHER	8-94327-073-0	02	1	0512-0805
318	NUT; LAMP BRKT 4HF1 ENG(RLS) M8 FLANGE	8-97581-234-0	02	1	0806-
395	CLIP; BAND,ACCEL CONT CABLE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) L=140 SOU	5-09707-031-1	01	1	0303-0511
395	CLIP; BAND,ACCEL CONT CABLE 4HF1 ENG(RLS) L=140 SOU	5-09707-031-1	02	1	0512-

395 389 316 318 54 404 60 54 99 54 99 100 101 114 108 729 101 104 391 110 218

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CABLE; ENG CONT 4HF1 ENG(RLS) (B) L=293	8-97115-730-0	01	1	0512-
54	CABLE; ENG CONT 4JB1 ENG(RLF) (C) L=2300	8-97046-362-4	01	1	0303-0407
54	CABLE; ENG CONT 4JB1 ENG(RLF) (C) L=2300	8-97386-872-0	01	1	0408-0511
54	CABLE; ENG CONT 4HF1 ENG(RLS) (A) L=2703	8-97071-711-5	01	1	0512-
60	BOLT; CABLE 4JB1 ENG(RLF) M8X20 FLANGE	0-28680-820-0	02	1	0303-0511
60	BOLT; CABLE 4HF1 ENG(RLS) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512
60	BOLT; CABLE 4HF1 ENG(RLS) M8X20 FLANGE	0-28650-820-0	02	1	0601-

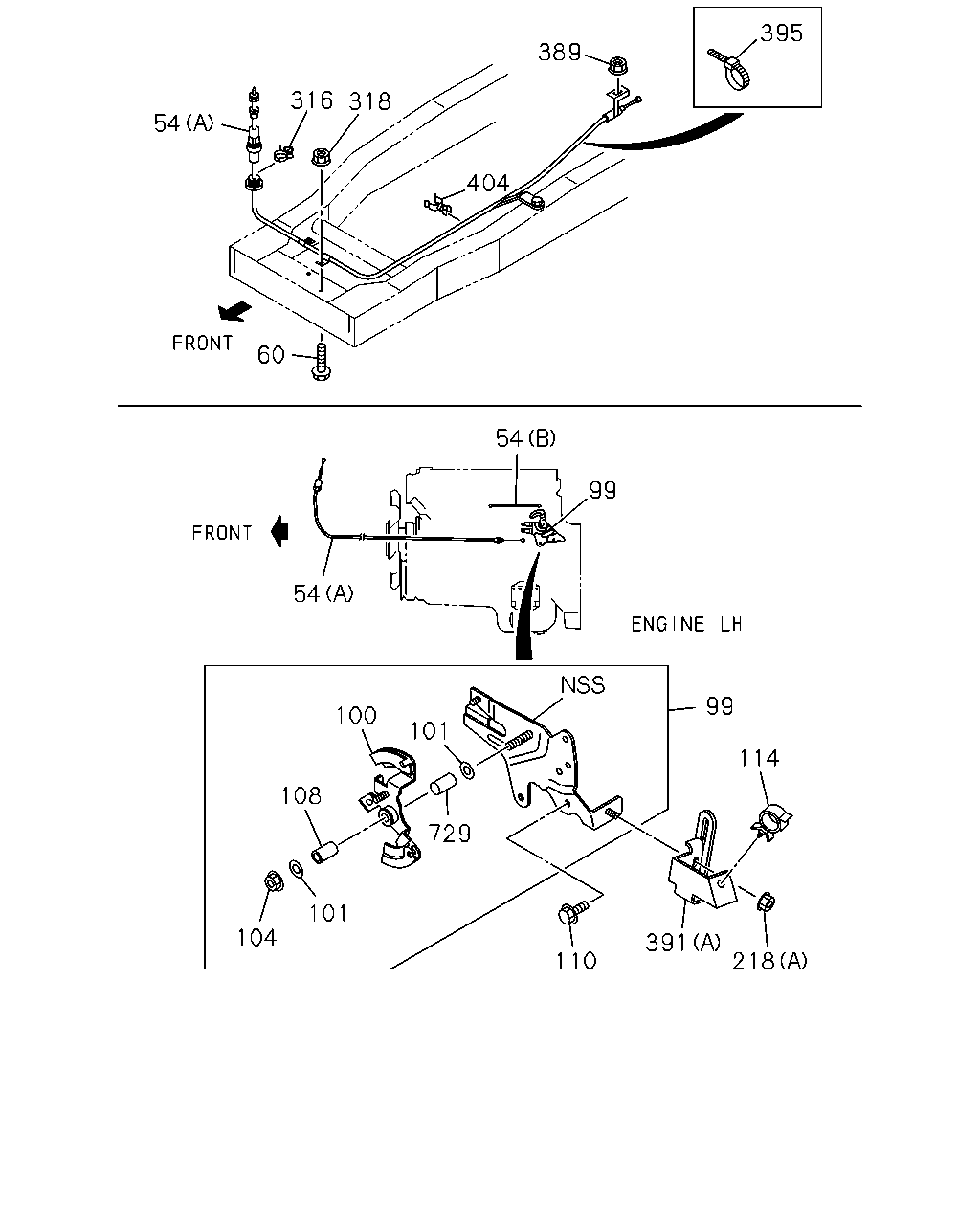

99	BRACKET ASM; ENG CONT,INL MANIF 4HF1 ENG(RLS)	8-97118-729-0	01	1	0512-
100	SHAFT ASM; ENG CONT 4HF1 ENG(RLS)	8-97118-737-0	01	1	0512-
101	WASHER; ENG CONT 4HF1 ENG(RLS)	8-94142-117-0	02	1	0512-
104	NUT; ENG CONT 4HF1 ENG(RLS) M8 FLANGE SOU	0-91150-108-0	01	1	0512-0602
104	NUT; ENG CONT 4HF1 ENG(RLS) M8 FLANGE SOU	0-91180-108-0	01	1	0603-
108	BUSHING; ENG CONT 4HF1 ENG(RLS)	8-97120-004-0	01	1	0512-
110	BOLT; BRKT TO HANGER 4HF1 ENG(RLS) M8X16 FLANGE	0-28080-816-0	03	1	0512-0512
110	BOLT; BRKT TO HANGER 4HF1 ENG(RLS) M8X16 FLANGE SOU	0-28050-816-0	03	1	0601-
114	CLIP; HARNESS CONNECTOR 4HF1 ENG(RLS) ID=7-10	8-94472-578-0	01	1	0512-
218	NUT; BRKT 4HF1 ENG(RLS) (A) M8 FLANGE SOU	0-91150-108-0	01	1	0512-0602
218	NUT; BRKT 4HF1 ENG(RLS) (A) M8 FLANGE SOU	0-91180-108-0	01	1	0603-
218	NUT; BRKT 4HF1 ENG(RLS) (B) M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602
218	NUT; BRKT 4HF1 ENG(RLS) (B) M8 FLANGE SOU	0-91180-108-0	02	1	0603-
316	CLIP; LAMP BRKT 4JB1 ENG(RLF) ID=9	5-09707-027-0	01	1	0303-0511
316	CLIP; LAMP BRKT 4HF1 ENG(RLS) ID=9	5-09707-027-0	01	1	0512-
318	NUT; LAMP BRKT 4JB1 ENG(RLF) M8 W/LK WASHER	8-94327-073-0	02	1	0303-0511
318	NUT; LAMP BRKT 4HF1 ENG(RLS) M8 W/LK WASHER	8-94327-073-0	02	1	0512-0805
318	NUT; LAMP BRKT 4HF1 ENG(RLS) M8 FLANGE	8-97581-234-0	02	1	0806-
389	NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS) M6 FLANGE	0-91150-106-0	01	1	0512-0602
389	NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS) M6 FLANGE SOU	0-91180-106-0	01	1	0603-
391	BRACKET; ENG CONT 4HF1 ENG(RLS) (A)	8-97172-882-0	01	1	0512-
391	BRACKET; ENG CONT 4HF1 ENG(RLS) (B)	8-97357-141-0	01	1	0512-
395	CLIP; BAND,ACCEL CONT CABLE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) L=140 SOU	5-09707-031-1	01	1	0303-0511
395	CLIP; BAND,ACCEL CONT CABLE 4HF1 ENG(RLS) L=140 SOU	5-09707-031-1	02	1	0512-
404	CLIP; CABLE 4HF1 ENG(RLS) ID=20.2 & 6 SOU	8-94472-577-0	01	1	0512-
729	COLLAR; JOINT 4HF1 ENG(RLS)	8-97118-760-0	01	1	0512-

218 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
218	NUT; BRKT 4HF1 ENG(RLS) (A) M8 FLANGE SOU	0-91150-108-0	01	1	0512-0602
218	NUT; BRKT 4HF1 ENG(RLS) (A) M8 FLANGE SOU	0-91180-108-0	01	1	0603-
218	NUT; BRKT 4HF1 ENG(RLS) (B) M8 FLANGE SOU	0-91150-108-0	02	1	0512-0602
218	NUT; BRKT 4HF1 ENG(RLS) (B) M8 FLANGE SOU	0-91180-108-0	02	1	0603-

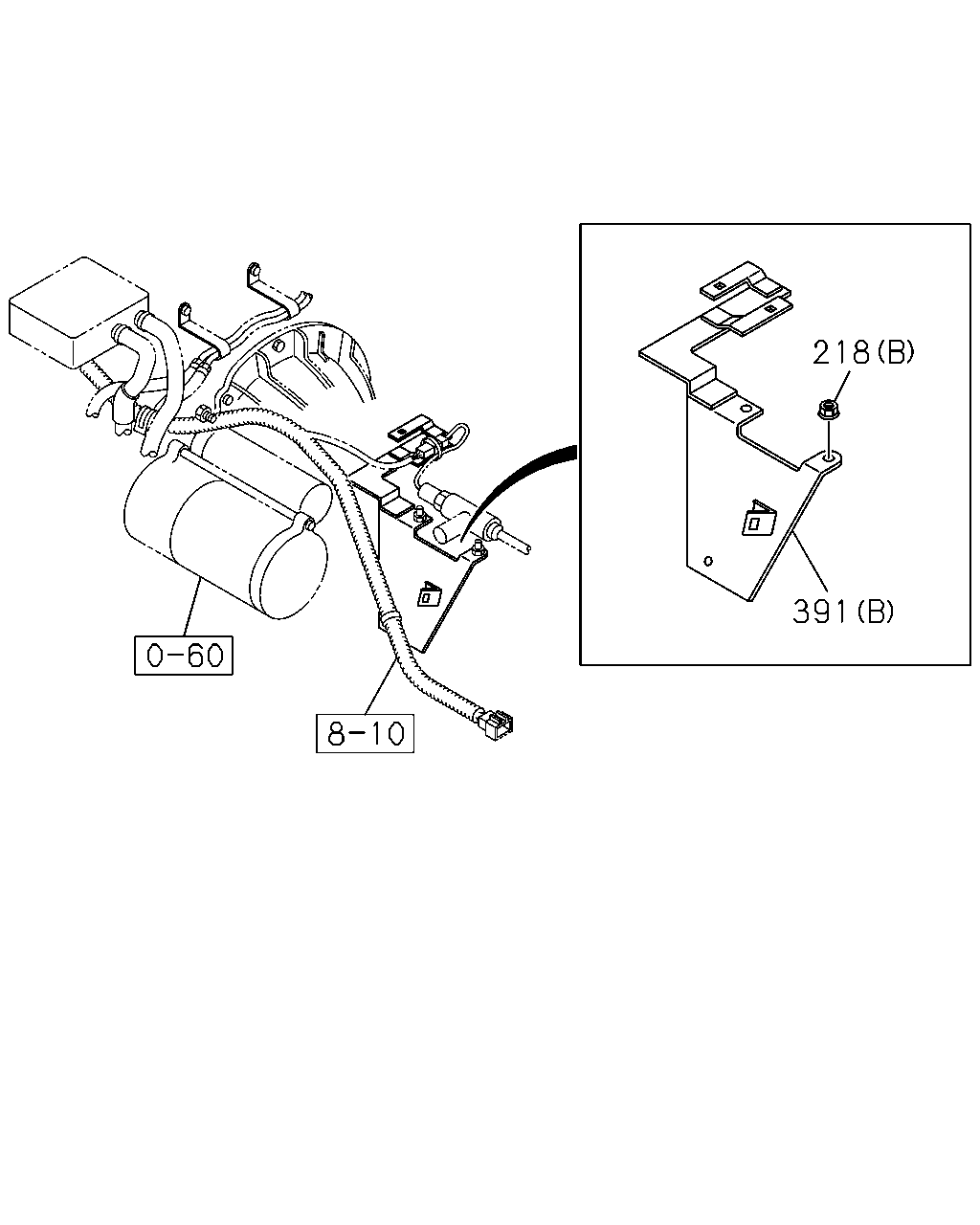

391	BRACKET; ENG CONT 4HF1 ENG(RLS) (A)	8-97172-882-0	01	1	0512-
391	BRACKET; ENG CONT 4HF1 ENG(RLS) (B)	8-97357-141-0	01	1	0512-

68 70 158 35 83 80 89 67 124 81 124 124 87 90 124 80 232 80 39 14 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

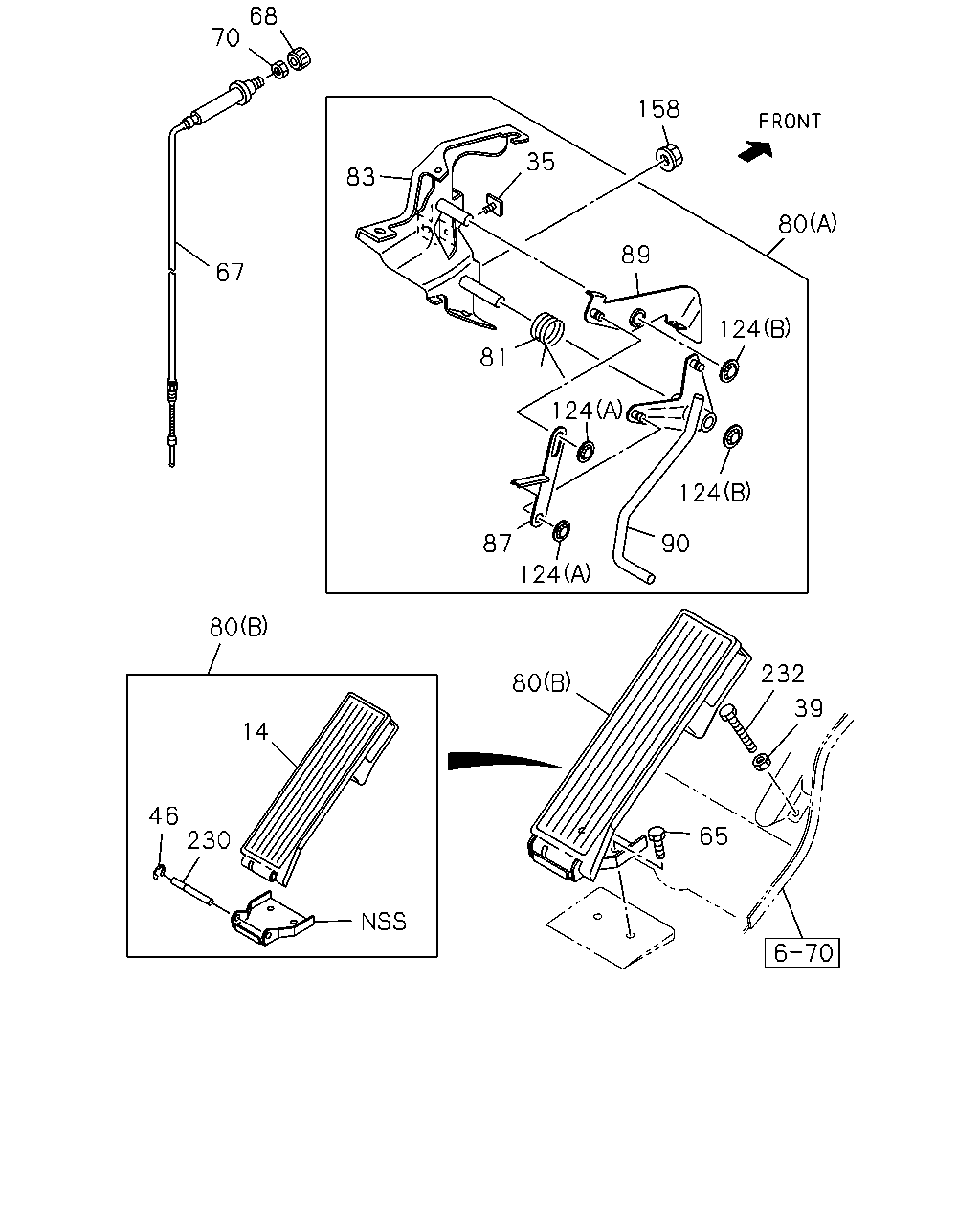

14	PAD; PEDAL,ACCEL SOU	8-97853-062-2	01	1	0303-
35	STOPPER; ACCEL PEDAL 4JB1 ENG(RLF) SOU	8-97302-305-0	01	1	0303-0511
35	STOPPER; ACCEL PEDAL 4HF1 ENG(RLS) SOU	8-97302-305-0	01	1	0512-
39	NUT; ACCEL PEDAL STOPPER M8	9-09110-408-0	01	1	0303-0512
39	NUT; ACCEL PEDAL STOPPER M8 SOU	0-91110-508-0	01	1	0601-
46	RING; SNAP,ACCEL CONT PEDAL ID=4	9-09185-404-0	01	1	0303-0604
46	RING; SNAP,ACCEL CONT PEDAL ID=4	0-91805-504-0	01	1	0605-
65	BOLT M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	0303-
67	CABLE ASM; IDLE CONT 4JB1 ENG(RLF) L=439 SOU	8-97853-058-1	01	1	0303-0511
67	CABLE ASM; IDLE CONT 4HF1 ENG(RLS) L=439 SOU	8-97853-058-1	01	1	0512-
68	KNOB; IDLE CONT 4JB1 ENG(RLF) SOU	8-97853-765-1	01	1	0303-0511
68	KNOB; IDLE CONT 4HF1 ENG(RLS) SOU	8-97853-765-1	01	1	0512-
70	NUT; CONT CABLE 4JB1 ENG(RLF) M18 SOU	8-97853-233-0	01	1	0303-0511
70	NUT; CONT CABLE 4HF1 ENG(RLS) M18 SOU	8-97853-233-0	01	1	0512-
80	LINK ASM; ENG CONT 4JB1 ENG(RLF) (A) SOU	8-97853-057-9	01	1	0303-0511
80	LINK ASM; ENG CONT 4HF1 ENG(RLS) (A) SOU	8-97853-057-9	01	1	0512-
80	LINK ASM; ENG CONT (B) SOU	8-97853-061-2	01	1	0303-
81	SPRING; RETURN,ENG CONT LEVER 4JB1 ENG(RLF) SOU	8-97853-205-1	01	1	0303-0511
81	SPRING; RETURN,ENG CONT LEVER 4HF1 ENG(RLS) SOU	8-97853-205-1	01	1	0512-
83	BRACKET; CONT LINK 4JB1 ENG(RLF) SOU	8-97853-201-4	01	1	0303-0511
83	BRACKET; CONT LINK 4HF1 ENG(RLS) SOU	8-97853-201-4	01	1	0512-
87	LINK; ENG CONT 4JB1 ENG(RLF) SOU	8-97853-204-1	01	1	0303-0511
87	LINK; ENG CONT 4HF1 ENG(RLS) SOU	8-97853-204-1	01	1	0512-
89	LEVER; RELAY 4JB1 ENG(RLF) SOU	8-97868-042-0	01	1	0303-0511
89	LEVER; RELAY 4HF1 ENG(RLS) SOU	8-97868-042-0	01	1	0512-
90	LEVER; RELAY,ENG CONT 4JB1 ENG(RLF) SOU	8-97868-039-0	01	1	0303-0511
90	LEVER; RELAY,ENG CONT 4HF1 ENG(RLS) SOU	8-97868-039-0	01	1	0512-
124	NUT; LEVER 4JB1 ENG(RLF) (A) ID=4.9 PUSH NUT SOU	8-94279-042-0	02	1	0303-0511
124	NUT; LEVER 4HF1 ENG(RLS) (A) ID=4.9 PUSH NUT SOU	8-94279-042-0	02	1	0512-
124	NUT; LEVER 4JB1 ENG(RLF) (B) ID=9.9 PUSH NUT SOU	8-97012-098-0	02	1	0303-0511
124	NUT; LEVER 4HF1 ENG(RLS) (B) ID=9.9 PUSH NUT SOU	8-97012-098-0	02	1	0512-
158	NUT; BRKT M8 FLANGE SOU	8-94279-060-0	02	1	0303-
230	PIN; JOINT,ACCEL PEDAL TO BRKT SOU	8-97853-064-0	01	1	0303-
232	BOLT; STOPPER,ACCEL PEDAL M8X65	0-20800-865-0	01	1	0303-0404
232	BOLT; STOPPER,ACCEL PEDAL M8X45	8-97378-461-0	01	1	0405-
