Sayfa 0-86 - Isuzu EPC

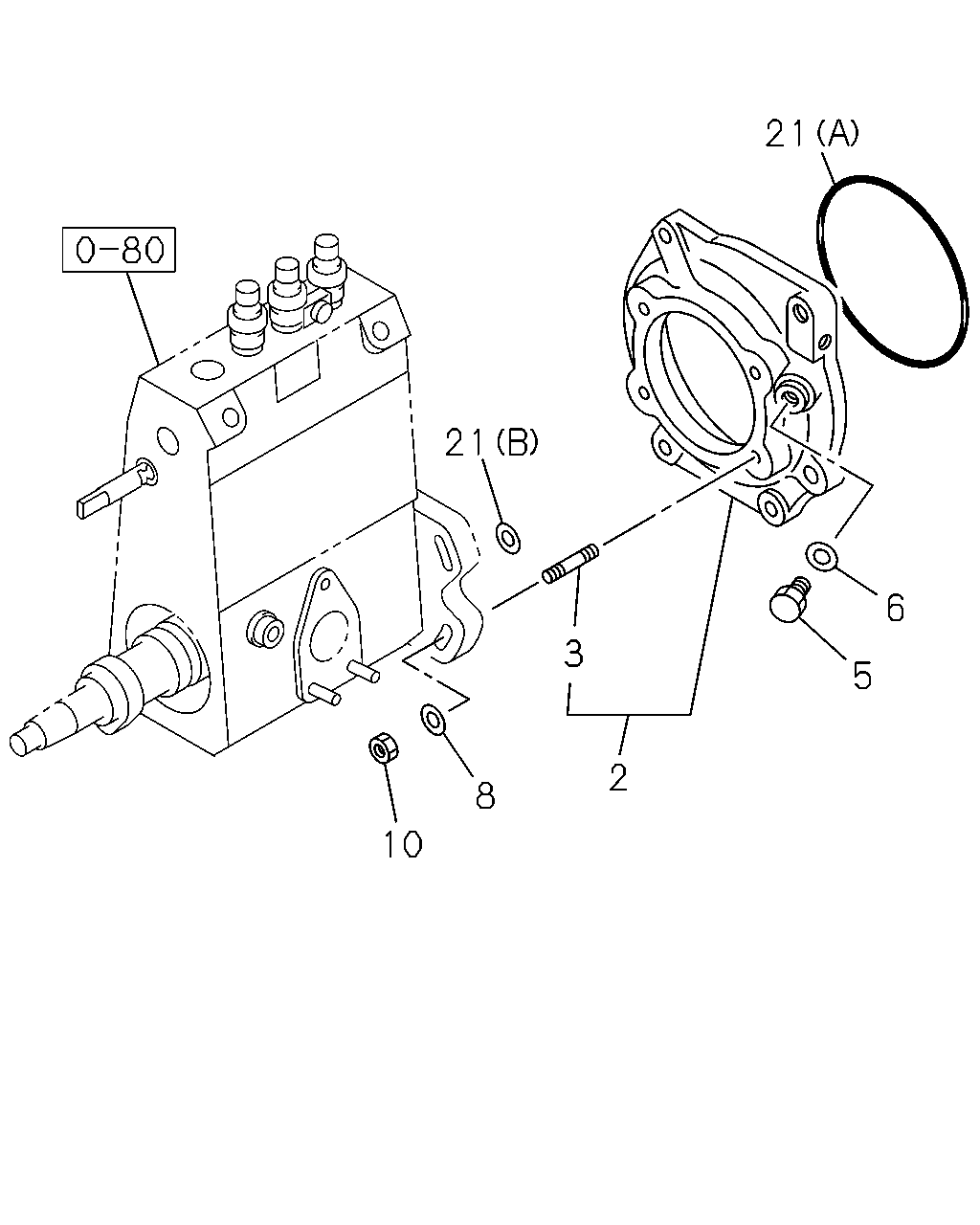

0-86 — MISCELLANEOUS PARTS; INJECTION PUMP (#18986) — 8 parça

21 21 6 3 5 2 8 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BRACKET; HSG & TIMER,INJ PUMP	8-97121-616-0	01	1	0512-
3	STUD; HSG BRKT,INJ PUMP M10X30 L=45	9-04101-030-0	04	1	0512-
5	PLUG; HSG BRKT,INJ PUMP	8-97026-919-0	01	1	0512-
6	GASKET; PLUG,INJ PUMP BRKT	1-15729-787-0	01	1	0512-
8	WASHER; PL,HSG BRKT,INJ PUMP ID=10.5	9-09164-510-0	04	1	0512-
10	NUT; HSG BRKT,INJ PUMP	5-15639-002-0	04	1	0512-
21	GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97039-200-1	01	1	0512-
21	GASKET; INJ PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	0512-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
