0-85 — AUTO TIMER; INJECTION PUMP (#18985) — 75 parça

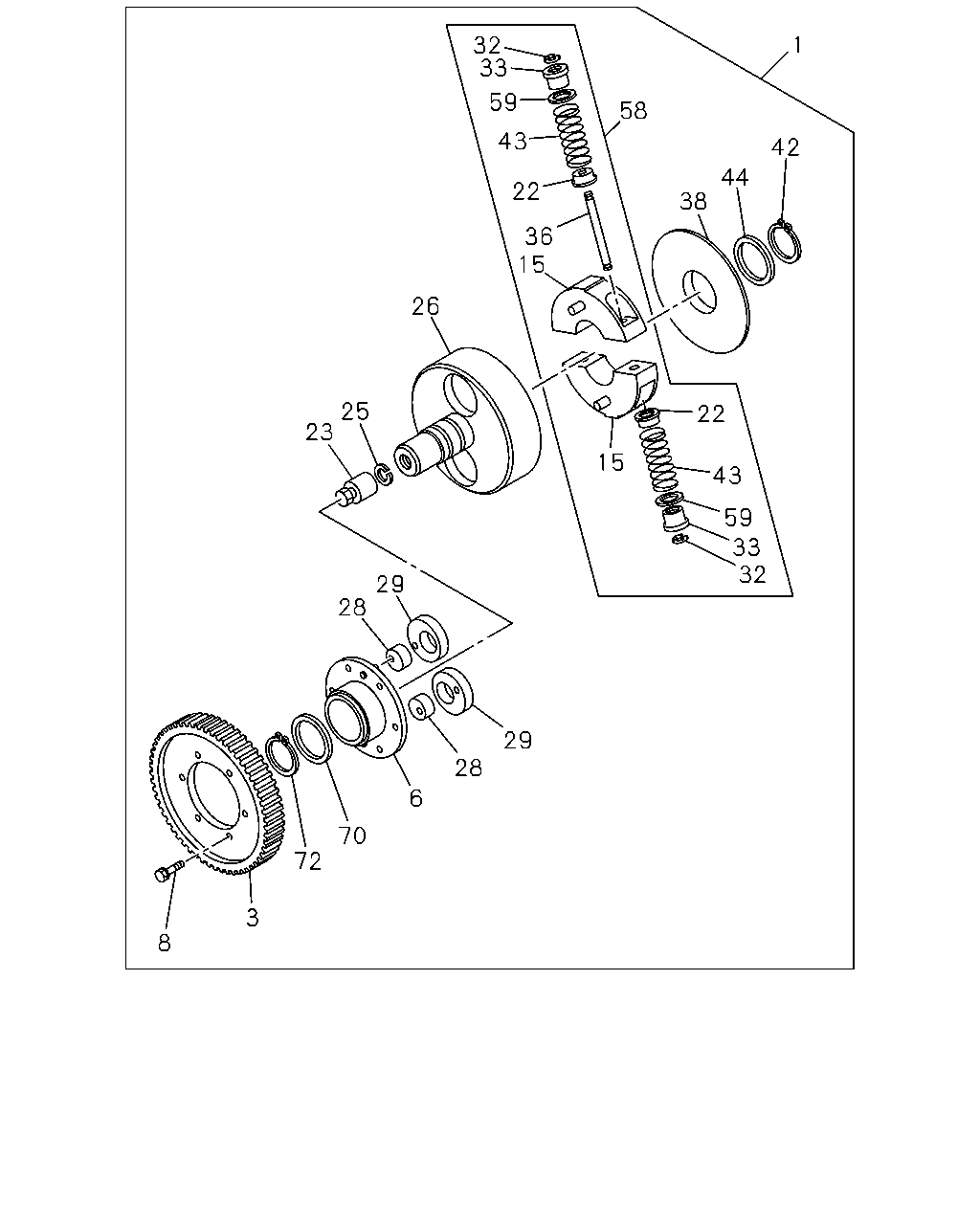

1 32 33 59 58 43 42 44 22 38 36 15 26 25 23 22 15 43 59 33 32 29 28 29 28 6 70 72 3 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: A = 8-97203-383-0	8-97223-286-0	01	1	-
3	GEAR; DRIVE,INJ PUMP ASM PART: A = 8-97203-383-0	8-97203-921-1	01	1	-
6	FLANGE; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97203-383-0	8-97026-947-0	01	1	-
8	BOLT; DRIVE GEAR FIX,INJ PUMP M6X16 W/LK WASHER ASM PART: A = 8-97203-383-0	9-01910-616-0	06	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 8-97203-383-0	8-97037-308-0	02	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: A = 8-97203-383-0	8-94132-763-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 8-97203-383-0	8-94472-290-1	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 8-97203-383-0	8-94472-289-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 8-97203-383-0	8-97127-576-0	01	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 8-97203-383-0	8-94172-269-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 8-97203-383-0	8-94172-268-0	02	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: A = 8-97203-383-0	1-15749-135-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: A = 8-97203-383-0	1-15749-134-0	04	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: A = 8-97203-383-0	9-84132-749-0	02	1	-
38	COVER; TIMER,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94473-120-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 8-97203-383-0	8-97026-945-0	01	1	-
42	RING; SNAP,TIMER COVER,INJ PUMP ASM PART: A = 8-97203-383-0	8-97026-946-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=35.0 OD=11.9 ASM PART: A = 8-97203-383-0	8-97115-737-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=39.8 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97125-521-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=42.7 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97125-522-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=41.3 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97125-523-0	01	1	-
44	SHIM; TIMER COVER,INJ PUMP T=0.10 ASM PART: A = 8-97203-383-0	8-97026-948-0	AR	1	-
44	SHIM; TIMER COVER,INJ PUMP T=0.12 ASM PART: A = 8-97203-383-0	8-97026-949-0	AR	1	-
44	SHIM; TIMER COVER,INJ PUMP T=0.14 ASM PART: A = 8-97203-383-0	8-97026-950-0	AR	1	-
44	SHIM; TIMER COVER,INJ PUMP T=0.16 ASM PART: A = 8-97203-383-0	8-97026-951-0	AR	1	-
44	SHIM; TIMER COVER,INJ PUMP T=0.18 ASM PART: A = 8-97203-383-0	8-97026-952-0	AR	1	-
44	SHIM; TIMER COVER,INJ PUMP T=0.90 ASM PART: A = 8-97203-383-0	8-97026-953-0	AR	1	-
44	SHIM; TIMER COVER,INJ PUMP T=1.10 ASM PART: A = 8-97203-383-0	8-97026-954-0	AR	1	-
44	SHIM; TIMER COVER,INJ PUMP T=1.30 ASM PART: A = 8-97203-383-0	8-97026-955-0	AR	1	-
44	SHIM; TIMER COVER,INJ PUMP T=1.50 ASM PART: A = 8-97203-383-0	8-97026-956-0	AR	1	-
44	SHIM; TIMER COVER,INJ PUMP T=1.70 ASM PART: A = 8-97203-383-0	8-97026-957-0	AR	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: A = 8-97203-383-0	8-97137-786-0	01	1	-
59	SHIM; SPR,TIMER T=0.10 ASM PART: A = 8-97203-383-0	8-94339-983-0	AR	1	-
59	SHIM; SPR,TIMER T=0.20 ASM PART: A = 8-97203-383-0	8-94339-984-0	AR	1	-
59	SHIM; SPR,TIMER T=0.30 ASM PART: A = 8-97203-383-0	8-94339-985-0	AR	1	-
59	SHIM; SPR,TIMER T=0.40 ASM PART: A = 8-97203-383-0	8-94339-986-0	AR	1	-
59	SHIM; SPR,TIMER T=0.50 ASM PART: A = 8-97203-383-0	8-94339-987-0	AR	1	-
59	SHIM; SPR,TIMER T=0.60 ASM PART: A = 8-97203-383-0	8-94339-988-0	AR	1	-
59	SHIM; SPR,TIMER T=0.70 ASM PART: A = 8-97203-383-0	8-94339-989-0	AR	1	-
59	SHIM; SPR,TIMER T=0.80 ASM PART: A = 8-97203-383-0	8-94339-990-0	AR	1	-
59	SHIM; SPR,TIMER T=0.90 ASM PART: A = 8-97203-383-0	8-94339-991-0	AR	1	-
59	SHIM; SPR,TIMER T=1.00 ASM PART: A = 8-97203-383-0	8-94339-992-0	AR	1	-
70	SHIM; FLANGE,TIMER T=0.10 ASM PART: A = 8-97203-383-0	8-97026-948-0	AR	1	-
70	SHIM; FLANGE,TIMER T=0.12 ASM PART: A = 8-97203-383-0	8-97026-949-0	AR	1	-
70	SHIM; FLANGE,TIMER T=0.14 ASM PART: A = 8-97203-383-0	8-97026-950-0	AR	1	-
70	SHIM; FLANGE,TIMER T=0.16 ASM PART: A = 8-97203-383-0	8-97026-951-0	AR	1	-
70	SHIM; FLANGE,TIMER T=0.18 ASM PART: A = 8-97203-383-0	8-97026-952-0	AR	1	-
70	SHIM; FLANGE,TIMER T=0.90 ASM PART: A = 8-97203-383-0	8-97026-953-0	AR	1	-
70	SHIM; FLANGE,TIMER T=1.10 ASM PART: A = 8-97203-383-0	8-97026-954-0	AR	1	-
70	SHIM; FLANGE,TIMER T=1.30 ASM PART: A = 8-97203-383-0	8-97026-955-0	AR	1	-
70	SHIM; FLANGE,TIMER T=1.50 ASM PART: A = 8-97203-383-0	8-97026-956-0	AR	1	-
70	SHIM; FLANGE,TIMER T=1.70 ASM PART: A = 8-97203-383-0	8-97026-957-0	AR	1	-
72	RING; SNAP,FLANGE TIMER ASM PART: A = 8-97203-383-0	8-97026-946-0	01	1	-

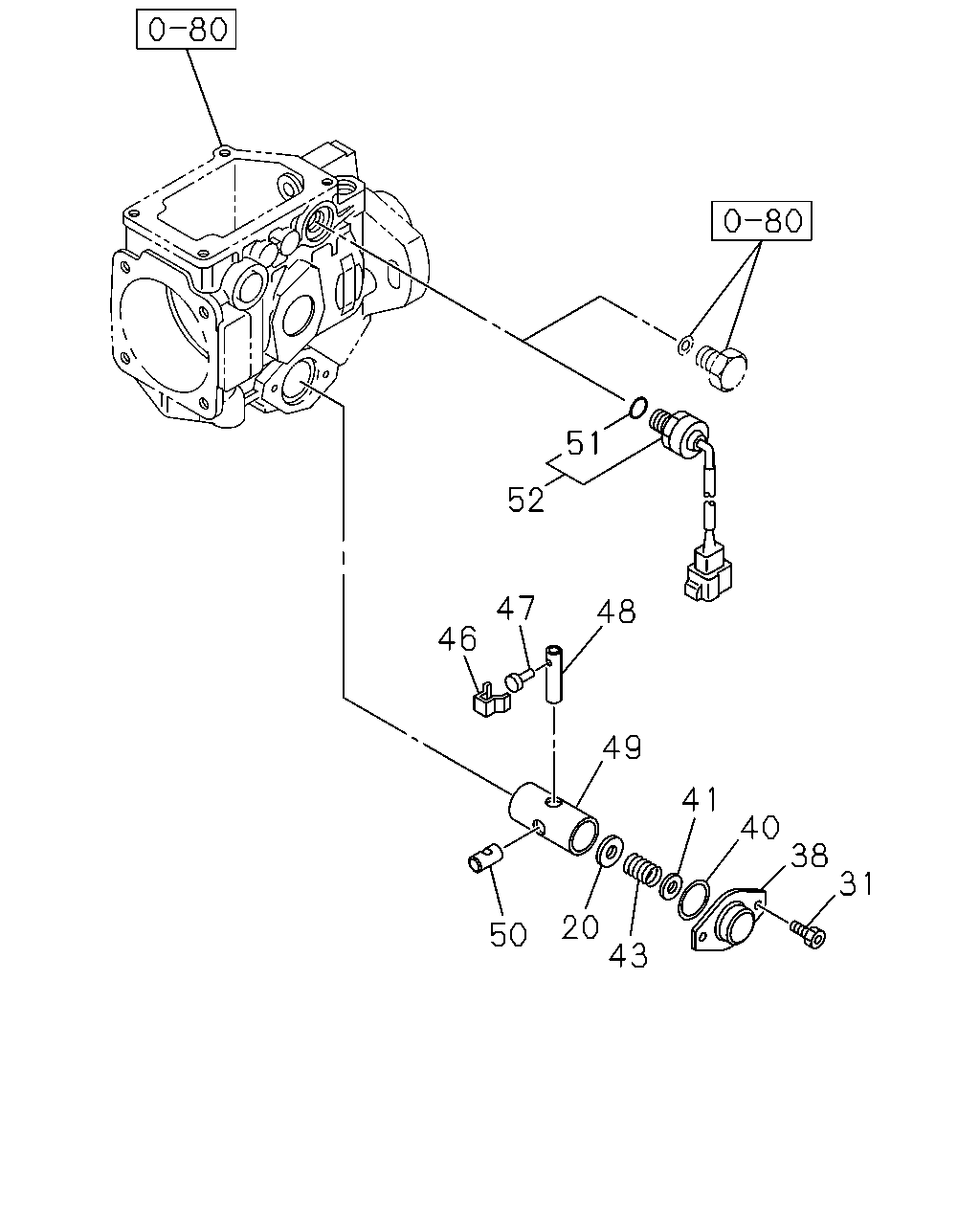

51 52 47 48 46 49 41 40 38 31 20 43 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-495-0	01	1	-
31	SCREW; TIMER COVER,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94313-276-0	02	1	-
38	COVER; TIMER,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94473-120-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 8-97203-383-0	8-97026-945-0	01	1	-
40	GASKET; TIMER COVER,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-491-0	01	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=2.40 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94121-620-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-495-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-496-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-497-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-498-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.20 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-499-0	AR	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=35.0 OD=11.9 ASM PART: A = 8-97203-383-0	8-97115-737-0	04	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=39.8 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97125-521-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=42.7 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97125-522-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=41.3 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97125-523-0	01	1	-
46	CLIP; HOLDER PIN,TIMER,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-488-0	01	1	-
47	PIN; HOLDER PIN,TIMER,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-487-0	01	1	-
48	PIN; ROLLER HOLDER,TIMER,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-486-0	01	1	-
49	PISTON; TIMER,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94426-069-0	01	1	-
50	SLIDER; TIMER PISTON,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-493-0	01	1	-
51	GASKET; TIMING SENSOR,INJ PUMP ASM PART: C = 8-97216-366-0	8-94227-671-0	01	1	-
52	SENSOR; TIMING,TACHOMETER,INJ PUMP ASM PART: C = 8-97216-366-0	8-94343-307-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
