Sayfa 0-80 - Isuzu EPC

0-80 — INJECTION PUMP (#18980) — 272 parça

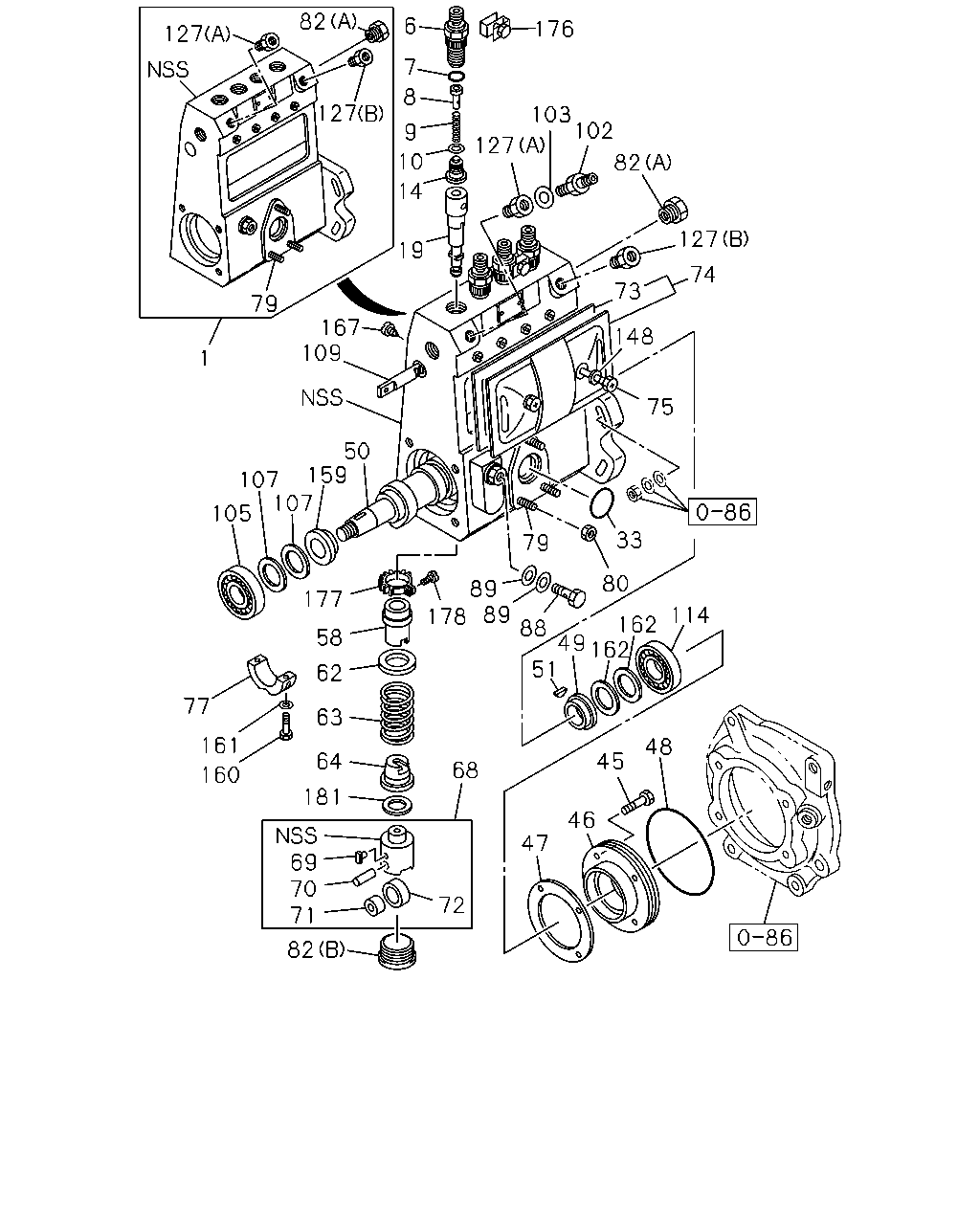

82 6 176 127 7 8 103 102 9 127 10 82 14 127 19 74 73 79 167 109 148 1 75 50 159 107 107 105 33 79 80 89 177 114 162 49 162 51 88 58 62 77 63 161 48 45 64 68 160 181 46 69 70 71 47 72 82 178 89 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 8-97203-383-0	8-97137-799-0	01	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97203-383-0	5-15644-017-0	04	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94367-330-0	04	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 8-97203-383-0	1-09623-052-0	04	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97203-383-0	8-97083-335-0	04	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 8-97203-383-0	1-15643-003-0	04	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94174-803-0	04	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97203-383-0	1-15649-001-0	04	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94247-716-0	04	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94174-802-0	04	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-97203-383-0	8-94362-694-0	04	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 8-97203-383-0	8-97083-334-0	04	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 8-97203-383-0	1-15629-058-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: A = 8-97203-383-0	1-15619-282-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 8-97203-383-0	1-15629-047-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG ASM PART: A = 8-97203-383-0	8-97083-337-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 8-97203-383-0	8-97026-918-0	01	1	-
49	RING; FRT BRG,CM/SHF ASM PART: A = 8-97203-383-0	1-15629-004-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 8-97203-383-0	8-97026-916-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	5-83539-024-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97203-383-0	8-94239-370-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 8-97203-383-0	9-81225-058-0	04	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-516-1	01	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97203-383-0	9-81235-015-0	04	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 8-97203-383-0	8-94387-977-0	04	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-517-0	02	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 8-97203-383-0	9-81235-021-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP ASM PART: A = 8-97203-383-0	5-15622-009-0	04	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 8-97203-383-0	5-15619-041-0	04	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-97203-383-0	5-15622-006-0	04	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 8-97203-383-0	1-15629-001-0	04	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 8-97203-383-0	1-15622-003-0	04	1	-
73	GASKET; COVER TO HSG ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-491-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: A = 8-97203-383-0	8-94386-596-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 8-97203-383-0	8-94171-109-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97125-525-0	01	1	-
75	SCREW; COVER TO HSG ASM PART: A = 8-97203-383-0	1-15619-003-0	02	1	-
75	SCREW; COVER TO HSG ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94313-276-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP ASM PART: A = 8-97203-383-0	1-15629-014-0	02	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 8-97203-383-0	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 8-97203-383-0	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 8-97203-383-0	1-15619-073-0	01	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: A = 8-97203-383-0	5-15619-136-0	04	1	-
82	PLUG; HSG,INJ PUMP (C) ASM PART: B = 8-97216-365-0	8-94242-284-0	01	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 8-97203-383-0	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 8-97203-383-0	1-15719-093-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97203-383-0	1-13260-001-1	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97122-061-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2, SOU ASM PART: A = 8-97203-383-0	1-09630-085-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NTN ASM PART: A = 8-97203-383-0	5-09800-038-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: A = 8-97203-383-0	9-00090-677-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=2.40 ASM PART: A = 8-97203-383-0	1-15639-088-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: A = 8-97203-383-0	5-15619-039-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: A = 8-97203-383-0	5-15629-015-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: A = 8-97203-383-0	5-15629-016-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: A = 8-97203-383-0	5-15629-017-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: A = 8-97203-383-0	5-15629-018-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: A = 8-97203-383-0	5-15629-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: A = 8-97203-383-0	5-15629-020-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: A = 8-97203-383-0	5-15629-038-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.40 ASM PART: A = 8-97203-383-0	5-15629-090-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: A = 8-97203-383-0	9-81225-033-0	AR	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 8-97203-383-0	5-15637-002-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP NSK ASM PART: A = 8-97203-383-0	1-15629-002-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP TOYO ASM PART: A = 8-97203-383-0	1-15629-003-0	01	1	-
127	ADAPTER; FUEL PIPE (A) ASM PART: A = 8-97203-383-0	1-15619-035-0	01	1	-
127	ADAPTER; FUEL PIPE (B) ASM PART: A = 8-97203-383-0	1-15629-057-0	01	1	-
148	GASKET; COVER FIX BOLT ASM PART: A = 8-97203-383-0	9-81215-144-0	02	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: A = 8-97203-383-0	9-81225-047-0	01	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: A = 8-97203-383-0	9-88410-066-0	04	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: A = 8-97203-383-0	9-81225-043-0	04	1	-
162	SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: A = 8-97203-383-0	1-15629-007-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: A = 8-97203-383-0	1-15629-008-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.70 ASM PART: A = 8-97203-383-0	1-15629-105-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: A = 8-97203-383-0	9-81225-049-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: A = 8-97203-383-0	9-81225-050-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: A = 8-97203-383-0	9-81225-051-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: A = 8-97203-383-0	9-81225-052-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: A = 8-97203-383-0	9-81225-053-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: A = 8-97203-383-0	9-81225-054-0	AR	1	-
167	BOLT; CONT RACK,INJ PUMP ASM PART: A = 8-97203-383-0	1-15639-003-0	01	1	-
176	PLATE; LK,DELIVERY VLV HOLDER ASM PART: A = 8-97203-383-0	5-15625-001-0	02	1	-
177	PINION; CONT SLEEVE,INJ PUMP ASM PART: A = 8-97203-383-0	9-81225-057-0	04	1	-
178	SCREW; PINION,INJ PUMP ASM PART: A = 8-97203-383-0	9-81235-003-0	04	1	-
181	SHIM; TAPPET,INJ PUMP T=0.60 ASM PART: A = 8-97203-383-0	5-15619-001-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.70 ASM PART: A = 8-97203-383-0	5-15619-002-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.80 ASM PART: A = 8-97203-383-0	5-15619-003-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.90 ASM PART: A = 8-97203-383-0	5-15619-004-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.00 ASM PART: A = 8-97203-383-0	5-15619-005-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.10 ASM PART: A = 8-97203-383-0	5-15619-007-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.20 ASM PART: A = 8-97203-383-0	5-15619-008-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.30 ASM PART: A = 8-97203-383-0	5-15619-009-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.40 ASM PART: A = 8-97203-383-0	5-15619-010-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.55 ASM PART: A = 8-97203-383-0	5-15619-011-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.65 ASM PART: A = 8-97203-383-0	5-15619-012-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.75 ASM PART: A = 8-97203-383-0	5-15619-013-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.85 ASM PART: A = 8-97203-383-0	5-15619-015-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.20 ASM PART: A = 8-97203-383-0	5-15619-025-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.25 ASM PART: A = 8-97203-383-0	5-15619-026-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.35 ASM PART: A = 8-97203-383-0	5-15619-027-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.30 ASM PART: A = 8-97203-383-0	5-15619-034-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.40 ASM PART: A = 8-97203-383-0	5-15619-035-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.50 ASM PART: A = 8-97203-383-0	5-15619-036-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.45 ASM PART: A = 8-97203-383-0	5-15619-037-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.50 ASM PART: A = 8-97203-383-0	5-15619-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.60 ASM PART: A = 8-97203-383-0	5-15619-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.35 ASM PART: A = 8-97203-383-0	5-15619-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.45 ASM PART: A = 8-97203-383-0	5-15619-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.55 ASM PART: A = 8-97203-383-0	5-15619-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.95 ASM PART: A = 8-97203-383-0	9-81235-042-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.05 ASM PART: A = 8-97203-383-0	9-81235-043-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.15 ASM PART: A = 8-97203-383-0	9-81235-044-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.25 ASM PART: A = 8-97203-383-0	9-81235-045-0	AR	1	-

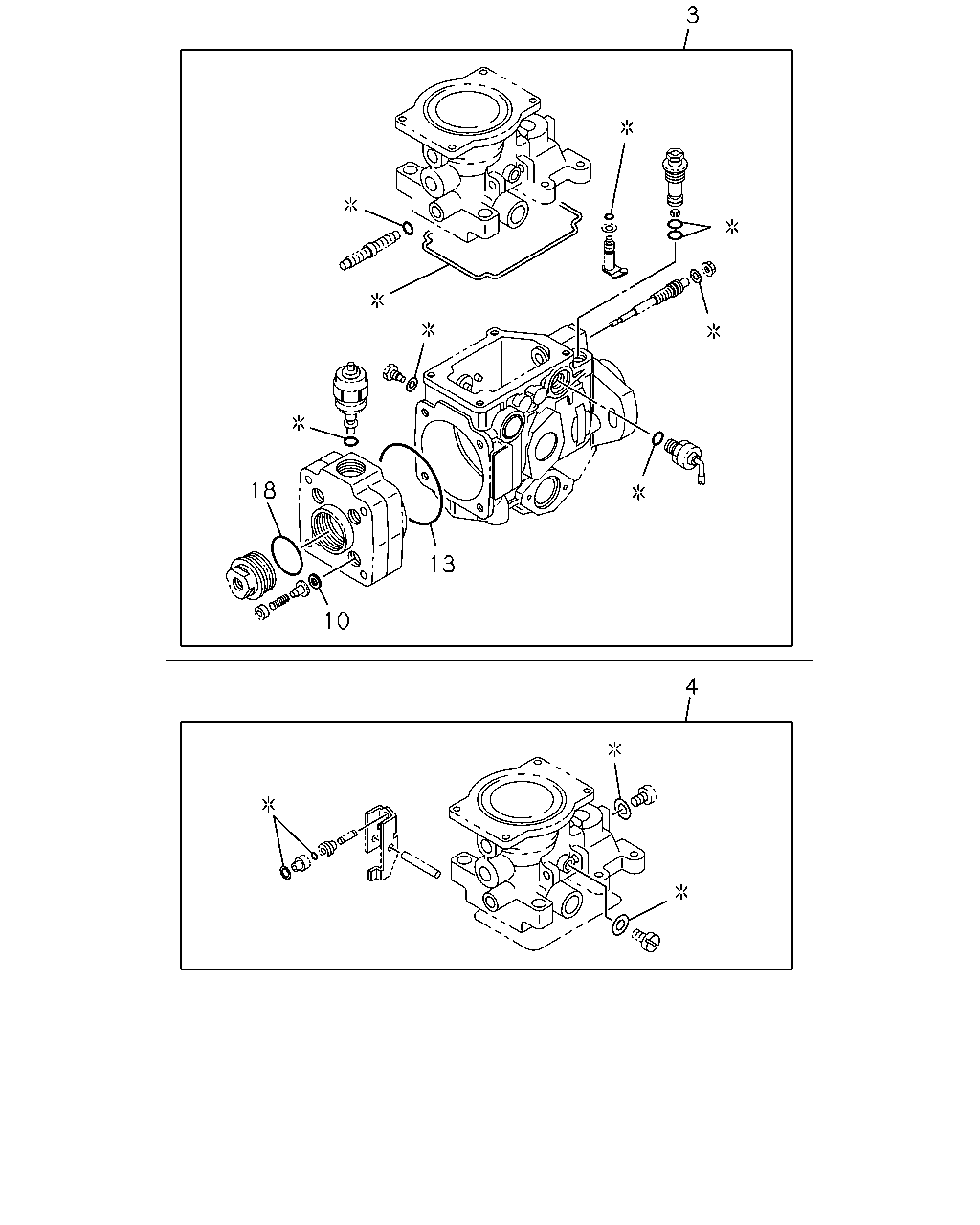

3 18 13 10 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; FUEL INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94228-545-0	01	1	-
4	GASKET KIT; INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94151-402-0	01	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97203-383-0	1-15649-001-0	04	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94247-716-0	04	1	-
13	GASKET; DISTR HD,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-527-0	01	1	-
18	GASKET; DISTR PLUG,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-637-0	01	1	-

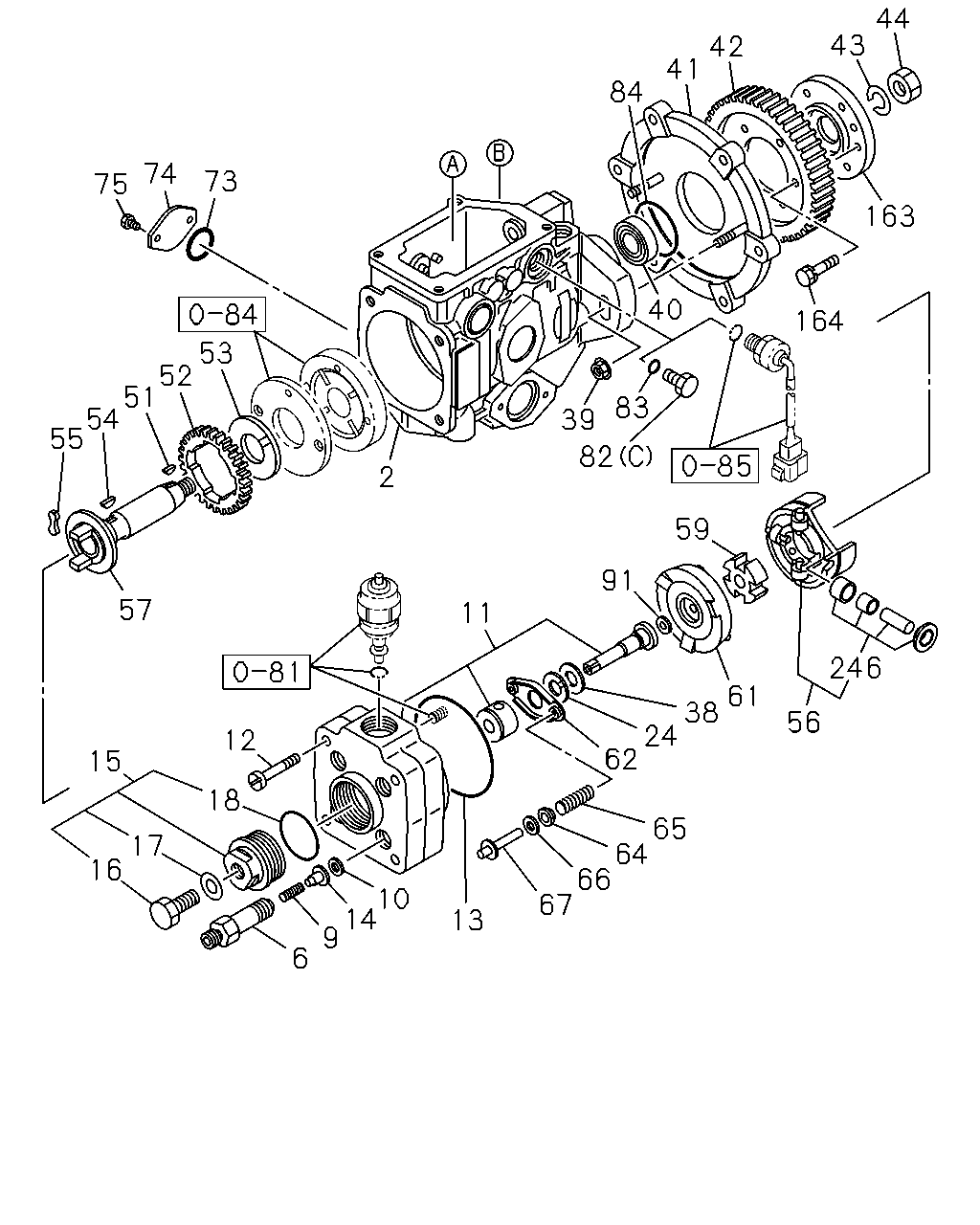

44 43 42 41 84 74 73 75 163 40 164 53 52 51 54 55 39 83 82 2 59 91 57 11 246 61 38 24 62 56 12 15 18 65 64 66 67 17 16 10 14 9 13 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING ASM; PUMP,FUEL INJ ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94177-921-0	01	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97203-383-0	5-15644-017-0	04	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94367-330-0	04	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 8-97203-383-0	1-15643-003-0	04	1	-
9	SPRING; DELIVERY VLV ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94174-803-0	04	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 8-97203-383-0	1-15649-001-0	04	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94247-716-0	04	1	-
11	HEAD ASM; DISTR,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97032-166-0	01	1	-
12	SCREW; DISTR HD,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94257-670-0	04	1	-
13	GASKET; DISTR HD,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-527-0	01	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94174-802-0	04	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 8-97203-383-0	8-94362-694-0	04	1	-
15	PLUG ASM; DISTR,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94174-817-0	01	1	-
16	BOLT; DISTR PLUG,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94174-818-0	01	1	-
17	GASKET; BOLT,DISTR PLUG,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-602-0	01	1	-
18	GASKET; DISTR PLUG,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-637-0	01	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-515-0	01	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-514-0	01	1	-
39	NUT; MTG BRKT FIX ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97119-344-0	02	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97147-034-0	01	1	-
41	BRACKET; INJ PUMP HSG ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94174-843-0	01	1	-
42	GEAR; DRIVE,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94458-257-0	01	1	-
43	WASHER; LK,DRIVE GEAR,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94226-554-0	01	1	-
44	NUT; DRIVE GEAR FIX,INJ PUMP M14 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94226-565-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	5-83539-024-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 8-97203-383-0	8-94239-370-0	01	1	-
52	GEAR; GOV DRIVE,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-483-0	01	1	-
53	WASHER; GOV DRIVE GEAR,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-484-0	01	1	-
54	KEY; FEED PUMP,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-481-0	01	1	-
55	DAMPER; CAM DRIVE,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94169-528-0	02	1	-
56	ROLLER ASM; TIMER,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94433-760-0	01	1	-
57	SHAFT; DRIVE,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94433-759-0	01	1	-
59	DISC; DRIVE,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94433-761-0	01	1	-
61	CAM; DISC,PLUNGER,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97032-165-0	01	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-516-1	01	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 8-97203-383-0	9-81235-015-0	04	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-517-0	02	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 8-97203-383-0	9-81235-021-0	04	1	-
65	SPRING KIT; PLUNGER,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94433-816-0	01	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.50 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-518-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.80 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-519-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.00 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-520-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.20 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-521-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.50 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-522-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.80 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-523-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.00 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-524-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.90 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94433-204-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.10 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94433-205-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.30 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94433-206-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.40 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94433-207-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.60 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94433-208-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.70 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94433-209-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.40 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97146-139-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.60 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97146-140-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.70 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97146-141-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=1.90 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97146-142-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.10 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97189-360-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.20 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97189-361-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.30 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97189-362-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.40 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97189-363-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.50 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97189-364-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.60 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97189-365-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.70 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97189-366-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.80 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97189-367-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=2.90 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97189-368-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.00 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97189-369-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.10 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97189-370-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.20 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97189-371-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.30 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97189-372-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=3.40 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97189-373-0	AR	1	-
66	SHIM; PLUNGER SPRING,INJ PUMP T=0.20 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97189-374-0	AR	1	-
67	PIN; GUIDE,PLUNGER SPRING ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97185-285-0	02	1	-
73	GASKET; COVER TO HSG ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-491-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: A = 8-97203-383-0	8-94386-596-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 8-97203-383-0	8-94171-109-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97125-525-0	01	1	-
75	SCREW; COVER TO HSG ASM PART: A = 8-97203-383-0	1-15619-003-0	02	1	-
75	SCREW; COVER TO HSG ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94313-276-0	02	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 8-97203-383-0	1-15619-073-0	01	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: A = 8-97203-383-0	5-15619-136-0	04	1	-
82	PLUG; HSG,INJ PUMP (C) ASM PART: B = 8-97216-365-0	8-94242-284-0	01	1	-
83	GASKET; HSG PLUG ASM PART: B = 8-97216-365-0	8-94227-671-0	01	1	-
84	GASKET; BRKT TO HSG ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94247-722-0	01	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.74 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94111-658-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.76 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94111-659-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.78 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94111-660-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.80 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94111-661-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.82 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94111-662-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.84 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94111-663-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.86 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94111-664-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.88 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94111-665-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.90 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-528-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.92 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-529-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.94 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-530-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.96 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-531-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=1.98 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-532-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.00 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-533-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.02 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-534-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.04 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-535-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.06 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-536-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.08 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-537-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.10 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-538-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.12 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-539-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.14 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-540-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.16 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-541-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.18 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-542-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.20 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-543-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.22 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-544-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.24 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-545-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.26 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-546-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.28 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-547-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.30 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-548-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.32 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-549-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.34 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-550-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.36 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-551-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.38 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-552-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.40 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-553-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.42 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-554-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.44 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-555-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.46 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-556-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.48 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-557-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.50 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-558-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.52 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-559-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.54 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-560-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.56 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-561-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.58 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-562-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.60 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-563-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.62 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-564-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.64 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-565-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.66 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-566-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.68 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-567-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.70 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-568-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.72 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-569-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.74 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-570-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.76 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-571-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.78 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-572-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.80 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-573-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.82 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-574-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.84 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-575-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.86 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-576-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.88 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-577-0	AR	1	-
91	SHIM; PLUNGER,INJ PUMP T=2.90 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-578-0	AR	1	-
163	COUPLING; INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-94227-337-1	01	1	-
164	BOLT; GEAR TO COUPLING M6X18 ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	9-01910-618-0	06	1	-
246	ROLLER KIT; INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97163-172-0	01	1	-

100 118 117 101 100 117 119 117 101 104 102

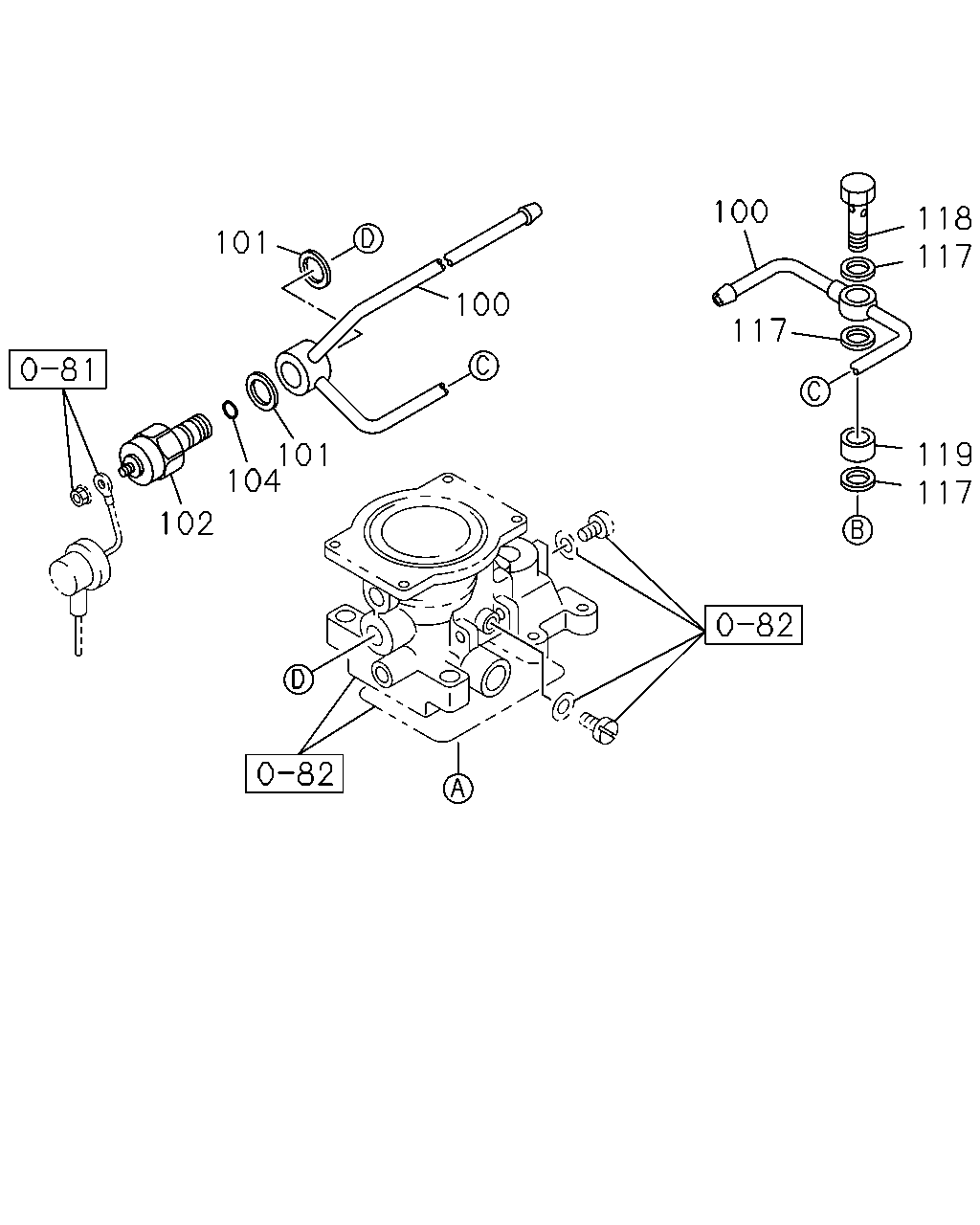

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	PIPE; FUEL INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97185-287-0	01	1	-
101	GASKET; OVERFLOW VLV,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97119-188-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: A = 8-97203-383-0	1-13260-001-1	01	1	-
102	VALVE; OVERFLOW,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97122-061-0	01	1	-
104	GASKET; OVERFLOW VLV ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97180-272-0	01	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97119-187-0	03	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97165-709-0	01	1	-
119	SPACER; FUEL INL,INJ PUMP ASM PART: B = 8-97216-365-0, C = 8-97216-366-0	8-97113-359-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
