Isuzu WW
▶
TRUCKS
▶
FSS
▶
10635 - FSS/FTS-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE
▶

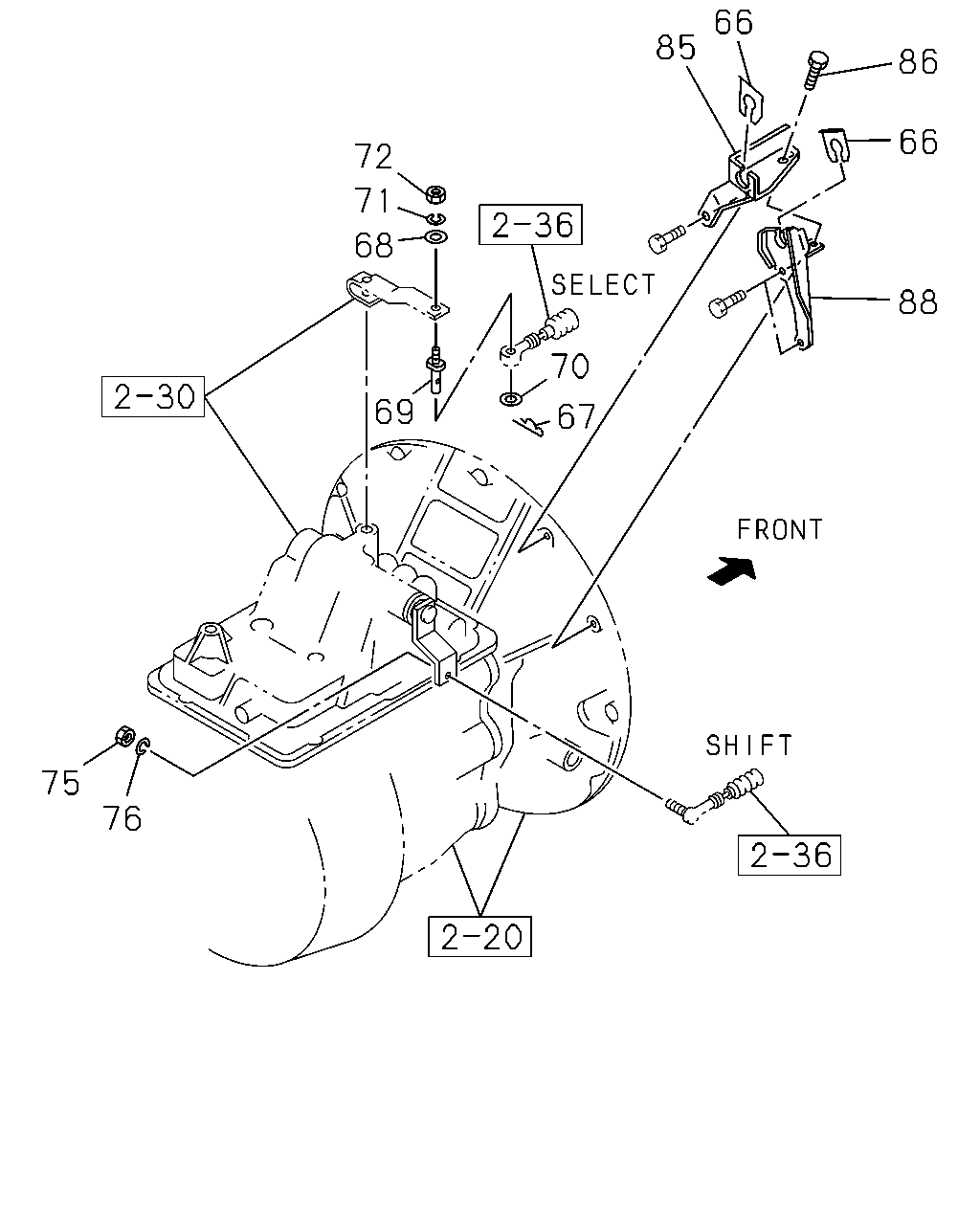

2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE
(#1898) — 12 parça
66
85
86
66
72
71
68
88
70
69
67
75
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
66
CLIP; SELECT BRKT
1-09700-778-1
02
1
9207-
67
PIN; SNAP,SELECT WIRE
L=27.7
8-94157-841-0
01
1
9207-
68
WASHER; PL,TRANS CONT,SELECT
ID=8.4 OD=18
9-09164-608-0
01
1
9207-
69
PIN; TRANS CONT,SELECT
1-33659-116-1
01
1
9207-
70
WASHER; PL,SELECT WIRE
ID=8.4 OD=18
9-09164-608-0
01
1
9207-
71
WASHER; LK,TRANS CONT,SELECT
ID=8.2
9-09150-508-0
01
1
9207-
72
NUT; TRANS CONT,SELECT
M8
9-09110-408-0
01
1
9207-
75
WASHER; LK,BALL JOINT,SELECT WIRE
ID=10.2
9-09150-510-0
01
1
9207-
76
NUT; BALL JOINT,SELECT WIRE
M10
9-09110-510-0
01
1
9207-
85
BRACKET; SELECT,TRANS CONT WIRE
EXC. TRANSMISSION FRONT PTO<RC2>
1-33657-352-1
01
1
9207-
86
BOLT; SELECT BRKT
EXC. TRANSMISSION FRONT PTO<RC2> M10X25 W/LK WASHER
0-50051-025-0
01
1
9207-
88
BRACKET; SHIFT,TRANS CONT WIRE
EXC. TRANSMISSION FRONT PTO<RC2>
1-33657-389-0
01
1
9207-
