0-66 — GENERATOR (#18979) — 91 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	24	SCREW; RECTIFIER,GEN ASM PART: A = 8-97187-657-1	8-94156-603-0	01	1	-
	24	SCREW; RECTIFIER,GEN ASM PART: B = 8-97351-572-0	8-97131-532-0	01	1	-

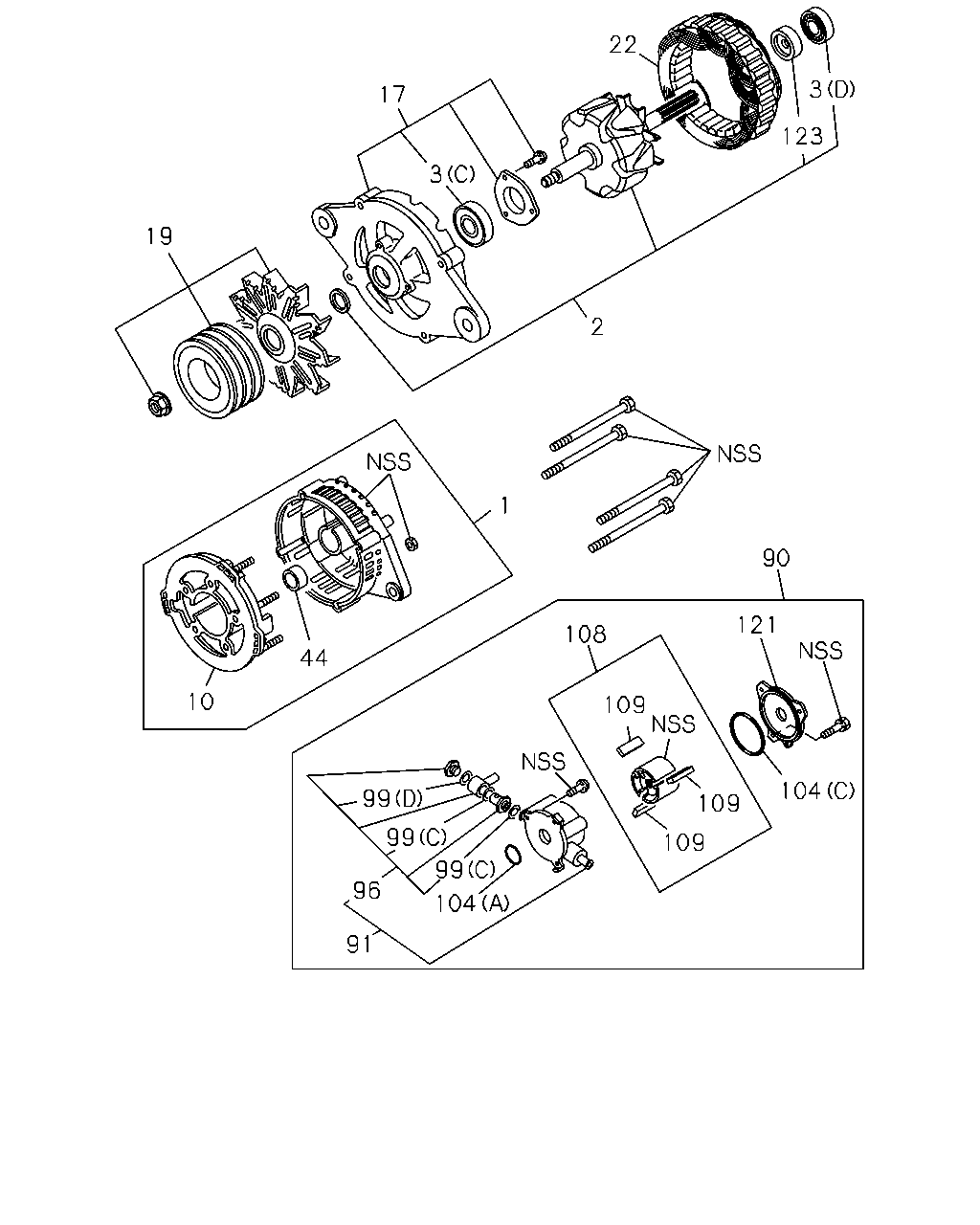

22 3 17 123 3 19 2 1 90 121 108 44 10 109 104 99 109 99 109 99 96 104 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 8-97187-657-1	8-97188-852-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-97351-572-0	8-97253-370-0	01	1	-
2	ROTOR; GEN ASM PART: A = 8-97187-657-1	8-97083-006-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-97351-572-0	8-97351-705-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-97187-657-1	8-94121-178-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-97187-657-1	8-97062-654-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: B = 8-97351-572-0	8-97148-112-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: B = 8-97351-572-0	8-97248-128-0	01	1	-
10	RECTIFIER; GEN ASM PART: A = 8-97187-657-1	8-97188-870-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-97351-572-0	8-97253-577-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-97187-657-1	8-97071-214-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-97351-572-0	8-97351-706-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-97187-657-1	8-97029-004-0	01	1	-
19	PULLEY; GEN ASM PART: B = 8-97351-572-0	8-97148-113-0	01	1	-
22	STATOR; GEN ASM PART: B = 8-97351-572-0	8-97192-850-0	01	1	-
22	STATOR; GEN ASM PART: A = 8-97187-657-1	8-97203-864-0	01	1	-
44	SEAL; RR COVER,GEN ASM PART: A = 8-97187-657-1, B = 8-97351-572-0	8-94156-589-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-97187-657-1	8-97351-341-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: B = 8-97351-572-0	8-97351-707-0	01	1	-
91	BODY; VAC PUMP ASM PART: B = 8-97351-572-0	8-97148-117-0	01	1	-
91	BODY; VAC PUMP ASM PART: A = 8-97187-657-1	8-97236-694-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: A = 8-97187-657-1	8-94223-991-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: B = 8-97351-572-0	8-97148-118-0	01	1	-
99	GASKET; VAC PUMP (C), ID=18 OD=24 ASM PART: B = 8-97351-572-0	5-19679-002-0	02	1	-
99	GASKET; VAC PUMP (D), ID=12 OD=24 ASM PART: B = 8-97351-572-0	5-19679-003-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97187-657-1	8-94223-992-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97187-657-1	8-94223-993-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-97187-657-1, B = 8-97351-572-0	8-94156-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97187-657-1	8-94223-994-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (C) ASM PART: B = 8-97351-572-0	8-97083-304-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: B = 8-97351-572-0	8-97148-115-1	01	1	-
108	ROTOR; VAC PUMP ASM PART: A = 8-97187-657-1	8-97236-693-0	01	1	-
109	VANE; VAC PUMP ASM PART: A = 8-97187-657-1	8-94223-985-0	03	1	-
109	VANE; VAC PUMP ASM PART: B = 8-97351-572-0	8-97083-298-0	03	1	-
121	COVER; RR,VAC PUMP ASM PART: B = 8-97351-572-0	8-97148-116-0	01	1	-
123	GUIDE; BRUSH ASM PART: B = 8-97351-572-0	8-97062-644-0	01	1	-

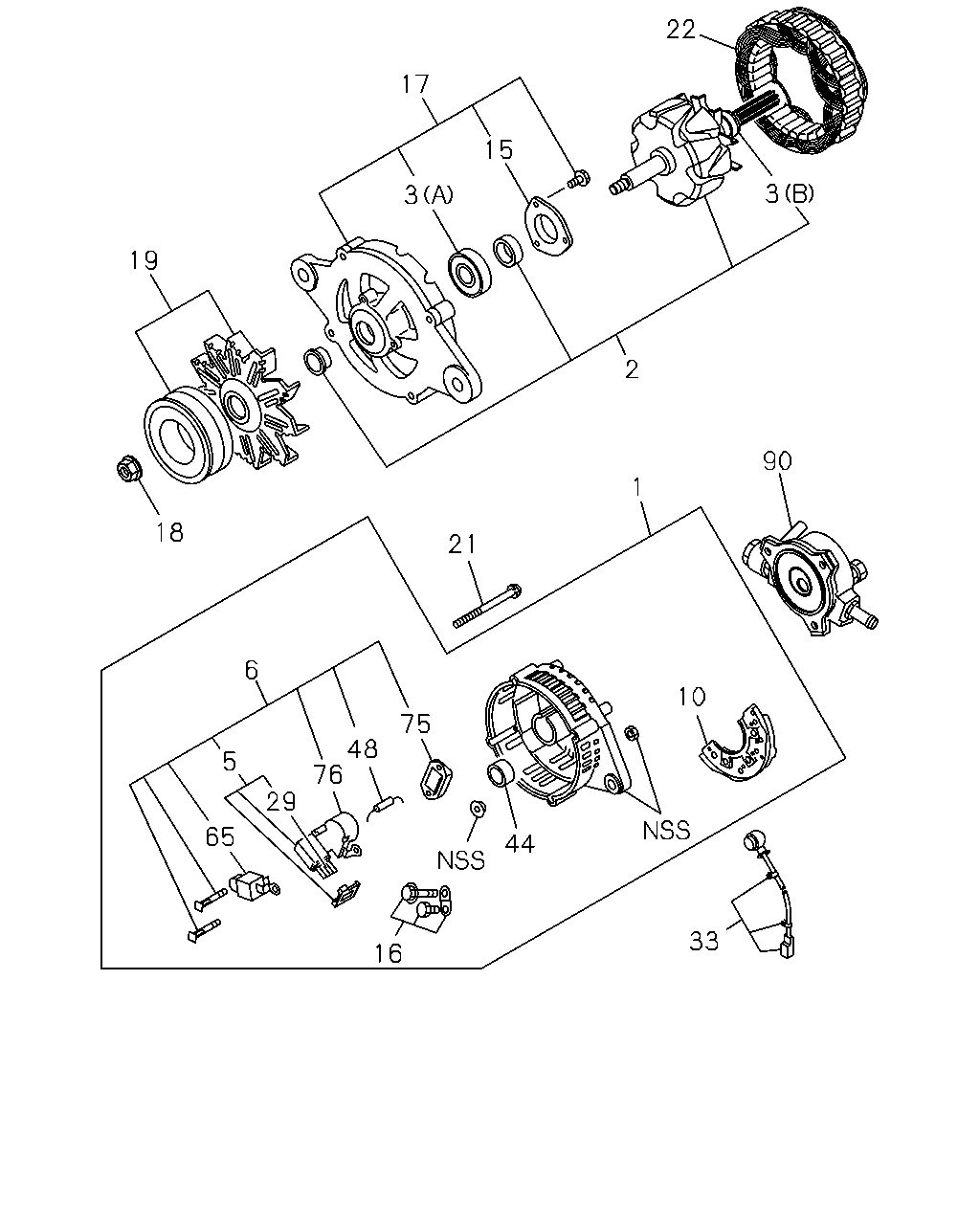

22 17 15 3 3 19 2 90 1 18 21 6 10 75 48 76 5 29 65 44 33 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 8-97187-657-1	8-97188-852-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 8-97351-572-0	8-97253-370-0	01	1	-
2	ROTOR; GEN ASM PART: A = 8-97187-657-1	8-97083-006-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-97351-572-0	8-97351-705-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 8-97187-657-1	8-94121-178-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 8-97187-657-1	8-97062-654-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: B = 8-97351-572-0	8-97148-112-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: B = 8-97351-572-0	8-97248-128-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: A = 8-97187-657-1	8-97026-053-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-97187-657-1	8-97026-052-0	01	1	-
10	RECTIFIER; GEN ASM PART: A = 8-97187-657-1	8-97188-870-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-97351-572-0	8-97253-577-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: A = 8-97187-657-1	8-94223-974-0	01	1	-
16	TERMINAL ASM; RECTIFIER,GEN ASM PART: A = 8-97187-657-1	8-97111-390-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-97187-657-1	8-97071-214-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 8-97351-572-0	8-97351-706-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: A = 8-97187-657-1	8-97203-880-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-97187-657-1	8-97029-004-0	01	1	-
19	PULLEY; GEN ASM PART: B = 8-97351-572-0	8-97148-113-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 8-97187-657-1	8-94156-602-0	04	1	-
22	STATOR; GEN ASM PART: B = 8-97351-572-0	8-97192-850-0	01	1	-
22	STATOR; GEN ASM PART: A = 8-97187-657-1	8-97203-864-0	01	1	-
29	BRUSH; GEN ASM PART: A = 8-97187-657-1	8-94156-593-0	02	1	-
33	WIRE; LEAD,GEN ASM PART: A = 8-97187-657-1	8-97071-213-0	01	1	-
44	SEAL; RR COVER,GEN ASM PART: A = 8-97187-657-1, B = 8-97351-572-0	8-94156-589-0	01	1	-
48	DIODE; GEN ASM PART: A = 8-97187-657-1	8-94237-727-0	01	1	-
65	CONDENSER; GEN ASM PART: A = 8-97187-657-1	8-94156-594-0	01	1	-
75	REGULATOR; VOLTAGE,GEN ASM PART: A = 8-97187-657-1	8-94250-964-0	01	1	-
76	BLOCK; REG,GEN ASM PART: A = 8-97187-657-1	8-94156-591-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-97187-657-1	8-97351-341-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: B = 8-97351-572-0	8-97351-707-0	01	1	-

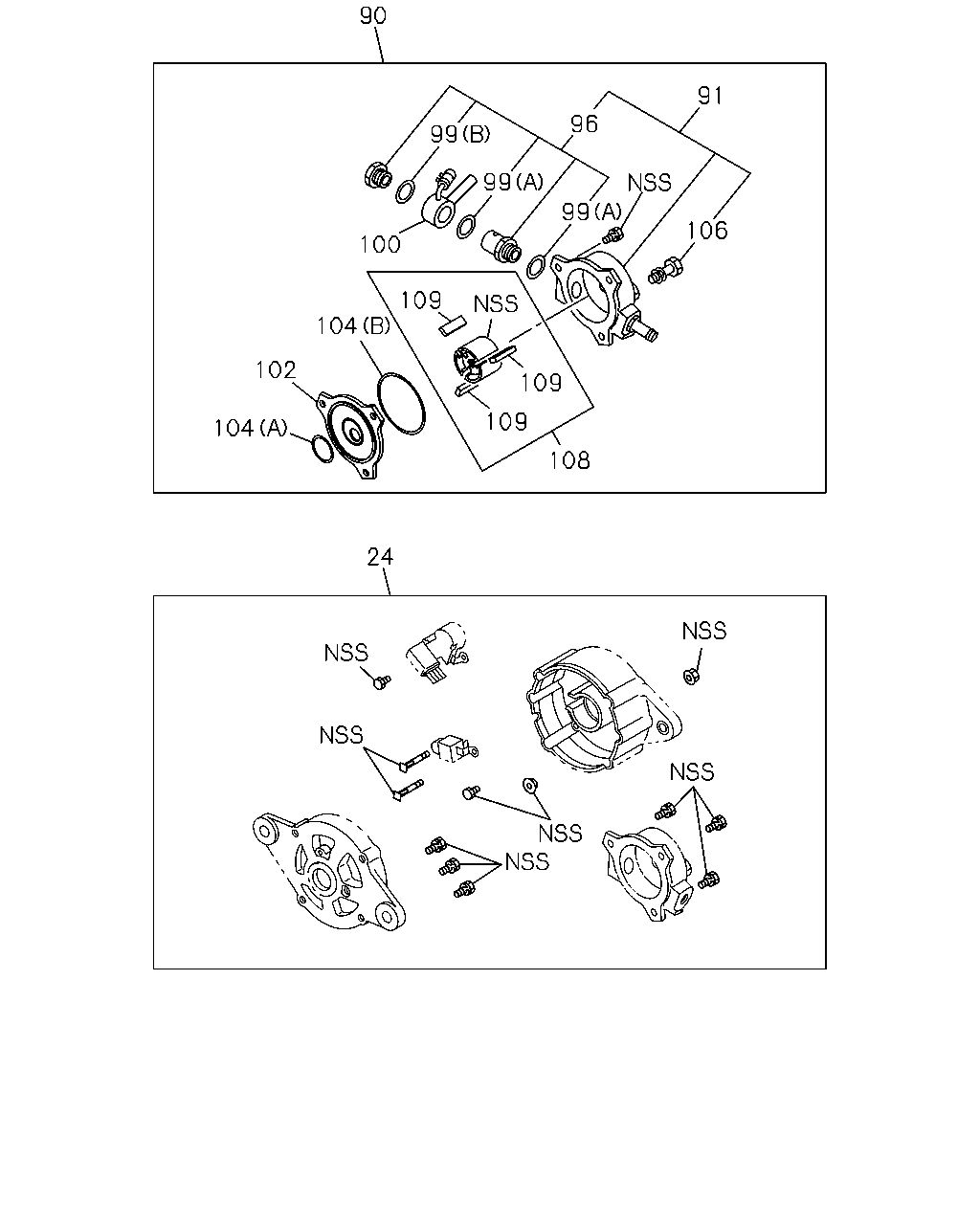

90 91 96 99 99 99 106 100 109 104 102 109 109 104 108 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	SCREW; RECTIFIER,GEN ASM PART: A = 8-97187-657-1	8-94156-603-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: B = 8-97351-572-0	8-97131-532-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-97187-657-1	8-97351-341-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: B = 8-97351-572-0	8-97351-707-0	01	1	-
91	BODY; VAC PUMP ASM PART: B = 8-97351-572-0	8-97148-117-0	01	1	-
91	BODY; VAC PUMP ASM PART: A = 8-97187-657-1	8-97236-694-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: A = 8-97187-657-1	8-94223-991-0	01	1	-
96	VALVE ASM; VAC PUMP ASM PART: B = 8-97351-572-0	8-97148-118-0	01	1	-
99	GASKET; VAC PUMP (C), ID=18 OD=24 ASM PART: B = 8-97351-572-0	5-19679-002-0	02	1	-
99	GASKET; VAC PUMP (D), ID=12 OD=24 ASM PART: B = 8-97351-572-0	5-19679-003-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97187-657-1	8-94223-992-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97187-657-1	8-94223-993-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: A = 8-97187-657-1	8-97209-180-0	01	1	-
102	COVER; FRT,VAC PUMP ASM PART: A = 8-97187-657-1	8-97137-334-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-97187-657-1, B = 8-97351-572-0	8-94156-608-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97187-657-1	8-94223-994-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (C) ASM PART: B = 8-97351-572-0	8-97083-304-0	01	1	-
106	BOLT; OIL CONN,VAC PUMP ASM PART: A = 8-97187-657-1	8-94223-989-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: B = 8-97351-572-0	8-97148-115-1	01	1	-
108	ROTOR; VAC PUMP ASM PART: A = 8-97187-657-1	8-97236-693-0	01	1	-
109	VANE; VAC PUMP ASM PART: A = 8-97187-657-1	8-94223-985-0	03	1	-
109	VANE; VAC PUMP ASM PART: B = 8-97351-572-0	8-97083-298-0	03	1	-
