0-52 — OIL AND VACUUM PIPING; ENGINE (#18973) — 56 parça
çizim 11566
202 89 65 86 202 89 202 83 202 65 27 340
BalonParca AdiParca NoAdetTipApplied Date A B
27 BOLT; OIL PIPE FIX
M8X16 FLANGE 		0-28080-816-0 01 1 0512-0512 ●
27 BOLT; OIL PIPE FIX
M8X16 FLANGE SOU 		0-28050-816-0 01 1 0601- ●
65 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		1-09675-078-0 01 1 0512-0805 ●
65 BOLT; JOINT,OIL PIPE
(A) M10X21 FLANGE 		8-97372-239-0 01 1 0806- ●
65 BOLT; JOINT,OIL PIPE
(B) M14X27 FLANGE 		1-09675-086-0 01 1 0512- ●
83 PIPE; OIL,C/BL TO VAC PUMP 8-97228-671-0 01 1 0512- ●
86 PIPE; OIL,VAC PUMP RETURN 8-94455-311-1 01 1 0512- ●
89 CLIP; VAC HOSE
ID=17.1 SOU 		8-94122-679-0 01 1 0512- ●
89 CLIP; VAC HOSE
ID=17.1 SOU 		8-94122-679-0 01 1 0512- ●
202 GASKET; OIL PIPE
(A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0512- ●
202 GASKET; OIL PIPE
(B) ID=14.2 OD=19.2 SOU 		1-09630-085-0 02 1 0512- ●
340 HOSE; VAC PUMP,RETURN 8-94339-073-3 01 1 0512- ●

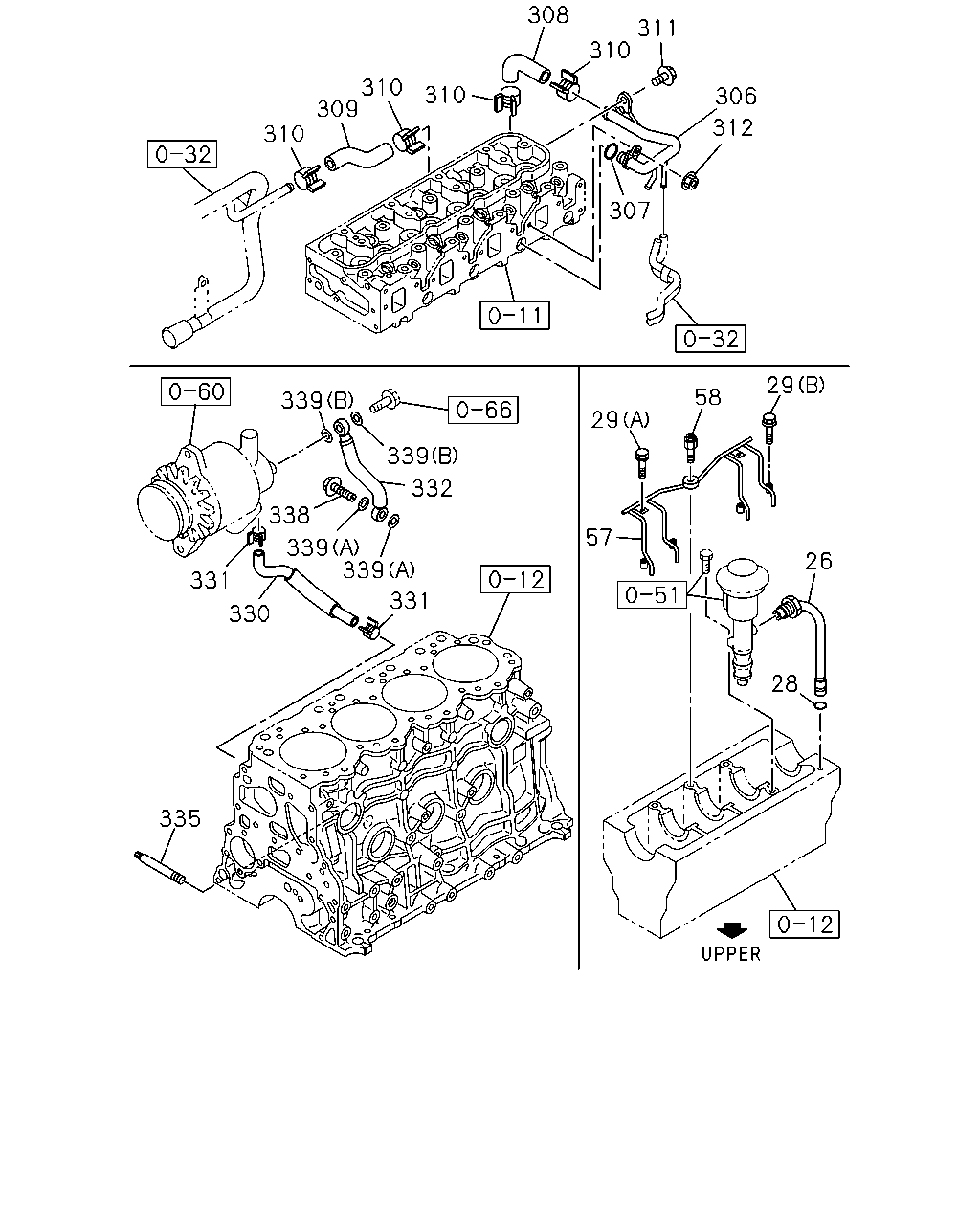

çizim 51621
308 311 310 310 309 310 306 312 310 307 29 58 339 29 339 332 338 57 339 339 26 331 331 330 28 335
BalonParca AdiParca NoAdetTipApplied Date A B
26 PIPE; OIL,PUMP TO C/BL 8-97080-301-2 01 1 0303-0308 ●
26 PIPE; OIL,PUMP TO C/BL 8-97920-470-0 01 1 0309-0511 ●
28 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 0303-0511 ●
29 BOLT; OIL PIPE,OIL JET
(A) M8X10 FLANGE 		0-28080-810-0 01 1 0303-0511 ●
29 BOLT; OIL PIPE,OIL JET
(B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 0303-0511 ●
57 PIPE; OIL,OIL JET 8-94469-709-3 01 1 0303-0511 ●
58 VALVE; RELIEF,OIL JET,PISTON COOLING 8-97311-976-1 01 1 0303-0511 ●
306 PIPE ASM; CYL HD TO OIL COOLER 8-97169-754-1 01 1 0303-0511 ●
307 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 0303-0511 ●
308 HOSE; OIL COOLER FEED 8-94174-464-1 01 1 0303-0511 ●
309 HOSE; OIL COOLER RETURN 8-97176-138-1 01 1 0303-0511 ●
310 CLIP; WATER HOSE FIX
ID=20.8 		8-94125-862-1 04 1 0303-0511 ●
311 BOLT; PIPE FIX
M8X14 FLANGE 		0-28080-814-0 01 1 0303-0511 ●
312 NUT; PIPE FIX
M8 FLANGE SOU 		5-09440-005-0 01 1 0303-0511 ●
330 HOSE; VAC PUMP,RETURN 8-97073-920-1 01 1 0303-0511 ●
331 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 0303-0511 ●
332 PIPE; OIL,C/BL TO VAC PUMP 8-94443-644-1 01 1 0303-0511 ●
335 STOPPER; OIL PIPE 8-97203-568-0 01 1 0303-0511 ●
338 BOLT; JOINT,OIL PIPE
M8X20 FLANGE 		5-09675-018-1 01 1 0303-0511 ●
339 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 0303-0511 ●
339 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0303-0511 ●

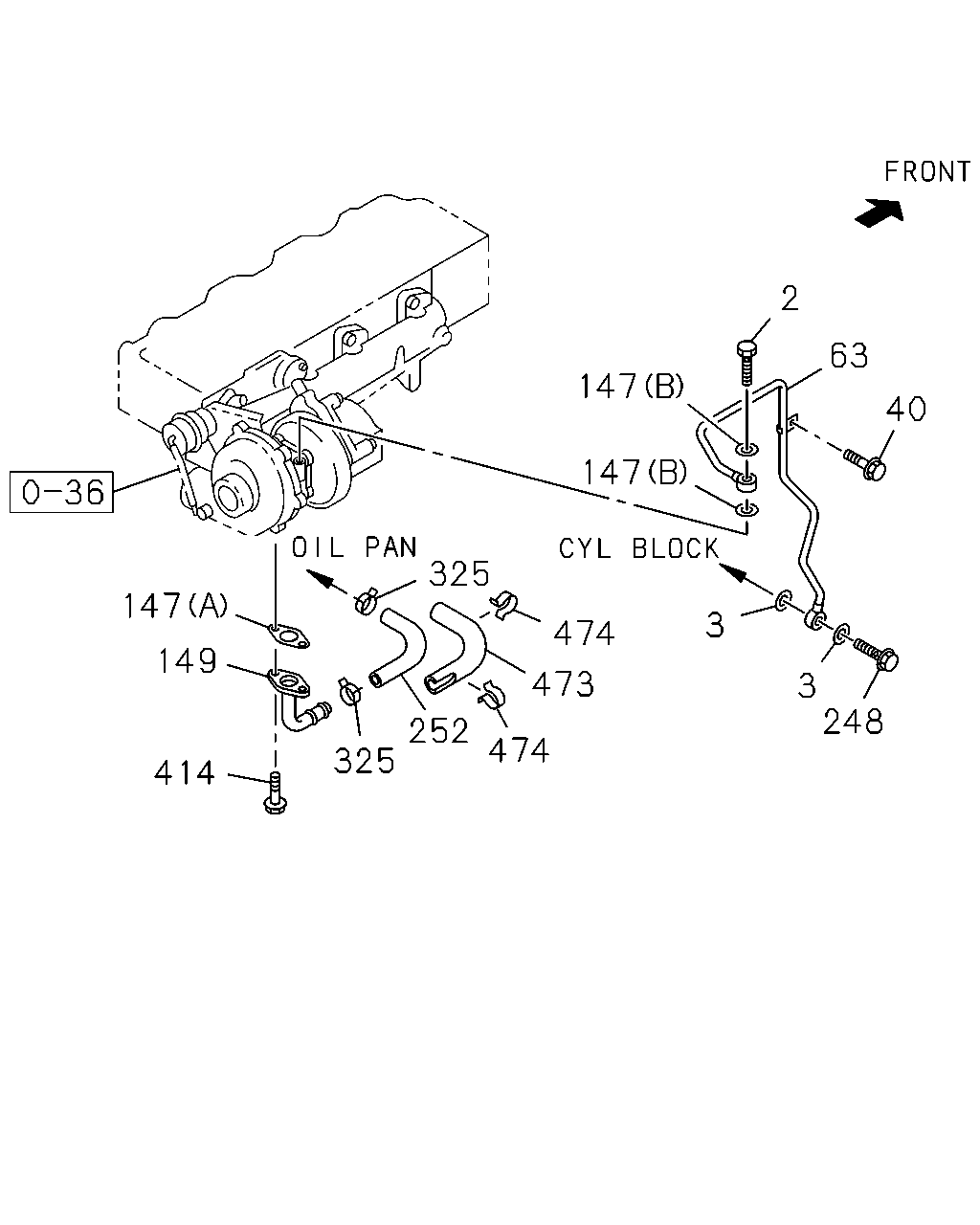

çizim 56516
2 63 147 40 147 325 147 3 474 149 473 3 248 252 325 474 414
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; EYE,OIL PIPE
M10X23 FLANGE 		8-94332-831-1 01 1 0303-0511 ●
2 BOLT; EYE,OIL PIPE
M10X21 FLANGE 		1-09675-077-0 02 1 0512-0805 ●
2 BOLT; EYE,OIL PIPE
M10X21 FLANGE 		8-97372-238-0 02 1 0806- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0 		9-09571-414-0 02 1 0303-0511 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 04 1 0512- ●
40 BOLT; OIL PIPE
M6X10 FLANGE 		0-28080-610-0 01 1 0303-0511 ●
63 PIPE; OIL,TURBOCHARGER FEED 8-97214-267-0 01 1 0303-0511 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14 		8-97041-638-0 01 1 0303-0511 ●
147 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0303-0511 ●
149 PIPE; OIL RETURN,TURBOCHARGER 8-97166-389-0 01 1 0303-0511 ●
248 CONNECTOR; TURBOCHARGER OIL FEED PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 0303-0511 ●
252 HOSE; RUBBER,TURBOCHARGER RETURN 8-97176-141-0 01 1 0303-0511 ●
325 CLIP; RUBBER HOSE,OIL RETURN
ID=20.8 		8-94125-862-1 02 1 0303-0511 ●
414 BOLT; OIL PIPE
M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 0303-0310 ●
414 BOLT; OIL PIPE
M6X16 FLANGE 		0-28080-616-0 02 1 0311-0511 ●
473 INSULATOR; HOSE 8-97101-331-0 02 1 0303-0511 ●
474 CLIP; INSULATOR 8-97101-337-0 04 1 0303-0511 ●
çizim 56797
3 3 3 1 2 3 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; OIL,INJ PUMP TO C/BL 8-97093-547-1 01 1 0512- ●
2 BOLT; EYE,OIL PIPE
M10X23 FLANGE 		8-94332-831-1 01 1 0303-0511 ●
2 BOLT; EYE,OIL PIPE
M10X21 FLANGE 		1-09675-077-0 02 1 0512-0805 ●
2 BOLT; EYE,OIL PIPE
M10X21 FLANGE 		8-97372-238-0 02 1 0806- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0 		9-09571-414-0 02 1 0303-0511 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 04 1 0512- ●
