Sayfa 0-41 - Isuzu EPC

0-41 — FUEL FILTER AND BRACKET (#18969) — 61 parça

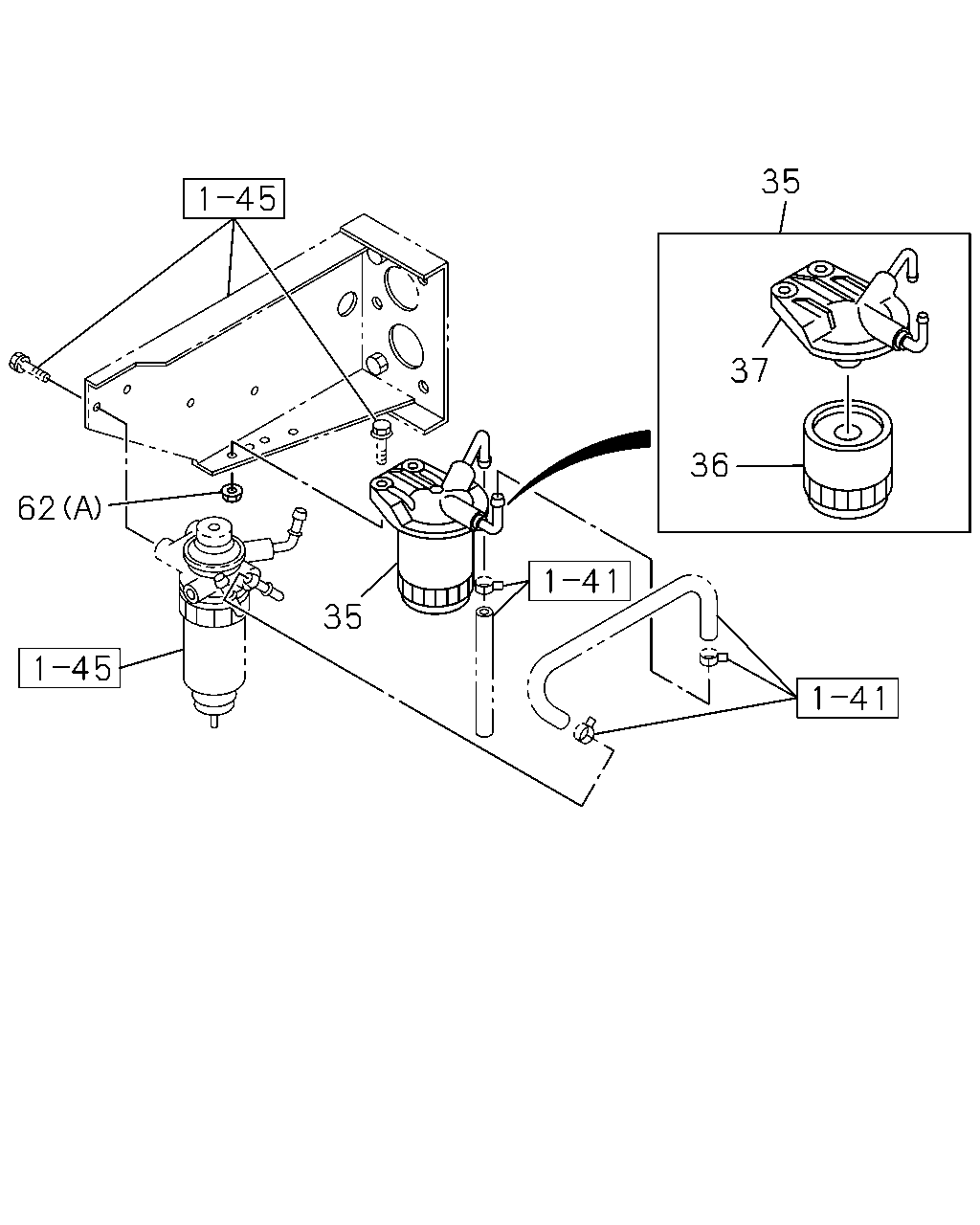

35 37 36 62 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
35	FILTER ASM; SUB FUEL FUEL FILTER DUAL(S6B)	8-98006-454-0	01	1	0512-	●
36	ELEMENT; FUEL FILTER FUEL FILTER DUAL(S6B)	8-97916-993-2	01	1	0512-	●
37	COVER; FUEL FILTER FUEL FILTER DUAL(S6B)	8-97917-558-0	01	1	0512-	●
62	NUT; FUEL FILTER (B) M10 FLANGE SOU	0-91150-110-0	02	1	0512-0602	●
62	NUT; FUEL FILTER (B) M10 FLANGE SOU	0-91180-110-0	02	1	0603-	●
62	NUT; FUEL FILTER (A) M10 FLANGE	0-91150-210-0	02	1	0303-0511		●
62	NUT; FUEL FILTER FUEL FILTER DUAL(S6B) (A) M10 FLANGE	0-91150-210-0	02	1	0512-0602	●
62	NUT; FUEL FILTER FUEL FILTER DUAL(S6B) (A) M10 FLANGE SOU	0-91180-210-0	02	1	0603-	●

62 62 1 1 20 10 9 20 9 9 9 20 9 57 2 56 11 20 15 2 15 16 14 62 1 8 19 12 6 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER ASM; FUEL FUEL FILTER DUAL(S6B)	8-97070-864-0	01	1	0303-0511		●
1	FILTER ASM; FUEL	8-97171-451-2	01	1	0512-	●
1	FILTER ASM; FUEL FUEL FILTER DUSTY ZONE(6KP)	8-94453-743-2	01	1	0303-0511		●
1	FILTER ASM; FUEL EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-97070-865-0	01	1	0303-0505		●
1	FILTER ASM; FUEL EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-98006-454-0	01	1	0506-0511		●
2	ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) SOU	8-94144-613-0	02	1	0303-0511		●
2	ELEMENT KIT; FUEL FILTER	8-97172-549-1	01	1	0512-	●
2	ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-94246-908-0	01	1	0303-0505		●
2	ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-97916-993-2	01	1	0506-0511		●
5	BOLT; FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	9-09202-308-0	01	1	0303-0511		●
6	GASKET; FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	9-09562-106-0	01	1	0303-0511		●
8	COVER; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-97363-518-0	01	1	0303-0505		●
8	COVER; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-97917-558-0	01	1	0506-0511		●
8	COVER; FUEL FILTER	8-97172-543-1	01	1	0512-	●
9	GASKET; EYE JOINT FUEL FILTER DUSTY ZONE(6KP) (A) ID=14.2 OD=20.0	9-09571-414-0	01	1	0303-0511		●
9	GASKET; EYE JOINT FUEL FILTER DUSTY ZONE(6KP) (B) ID=14.2 OD=23.0	9-09572-014-0	04	1	0303-0511		●
10	VALVE; OVERFLOW,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	9-09862-056-0	01	1	0303-0511		●
11	GASKET; CASE TO BODY,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	9-13213-040-1	01	1	0303-0511		●
12	BOLT; CENTER,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	1-13231-012-0	01	1	0303-0511		●
14	SPRING; ELEMENT SUPPORT,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	1-09580-149-0	01	1	0303-0511		●
15	GASKET; HOLDER TO ELEMENT,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	1-09630-007-0	02	1	0303-0511		●
16	HOLDER; ELEMENT,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	9-09859-040-0	01	1	0303-0511		●
19	GASKET; BOLT TO CASE,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP)	9-09920-586-0	01	1	0303-0511		●
20	JOINT; EYE,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP) (A)	8-97019-867-0	02	1	0303-0511		●
20	JOINT; EYE,FUEL FILTER FUEL FILTER DUSTY ZONE(6KP) (B) M14X29 EYE BOLT	9-09906-325-1	02	1	0303-0511		●
56	PLUG; FUEL FILTER FUEL FILTER DUAL(S6B)	5-13226-001-0	01	1	0303-0511		●
57	GASKET; PLUG FUEL FILTER DUAL(S6B) ID=14.2 OD=20.0	9-09571-414-0	01	1	0303-0511		●
62	NUT; FUEL FILTER (B) M10 FLANGE SOU	0-91150-110-0	02	1	0512-0602	●
62	NUT; FUEL FILTER (B) M10 FLANGE SOU	0-91180-110-0	02	1	0603-	●
62	NUT; FUEL FILTER (A) M10 FLANGE	0-91150-210-0	02	1	0303-0511		●
62	NUT; FUEL FILTER FUEL FILTER DUAL(S6B) (A) M10 FLANGE	0-91150-210-0	02	1	0512-0602	●
62	NUT; FUEL FILTER FUEL FILTER DUAL(S6B) (A) M10 FLANGE SOU	0-91180-210-0	02	1	0603-	●

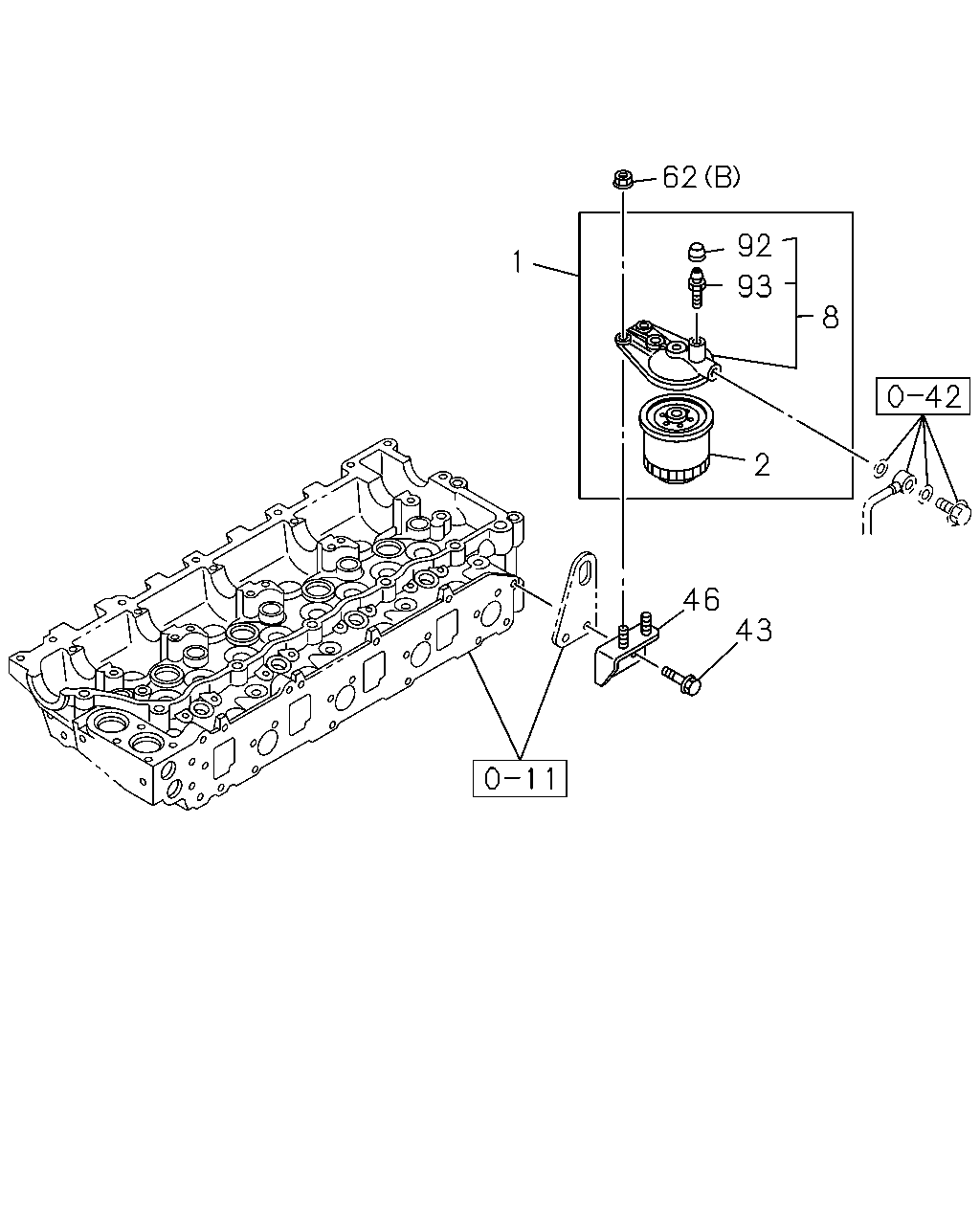

62 92 1 93 8 2 46 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FILTER ASM; FUEL FUEL FILTER DUAL(S6B)	8-97070-864-0	01	1	0303-0511		●
1	FILTER ASM; FUEL	8-97171-451-2	01	1	0512-	●
1	FILTER ASM; FUEL FUEL FILTER DUSTY ZONE(6KP)	8-94453-743-2	01	1	0303-0511		●
1	FILTER ASM; FUEL EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-97070-865-0	01	1	0303-0505		●
1	FILTER ASM; FUEL EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-98006-454-0	01	1	0506-0511		●
2	ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL(S6B) SOU	8-94144-613-0	02	1	0303-0511		●
2	ELEMENT KIT; FUEL FILTER	8-97172-549-1	01	1	0512-	●
2	ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-94246-908-0	01	1	0303-0505		●
2	ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-97916-993-2	01	1	0506-0511		●
8	COVER; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-97363-518-0	01	1	0303-0505		●
8	COVER; FUEL FILTER EXC. FUEL FILTER DUAL(S6B),FUEL FILTER DUSTY ZONE(6KP)	8-97917-558-0	01	1	0506-0511		●
8	COVER; FUEL FILTER	8-97172-543-1	01	1	0512-	●
43	BOLT; BRKT M12X28 FLANGE	0-28181-228-0	02	1	0512-	●
46	BRACKET	8-94313-323-1	01	1	0512-	●
62	NUT; FUEL FILTER (B) M10 FLANGE SOU	0-91150-110-0	02	1	0512-0602	●
62	NUT; FUEL FILTER (B) M10 FLANGE SOU	0-91180-110-0	02	1	0603-	●
62	NUT; FUEL FILTER (A) M10 FLANGE	0-91150-210-0	02	1	0303-0511		●
62	NUT; FUEL FILTER FUEL FILTER DUAL(S6B) (A) M10 FLANGE	0-91150-210-0	02	1	0512-0602	●
62	NUT; FUEL FILTER FUEL FILTER DUAL(S6B) (A) M10 FLANGE SOU	0-91180-210-0	02	1	0603-	●
92	CAP; FUEL FILTER	8-97172-548-0	01	1	0512-	●
93	CONNECTOR; FUEL FILTER	8-97172-546-1	01	1	0512-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
