◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50953 - NKR(SOUTH AFRICA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#18968) — 215 parça

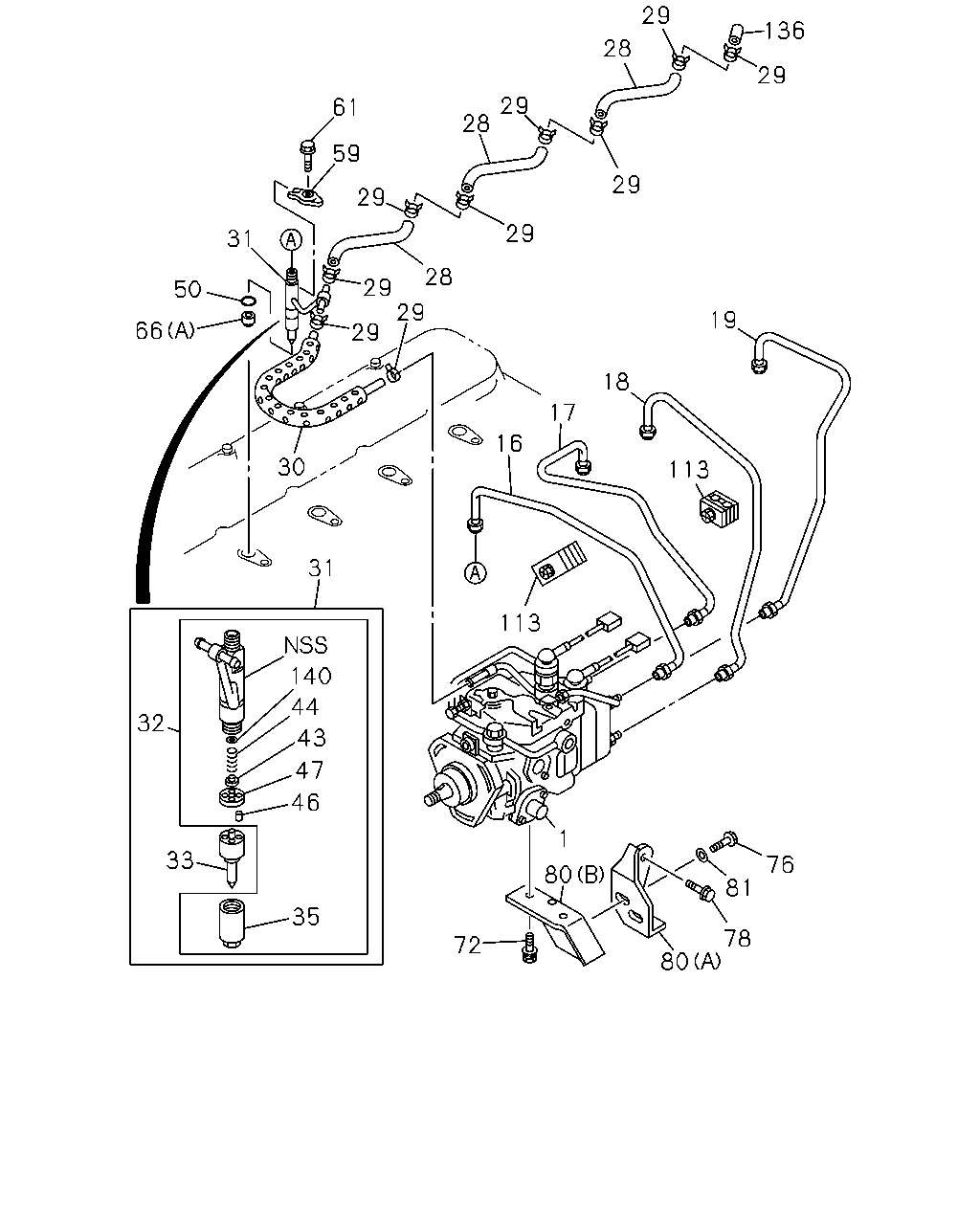

çizim 11113
29 136 28 29 29 28 61 59 29 29 29 31 28 29 29 50 19 66 29 18 17 16 30 113 31 113 140 44 32 43 47 46 1 33 76 80 81 35 78 72 80
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TACHOMETER<U16> 		8-97216-366-0 01 1 0303-0511 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97203-383-0 01 1 0512- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TACHOMETER<U16> 		8-97216-365-0 01 1 0303-0511 ●
16 PIPE; INJ NO.1 8-97120-154-2 01 1 0303-0511 ●
16 PIPE; INJ NO.1 8-97123-374-0 01 1 0512- ●
17 PIPE; INJ NO.2 8-97120-155-2 01 1 0303-0511 ●
17 PIPE; INJ NO.2 8-97123-375-0 01 1 0512- ●
18 PIPE; INJ NO.3 8-97120-156-2 01 1 0303-0511 ●
18 PIPE; INJ NO.3 8-97123-376-0 01 1 0512- ●
19 PIPE; INJ NO.4 8-97120-157-3 01 1 0303-0511 ●
19 PIPE; INJ NO.4 8-97123-377-1 01 1 0512- ●
28 HOSE; FUEL,NOZZLE TO NOZZLE 8-94152-353-0 03 1 0303-0308 ●
28 HOSE; FUEL,NOZZLE TO NOZZLE 8-97912-623-0 03 1 0309-0511 ●
29 CLIP; HOSE
ID=11 		8-97173-219-0 02 1 0306-0511 ●
29 CLIP; HOSE
ID=12 		8-94238-610-0 09 1 0303-0305 ●
29 CLIP; HOSE
ID=12 		8-94238-610-0 07 1 0306-0311 ●
29 CLIP; HOSE
ID=13 		8-94238-571-0 07 1 0312-0511 ●
30 HOSE; RUBBER,FUEL LEAK
L=240 		8-97364-774-0 01 1 0303-0511 ●
31 NOZZLE ASM; INJ 8-97103-276-0 04 1 0303-0511 ●
31 NOZZLE ASM; INJ 8-97119-812-0 04 1 0512- ●
32 HOLDER ASM; NOZZLE 8-94442-225-0 04 1 0303-0511 ●
32 HOLDER ASM; NOZZLE 8-94311-966-2 04 1 0512- ●
33 NOZZLE; INJ 8-97109-670-0 04 1 0303-0511 ●
33 NOZZLE; INJ 8-97119-810-0 04 1 0512- ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 04 1 0303-0511 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 04 1 0512- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-94312-723-0 04 1 0303-0511 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-94329-555-0 04 1 0512- ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 04 1 0303-0511 ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 04 1 0512- ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 08 1 0303-0511 ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 08 1 0512- ●
47 SPACER; NOZZLE SPRING,NOZZLE HOLDER 8-94174-183-0 04 1 0303-0511 ●
50 GASKET; NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97287-402-2 04 1 0303-0511 ●
59 CLAMP; NOZZLE HOLDER 8-94433-427-0 04 1 0303-0511 ●
61 BOLT; CLAMP NOZZLE HOLDER 8-94433-717-1 04 1 0303-0511 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-94326-439-0 04 1 0512- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0303-0511 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0512- ●
72 BOLT; BRKT TO INJ PUMP
M10X20 W/LK WASHER 		0-50051-020-0 02 1 0303-0511 ●
76 BOLT; BRKT TO BRKT
M8X25 W/LK WASHER 		0-50040-825-0 02 1 0303-0511 ●
78 BOLT; BRKT TO C/BL
M8X20 FLANGE 		0-28680-820-0 02 1 0303-0511 ●
78 BOLT; BRKT TO C/BL
M10X20 FLANGE 		0-28781-020-0 02 1 0512-0512 ●
78 BOLT; BRKT TO C/BL
M10X20 FLANGE 		0-28751-020-0 02 1 0601- ●
80 BRACKET; PUMP
(A) 		8-94133-761-1 01 1 0303-0407 ●
80 BRACKET; PUMP
(A) 		8-97368-670-0 01 1 0408-0511 ●
80 BRACKET; PUMP
(C) 		8-97136-677-0 01 1 0512- ●
80 BRACKET; PUMP
(B) 		8-94133-762-2 01 1 0303-0402 ●
80 BRACKET; PUMP
(B) 		8-97368-671-0 01 1 0403-0511 ●
81 WASHER; PL,BRKT TO PUMP
ID=8.4 OD=22 		9-09164-708-0 02 1 0303-0511 ●
113 CLIP; INJ PIPE 5-15419-013-1 02 1 0303-0511 ●
113 CLIP; INJ PIPE 8-97213-050-0 04 1 0512- ●
136 CAP; NOZZLE,FUEL END 8-94473-967-0 01 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.500 		8-94174-142-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-97027-432-0 AR 1 0512- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.525 		8-94174-143-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-97027-433-0 AR 1 0512- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.550 		8-94174-144-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-97027-434-0 AR 1 0512- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.575 		8-94174-145-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-97027-435-0 AR 1 0512- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.600 		8-94174-146-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		8-97027-436-0 AR 1 0512- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.625 		8-94174-147-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		8-97027-437-0 AR 1 0512- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.650 		8-94174-148-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		8-97027-438-0 AR 1 0512- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.675 		8-94174-149-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		8-97027-439-0 AR 1 0512- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.700 		8-94174-150-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		8-97027-440-0 AR 1 0512- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.725 		8-94174-151-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.750 		8-94174-152-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.775 		8-94174-153-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.800 		8-94174-154-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.825 		8-94174-155-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.850 		8-94174-156-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.875 		8-94174-157-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.900 		8-94174-158-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.925 		8-94174-159-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.950 		8-94174-160-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.975 		8-94174-161-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.000 		8-94174-162-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.025 		8-94174-163-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.050 		8-94174-164-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.075 		8-94174-165-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.100 		8-94174-166-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.125 		8-94174-167-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.150 		8-94174-168-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.175 		8-94174-169-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.200 		8-94174-170-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.225 		8-94174-171-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.250 		8-94174-172-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.275 		8-94174-173-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.300 		8-94174-174-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.325 		8-94174-175-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.350 		8-94174-176-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.375 		8-94174-177-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.400 		8-94174-178-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.425 		8-94174-179-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.450 		8-94174-180-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.475 		8-94174-181-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.500 		8-94174-182-0 AR 1 0303-0511 ●
çizim 51544
31 32 34 58 140 44 43 146 46 33 35
BalonParca AdiParca NoAdetTipApplied Date A B
31 NOZZLE ASM; INJ 8-97103-276-0 04 1 0303-0511 ●
31 NOZZLE ASM; INJ 8-97119-812-0 04 1 0512- ●
32 HOLDER ASM; NOZZLE 8-94442-225-0 04 1 0303-0511 ●
32 HOLDER ASM; NOZZLE 8-94311-966-2 04 1 0512- ●
33 NOZZLE; INJ 8-97109-670-0 04 1 0303-0511 ●
33 NOZZLE; INJ 8-97119-810-0 04 1 0512- ●
34 BOLT; EYE,NOZZLE HOLDER 1-15339-009-0 04 1 0512- ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 04 1 0303-0511 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 04 1 0512- ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-94312-723-0 04 1 0303-0511 ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-94329-555-0 04 1 0512- ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 04 1 0303-0511 ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 04 1 0512- ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 08 1 0303-0511 ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 08 1 0512- ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 04 1 0512- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.500 		8-94174-142-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-97027-432-0 AR 1 0512- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.525 		8-94174-143-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-97027-433-0 AR 1 0512- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.550 		8-94174-144-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-97027-434-0 AR 1 0512- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.575 		8-94174-145-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-97027-435-0 AR 1 0512- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.600 		8-94174-146-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		8-97027-436-0 AR 1 0512- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.625 		8-94174-147-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		8-97027-437-0 AR 1 0512- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.650 		8-94174-148-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		8-97027-438-0 AR 1 0512- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.675 		8-94174-149-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		8-97027-439-0 AR 1 0512- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.700 		8-94174-150-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		8-97027-440-0 AR 1 0512- ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.725 		8-94174-151-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.750 		8-94174-152-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.775 		8-94174-153-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.800 		8-94174-154-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.825 		8-94174-155-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.850 		8-94174-156-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.875 		8-94174-157-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.900 		8-94174-158-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.925 		8-94174-159-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.950 		8-94174-160-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.975 		8-94174-161-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.000 		8-94174-162-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.025 		8-94174-163-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.050 		8-94174-164-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.075 		8-94174-165-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.100 		8-94174-166-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.125 		8-94174-167-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.150 		8-94174-168-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.175 		8-94174-169-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.200 		8-94174-170-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.225 		8-94174-171-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.250 		8-94174-172-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.275 		8-94174-173-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.300 		8-94174-174-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.325 		8-94174-175-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.350 		8-94174-176-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.375 		8-94174-177-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.400 		8-94174-178-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.425 		8-94174-179-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.450 		8-94174-180-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.475 		8-94174-181-0 AR 1 0303-0511 ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=1.500 		8-94174-182-0 AR 1 0303-0511 ●
146 SPACER; NOZZLE 8-94344-439-0 04 1 0512- ●

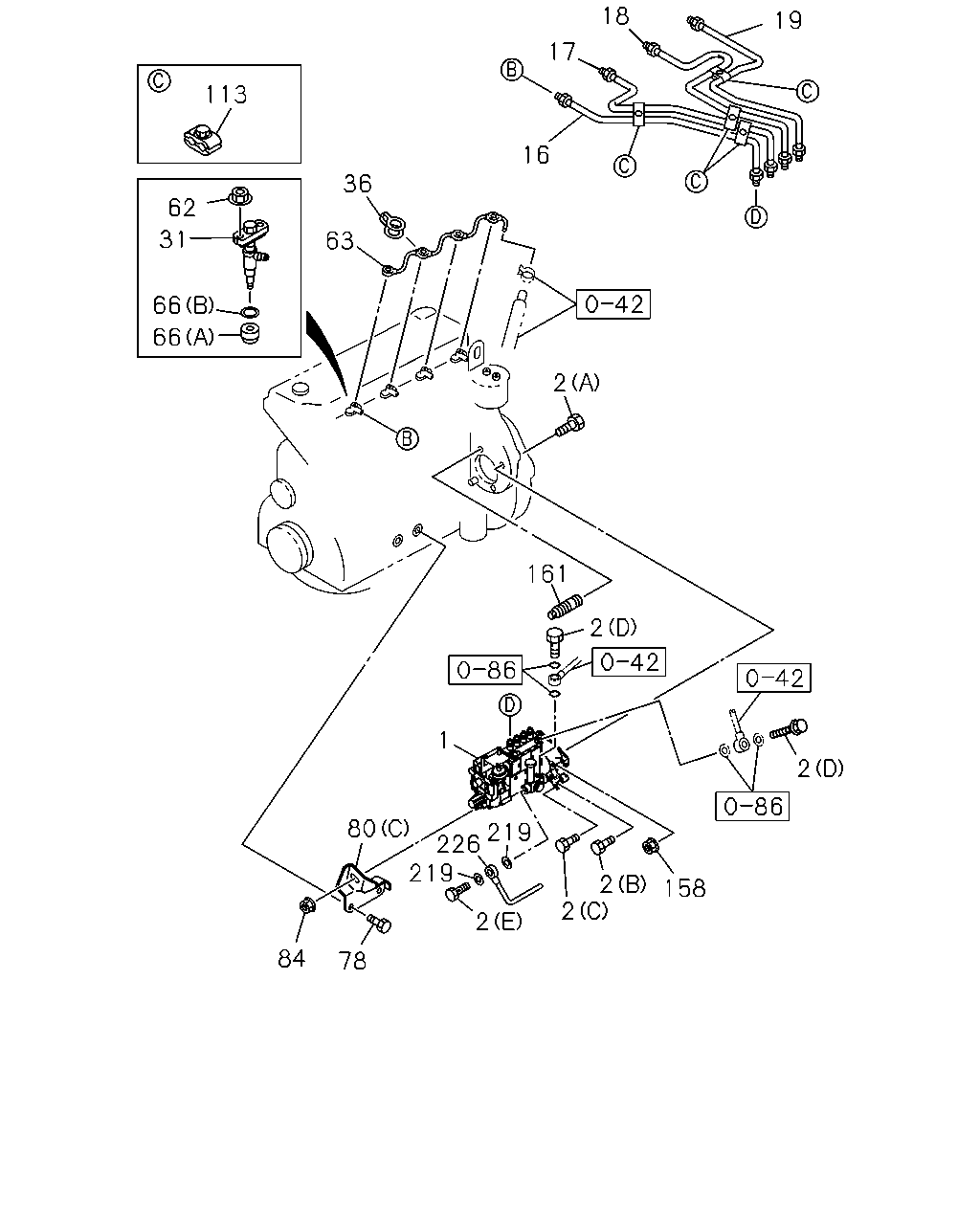

çizim 54366
18 19 17 113 16 36 62 31 63 66 66 2 161 2 1 2 219 226 219 80 2 2 158 2 84 78
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TACHOMETER<U16> 		8-97216-366-0 01 1 0303-0511 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-97203-383-0 01 1 0512- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TACHOMETER<U16> 		8-97216-365-0 01 1 0303-0511 ●
2 BOLT; INJ PUMP
(A) M10X70 FLANGE 		0-28181-070-0 01 1 0512-0512 ●
2 BOLT; INJ PUMP
(A) M10X70 FLANGE 		0-28151-070-0 01 1 0601- ●
2 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28181-270-0 01 1 0512-0512 ●
2 BOLT; INJ PUMP
(B) M12X70 FLANGE 		0-28151-270-0 01 1 0601- ●
2 BOLT; INJ PUMP
(C) M12X90 FLANGE 		0-28181-290-0 01 1 0512-0512 ●
2 BOLT; INJ PUMP
(C) M12X90 FLANGE 		0-28151-290-0 01 1 0601- ●
2 BOLT; INJ PUMP
(D) M14X27 FLANGE 		1-09675-086-0 02 1 0512- ●
2 BOLT; INJ PUMP
(E) M14X30 		8-97203-957-0 01 1 0512- ●
16 PIPE; INJ NO.1 8-97120-154-2 01 1 0303-0511 ●
16 PIPE; INJ NO.1 8-97123-374-0 01 1 0512- ●
17 PIPE; INJ NO.2 8-97120-155-2 01 1 0303-0511 ●
17 PIPE; INJ NO.2 8-97123-375-0 01 1 0512- ●
18 PIPE; INJ NO.3 8-97120-156-2 01 1 0303-0511 ●
18 PIPE; INJ NO.3 8-97123-376-0 01 1 0512- ●
19 PIPE; INJ NO.4 8-97120-157-3 01 1 0303-0511 ●
19 PIPE; INJ NO.4 8-97123-377-1 01 1 0512- ●
31 NOZZLE ASM; INJ 8-97103-276-0 04 1 0303-0511 ●
31 NOZZLE ASM; INJ 8-97119-812-0 04 1 0512- ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.6 		8-94395-214-0 04 1 0512- ●
62 NUT; NOZZLE HOLDER
M8 FLANGE SOU 		0-91150-108-0 08 1 0512-0602 ●
62 NUT; NOZZLE HOLDER
M8 FLANGE SOU 		0-91180-108-0 08 1 0603- ●
63 PIPE; FUEL,NOZZLE LEAK OFF 8-97118-895-0 01 1 0512- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-94326-439-0 04 1 0512- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0303-0511 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=7.2 OD=15.0 T=6.6 		8-97171-331-0 04 1 0512- ●
78 BOLT; BRKT TO C/BL
M8X20 FLANGE 		0-28680-820-0 02 1 0303-0511 ●
78 BOLT; BRKT TO C/BL
M10X20 FLANGE 		0-28781-020-0 02 1 0512-0512 ●
78 BOLT; BRKT TO C/BL
M10X20 FLANGE 		0-28751-020-0 02 1 0601- ●
80 BRACKET; PUMP
(A) 		8-94133-761-1 01 1 0303-0407 ●
80 BRACKET; PUMP
(A) 		8-97368-670-0 01 1 0408-0511 ●
80 BRACKET; PUMP
(C) 		8-97136-677-0 01 1 0512- ●
80 BRACKET; PUMP
(B) 		8-94133-762-2 01 1 0303-0402 ●
80 BRACKET; PUMP
(B) 		8-97368-671-0 01 1 0403-0511 ●
84 NUT; BRKT TO BRKT
M10 FLANGE 		0-91150-210-0 01 1 0512-0602 ●
84 NUT; BRKT TO BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 0603- ●
113 CLIP; INJ PIPE 5-15419-013-1 02 1 0303-0511 ●
113 CLIP; INJ PIPE 8-97213-050-0 04 1 0512- ●
158 NUT; INJ PUMP
M10 FLANGE SOU 		0-91150-110-0 02 1 0512-0602 ●
158 NUT; INJ PUMP
M10 FLANGE SOU 		0-91180-110-0 02 1 0603- ●
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97363-237-0 02 1 0512- ●
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 SOU 		1-09630-085-0 02 1 0512- ●
226 PIPE; FUEL 8-97203-567-0 01 1 0512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
