Isuzu WW
▶
TRUCKS
▶
NKR
▶
50953 - NKR(SOUTH AFRICA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶

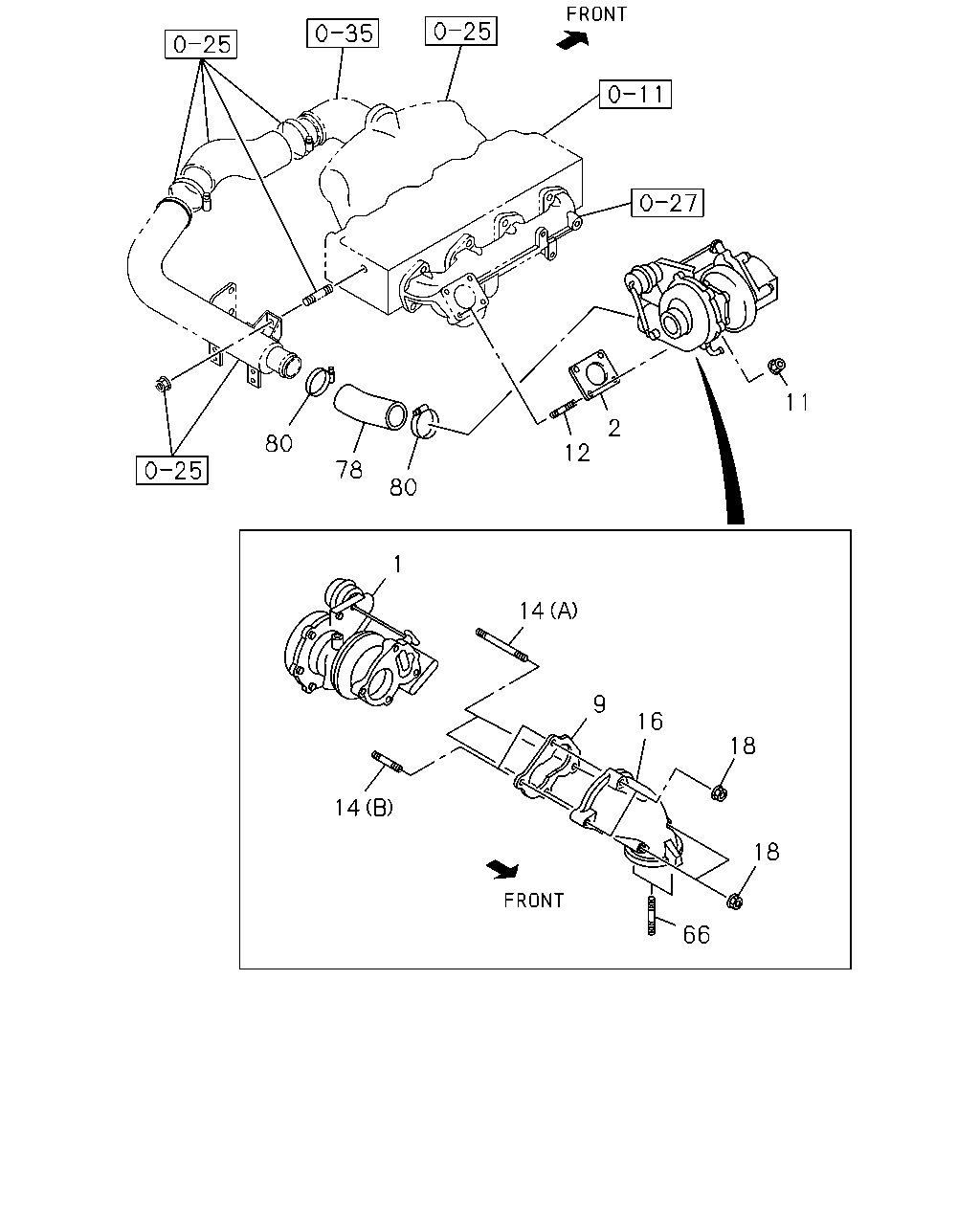

0-36 — TURBOCHARGER SYSTEM
(#18966) — 14 parça
11
2
80
12
78
80
1
14
9
16
18
14
18
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
8-97176-080-1
01
1
0303-0511
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94433-605-0
01
1
0303-0511
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-94433-604-0
01
1
0303-0511
11
NUT; TURBOCHARGER
M8 FLANGE
8-97161-607-0
04
1
0303-0511
12
STUD; TURBOCHARGER
M8X20 L=31
8-97104-508-1
04
1
0303-0408
12
STUD; TURBOCHARGER
M8X20 L=31
8-97378-060-0
04
1
0409-0511
14
STUD; TURBOCHARGER TO EXH PIPE
(A) M8X105 L=116
8-94362-047-0
02
1
0303-0511
14
STUD; TURBOCHARGER TO EXH PIPE
(B) M8X41 L=52
8-97188-452-0
02
1
0303-0406
14
STUD; TURBOCHARGER TO EXH PIPE
(B) M8X43 L=54
8-97104-507-1
02
1
0407-0511
16
ADAPTER; EXH PIPE
8-97176-079-0
01
1
0303-0511
18
NUT; EXH PIPE
M8 FLANGE
8-97161-607-0
04
1
0303-0511
66
STUD; EXH PIPE
M10X45 L=60 PLATING
5-09302-008-1
02
1
0303-0511
78
HOSE; INL PIPE,TURBOCHARGER
8-97176-146-0
01
1
0303-0511
80
CLIP; CONN HOSE,TURBOCHARGER
ID=45.5-56.5 SOU
8-97131-943-0
02
1
0303-0511
