0-32 — WATER PIPING; ENGINE (#18963) — 16 parça

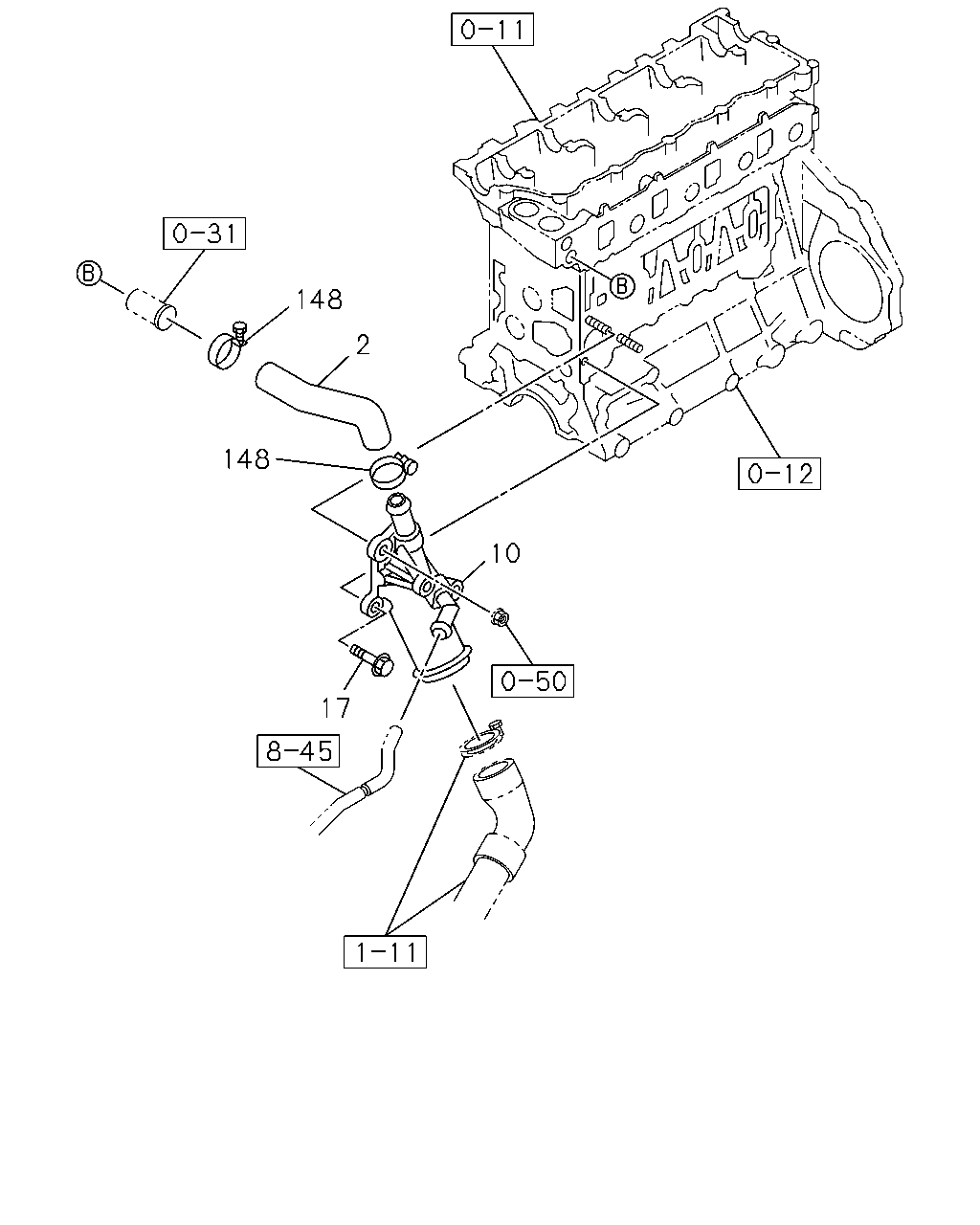

148 2 148 10 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; WATER,BY-PASS	8-97037-464-0	01	1	0303-0511	●
2	HOSE; WATER,BY-PASS	8-97209-948-0	01	1	0512-		●
10	PIPE; SUCTION	8-97216-157-1	01	1	0512-		●
17	BOLT; SUCTION PIPE M8X48 FLANGE	8-94458-473-1	01	1	0512-		●
148	CLIP; BYPASS HOSE ID=30	9-09915-315-1	02	1	0512-		●

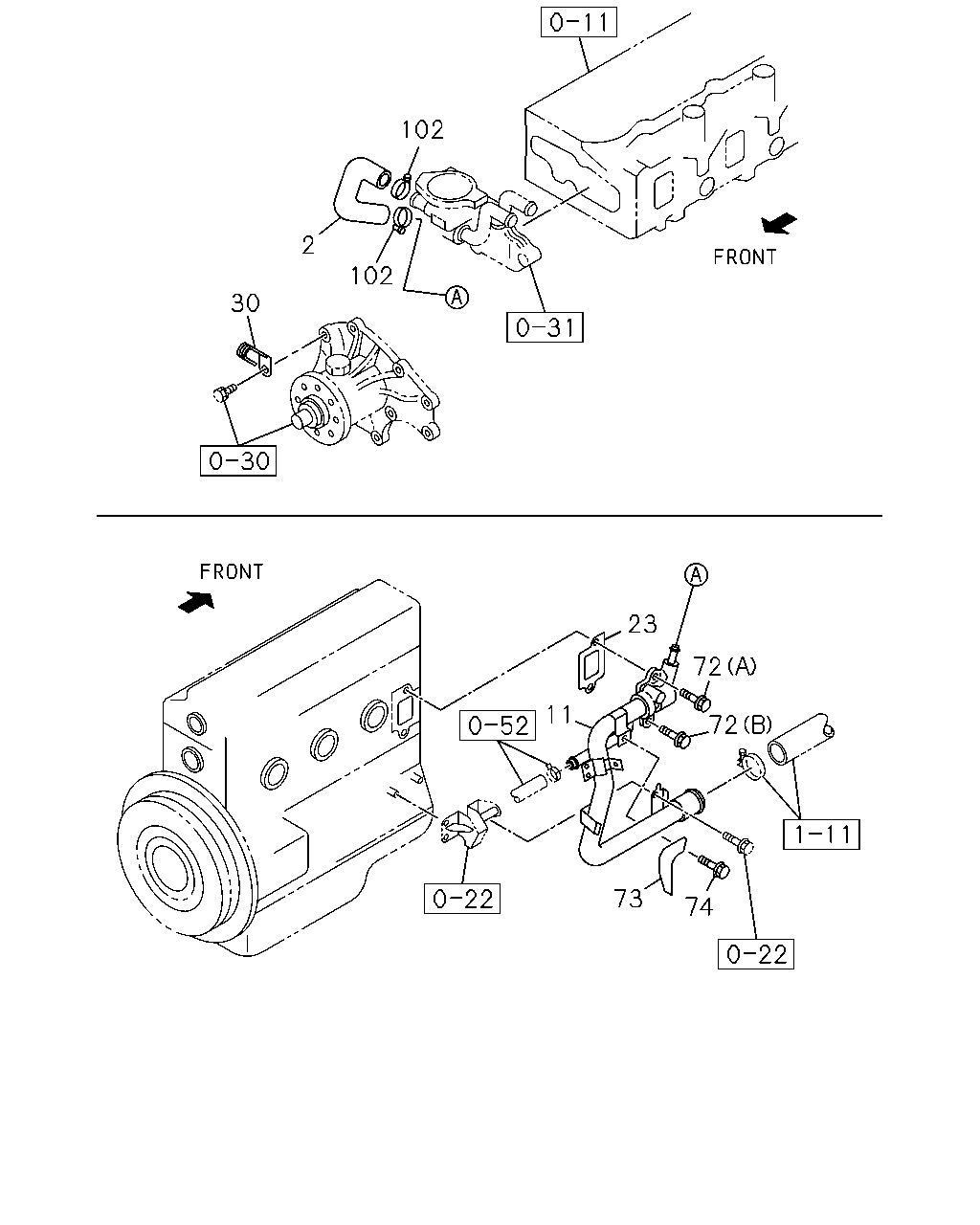

102 2 102 30 23 72 11 72 73 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOSE; WATER,BY-PASS	8-97037-464-0	01	1	0303-0511	●
2	HOSE; WATER,BY-PASS	8-97209-948-0	01	1	0512-		●
11	PIPE; INL,WATER PUMP	8-97063-639-3	01	1	0303-0511	●
23	GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-3	01	1	0303-0511	●
30	CLIP; HARNESS ID=12	5-09700-331-0	01	1	0303-0303	●
30	CLIP; HARNESS ID=12	8-97367-983-0	01	1	0303-0511	●
72	BOLT; WATER PIPE (A) M8X20 FLANGE	0-28080-820-0	01	1	0303-0511	●
72	BOLT; WATER PIPE (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0303-0511	●
73	PROTECTOR; HEAT,WATER PIPE	8-97043-743-1	01	1	0303-0511	●
74	BOLT; HEAT PROTECTOR FIX M8X16 W/LK&PL WASHER	0-50140-816-0	03	1	0303-0511	●
102	CLIP; WATER HOSE ID=20.8	8-94125-862-1	02	1	0303-0511	●
