Isuzu WW
▶
TRUCKS
▶
NKR
▶
50953 - NKR(SOUTH AFRICA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶
0-25 — INLET MANIFOLD
(#18958) — 63 parça
Tümü
A - 4JB1 ENG
B - 4HF1 ENG
◀
[025A] 4JB1 VAC HOSE,VALVE ASM AND OTHER PARTS (9 parça)
[025A] 4JB1 INLET MANIFOLD AND OTHER PARTS (23 parça)
[025A] 4HF1 (31 parça)
▶
114
114
306
115
115
115
480
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
114
HOSE; VAC,INT THROTTLE
EXHAUST BRAKE<NF8> (B) L=890
8-97302-168-0
01
1
0303-0511
●
114
HOSE; VAC,INT THROTTLE
EXHAUST BRAKE<NF8> (A) L=310
8-97309-000-0
01
1
0303-0511
●
115
CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> (A) ID=8 & 23
5-09707-002-0
01
1
0303-0511
●
115
CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> (C) ID=6.8X2
8-94126-636-0
01
1
0303-0511
●
115
CLIP; VAC HOSE,INT THROTTLE
EXHAUST BRAKE<NF8> (B) ID=37
8-94481-468-0
01
1
0303-0511
●
306
BOLT; VLV
EXHAUST BRAKE<NF8> M8X12 FLANGE
0-28080-812-0
01
1
0303-0511
●
306
BOLT; VLV
M8X45 FLANGE
0-28080-845-0
05
1
0512-0512
●
306
BOLT; VLV
M8X45 FLANGE SOU
0-28050-845-0
05
1
0601-
●
480
VALVE ASM; VAC SW
EXHAUST BRAKE<NF8>
8-94144-597-1
01
1
0303-0511
●
27
1
184
53
7
27
23
13
20
260
61
1
62
61
64
77
55

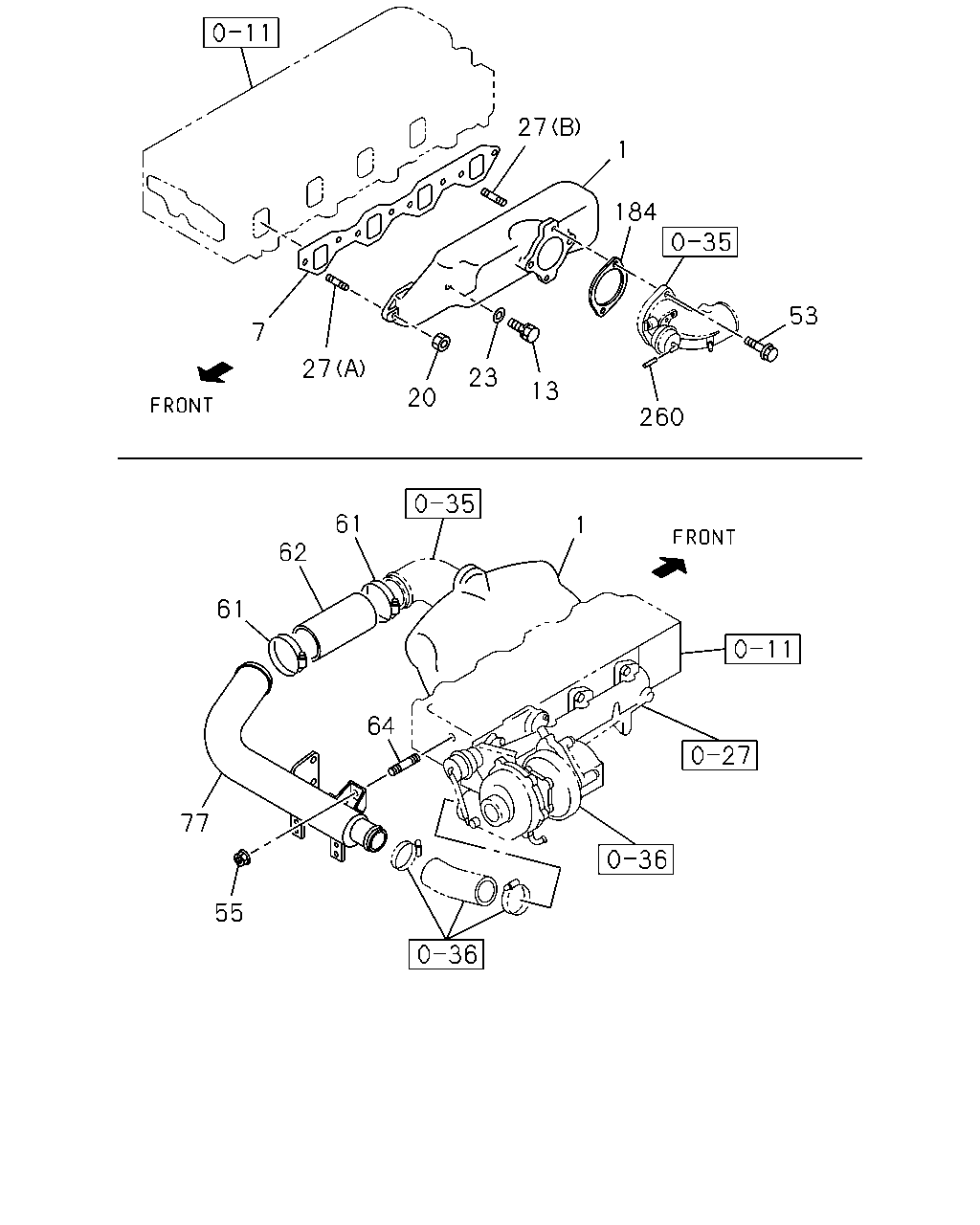

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
MANIFOLD; INL
8-97107-744-1
01
1
0303-0511
●
7
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97301-838-1
01
1
0303-0511
●
13
BOLT; INL MANIF
M8X25 W/LK WASHER
0-50040-825-0
06
1
0303-0511
●
13
BOLT; INL MANIF
M8X30 FLANGE
0-28080-830-0
08
1
0512-0512
●
13
BOLT; INL MANIF
M8X30 FLANGE
0-28050-830-0
08
1
0601-
●
20
NUT; INL MANIF
M8 FLANGE SOU
5-09440-005-0
02
1
0303-0511
●
20
NUT; INL MANIF
M8 FLANGE SOU
0-91150-108-0
02
1
0512-0602
●
20
NUT; INL MANIF
M8 FLANGE SOU
0-91180-108-0
02
1
0603-
●
23
WASHER; PL,INL MANIF
ID=8.4 OD=22
9-09164-708-0
01
1
0303-0511
●
27
STUD; INL MANIF
(A) M8X25 L=37
9-04110-825-0
01
1
0303-0511
●
27
STUD; INL MANIF
(B) M8X35 L=46
9-09630-034-1
01
1
0303-0511
●
53
BOLT; INL PIPE
M10X25 FLANGE
0-28181-025-0
02
1
0303-0511
●
53
BOLT; INL PIPE
M8X30 FLANGE
0-28680-830-0
02
1
0512-0512
●
53
BOLT; INL PIPE
M8X30 FLANGE
0-28650-830-0
02
1
0601-
●
55
NUT; INL PIPE
M8 FLANGE SOU
0-91150-108-0
01
1
0303-0511
●
61
CLIP; CONNECTOR HOSE
ID=58-79
8-94126-771-0
02
1
0303-0403
●
61
CLIP; CONNECTOR HOSE
ID=58-76 SOU
1-09707-203-0
02
1
0404-0511
●
62
HOSE; CONNECTOR
8-97176-147-0
01
1
0303-0511
●
64
STUD; INL PIPE
M8X14 L=26
9-04110-814-0
01
1
0303-0511
●
77
PIPE; INL,INT SHUTTER TO INL MANIF
8-97176-076-0
01
1
0303-0511
●
184
GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97035-883-1
01
1
0303-0511
●
260
CAP; RUBBER
EXC. EXHAUST BRAKE<NF8> ID=4
8-94217-809-0
01
1
0303-0511
●
260
CAP; RUBBER
ID=4
8-94217-809-0
01
1
0512-
●
2
260
28
603
131
507
336
229
283
222
283
306
346
94
13
283
346
346
20
13
324
138
53

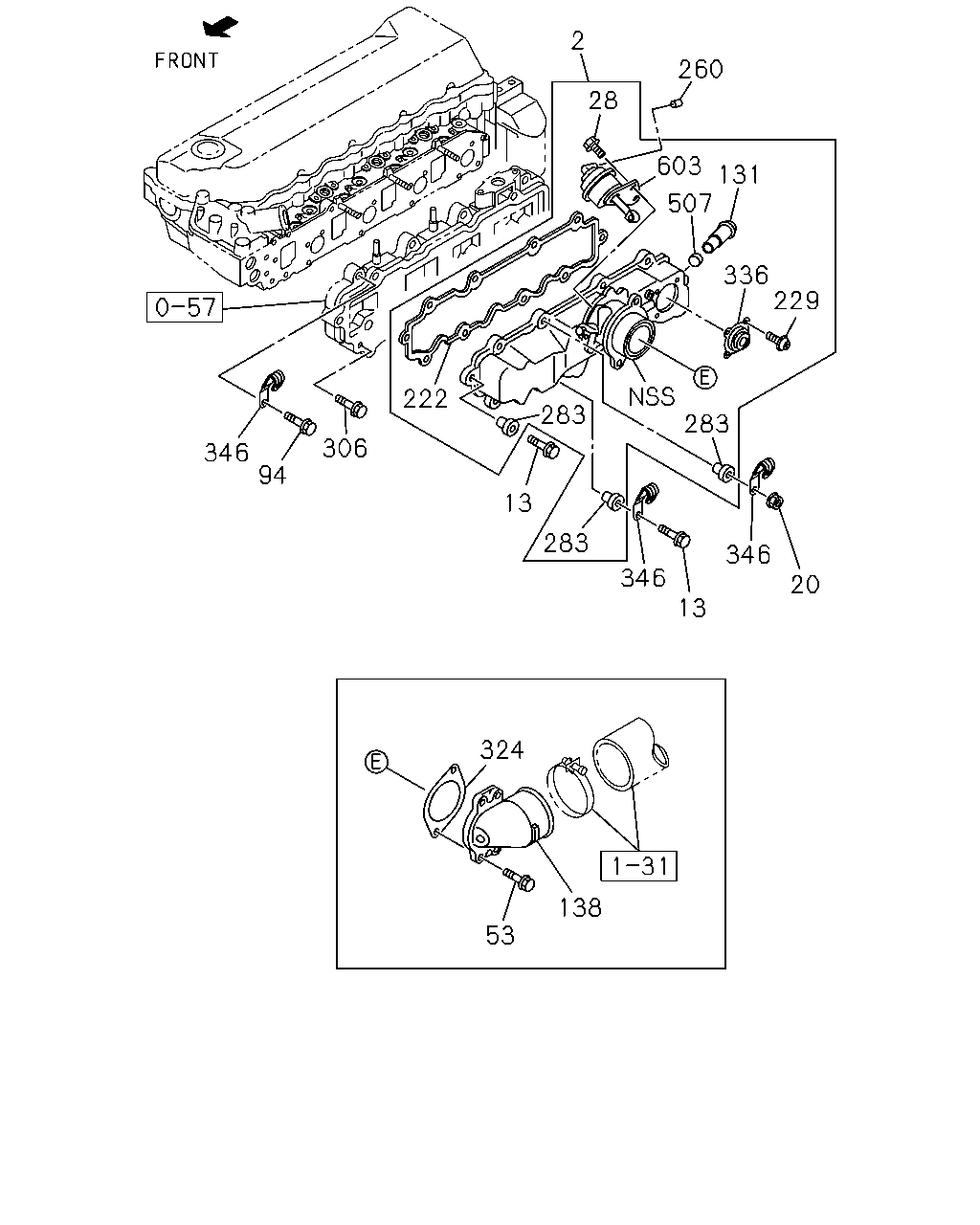

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
COVER; INL
8-97146-866-2
01
1
0512-
●
13
BOLT; INL MANIF
M8X25 W/LK WASHER
0-50040-825-0
06
1
0303-0511
●
13
BOLT; INL MANIF
M8X30 FLANGE
0-28080-830-0
08
1
0512-0512
●
13
BOLT; INL MANIF
M8X30 FLANGE
0-28050-830-0
08
1
0601-
●
20
NUT; INL MANIF
M8 FLANGE SOU
5-09440-005-0
02
1
0303-0511
●
20
NUT; INL MANIF
M8 FLANGE SOU
0-91150-108-0
02
1
0512-0602
●
20
NUT; INL MANIF
M8 FLANGE SOU
0-91180-108-0
02
1
0603-
●
28
BOLT; CHAMBER
M6X12 FLANGE
0-28080-612-0
02
1
0512-0512
●
28
BOLT; CHAMBER
M6X12 FLANGE
0-28050-612-0
02
1
0601-
●
53
BOLT; INL PIPE
M10X25 FLANGE
0-28181-025-0
02
1
0303-0511
●
53
BOLT; INL PIPE
M8X30 FLANGE
0-28680-830-0
02
1
0512-0512
●
53
BOLT; INL PIPE
M8X30 FLANGE
0-28650-830-0
02
1
0601-
●
94
BOLT
M8X30 FLANGE
0-28080-830-0
02
1
0512-0512
●
94
BOLT
M8X30 FLANGE
0-28050-830-0
02
1
0601-
●
131
PIPE; PCV,INL
8-97102-601-0
01
1
0512-
●
138
PIPE; INL
8-97180-566-2
01
1
0512-
●
222
GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97084-938-2
01
1
0512-
●
229
SCREW; VENTILATION VLV
M4X8 W/LK WASHER
9-03910-408-0
04
1
0512-0604
●
229
SCREW; VENTILATION VLV
M4X8 W/LK WASHER
0-36220-408-0
04
1
0605-
●
260
CAP; RUBBER
EXC. EXHAUST BRAKE<NF8> ID=4
8-94217-809-0
01
1
0303-0511
●
260
CAP; RUBBER
ID=4
8-94217-809-0
01
1
0512-
●
283
RUBBER
8-97105-689-6
10
1
0512-
●
306
BOLT; VLV
EXHAUST BRAKE<NF8> M8X12 FLANGE
0-28080-812-0
01
1
0303-0511
●
306
BOLT; VLV
M8X45 FLANGE
0-28080-845-0
05
1
0512-0512
●
306
BOLT; VLV
M8X45 FLANGE SOU
0-28050-845-0
05
1
0601-
●
324
GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97180-546-1
01
1
0512-
●
336
VALVE; VENTILATION
8-97119-887-0
01
1
0512-
●
346
CLIP; ENG HARNESS
ID=12
5-09700-350-0
03
1
0512-0801
●
346
CLIP; ENG HARNESS
ID=12
8-97367-984-1
03
1
0802-
●
507
ORIFICE
8-97088-649-0
01
1
0512-
●
603
CHAMBER; THROTTLE
8-97204-780-0
01
1
0512-
●
